Grizzly H7945 User manual

COPYRIGHT © NOVEMBER, 2006 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#JC8621 PRINTED IN TAIWAN
MODEL H7945/H7946/H7995
INSTRUCTION MANUAL
H7945 18 GAUGE
26° ANGLE NAILER
H7946 15 GAUGE
26° ANGLE NAILER
H7995 16 GAUGE
26° ANGLE NAILER

Safety Instructions For Pneumatic Tools
1. KEEP ALL SAFETY DEVICES IN
PLACE and in working order.
2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of check-
ing to see that keys and adjusting
wrenches are removed from tool
before operation.
3. KEEP WORK AREA CLEAN.
Cluttered areas and benches invite
accidents.
4. DO NOT USE IN DANGEROUS
ENVIRONMENT. Do not use pneu-
matic tools in damp or wet loca-
tions, or where any flammable or
noxious fumes may exist. Keep
work area well lighted.
5. KEEP CHILDREN AND VISITORS
AWAY. All children and visitors
should be kept at a safe distance
from work area.
6. MAKE WORKSHOP CHILD
PROOF by locking your shop and
shutting off air valves.
7. DO NOT FORCE TOOL. It will do
the job better and safer at the rate
for which it was designed.
8. USE THE RIGHT TOOL. Do not
force tool or attachment to do a job
for which it was not designed.
9. DO NOT USE UNDER THE
INFLUENCE OF DRUGS OR
ALCOHOL.
For Your Own Safety Read Instruction Manual
Before Operating This Equipment
The purpose of safety symbols is to attract your attention to possible hazard-
ous conditions. This manual uses a series of symbols and signal words which
are intended to convey the level of importance of the safety messages. The
progression of symbols is described below. Remember that safety messages by
themselves do not eliminate danger and are not a substitute for proper accident
prevention measures.
Indicates a potentially hazardous situation which, if
not avoided, MAY result in minor or moderate injury.
It may also be used to alert against unsafe practices.
Indicates a potentially hazardous situation which, if
not avoided, COULD result in death or serious injury.
Indicates an imminently hazardous situation which, if
not avoided, WILL result in death or serious injury.
This symbol is used to alert the user to useful infor-
mation about proper operation of the equipment.
SAFETY
NOTICE

H7945/H7946/H7995 26° Angle Nailer -1-
10. USE PROPER AIR HOSE for the
tool. Make sure your air hose is in
good condition and is long enough to
reach your work without stretching.
11. WEAR PROPER APPAREL. Do not
wear loose clothing, gloves, neck-
ties, rings, bracelets, or other jew-
elry which may get caught in moving
parts. Non-slip footwear is recom-
mended. Wear a protective hair cov-
ering to contain long hair.
12. ALWAYS USE ANSI APPROVED
SAFETY GLASSES. Also use a
face or dust mask if cutting operation
is dusty. Everyday eyeglasses only
have impact resistant lenses, they
are NOT safety glasses.
13. ALWAYS WEAR ANSI APPROVED
HEARING PROTECTION.
14. SECURE WORK. Use clamps or a
vise to hold work when practical. It is
safer than using your hand and frees
both hands to operate tool.
15. MAINTAIN TOOLS WITH CARE.
Keep tools lubricated and clean
for best and safest performance.
Follow instructions for lubricating
and changing accessories.
16. REDUCE THE RISK OF
UNINTENTIONAL STARTING. Do
not carry tool with hand on trig-
ger and always disconnect from air
when not in use.
17. DISCONNECT TOOLS before ser-
vicing, changing accessories, or
moving to another location.
18. DO NOT OVERREACH. Keep
proper footing and balance at all
times.
19. USE THE RECOMMENDED
ACCESSORIES. Consult owner’s
manual for recommended acces-
sories. The use of improper acces-
sories may cause risk of injury.
20. CHECK FOR DAMAGED PARTS
BEFORE USING. Check for bind-
ing and alignment of parts, broken
parts, part mounting, loose bolts,
and any other conditions that may
affect machine operation. Repair or
replace damaged parts.
21. NEVER LEAVE UNATTENDED
TOOL CONNECTED TO AIR.
Disconnect the air hose and do not
leave tool until it is relieved of any
built up pressure.
22. NEVER ALLOW UNTRAINED
USERS TO USE THIS TOOL
WHILE UNSUPERVISED.
23. IF YOU ARE UNSURE OF THE
INTENDED OPERATION, STOP
USING THE TOOL. Seek formal
training or research books or maga-
zines that specialize in pneumatic
tools.
Safety Instructions For Pneumatic Tools

H7945/H7946/H7995 26° Angle Nailer
-2-
1. HAND INJURIES: Do not place
your hands near the nail point
of entry. A nail can deflect and
tear through the surface of the
workpiece, puncturing your hand
or fingers.
2. COMBUSTIBLE GASES: Never
connect the nailer to pressur-
ized oxygen or other combustible
gases as a power source. Only
use filtered, lubricated, and regu-
lated compressed air.
3. SAFE HANDLING: Never point
the nailer at others! Do not keep
the trigger pulled when loading
fasteners, carrying, or holding tool.
Carry the nailer only by the handle,
never by any other part. Do not
carry the nailer by the air hose.
Disconnect the nailer from the air
hose when going up and down
ladders.
4. AIR HOSE: Make sure your air
hose is designed for the tool in
use, is in good condition, and is
long enough to reach your work
without stretching. However, an
overly long air hose in the work
area may be a tripping hazard.
Additional Safety Instructions for Nailers
5. COMPRESSED AIR RATING: Do
not connect the nailer to compressed
air that exceeds 120 PSI.
6. CHECK VALVE: Do not use a check
valve or any other fitting that allows
air to remain in the tool.
7. CLEANING: Never use gasoline or
other flammable liquids to clean the
nailer; vapors in the nailer may ignite
by a spark and cause the nailer to
explode.
8. OPERATING QUESTIONS: If you
are not sure about the intended
operation, stop using the nailer.
Seek formal training or research
sources that specialize in pneumatic
tools.
9. MAINTENANCE: Always disconnect
air from the nailer when servicing or
installing nails. During adjustments
or maintenance, a nailer connected
to air may fire accidentally, causing
serious personal injury.

H7945/H7946/H7995 26° Angle Nailer -3-
Operating this nailer can propel
objects into the air, causing imme-
diate eye damage. To protect your-
self, always wear American National
Standards Institute (ANSI) approved
safety glasses or goggles when oper-
ating this equipment. In addition, the
intensity of sound made by this nailer
at discharge can reach 90 decibels.
To protect your hearing, always wear
ANSI approved ear protection when
operating this nailer.
Never point this nailer at yourself or
another person! Always pay attention
to the direction this nailer is pointed.
Use this tool with respect and caution
to lessen the possibility of operator or
bystander injury. Ignoring this warning
may result in serious personal injury.
Nailer accidents routinely happen
while moving the gun to another loca-
tion, such as up ladders, to another
room, or even another job site. Always
disconnect the gun immediately after
use and never transport the gun while
connected to the air—even if the air
compressor is disconnected from its
power source!
No list of safety guidelines can be
complete. Every shop environment is
different. Always consider safety first,
as it applies to your individual working
conditions. Use this and other tools
with caution and respect. Failure to
do so could result in serious personal
injury, damage to equipment or poor
work results.
Read the manual before operation.
Become familiar with these nailers,
their safety instructions, and opera-
tion before beginning any work.
Serious personal injury may result if
safety or operational information is
not understood or followed.

H7945/H7946/H7995 26° Angle Nailer
-4-
INTRODUCTION
If you have any comments regarding this
manual, please write to us at the following
address:
Grizzly Industrial, Inc.
C/O Technical Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Email: [email protected]
Most importantly, we stand behind our
tools. If you have any service questions or
parts requests, please call or write us at
the location listed below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]
Web Site: http://www.grizzly.com
We are proud to offer the Grizzly Model
H7945/H7946/H7995 26° Angle Nailer.
This nailer is part of a growing Grizzly
family of fine pneumatic tools. When used
according to the guidelines in this manual,
you can expect years of trouble-free,
enjoyable operation and proof of Grizzly’s
commitment to customer satisfaction.
The specifications and photographs in this
manual represent Models H7945/H7946/
H7995 as supplied when this manual was
prepared. However, owing to Grizzly’s pol-
icy of continuous improvement, changes
may be made at any time with no obliga-
tion on the part of Grizzly.
Foreword
Contact Info
Nail Type ......................... 18 Gauge @ 26°
Nail Length ....................................... 7/8"–2"
Magazine Capacity ...................... 128 Nails
Weight .............................................3.0 lbs.
Air Inlet ..........................................1/4" NPT.
Operating Pressure ................. 70–110 PSI
Model H7945
Specifications
Model H7995
Specifications
Nail Type ......................... 15 Gauge @ 26°
Nail Length ....................................... 7/8"–2"
Magazine Capacity ........................ 86 Nails
Weight .............................................3.0 lbs.
Air Inlet ..........................................1/4" NPT.
Operating Pressure ................. 70–110 PSI
Model H7946
Specifications
Nail Type ......................... 16 Gauge @ 26°
Nail Length ....................................... 7/8"–2"
Magazine Capacity ...................... 100 Nails
Weight .............................................3.0 lbs.
Air Inlet ..........................................1/4" NPT.
Operating Pressure ................. 70–110 PSI

H7945/H7946/H7995 26° Angle Nailer -5-
SETUP
Figure 1. Model H7945 /H7946/H7995 inventory.
Unpacking
Your Model H7945/H7946/H7995 left our
warehouse in a carefully packed box. If
you discover the nailer is damaged after
you have signed for delivery, please imme-
diately call Customer Service at (570) 546-
9663 for advice.
Save the containers and all packing mate-
rials for possible inspection by the car-
rier or its agent. Otherwise, filing a freight
claim can be difficult.
When you are completely satisfied with
the condition of the shipment, you should
inventory the equipment.
Inventory
After you open the nailer box, you should
find the following.
Model H7945/H7946/H7995 Inventory
(Figure 1)
A. Nailer .................................................. 1
B. Nailer Case ........................................ 1
C. Pneumatic Tool Oil ............................ 1
D. Hex Wrenches 3, 4mm .............1 Each
E. Nail Assortment (not shown) .............. 1
B
C
D
A

H7945/H7946/H7995 26° Angle Nailer
-6-
Compressed Air
System
The Model H7945/H7946/H7995 is
designed to be operated at 70–110 PSI
using clean, dry, regulated, compressed
air. DO NOT exceed 120 PSI.
Before using your new nailer, set the air
pressure on your regulator to the mini-
mum PSI for your model.
An in-line filter/lubricator/regulator unit,
depicted in Figure 2, can be installed and
should be located as close to the nailer
as possible.
This filter/lubricator/regulator unit will pro-
tect your tool from damaging water build-
up, allow you to adjust and maintain con-
stant air pressure to your tool, and save
you the inconvenience of manually lubri-
cating your tool every time you use it.
Quick
Connector
Quick
Coupler
Air Hose Quick
Coupler
Quick
Connector
Lubricator
Filter
Regulator
Air
Compressor
Your
Tool
Figure 2. Typical filter/lubricator/regulator installation order.
Check the current Grizzly catalog for avail-
ability of this unit. If you plan on install-
ing a filter/lubricator/regulator unit in your
compressed air system, always follow the
connection instructions that come with
the unit.
Exceeding the maximum permissible
operating pressure may damage the
seals, gaskets and hammer mecha-
nism of your nailer. DO NOT allow
your air compressor to exceed the
recommended pressure when con-
nected to this nailer or serious per-
sonal injury may result!

H7945/H7946/H7995 26° Angle Nailer -7-
Testing the Safety
Nose Mechanism
A safety mechanism (bump fire) on the
nose of the nailer protects against acci-
dental firing. This mechanism is activated
when nails are loaded into the magazine.
The nailer will not fire when the trigger
is pulled until the safety nose is fully
depressed.
Before you use your nailer for the first
time, check the safety nose mechanism
to ensure proper function.
5. Without pressing the trigger, depress
the safety nose mechanism against a
scrap piece of wood that is clean and
free of any knots, nails, or other foreign
objects.
— If the nailer does not fire, then the
safety nose mechanism is working
correctly.
— If the nailer does fire when you
depress the safety nose, immedi-
ately disconnect the nailer from the
air supply and call Grizzly Technical
Support at [phone] for help.
6. Without depressing the safety nose,
point the nailer in a safe direction, and
pull the trigger.
— If the nailer does not fire, then the
safety nose mechanism is working
correctly.
— If the nailer does fire when the
trigger is pulled, without the safety
nose mechanism being depressed,
immediately disconnect the nailer
from the air supply and call Grizzly
Technical Support at (570) 546-
9663 for help.
The safety mechanism is a mechanical
device that can fail. Never rely on this
mechanism as an excuse to point the
nailer at yourself or any bystanders.
Serious injury may occur.
To verify that the safety nose is working
correctly:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Insert a nail strip in the magazine (see
Page 8 for instructions).
3. Make sure the trigger and the safety
nose mechanism move up and down
without sticking.
4. Connect the nailer to the air supply.
Point the nailer away from you and
others when connecting the air supply.
The nailer can cycle and discharge a
nail when the air supply is connected.
Ignoring this warning may result in
serious personal injury.

H7945/H7946/H7995 26° Angle Nailer
-8-

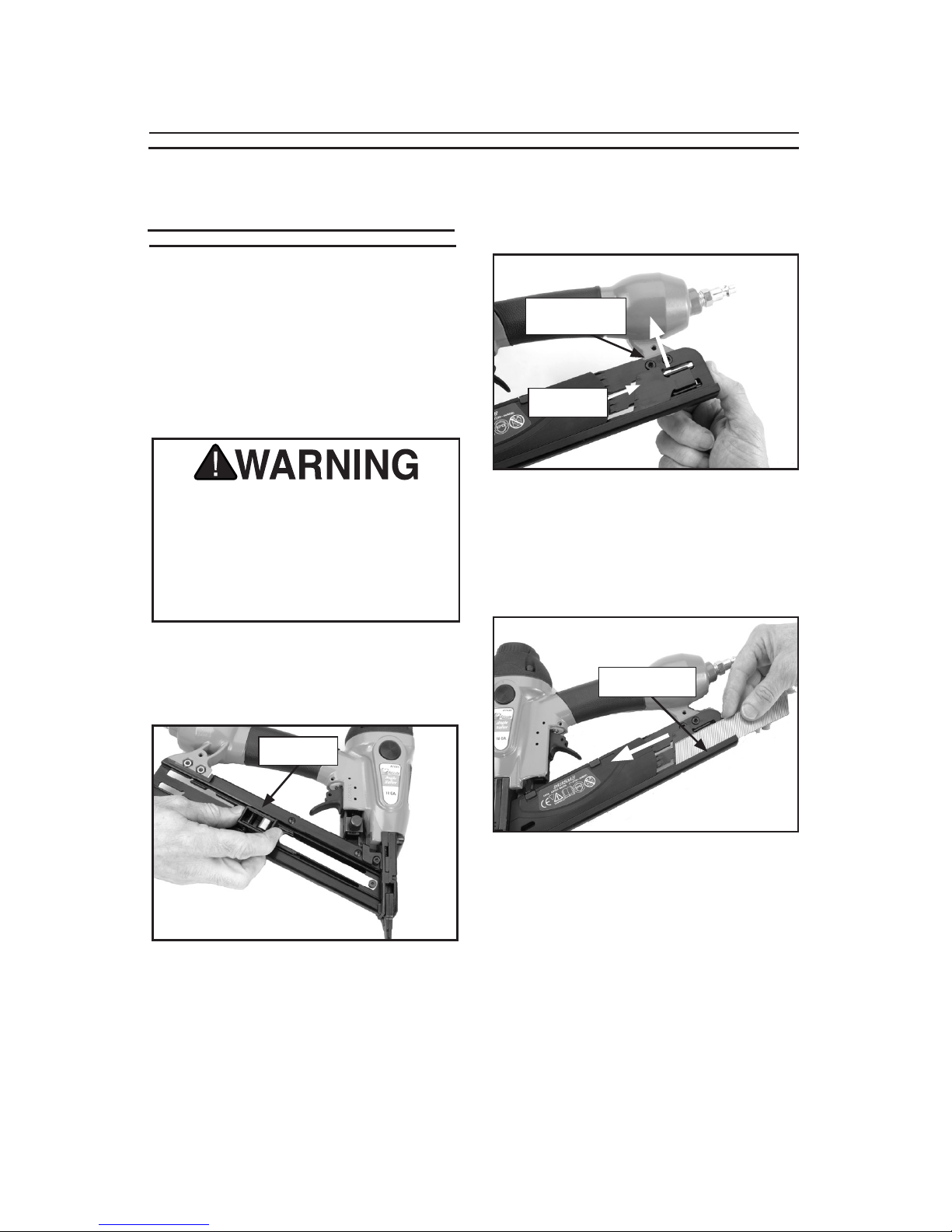

OPERATIONS
Loading
Use nails meeting the specifications listed
for your nailer on Page 4 of this manual.
To load nails in your nailer:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
Figure 4. Lifting the pusher into the lock
notch.
3. Lift the pusher upward toward the nailer
body until the pusher latches into the
lock notch as shown in Figure 4.
4. With the pusher locked at the rear of
the magazine, insert a strip of nails into
the magazine as shown in Figure 5.
Figure 5. Loading a nail strip into the
magazine.
2. Slide the magazine pusher to the rear
of the magazine as shown in Figure 3.
Point the nailer away from you and
others when connecting the air supply.
The nailer can cycle and discharge a
nail when the air supply is connected.
Ignoring this warning may result in
serious personal injury.
Figure 3. Sliding the pusher to the rear of
the magazine.
Pusher
Lock Notch
5. Lift the pusher out of the lock notch and
guide it forward to push the nail strip
to the nose of the nailer. (Do not let it
snap.)
Pusher
Nail Strip

H7945/H7946/H7995 26° Angle Nailer -9-
Unloading Nails
To remove unused nails:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Point the nailer away from you and all
bystanders.
3. Slide the pusher to the rear of the mag-
azine and latch it into the lock notch.
4. Move the nails to the rear of the maga-
zine and remove them by hand.
Rotating the Exhaust
Cover
The exhaust cover rotates as needed to
direct the exhaust away from you.
To rotate the exhaust cover:
1. Use the 4mm hex wrench to loosen the
exhaust cover cap screw as shown in
Figure 6.

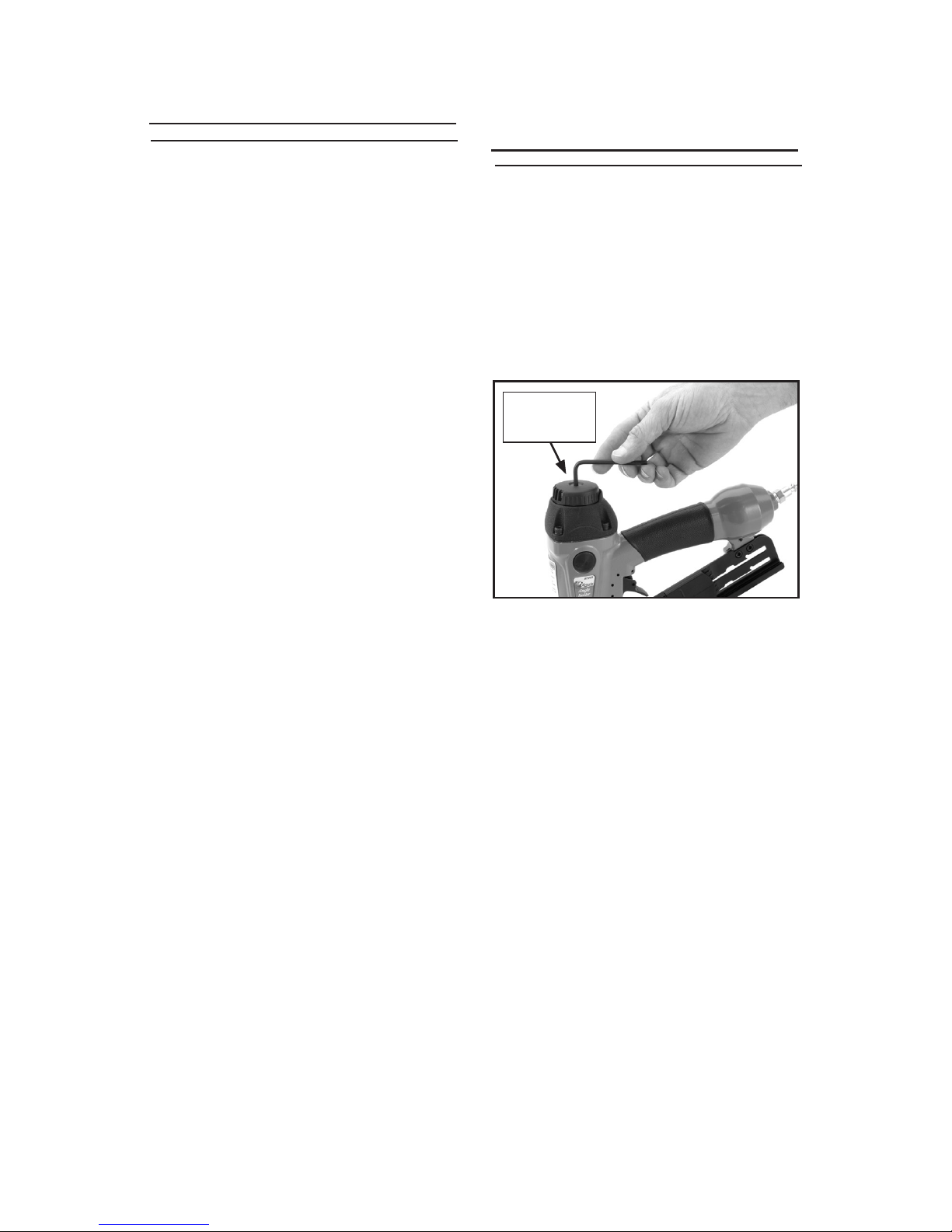

Figure 6. Loosening the exhaust cap
screw.
2. Rotate the exhaust cover by hand to
aim the exhaust port in the desired
direction.
3. Tighten the exhaust cover cap screw.
Exhaust
Cap Screw

H7945/H7946/H7995 26° Angle Nailer
-10-

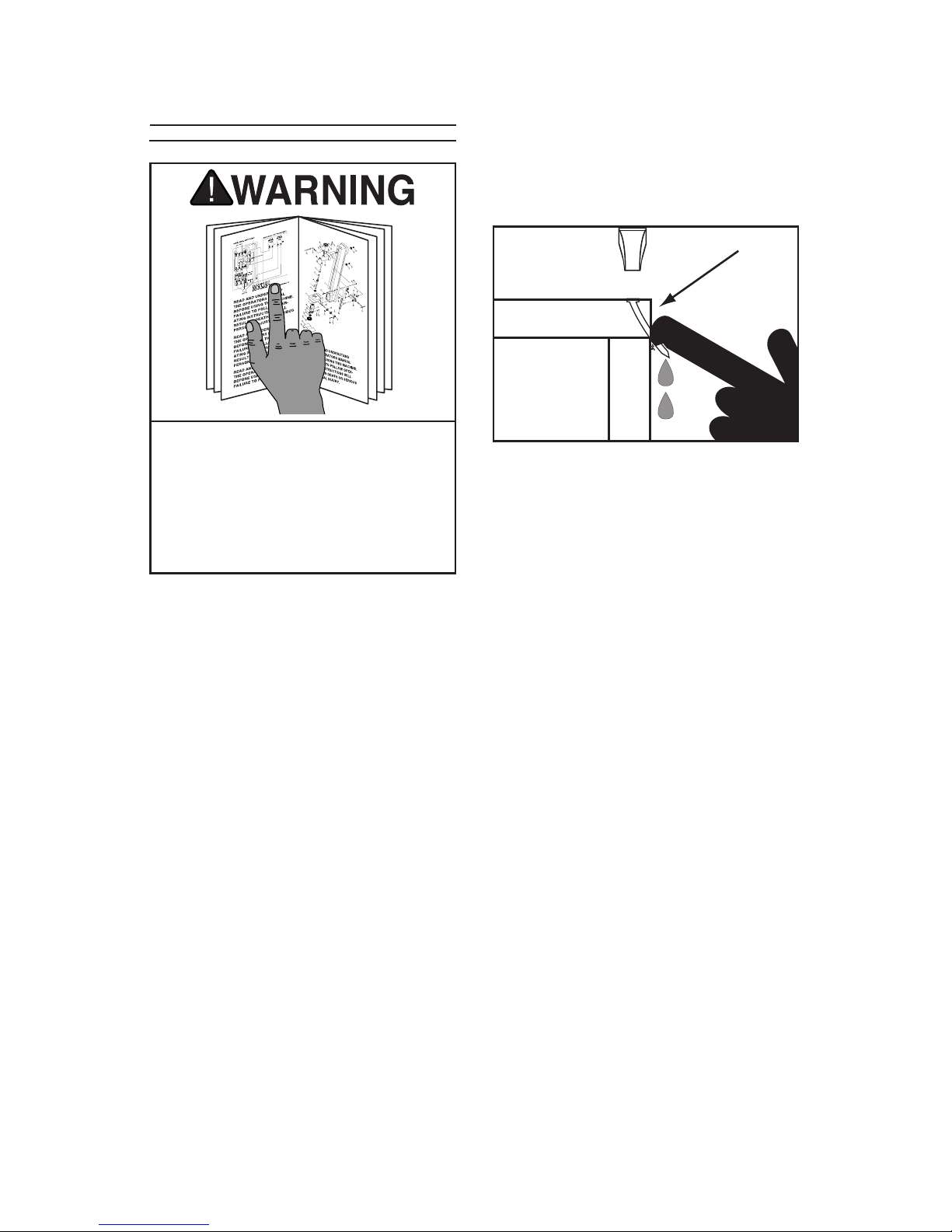

Using the Nailer
Before you operate your nailer, place five
to six drops of air tool oil into the quick
connect fitting where the nailer connects
to the air supply.
To operate your nailer:
1. Connect the air supply to the quick
connect fitting on your nailer.
2. To test for proper nail penetration, hold
the nailer perpendicular to the surface
of a piece of clean scrap wood that is
thick enough for the length of nails you
have loaded.
3. Depress the safety nose mechanism
against your workpiece.
Note: Deflection is caused when
grain irregularities, knots or foreign
objects inside the wood cause the
nail to change its path, resulting in
the nail puncturing the surface of the
workpiece.
Besides damaging your workpiece,
deflection can cause injury if your free
hand is securing the workpiece in the
location that the nail deflects.
5. Pull the trigger.
— If the nail penetrates the wood to the
depth you want, continue with your
intended operations.
— If the nail either went too far or not
far enough, adjust the depth of fire
by following the procedures listed on
Page 11.
4. Before pulling the trigger, make sure
your free hand and other body parts
are positioned out of the way of a
potential path of a nail in case of
deflection (illustrated below in Figure
7).
Figure 7. Example of nail deflection.
Read the manual before operation.
Become familiar with these nailers,
their safety instructions, and opera-
tion before beginning any work.
Serious personal injury may result if
safety or operational information is
not understood or followed.

H7945/H7946/H7995 26° Angle Nailer -11-
A jammed nail must be cleared before the
nailer is used again.
To clear a jammed nail from the dis-
charge area:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Remove all nails from the magazine.
(See Unloading Nails on Page 9.)
3. Use a pair of pliers to grab the
jammed nail and pull it from the nose
as shown in Figure 9.
Clearing Jammed
Nails
Figure 9. Using pliers to remove a
jammed nail.
Figure 8. Depth adjustment knob.
Adjusting the depth of nail penetration is
done by turning the adjustment knob locat-
ed near the trigger as shown in Figure 8.
Adjusting Depth
To adjust the nail depth:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY AND POINT THE NAILER
IN A SAFE DIRECTION!
2. Turn the depth adjustment knob to
increase or decrease nail penetration:
— If you want to increase the nail
depth, then turn the adjusting knob
counter clockwise.
— If you want to decrease the nail
depth, then turn the adjusting knob
clockwise.
3. Connect the nailer to the air supply,
test the nail depth, and repeat this
entire procedure if necessary until the
nail depth is satisfactory.
Depth Adjustment
Knob
Note: If you cannot remove the jammed
nail in this way, then disassemble the
nailer's nose assembly to gain full
access to the nail, remove it and reas-

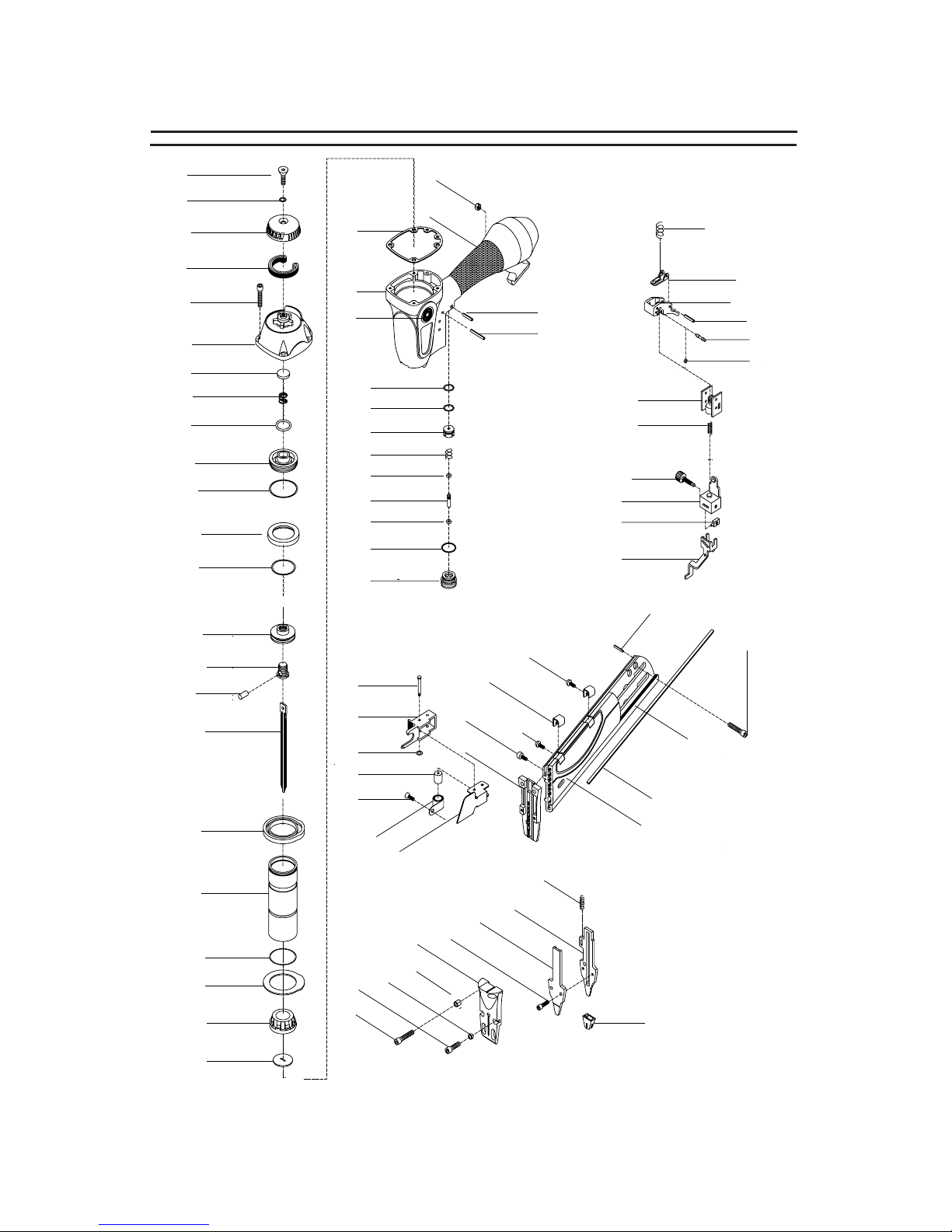

semble. Refer to the parts breakdown
drawing included in the back pages of
this manual for guidance during this
procedure.
4. Throw the damaged nail away and
insert a new strip of nails. DO NOT
use dirty or damaged nails!
Jammed Nail

H7945/H7946/H7995 26° Angle Nailer
-12-
Replacing
Pistons/O-Rings
If you need to replace piston parts in your
nailer, you can purchase a piston repair kit
from Grizzly: call 1-800-523-4777.
The Piston Repair Kit part number for
Model H7945 is PH7945090; the Piston
Repair Kit part number for Model H7946
is PH7946090; the Piston Repair Kit part
number for Model H7995 is H7995090.

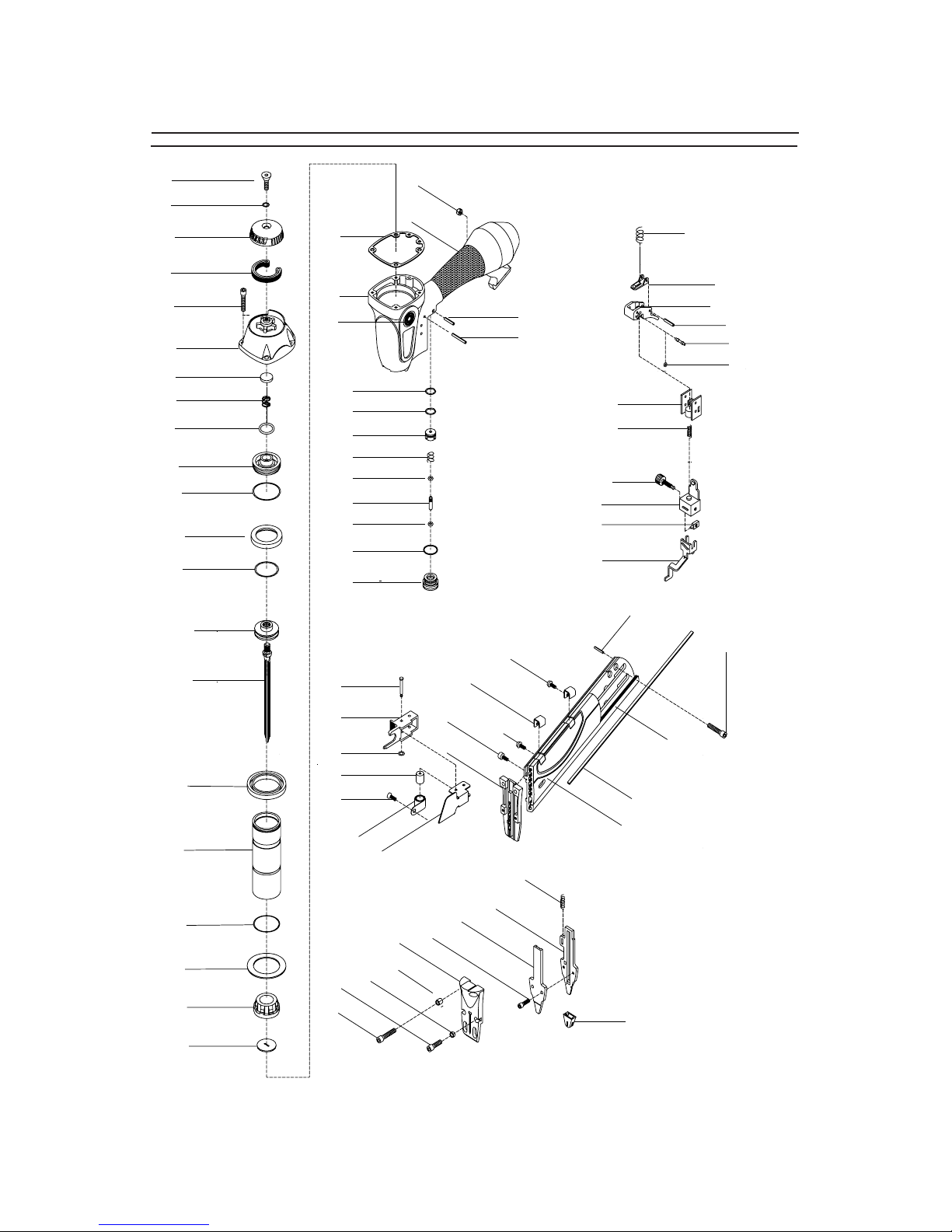

Refer to the parts breakdown during this
procedure to identify parts and their loca-
tions inside the nailer.
4. Push the top of the piston down with
your finger as far as it will go; this will
push the piston driver into the nose of
the nailer.
5. Insert a stiff rod or wire of the same
diameter as your nails into the dis-
charge area of the nose and use it
to push the piston driver up until the
piston head clears the top of the cyl-
inder. (Be careful not to scratch the
discharge area or the piston cylinder.)
6. Grip the piston head by hand and
remove the piston assembly from the
cylinder.
7. Clean all metal parts with an auto-
motive grade solvent. Clear all ports
and blow the solvent away with com-
pressed air.
8. Replace any part that shows damage
of heavy wear. Relubricate the tool.
9. Apply a thin film of the nailer lubricat-
ing oil on the new O-ring and place
it on the new piston. Install any other
parts included in the piston repair kit.
10. Insert the new piston in the cylinder.
Make sure that the grooves on the
piston driver align with those in the set
plate at the bottom of the cylinder.
Note: DO NOT force the piston into
the cylinder! If the piston is not easily
inserted, double-check the alignment
of the piston driver with the grooves on
the set plate.
12. Put the cylinder seal back on the top
rim of the cylinder.
13. Make sure that the cap gasket is in
place, then secure the cap to the nailer
body by tightening the 4 cap screws.
To replace a piston and O-ring(s):
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Remove all nails from the magazine.
3. Remove the four screws that secure
the nailer cap, then remove the cylin-
der cap and cylinder seal.
Always disconnect the air supply
from the nailer whenever servicing!
During maintenance, a nailer con-
nected to air may fire accidentally,
causing serious personal injury!

H7945/H7946/H7995 26° Angle Nailer -13-

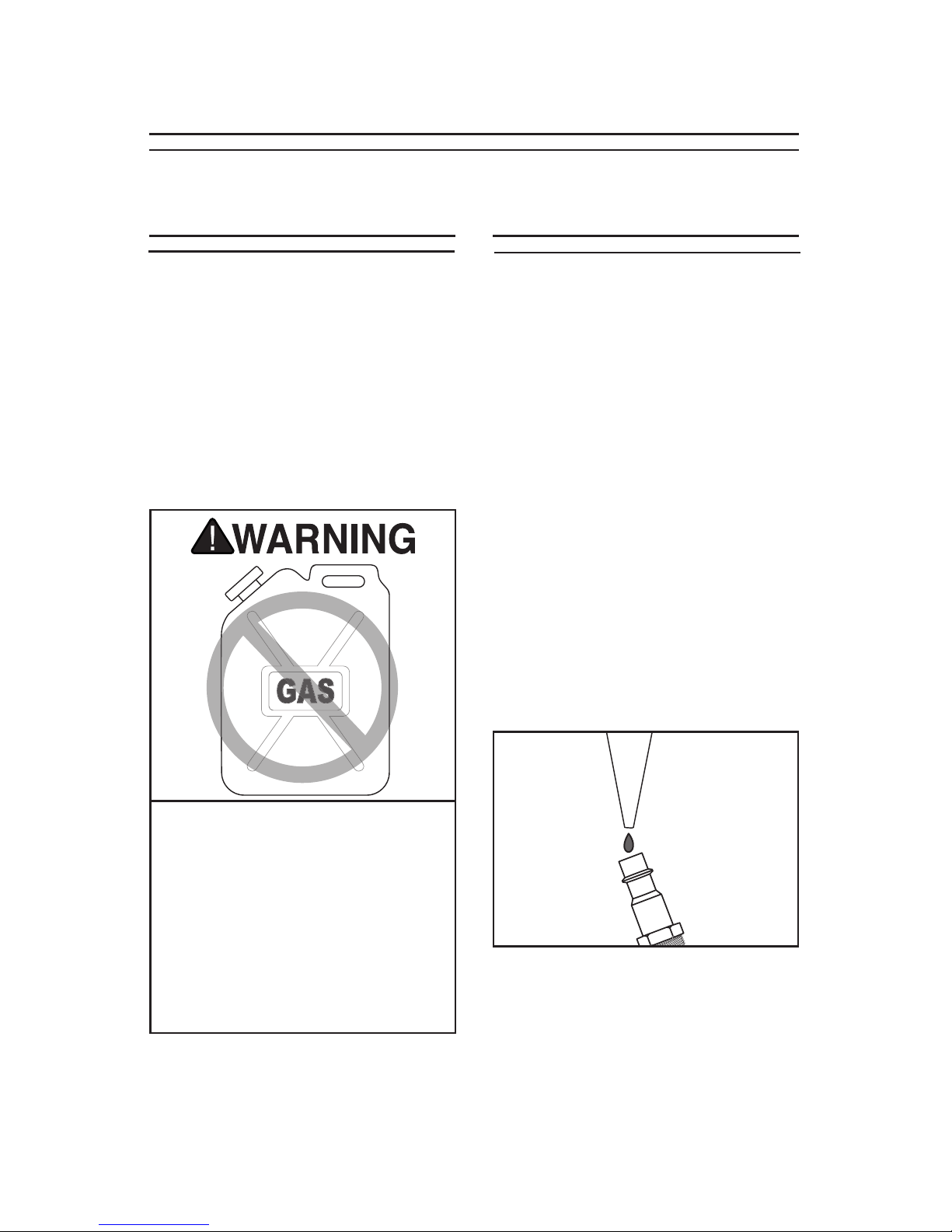

CLEANING & LUBRICATING
Cleaning
Use an automotive grade solvent such as
Sprayway C-60® (G2544 in the Grizzly
catalog) to clean the nose assembly of the
nailer. Always be sure that the nailer is dry
before using it again.
Do not allow dust, chips, or sand into the
air connectors or into the body of the nail-
er; this may result in leaks and damage to
the nailer and the air couplings.
Lubricating
Special pneumatic tool oil has been
included with your new Grizzly nailer to
help maintain its useful life. Place two to
six drops of oil in the nailer air inlet (as
shown in Figure 10) every 2 hours of
continuous use.
Wipe off any excess oil near the nailer
exhaust to avoid dust build-up. When
the oil that was included with your nailer
has been completely used, replace with
Grizzly Model G2820 Pneumatic Tool Oil.
An efficient alternative to oiling your tool
by hand is to install a lubricator in your air
compressor line. If your air compressor
line already has a lubricator, then regular
lubrication of your nailer will not be neces-
sary. Just make sure there is always oil in
the lubricator.
Figure 10. Lubricating the nailer at the
air inlet.
Never use gasoline to clean this tool.
Use extreme caution when using any
solvent cleaner. Always clean the tool
in a well-ventilated area and never if
sparks or open flames are present.
Remember that electrical machinery
can produce sparks during normal
operation. Ignoring this warning can
cause serious personal injury or even
death!

H7945/H7946/H7995 26° Angle Nailer
-14-
H7945 PARTS BREAKDOWN





































 











































H7945/H7946/H7995 26° Angle Nailer -15-
H7945 PARTS LIST
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PFH43M FLAT HD SCR M6-1 X 10 46 PH7945046 MAGAZINE
2 PH7945002 EXHAUST COVER 47 PH7945047 MAGAZINE COVER
3 PSB53M CAP SCREW M5-.8 X 18 48 PH7945048 NAILER GUIDE
4 PH7945004 CAP 49 PSB33M CAP SCREW M5-.8 X 12
5 PH7945005 SEAL 50 PH7945050 CONTACT ARM
6 PH7945006 SPRING 51 PRP96M ROLL PIN 2 X 8
8 PH7945008 O-RING 52 PH7945052 SUPPORT PLATE
9 PH7945009 PISTON HEAD VALVE 53 PH7945053 O-RING
10 PH7945010 O-RING 56 PH7945056 CONTACT TRIP BLOCK
11 PH7945011 SEAL 57 PH7945057 ADJUSTING NUT
12 PH7945012 O-RING 58 PH7945058 ADJUSTING BOLT
13 PH7945013 PISTON 59 PH7945059 SPRING
14 PH7945014 SCREW BLOCK 60 PH7945060 TRIP GUIDE
15 PH7945015 BALL PIN 4 X 10 61 PH7945061 TRIGGER
16 PH7945016 DRIVER 62 PRP98M ROLL PIN 3 X 16
17 PH7945017 COLLAR 63 PH7945063 TRIGGER PLATE
18 PH7945018 CYLINDER 64 PH7945064 PLUNGER CAP
19 PH7945019 O-RING 65 PH7945065 O-RING
20 PH7945020 BUMPER 66 PH7945066 PLUNGER
21 PH7945021 SET PLATE 67 PH7945067 O-RING
22 PH7945022 GASKET 68 PH7945068 SPRING
23 PH7945023 NAILER BODY 69 PH7945069 TRIGGER HEAD VALVE
24 PH7945024 RUBBER GRIP 70 PH7945070 O-RING
25 PLN02M LOCK NUT M5-.8 71 PRP97M ROLL PIN 3 X 30
29 PH7945029 STEPPED PIN 72 PRP42M ROLL PIN 3 X 20
30 PH7945030 PUSHER GUIDE 73 PH7945073 SLIDE SHAFT
31 PH7945031 O-RING 75 PH7945075 O-RING
32 PH7945032 ROLLER 76 PH7945076 O-RING
33 PFH27M FLAT HD SCR M4-.7 X 5 77 PH7945077 O-RING
34 PH7945034 SPIRAL SPRING 80 PH7945080 RUBBER LABEL
35 PH7945035 PUSHER 81 PH7945081 COVER SET PLATE
36 PSB139M CAP SCREW M5-.8 X 22 82 PH7945082 EXHAUST FILTER
37 PSB17M CAP SCREW M4-.7 X 10 83 PH7945083 SPACER
38 PH7945038 NOSE COVER 84 PH7945084 SPACER
39 PSB18M CAP SCREW M4-.7 X 8 85 PH7945085 NAILER CASE
40 PH7945040 DRIVER GUIDE PLATE 86 PH7945086 PNEUMATIC OIL
41 PH7945041 NOSE 87 PH7945087 NAIL ASSORTMENT
42 PH7945042 SPRING 88 PAW03M HEX WRENCH 3MM
43 PH7945043 CORE TRIP 89 PAW04M HEX WRENCH 4MM
44 PSBS24M BUTTON HD CAP SCR M4-.7 X 10 90 PH7945090 PISTON REPAIR KIT
45 PH7945045 RUBBER PAD 91 PH7945091 MACHINE LABEL

H7945/H7946/H7995 26° Angle Nailer
-16-
H7946 PARTS BREAKDOWN


































 












































H7945/H7946/H7995 26° Angle Nailer -17-
H7946 PARTS LIST
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PFH43M FLAT HD SCR M6-1 X 10 47 PH7945047 MAGAZINE COVER
2 PH7945002 EXHAUST COVER 48 PH7945048 NAILER GUIDE
3 PSB53M CAP SCREW M5-.8 X 18 49 PSB33M CAP SCREW M5-.8 X 12
4 PH7945004 CAP 50 PH7945050 CONTACT ARM
5 PH7945005 SEAL 51 PRP96M ROLL PIN 2 X 8
6 PH7945006 SPRING 52 PH7945052 SUPPORT PLATE
8 PH7945008 O-RING 53 PH7945053 O-RING
9 PH7945009 PISTON HEAD VALVE 56 PH7945056 CONTACT TRIP BLOCK
10 PH7945010 O-RING 57 PH7945057 ADJUSTING NUT
11 PH7945011 SEAL 58 PH7945058 ADJUSTING BOLT
12 PH7945012 O-RING 59 PH7945059 SPRING
13 PH7946013 PISTON 60 PH7945060 TRIP GUIDE
16 PH7946016 DRIVER 61 PH7945061 TRIGGER
17 PH7945017 COLLAR 62 PRP98M ROLL PIN 3 X 16
18 PH7945018 CYLINDER 63 PH7945063 TRIGGER PLATE
19 PH7945019 O-RING 64 PH7945064 PLUNGER CAP
20 PH7945020 BUMPER 65 PH7945065 O-RING
21 PH7946021 SET PLATE 66 PH7945066 PLUNGER
22 PH7945022 GASKET 67 PH7945067 O-RING
23 PH7945023 NAILER BODY 68 PH7945068 SPRING
24 PH7945024 RUBBER GRIP 69 PH7945069 TRIGGER HEAD VALVE
25 PLN02M LOCK NUT M5-,8 70 PH7945070 O-RING
29 PH7945029 STEPPED PIN 71 PRP97M ROLL PIN 3 X 30
30 PH7945030 PUSHER GUIDE 72 PRP42M ROLL PIN 3 X 20
31 PH7945031 O-RING 73 PH7945073 SLIDE SHAFT
32 PH7945032 ROLLER 75 PH7945075 O-RING
33 PFH27M FLAT HD SCR M4-.7 X 5 76 PH7945076 O-RING
34 PH7945034 SPIRAL SPRING 77 PH7945077 O-RING
35 PH7946035 PUSHER 80 PH7945080 RUBBER LABEL
36 PSB139M CAP SCREW M5-.8 X 22 81 PH7945081 COVER SET PLATE
37 PSB17M CAP SCREW M4-.7 X 10 82 PH7945082 EXHAUST FILTER
38 PH7945038 NOSE COVER 83 PH7945083 SPACER
39 PSB18M CAP SCREW M4-.7 X 8 84 PH7945084 SPACER
40 PH7946040 DRIVER GUIDE PLATE 85 PH7946085 NAILER CASE
41 PH7945041 NOSE 86 PH7945086 PNEUMATIC OIL
42 PH7945042 SPRING 87 PH7946087 NAIL ASSORTMENT
43 PH7946043 CORE TRIP 88 PAW03M HEX WRENCH 3MM
44 PSBS24M BUTTON HD CAP SCR M4-.7 X 10 89 PAW04M HEX WRENCH 4MM
45 PH7945045 RUBBER PAD 90 PH7946090 PISTON REPAIR KIT
46 PH7946046 MAGAZINE 91 PH7946091 MACHINE LABEL

H7945/H7946/H7995 26° Angle Nailer
-18-


































 











































H7995 PARTS BREAKDOWN
