Grizzly G0863 User manual

For questions or help with this product contact Tech Support at [phone] or [e-mail]
MODEL G0863
GRIZZLY GROWLER
CYCLONE SEPARATOR
INSTRUCTIONS
COPYRIGHT © JANUARY, 2019 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 10/18) #MN20050 PRINTED IN TAIWAN
Introduction
Description Qty
A. Collection Drum .......................................... 1
B. Cyclone Funnel w/Band Clamp .................. 1
C. Intake Barrel ............................................... 1
D. Collection Drum Lid ................................... 1
E. Vacuum Hose 11⁄2" x 67" ............................ 1
F. Inlet Adapter 6" x 4" x 2 .............................. 1
G. Vacuum Ring .............................................. 1
H. Universal Reducer ...................................... 1
I. Intake Adapter 7" x 6" ................................ 1
J. Phillips Head Screws M4-.7 x 8 (Latches) . . 8
K. Flange Bolts 1⁄4" -20 x 1⁄2" (Funnel) .............. 6
L. Casters, 2" Swivel Ball .............................. 4
M. Lock Nuts M4-.7 (Latches) ......................... 8
N. Flange Nuts 1⁄4" - 2 0 (Funnel) ....................... 6
O. Collection Drum Latches ............................ 2
P. Acorn Nuts 1⁄4" -20 (Handle) ........................ 2
Q. Flange Screws #10-24 x 3⁄8"
—Intake Adapter ........................................ 1
—Inlet Adapter ........................................... 1
R. Phillips Hd. Screws 1⁄4" -20 x 5⁄8" (Handle) ... 2
S. Open-End Wrench 10/12mm ...................... 1
T. Handle ........................................................ 1
U. Hose Clamps 11⁄2" ...................................... 2
V. Plastic Bag 30" X 41" (not shown) .............. 1
Inventory
J
K
L
JM
Q
O
P
N
R
S
TU
Figure 2. Inventory—hardware.
V1.01.19
Figure 1. Inventory—components.
AB
C
D
E
F
G
H
I
The Grizzly Growler creates a cyclone of incom-
ing air that separates heavy wood chips and large
dust particles, increasing the performance of your
single-stage dust collector, and resulting in less
suction loss from dirty or clogged filters.
Specifications
Recommended Horsepower Range ..... 1.5–3 HP
Airflow Range ............................. 750–2300 CFM
Outlet Size .................................................... 7 in.
Inlet Size ....................................................... 6 in.
Max. Material Collection Capacity ............20 Gal.

-2- G0863 Grizzly Growler (Mfd. Since 10/18)
3. Place vacuum ring inside collection drum with
smaller side of ring facing down, as shown in
Figure 5.
Assembly
Figure 5. Placing vacuum ring inside collection
drum.
Vacuum
Ring
4. Attach cyclone funnel to collection drum lid
using (6) 1⁄4" -20 x 1⁄2" flange bolts and (6)
1⁄4" -20 flange nuts. Then set funnel and lid on
collection drum and secure with latches (see
Figure 6).
5. Loosen band clamp at top of cyclone funnel
(see Figure 7) to reveal metal lip.
Figure 7. Location of band clamp at top of
cyclone funnel.
Band
Clamp Drum
Funnel
Figure 6. Funnel attached to collection drum lid.
Funnel
Lid
x 6
To reduce risk of eye injury from flying
chips or lung damage from breathing dust,
always wear safety glasses and a respirator
when operating this machine.
Figure 4. Latches installed on collection drum.
1. Install (4) caster wheels on bottom of collec-
tion drum. Then attach handle to drum with
(2) 1⁄4" -20 x 5⁄8" Phillips head screws and (2)
1⁄4" -20 acorn nuts (see Figure 3).
2. Install (2) collection drum latches with (8)
M4-.7 x 8 Phillips head screws and (8) M4-.7
lock nuts (see Figure 4).
Figure 3. Handle and caster wheels installed on
collection drum.
Caster
Wheel
(1 of 4)
Handle
x 2
Latch
(1 of 2)
x 4

G0863 Grizzly Growler (Mfd. Since 10/18) -3-
10. Insert plastic dust bag inside collection drum,
and fold excess length of bag over top of
drum.
6. Place intake barrel on top of funnel (see
Figure 8), then position clamp so band cap-
tures lip at top of funnel and lip at bottom of
barrel. Tighten clamp to secure.
Figure 8. Intake barrel attached to funnel.
Intake
Barrel
Funnel
Band
Clamp
7. Place hose clamps over ends of vacuum hose,
then attach one end of vacuum hose to intake
barrel (see Figure 9) and other end to collection
drum. Tighten clamps to secure hose.
8. Install inlet adapter on dust port and secure
with #10-24 x 3⁄8" flange screw (see Figure 10).
Figure 10. Installing inlet adapter on dust port.
Inlet
Adapter
Flange Screw
Figure 9. Vacuum hose attached to collection
drum and intake barrel.
Intake
Barrel Port
Collection
Drum Port
9. Install intake adapter (see Figure 11) on
intake barrel with #10-24 x 3⁄8" flange screw.
Maintenance
Dispose of the collection drum bag when 3⁄4 full,
as seen in the drum window.
IMPORTANT: To contain wood dust and minimize
risk of exposure, firmly tie bag closed.
If bag gets overfilled, dust will be sucked into the
intake barrel and passed through to the dust col-
lector filter. Check the drum window regularly to
prevent excessive dust buildup in collection drum.
11. Route a dust hose from dust collector inlet to
Grizzly Growler intake (see Figure 12). Then
route a dust hose from Growler inlet to machine
dust port. Secure both hoses with clamps.
Figure 11. Installing adapter on intake barrel.
Adapter
Intake
Barrel
Flange
Screw
Figure 12. Example of Grizzly Growler properly
connected to a dust collector.
Intake
Inlet
To Machine
Dust Port
Dust Collector Inlet

-4- G0863 Grizzly Growler (Mfd. Since 10/18)
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
4
5
30
20
16
3
2
7
6
31
21
22
23
23
24
13
28
33
29
30
35
15
6
1
10
8
9
11
12
19
17
18
14
32
43
34
37
38
39
40
Specifications
MODEL G0863
GRIZZLYGROWLER
CYCLONE SEPARATOR
WARNING!
HorsepowerRange: 1.5–3 HP
Airflow:750–2300 CFM @ 2.3"-3.2" SP
OutletSize: 7"
InletSize: 6"
AdapterInlet Size 4"
DrumCapacity: 20 Gal.
ReplacementDrum Bag: T30029
Weight:42 lbs.
Mfd.for Grizzly in Taiwan
Date
SN
Toreduce risk of serious injury when using this machine:
1. Readand understand owner’s manual before operating.
2. Alwayswear approved eye protection and respirator.
3. Onlyuse this machine to collect wood dust/chips—never use to
collectglass, metal, liquids, asbestos, silica, animal parts,
biohazards,burning material/ashes, etc.
4. Donot expose to rain or use in wet areas.
5. Neverleave machine unattended during operation.
6. Donot use without dust bag in place.
7. Alwayswear a respirator when emptying bag.
8. Donot modify machine in any way.
9. Preventunauthorized use by children or untrained users; restrict
accessor disable machine when unattended.
Toreduce risk of death
orserious injury, read
manualBEFORE using
machine.
Toget a new manual,
call(800) 523-4777 or
goto www.grizzly.com.
WARNING!
WARNING!
EYE/LUNGINJURY
HAZARD!
Alwayswear safety
glassesand a
respiratorwhen
usingthis machine.
G0863
grizzly.com
36
41
42

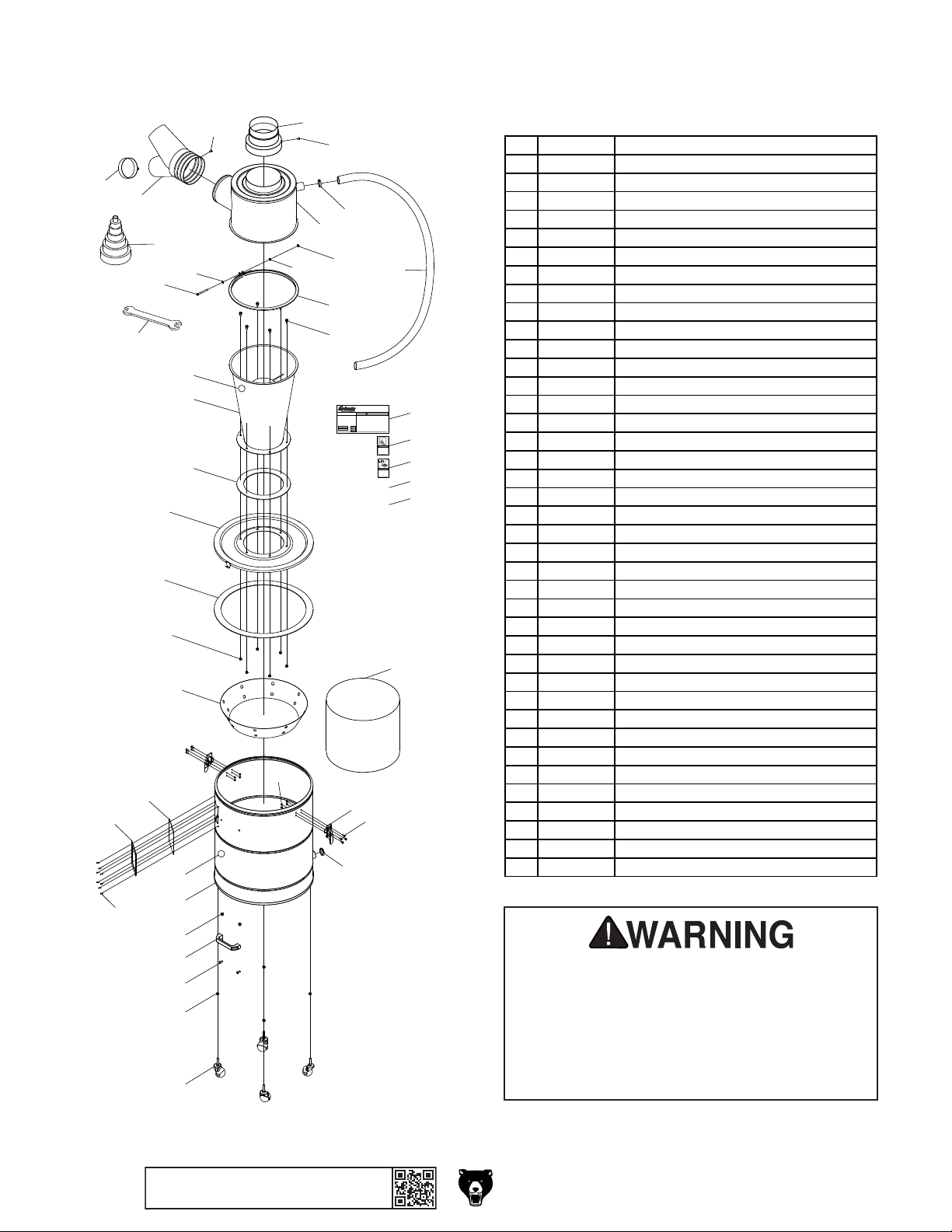

G0863 Parts Breakdown & List
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call [phone] or visit our online parts store at www.grizzly.com to check for availability.
REF PART # DESCRIPTION
1 P0863001 COLLECTION DRUM
2 P0863002 COLLECTION DRUM LID
3 P0863003 CYCLONE FUNNEL
4 P0863004 INTAKE BARREL
5 P0863005 INTAKE ADAPTER 7" X 6"
6 P0863006 HOSE CLAMP 1-1/2"
7 P0863007 FLANGE BOLT 1/4-20 X 1/2
8 P0863008 HANDLE
9 P0863009 PHLP HD SCR 1/4-20 X 5/8
10 P0863010 ACORN NUT 1/4-20
11 P0863011 CASTER 2" SWIVEL BALL
12 P0863012 HEX NUT 5/16-18
13 P0863013 BAND CLAMP 45"
14 P0863014 LOCK NUT M4-.7
15 P0863015 PHLP HD SCR M4-.7 X 8
16 P0863016 HEX BOLT 1/4-20 X 2-1/2
17 P0863017 FOAM WINDOW GASKET
18 P0863018 COLLECTION DRUM WINDOW (ACRYLIC)
19 P0863019 RIVET 4 X 8MM ALUMINUM
20 P0863020 VACUUM HOSE 1-1/2" X 67"
21 P0863021 FOAM GASKET 850 X 35 X 3MM
22 P0863022 FOAM GASKET 1560 X 35 X 3MM
23 P0863023 FLAT WASHER 1/4
24 P0863024 INLET ADAPTER 6" X 4" X 4"
28 P0863028 INLET CAP 4"
29 P0863029 FLANGE NUT 1/4-20
30 P0863030 FLANGE SCREW 10-24 X 3/8
31 P0863031 FLANGE NUT 1/4-20
32 P0863032 DRUM LID LATCH
33 P0863033 UNIVERSAL REDUCER
34 P0863034 WRENCH 10 X 12MM OPEN-ENDS
35 P0863035 VACUUM RING
36 P0863036 PLASTIC BAG 30" X 41"
37 P0863037 MACHINE ID LABEL
38 P0863038 READ MANUAL LABEL
39 P0863039 EYE/LUNG INJURY LABEL
40 P0863040 MODEL NUMBER LABEL
41 P0863041 GRIZZLY.COM LABEL
42 P0863042 TOUCH-UP PAINT, GRIZZLY GREEN
43 P0863043 TOUCH-UP PAINT, GRIZZLY BLACK
Safety labels help reduce the risk of serious
injury caused by machine hazards. If any
label comes off or becomes unreadable,
the owner of this machine MUST replace
it in the original location before resuming
operations. For replacements, contact (800)
523-4777 or www.grizzly.com.
