Grizzly T33304 User manual

COPYRIGHT © SEPTEMBER, 2022 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#JM22320 PRINTED IN CHINA
MODEL T33304
3-in-1 20V COMPACT ROUTER
OWNER'S MANUAL
(For models manufactured since 05/22)
V1.09.22
***Keep for Future Reference***
Model T33304 shown
w/optional battery.

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre-
hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip-
ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Model T33304 (Mfd. Since 05/22) -1-
SECTION 1: SAFETY
For Your Own Safety Read Instruction Manual
Before Operating This Equipment
The purpose of safety symbols is to attract your attention to possible hazard-
ous conditions. This manual uses a series of symbols and signal words which
are intended to convey the level of importance of the safety messages. The
progression of symbols is described below. Remember that safety messages by
themselves do not eliminate danger and are not a substitute for proper accident
prevention measures.
Indicates an imminent hazardous situation which, if
not avoided, WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if
not avoided, COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if
not avoided, MAY result in minor or moderate injury.
It may also be used to alert against unsafe practices.
This symbol is used to alert the user to useful infor-
mation about proper operation of the equipment.
NOTICE
Safety Instructions for Power Tools
OWNER’S MANUAL. Read and under-
stand this owner’s manual BEFORE using
machine.
TRAINED OPERATORS ONLY. Untrained
operators have a higher risk of being hurt
or killed. Only allow trained/supervised
people to use this power tool. When tool
is not being used, disconnect power, and
store in out-of-reach location to prevent
unauthorized use—especially around
children. Make workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not
use tools in areas that are wet, cluttered,
or have poor lighting. Operating tools in
these areas greatly increases risk of acci-
dents and injury.
MENTAL ALERTNESS REQUIRED. Full
mental alertness is required for safe oper-
ation of power tools. Never operate under
the influence of drugs or alcohol, when
tired, or when distracted.
DISCONNECT POWER FIRST. Always
disconnect tool from power supply
BEFORE making adjustments, changing
tooling, or servicing machine. This pre-
vents an injury risk from unintended startup
or contact with live electrical components.
EYE PROTECTION. Always wear ANSI-
approved safety glasses or a face shield
when operating or observing machinery to
reduce the risk of eye injury or blindness
from flying particles. Everyday eyeglasses
are not approved safety glasses.

Model T33304 (Mfd. Since 05/22)-2-
ELECTRICAL SAFETY. Tool plug must
match outlet. Double-insulated tools have
a polarized plug (one blade is wider than
the other), which must be plugged into a
polarized outlet. Never modify plug. Do
not use adapter for grounded tools. Use
a ground fault circuit interrupter if opera-
tion is unavoidable in damp locations.
Avoid touching grounded surfaces when
operating tool.
WEARING PROPER APPAREL. Do not
wear clothing, apparel or jewelry that
can become entangled in moving parts.
Always tie back or cover long hair. Wear
non-slip footwear to avoid accidental
slips, which could cause loss of workpiece
control. Wear hard hat as needed.
HAZARDOUS DUST. Dust created while
using tools may cause cancer, birth
defects, or long-term respiratory damage.
Be aware of dust hazards associated with
each workpiece material, always wear
a NIOSH-approved respirator, and con-
nect tool to an appropriate dust collection
device to reduce your risk.
HEARING PROTECTION. Always wear
hearing protection when operating or
observing loud machinery. Extended
exposure to this noise without hearing
protection can cause permanent hearing
loss.
REMOVE ADJUSTING TOOLS. Never
leave adjustment tools, chuck keys,
wrenches, etc. in or on tool—especially
near moving parts. Verify removal before
starting!
INTENDED USAGE. Only use tool for its
intended purpose. Never modify or alter
tool for a purpose not intended by the
manufacturer or serious injury or death
may result!
AWKWARD POSITIONS. Keep proper
footing and balance at all times when
operating tool. Do not overreach! Avoid
awkward hand positions that make tool
control difficult or increase the risk of
accidental injury.
SAFE HANDLING. Firmly grip tool. To
avoid accidental firing, do not keep finger
on switch or trigger while carrying.
FORCING TOOLS.. Use right tool for job,
and do not force it. It will do job safer and
better at rate for which it was designed.
SECURING WORKPIECE. When
required, use clamps or vises to secure
workpiece. This protects hands and frees
both of them to operate tool.
GUARDS & COVERS. Guards and cov-
ers reduce accidental contact with mov-
ing parts or flying debris. Ensure they
are properly installed, undamaged, and
working correctly.
CHILDREN & BYSTANDERS. Keep chil-
dren and bystanders at a safe distance
from the work area. Stop using tool if they
become a distraction.
USE RECOMMENDED ACCESSORIES.
Consult this manual or manufacturer
for recommended accessories. Using
improper accessories will increase risk of
serious injury.
MAINTAIN WITH CARE. Keep cutting
tool edges sharp and clean. Follow all
maintenance instructions and lubrication
schedules to keep tool in good work-
ing condition. A tool that is improperly
maintained could malfunction, leading to
serious personal injury or death. Only
have tool serviced by qualified service-
personnel using matching replacement
parts.
CHECK DAMAGED PARTS. Regularly
inspect tool for any condition that may
affect safe operation. Immediately repair
or replace damaged or mis-adjusted parts
before operating tool.
MAINTAIN POWER CORDS. When dis-
connecting cord-connected tools from
power, grab and pull the plug—NOT the
cord. Carrying or pulling the cord may
damage wires inside. Do not handle cord/
plug with wet hands. Avoid cord damage
by keeping it away from heated surfaces,
high traffic areas, harsh chemicals, sharp
edges, moving parts, and wet/damp loca-
tions. Damaged cords increase risk of
electrocution.
UNATTENDED OPERATION. Never
leave tool running while unattended. Turn
tool OFF and ensure all moving parts
completely stop before walking away.
EXPERIENCING DIFFICULTIES.
If at
any time you experience difficulties per-
forming the intended operation, stop
using the machine! Contact our Technical
Support at [phone].

Model T33304 (Mfd. Since 05/22) -3-
Additional Safety for Routers
Amputation, serious cuts, entanglement, or death can occur from contact with
rotating cutterhead or other moving parts! Flying chips can cause eye injuries
or blindness. Knives/inserts thrown by cutterhead can strike nearby operator or
bystanders with deadly force. To reduce the risk of these hazards, operator and
bystanders MUST completely heed hazards and warnings below.
POWER SOURCE. Remove battery from
the router before inserting or removing
bit, making adjustments, or performing
maintenance or service. DO NOT make
adjustments while the router is connected
to battery.
ROUTER BITS. Inspect router bits before
use. DO NOT use router bits that have
been dropped, cracked, or damaged.
The router bit may shatter, causing seri-
ous injury.
COLLET WRENCHES. Make sure the
collet wrenches are removed from the
router before inserting battery and turning
router ON.
AVOIDING BIT CONTACT. Keep unused
portion of bit above base or guide. Always
keep some type of guard or other protec-
tive device between your hands and bit
at all times!
ROUTING. Always route with the base
flat upon the workpiece. DO NOT start
the router with the bit in contact with the
workpiece.
REMOVING BIT. The bit is sharp and
will be hot after use. Use gloves when
removing.
PROTECT HANDS/FINGERS. While
feeding workpiece, avoid awkward hand
positions. Never pass hands directly
under, or in front of, bit. Keep hands away
from bit. Hold the router with both hands
to control torque twist and kickback.
FEEDING DIRECTION. Always feed the
router against the cutter rotation. DO
NOT start routing at a corner. Starting at
a corner may cause the router to grab,
damaging the workpiece, and possibly
causing personal injury.
CUTTING DEPTH. Never attempt to
remove too much material in one pass.
Doing this increases risk of workpiece
kickback. Instead, make several light
passes—this is a safer way to cut and it
leaves a cleaner finish.
WORKPIECE CONDITION. Routing a
workpiece with knots, holes, or foreign
objects increases risk of kickback and bit
damage/breakage. Thoroughly inspect
and prepare workpiece before rout-
ing. Rough, warped, or wet workpieces
increase risk of kickback.
SAFE BIT CLEARANCES. Operator or
bystanders may be hit by flying debris
if cutter contacts fence, guard, or table
insert upon startup. Always ensure any
new cutter setup has proper cutter rota-
tional clearance before startup.
SAFE BIT INSTALLATION. Improperly
secured bits or other inserts may become
dangerous projectiles if they come loose.
Always ensure collet and collet nut are
tight.
AVOIDING CLIMB CUTS. Feeding
workpiece in same direction of bit rotation
is a “climb cut.” Climb cutting can aggres-
sively pull workpiece—and hands—into
bits. Always first verify direction of bit
rotation before starting, and always feed
workpiece AGAINST bit rotation.
SAFETY GUARDS. To reduce risk of
unintentional contact with bit, always
ensure included bit guard is correctly
positioned before operation.
SAFETY EQUIPMENT. Wear safety
glasses, respirator, and hearing protec-
tion when operating a router.

Model T33304 (Mfd. Since 05/22)-4-
Additional Safety for Batteries & Chargers
Battery and charger components may cause irritation, burns, electric shock or
fire if disassembled, damaged, stored incorrectly, or disposed of incorrectly.
Connecting charger to circuit it is not rated for could result in fire or explosion.
To reduce the risk of these hazards, operator and bystanders MUST completely
heed hazards and warnings below.
READ ENTIRE MANUAL. Read and
understand all of the instructions and
warnings before charging battery.
CHARGING EQUIPMENT. Only charge
battery using charger and battery
supplied with tool. DO NOT use batteries
or chargers from other cordless tools.
CHARGING ENVIRONMENT. Charge
battery on dry, hard surface in shad-
ed location with good ventilation. DO
NOT place charger on or near flam-
mable materials. DO NOT cover charger
when charging. DO NOT expose
charger to moisture. Only charge
battery when temperature is between
50°F (10°C)–104°F (40°C). Charging in
temperatures beyond these extremes will
damage battery.
DO NOT DISASSEMBLE BATTERY OR
CHARGER. Tampering with battery or
charger may result in risk of electric shock
or fire.
CHARGER DAMAGE. Replace charger if
it has been dropped, damaged, exposed
to liquid, or has received hard impact.
DISCONNECT CHARGER. Unplug
charger when cleaning, or when not in
use.
SHORTING BATTERY. Avoid touching
terminals with skin or metal, to prevent
injury from an electrical shock and to
prevent fire from spark. Do not store bat-
tery with metal objects that could create
connection between terminals or in place
where it could get wet.
CHARGER VOLTAGE. DO NOT plug
into circuit that charger is not rated for.
Connecting charger to circuit with incor-
rect voltage will damage charger, possibly
causing fire or explosion. DO NOT charge
from DC power supply or generator or with
extension cord.
DAMAGED BATTERY. Regularly inspect
battery for any damage, corrosion, or any
condition that may affect safe operation.
Immediately replace damaged battery
before operating tool.
BATTERY DISPOSAL. Battery must be
recycled or disposed of properly. DO NOT
dispose of battery in landfill or incinerate.
Combustion of some of battery's compo-
nents can cause toxic fumes and possible
explosion.
BATTERY LIQUID. Liquid contained in
batteries can cause irritation or burns.
If liquid contacts eyes or skin, flush with
water and seek medical assistance.
No list of safety guidelines can be complete. Every shop environment is different.
Always consider safety first, as it applies to your individual working conditions.
Use this and other machinery with caution and respect. Failure to do so could
result in serious personal injury, damage to equipment or poor work results.

Model T33304 (Mfd. Since 05/22) -5-
SECTION 2: INTRODUCTION
We are proud to offer this manual with
your new router! We've made every effort
to be exact with the instructions, specifica-
tions, drawings, and photographs of the
router we used when writing this manual.
However, sometimes we still make an
occasional mistake.
Also, owing to our policy of continuous
improvement, your router may not exactly
match the manual. If you find this to be
the case, and the difference between the
manual and router leaves you in doubt,
check our website for the latest manual
update or call technical support for help.
For your convenience, we post all avail-
able manuals and manual updates for
free on our website at www.grizzly.com.
Any updates to your model of tool will be
reflected in these documents as soon as
they are complete.
Foreword
Charging Source ............................................................................................................120V
Battery Type .................................................................................................. 20V Lithium-Ion
Collet Size .................................................................................................................... 1/4 in.
Maximum Plunge Depth .................................................................................................. 2 in.
Length x Width x Height ........................................................................ 6 x 5-1/4 x 10-1/2 in.
Dust Port Size ........................................................................................................... 1-1/2 in.
Speed Range ...........................................................................................8000 - 26000 RPM
Weight .........................................................................................................................6.8 lbs.
Specifications
Contact Info
We stand behind our machines. If you
have any service questions, parts requests
or general questions about the machine,
please call or write us at the location listed
below.
Grizzly Technical Support
1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]
E-Mail: [e-mail]
We want your feedback on this manual.
If you can take the time, please email or
write to us at the address below and tell
us how we did:
Grizzly Industrial, Inc.
C/O Technical Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Email: [e-mail]

Model T33304 (Mfd. Since 05/22)-6-
Identification
Become familiar with the names and locations of the controls and features shown below to
better understand the instructions in this manual.
To reduce your risk of
serious injury, read
this entire manual
BEFORE using Tool.
A. Start/Stop Button
B. Power Lock Button
C. Battery Lock
D. Speed Dial
E. Depth Stop Rod
F. Battery (not included)
G. Depth Adjustment Nut
H. Router Base Lock Knob
I. Guide Lock Knobs
J. Router Plunge Base
K. Dust Port Lock Knob
L. 8-Position Depth Stop Block
M. Spindle Lock Button
N. Plunge Lock Lever
O. Plunge Base Handles (1 of 2)
P. Router Motor
Q. Depth Stop Lock Knob
R. Chip Guard
S. Dust Port
T. Collet Nut
U. Collet
V. Depth Scale
C
H
J
G
M
O
Q
L
K
N
R
S
T
U
I
V
P
F
B
D
E
A

Model T33304 (Mfd. Since 05/22) -7-
Controls &
Components

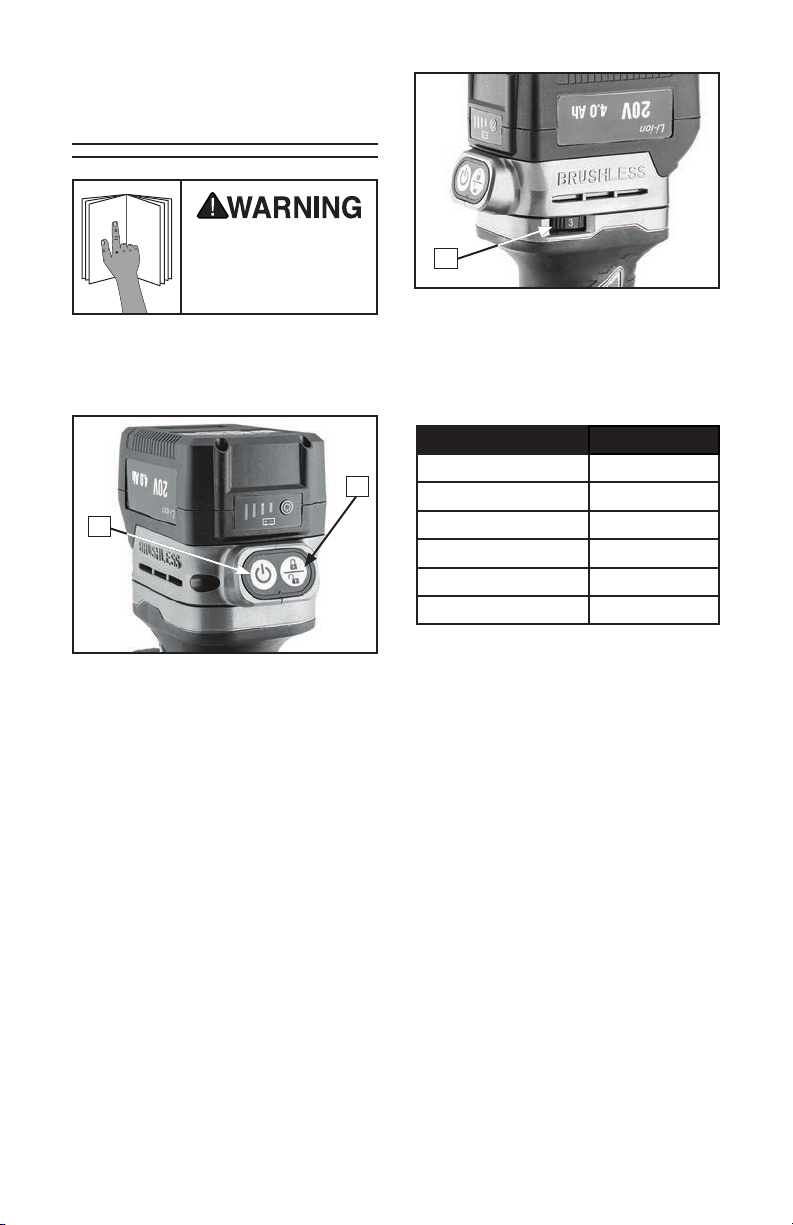

Refer to Figures 1–4 and the following
descriptions to become familiar with the
basic controls of this tool.
To reduce your risk
of serious injury, read
this entire manual
BEFORE using tool.
C
C. Speed Dial: Choose from 6 speed set-
tings on dial. Move dial left for higher
speeds and right for slower speeds.
Speed Setting RPM
18,000
211,6 00
315,200
418,800
522,400
625,400
Figure 2. Speed dial.
A
B
A. Start/Stop Button: With tool in stand-
by mode, press once to start motor.
B. Power Lock Button: Press once to
unlock tool and enter standby mode.
Press again to lock tool and exit stand-
by mode. Tool can only be started in
standby mode.
Note: Pressing either Start/Stop Button
or Power Lock Button will turn the tool
OFF.
Note: If left in standby mode for more
than 10 seconds, tool will automatically
turn itself OFF.
Figure 1. Power controls.

Model T33304 (Mfd. Since 05/22)-8-
D. Depth Adjustment Nut: Provides fine
control of bit height.
E. Depth Stop Lock Knob: Secures
desired cut height when locked.
F. 8-Position Depth Stop Block: Rotates
to different heights for setting depth of
cut. Used in conjunction with depth
stop rod.
G. Depth Scale: Measures depth of router
plunge travel.
H. Plunge Lock Lever: Controls move-
ment of plunge mechanism. Move
down to lock plunge mechanism, move
up to release.
I. Collet: Holds bit.
J. Spindle Lock Button: Locks spindle in
place for bit installation and removal.
K. Collet Nut: Secures collet and bit tool
on spindle.
J
I
K
Figure 4. Spindle and collet controls
E
F
G
H
Figure 3. Depth controls.
D

Model T33304 (Mfd. Since 05/22) -9-
SECTION 3: SETUP
This tool presents serious injury
hazards to untrained users. Read
through entire manual to become
familiar with controls and opera-
tions before starting tool!
This tool was carefully packaged for safe
transport. When unpacking, separate all
enclosed items from packaging materials
and inspect them for shipping damage.
If items are damaged, please call us
immediately at [phone].
IMPORTANT: Save all packaging materi-
als until you are completely satisfied with
the tool and have resolved any issues
between Grizzly or the shipping agent. You
MUST have the original packaging to file a
freight claim. It is also extremely helpful if
you need to return the tool later.
Unpacking
Like all tools there is potential
danger when operating this tool.
Accidents are frequently caused by
lack of familiarity or failure to pay
attention. Use this tool with respect
and caution to decrease the risk of
operator injury. If normal safety pre-
cautions are overlooked or ignored,
serious personal injury may occur.
The following are needed to complete the
setup process:
Description Qty
• Safety Glasses (per person) .............. 1
• Hearing Protection (per person) ........ 1
• Dust Collection System ...................... 1
• Dust Hose 1
1⁄2" ................................... 1
• Hose Clamps 11⁄2" .............................. 2
Needed for Setup

Model T33304 (Mfd. Since 05/22)-10-
Inventory
The following is a list of items shipped
with your tool. Before beginning setup, lay
these items out and inventory them.
If any non-proprietary parts are missing
(e.g. a nut or a washer), we will gladly
replace them; or for the sake of expedi-
ency, replacements can be obtained at
your local hardware store.
If you cannot find an item on this
list, carefully check around/inside
the tool and packaging materials.
Often, these items get lost in pack-
aging materials while unpacking or
they are pre-installed at the factory.

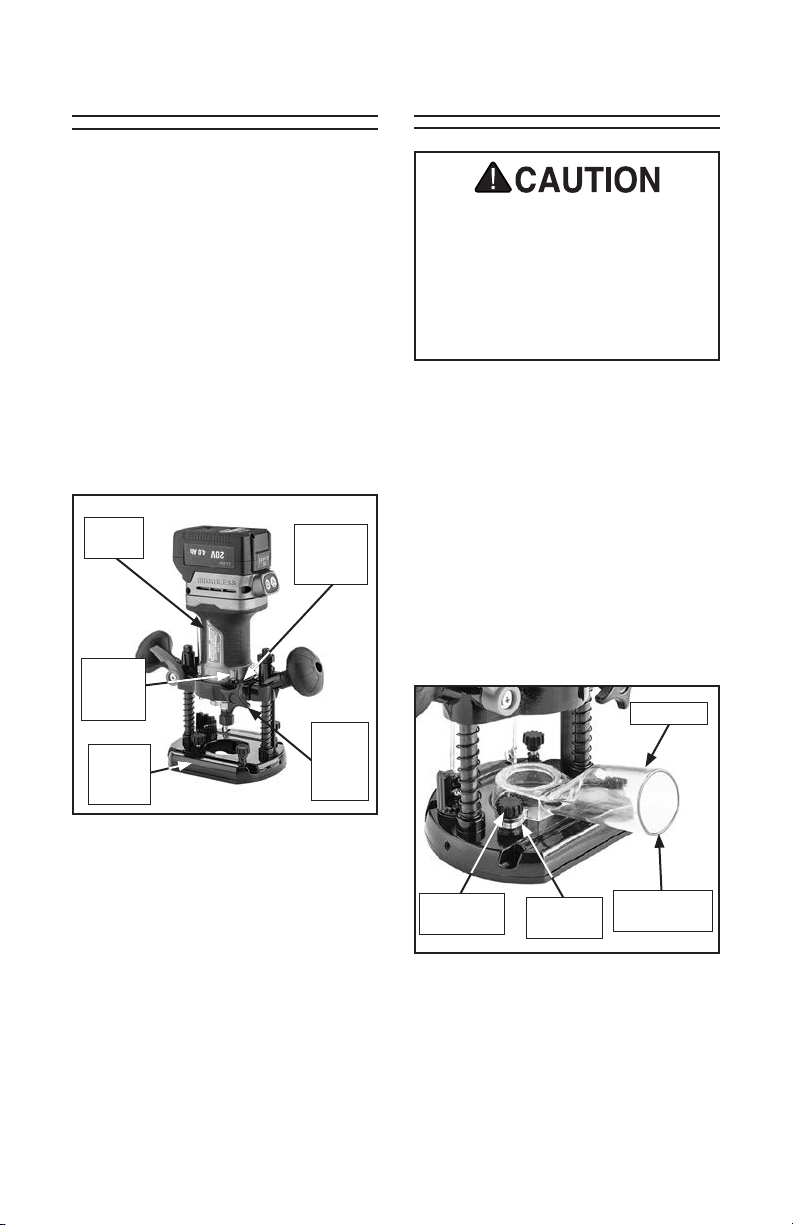

Box (Figure 5) Qty
A. Router Body .......................................1
B. Plunge Base ....................................... 1
C. Trimmer Guide ...................................1
D. Dust Port ............................................1
E. Template Guide .................................1
F. Circle Jig ............................................1
G. Curved Trim Guide ............................1
H. Hex Wrench 3mm ..............................1
I. Open-Ends Wrench 8 X 18mm ..........1
J. Straight Guide ....................................1
Figure 5. Model T33304 inventory.
C
D
E
F
G
H
I
J
A
B

Model T33304 (Mfd. Since 05/22) -11-
Charging/Installing
Battery
Removing/Charging Battery
1. Press battery lock (see Figure 6) and
remove battery from router.
2. Plug charger into 120V outlet.
3. Slide battery into charger until battery
clicks in place (see Figure 6). Red light
will illuminate while battery is charging.
When green light illuminates, battery is
fully charged.
Note: Fully charge battery before first
use.
Installing Battery in Router
1. Press battery lock (see Figure 8) and
remove battery from charger.
2. Insert battery by aligning router base
with groove in battery and pushing in
direction of arrow until battery pack is
secured in tool (see Figure 9).
Figure 9. Battery installed in router.
The Model T33304 is compatible with
Grizzly PRO 20V Lithium-Ion batteries and
chargers (see Accessories on Page 24).
Figure 6. Location of battery lock.
Figure 7. Battery charging in Model
T30302 Fast Charger (not included).
Figure 8. Removal of battery lock.
Battery
Lock
Battery
Battery
Lock
Battery Charger

Model T33304 (Mfd. Since 05/22)-12-
Dust Collection
The Model T33304 is supplied with a 11⁄2"
dust port that can attach to a dust collec-
tion system or shop vacuum.
This tool creates a lot of wood chips/
dust during operation. Breathing
airborne dust on a regular basis can
result in permanent respiratory ill-
ness. Reduce your risk by wearing
a respirator and capturing the dust
with a dust-collection system.
To connect to dust collection system:
1. Loosen dust port lock knob and slide
dust port clip and dust port into posi-
tion, then tighten knob (see Figure 11).
2. Fit 11⁄2" hose over dust port and
secure in place with hose clamp
(see Figure 11).
Assembly
Assembling the Model T33304 consists of
mounting the motor on the plunge base.
To assemble tool:
1. Loosen router base lock knob on
router plunge base (see Figure 10).
2. Install router motor on plunge base
by aligning router motor guides with
router base channels and pressing
motor into base (see Figure 10).
3. Tighten router base lock knob to
secure router motor in place.
Figure 10. Plunge base assembled on
router.
Figure 11. Dust port installed.
3. Tug hose to make sure it does not
come off.
Note: A tight fit is necessary for proper
performance.
Router
Base
Lock
Knob
Router
Plunge
Base
Router
Guides
(1 of 4)
Router
Motor Router
Base
Channel
Dust Port
Lock Knob Dust Port
Clip
Dust Hose
Attach Point
Dust Port

Model T33304 (Mfd. Since 05/22) -13-
To test run tool:
1. Clear all setup tools away from tool.
2. Remove collet nut and collet.
3. Install battery in router (see Charging/
Installing Battery on Page 11).
4. Press Power Lock button to enter
standby mode, then press Start/Stop
button within 10 seconds to start
motor. Tool should run smoothly with-
out unusual problems or noises.
5. Press either Start/Stop button or
Power Lock Button to turn tool OFF.
6. Try to start motor by pressing Start/
Stop button.
— If motor does not start, safety fea-
ture is working correctly.
— If motor does start, immediately
press either the Start/Stop Button
or Power Lock Button to stop tool
and disconnect battery. Contact
Technical Support before using tool.
Test Run
Once assembly is complete, test run the
tool to ensure it is properly connected to
power and safety components are working
properly.
If you find an unusual problem during the
test run, immediately stop the tool, discon-
nect it from power, and fix the problem
BEFORE operating the tool again. The
Troubleshooting table in the SERVICE
section of this manual can help.
The test run consists of verifying the fol-
lowing: 1) The motor powers up and runs
correctly and 2) the safety features function
correctly.
DO NOT start tool until all preceding
setup instructions have been per-
formed. Operating an improperly set
up tool may result in malfunction or
unexpected results that can lead to
serious injury, death, or tool/prop-
erty damage.
Serious injury or death can result
from using tool BEFORE under-
standing its controls and related
safety information. DO NOT operate,
or allow others to operate, tool until
information is understood.

Model T33304 (Mfd. Since 05/22)-14-
SECTION 4: OPERATIONS
Operation Overview
The purpose of this overview is to provide
the novice machine operator with a basic
understanding of how the tool is used
during operation, so the tool controls/com-
ponents discussed later in this manual are
easier to understand.
Due to the generic nature of this overview,
it is not intended to be an instructional
guide. To learn more about specific opera-
tions, read this entire manual, seek addi-
tional training from experienced machine
operators, and do additional research out-
side of this manual by reading "how-to"
books, trade magazines, or websites.
If you are not experienced with this
type of machine, WE STRONGLY
RECOMMEND that you seek addi-
tional training outside of this man-
ual. Read books/magazines or get
formal training before beginning any
projects. Regardless of the content
in this section, Grizzly Industrial
will not be held liable for accidents
caused by lack of training.
To complete a typical operation, the
operator does the following:
1. Examines workpiece to make sure it is
suitable for routing.
2. Secures workpiece.
3. Installs router bit and adjusts depth for
operation.
4. Puts on safety glasses, hearing
protection, and respirator.
5. Places tool on workpiece without bit
contacting workpiece.
6. Turns tool ON, starts motor, waits for
bit to reach full speed, then begins cut
with even, steady motion.
Note: Always do a test run on a scrap
piece of wood or laminate to check that
depth of cut is accurately set.
7. Stops motor, allows bit to come to
complete stop, then lifts tool.
8. Repeats Steps 6–7 until desired result
is achieved.
To reduce your risk of
serious injury, read
this entire manual
BEFORE using tool.
Eye injuries, respiratory problems,
or hearing loss can occur while
operating this tool. Wear person-
al protective equipment to reduce
your risk from these hazards.

Model T33304 (Mfd. Since 05/22) -15-
Some workpieces are not safe to cut or
may require modification before they are
safe to cut. Before cutting, inspect all
workpieces for the following:
• Material Type: This machine is
intended for cutting natural and
man-made wood products, laminate
covered wood products, and some
plastics. Cutting drywall or cementi-
tious backer board creates extremely
fine dust and may reduce the life of
the bearings. This machine is NOT
designed to cut metal, glass, stone,
tile, etc.; cutting these materials with
a router may lead to injury.
• Foreign Objects: Nails, staples, dirt,
rocks and other foreign objects are
often embedded in wood. While cut-
ting, these objects can become dis-
lodged and hit the operator, cause
kickback, or break the blade, which
might then fly apart. Always visu-
ally inspect your workpiece for these
items. If they can't be removed, DO
NOT cut the workpiece.
• Large/Loose Knots: Loose knots
can become dislodged during the
cutting operation. Large knots can
cause kickback and machine dam-
age. Choose workpieces that do not
have large/loose knots or plan ahead
to avoid cutting through them.
Workpiece Inspection • Wet or "Green" Stock: Cutting
wood with a moisture content over
20% causes unnecessary wear on
the blades, increases the risk of kick-
back, and yields poor results.
• Excessive Warping: Workpieces
with excessive cupping, bowing,
or twisting are dangerous to cut
because they are unstable and often
unpredictable when being cut. DO
NOT use workpieces with these char-
acteristics!
• Minor Warping: Workpieces with
slight cupping can be safely sup-
ported if the cupped side is facing the
table or the fence. On the contrary, a
workpiece supported on the bowed
side will rock during a cut and could
cause kickback or severe injury.
• Routing with the grain produc-
es a better finish and is safer
for the operator. Refer to Feed
Direction on Page 18 f o r a d d i t i o n a l
information.

Model T33304 (Mfd. Since 05/22)-16-
Installing Router Bit
The Model T33304 router is supplied with a
1⁄4" collet for use with 1⁄4" shank router bits.
Carefully inspect router bits for cracks,
chips, or other damage before installing.
DO NOT use router bits that have been
dropped, cracked, or damaged. The router
bit may shatter, causing serious injury.
To install router bit:
1. DISCONNECT BATTERY FROM
TOOL!
2. Remove router motor from plunge
base or trimmer guide.
3. Align spindle lock button pin with lock-
ing hole in spindle shaft and press
spindle lock button (see Figure 12).
4. While pressing lock button, use
collet wrench to loosen collet nut
(see Figure 12).
5. Insert router bit to within 1⁄8" of bottom
of collet, then securely tighten collet
with wrench.
Note: Collet can be damaged if it is
tightened without a bit.
Router bit is sharp and will be hot
after use. Wear gloves to prevent
injury when removing bit.

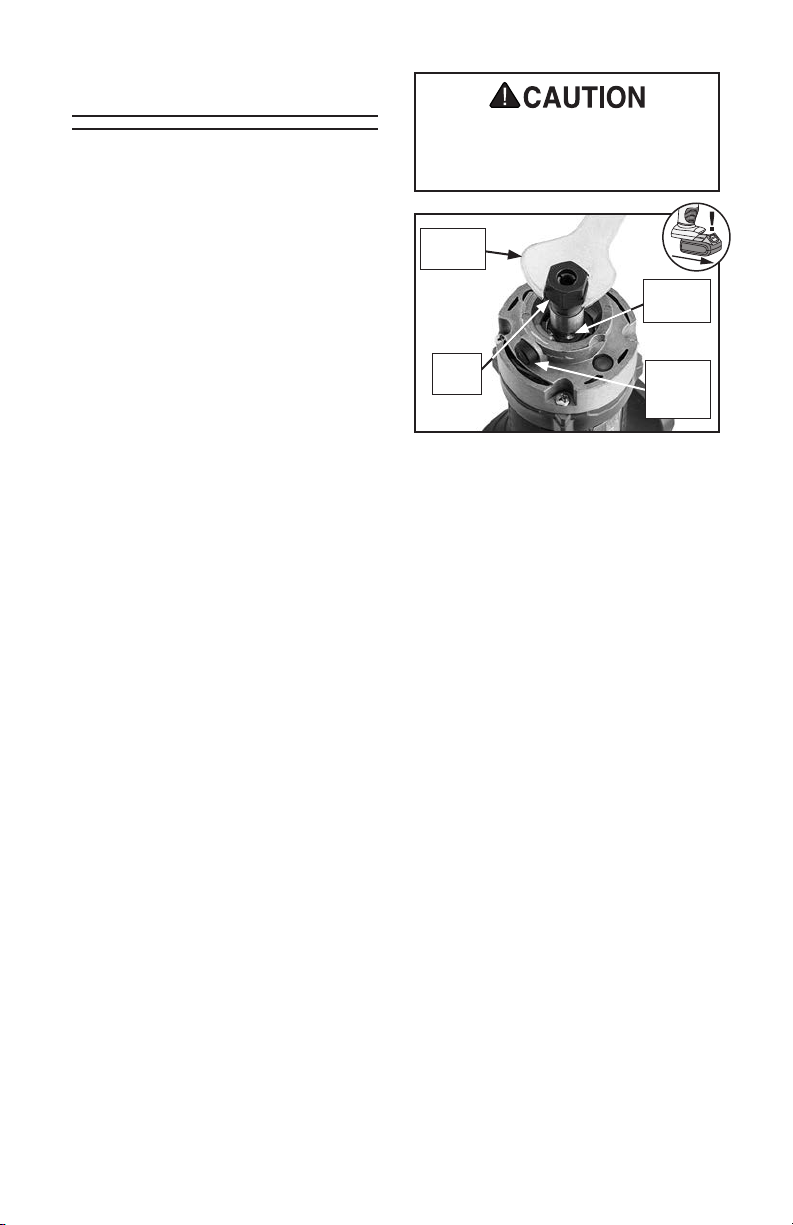

Figure 12. Spindle collar components.
Collet
Wrench
Collet
Nut
Locking
Hole
Spindle
Lock
Button

Model T33304 (Mfd. Since 05/22) -17-
4. Lower router in plunge base so bit
just touches flat surface, then tighten
plunge lock lever.
5. Raise depth stop rod, rotate depth
stop block to desired level, and lower
depth stop rod onto stop block.
Tip: If you intend to perform a series
of cuts, begin with a higher step on
the depth stop block. After each pass,
rotate the stop block one step counter-
clockwise to move to the next lowest
step.
6. Note scale reading.
7. Add desired depth of cut to current
scale reading and lower plunge base
to the new level.
8. Tighten depth stop lock knob to secure
position of stop rod.
9. Depth of cut is now set.
Note: Always do a test run on a scrap
piece of wood to check that depth of
cut is accurately set.
Adjusting Cutting
Depth
Items Needed Qty
Ruler ......................................................... 1
Scrap Wood ...............................As Needed
Disconnect battery from router
before inserting or removing bit,
making adjustments, or performing
maintenance or service. DO NOT
make adjustments while router is
connected to battery. Serious injury
may occur if this is ignored.
Figure 13. Plunge base height adjustment
components.
Although the correct depth of cut varies
according to wood hardness and the size
of the bit, we recommend the maximum
depth of cut (per pass) be no more than
1⁄8". A series of light cuts will give better
results and put less stress on the router
than trying to take off too much material in
a single pass.
1. DISCONNECT BATTERY FROM
TOOL!
2. Loosen depth stop lock knob (see
Figure 13).
3. Place router on a flat surface
a n d l o o s e n p l u n g e l o c k l e v e r
(see Figure 13).
Adjusting Cutting Depth with
Plunge Base
Depth Stop
Lock Knob
Depth
Stop
Block
Depth
Stop
Rod
Plunge
Lock
Lever
Depth
Adjustment
Nut
Depth
Scale

Model T33304 (Mfd. Since 05/22)-18-
Feed
Direction
Once the router bit has been selected and
installed properly, and the depth of cut has
been set, determine the proper feed direc-
tion of the router across the workpiece.
To determine feed direction:
1. Examine top face of workpiece and
determine direction of grain. Feed
router so bit is cutting with grain (cut-
ting along growth rings as shown in
Figure 15). Cutting against grain chips
wood rather than cutting it, making a
rougher surface with more "chip out."
2. Pass router across workpiece with bit
rotating opposite feed direction, as
shown in Figure 15. If bit is moving in
same direction you are feeding router,
you are performing a "climb cut." This
is a very dangerous operation because
router could lunge forward out of your
hands, causing serious personal injury.
Figure 15. Correct feed direction and
grain orientation (bottom view).
Adjusting Cutting Depth with
Plunge Base in Fixed Position
Figure 14. Plunge base in fixed position
components.
1. DISCONNECT BATTERY FROM
TOOL!
2. Loosen depth stop lock knob (see
Figure 14).
3. Raise depth stop rod (see Figure 14)
to highest position and secure with
lock knob, or remove rod from plunge
base completely.
4. Push plunge base to its lowest posi-
tion and engage plunge lock lever to
secure (see Figure 14).
5. Install router bit.
6. Release plunge lock lever, raise
plunge base to bring router bit to
desired depth of cut, then tighten
plunge lock lever.
Tip: Use depth adjustment nut for fine
adjustments to depth of cut.
Note: Always do a test run on a scrap
piece of wood to check that depth of
cut is accurately set.
Depth
Adjustment
Nut
Depth
Scale
Depth Stop
Lock Knob
Depth
Stop
Block
Depth
Stop
Rod
Plunge
Lock
Lever
Bit
Rotation
Feed
Direction
