MAX 175-253KTL3-X Series Inverter

1 Overview
1.1 Product Overview
This manual will provide detailed product information and installation instructions for users
of Shenzhen Growatt New Energy Co., Ltd. (Short as Growatt) MAX 175-253KTL3-X HV
series solar inverters. Please read this manual carefully before using this product, and store
this manual in a place that is convenient for installation, operation, and maintenance
personnel. No further notice if there is any change in this manual.
1.2 Applicable Personnel
Only qualified electrical technicians are allowed to install inverter. With reading through
this manual and following all the precautions, qualified electrical technician can properly
install MAX 175-253KTL3-X HV serial inverter, finish trouble shooting and
communication settings.
If there is any problem during the installation, the installer can either log on
www.ginverter.com and leave a message or call consumer service hotline +86
75527471942.
2 Safety Precautions
2.1 Safety Overview
1>Before installation please make sure reading through this manual, any damage cause
by improper installation, Growatt reserve the right to disclaim any warranty.
2>All the operations and connections must be done by trained qualified electrical
technician.
3>During installation except for terminals, do not touch any inside part of the inverter.
4>All the electrical connections must meet local country's safety regulations.
5>If you need maintenance for this inverter, please contact our local authorized
installing and maintenance technician.
6>You must get the local power supplier's permit before connecting this inverter to the
grid.
H a n d l e P ro c e s s：
Installation：
Electrical Connecttions:
Maintenance and replacement:
•The inverter is heavy,please treat with care while handling,in case of
crushing injury.
•Before installation,please read through this manual,any damage
cause by improper installation,Growatt reserve the right to disclaim
any warranty.
•Ensure that the inverter is not connected to a power supply and is not
power on before installation.
•Before electrical connection, please ensure the inverter DC switch is
at "OFF” also disconnect AC switch, otherwise the high voltage from
inverter may cause life risk.
•Only trained authorized electrical technician can do the electric
connection also please follow the connection procedures in this
manual along with local country's regulations.
•High voltage may cause electric shocks and serious injury please
do not touch the inverter.
•Please do not store inverter in area with flammable and explosive
material.
•Must be installed by trained and authorized electrical technician and
accurately follow this manual.
•Please disconnect the DC and AC switch for at least five minutes, all
the operations should be carried after power disconnection.
•If there is PV isolation low alarm, the inverter case may be ungrounded,
please do not touch the inverter case.
•High voltage of inverter may result in electric shock.
•Each inverter must install one AC breaker; AC breaker is forbidden to
share with other inverters
•It is forbidden to add load between inverter and breaker.
•If the cable is thick, after tightening the cable do not shake it and
ensure the cable is well-connected and then start the inverter.Loose
connection may cause overheat.
•Before connecting between PV panels and inverter please ensure the
positive and negative poles are correct connected.
•Do not use air pump to clean the fans, cause it may damage the fans.
•For better cooling purpose, please regularly clean the fans.
1
2
•Please follow this installation manual as installation condition
environment, space and so on.
•Please install the inverter in a dry and ventilated environment
otherwise may affect the performance of the inverter.
•Please follow the installation procedures in this manual.
WARNING
WARNING
DANGER
DANGER
DANGER
NOTICE
WARNING
WARNING

2.2 Symbol Conventions
Symbol
Description
Indicates an imminently hazardous situation which,if not
avoided,will result in serious injury or death.
Indicates potentially hazardous situation which,if not avoided,will
result in serious injury or death.
Indicates potentially hazardous situation which,if not avoided,will
result in minor or moderate injury.
Indicates certain hazardous situation which,if not avoided,will rusult
in property damage.
Reminds operator to read installation manual before operating or
installing inverter.
2.3 Safety symbol description
Symbol
Name
Meaning
High Voltage
Electric Shock
Inverter operating with high voltage, any
operation regarding inverter need to be done by
trained and authorized electrical technician.
Burn Warning
Do not touch a running inverter cause it
generates high temperature on the case.
Protective
Grounding
Connect inverter to grounding bar.
Delay discharge
Residual voltage exists after the inverter is
powered off, it takes 5 minutes for the inverter
to discharge to the safe voltage.
Read the
installation
manual
Reminds operator to read installation manual
before operating or installing inverter.
DC
Means this terminal is for DC side
AC
Means this terminal is for AC side
CE Mark
The inverter complies with the requirements of
the applicable CE guidelines.
4
3
Other：
•After you receiving the inverter please check the packing materials for
damage,if there is any damage please contact your supplier.
•The Max PV input voltage should not exceed 1500V.
•For the disposed inverter,the consumer should dispose it according to
local disposal rules for electrical equipment waste.
CAUTION
NOTICE
WARNING
WARNING
DANGER
Information

3 Product Introduction

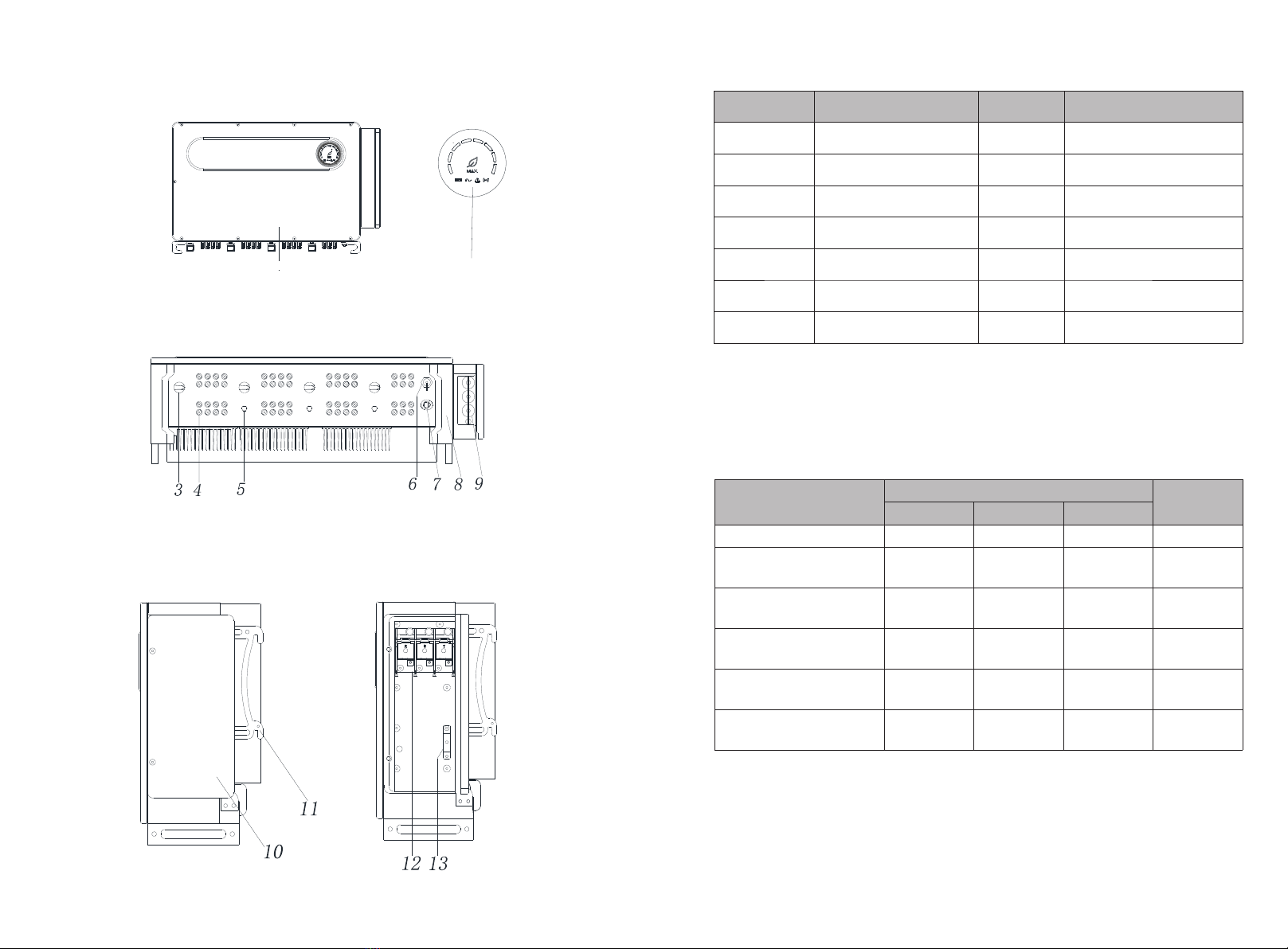

3.1 Appearance
Front view:
Bottom view(Termial):
Side view:
Fig 3.1
Fig 3.3
6
5
Fig 3.2
Mark
Description
Mark
Description
1
Front panel
8
Corner guard
2
LED
9
Waterproof silicone pad
3
DC switch
10
AC Junction BOX
4
PV terminal
11
Machine support
5
Breathing valve
12
AC terminal
6
USB interface
13
Ground copper row
7
COM interface
3.2 Basic Data
Model
Size(mm)
Weight
(kg)
Width
Height
Thickness
175-216K Series Inverter
1070
675
340
99
175-216K Series Inverter
with package
1265
865
510
115
225-250K Series Inverter
1070
675
340
105
225-250K Series Inverter
with package
1265
865
510
120
230-253K Series Inverter
1070
675
340
109
230-253K Series Inverter
with package
1265
865
510
125
21
Note:For 175-216kW models have 9 MPPTs,For 225-250kW models have 12MPPTs, For
230-253kW models have 15MPPTs.

3.3 Nameplate
Note: Other models of MAX 175-253KTL3-X HV series share the same label design
with MAX 253KTL3-X HV, only with different model name and parameters, detail
parameter please refer to specification in Chapter 10.
The MAX 175-253KTL3-X HV series inverter works as follows:
1>The PV panels gather solar to generate DC power to inverter.
2>With input current detection circuit, it can monitor all the PV panels' working status
and use MPPT to track the maximum power point.
3>With inverter circuit change DC power to AC power, and feed power back to grid per
grid reuqirement.
4>With output isolation relay can isolate AC output and grid, if anything goes wrong on
either inverter side or grid side, isolation relay can disconnect inverter immediately.
3.4 Working Principle
On-grid connection system diagram：
Fig 3.4
断路器
A B C
symbol
Description
symbol
Description
A
PV string
C
Grid
B
Inverter
3.5 Inverter Storage
3.6 Grid Types
1>Do not unpack the inverter and store it in a ventilation dry place .
2>Keep the storage temperature at -30 ℃- +60℃ and humidity at 0-100%.
3>A maximum of three inverters with package can be stacked.
4>If the inverter has been long-term stored, inspections and tests should be conducted
by qualified personnel before it is put into use.
After being stored for a month or longer, the inverter's time and date
could be wrong, you need set the time and date before using, for
more details please refer to Chapter 7.1 inverter commissioning
The MAX 175-253KTL3-X HV seriers inverters connect to the grid like following drawing
3-5：
Fig 3.5
462V
800V
462V
462V
800V
800V
78
Made in China
X

910
3.7 AFCI Detection Function
AFCI (Arc Fault Circuit Interrupter) is a kind of circuit protection device, the main
function is to prevent the fire caused by fault arc.The electrical insulation aging,
breakage, loose connection, air breakdown caused by air humidity and so on, all of these
may cause an electric spark, which is called arc.
The AFCI function of the MAX 175-253KTL3-X HV series inverter is optional, and the
detection equipment is assembled inside the inverter. When an arc-drawing condition is
detected on the PV input side, the arc current could be detected by the CT assembled on
the PV input-side wire. Then the inverter will shut down. Meanwhile, the inverter will
display the corresponding fault message and the buzzer will sound, which could help to
avoid harm and economic loss to the user.
NOTE: AFCI function is optional.
Unpacking 4
Checking before installation
1>Before unpacking the inverter, check the outer packing materials for damage.
2>After unpacking the inverter, check that the contents are intact and complete. If any
damage is found or any component is missing, contact your supplier.
Package contents:
Package contents:
Fig 4.1
Mark
Descriptions
Number
A
Inverter
1
B
Wall mount
1
C
PV + terminal, PV- terminal
30/30
D
AC wiring copper terminal
3
E
Installation manual
1
F
Warranty card
1
G
Removal tool of PV terminal
1
H
Carrying handle
4
I
M10*90 Expansion screw
4
J
DT50-8 Ground terminal
1

5 Installation
5.1 Basic Installation Requirements
A. Ensure that the installation wall is solid enough to bear the inverter(Inverter weight
please refer to installation manual Chapter3, 3.2 ).
B. There must be enough installation space to fit the size of inverter.
C. Do not install inverter on flammable or heat-intolerant buildings.
D. This inverter is IP 66 protection, you can install it indoor or outdoor.
E. To avoid inverter performance de-rate due to the over heat, please do not expose the
inverter under direct sunlight.
F. The installation humidity can be from 0-100%.
G. The surrounding temperature of inverter should be from -30℃ - +60℃.

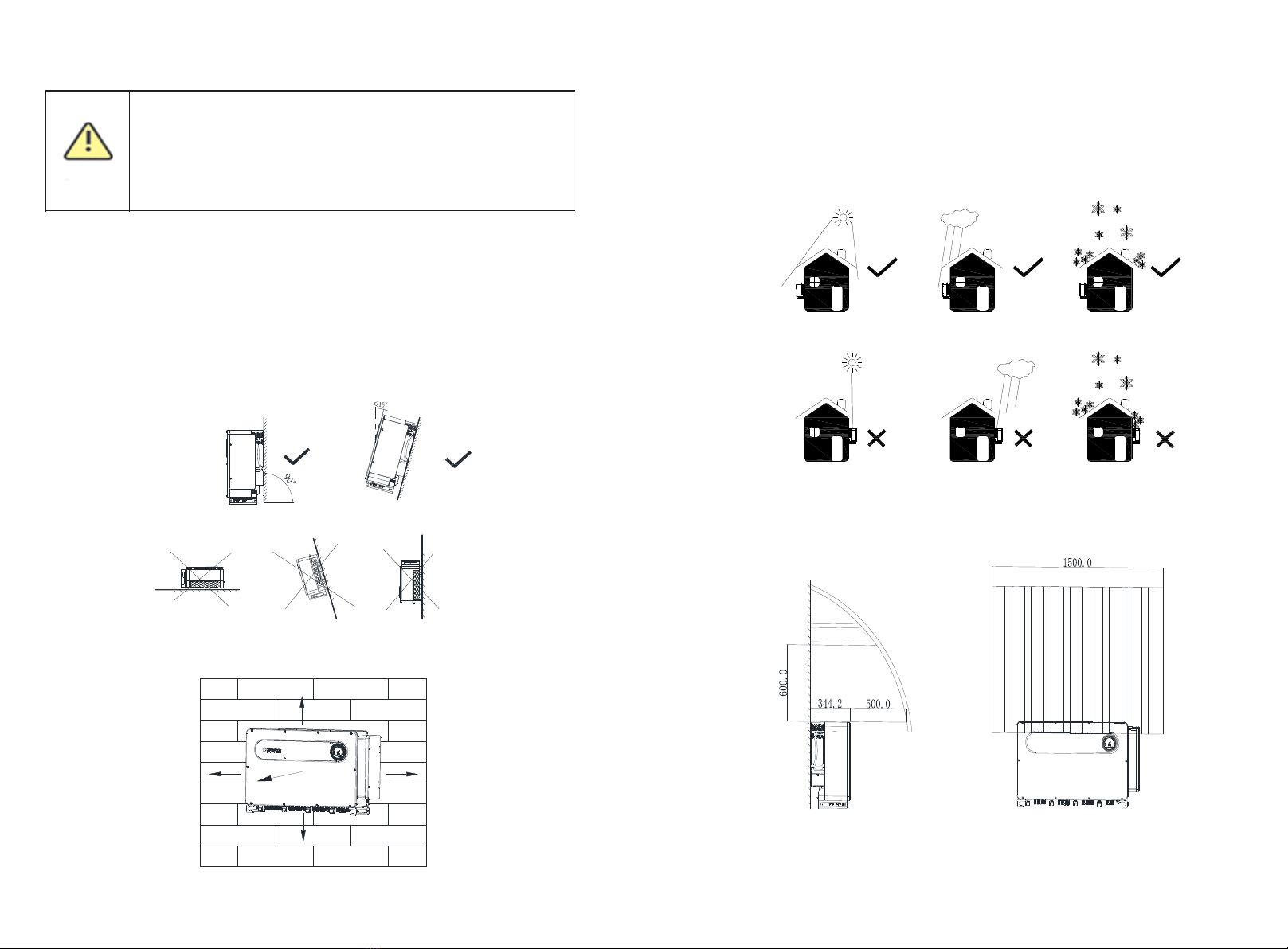

H. Inverter should be installed in a vertically or rear tilted surface, please refer to
following drawings.
Fig 5.1
I. To ensure the inverter can work smoothly and easy for personnel to operate, please
notice there is sufficient space for inverter, refer to following drawing.
Fig 5.2
•To prevent device damage and personal injury, keep balance when
moving the inverter because it is heavy.
•Do not place the inverter with its wiring and signal terminals at the
bottom contacting with floor or any other object because the terminals
are not designed to support the weight of inverter.
•When placing inverter on the floor, put foam or paper under the inverter
to protect its cover.
CAUTION
≥1 0 0 0 m m ≥1 0 0 0 m m
≥1 0 0 0 m m
≥300mm
≥1 0 0 0 m m
J. Do not install inverter close to strong electromagnetic signal.
K. Install the inverter out of children's reach.
5.2 Installation Environment Requirements
A. Although the inverter's protection level is IP 66, to extent inverter lifespan you still
need to avoid rain and snow, please refer to following drawings.
Fig 5.3
B. To reduce the de-rate performance of the inverter and extend inverter's life span, we
strongly recommend you install an awning, for the distance between an awning and
inverter, please refer to following drawing.
Fig 5.4
C.When you install multiple inverters on one surface, inverters should be installed as
following drawing.
11 12

D.Do not install inverter into an enclosed space like following drawing.
Fig 5.6
5.3 Moving Requirements
•The inverter is heavy, please move it with care and keep balance to avoid
personnel injury.
•Do not place the inverter with its wiring and signal terminals at the
bottom contacting with floor or any other object because the terminals are
not designed to support the weight of inverter.

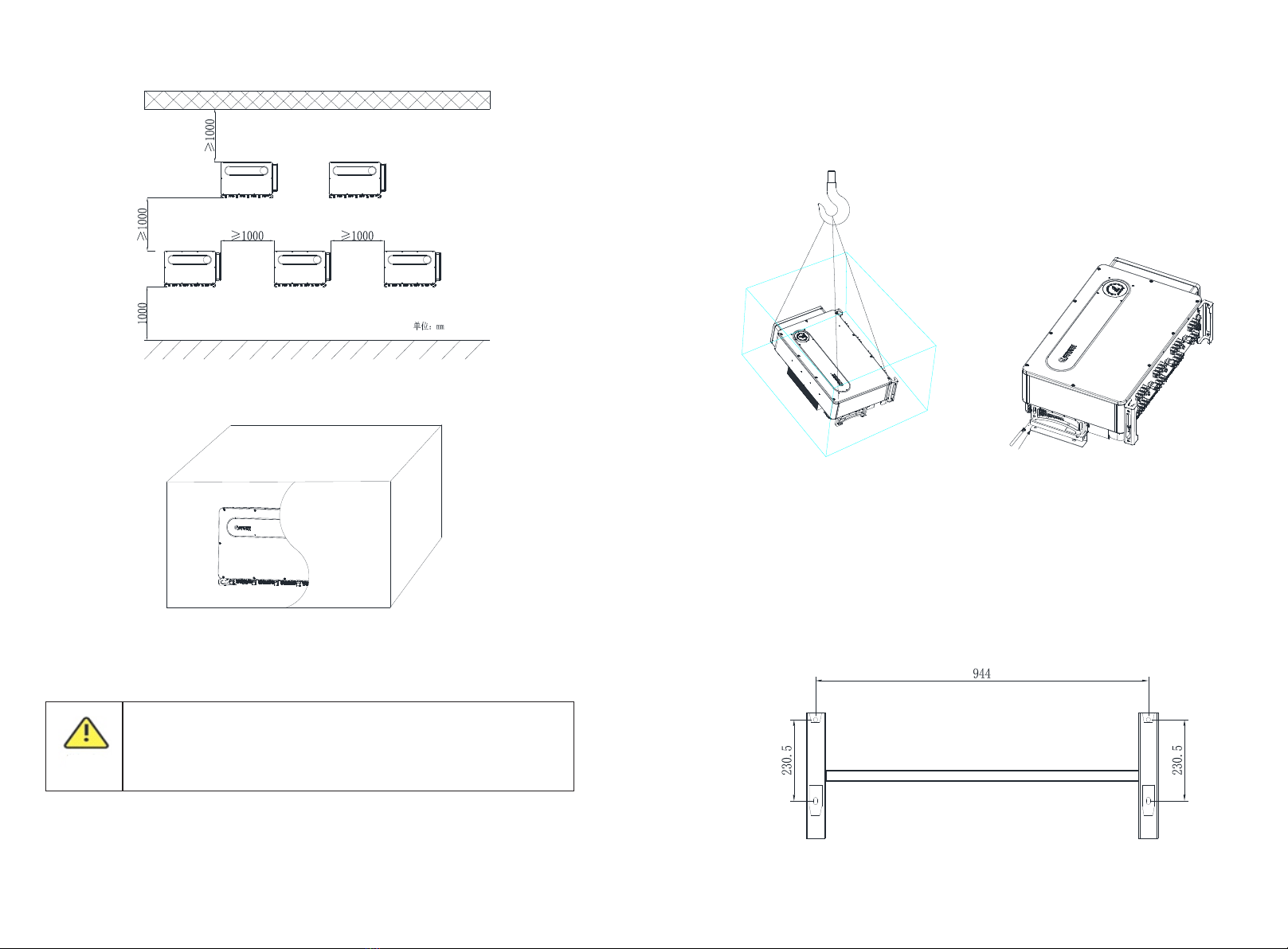

Plan 1：
1>As shown in Fig5-7, use ropes to tie machine supports and holders, lift the inverter
from package and move to installation position.
2>When you are moving the inverter, please keep the balance.
Notice: There is front and bottom mark on the package.
WARNING
Fig 5.5
5.4 Wall Mount Bracket Installation
Before install the inverter you need install the wall mount bracket so that the inverter can
be firmly installed on the wall.
Wall mount plan:
Fig 5.7Fig 5.8
Fig 5.9
Plan 2(Optional):
1>As shown in Fig5-8, 4-6 persons lift the inverter out of package, and then use four
carrying handles to move the inverter to installation position.
2>When you are moving the inverter, please keep the balance.
Notice: There will be front and bottom mark on the package.
13 14

Fig 5.10
1>Use the wall mount plate as a template drill holes on the wall and put in expansion
bolts.
2>Follow the following drawing put the bolt to install the wall mount plate on the wall.
Fig 5.11
Notice: Do not install inverter unless you have confirmed the wall mount plate has been
firmly installed on the wall.
Notice：Expansion bolt should be installed on solid walls with at least 100mm thickness.
5.5 Installing The Inverter
After the wall mount bracket has been firmly installed on the wall , put the inverter on
that plate.
1>Tie the rope(must meet the weight requirement of the inverter) to the machine
supports to lift the inverter up, just as following Figure.
2>Before hanging the inverter on the wall mount bracket use screws to fix the inverter
and please keep the inverter balance.
3>Check the inverter if it is firm enough and lock all the screws.
图 5.12 图 5.13
图 5.14
15 16

6 Connecting Cable
6.1 Connection on AC side
•Before electrical connection, please ensure the inverter DC switch is
at“OFF” ,and disconnect AC switch, otherwise the high voltage from
inverter may cause life risk.
•Only trained authorized electrical technician can do the electric connection
also please follow the connection procedures in this manual along with local
country's regulations.
•High voltage may cause electric shocks and serious injury please do not
touch the inverter.
•Please do not store inverter in area with flammable and explosive material.
•Each inverter must install one AC breaker ,and one AC breaker is forbidden
to share with other inverters.
•It is forbidden to add load between inverter and breaker.
Preparation before connection:
1>Disconnect inverter DC switch and AC breaker or switch.
2>When you lock the AC cable's screw, the torque force should be 25kgf·cm
When you lock the cover screw, the torque force should be 20kgf·cm.
3>Measure the grid voltage and frequency, please refer to chapter 10.
AC breaker specification：
17 18
DANGER
WARNING
Decisive Voltage Class (DVC) indicated for ports
Port Name Class
AC
DC
DRMS
RS485&USB
C
C
A
A
Inverter model
Breaker model
MAX 175KTL3-X HV
200/250A 1000Vac
MAX 185KTL3-X HV
200/250A 1000Vac
MAX 196KTL3-X HV
200/250A 1000Vac
MAX 216KTL3-X HV
200/250A 1000Vac
MAX 225KTL3-X HV
250/320A 1000Vac
MAX 230KTL3-X HV
250/320A 1000Vac
MAX 250KTL3-X HV
250/320A 1000Vac
MAX 253KTL3-X HV
250/320A 1000Vac
Notice:The cable must be unbroken. When using aluminum alloy cables, please use
copper-aluminum transition terminals.
AC side connection steps:
•If the cable is thick, after tightening the cable do not shake it and ensure
the cable is well-connected and then start the inverter. Loose connection
may cause overheat.

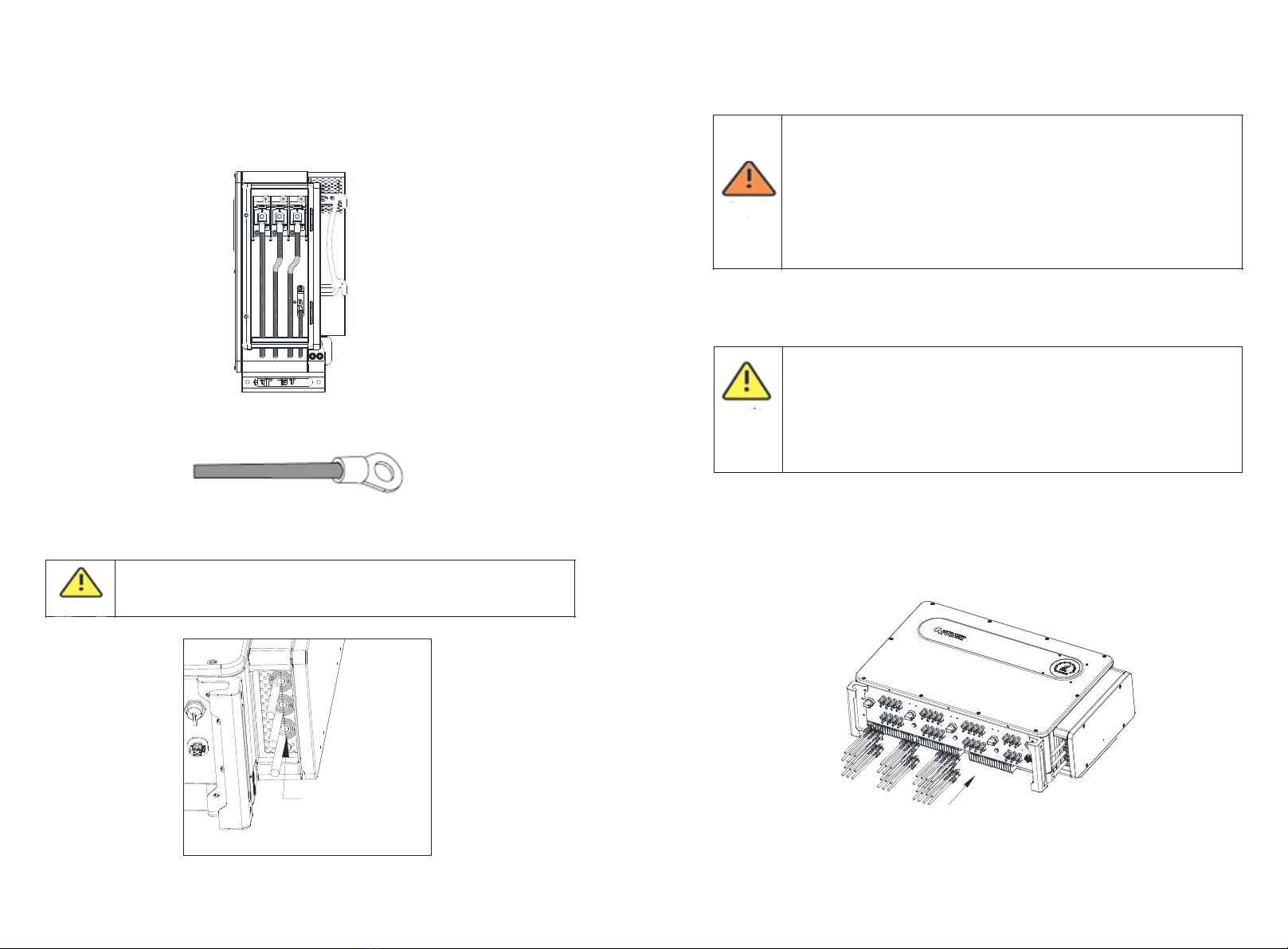

1>Following drawing shows inverter's AC terminal, R, S, T are three live lines
Notice: The screw is a matching M12 screw.
Fig 6.1
Cable specification:
WARNING
Inverter Model
Copper wire cross
sectional（mm2）
Copper wire
recommendation（mm2）
MAX 175KTL3-X HV
70-95
70
MAX 185KTL3-X HV
MAX 196KTL3-X HV
MAX 216KTL3-X HV
MAX 225KTL3-X HV
MAX 230KTL3-X HV
MAX 250KTL3-X HV
MAX 253KTL3-X HV

•The AC junction box cover must be tightened, and the fireproof mud must
be filled with the outlet, otherwise there is a risk of water ingress.
2>Open the AC junction box first, and then pass the cable through the waterproof
silicone gasket .Determine the stripping length (approximately 30mm) according to the
specifications of the crimping terminal. Use crimping tools to crimp the wires and
terminals, then connect the cables to the corresponding channels through the
waterproof interface, and tighten the screws.
Fig 6.2
Diagram of how to install a terminal:
Fig 6.3
3>Apply fireproof mud to the threading holes on the waterproof silicone pad to prevent
the risk of water ingress, as shown in the figure below.
WARNING
Fig 6.4
6.2 Connection On DC Side
•Before electrical connection please ensure the inverter DC switch is at
"OFF” also disconnect AC switch, otherwise the high voltage from inverter
may cause life risk.
•Only trained authorized electrical technician can do the electric connection
also please follow the connection procedures in this manual along with local
country's regulations.
•High voltage may cause electric shocks and serious injury please do not
touch the inverter.
•Do not place flammable or explosive materials around the inverter.
•Each string's maximum open circuit voltage cannot exceed 1500Vdc,
otherwise it could lead to fire or damage the inverter. If the inverter was
damaged by higher maximum open circuit voltage (higher than 1500Vdc)
product warranty will be forfeited and Growatt will not take any
responsibility.
•The inverter shall be used with IEC 61730 Class A rating PV module.
•When the group is suspended, be sure to use dust plugs to block up to
prevent entering the water into the dust.
Notice: The sunlight will generate voltage on the solar panels, after serial connection,
the high voltage may injure personnel, so before connect DC input cable you need cover
solar panels with light-tight materials and make sure the inverter DC switch is at
"OFF”status, otherwise high voltage may injure personnel.
1>Each string solar panels should be same brand and same model.
2>Under any circumstance, the maximum short circuit current should not exceed 50A.
3>The total panels power should not exceed 1.5 times of inverter input power.
4>To optimize system settings, recommend two strings with same amount solar panels.
Notice: Connectors need to be fit with male and female terminals, before connecting
panels with inverter please make sure the positive pole and negative pole, namely the
solar panels'positve pole connect to“+” negative pole connect to“-”.
Fig 6.5
WARNING
DANGER
5>Decide the length of peeling base on cable terminal, use the wire stripper to connect
cable and terminal, and separately connect to specific connector.
19 20
Fireproof mud

6>Connect the positive and negative poles to inverter terminals, different inverter's
maximum single string input current please refer to following table:
Inverter model
Max. single string input current
MAX 175-253KTL3-X HV
1 5 A * 2
7>Cable specifications:
Inverter model
Cross-sectional
area(mm²)
Recommendation
(mm²)
Cable outer
diameter(mm)
MAX 175-253KTL3-X HV
4-6
4
4.5-7.8
Notice：1.Under any circumstance, the total current of all strings cannot exceed the
inverter's maximum current
2. Do not touch any working solar panels.
3. Make sure the cable is unbroken.
6.3 Connection Of Communication Cables
6.3.1 RS485 port
Rs485 can carry out single-machine communication or multi-machine (32pcs)
longdistance (500 meters) high-speed (baud rate 38400) communication. It is
recommended to use twisted-pair shielded wire for RS485 communication line. For
single-machine communication, the communication line can be connected to pin 3/4,
and its shielding layer can be connected to pin 1. When multiple machines are connected
in parallel, two RS485-1 ports can be connected at the same time. When used, the
shielding layer can be connected to pin 1/2.

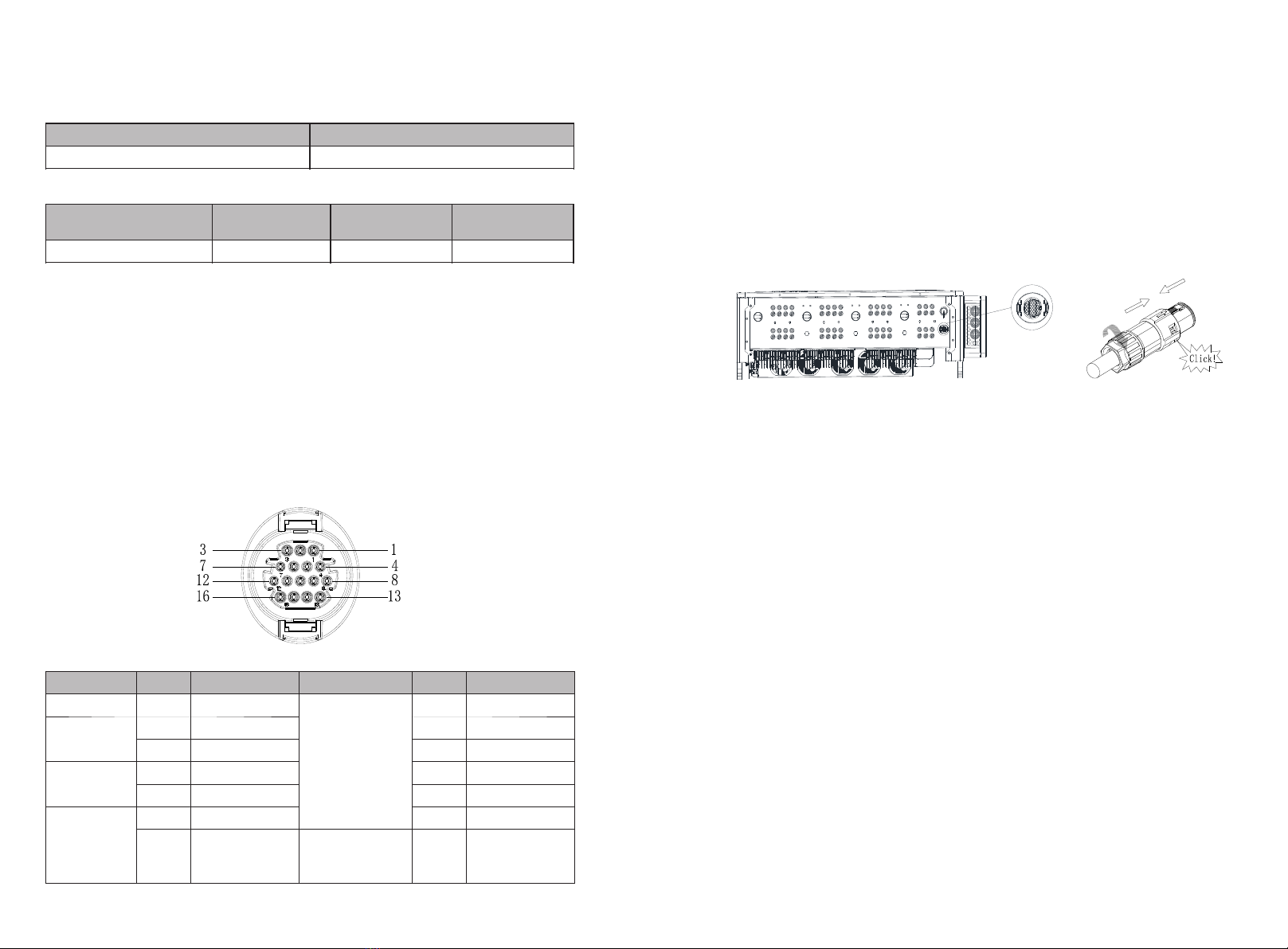

Fig 6.6
Port
PIN
Description
Port
PIN
Description
Shield Ground
1/2
485-1 PE Shield
DRMS
9
DRM1/5
RS485-1 IN
3
485-1 A1
10
DRM2/6
4
485-1 B1
11
DRM3/7
RS485-1 OUT
5
485-1 A2
12
DRM4/8
6
485-1 B2
13
REF/GEN
RS485-2
7
485-2 A1
14
DRM0/COM
8
485-2 B1
RS485-1
Matching
resistance
15/16
485-1 Matching
resistance
Notice: When multiple inverters communicate in parallel, the last machine needs to add
matching resistance. The method is to use a wire to connect the pin 15/16 together.
Fig 6.6
6.3.2 USB port
In MAX 175-253KTL3-X HV series inverters, RS485 interface is standard. The connection
steps of RS485 communication line are as follows:
1) Unscrew the waterproof cover of the COM interface and remove it.
2) Connect the RS485 communication line to the port of 485-1.
3) The inverter is connected hand in hand through the RS485 communication line, and
the end of the communication line 485_A/B is connected to the monitoring equipment to
realize multi-machine remote monitoring.
Note: When locking the RS485 cable screw, the torque is 4kgf·cm.
Fig 6.7

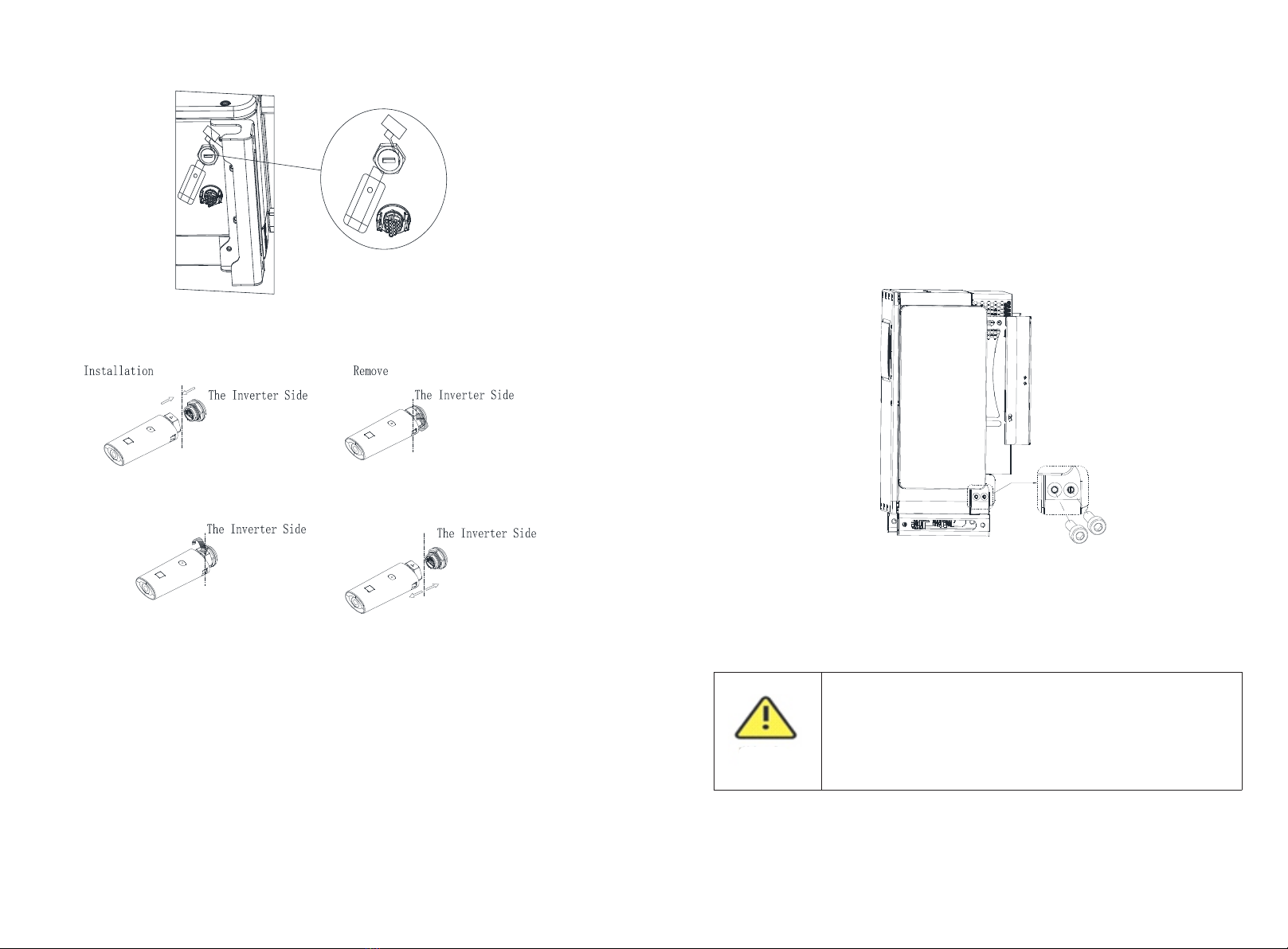

The MAX 175-253KTL3-X HV series inverters are equipped with a USB interface as
standard, which can be connected to a USB to WIFI module, Shine GPRS-X2, Shine WIFI-
X, Shine 4G-X, Shine Link-X and other optional monitoring modules to realize remote
Monitoring function. In addition, you can also quickly upgrade the inverter software
through the U disk:
Steps to install the monitoring module:
1> Loosen the waterproof cover of the USB interface and remove it.
2> As shown in Figure 6.8A, insert the Shine GPRS-X2 module into the USB interface,
and the LED of the Shine GPRS-X2 module will be on.
3> As shown in Figure 6.8B, make sure that the △ is facing upwards, insert the
monitoring module into the USB interface, and tighten the lock.
Note: If you use a USB to WIFI module, when the operator leaves, please take the module
and the data cable away, and tighten the waterproof cover to prevent water from
entering the interface.
21 22

Fig 6.8A
23 24
Fig 6.8B
According to the relevant provisions of IEC 61643-32 "Connecting to photovoltaic
devices surge protectors - selection and use of guidelines", whether for household or
outdoor photovoltaic power plants, it is necessary to ensure the implementation of
lightning protection measures for photovoltaic systems:
6.4 Connecting The Ground Cables
In this solar system all the unloaded metal components and cases should be connected to
the ground. Single inverter need grounding over a PE point, multiple inverters need
connect all the inverter PE cable and solar panels shelves to the same grounding point to
achieve equipotential.
The grounding steps as following:
Take out the ground screw at the inverter bottom, connect the ground cables as
following figure.
Notice: 1.The machine is safely separated from the lightning protection and the distance
is as far as possible.
2.Do not expose Grounding terminal in the air and precaution for the rain.
3.When you lock the case ground screw, the torque force should be 60kgf·cm.
Fig 6.9
WARNING
The lightning protection measures for photovoltaic systems shall be
carried out in accordance with the corresponding national standards
and IEC standards. Otherwise, photovoltaic devices such as
components, inverters and power distribution facilities may be
damaged by lightning.
In this case, the company does not carry out warranty and assumes
any responsibility.

Fig 6.10
1)It is generally recommended to install lightning protection devices (such as lightning
rods / lightning protection belts and down conductors) to prevent lightning from hitting
the PV array.
2)Lightning protection devices and down-conductors and related equipment in
Suggested value of S: According to the general 5 storey height (about 15m) building
roof, S takes 2.5m enough, this distance can be simplified according to the inverse
relationship of the floor height.
A. When the safety distance S is satisfied:
The position ①③ of the figure should be equipped with a lightning protection module. In
general, it is recommended to install Type II in position ① and Type I in position ③.
B. When the safety and safety distance S is not met:
In addition to position 3, Type I lightning protection module should be installed in Figure
①②④.
3)The lightning down conductor and the equipment ground wire eventually sink at a
total ground point, but the two cannot share the wire. That is, the equipment grounding
wire should be pulled separately, and the wire diameter requirement >6mm² when the
safety interval distance S is satisfied.
4)About the above lightning protection lightning receptor system related design
reference GB/T 21714.3-2015.
25 26
SPD
④ ① ② ③
Lightning
protection
device
Inverter
Photovoltaic
panel
Distribution
Cabinet
Power grid
Grounding bar
Total grounding point
Lightning down the line
Lightning down the line
Safety
interval S
Commissioning 7
7.1 Commission The inverter
7.1.1 Set inverter address
7.1.1.1 Set RS485 address with Shinebus
•If the inverter is stored over one month, its default time and date may
looks wrong, the time and date should be reset before connection to the
grid.
After inverter is started normally, inverter address can be set via RS485/USB converting to
WIFI.When multiple inverters are connected in parallel via RS485, the inverter must be
set to a different communication address. When a single inverter communicates, the
default communication address can be used.
Note: The default communication address of the inverter is 1, which can be set to 1-254.
The 485 address of the inverter can be modified by Shinebus， This operation is
performed by a professional.
7.1.1.2 Set RS485 address on ShinePhone APP
Refer to 8.2 download mobile APP ShinePhone and connect to inverter WIFI to enter local
monitoring page, this operation is performed by a professional.

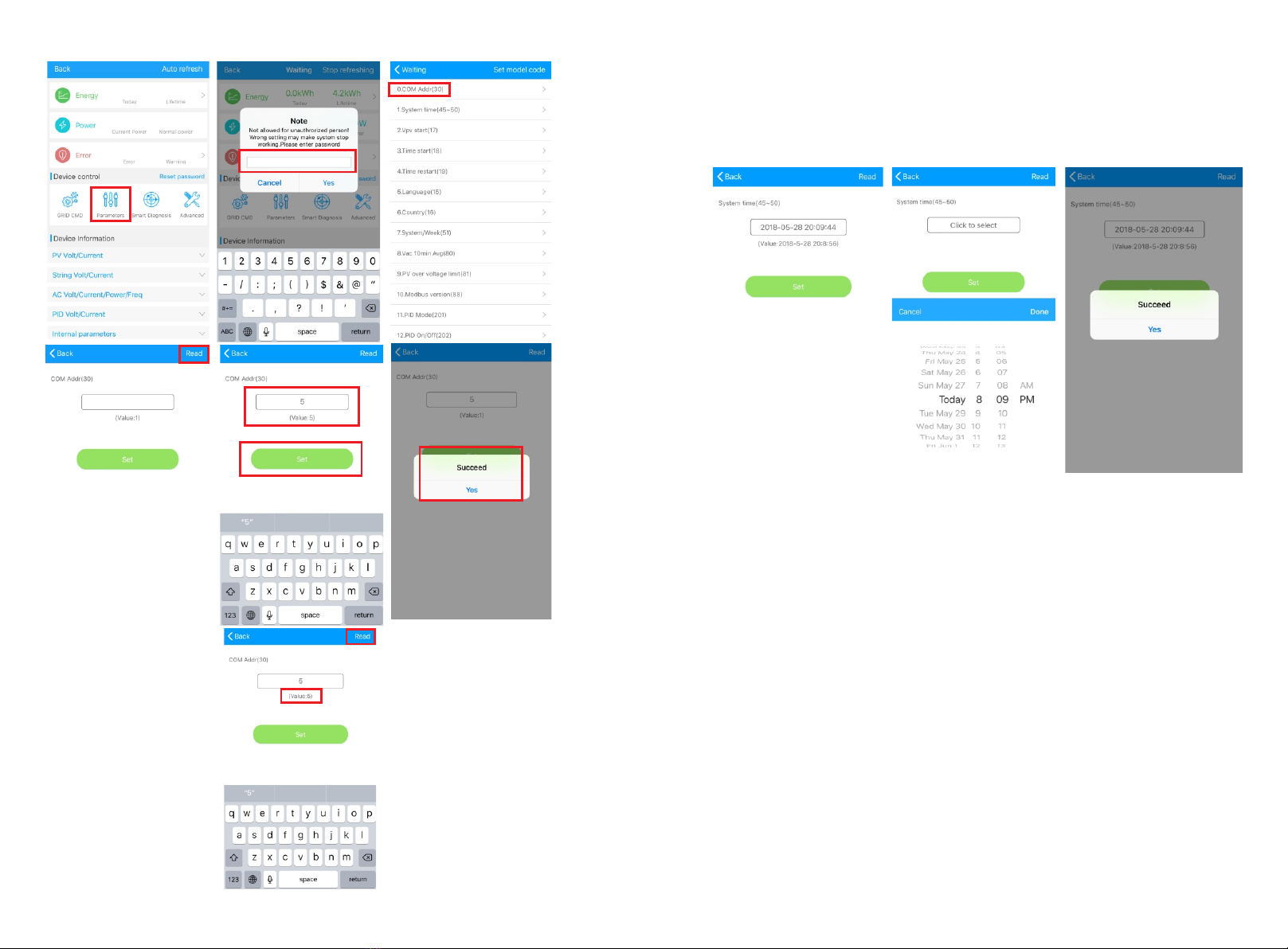

1>Click “Parameters”;
2>Enter passwor.(When you use it for the first time, you need to set the password
first. Click "Reset password" to enter the OSS account number and password. The
distributor and installer can apply for the OSS account from Growatt. Click "Sign in"
to set the password. After the setting is successful, you can start using it.)
3>Click top item “COM Address”;
4>Click the "Read" button in the upper right corner to read the current communication
address of the inverter;
5> Set inverter com address;
6>Read inverter com address to ensure setting is successful;
The inverter will be set to the appropriate model according to the standards of different
countries or regions before leaving the factory. For example, the inverters shipped to
Australia are configured as Australian model in the factory.
Note: The inverter is configured for Australia at the factory.

27 28
Fig 7.1
1
2
3
4
7
5
6
8
9
7.1.2 Set inverter time and date
Please refer to section 8.2.1 and login ShinePhone APP.Click "system time(45-50)"to set
inverter time and date on the parameter setting page.
7.2 Operation Mode
Fig 7.2
7.2.1 Waiting mode
7.2.2 Working mode
When the DC voltage is more than 500Vdc, inverter will be powered on and enters the
"waiting" state.
At this mode, inverter will check the system parameter. If the system is normal and PV
voltage is more than 500Vdc, inverter will try to connect to the grid.
At this mode, inverter work normally,and the shows the power delivered by the inverter
to the grid.
When the DC voltage is more than 500Vdc,inverter converts the DC power generated by
the PV modules into AC power and supplies them to the grid.
When the DC voltage is lower than 500Vdc, inverter will enter into “waiting” state and
try to connect to the grid, at this status, inverter consume very small power to check the
internal system status.
Note: only when the PV modules supply enough power(voltage＞ 500Vdc) then the
inverter will start automatically.

30
7.3 LED Display
7.2.3 Fault mode
7.2.4 Off mode
Inverter intelligent control system will continuously monitor and adjust system
status.When there is a fault detected, LED will show the fault message.
Note: Please refer to section 9.2 to check the fault message and take corrective
measures.
When the sunlight is weak or no light, inverter will stop working automatically. When it is
off, inverter will not consume gird power or PV module. At the same time, the LED of
inverter will be turned off.
Note: When PV string DC voltage is too low(≤500Vdc), inverter will be off.

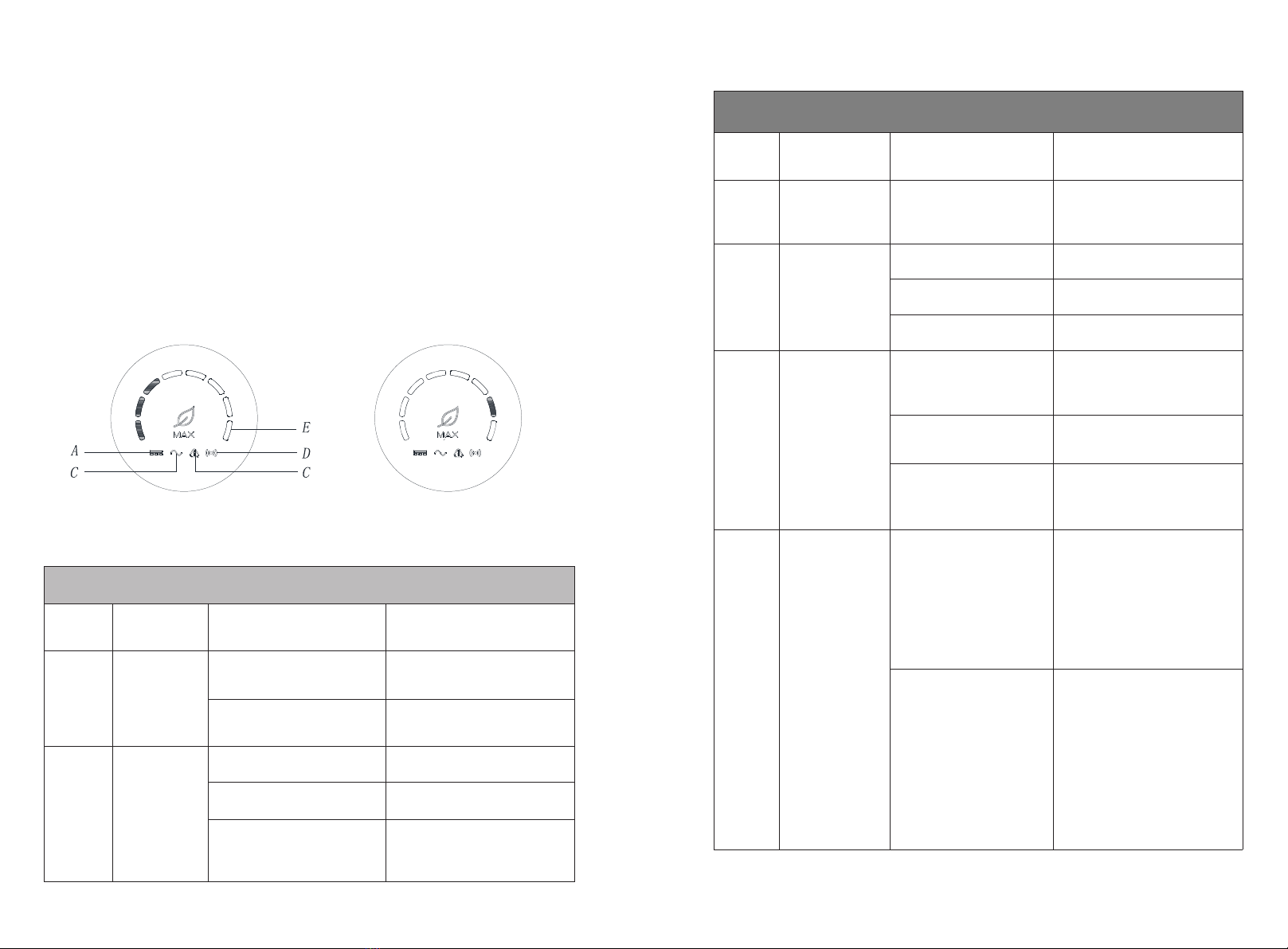

Inverter current operation status can be visually checked from LED display directly.
Fig 7.4
Fig 7.3
Description of LED status
Position
of LED
Type of LED
Inverter status
LED status
A
PV voltage
indicator light
PV voltage reaches grid
voltage
Green light is on
PV voltage does not reach
the grid voltage
Light is not on
B
AC voltage
indicator light
Inverter is in the grid state
Green light is on
No AC voltage
Light is not on
With AC voltage, inverter is
in the grid countdown state
The green light flashes slowly,
and the alarm or fault
indicator light is not on
Description of LED status
Position
of LED
Type of LED
Inverter status
LED status
B
AC voltage
indicator light
With AC voltage,
inverter is in the grid
countdown state
The green light flashes
slowly,and the alarm or fault
indicator light is not on.
C
Alarm or fault
indicator light
Inverter works normally
Light is not on
Inverter is in alarm state
Red light flashes slowly
Inverter is in fault state
Red light is on
D
Communicatio
n indicator
light
nverter has external
communication, such as
RS485, GPRS, etc.
Green light is on
Inverter has no external
communication
Light is not on
Inverter upgrade or USB
interface is reading and
writing data
Green light flashes
E
Power or fault
code indicator
lightLED
Inverter is in the grid
state
The eight LEDs from left to
right represent the power of
the inverter: if 8 green lights
are on, it represents 100%
of the inverter power. As
shown in Figure 7-3, it
represents 37.5% of the
inverter power, and so on.
Inverter is in fault state
The 8 LED lights from right to
left represent the fault codes
currently reported by the
inverter. From right to left,
they represent 1, 2, 4, 8, 16,
32, 64, and 128. For example,
the first and fourth green
LEDs on the right are always
on, which means 1+8=9. In
addition, add 200 to get 209,
which means the inverter
reports fault 209, and so on.
Note: For related fault codes, please refer to 9.2 Trouble shooting
29

31
8.1 Remote Data Monitoring
8.1.1 Mobile phone APP(ShinePhone) remote monitoring
MAX 175-253KTL3-X HV series inverter remote monitoring ways include
APP(ShinePhone) and server Web page, RS485,GPRS,4G,PLC(reserved) can satisfy both
ways of monitoring.
1>Scan the following QR code, or download from Android store or App store by
“searchingShinephone”, download and install software.
Note: 1.Make you it's the latest version.
2.Please find more details on http://server.growatt.com.
2>Users can register their mobile APP account by following the steps below:
Run ShinePhone go to login page click register”.Registration is required to fill in the
information, with the * is required, the agreement is mandatory, you can log in to the
main interface of ShinePhone after registration, the registration page and the main
interface are as shown below.
Fig 8.1
Shinephone login and main page:
8 Monitoring
Fig 8.2Fig 8.3
Fig 8.4 add datalogger Fig 8.5 datalogger list Fig 8.6 add plant
Datalogger:
1>User can add more datalogger under the particular plant.
Way: Click “+” in the upper right corner of the device page and select “Add Collector
(WiFi/GPRS, etc.)”, as shown in Figure 8.7.
Note: You can choose to manually enter the collector serial number for addition, or you
can add it by scanning the barcode on the nameplate.
Device page:
1>Main page top middle is the name of current plant, user can click the "∨" button to
switch to other plants under this account.
2>User can add datalogger,check datalogger and add plant by click“+”button at the top
right corner.
3>Top half shows current plant power, revenue today and total production.
4>My device list shows current plant device, user can see more details by click the device,
left cross the device to stick the device and edit, edit operation includes change device
alias, icon,and delete device.
Fig 8.732

34
2>User can add datalogger at the datalogger list page to add a datalogger, edit, delete,
configure etc.
3>User can add more plants with the add Plant function.
Device page and function:

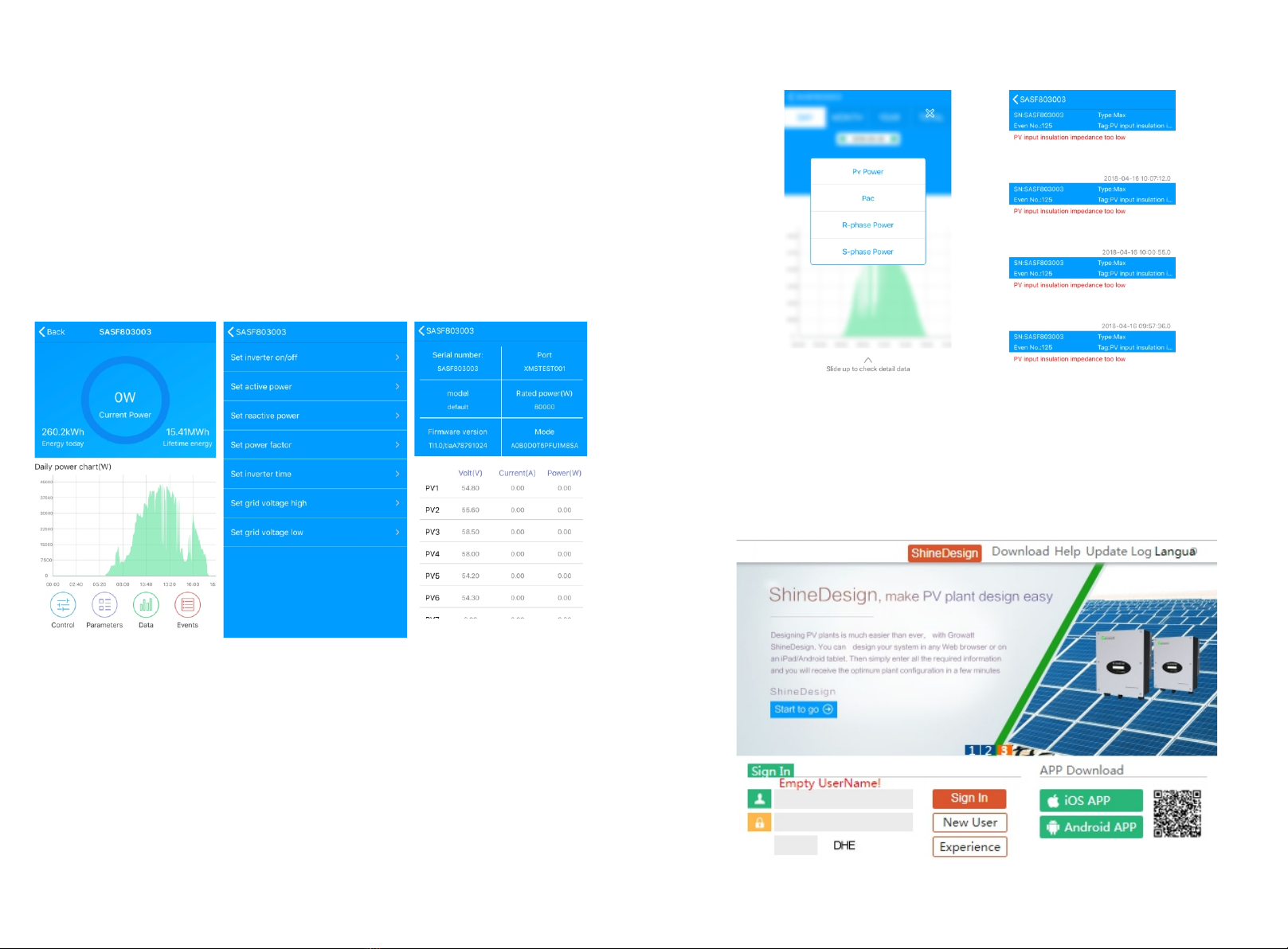

1>Device page: User can click the device to see more details, the device page show
current power and Energy today and daily power chart, user can find more with
control,parameter, data and Events page.
2>Control: user set inverter on/off, set active power, set reactive power, set PF, set
inverter time, set grid voltage high, set grid voltage low. The operation password is
: inverter+date, for example inverter20170722.
3>Parameter: user can see device SN, rated power, firmware version, PV1 voltage,
current, and power etc.
Fig 8.8Fig 8.9Fig 8.10
4>Data page: user can see the PV power, voltage, current, R phase power, S phase
power, S phase power, T phase power, output power by day, month, year, by finger up
cross the screen.
5>Events: User can see the fault message if there it is.
Fig 8.11 Fig 8.12
8.1.2 GPRS /4G
8.1.2.1 Register account
1>Register account
Open browser, input "server.growatt.com”, click “New User” at login page, input the
necessary information then go back to login page, input the registered username and
password, click “Sign In”.
Fig 8.13Fig 8.13
33
