Growatt SPH Series User manual

Installation
&
Operation Manual
Installation Manual of SPH series
Shenzhen Growatt New Energy CO.,LTD
No.28 Guangming Road, Shiyan Street, Bao’an District,
Shenzhen, P.R.China
No.28 Guangming Road, Shiyan Street, Bao’an District,
Shenzhen, P.R.China
GR UM 139 A 0- - - 6-
[phone] [phone]
www.ginverter.comwww.ginverter.com
T
E
W
[e-mail]@ginverter.com
Download
Manual
Growatt New Energy

Brief Introduction
1.1 Preface
1.2 Target Group
1.3 Product Description
1.4 Safety Instructions
Safety
2.1 Purpose Use
2.2 Safety Measure
2.3 Symbols introduction on the
SPH inverter
Product Description
3.1 Growatt SPH series inverter
3.2 Label Explanation
3.3 Size and weight
3.4 The advantage of the unit of
Growatt SPH
Unpacking
list
1
2
3
4

Commissioning
6
Installation
5.1 Basic installation requirements
5.2 Installation requires tools and
RJ 45 terminal sequence of the
LAN line
5.3 Installation Instructions
5.4 Grounding connection
5.5 SPH System electrical Connection
5
6.1 Commissioning of SPH
6.2 Operation modes
6.3 Country setting
6.4 Display and button
6.5 Communication
Start-up and shut
down SPH system
77.1 Start-up the SPH system
7.2 Disconnect the SPH system
Attention of the
installation
environment,
maintenance and
cleaning
8
Fault removal
9
12.1 Dismantling the energy storage
12.2 Packing the SPH inverter
12.3 Storing SPH inverter
12.4 Disposing of the SPH inverter
Decommissioning
EU Declaration of
Conformity
Manufacturer
Warranty
12
10
11
Product specification
13
13.1 Growatt SPH series energy
storage machine product
specification
13.2 DC input terminal parameter
13.3 Torque
13.4 Appendix
Certificate
14
Contact
15

1 Brief Introduction
1.1 Preface
This manual will provide the users who use the Growatt SPH Series of GROWATT
NEW ENERGY CO.LTD.SHENZHEN(Short for Growatt New Energy as below) with
the detailed product information and the installation instructions. Please read this
manual carefully and put this manual on some place where is convenient to
installation, operation, obtain. Any modifications of Growatt new energy, we will
not notify the user.
Growatt SPH inverter must be installed by professional electrical personnel who
have obtained the certification of the relevant departments. We have two kinds of
energy storage machine for different battery one is for lithium battery and the other
is for lead-acid battery, we suggest: customer should decide which kind of energy
storage machine you want, Growatt can provide only lithium battery with energy
storage machine, customer can choose lead-acid energy storage machine with no
battery provide by Growatt while they can buy these battery from market easily.
Especially if customer choose energy storage system with lithium battery(which
must be provide by Growatt) but used for lead-acid battery or used lead-acid
battery for lithium battery model, it will be dangerous. Installer can install energy
storage machine of Growatt SPH Series rapidly and troubleshooting, build
communication system through read this manual carefully. If you have any
questions in the process of installation, you can login in and
leave some message. Or you can call our 24-hour service hotline [phone]
www.growatt.com
Growatt SPH Series is used to store energy generated by the photovoltaic cell
panels or energy from grid if it is allowed in the battery, also energy can be sent to
power grid through SPH for self consumption or when Grid power is lost, SPH can
be used as back up power.
SPH series has six kinds of type:
•Growatt SPH4000
•Growatt SPH4600
•Growatt SPH5000
•Growatt SPH5600
Note: we describe this series as “SPH” as below.
•Growatt SPH3000
•Growatt SPH3600
Note: In different country,we provide different power.Such as in Germany,we can
provide SPH3000~SPH4600,but we don’t provide SPH5000 and SPH6000.
1.3 Product Description
2
1.2 Target Group
Overview:
1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Position Description
Chart 1.1
CAN communication interface of Lithium battery

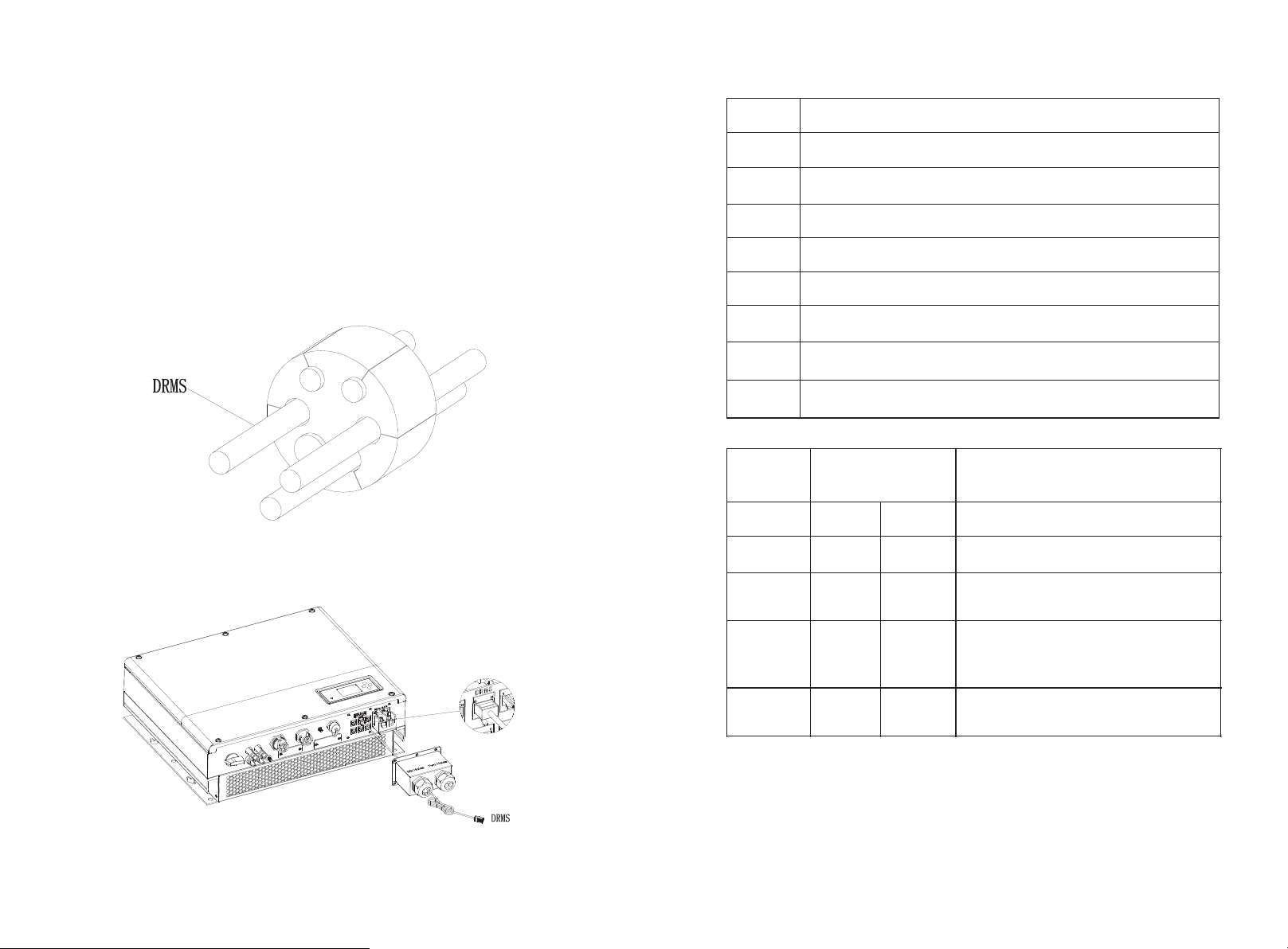

RJ45 interface of DRMs(used only in Australia)
NTC: Lead-acid temperature sensor terminal
RS 485 communication interface of meter
CT input terminal
USB interface
RS 232/Wi-Fi/shinelink cover board
AC Grid (on grid connection)
Antenna
LED of status display
LCD screen
Function button
DIP switch（set safety standard）
Dry contact
RS 485 communication interface of Lithium battery
Battery terminal

4
3
1.Please be clear which kind of battery system you want, lithium battery system or
lead-acid battery system, if you choose the wrong system, SPH can't work
normally.
.
.
.
.
2.Please read this manual carefully before the installation, the company has the
right not to quality assurance, if not according to the instructions of this manual for
installation and cause equipment damage.
3.All the operation and connection please professional electrical or mechanical
engineer.
4.During installation, please don’t touch the other parts within the box
5.All the electrical installation must comply with the local electrical safety
standards
6.If equipments needs to maintain, please contact with local specify system
installation and maintenance personnel
7.Use the equipment to combined to grid needs to obtain the permission of local
power supply department
8.When install PV modules in the daytime, please turn off the PV switch,
1.4 Safety Instructions
Safety 2
2.1 Purpose Use
As shown above, a complete grid-connected system of SPH consists of PV
modules, SPH inverter, battery, utility grid and other components.
Chart 2.1
Attention:
As the system refer to battery use, we must make sure ventilation of the service
environment and temperature control in order to prevent the danger of battery
explosion, battery recommended installation environment must be strictly in
accordance with the specification, if the specification is IP20 environment, the
pollution degree of the unit is PD2, meanwhile the temperature should be control
in the 0-40 of indoor ventilation and the humidity should be 5%-85%. If the
chosen PV modules needs to positive or negative ground connection, please
contact with Growatt for technical support before installation.
℃
The system chart of SPH:
Position
Description
Q
RSD(do not open except by Professional staff)
R
EPS output(off grid connection)
S
Ground point
T
PV input
U
PV switch
Battery installation requirement

56
2.2 Safety Measure 2.3 Symbols introduction on the SPH inverter
Risk of burns on the parts shell of SPH inverter！
During the work, cover, shell around, radiator is likely to be hot.
SPH inverter ground connection
Please ensure SPH inverter ground connection is reliable for make sure
people's safety.
Symbol Description
Caution: Risk of electrical shock!
Caution : Hot surface
Protective conductor terminal
Direct Current(DC)
Alternating Current(AC)
The inverter complies with the requirements of the
applicable CE guidelines
Caution: Risk of danger
Danger to life due to high voltage in SPH
There is residual voltage in SPH, SPH requires 5 minutes
to discharge.
Please wait 5 minutes before you open the upper lid
or the DC lid.
Refer to the operating instructions.
· .
Please notice children, disabled, laypeople do not close
Supervise and make sure children don’t play near the
Relevant operation for professional personnel
·
·
installation position of energy storage machine
Risk of high voltage！
SPH inverter exists radiation maybe affect health！
Don’t stay a long time within 20cm from SPH inverter.
PV modules Capacitive Discharge Currents
PV modules with large capacities relative to earth, such as thin-film PV modules
with cells on a metallic substrate, may only be used if their coupling capacity does
not exceed 470nF. During feed-in operation, a leakage current flows from the cells
to earth, the size of which depends on the manner in which the PV modules are
installed (e.g. foil on metal roof) and on the weather (rain, snow). This "normal"
leakage current may not exceed 50mA due to the fact that the inverter would
otherwise automatically disconnect from the electricity grid as a protective

11 12
Unpacking4
Growatt SPH series and accessories as follows:
SPH inverter
User Manual
Paper board(installation guide)
Waterproof cover
AC Grid connector(Austrialian machine terminal is different)
EPS output connector
Communication cable
Current sensor
Lead-acid battery temperature sensor
RJ45 connector
M6 setscrew
Battery power terminal
Screw
MC4 connector
A
B
C
D
E
F
G
H
I
J
K
M
N
O/P
Item Number Description
Chart 4.1
Installation 5
5.1 Basic installation requirements
Chart 5.2
E. Battery installation option is not far away from the position of SPH, the length
between SPH and battery should not be more than 1.5m.
G. SPH can be installed in vertical or lean back on plane, please refer to the below
F. The ambient temperature should be -25℃ ~60 ℃
A. The installation location must be suitable for SPH's weight for a long period time
B. The installation location must conforms with dimension of SPH
C. Do not install the unit on structures constructed of flammable or thermo labile
materials
D. The ingress Protection rate is IP65 and the pollution degree is Pd2. and SPH
can't
Chart 5.1
Q1Hex screwdriver
1
1
1
1
1
1
1
1
1
1
2/2
6
2
4
Please check whether external damage to the goods before unpacking.
After unpacking, please check whether the unit damage or missing parts, if it is
happen, please contact with supplier.

1413
Chart 5.4
Chart 5.3

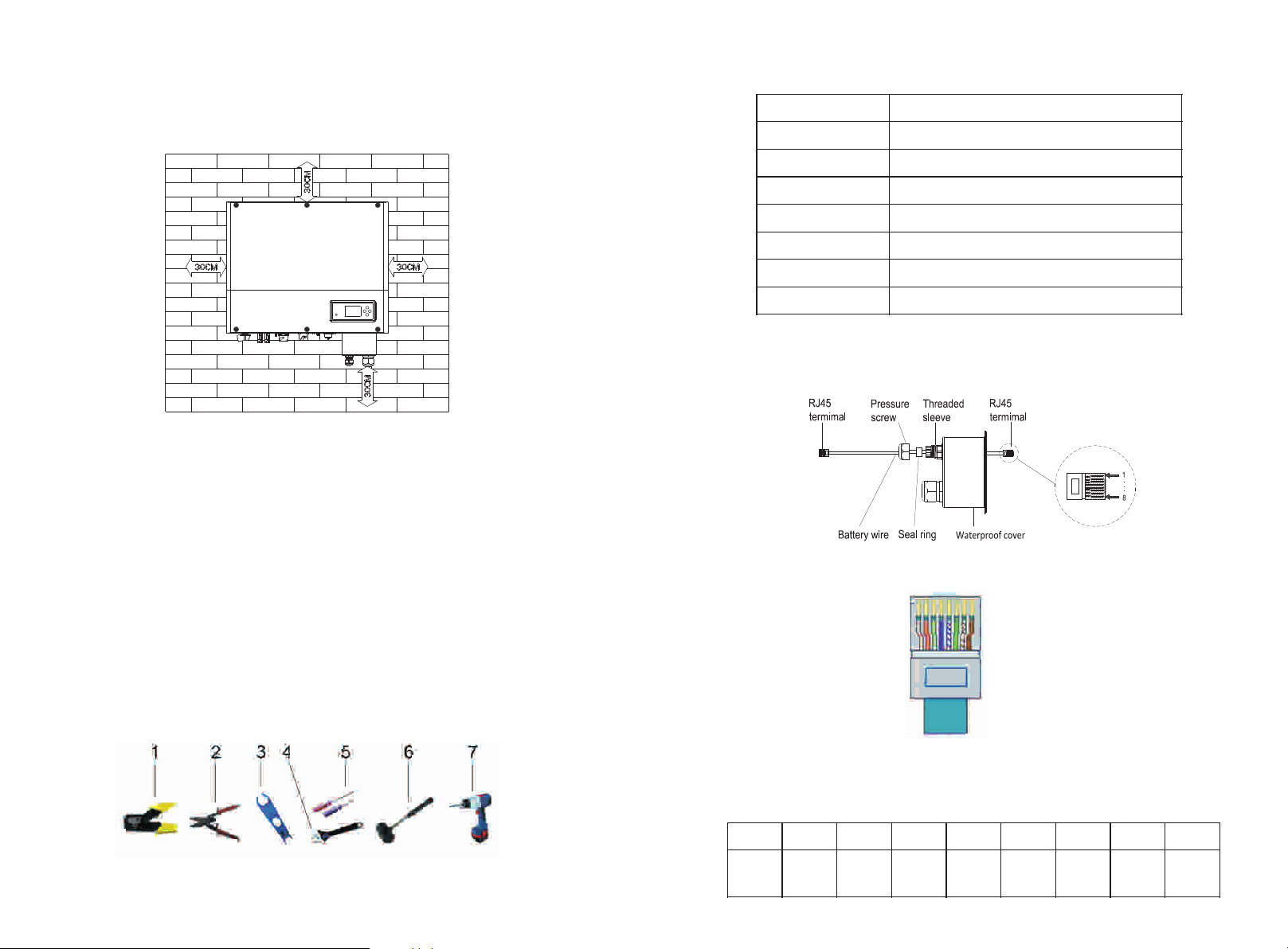

5.2 Installation requires tools and RJ 45 terminal sequence
of the LAN line
H. Installation position shall not prevent access to the disconnection means.
I. In order to ensure machine can run normally and easy to operate, please pay
attention to provide adequate space for SPH, please refer to below:
J. Do not install the machine near television antenna or any other antennas and
antenna cables
K. Don't install the machine in the living area
L. Be sure that the machine is out of the children's reach
M. Taking the battery fixing space into account, about the dimensions please
reference user manual
N. The inflammable and explosive dangerous goods must not be placed around
battery in case of cause serious danger.
When installing，we need to use tools as follow，prepare the follow tools before
installing：
No
1
2
3
4
5
6
7
Description
Press the RJ45 terminal
Press battery terminal connector
Disconnect PV terminal
Unscrew nut
Unscrew screw
Knock explosion bolt
Drill holes on the wall
LAN line RJ45 sequence as follow：
Chart 5.5
Chart 5.6
PIN 1 2 3 4 5 6 7 8
Color White
orange Orange green
White Blue White
blue Green White brown Brown
LAN line 1-8 colors as below:

15 16
5.3.2 Installation of SPH
1.Project the machine's probably size on the wall; The thickness of wall for SPH
must be not less than 60mm.
a)
Chart 5.7
5.3 Installation Instructions
5.3.1 Attention Layout（length of sensors consider）
There're three types of sensors for use with Growatt SPH. One is wired current
sensor, one is meter sensor, or SP-CT, if you choose wired sensor or meter .
Before installing you should know something that as below:
The cable of wired sensor and meter is suggested not longer than 15m. So you
need to consider the length between SPH with combiner box for the sensor should
be installed in the live line. And if you installed SP-CT for sensor, distance
recommended not more than 30 meters.
The installation layout of energy storage machine at home as following：
2.Make sure the drill position, use paper board(installation guide), put the paper
board cling to the wall, make sure the top edge of paper board is level（As the
chart 5.8a below）.
3.Mark four points at the wall via the hole of the paper board, then remove the
paper board.
4.Drill four 8 holes at the mark point, the depth is not less than 55mm.Ф
5.Knock four explosion bolt into 8 holes As the chart 5.8b below).Ф（
6.Hang the energy storage machine on the four setscrews(As the chart 5.8c
7.Lock the nut of setscrew(As the chart 5.8d below).
8.The whole installation has finished.
b) c)

5.4 Grounding connection
17 18
d)
Chart 5.8
SPH must be grounded by cable, the grounding point is showed as follow, and the
minimum grounding cable wire is AWG10.
PV Array Grounding
Grounding conductor of PV panel brackets must be firmly connected to earth at
PV array side and inverter side and SP side. The sectional area of grounding
conductor should be equal to the sectional area of DC grounding conductor. The
minimum wire is AWG10.
DC Grounding
Select the DC Grounding mode according to the local standard and use the PV
grounding terminal box and DC Grounding wires of the same specification.
Grounding Device
If the positive pole or the negative pole of PV array needs to be grounded in the PV
system, the inverter output should be insulated by Isolation Transformer. Isolation
transformer must conform to IEC62109-1,-2 standard.
Connection as below:
5.5 SPH System electrical connection
Decisive Voltage Class (DVC) indicated for ports
Port Name
AC
DC
DRMS
RS485&RS232
Class
C
C
A
A
The inverter shall be used with IEC 61730 Class A
rating PV module.
Please use the same brand male and female PV
connectors.
5.5.1 Connection of PV terminal

Similar to the traditional inverter connecting, the input of PV panel energy can
be realized by using MC4 PV terminal, the detail steps are as follows：
，
Max PV voltage：550V (consider the lowest temperature)
≥
1.Turn off PV switch.
2.Insert PV panel positive and negative cables into MC4 terminal then connect
positive pole(+) of connection cable to positive pole(+) of PV input connector,
connect negative pole(-) of connection cable to negative pole(-)of PV input
connector, please pay attention to PV input voltage and current within
permission Limit:
Max PV input current: 12A
Max PV input power per string: 4000W.
Remark: 1.We suggest you use the cable 4mm2/12 AWG to connect.
2.Please do not connect to DC source!
5.5.2 Connection of AC terminal and off grid terminal
SPH has a grid output terminal and off grid out terminal,look down on the SPH from
the front,the terminal on the left (on grid) is grid outlet for connecting grid,the
terminal on the right is an emergency power outlet for connecting critical load.
Chart 5.12
Wire suggest length:
Max cable length
Conductor
cross
5.2mm 10AWG
2
6.6mm 9AWG
2
Growatt
SPH300
Growatt
SPH360
0
Growatt
SPH400
Growatt
SPH460
Growatt
SPH500
Growatt
SPH600
40m 33m
50m 42m
28m
36m
26m 25m
33m 32m
23m
29m
Chart 5.11
Chart 5.13
Step1: Uninstall the AC terminal as above chart.
Chart 5.14
Step 2: Thread cables through pressure screw, seal ring, threaded sleeve in
sequence, insert cables into connection terminal according to polarities indicates
on it and tighten the screws.
AC output terminal and EPS output terminal connection steps as follow (Except
for the Australian machine):
Chart 5.15
19 20

21 22
AC output terminal connection steps as follow:
Step 2.Thread cables through pressure screw, seal ring, threaded sleeve in
sequence, insert cables into connection terminal according to polarities
indicates on it and tighten the screws.
chart 5.18
chart 5.20
chart 5.19
chart 5.21
chart 5.17
Step 5:To remove the AC output terminal , press the bayonet out of the slot with
a small screwdriver and pull it out.
Note
machine connection steps are as follows, EPS output terminal connection steps
consistent with the above steps.
:The following diagram shows the AC output terminal of the Australian
Step 3:Push threaded sleeve on to connection terminal until both are locked tightly
Chart 5.16
Step 1: Uninstall the AC terminal as above chart.
Step 3: Push threaded sleeve on to connection terminal until both are locked
tightly.
Step 4: Align the bayonet of the AC output terminal to the slot of thread sleeve,
Plug the socket into AC output terminal.

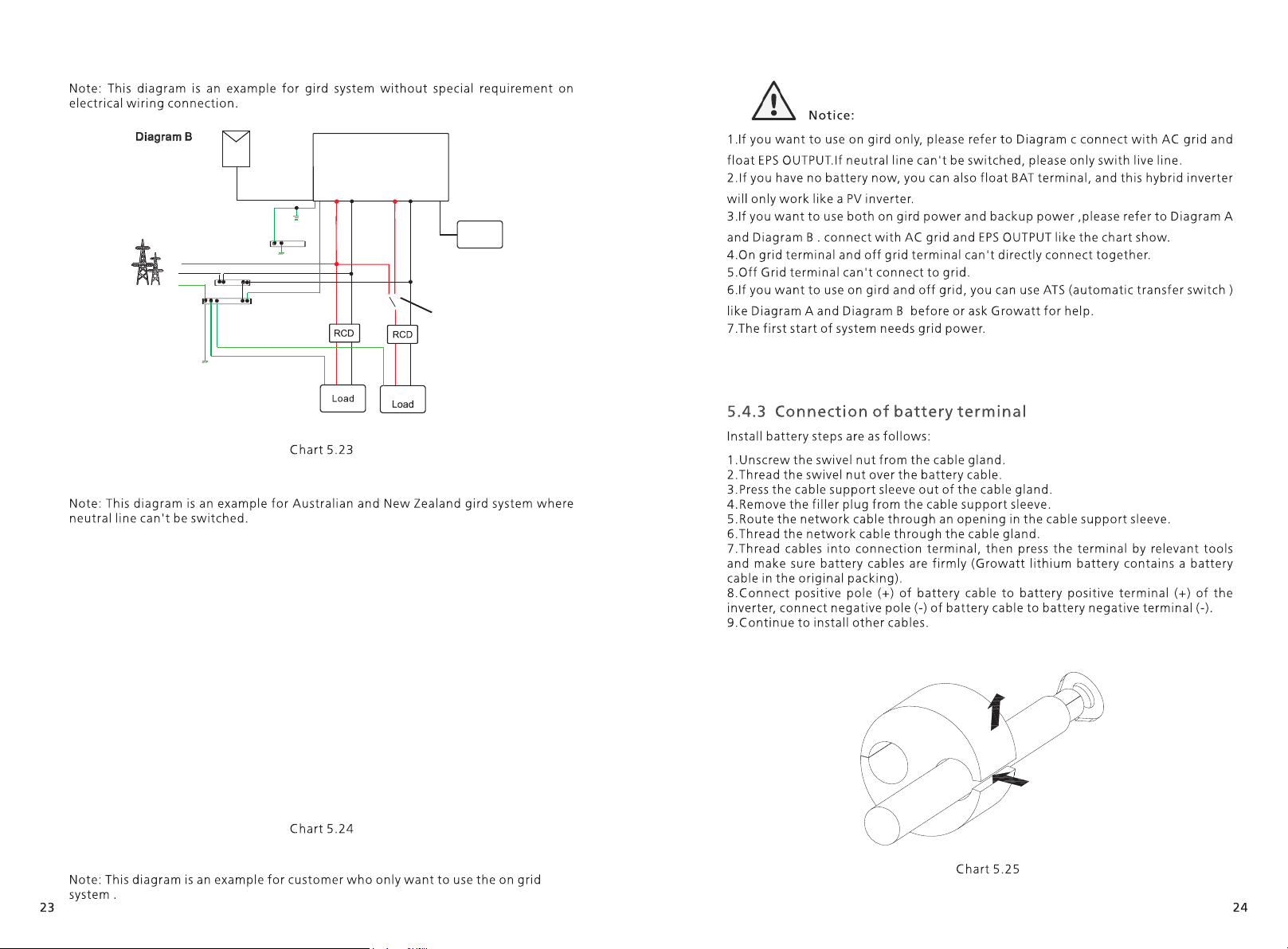

The recommended wiring diagram is as follows:
Chart 5.22

L L
SPHInverter
ON GRID EPS
N N
LL NN PE
Battery
L
N
PE
PV
EPS
PE
E-BAR
E-BAR
E-N LINK
PE
SPDT

25 26
Chart 5.26
Chart 5.27
5.5.4 Connection of CT terminal
Note:We suggest the distance between battery and SPH no longer than 1.5m, and
the power line area must be larger than 5 AWG.

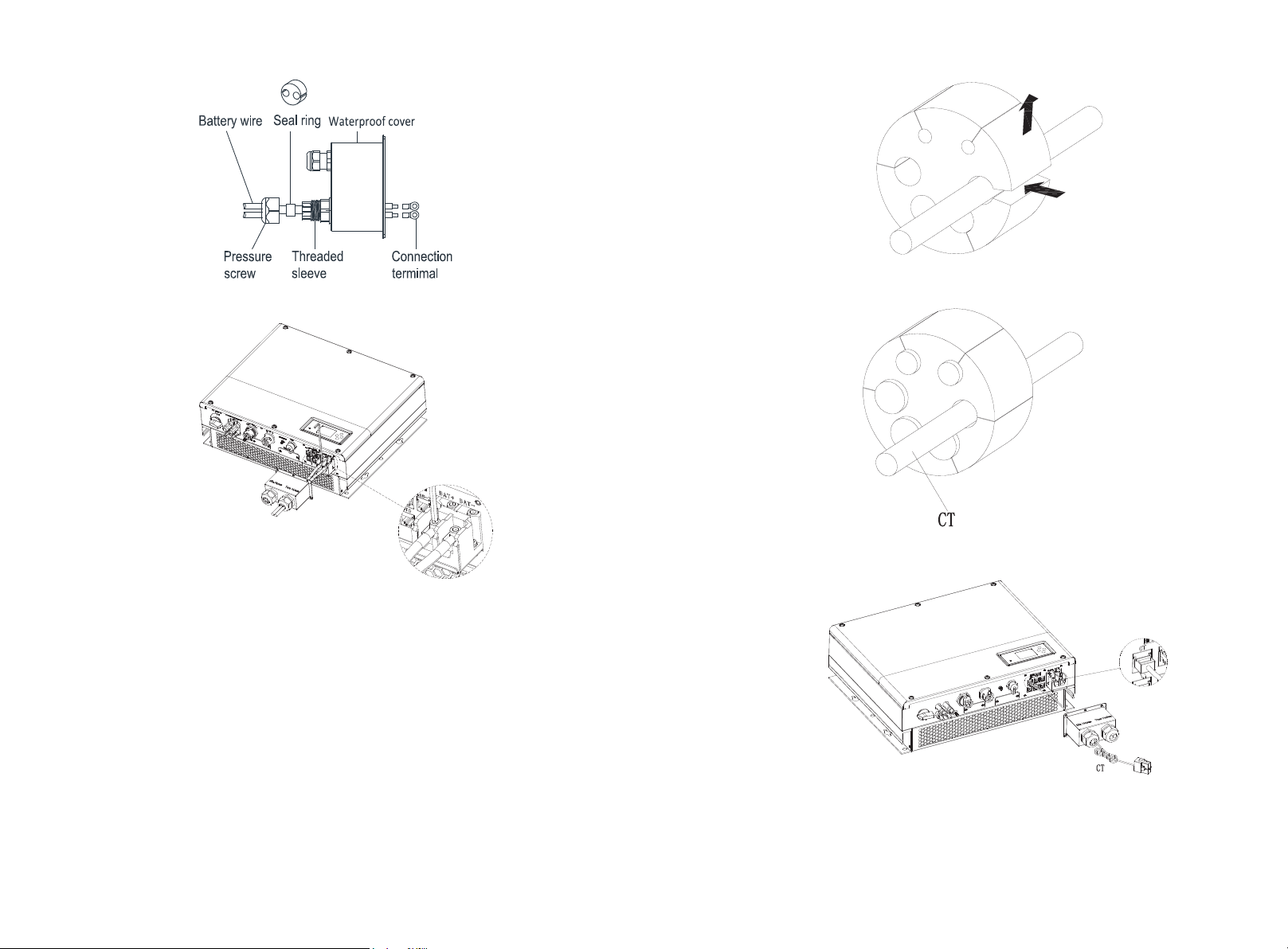

There is a CT in SPH inverter monitoring the power consumption situation of
residential users, the CT terminal connection steps are as follows:
1.Unscrew the swivel nut from the cable gland.
2.Thread the swivel nut over the “CT” cable.
3.Press the cable support sleeve out of the cable gland.
4.Remove the filler plug from the cable support sleeve.
5.Route the “CT” cable through an opening in the cable support sleeve.
6.Thread the “CT” cable through the cable gland.
7.Insert the RJ45 plug of the network cable into the “CT” pin connector on the
inverter until it snaps into place.
8.If no other cables need to be installed, lock the waterproof cover to the inverter
with screws.
9.Screw the swivel nut onto the waterproof cover.
Chart 5.28
Chart 5.29
Chart 5.30
Note:
1.The meter and CT can't be installed at same time, please set the sensor model
when selecting CT or electricity meter, please refer to section 6.3.3 for details.
2.If the cable such as “CT” cable is not used, please do not remove the filler plug
from the cable support sleeve.

Remark:
CT wire (5m in length) specification: RJ45, standard LAN line (one end with 8P
modu-
lar plug, the other connected with transformer). But if the length is not enough,
customer can add cable, so the length can be increased to 15m max, the operation
Chart 5.31
Chart 5.33
Chart 5.34
Chart 5.32
During the actual operation, please pay attention to the installation of current
transformer as the diagram shows below:
As illustrated above, open the current transformer and you can see an arrow
labeled on it indicating the direction of current. Put the live wire among the under-
detection wires onto the current transformer. After latching the current
transformer, the installation has been finished
Notice:
The direction (from K to L) of the arrow on the current transformer is
corresponding to the direction of the current in live wire from Grid to Load. Sensor
needs to be placed in the power distribution cabinet.
5.5.5 Connection of meter terminal
When customer needs to use meter to monitor the energy flow, the meter terminal
connection steps are as follows:
1.Reference 5.2, make LAN cables with RJ45 terminal.
2.Thread the swivel nut over the LAN cable.
3.Press the cable support sleeve out of the cable gland.
4.Remove the filler plug from the cable support sleeve.
5.Route the LAN cable through an opening in the cable support sleeve.
6.Thread the LAN cable through the cable gland.
7.Insert the RJ45 plug of the network cable into the “METER” pin connector on the
inverter until it snaps into place.
8.If no other cables need to be installed, lock the waterproof cover to the inverter
with screws.
9.Screw the swivel nut onto the waterproof cover.
Note:
1.Meter and CT can't be installed at same time, please set the sensor model
when selecting CT or electricity meter, please refer to section 6.3.3 for details.
2.Meter must be provided by Growatt. If not, maybe meter can't communicate
with SPH inverter.
3.The more detail describe of meter installation, please turn to meter user
27 28

29
30
5.4.6 Connection of communication terminal of lithium battery
(CAN)
When using CAN communication with lithium batteries (for example PYLON
US2000B), connect lithium battery terminal (RJ45) steps as follows:
1.Unscrew the swivel nut from the cable gland.
2.Thread the swivel nut over the “CAN” cable.
3.Press the cable support sleeve out of the cable gland.
4.Remove the filler plug from the cable support sleeve.
5.Route the “CAN” cable through an opening in the cable support sleeve.
6.Thread the “CAN” cable through the cable gland.
7.Insert the RJ45 plug of the network cable into the “CAN” pin connector on the
inverter until it snaps into place.
8.If no other cables need to be installed, lock the waterproof cover to the inverter
with screws.
9.Screw the swivel nut onto the waterproof cover.
Chart 5.35
Chart 5.36 Chart 5.38
Chart 5.37
Note:
1.If you are using a lead-acid battery, you do not need to install this
communication cable.
2.The CAN battery communication and RS485 battery communication can't be
installed at same time, please select the correct communication method
according to the battery manual.
3.If the cable such as “RS485” cable or “CAN” cable is not used, please do not
remove the filler plug from the cable support sleeve.
5.5.7 Connection of communication terminal for lithium battery
(RS485)
When using lithium batteries which need to connect BMS system of the battery,
connect lithium battery terminal (RJ45) steps as follows:
1.Unscrew the swivel nut from the cable gland.
2.Thread the swivel nut over the “RS485” cable.
3.Press the cable support sleeve out of the cable gland.
4.Remove the filler plug from the cable support sleeve.
5.Route the “RS485” cable through an opening in the cable support sleeve.
6.Thread the “RS485” cable through the cable gland.
7.Insert the RJ45 plug of the network cable into the “RS485-2” pin connector on
the inverter until it snaps into place.
8.If no other cables need to be installed, lock the waterproof cover to the
inverter with screws.
9.Screw the swivel nut onto the waterproof cover.
Note:
1.If you are using a lead-acid battery, you do not need to install this
communication cable.
2.The CAN battery communication and RS485 battery communication can't be
installed at same time, please select the correct communication method
according to the battery manual.
3.If the cable such as “RS485” cable or “CAN” cable is not used, please do not
remove the filler plug from the cable support sleeve.

31 32
5.5.8 Connection of DRMS terminal
The DRMS terminals need to be connected ,the connection way appears as
follows:
1.Unscrew the swivel nut from the cable gland.
2.Thread the swivel nut over the “DRMS” cable.
3.Press the cable support sleeve out of the cable gland.
4.Remove the filler plug from the cable support sleeve.
5.Route the “DRMS” cable through an opening in the cable support sleeve.
6.Thread the “DRMS” cable through the cable gland.
7.Insert the RJ45 plug of the network cable into the “DRMS” pin connector on the
inverter until it snaps into place.
8.If no other cables need to be installed, lock the waterproof cover to the inverter
with screws.
9.Screw the swivel nut onto the waterproof cover.
Chart 5.39
Chart 5.40
RJ45 terminal pin assignment
MODE
RJ 45 socket
asserted by shorting
Requirement
DRM0
5
6
Operate the disconnection device
DRM5
1
5
Do not generate power
DRM6
2
5
Do not generate at more than 50% of
rated power
DRM7
3
5
Do not generate at more than 75% of
rated power and sink reactive power if
capable
DRM8
4
5
Increase power generation (subject to
constraints from other active DRMs)
Method of asserting demand response modes
PIN
Assignment for inverter scapable of both charging and
1
DRM5
2
DRM6
3
DRM7
4
DRM8
5
RefGen
6
COM/DRM0
7
/
8
/
Note:
If the cable such as “NTC” (lead-acid battery temperature sensor) cable is not
used, please do not remove the filler plug from the cable support sleeve.
Note
For UK This equipment is equipped with RJ45 terminal for logic interface that
being received the signal from the DNO, the connection should be installed per
installation manual, and the signal should be a simple binary output that
captured by RJ45 terminal( PIN 5 and 1 for detecting the signal). Once the
signal actived, the inverter will reduce its active power to zero within 5s.
:
：

33 34
5.5.9 Connection of temperature probe for lead-acid battery
When customer using lead-acid battery, the temperature probe of the lead-acid
battery is used to detect the ambient temperature of the lead-acid battery, the
battery temperature cable of the SPH side connection steps are as follows:
1.Unscrew the swivel nut from the cable gland.
2.Thread the swivel nut over the “NTC” cable.
3.Press the cable support sleeve out of the cable gland.
4.Remove the filler plug from the cable support sleeve.
5.Route the “NTC” cable through a min opening in the cable support sleeve.
6.Thread the “NTC” cable through the cable gland.
7.Insert the RJ45 plug of the network cable into the “NTC” pin connector on the
inverter until it snaps into place.
8.If no other cables need to be installed, lock the waterproof cover to the inverter
with screws.
9.Screw the swivel nut onto the waterproof cover.
Chart 5.41
Chart 5.43
Chart 5.44
Chart 5.42
Note:
1.If you are using a lithium battery, you do not need to install this temperature
probe, the probe of the temperature cable should be attached to the surrounding
environment of the lead-acid battery, and the length of this cable is 1.5m, so pay
attention to the distance of battery and SPH.
2.If the cable such as “NTC” (lead-acid battery temperature sensor) cable is not
used, please do not remove the filler plug from the cable support sleeve.
The dry contact is used to communicate with external devices (such as remote
start hot water heater). The wiring steps are as follows:
1.Unscrew the swivel nut from the cable gland.
2.Thread the swivel nut over the cable.
3.Press the cable support sleeve out of the cable gland.
4.Remove the filler plug from the cable support sleeve.
5.Route the network cable through an opening in the cable support sleeve.
6.Thread the network cable through the cable gland.
7.Thread cables into connection terminal of the inverter, then press the terminal
by relevant tools and make sure cables are firmly.
8.If no other cables need to be installed, lock the waterproof cover to the
inverter with screws.
9.Screw the swivel nut onto the waterproof cover.
Note:
If the cable such as “Dry contact” cable is not used, please do not remove the
filler plug from the cable support sleeve.
5.5.10 Connection of Drt contact
