MIN 3K-11.4K TL-XH-US
&
Commissioning Guide

List
1.1 Energy Management System
Introduction
1.2 Check System Installation &
Power On
1 Power on the system
2 ShineTools APP Setup 2.1 APP Download
2.2 APP Introduction
2.3 Connecting to Local Wi-Fi
Network
3 Grid Code Mapping Table
4 Wi-Fi Network Configuration
5 Energy Management System 5.1 Management System Mode
Introduction
5.2 Energy Management System
setting
6 Battery Life Maintenance
7 Troubleshooting
Commissioning Error Code
8.1 Register an Account
8.2 Create a power plant
8.3 Add Data Logger to power plant
8 ShineServer Operation
9 Shinephone Introduction 9.1 APP Download
9.2 APP Introduction

1 Power on the system
1.1 Energy Management System Introduction
1
2
The system wiring diagram is as follows:
Fig 1.1
Fig 1.2
MIN 3K-11.4KTL-XH-US AC Couple system diagram is shown in the figure below:
Gas Generator
Emergen
cy stop
switch
AC
Main Panel
MIN 3K-11.4KTL-XH-US energy storage system diagram is shown in the figure below:
The AC Couple system wiring diagram is as follows:
Battery1 Battery2
Power Wire
Signal Wire
Whole Home
Load
SYN 200-XH-US
Grid
Fig 1.3
Fig 1.4
Gas Generator
Whole Home
Load
Main Panel
Power Wire
Signal Wire
Grid
Battery1 Battery2
Solar Inverter
PV
Emergen
cy stop
switch
AC
SYN 200-XH-US
Optional
Optional
MIN
3-11.4KTL XH-
US Inverter MIN
3-11.4KTL XH-
US Inverter
PV
MIN XH-US Inverter
L1 L2N
Back up
L1L2
AC Grid
Ground bar
L1
PV
MIN XH-US Inverter
L2
N
L1
L2
N
Whole Home Load
Power Grid
Grid
Neutral bus-bar
N
L1
AC Panel
BAT
+-
RS485
Battery 1
RS485
Optional
RS485
BAT
+-
Battery 2
BAT
+-
L1 L2
L1 L2 L1 L2
Output Input
EPS
BACKUP
SYN 200-XH-US
L1 L2 L2
Load
L1
Grid
Inverter
NL1 L2
MIN XH-US Inverter
L1 L2N
Back up
L1L2
L1 L2
L1 L2 L1 L2
AC Grid
Output Input
EPS
BACKUP
L1
PV
MIN XH-US Inverter
L2
N
SYN
200-XH-US
L1 L2 L2
Load
L1
L2
N
Whole Home Load
Power Grid
Grid
Neutral bus-bar
Ground bar
N
L1
L1 Grid
BAT
+-
RS485
Optional
Inverter
RS485
PV Inverter
L1 L2N
Back up
L1
L2
Grid
Battery 1
RS485
BAT
+-
Battery 2
BAT
+-
NL1 L2
AC Panel

1.1.1 System Configuration Contains
1.2 Check System Installation & Power On
All components were installed according to the installation guides, please check the
following highlighted installation locations:
Energy Storage System / Off-Grid System.
ØMIN 3-11.4KTL-XH-US inverter.
ØARO battery(s) or LG battery(s).
ØATS.
ØElectric meter SM-US-200 .
Integrated in SYN 200-XH-US.
ØMIN 3-11.4K TL-XH-US inverter.
ØATS.
Product
Model
Function
Note
Inverter
MIN 3K-11.4KTL-XH-US
Energy
conversion
ARO Battery
ARO 6.6-19.8H-C1-US
Energy storage
UP TO 4
LG Battery
RESU10H/16H Prime
Energy storage
UP TO 2
ATS
SYN 200-XH-US
EPS switching
Smart meter
SM-US-200
Energy
management
Button
RSD Button
Rapid shutdown
Accessory (included
in the package)
Power on the system according to the MIN 3000-11400TL-XH-US Quick Guide which is
included in the inverter package/box.
Fig 1.5 Inverter Box Wiring Diagram
ØARO Battery Wiring Diagram please refer to ARO 6.6-19.8H-C1-US Quick Guide.
ØLG Battery Wiring Diagram please refer to LG RESU10H/16H Prime Quick Guide.
ØSYN 200-XH-US Wiring Diagram please refer to SYN 200-XH-US Quick Guide.
1.2.1 Communication cables installation between MIN TL-XH-US inverter and
SYN 200-XH-US
ØConnect the signal cable from MIN TL-XH-US inverter RS485 port to SYN 200-XH-
US,refer to the connection diagram below.
3
4
Fig 1.6

6
5
2 ShineTools APP Setup
2.1 APP Download
There are two ways to download the ShineTools APP:
a) Scan the QR code
ØScanning the QR code through phone camera for downloading the APP.
Fig2.1 ShineTools App QR code
b) APP Store
ØSearch for ShineTools App from app stores (App or Play Store).
ØThe ShineTools App icon is displayed the same as the Figure 4.
ØDownload and install the App by following the installation instructions.
Fig2.2 ShineTools App QR code
2.2 APP Introduction
ShineTools is used to connect the inverter with built-in WIFI at close range. We can view
the inverter system information and system fouction settings with it.
2.3 Connecting to Local Wi-Fi Network
The steps for using APP are as follows:
Setup local Wi-Fi to communicate with the inverter
1.Login interface
2.Enter the default
password and log in
3.Tap in Direct WiFi
The default password is
oss+ day. Ex: if today's
date is Dec 29, 2020, the
default password would
be oss20201229, You can
change the password
according to the prompts
below.
4.Tap in Go to set
5. Open the Wi-Fi settings
on the mobile phone
6. The Wi-Fi name is the
Serial Number on the label
at the left side of the inverter.
The Wi-Fi password is
12345678

The main interface of local commissioning consists of three parts:
7. Tap in Next
8. Tap in Auto refresh
Now this APP has been
connected to the built-in
WIFI of the inverter.
Note:
When no data was present, the communication connection is unsuccessful and you will
need to reconnect the build-in WIFI of the inverter by turning off Wifi setting in the
phone and turn on again OR power cycle the system.
Also, keep the mobile phone within 3 meters of the inverter to ensure stable connection
between phone and inverter.
2.4 Local Commissioning Main Interface Introduction
Power generation
information
Fault warning message
Internal information
viewing and parameter
setting
8
7

The factory Default grid mode of the inverter is IEEE1547-240, which can adapt to the
most power grids. The different grid code can be changed according to local regulation
in the network configuration interface from Quick Setting in ShineTools App.
3 Grid Code Mapping Table
No.
Grid Code
Description
No.
Grid Code
Description
1
HECO-208
US Hawaii low-
voltage power grid
2
HECO-240
US Hawaii low-
voltage power grid
3
IEEE1547-208
US low-voltage
power grid
4
IEEE1547-240
US low-voltage
power grid
5
PRC-East-208
Eastern US low-
voltage power grid
6
PRC-East-240
Eastern US low-
voltage power grid
7
PRC-Quebec-
208
Canada Quebec
low-voltage power
grid
8
PRC-Quebec-
240
Canada Quebec
low-voltage power
grid
9
RULE21-208
US California low-
voltage power grid
10
RULE21-240
US California low-
voltage power grid
Wi-Fi Network Configuration 4
First time install the inverter, the inverter needs to be configured to connect to the home
Wi-Fi to ensure the remote monitoring.
1.Tap in Quick Setting icon
2.Choose Network
configuration
3.Enter network
information
4.Tap in Connect to the
internet icon
5.Prompt message for
successful configuration
Note:
If the network configuration has failed, please carefully check the Wi-Fi name,
password and antenna installation connection, and then try again.
Notice: The inverter does not support 5GHz WiFi network.
10
9

5 Energy Management System
Notice: First time install the energy storage system, charge the battery for at least 1 hours
or up to 60% SOC before powering off the system. This action will keep up the battery
power to avoid running out while waiting for PTO.
There are two ways to charge the battery.
ØThe first is to connect the PV array to the PV of the inverter and turn off the AC output
breaker of the inverter.
ØThe second method is to Wake up the battery via the battery's force-wake switch
button（The forced wake-up switch button of the LG battery is at the bottom of the
inverter wiring frame, and the forced wake-up switch button of the ARO battery is on the
ARO battery cabinet） and connect SYN 200-XH-US to the grid without any
PV input, set the EMS mode of the system to TOU Battery Charging (5.2.3), and turn
on the AC charging function (5.2.2).
5.1 Management System Mode Introduction
The MIN 3K-11.4K TL-XH-US system provides four energy storage modes to choose from.
Storage Mode
Description
TOU Battery
Charging
Charge battery from PV production and grid power (if needed) until
it is full. Only then use PV production for self-consumption and grid
export
TOU Battery
Discharging
If PV Production < Inverter Maximum Production (nameplate or
limited power), discharge battery for self-consumption and grid
export until the inverter reaches its power limit or max battery
discharge power.
Maximum self-
consumption
Use PV production for self-consumption, then charge/discharge
battery as needed to maximize self-consumption
Maximum self-
consumption
Export Limit
The power output from the system to the grid is limited at the set
value
5.2 Energy Management System setting
For the photovoltaic energy storage system, several functions of the system need to set
after the first installation and power-up.
11 12
Battery
Bus+ Bus-
Bat+
Bat-
3
Battery
Bus+ Bus-
Bat+
Bat-
2
Battery
Bus+ Bus-
Bat+
Bat-
-
2
Battery
Bus+ Bus-
Bat+
Bat-

1.Tap in Quick Setting icon
2.Choose Network
configuration
3.Enter network
information
4.Tap in setting
5.Prompt message for
successful setting
5.2.2 AC Charging Setting
The AC charging is used to set whether to allow charging the battery from the Grid.
Factory Default is Disabled.
1.Tap in Charge and
Discharge Management
2.Find Enable AC Charging
3.Tap in ON/OFF button.
14
5.2.1 Power Sensor Setting
If an electric meter is installed in the system, please set. Factory Default is Disabled.
Note: Power Sensor: iOS = Electric meter
Android = Meter
13
5.2.3 Battery type Setting
1.Tap in Quick Setting icon
2.Tap in Battery type
3.Tap in LG Battery button.
The Battery type setting is to choose ARO Battery or LG Battery
Factory Default is ARO Battery.

5.2.4 AC Couple Setting
1.Tap in Quick Setting icon
2.Find Enable AC Couple
3.Tap in ON/OFF button
The AC Couple setting is what the AC COUPLE system needs to set
Factory Default is Disabled.
15 16
5.2.5 MIN TL-XH-US Inverter communication setting with SYN 200-XH-US
1.Tap in System
Configuration
2.Tap in Off-Grid Function
3.Tap in Enable Off-Grid
Function button
MIN TL-XH-US inverter with SYN 200-XH-US needs to set the off-grid and electric meter
enable
Factory Default is disable.Off-Grid enable settings are as follows,please refer to
chapter 5.2.1 for meter settings
1.Tap in EMS

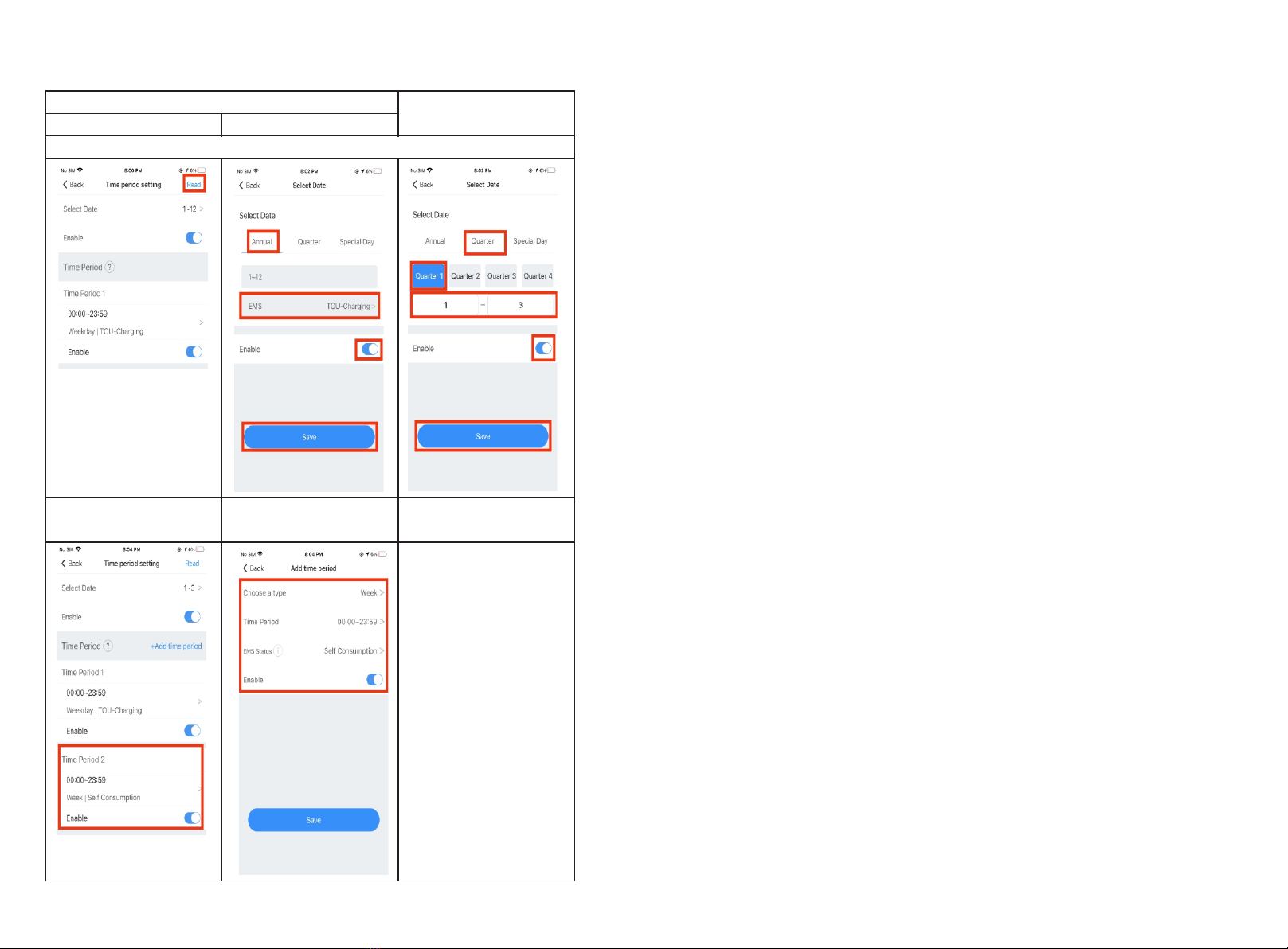

2.Tap in Time Slot…
3.Create the date and time
period.
5.2.6 EMS Mode Setting:
If an ARO battery is installed in the system, you need to set the energy storage mode.
Factory Default is Maximum Self-Consumption.
Example: If the energy storage system is to be used as backup and only use the battery
when the grid is powered off, set the battery charging and discharging time period to 24
hours for TOU Battery Charging.

For Backup ONLY scenarios ，it's done on No. 5
4.Select the Quarter to be
set, Four quarters can be
set
4.Select the TIME to be set
5.Select the YEAR to be set
You only need to select the season or year to set.
5.Increase time period,
Maximum support 9 time
periods
6.Set the mode within the
time period
7. If you need to set more
quarter or time periods, you
need
to operate step 4, 5, 6
multiple times You can also
set the energy storage
mode for special days if
necessary.
Battery Life Maintenance 6
a) TUnplug Battery power, Battery Communication cables and turn OFF battery modules
power (Check battery quick installation guide for the detail) .
if the following conditions were met:
ØThe installation is not completed.
ØNo PV and AC power can charge the battery.
b) Charge the battery SOC above 60% or higher after installation is complete and
pending for AHJ/city review and approval.
(Important)
17 18

2019
7 Commissioning Error Code
Troubleshooting
Enter the local commissioning home page, and view the fault and alarm information on
the main interface if there are exist after installation. The fault and alarm code on the
ShineServer Page will be the same in the APP.
If you find a fault or alarm, please click it, and then you will be redirected to the interface
of fault explanation and handling tips.
1. Common Fault and warning Codes
Fault code
Fault name
Possible cause
suggestion
Error 200
AFCI Fault
There is a problem on
the wiring connection
1.After shutdown, check the
panel terminal.
2.Decrease AFCI sensitivity
and restart.
3.If error message still exists,
contact manufacturer.
Error 201
Residual current
High
PV panel insulation
problem
1.Restart inverter. (Related
to Grounding fault?)
2.If error message still exists,
contact manufacturer.
Error 202
PV Voltage High
Too many PV panels
connected in series
1.Immediately disconnect the
DC switch and check the PV
voltage.
2.If the fault code still exists
after the normal voltage is
restored, contact manufacturer.
Error 203
PV Isolation Low
PV panel insulation
problem
1. Check PV panel and wiring.
Error 204
PV Reversed
PV positive and
negative are
reversed
1.After shutdown, Check the
inverter terminal.
2. Restart inverter.
3.If error message still exists,
contact manufacturer.
Error 300
AC overvoltage
Grid voltage
overvoltage
1.Check grid voltage.
2. If the error message still exists
despite the grid voltage being
within the spec range, contact
manufacturer.
Error 301
AC reversed
AC wiring error
1.Check AC terminals.
2.If error message still exists,
contact manufacturer.
Error 302
No AC
Connection
No AC Connection
1.After shutdown, Check AC
wiring.
2. If error message still exists,
contact manufacturer.
Error 303
NE abnormal
N or PE wring error
1.Check PE wiring.
2.Check N wiring.
Error 304
AC F Outrange
Abnormal grid
frequency
1. Restart inverter.
2. If error message still exists,
contact manufacturer.
Warning
217
BDC Abnormal
ARO battery error
1.Check ARO battery terminals
2.Check the connection.
between the inverter and the
ARO battery.
Warning
218
BDC Bus
Disconnect
Inverter and BDC
wiring failure
1. Check the wire connection
between the inverter and the
ARO battery.
2.If error message still exists,
contact manufacturer.

8 ShineServer Operation
ShineServer is the online monitoring platform that allows remote access through the
ShinePhone App or any web browser. However, the premise is that the Wi-Fi network has
been configured.
Account and plant information will be the same in both the web browser version and on
the ShinePhone App.
8.1 Register an Account
a) Log in to our monitoring website http://server-us.growatt.com and click Register an
Account.
b) Fill in the appropriate information on the registration interface and log into the
account after the registration is completed.
8.2 Create a power plant
a) When you log into your account for the first time, you will be prompted to register a
power plant.
b) Click Add Plant on the upper right hand corner to create a power plant. A single
account can contain multiple power plants.
c) Fill in the appropriate power plant information in order to complete the power plant
creation.
8.3 Add Data Logger to power plant
a) Click on the power plant just created, enter the power plant page, and then add a
data logger.The SN number of the collector is on the barcode on the side of the
inverter, starting with VC. A power plant can contain multiple data loggers.
2221

b) When you have completed these steps, you will be able to view the inverter system
remotely through the ShinePhone APP and through any browser.
24
Shinephone Introduction 9
9.1 APP Download
There are two ways to download the ShinePhone APP:
c) Scan the QR code
Fig 9.1 ShinePhone downloading QR code
Scanning the QR code through WeChat or IOS's Camera, then download the APP.
d) APP Store
Search for ShinePhone from app stores, download the installation package, and install
the ShinePhone app by following the instructions.the ShinePhone icon is displayed on
the home screen.
Fig 9.2 Icon of APP
9.2 APP Introduction
Shinephone can remotely monitor the inverter system information, which has the same
function as shineserver, and the two information are shared. We can also register and
create power stations through the shinephone app.
23

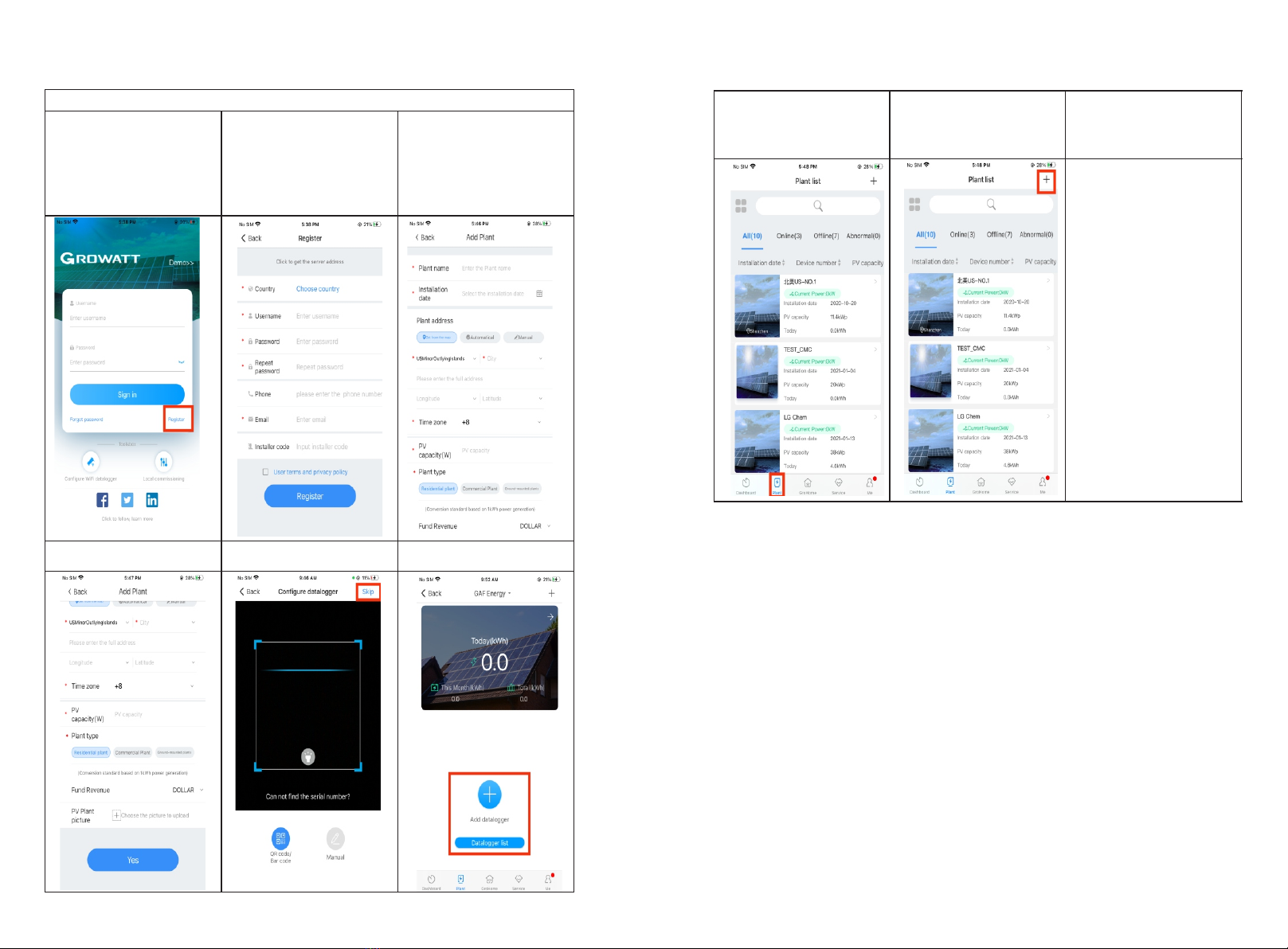

Setup local Wi-Fi to communicate with the inverter
1.Tap in Register
2. Fill the register info,
Notice: For Installer code:
ask for your installer, once
you fill your installer code,
your PV system would be
authorized and monitored
by your installer.
3.Fill the plant info
4.Continue fill the plant
info
5.Tap in skip
6. Add collector
2625
7. The Plant page display
the list of plants under the
plant account
8.tap in “+” to add the
Plant.
Growatt USA,Inc
9227 Reseda Blvd,#435 Northridge,CA 91324,USA.
1(866) 686-0298
www.growatt-america.com
T
E [e-mail]
W
