GrowSpan 500 Series User manual

1
Revision date: 07.18.18
STK#
GS05KDR2SWT (Twin-Wall Polycarbonate)
GS05KDR2SWC (Corrugated Polycarbonate)
Finished Grade Finished Grade

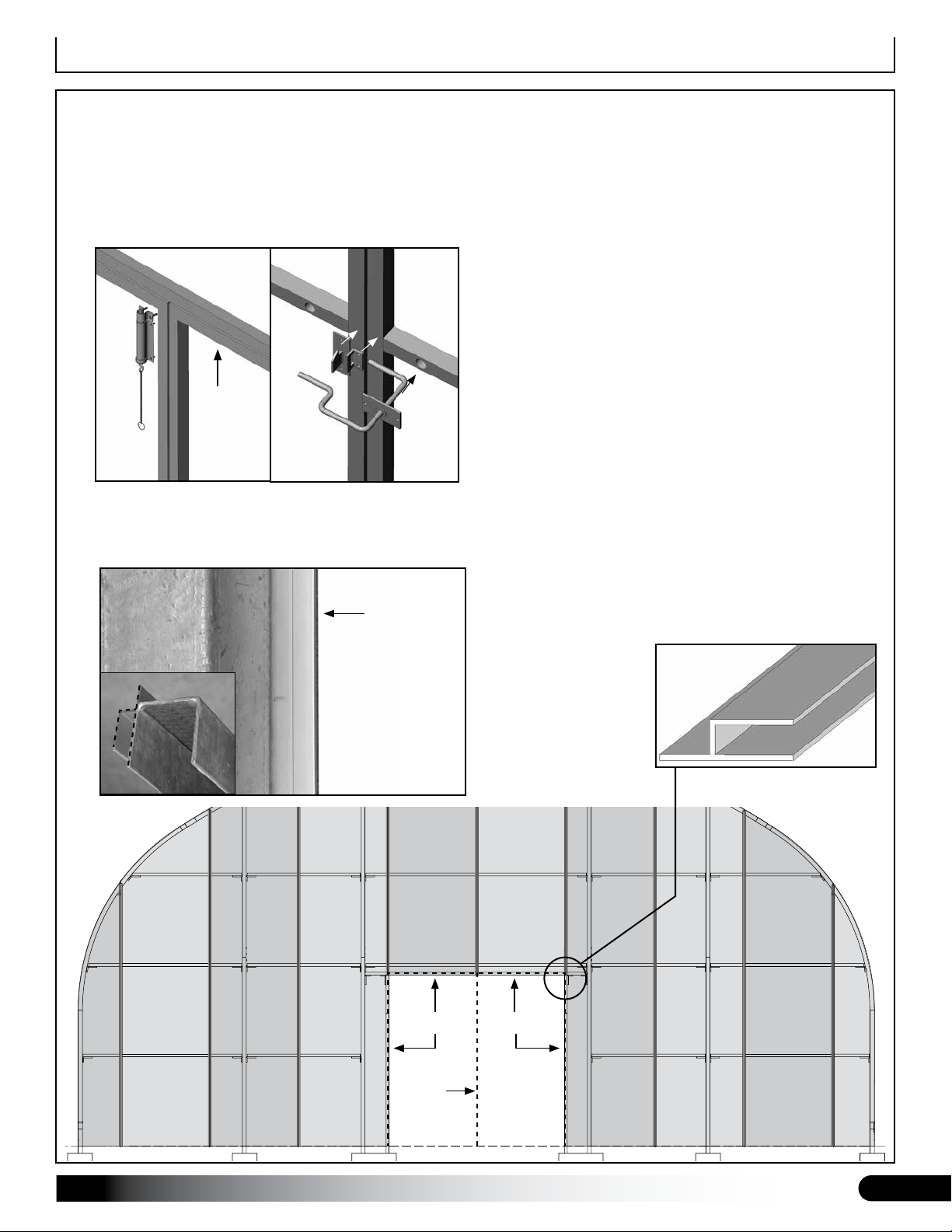

Diagram shows a double-swinging door centered and installed in an end wall frame.
The door kit includes materials for the door and tubing for the door frame only. All other
components shown in the diagram above and other diagrams throughout this guide are
not included and require additional purchase. Actual building width may differ.
Double Swinging Door
©2018 GrowSpan
All Rights Reserved. Reproduction
is prohibited without permission.
GrowSpan™Series 500
Door Kits

2Revision date: 07.18.18
Table of Contents
Important Information ..............................................3
Door Frame Assembly .............................................5
Twin-Wall Double Swinging Doors..........................6
Corrugated Double Swinging Doors.......................9
Shelter Care and Maintenance ................................12
Quick Start Guide .....................................................13

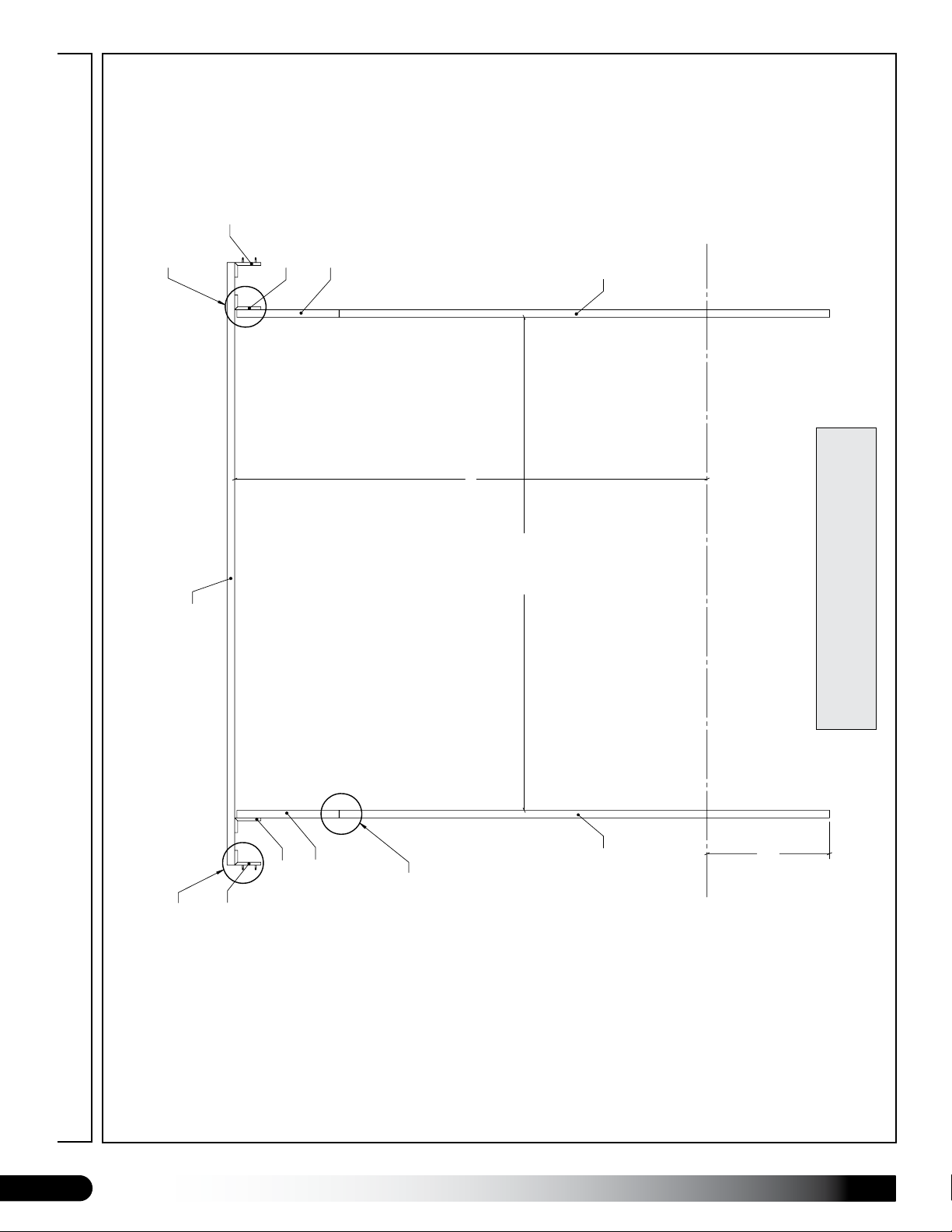

Door Frame Layout...................................................14

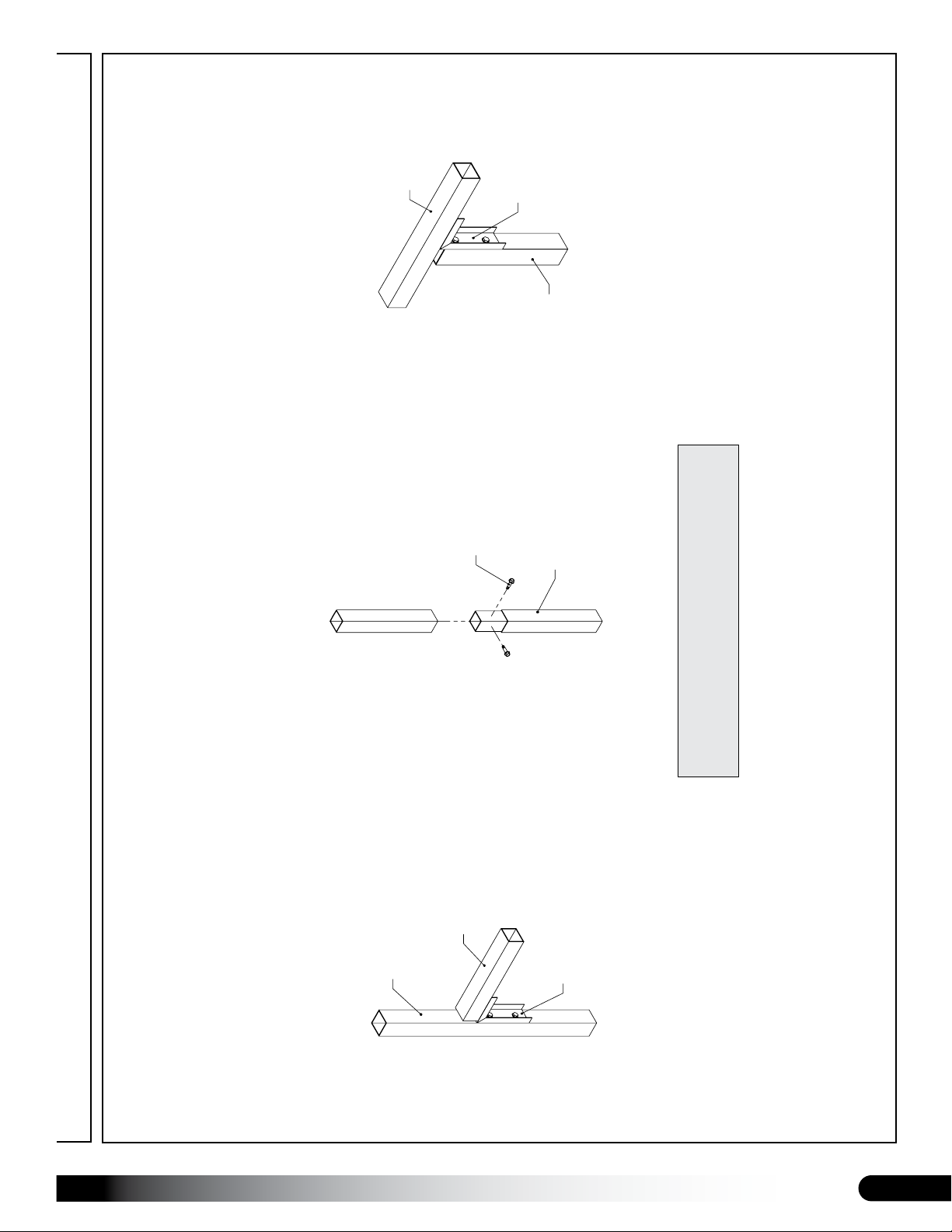

Door Frame Detail Connections..............................15
DOUBLE SWINGING DOOR KIT: READ THIS BEFORE
YOU BEGIN
The double swinging door kit is designed to attach
to any of these end frame kits: GS05KEW20G72,
GS05KEW24G72, GS05KEW30G72 and
GS05KEW35G72.
Install the end wall framing before you install the door
frame. Consider the positions of fans, vents, and other
accessories before you install the door frame.
Door must not block or interfere with the operation of
building accessories.
If you are installing this door kit in an end frame that is
not identified above, use these instructions for critical
dimensions and details.
Consult the services of a qualified contractor if needed. It
is the responsibility of the owner/contractor to adapt these
instructions to safely and competently install this door in
an end frame or building that it was not designed for.
Complete these steps to begin and to install the door:
1. Based on the dimensions of the door (or doors),
determine where you can position the door in the end
frame. Use the diagrams from both this manual and
the end wall assembly guide.
2. Secure the door framing to the end wall framing.
3. Assemble door frame and door and attach to end wall.
NOTE: If you purchased a fabric end panel to cover
the end wall frame, install the panel before you install
the door; then remove the panel material as needed to
allow for the installation of the door.
If you purchased a polycarbonate package (8 mm
twin-wall or corrugated), install those panels after
installing the door(s).

3
Revision date: 07.18.18
YOU MUST READ THIS DOCUMENT BEFORE YOU
BEGIN TO ASSEMBLE THE DOOR KIT.
Thank you for purchasing this GrowSpan™ door kit.
When properly assembled and maintained, this product
will provide years of reliable service. These instructions
include helpful hints and important information needed to
safely assemble and properly maintain the door. Please
read these instructions before you begin.
SAFETY PRECAUTIONS
• Wear eye protection.
• Wear head protection.
• Use a portable GFCI (Ground Fault Circuit
Interrupter) when working with power tools and
cords.
• Do not climb on the framing during or after
construction.
• Provide proper ingress and egress to prevent
entrapment.
WARNING: The individuals assembling this door
are responsible for designing and furnishing all
temporary bracing, shoring and support needed
during the assembly process.
For safety reasons, those who are not familiar with
recognized construction methods and techniques
must seek the help of a qualified contractor.
Important Information
REQUIRED TOOLS
The following list identifies the main tools needed to
assemble the door. Additional tools and supports may be
needed depending on the structure, location, and
application.
• Tape measure or measuring device
• Fine point marker to mark the location frame
members.
• Wrench and socket and ratchet set that includes 1/2"
size
• Variable speed drill (cordless with extra batteries
works best)
• Tool to cut the polycarbonate panel
• Hammers, gloves, and eye protection
• Ladders, work platforms, and other machinery for
lifting designed to work safely at the height of the
door and door frame.
ATTENTION: Consult the services of a qualified,
professional contractor if you are not familiar with the
construction of similar frame structures and components.

4Revision date: 07.18.18
Important Information

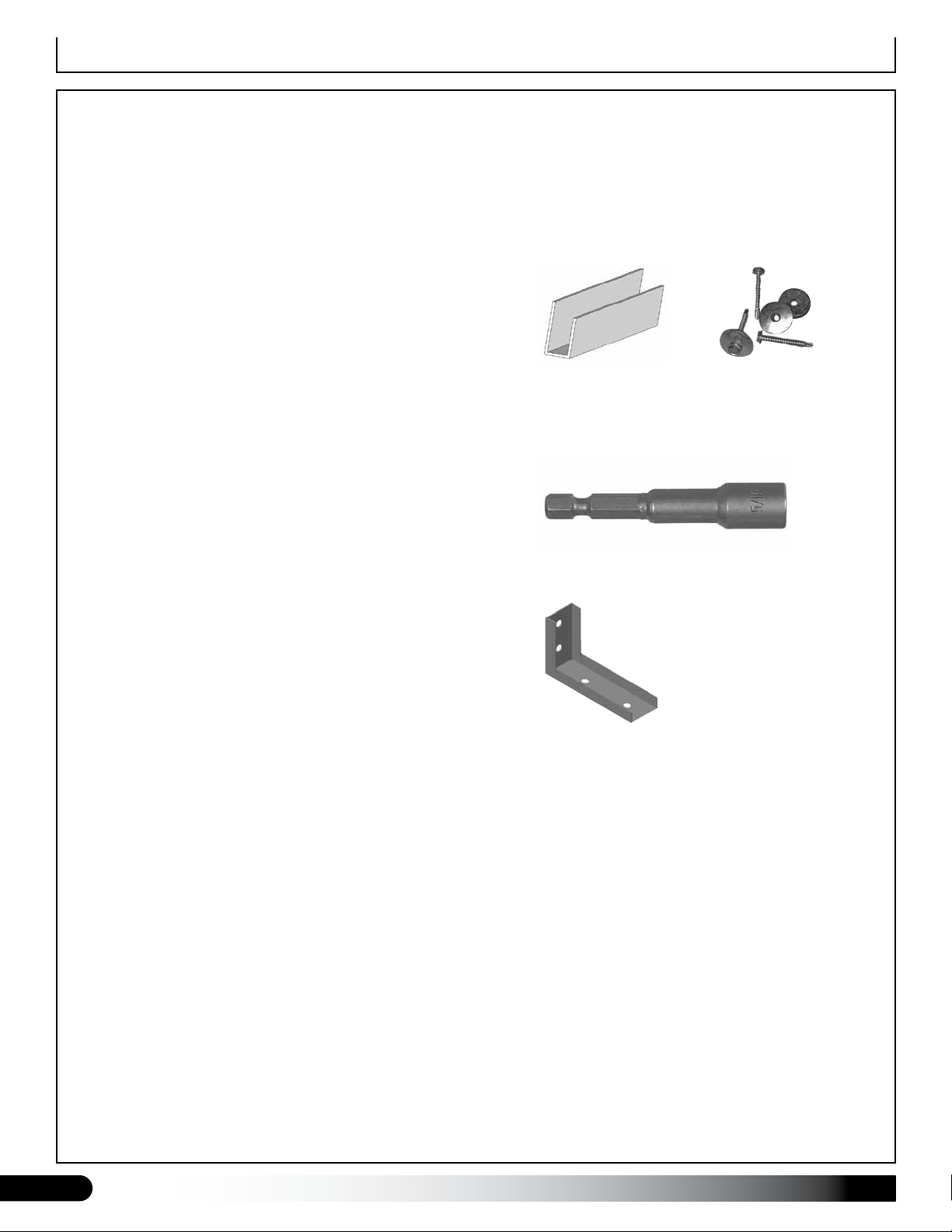

PARTS IDENTIFICATION
The following graphics and photos will help identify the
different hardware for each door. (Some parts are not
shown.)
Typical Door Kit Components
102921B & FA4484B
Tek Screws and neo-
bonded washers
104213
Aluminum
U-Channel Profile
(Twin Wall Kits only.)
ASSEMBLY PROCEDURE
Following the instructions as presented will help ensure
the proper installation of the end frame and door. The
steps outlining the assembly process are as follows:
1. Verify that all parts are included in the shipment.
Notify Customer Service for questions or concerns.
2. Read these instructions, the Must Read document,
and all additional documentation included with the
shipment before you begin.
3. Gather the tools, bracing, ladders (and lifts), and
assistance needed to install the door and door frame.
4. Read the care and maintenance information at the
end of these instructions.
5. Complete and return all warranty information as
instructed (if present).
UNPACK AND IDENTIFY PARTS
The following steps will ensure that you have all the
necessary parts before you begin.
1. Unpack the contents of the shipment and place
where you can easily inventory the parts. Refer to the
Bill of Materials/Spec Sheets.
2. Verify that all parts listed on the Bill of Materials/Spec
Sheets are present. If anything is missing or you
have questions, consult the parts guide and all
diagrams for clarification, or contact customer
service.
NOTE: At this time, you do not need to open the
plastic bags containing smaller parts such as
fasteners and clamps (if equipped).
QUICK START DIAGRAMS
For a quick overview of the end wall, door, and
components, consult the diagrams located at the back of
these instructions.
100441
Nut Setter
QH1330
Angled Bracket

5
Revision date: 07.18.18
Door Frame Assembly
ASSEMBLING THE DOOR FRAME COMPONENTS
Consult the diagrams at the back of these instructions before you begin. Assistance is required to assemble the door
frame and door. The following steps describe one way to assemble the door frame and door.
1. Using the dimensions on the Door Frame Layout diagram (Quick Start Section), determine the positions of the
doorjambs.
2. Dig 8"-10" diameter holes at the locations found in previous step to a depth that is below the geographic frost line.
Minimum depth: 24".
3. Using the rough door opening dimensions and the door frame components, assemble and install the door frame.
See diagram below.
4. Square door frame and secure doorjambs in holes using concrete. Verify door frame dimensions before you
secure jambs in concrete. Doorjambs must be plumb for proper door operation.
5. Once door frame is attached to end wall framing, assemble the door. Consult the procedures on the next few
pages for your door (twin wall or corrugated polycarbonate).
S15P118
Header (cut to length)
92-1/2"
96-1/2"
Concrete Concrete
Finished Grade
(inside-to-inside)
(bottom of header to the
top of finished grade)
Tek screws
QH1330
NOTE: End frame and
rafter are not included
with any door kit.
Door jamb
anchored in
concrete.
Finished
Grade
*Not shown
to scale.

6Revision date: 07.18.18
Twin-Wall Double Swinging Doors
DOUBLE TWIN-WALL DOOR ASSEMBLY
If your doors include corrugated polycarbonate
panels, skip this section and continue with the
assembly steps for those doors. The materials and
parts needed to assemble the double door include:
• Door frames (102923), 8mm panels (116049), door
hinges (FA5030), end cap (104548), and latches
(FA2410)
• Tek screws (FA4484B), neo-bonded washers
(102921B), and aluminum profile (104213)
Assemble and Attach Door
NOTE: Install polycarbonate panel with UV-protected
side toward the outside/sun.
1. Locate door frame (102923), assemble (if needed),
and place on a flat surface.
2. Take polycarbonate panel and trim it so length is
one-quarter inch (1/4") shorter than length of door
frame.
3. Trim width of panel (if needed) so it is one-quarter
inch (1/4") narrower than width of door frame.
NOTE: Trimming panels as instructed will keep panel
away from door frame edges once aluminum profile
(104213) is installed.
4. Center panel on door frame.
5. Using Tek screws (FA4484B) and galvanized neo-
bonded washers, attach panel to horizontal cross
tube. Evenly space Tek screws and washers every
12".

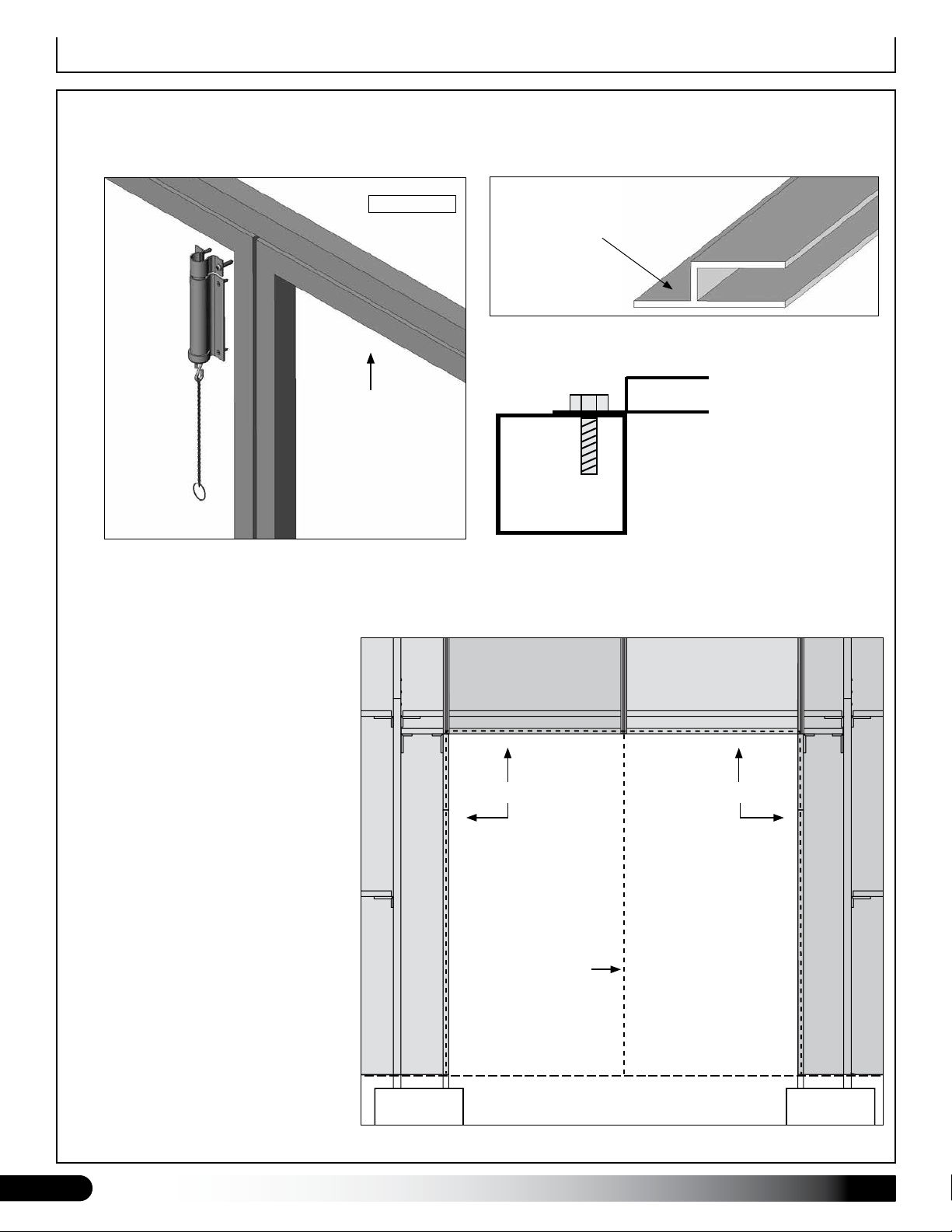

Photo shows panel attached to the outside of
door frame and finished with aluminum (104213)
U-channel profile.
7. To keep panel and profile in place, install Tek screws
and neo-bonded galvanized washers so screw
drills through longer edge of U-channel (underside
of panel) and washer overlaps shorter edge of
U-channel (top) as shown above. Evenly space Tek
screws every 12".
8. Repeat above steps to attach panel and to install
aluminum profile for remaining door frame.
9. After assembling doors, evenly space three (3)
hinges along door frame of each door and attach
hinges to using Tek screws.
6. Install aluminum U-channel profile to all edges of
panel. The 104213 sections at top and bottom of
panel run to panel edges to seal panel cells.
NOTE: Attach panel in locations shown in photo to
hold in place while attaching aluminum profile to
perimeter of panel. DO NOT INSTALL NEAR LATCH
MOUNTING HOLE.
NOTE: Photo shows hinge attached to door frame
over polycarbonate panel using FA4484B screws.

7
Revision date: 07.18.18
Twin-Wall Double Swinging Doors
DOUBLE TWIN-WALL DOOR ASSEMBLY (continued) 13. Place main handle of assembly through hole in door
and twist main handle and front plate into place.
Locations of door hinges may vary.
10. With assistance, set the assembled doors in the end
wall door frame and secure hinges to the door jamb
using one Tek screw per hinge at this time.
14. Mark mounting hole locations on the panel and drill a
5/16" hole through the panel and door frame.
NOTE: Verify that there is sufficient clearance along
all door edges to allow the doors to swing freely in
the opening. If end panels are installed, attach to the
outside of the end panels as shown above.
11. Test the door operation, adjust hinges as needed,
and install the remaining Tek screws to secure hinges
to the doorjambs.
12. Determine which door to install the handle, locate the
door latch hole in the door cross member and drill
1" hole through the polycarbonate panel at the hole
location.
15. Slide back mounting plate into position, square it with
the mounting holes and front plate and secure using
two (2) ¼" x 3" bolts and lock nuts. Verify that latch
moves freely.
16. Attach door latch guide using the remaining ¼" x 3"
bolts. Position so latch handle is level. See above.
17. Attach the latching plate to the other door frame using
the installed handle as a guide.
Handle
Back Mounting Plate
Polycarb not shown.
Horizontal
Position
Door Latch
Guide
Latching
Plate
Polycarb not shown.

8Revision date: 07.18.18
Twin-Wall Double Swinging Doors
DOUBLE TWIN-WALL DOOR ASSEMBLY (continued)
18. Attach the 6" chain bolt to the inside, upper corner of the door without the handle. (See X in drawing below for
location.)
Inside View
Door without handle.
Attach chain to this
door frame.
X
19. At the top and sides of the end wall door opening on the inside of the frame, attach end cap and allow it to extend
below and into the door frame opening. Dashed line in the diagram below identifies where to attach the end cap
profile. End cap extends beyond the frame members and into the rough opening to stop the door in the frame and
to help seal the gap between the door and frame. See Top View diagram above.
End cap used for door stop and seal. See Steps 19-20.
Install screws through
this part of the profile.
Top View showing
profile attached to the
end wall door frame
and extending into the
rough door opening.
Door Opening
Door Jamb
ATTENTION: This profile acts as
a stop for the double doors, which
prevents undo stress on the hinges.
Consult the photos to the right.
20. After end cap profile is installed,
install another section of the same
end cap on the inside frame of
the door that includes the chain
latch.
NOTE: This end cap serves as a
stop for the other door of the double
assembly when both doors are
closed.
21. Check the operation of the latches
and the doors.
22. After installing the door to the frame,
read the care and maintenance
section.
Finished Grade
Step 19
Step 20
Door Opening Door Opening
Step 19

9
Revision date: 07.18.18

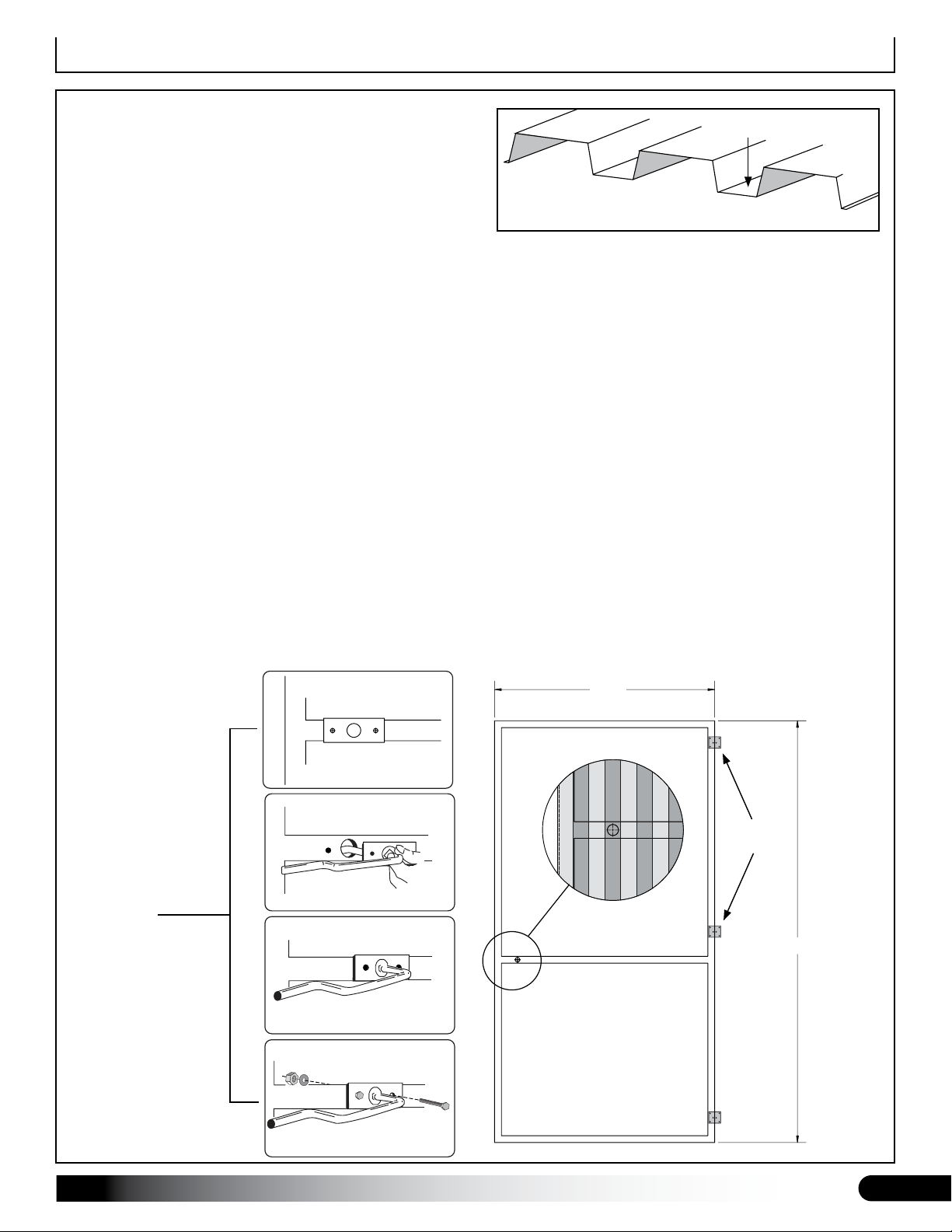

DOUBLE CORRUGATED DOOR ASSEMBLY
If your doors includes 8mm twin-wall polycarbonate,
skip this section and continue with the assembly steps
for that door. The materials and parts needed to assemble
the double door include:
• Door frames (#102923), corrugated panels (104620C),
door hinges (FA5030), end cap (104548) and latches
(FA2410)
• Tek screws (#FA4482B), neo-bonded washers
(#102921B), and foam closure strips (104709)
Assemble and Attach Door
1. Assemble door frame (#102923), place it on a flat surface, and attach three (3) hinges (FA5030) using Tek screws.
Evenly space hinges along side of the frame. See diagram below.
2. Select the corrugated panel (104620C) and trim it so that the length is approximately one-quarter inch (1/4")
shorter than the length of the door frame. (This helps protect the edges of the polycarbonate panel.)
3. Position the panel on the door frame so that a panel valley is placed over (or near) the door latch hole of the frame
as shown below. (Trim panel width–both edges if necessary–to align valley with door latch hole.) Mark the door
latch hole position on the corrugated panel, drill a 3/4" hole in the panel at that mark, set the panel aside, and
install the door latch as described in the diagram below and in the following step.
4. Center the latch mounting plate over the door frame hole, mark the bolt holes, and drill two 5/16" holes through
frame. With assistance, slide the latch and mounting plate assembly through the front side of the door frame, add
the mounting plate on the back side, and secure using two (2) ¼" x 3" bolts. Verify that latch turns freely.
5. Reposition the polycarbonate panel on the door frame by threading the latch through the hole drilled in the panel
(Step 3). Square panel on the frame as needed.
Corrugated Double Swinging Doors
Corrugated Panel
Valley
NOTE: Verify that the horizontal closure strip under
the panel is in place before attaching the panel to the
door frame. Read the notice on the corrugated panel
to install the panel correctly.
4
4
8
8
"
"
9
9
2
2
"
"
Handle
STEP 1
STEP 4 STEP 3

10 Revision date: 07.18.18

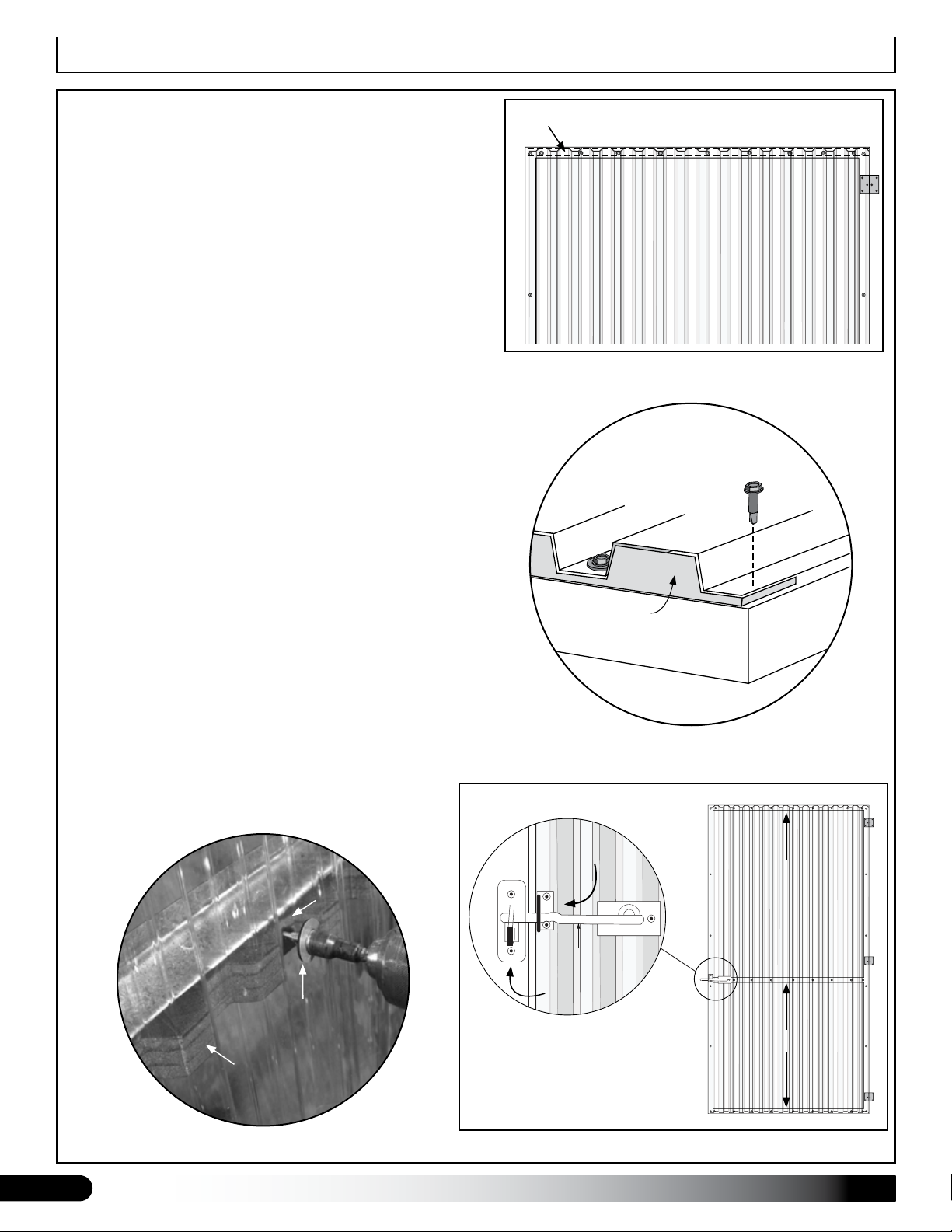

Corrugated Double Swinging Doors
6. Install sections of the horizontal closure strips (104709)
under the panel before attaching the panel to the door
frame. Trim closure strips as needed.
7. Drive Tek screws and washers through the panel,
closure strip, and into the frame every 6" or so. Install
Tek screws and washers in the valleys of the panel.
Screws should be snug. Do not overtighten screws.
8. Attach the panel in the locations as shown to hold
the panel in place. If needed, secure the sides of the
polycarbonate panel to the door frame using Tek screws
only every 16".
9. Attach the door latch guide to the door frame using the
remaining 1/4" bolts. Trim the edge of the corrugated
panel as needed to allow free movement of latch.
10. Repeat the required steps needed to assemble the
remaining door frame and installation of the panel.
11. With assistance, set the assembled doors in the end
wall door frame and secure hinges to the door jamb
using one Tek screw per hinge at this time.
NOTE: Verify that there is sufficient clearance along
all door edges to allow the doors to swing freely in the
opening. If end panels are installed, loosen the panels,
secure the hinges directly to the door jamb, and reinstall
panel fasteners.
12. Test the operation of the doors, adjust hinges as
needed, and install the remaining Tek screws to secure
hinges.
DOUBLECORRUGATED DOORASSEMBLY(continued)
Tek Screw
and Washer
Valley
Closure Strip
STEP 6
STEP 8
104709 strip
Horizontal
Position
Door Latch
Guide
Latching
Plate
STEP 11
Closure Strip
Closure Strip
STEP 13
STEP 9
Trim corrugated panel as needed
to install the door latch guide.
Horizontal
Position
Door Latch
Guide
Latching
Plate
STEP 7
Closure Strip

11
Revision date: 07.18.18
Corrugated Double Swinging Doors
DOUBLECORRUGATED DOORASSEMBLY(continued)
13. Attach the 6" chain bolt to the inside, upper corner of
the door without the handle (see X in drawing below).
Mount the latching plate to the outside of the same
door (see drawing in step 12). The screws supplied
with the latch are not used for metal jambs.
a. Photos show the end cap as attached to the end
wall door jamb. View shows the assembly from
the outside.
b. Cross section insert shows the end cap (dashed
line) attached to the inside/back of the door jamb.
c. Dashed line below identifies where to attach the
end cap profile. The end cap extends beyond
the frame members and into the rough opening
to stop the door in the frame and to help seal the
gap between the door and frame.
Door Jamb
End Cap
(#104548)
The installed
polycarbonate end
wall panels have
been removed to
better show the
door jamb.
14. At the top and sides of the end wall door opening
on the inside of the frame, attach end cap and allow
it to extend below and into the door frame opening.
Consult the photos below.
15. After end cap profile is installed, install another
section of the same end cap on the inside frame of
the door that includes the chain latch.
NOTE: This length of end cap will act as a stop for
the remaining door of the double door assembly
when both doors are closed.
16. Check the operation of the latches and the doors.
17. After installing the door to the frame, read the care
and maintenance section.
ATTENTION: This profile acts as a stop for the
double doors, which prevents undo stress on the
hinges.
End cap used for door stop
and seal.
Ground Level
Step 14c Step 14c
Step 15
Inside
View
Outside
View
Door
without
handle.
X

12 Revision date: 07.18.18
Space below is reserved for customer notes.
Shelter Care and Maintenance
SHELTER CARE AND MAINTENANCE
Proper care and maintenance of the doors is important.
Check the following items periodically to properly
maintain the doors and door frame:
• Regularly check the polycarbonate panels to see that
they remain secure and in good condition. Replace
damaged panels if needed.
• Check connections and all fasteners to verify that
they remain tight.
• Check the contents of the shelter to verify that
nothing is touching the polycarbonate panels that
could cause damage or interfere with the door
operation.
• Do not leave the doors ajar. Close doors and
secure with latch or prop doors open to avoid
personal injury or damage to the doors.
• For replacement or missing parts, contact you sales
representative for assistance.

13
Revision date: 07.18.18
QUICK START GUIDE
Double Swinging Door Kit (GS05KDR2SWT and GS05KDR2SWC)
Quick Start Guide
Twin-Wall Double Door Sample
GS05KDR2SWT
Ground Level
Corrugated Double Door Sample
GS05KDR2SWC
Ground Level
ATTENTION: End frame and end rafter are
not included with any door kit. Actual width
of the building end wall may differ.

14 Revision date: 07.18.18
2'-0"
EMBEDMENT
92 1/2" R.O.
VIEW 2
ANGLE BRACKET
1.5" X 1.5" SQUARE TUBE CONNECTION
(S15P020)
VIEW 3
1.5" X 1.5" SQUARE TUBE
)
1.5" X 1.5" SQUARE TUBE (S15P118)
1.5" X 1.5" SQUARE TUBE (102897102897)
GROUND LEVEL
ANGLE BRACKET (QH1330)
ANGLE BRACKET (QH1330) ANGLE BRACKET
(QH1330)
VIEW 1
HEADER TO ENDWALL COLUMN CONNECTION DOOR JAMB TO HEADER CONNECTION
(QH1330)
1.5" X 1.5" SQUARE TUBE (
1.5" X 1.5" SQUARE TUBE (S15P020)
96 1/2" R.O.
Door Frame Layout
ATTENTION: Square the door opening and measure the door before anchoring the doorjambs in concrete.

15
Revision date: 07.18.18
DOOR HEADER
DOOR JAMB
ANGLE BRACKET
(QH1330)
- (4X) #14 X 1" TEK SCREW
VIEW 2
1.5" X 1.5" SQUARE TUBE CONNECTIONHEADER TO ENDWALL COLUMN CONNECTION
VIEW 1 VIEW 3
DOOR JAMB TO HEADER CONNECTION
1.5" X 1.5" SQUARE TUBE
- (2X) #14 X 1" TEK SCREW
ENDWALL COLUMN
DOOR HEADER
ANGLE BRACKET (QH1330) - (4X) #14 X 1" TEK SCREW
Door Frame Detail Connections
ATTENTION: Install screws in a location that will not interfere with the installation of the door assembly.
