GROWSPAN™ROUND ECONOMY HIGH TUNNELS
Revision date: 01.01.20
Ground Level
Diagram shows a different length but similar model. Economy high tunnels include film roof and film end panels.
STK# DIMENSIONS
PB01700R6 26' W x 12' H x 48' L
PB01710R6 26' W x 12' H x 96' L
©2020 GrowSpan
All Rights Reserved. Reproduction
is prohibited without permission.
GrowSpan™
Round Economy High Tunnels

2
GROWSPAN™ROUND ECONOMY HIGH TUNNELS
Revision date: 01.01.20
READ THIS DOCUMENT BEFORE YOU BEGIN
Thank you for purchasing this GrowSpan™ high tunnel.
When properly assembled and maintained, this product will
provide years of reliable service. These instructions include
helpful hints and important information needed to safely
assemble and properly maintain the high tunnel. Please
read these instructions before you begin.
If you have any questions during the assembly, contact
Customer Service for assistance.
SAFETY PRECAUTIONS
• Wear eye protection.
• Wear head protection.
• Wear gloves when handling metal tubes.
• Use a portable GFCI (Ground Fault Circuit Interrupter)
when working with power tools and cords.
• Do not climb on the high tunnel or framing during or
after construction.
• Do not occupy the high tunnel during high winds,
tornadoes, or hurricanes.
• Provide adequate ventilation if the structure is
enclosed.
• Do not store hazardous materials in the high tunnel.
• Provide proper ingress and egress to prevent
entrapment.
ANCHORING INSTRUCTIONS
Prior to assembling this high tunnel, please read the MUST
READ document included with the shipment.
WARNING: The anchor assembly is an integral part of
the high tunnel construction. Improper anchoring may
cause high tunnel instability and failure of the structure.
Failing to anchor the high tunnel properly will void the
manufacturer’s warranty and may cause serious injury
and damage.
LOCATION
Choosing the proper location is an important step before
you begin to assemble the structure.
The following suggestions and precautions will help you
determine whether your selected location is the best
location.
• Never erect the structure under power lines.
• Identify whether underground cables and pipes are
present before preparing the site or anchoring the
structure.
• Location should be away from structures that could
cause snow to drift on or around the building.
• Do not position the high tunnel where large loads
such as snow and ice, large tree branches, or other
overhead obstacles could fall.
SITE
After choosing a location, proper preparation of the site is
essential. Follow the information below.
• A level site is required. The site must be level to
properly and safely erect and anchor the structure.
• For sites that are not concrete or gravel, placing wood
blocks or other suitable supports under each rafter leg
helps prevent the pipes from sinking or working into the
site.
• Drainage: Water draining off the structure and from
areas surrounding the site should drain away from the
site to prevent damage to the site, the structure, and
contents of the structure.
WARNING: The individuals assembling this structure
are responsible for designing and furnishing all
temporary bracing, shoring and support needed during
the assembly process. For safety reasons, those who
are not familiar with recognized construction methods
and techniques must seek the help of a qualified
contractor.

3
GROWSPAN™ROUND ECONOMY HIGH TUNNELS
Revision date: 01.01.20
ASSEMBLY PROCEDURE
Following the instructions as presented will help ensure the
proper assembly of your high tunnel. Failing to follow these
steps may result in an improperly assembled and anchored
high tunnel and will void all warranty and protection the
owner is entitled.
The steps outlining the assembly process are as follows:
1. Verify that all parts are included in the shipment. Notify
Customer Service for questions or concerns.
2. Read these instructions, the Must Read document, and
all additional documentation included with the shipment
before you begin assembling the high tunnel.
3. Gather the tools, bracing, ladders (and lifts), and
assistance needed to assemble the high tunnel.
4. Check the weather before you install the roof cover
and any panels (if equipped). Do not install covers or
panels on a windy or stormy day.
5. Re-evaluate the location and site based on the
information and precautions presented in the
documentation included with the shipment.
6. Prepare the site (if applicable).
7. Assemble the frame components in the order they are
presented in these instructions.
8. Assemble the frame including the struts (if equipped).
9. Consult the MUST READ document and properly
anchor the assembled frame.
10. Install, tighten, and secure the end panel and main
cover (if equipped). This applies to fabric covers that
stretch over the frame assembly. Your shelter may
include roof panels or side panels or both.
11. Read the Care and Maintenance information at the end
of these instructions.
12. Complete and return all warranty information as
instructed.
REQUIRED TOOLS
The following list identifies the main tools needed to
assemble the shelter. Additional tools and supports may be
needed depending on the structure, location, and
application.
• Tape measure or measuring device
• Fine point marker to mark the location on tubing.
• Variable speed drill/driver (cordless with
extra batteries works best)
• Wrench, ratchet and socket (recommended)
• Scissors
• Ropes long enough to reach over the frame.
• Hammers and gloves
• Metal file
• Duct tape (supplied by customer)
• Box cutter or utility knife
• Ladders, work platforms, and other machinery for lifting
designed to work safely at the height of the frame
UNPACK AND IDENTIFY PARTS
The following steps will ensure that you have all the
necessary parts before you begin to assemble the shelter
frame.
1. Unpack the contents of the shipment and place where
you can easily inventory the parts. Refer to the Bill of
Materials/Spec Sheets.
2. Verify that all parts listed on the Bill of Materials/Spec
Sheets are present. If anything is missing or you have
questions, consult the Pictorial Parts Guide and all
diagrams for clarification, or contact Customer Service.
NOTE: At this time, you do not need to open the plastic
bags containing smaller parts such as fasteners or
washers (if equipped).

4
GROWSPAN™ROUND ECONOMY HIGH TUNNELS
Revision date: 01.01.20

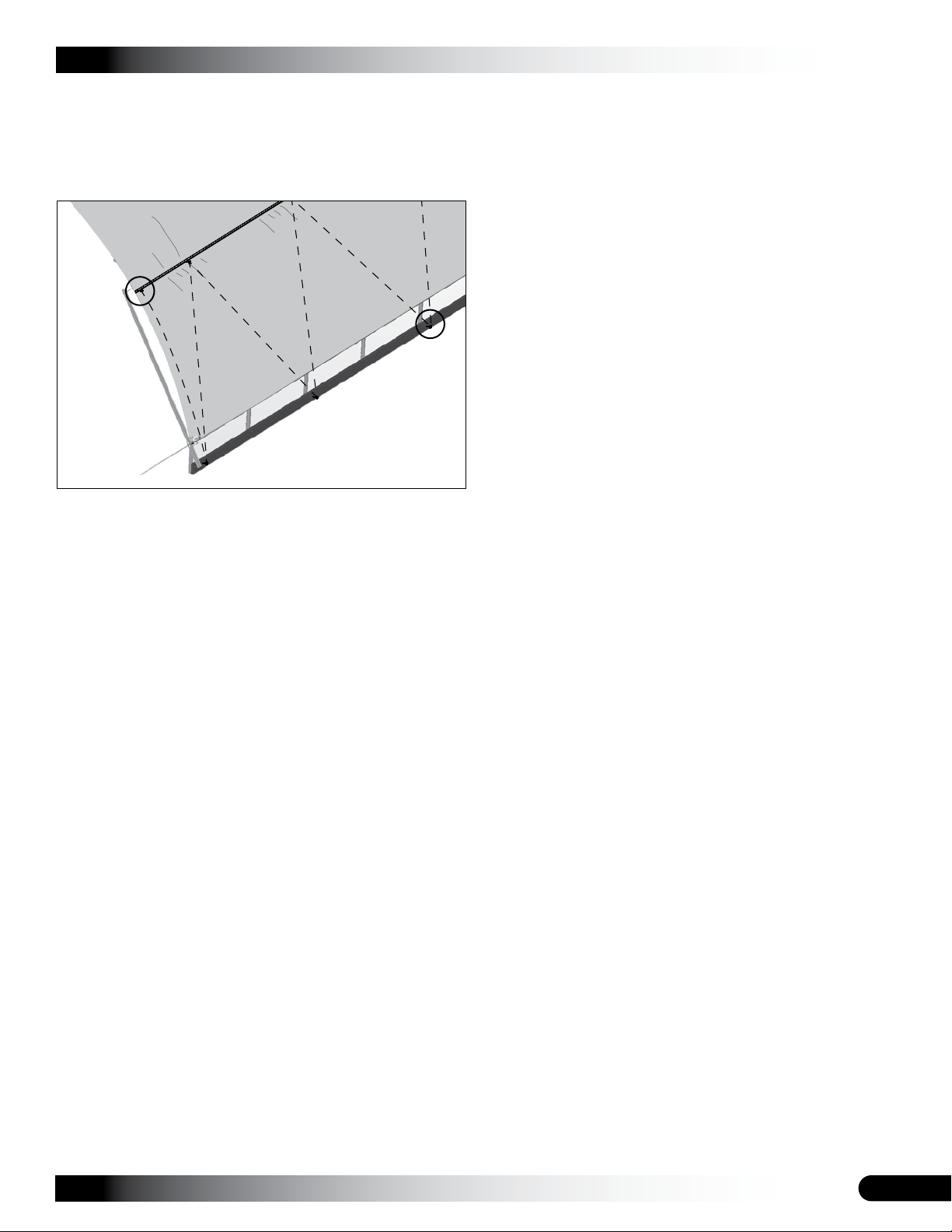

ANTI-BILLOW ROPE INSTALLATION
TO PREVENT DAMAGE AND POSSIBLE INJURY,
INSTALL THE ANTI-BILLOW ROPES IN SHORT
LENGTHS ALONG EACH SIDE OF THE FRAME.
DO NOT INSTALL AS A SINGLE LENGTH TIED AT
EACH END OF THE BUILDING. DOING SO WILL
RESULT IN A LOOSE SIDE PANEL IF THE SINGLE
ROPE BREAKS DURING STRONG WINDS.
ROPE
#1
NOTE: The circles identify
the ends of ROPE #1.
ROPE
#2
IMPORTANT: IF RIBBON BOARDS ARE USED,
PURCHASE WOOD SCREWS TO ATTACH THE
U-CHANNEL TO THE INSTALLED RIBBON BOARD.
TEK SCREWS ARE NOT WOOD FASTENERS. NEVER
USE TEK SCREWS TO SECURE ANY COMPONENT
TO WOOD. THEY WILL NOT HOLD.
Ribbon Board
Baseboard
Actual frame may di󰀨er from example shown.
CUSTOMER-SUPPLIED MATERIALS — Baseboard, Ribbon Boards, & Wood Screws
Baseboards and ribbon boards are optional, but recommended, for buildings with roll-up sides. Materials for baseboards
and ribbon boards are not included and are supplied by customer.
ATTENTION: Fasteners to secure boards to
building frame are included. Recommended lumber
dimensions shown; wider boards can be used if
desired. Counter sink holes for 1/4" carriage bolts if
bolt length is too short for board thickness.
BASEBOARDS
The baseboard, when installed properly, helps prevent the
ground posts from sinking into the ground when anchored.
Depending on the building, it also provides a surface to
attach struts or other building components.
ATTENTION: Baseboards run the frame length along both
sides at ground level. Installation of customer-supplied
baseboard is described later in this guide.
RIBBON BOARDS
A ribbon board typically runs a few feet above the ground
along the sidewall. It serves as a mounting surface for the
u-channel that secures the main cover and roll-up portion of
the main cover.
MATERIAL DIMENSIONS
• Baseboards: 2" x 6" (minimum)
• Ribbon Boards: 2" x 4" or 2" x 6" (recommended)

5
GROWSPAN™ROUND ECONOMY HIGH TUNNELS
Revision date: 01.01.20
FRAME ASSEMBLY NOTE
During the assembly of the frame, install a Tek screw
through each clamp into the rafter and through each clamp
into the purlin.
Rafter Joint
Purlin
Tek Screw
Tek Screw
Rafter
The following graphics and photos will help you identify
the different parts. (Some parts are not shown.)
Swaged
Plain
Swaged and Plain Rafter Sections
102198
U-Channel Spring
CC6212 &
CC6213
Fabric Clips
FA4482B
Tek Screw
102197
Poly Latch U-Channel
102856
End Clamp
102548
Cross Connector
102675
Ground Post
Plain End Panel
Position all Tek screws so they will not touch the cover
material once it is installed.

6
GROWSPAN™ROUND ECONOMY HIGH TUNNELS
Revision date: 01.01.20
Round Economy High Tunnels
OVERVIEW
This section describes assembling your high tunnel. For
additional details, see section Assembling the High Tunnel
Components. See illustration below to identify main parts of
high tunnel.
1. Locate the required parts for each assembly procedure.
2. Assemble the rafters and frame, and square the frame.
3. Prepare and attach end panels.
4. Attach main cover and roll-up side crank assembly.
Ground
Level
End Rafter
Inside
Rafter
Baseboards
are supplied by
customer.
ATTENTION: Position purlins evenly during the
frame assembly. Use the rafter pipe joints as guides
when installing the end clamps, cross connectors,
and purlins. Saddle all purlins (except the top,
center purlin) in the joint created by the separate
rafter pipes. See details in the Quick Start Guide.
Purlins

7
GROWSPAN™ROUND ECONOMY HIGH TUNNELS
Revision date: 01.01.20
LAY OUT THE BUILDING SITE
After the site is prepared, lay out the building site.
Taking these steps before assembling the shelter saves
time and ensures that the structure is positioned as
desired.
Ground posts must be driven to the proper depth. Width
of the shelter is measured from the center of one
ground post to the center of the remaining ground post.
SQUARE THE SITE
Gather the parts:
• Ground posts
• 5/16" x 2-1/2" machine bolts
• 5/16" nuts
1. Identify a corner where a ground post will be positioned
and drive the first ground post into the ground.
NOTE: Insert the ground post driver into the top of
the ground post to protect the post and drive the post
into the ground. The top of the post will be one (1) foot
above the finished grade when properly driven.
4. String a line at least as long as the building from the
first stake at 90°.

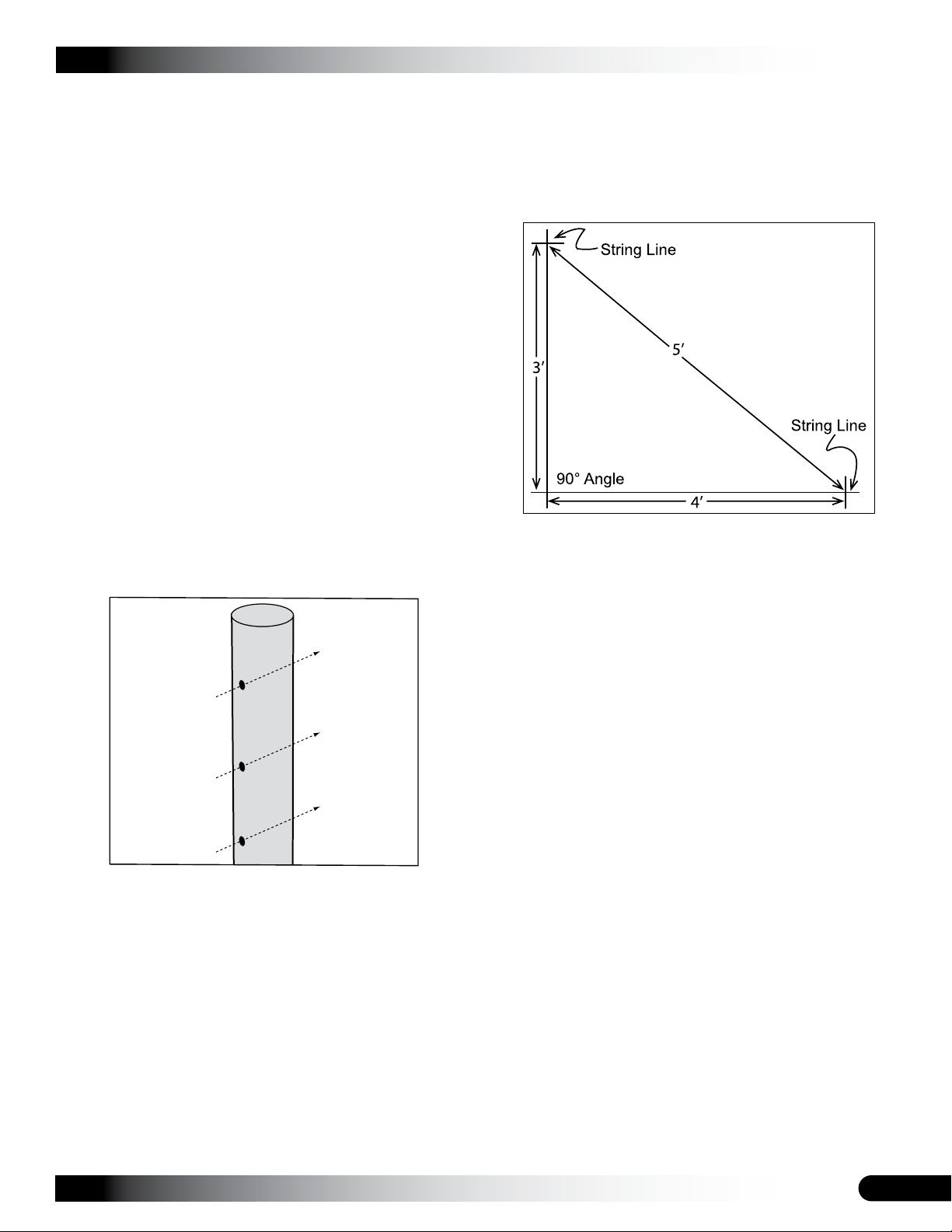

NOTE: A transit can be used to ensure an accurate 90°
angle, or the 3-4-5 rule can be used. Refer to diagram.
Using multiples of 3-4-5 such as 6-8-10 or 12-16-20
helps to maintain an accurate 90° angle.
5. After squaring the position of the building, measure the
length and drive the next corner ground post.
6. Repeat the same step for the last corner post.
NOTE: The distance measured diagonally between
corner posts must be equal for the building to be
square.
7. Check all dimensions (and adjust if needed) before
driving the remaining posts to the required height.
8. After all corner posts are accurately installed, tie a
string line between the tops of the corner ground posts
on the same side of the shelter. The string is used to
identify the tops of all remaining ground posts. The
string must remain tight and level.
9. Use a tape measure to mark the 6' on-center locations
of the remaining ground posts.
10. Drive the remaining ground posts into the ground at the
required 6' on-center width and the height identified by
the string.
NOTE: Verify that the holes in the ground posts are in
the proper position and that each post is plumb and
driven to the correct depth.
After the rafters have been assembled, the rafter ends
are secured to the ground post using the upper hole.
The bottom two (2) holes on the ground post are used
for the optional baseboards.
11. Continue with the Rafter Assembly steps that follow.
ATTENTION: Position the pre-drilled holes facing to the
inside/outside of the shelter so they can be aligned with
the bolt holes in the rafter legs.
To align the bolt holes in the ground posts with those
in the rafter after driving the ground posts, insert a
tapered rod or pry bar into a ground post bolt hole and
turn the post using the rod or pry bar.
2. After the first corner ground post is in place, string a
line the width of the building (center-to-center) and
drive the second ground post into the ground just
enough to hold it in place.
3. Use a transit or line level to drive the second corner
post to the same depth as the first ground post.
Outside of
Shelter
Inside of
Shelter
Ground
Post

8
GROWSPAN™ROUND ECONOMY HIGH TUNNELS
Revision date: 01.01.20
ASSEMBLING THE HIGH TUNNEL FRAME
COMPONENTS
NOTE: Assistance is required to assemble the high tunnel
frame.
RAFTER ASSEMBLY
Gather the parts:
• Rafter pipe (#26R1601D)
• Rafter pipe (#26R1601)
• Rafter pipe (#26R1602)
• End clamps (102856)
• Tek screws
• Nut Setter (3/8'' x 2-9/16" magnetic)
Rafter Assembly Procedure
Each rafter assembly consists of five (5) rafter sections:
one (1) curved rafter pipe (for the top), four (4) side pipes
that connect to the upper center pipe. The lower two (2)
pipes are drilled.
1. Select the five (5) pipes needed to assemble a rafter
and arrange these on a flat surface as shown below for
assembly.
2. Slide the swaged portion of each rafter pipe into the
plain end of the pipe as shown.
3. With the main rafter pipes seated at each joint and the
rafter positioned on a flat surface, secure each joint
with a single self-tapping Tek screw. Position Tek screw
approximately 2" from pipe joint.
ATTENTION: Install the screws so they will not touch
the cover once it is installed. This is typically on the
backside of the rafter, which will be the surface visible
from the inside of the high tunnel once the frame is
assembled. Drive screw into the inner rafter pipe.
4. Assemble rafters as described and continue with the
additional steps to complete the assembly of the two
(2) end rafters.
END RAFTER ASSEMBLY
In addition to the steps in the previous procedure, complete
the following steps for the two (2) end rafters only.
1. Take one of the assembled rafters and place it on a flat
surface.
2. Slide five (5) end clamps (102856) onto the rafter in the
locations noted below. (Do not secure the clamps to the
rafter at this time. These clamps will be repositioned
during the frame assembly when the purlins are
added.)
NOTE: Position all clamps as shown. Use a piece of
duct tape (if desired) to keep each clamp from sliding
when the rafter is lifted into position.
View of the end rafter and clamps as shown from the
outside when the frame is assembled.
3. Repeat the same procedure for the final end rafter.
4. Continue with the Frame Assembly instructions that
follow.
2˝
Tek screw
(#26R1601)
(#26R1602)
(#26R1601D)

9
GROWSPAN™ROUND ECONOMY HIGH TUNNELS
Revision date: 01.01.20
FRAME ASSEMBLY
Gather the parts:
• All Rafter Assemblies
• Pipe 1.315'' x 75'' swaged (#131S075)
• Pipe 1.315'' x 73.5'' plain (#131P0735)
• 5/16" x 2-1/2" machine bolts (#FAG336B)
• 5/16" Nuts (#FALB02B)
• Lifts, ladders, and assistants
Frame Assembly Procedure
1. Using the proper lifts and with assistance, carefully
stand the first end rafter—one with end clamps—and
place the leg pipes into the first set of ground posts.
2. Secure the leg pipes to the ground posts using the
5/16" x 2-1/2" machine bolts and nuts.
4. Place an interior rafter–one without clamps—into the
next set of ground posts. Secure the leg pipes to the
ground posts as previously described.
5. Position one (1) cross connector (102548) near the top
of the interior rafter assembly.
6. With assistance, take one (1) swaged 75" purlin
sections (#131S075) and insert the plain end through
an end clamp on the end rafter. Next, insert the tapered
end through a cross connectors near the top of the
interior (or second) rafter as shown above.
Saddle the purlin pipe in the joint where the rafter pipes
are connected to keep purlins aligned during assembly.
7. Repeat the previous step to install a second purlin
section. See the above diagram for details.
8. Verify that both rafters are plumb and properly spaced
(6' on center).
9. Tighten the 102548 cross connectors on the interior
rafter and tighten the end clamps installed at the end
rafter to secure the first sections of purlin pipe.
NOTE: Do not allow the plain end of any purlin to
extend beyond the end of the end rafter. Align with the
center of the rafter for best results and to prevent cover
damage.
Inside of
Shelter
Outside of
Shelter
Rafter
Ground
Post
IMPORTANT: Brace
the first rafter in
position as needed to
keep it from moving.
Bracing is removed
after additional
rafters are installed
and secured to the
other rafters.
3. Verify rafter is plumb and brace it in place using cables,
ropes, or dimensional lumber. Leave bracing in place
until additional rafters and purlins are installed.
NOTE: Rafter above is used to illustrate bracing. Actual
rafter may differ in design or width or both.
6'
center-to-center
Interior Rafter
102548
End clamp for
top, center purlin
To the
inside of
the shelter
Rafter
Joint
End Rafter

10
GROWSPAN™ROUND ECONOMY HIGH TUNNELS
Revision date: 01.01.20
10. Move to the last two rafter joints and install the first
section (#131S075) of those purlins. Verify the rafter
spacing is 6' on-center, and tighten the end clamps
and cross connectors. Do not install the top, center
purlin until the entire frame is assembled.
FRAME ASSEMBLY (continued)
NOTE: Each purlin assembly consists of 1.315'' x 75''
(#131S075) swaged pipes (quantity is determined by
shelter length) and one (1) 1.315'' x 73.5'' (#131P0735)
plain pipe to end each purlin run.

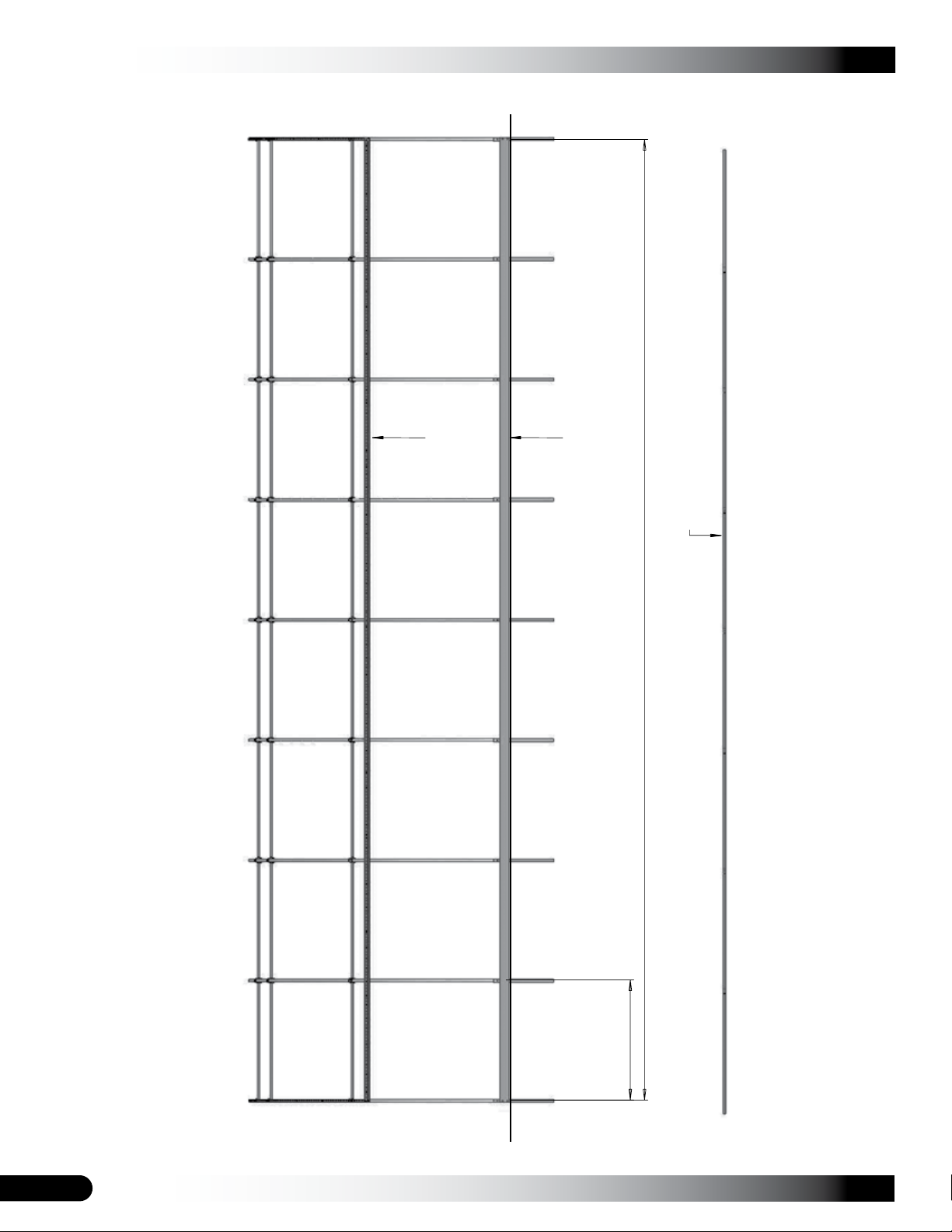

Consult the Side Profile diagram in the Quick Start
section for your building for additional details.
11. Continue adding rafters and purlin pipe until the frame
is assembled. Secure each purlin splice using a Tek
screw. See diagram that follows.
12. Finish each purlin run using the plain, pipe
(#131P0735), and use the final end rafter to complete
the assembly. If the last end rafter is plumb and the
purlin run extends beyond the end of the rafter, cut the
last section of purlin pipe to the required length.
Install next two purlins at the
rafter joints in the locations circled
in this diagram. Dashed lines
represent the next purlin pipes.
NOTE: Typically purlin pipes do not require cutting.
Verify that you have the correct plain pipes before you
decide to cut any pipe to complete the purlin runs.
To prevent cover damage, do not allow the plain end of
any purlin to extend beyond the end of the end rafter.
Align with the center of the end rafter for best results.
If the purlin is too short to fit into the rafter end clamps
without pulling the end rafter out of plumb, first verify
you have the correct pipe. If so, loosen a purlin splice
and slide the pipes apart. At least half of the tapered
end must remain inside the adjacent pipe. Drive the Tek
screw back into the pipe to secure the purlin joint.
13. Once all rafters are set and the four (4) lower purlins
are in place and secured, return to each pipe splice
of each purlin run and verify that a Tek screw secures
each joint. Install a Tek screw (if needed).
14. Continue by installing the top, center purlin.
Position the bolt side of the end clamps toward the
inside of the shelter—the same side as the purlin.
INSTALL TOP, CENTER PURLIN
Complete the following steps:
1. Move to one end of the assembled frame, find the
center of the end rafter, and mark the top, center
location on the outside face of the end rafter.
2. Move to the other end of the frame and repeat the step
to find the top, center of that end rafter.
3. To keep the top purlin parallel with the lower purlins,
take a chalk line, stretch it between the two marks, and
snap it to mark the position of the top purlin.
NOTE: For buildings longer than a typical chalk line,
find the center of an interior rafter and snap the chalk
line using that mark and the mark on the end rafter.
Repeat as needed to mark all rafters.
Position purlin on the underside of the frame to match
the other purlins. See detail to the left.
Mark the center of the end
rafter at both ends to position
the top, center purlin.
To the
inside of
the shelter
End Rafter

11
GROWSPAN™ROUND ECONOMY HIGH TUNNELS
Revision date: 01.01.20
FINISH ROUGH EDGES
Gather the parts:
• Duct tape (supplied by customer)
• Metal file
1. Check for any sharp edges on the frame and file them
smooth so they will not cut the cover.
2. Apply two layers of heavy duct tape on all pipe
connections and clamps that may contact the cover.
ANCHOR THE ASSEMBLED FRAME
At this point, anchor the high tunnel frame. Consult the
MUST READ document for anchoring information and
suggestions. Please call customer service at 1-800-245-
9881 for additional anchoring information.
CAUTION: The anchor assembly is an integral part of
the high tunnel construction. Improper anchoring may
cause instability and failure of the structure to perform
as designed. Failing to anchor the shelter properly
will void the manufacturer’s warranty and may cause
serious injury and damage.

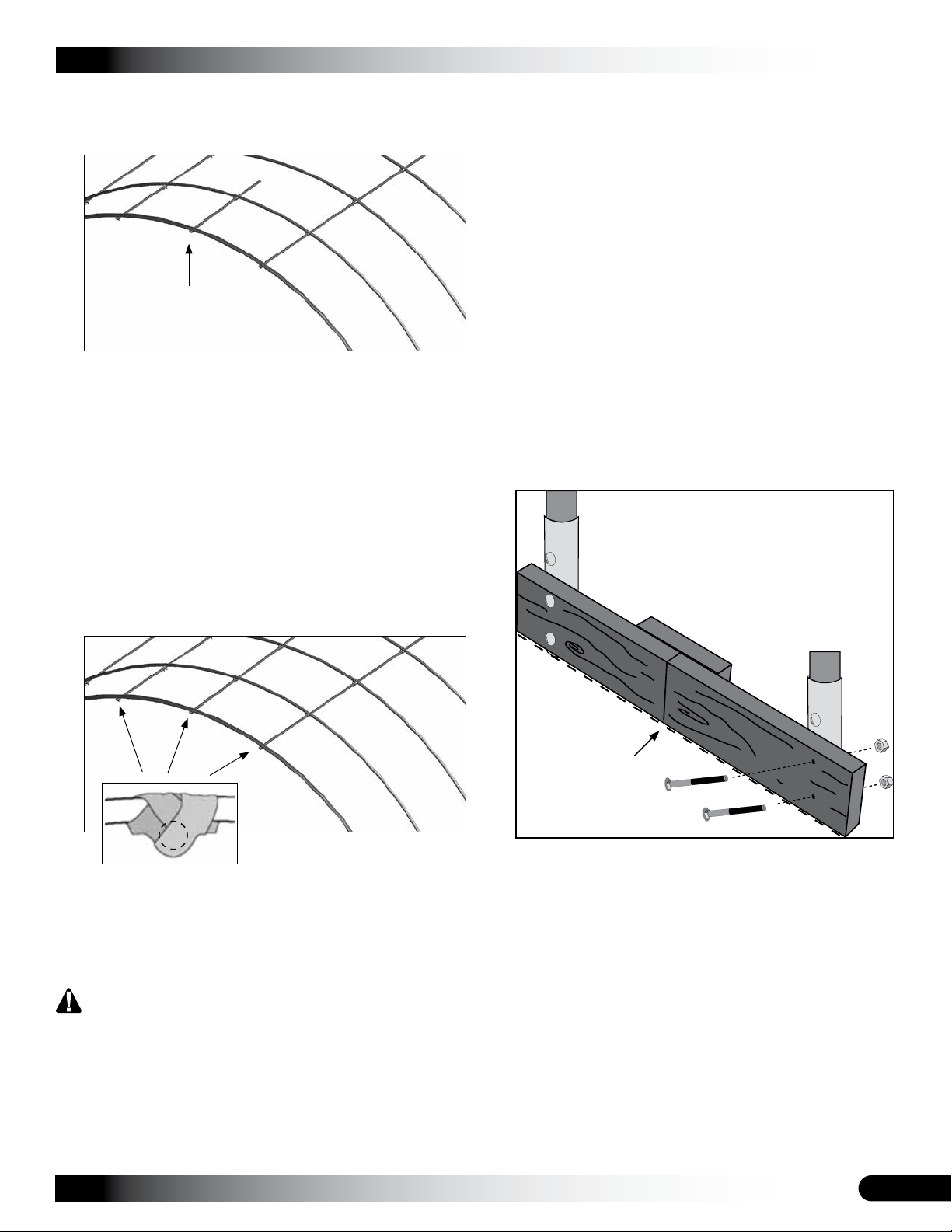

4. Use the steps of the previous procedure to install the
top, center purlin.
INSTALL TOP, CENTER PURLIN (continued)
5. Continue with the next procedure.
One pipe of the top, center purlin
installed. Continue by installing
the remaining pipe and clamps.
BASEBOARD INSTALLATION (RECOMMENDED)
Gather the parts:
• Treated or recycled plastic lumber (supplied by
customer). Recommended: 2" x 6".
• 1/4" x 4" carriage bolts and nuts (may not work for
baseboards with a thickness greater than 1-1/2")
NOTE: The following procedure describes one way
to install the recommended baseboards. The size
and type of the baseboard you choose may require
the use of alternative steps. When properly installed,
baseboards run the length of the frame.
On the outside of the frame, attach the first baseboard
to the ground posts using the 1/4" x 4" carriage bolts
(FAH009B) and nuts (FALB01B). Continue adding
baseboards to complete the first run. Splices are
made between posts as shown. Use a short section of
baseboard to secure separate baseboards at a splice.
Ground
Level
Inside of
Shelter
Outside of
Shelter
NOTE: The boards should be at ground level or slightly
into grade to prevent the shelter from sinking and to
create a seal along the bottom. After installing the
baseboards, continue with these instructions.
This baseboard is not included with the shipment and must
be supplied by the customer. Treated or recycled plastic
lumber works well for a baseboard.
Recommended dimension: 2" x 6".

12
GROWSPAN™ROUND ECONOMY HIGH TUNNELS
Revision date: 01.01.20
4'-5'
Ribbon Board
(optional)
Rafter
cut
MAIN COVER INSTALLATION
After the end panels are installed, install the main cover.
The steps to install the main cover include:
1. Attach poly latch U-Channel (102197) along the high
tunnel sides and tops of the high tunnel end rafters
using FA4482B Tek screws.
2. Pull main cover over the frame.
3. Attach the main cover to the end rafters using the poly
latch springs.
4. Stretch and attach main cover to the sides of the frame.
5. Install roll-up side kits and test the operation of the
twist-of-the-wrist assembly.
INSTALL POLY LATCH U-CHANNEL (102197)
1. Measure the desired height (4'-5') to identify the top
of the roll-up sides. Attach the poly latch channel at
approximately 4'-5' above the ground on both sides of
the frame.
RECOMMENDED: Attach a ribbon board (2" x 4"
or 2" x 6") to the rafters and then attach the poly
latch U-channel (102197) to the ribbon board using
customer-supplied wood screws.
NOTE: Ribbon board and baseboard (recommended)
shown in the diagram above are not included and are
supplied by the customer. Use the supplied FAH009B
(1/4" x 4") carriage bolts and FALB01B (1/4") nuts to
secure the ribbon board and U-Channel to the rafter.
Use customer-supplied wood screws to secure
U-channel to ribbon board. Do not use Tek screws
to attach U-Channel to wood.
NO RIBBON BOARD: Attach one section of the poly
latch U-Channel to the side of the frame using Tek
screws. Attach U-Channel ush with the outside edge
of the end rafter at each end of the assembled frame.

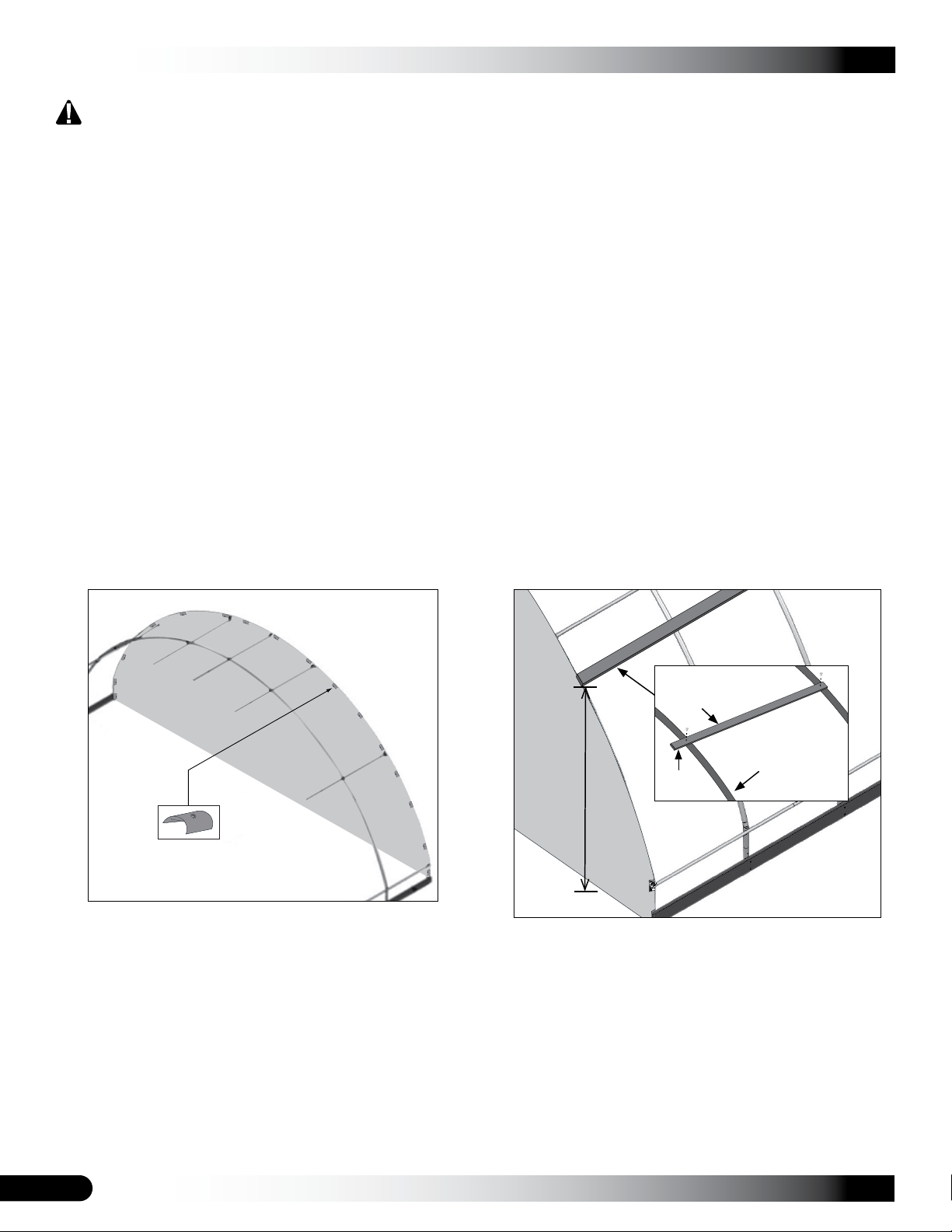

ATTACH END PANELS
CAUTION: To prevent damage, do not install end
panels on a windy day.
Gather parts:
• 28' x 28' end panel film (108657) cut in half.
• Fabric clips #CC6213 (Divide quantity in half.)
• Tape measure and scissors
Assembly Procedure
1. Cut end panel film (108657) in half to create two end
panels (14' x 28' each) — one for each frame end.
2. Spread one end panel film out on ground at desired
end of frame and center as needed.
3. With proper lift (or ladders), pull end panel up and over
top of end rafter.
4. Secure end panel to backside of end rafter at top,
center position using a fabric clip and Tek screw.
5. Moving outward in both directions, continue attaching
fabric clips to secure end panel to rafter. Evenly space
fabric clips and work toward ground.
ATTENTION: Use half of the clips to secure end panel
6. Repeat steps to secure remaining end panel to frame
using remaining half of fabric clips.
NOTE: Trim excess film material after installation. Do
not trim too close to fabric clips; allow at least 6" to
remain beyond clips.
Shelter shown above may be a different model.
Drawing used for illustration only. Actual number of
clips may differ.

13
GROWSPAN™ROUND ECONOMY HIGH TUNNELS
Revision date: 01.01.20

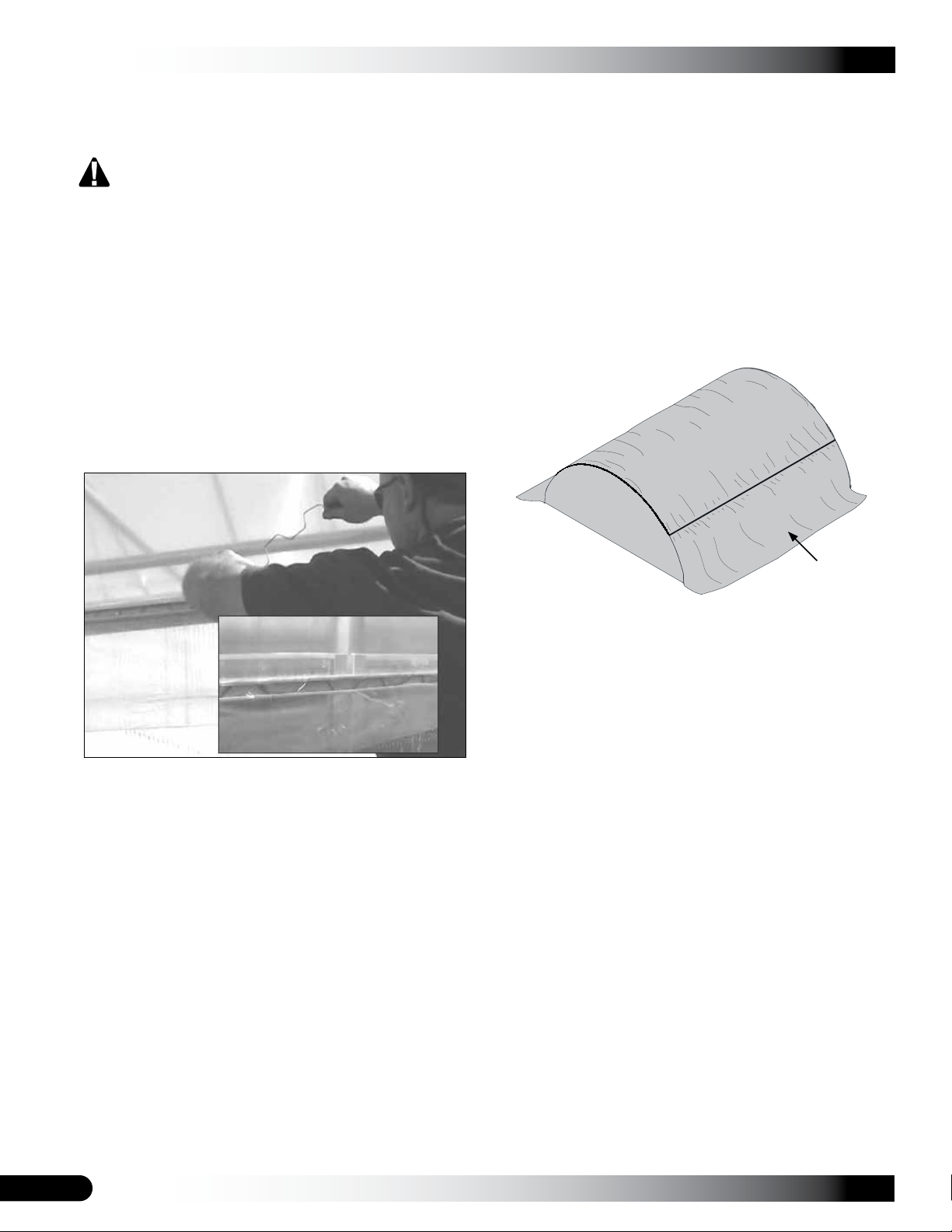

INSTALL MAIN COVER
Gather the parts:
• Main cover
• Ropes long enough to reach over the frame (provided
by customer)
• U-Channel Spring (102198)
• Box cutter or utility knife
Assembly Procedure
After attaching the poly latch U-Channel to the frame,
unpack the main cover and pull into place. Ropes or straps
are typically used to pull the main cover onto and over the
frame. Ropes may not be needed for some buildings.
WARNING: To prevent damage to the cover and to
prevent serious personal injury, DO NOT attempt to
install the main cover on windy or stormy days.
1. Unpack the main cover and position it at the base along
one side of the frame.
2. Make small holes along the edge of the cover at evenly
spaced intervals and tie rope to the cover. (The length
of the cover determines the number of holes that are
needed to attach the ropes.)
NOTE: The ropes must be long enough to reach over
the top of the building to the other side. Long buildings
will require additional ropes to prevent tearing the main
cover when it is pulled into place.
3. After tying the ropes to the main cover, throw the ropes
over the top of the frame and pull the cover into place.
Center cover side-to-side and end-to-end.
IMPORTANT: To prevent damage to the main cover
during installation, additional personnel and lifts may be
needed.

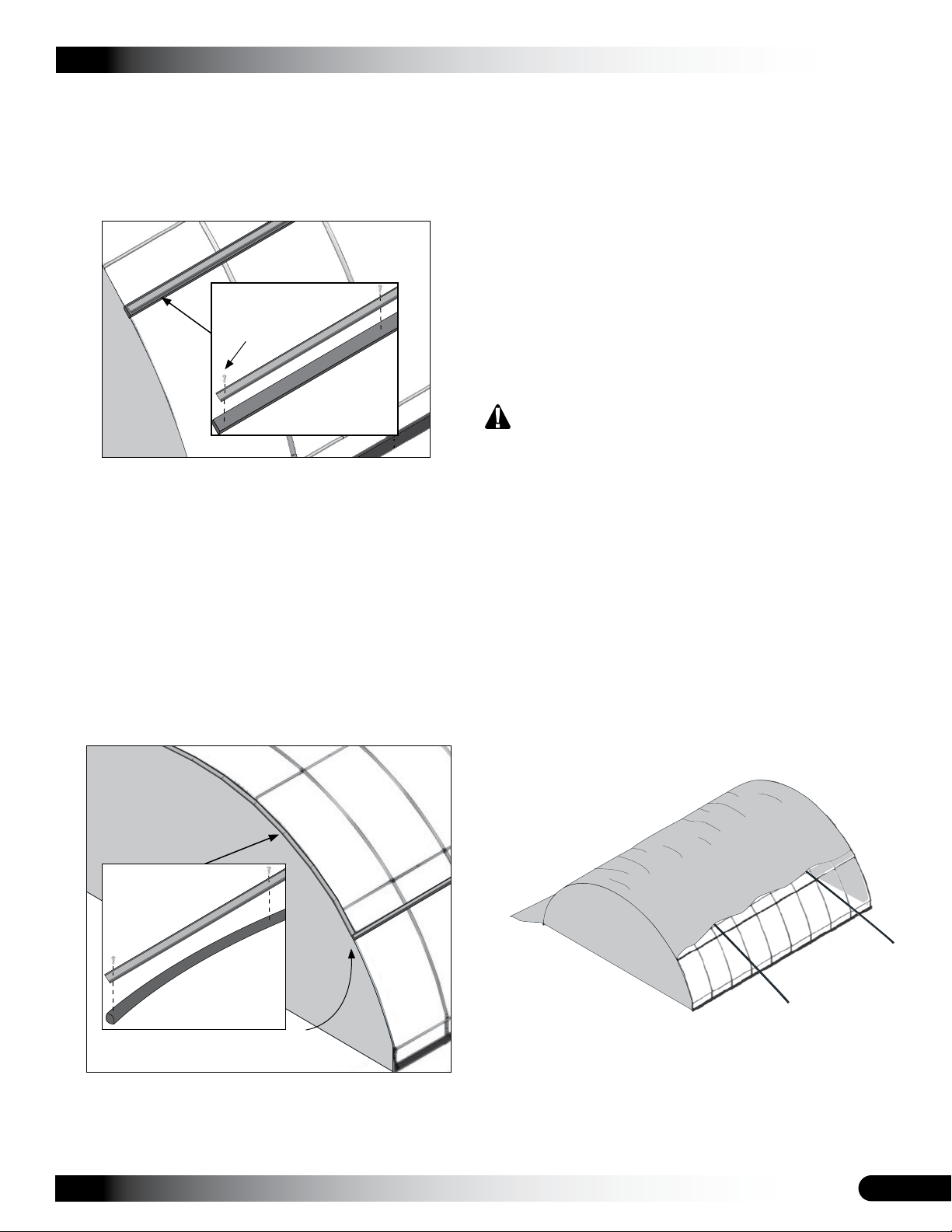

INSTALL POLY LATCH U-CHANNEL (Continued)
Shelter shown above may be a different length than the
actual model.
U-Channel
End Rafter
Begin U-Channel for
end rafter here.
3. Repeat these steps for the remaining side.
4. After attaching the poly latch U-Channel to the sides of
the frame, use Tek screws to attach the U-Channel to
the top of one end rafter. Space screws at 24".
ATTENTION: The poly latch U-Channel will bend with
the curve of the rafter as it is attached. The U-Channel
runs from the poly latch U-Channel attached to one
side of the frame to the U-Channel attached to the
other side of the frame.
5. Repeat the steps to attach the U-Channel to the top
of the remaining end rafter and continue with the main
cover installation.
2. Continue to attach the U-Channel sections to the
rafters (or ribbon board if used) and work toward the
other end of the frame. Cut the last section of
U-Channel to the required length so that it is flush with
the outside edge of the end rafter.
NOTE: Inset shows the use of a ribbon board.
U-channel can be attached directly to rafters using
FA4482B Tek screws when ribbon board is not used.
Ribbon Board
FAH009B bolt installed
through U-channel,
board and rafter.

14
GROWSPAN™ROUND ECONOMY HIGH TUNNELS
Revision date: 01.01.20
4. Once the main cover is in place and centered on the
frame, begin at the peak of one end rafter and install
the wire spring into the U-Channel to secure the cover.
WEAR EYE PROTECTION WHEN INSTALLING
THE WIRE SPRING!
ATTENTION: Center the main cover front to back and
side-to-side to ensure that enough cover material is
present to lock into the U-Channel. The excess cover
along each side is rolled up when the roll-up side
assemblies are installed.
The rope can remain in place to temporarily secure
the cover if needed. Remove the ropes as the cover is
secured to the frame.
Photos show installing the spring into the U-Channel on
the outside of a frame. The process is the same for the
U-Channel attached to the top of the end rafters.
5. Continue adding the spring into the U-Channel at the
top of the first end rafter. Ensure that an even amount
of the cover is exposed and maintained along the edge
of the frame as it is attached.
NOTE: The cover material is cut longer/wider than is
required to cover the frame. For easier installation,
allow approximately 10" to extend past the edge of the
end rafter as the cover is secured in place.
6. Continue down both edges of the first end rafter
until the entire length of the end of the main cover is
secured in place.
7. Stretch the cover to the other end of the building and
repeat the steps to secure the main cover in the U-
Channel.
NOTE: Pull the cover tight as the wire spring is inserted
into the U-Channel. WEAR EYE PROTECTION!
8. After the cover is stretched end-to-end and secured
using the spring and U-Channel, move to one side
of the frame and repeat the steps to anchor the main
cover to the first side.
Begin at one end of the U-Channel and work toward
the other. It is also possible to begin at the middle of
each side and work toward each end.
NOTE: Maintain an even length along the side. The
final stretching of the cover takes place when the last
side is secured.
9. After securing the first side, move to the remaining side
and secure it in place.
IMPORTANT: DO NOT REMOVE TOO MUCH OF THE
EXCESS COVER MATERIAL AT EACH END. Some
excess main cover material–the material that extends
beyond the end rafters–should remain in place. If the
main cover needs stretched in the future, remove the
spring from the U-Channel, grasp the excess material,
pull the cover tight, and reinstall the spring.
The excess material along the sides is rolled up in the
roll-up side assembly.
10. Once the main cover is installed and secured in the
U-Channel, continue with the Install the Roll-up Side
Assemblies procedure.
Roll-up Portion
of the Cover

15
GROWSPAN™ROUND ECONOMY HIGH TUNNELS
Revision date: 01.01.20

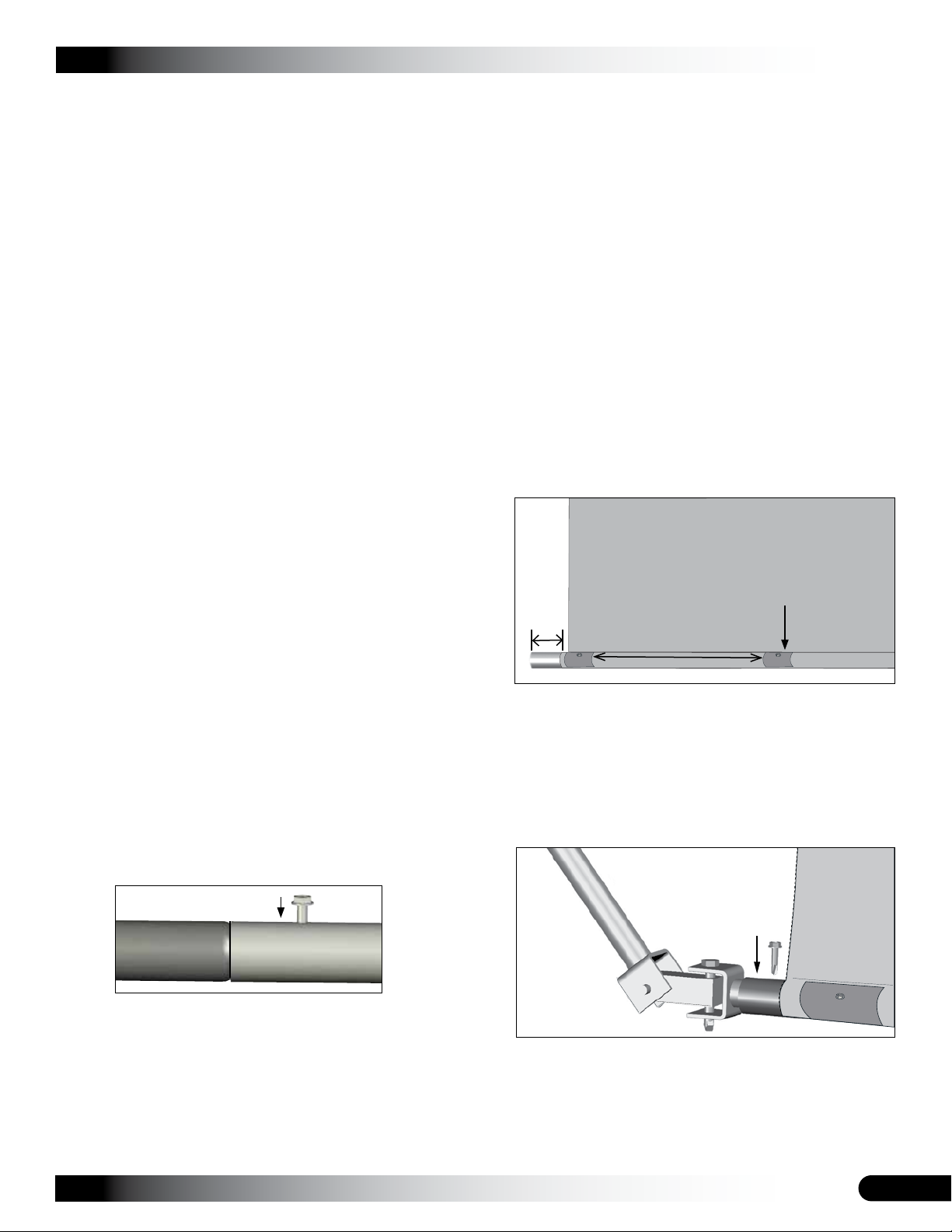

ASSEMBLE THE ROLL-UP SIDE CONDUIT
Gather the parts:
• Pipe 1.315'' x 75'' Swaged 17 GA (#131S075)
• Pipe 1.315'' x 73.5'' Plain 17 GA (#131P0735)
• Tek screws
The roll-up side conduit assembly is attached to the bottom
of the roll-up side cover material. This assembly runs the
length of the frame and serves as the center pipe that the
roll-up cover wraps around when it is opened to ventilate
the shelter. This conduit is identical to the purlins that were
assembled and attached to the frame.
Complete these steps to assemble the roll-up side conduit.
1. Locate all sections of pipe needed to assemble the
cover conduit.
2. Insert the swaged end of each pipe into the plain end of
another pipe until the conduit is assembled.
3. Secure each pipe joint with a Tek screw.
INSTALL ROLL-UP SIDE ASSEMBLIES
The instructions below describe how to install a single
roll-up sidewall assembly for one side of the frame. The
procedure is repeated for the remaining side.
The procedures to install the roll-up side include the
following:
1. Assemble the roll-up side conduit.
2. Attach the roll-up conduit to the bottom of the main
cover.
3. Assemble and install the crank assembly.
4. Install the Anti-Billow Rope system.
5. Test the operation of the roll-up side.
4. Place the assembled conduit at the base of the side
where the end of the main cover is located.
NOTE: Apply duct tape over the Tek screws to prevent
damage to main cover.
5. Continue with the procedure that follows to attach the
conduit to the main cover.
INSTALL CRANK ASSEMBLIES
Gather the parts:
• Pipe 1.315" x 73.5" plain (#131P0735)
• Spin handle (#103395)
• Universal joint (#103396)
• Remaining #CC6212 fabric clips (half for each side)
After all end panels are attached and the main cover is
secured to the frame, attach the crank assemblies for the
roll-up sides.
Assembly Procedure
1. Unfold the remaining portion of the main cover (if
needed) and evenly stretch it out on the ground along
the frame.
2. Working from the inside the frame, roll the assembled
cover conduit onto the edge of the main cover.
ATTENTION: A few inches of the conduit should extend
beyond the edge of the cover, this is where the crank
will be attached. See diagram above. Trim the roll-up
panel to the desired length if it extends too far beyond
the ends of the frame.
3. Evenly space the fabric clips to secure the main cover
to the cover conduit.
Fabric Clip
Space evenly
4. Attach the universal joint to the conduit in the pocket
using a Tek screw to secure the connection.

16
GROWSPAN™ROUND ECONOMY HIGH TUNNELS
Revision date: 01.01.20
INSTALL CRANK ASSEMBLIES (continued)
NOTE: Trim this extension pipe to the desired length.
6. Add the spin handle to the extension pole and secure
the connection with a Tek screw.
7. Repeat the steps to secure the remaining cover conduit
to the main cover.
8. Continue by installing the anti-billow ropes.
73.5"
5. Secure one (1) 73.5" plain pipe to the remaining end of
the universal joint using a Tek screw.
INSTALL ANTI-BILLOW ROPES
Gather the parts:
• 1/4" Eyebolts and anti-billow rope
• 1/4" nuts and washers
Anti-billow ropes secure the roll-up sides when they are in
the down or closed position. Complete the following steps
to install the ropes.
3. Move up the same end rafter and drill a 5/16" hole
through the poly latch U-Channel and rafter leg, insert
an eyebolt and washer through the hole, and secure
the eyebolt with a nut.
ATTENTION: The procedure that follows is applicable
when the frame was constructed using wood boards under
each rafter foot, or if baseboards were installed. If the
shelter was constructed on concrete footings, a concrete
slab, or on bare ground, alternative steps must be taken
by the owner during the following procedure to anchor the
lower ends of the anti-billow ropes. Additional parts may be
required and must be supplied by the customer.
1. Using the Twist-of-the-Wrist assembly, roll up the
sidewall so that it is a few inches above the ground.
2. Drill a 5/16" hole through the wood baseboard at the
base of the end rafter where the Twist-of-the-Wrist
assembly is located and install the first 1/4" eyebolt and
1/4" washer. Do not drill through the rafter.
ATTENTION: If no wood baseboard is present, drill
the hole through the ground post at ground level and
install the eye bolt and washer. Customer-supplied eye
screws can also be used in the baseboard if desired.
TO PREVENT DAMAGE AND POSSIBLE INJURY,
INSTALL THE ANTI-BILLOW ROPES IN SHORT
LENGTHS ALONG EACH SIDE OF THE FRAME.
DO NOT INSTALL AS A SINGLE LENGTH TIED AT
EACH END OF THE BUILDING. DOING SO WILL
RESULT IN A LOOSE SIDE PANEL IF THE SINGLE
ROPE BREAKS DURING STRONG WINDS.

17
GROWSPAN™ROUND ECONOMY HIGH TUNNELS
Revision date: 01.01.20
INSTALL ANTI-BILLOW ROPES (continued) SHELTER CARE AND MAINTENANCE
Proper care and maintenance of the shelter is important.
Check the following items periodically to properly maintain
the shelter:
• Regularly check the main cover and panels (if
equipped) to see that these remain tight and in proper
repair.
• Check connections and all fasteners to verify that they
remain tight.
• Do not climb or stand on the frame at anytime.
• Remove debris and objects that may accumulate on
the cover. Use tools that will not damage the cover
when removing debris.
• Remove snow to prevent excess accumulation. Use
tools that will not damage the cover when removing
snow.
• Check the contents of the high tunnel to verify that
nothing is touching the cover or the side panels that
could cause damage.
• Check the anchoring system to ensure that all
components are tight and in good repair.
• If the shelter is moved, inspect all parts and
connections before reassembling.
• For replacement or missing parts, call 1-800-245-9881
for assistance.
4. Attach the remaining eyebolts using the diagram above
as a pattern guide.
5. Once all eyebolts are installed in the proper locations,
install the anti-billow rope in short lengths along each
side. Thread the free end of the rope through the end
rafter eyebolts and the eyebolts at two to three interior
rafters.
6. Cut the rope and tie one end to the eyebolt.
7. Pull the rope tight and tie the remaining end to secure.
8. Repeat the steps to install another section of anti-billow
rope. Continue this pattern until all ropes are tied along
one side and repeat the steps to install the anti-billow
ropes for the remaining side.
NOTE: The number of individual ropes along any one
side depends on the length of the building and the
length of the rope sections.
9. Check the roll-up side operation.
10. Read the shelter care and maintenance information
that follows.
NOTE: If the poly latch U-Channel was attached to
a ribbon board (as suggested), the eyebolt can be
mounted through the poly latch channel and ribbon
board to the inside of the rafter.
ROPE
#1
NOTE: The circles identify
the ends of ROPE #1.
ROPE
#2

18
GROWSPAN™ROUND ECONOMY HIGH TUNNELS
Revision date: 01.01.20
QUICK START GUIDE
26' Wide Round Economy High Tunnels
26'-0" Width
12'-6 15/16"
Heigth
F
F
R
R
O
O
N
N
T
T
Grid Represents 12" Squares
Ground Level
Diagram shows a different length but similar model. Economy high tunnels include film roof and film end panels.

19
GROWSPAN™ROUND ECONOMY HIGH TUNNELS
Revision date: 01.01.20
FRONT PROFILE
102675 102675
26R1601D
26R1601D
26R1601 26R1601
26R1602
End Clamp 102856 Mid Clamp 102548 End Clamp 102856
Mid Clamp 102548
End Clamp 102856 Mid Clamp 102548 End Clamp 102856
Mid Clamp 102548
End Clamp 102856 Mid Clamp 102548
ATTENTION: Except for the top, center clamps, position all clamps at the joint where individual curved rafter pipes are connected.
Ground Level

20
GROWSPAN™ROUND ECONOMY HIGH TUNNELS
Revision date: 01.01.20
(7)131S075, (1) 131P0735
48'-0" Length
Customer-Supplied
Baseboards
Customer-Supplied
Ribbon Boards
Purlin Run
6'-0"
on-center
Rafter Spacing
(center-to-center)
SIDE PROFILE - PB01700R6
Ground Level
