1. Product introduction
Grundfos Dosing Skid Systems (DSS) are designed to
feed liquid chemicals from a supply source (usually
tank or drum) to an injection point.
Systems typically include:
• pre-piped pumps
•fittings
• other components (depending on the system) i.e.
strainers, calibration columns, back pressure
valves, pressure gauges, pulsation dampeners,
pressure relief valves.
Grundfos Dosing Skid Systems (DSS) can range from
pre-engineered, standard one- and two-pump systems
on polypropylene or stainless steel bases, to custom
systems with multiple pumps and tanks all piped on a
common skid with complete controls.
Dosing Skid Systems (DSS) are available for all
models of Grundfos metering pumps: hydraulically
actuated and mechanically actuated pumps including
Digital Dosing pumps with stepper motor technology
offering up to 3000:1 flow turndown.
Features and benefits
Grundfos Dosing Skid Systems offer critical benefits:
• Faster and easier onsite installation in comparison
with the purchase of individual components that
must be separately piped, installed, wired and
tested.
• Each system is delivered as a complete package so
many installations may be as simple as connecting
the piping and electrical.
• System designs can cover a wide range of
capabilities and materials to suit most applications
and environments.
• Systems can operate with manual control or can be
provided with automation options to improve
process control, efficiency and reliability.
• System pumps, piping and control panels are
factory inspected and tested prior to shipment.
Fig. 1 Stainless steel base - floor mounted system
Fig. 2 FRP base - floor mounted system
Fig. 3 Polypropylene base - floor mounted system
Fig. 4 Polypropylene panel - wall mounted system
TM05 4968 3112
TM05 1990 3012TM05 4965 3012TM05 4964 3012
Dosing DSS_Skid Systems.book Page 3 Wednesday, August 8, 2012 10:42 PM

Identification
DSS
2
4
2. Identification
Type key
Example DSS S 2 - DMH - PP FM - N - P - A9 - A9 - N
Dosing Skid System
Piping connection type
N: NPT (threaded)
System type S: Weld: socket/solvent/butt
S: Standard F: Flanged
C: Custom Discharge pipe size
Pumps per skid A9: 0.5"
1: one pump A7: 0.75"
2: two pumps V1: 1"
Pump model V2: 1.5"
DME pump 20: 2"
DDI pump 30: 3"
DMI pump Suction pipe size
DMX pump A9: 0.5"
DMH pump A7: 0.75"
DDA pump V1: 1"
DDC pump V2: 1.5"
DDE pump 20: 2"
Base material 30: 3"
SS: Stainless steel Piping material
PP: Polypropylene P: PVC
FR: FRP S: SS
CS: Carbon steel C: CPVC
PC: PVC F: PVDF
Mounting A: Alloy 20
FM: Floor / base mounted skid Control panel option
WM: Wall mounted panel C: Control panel
TM: Tank mounted N: No control panel
Dosing DSS_Skid Systems.book Page 4 Wednesday, August 8, 2012 10:42 PM

Identification
DSS 2
5
This page intentionally left blank.
Dosing DSS_Skid Systems.book Page 5 Wednesday, August 8, 2012 10:42 PM

Components
DSS
3
6
3. Components

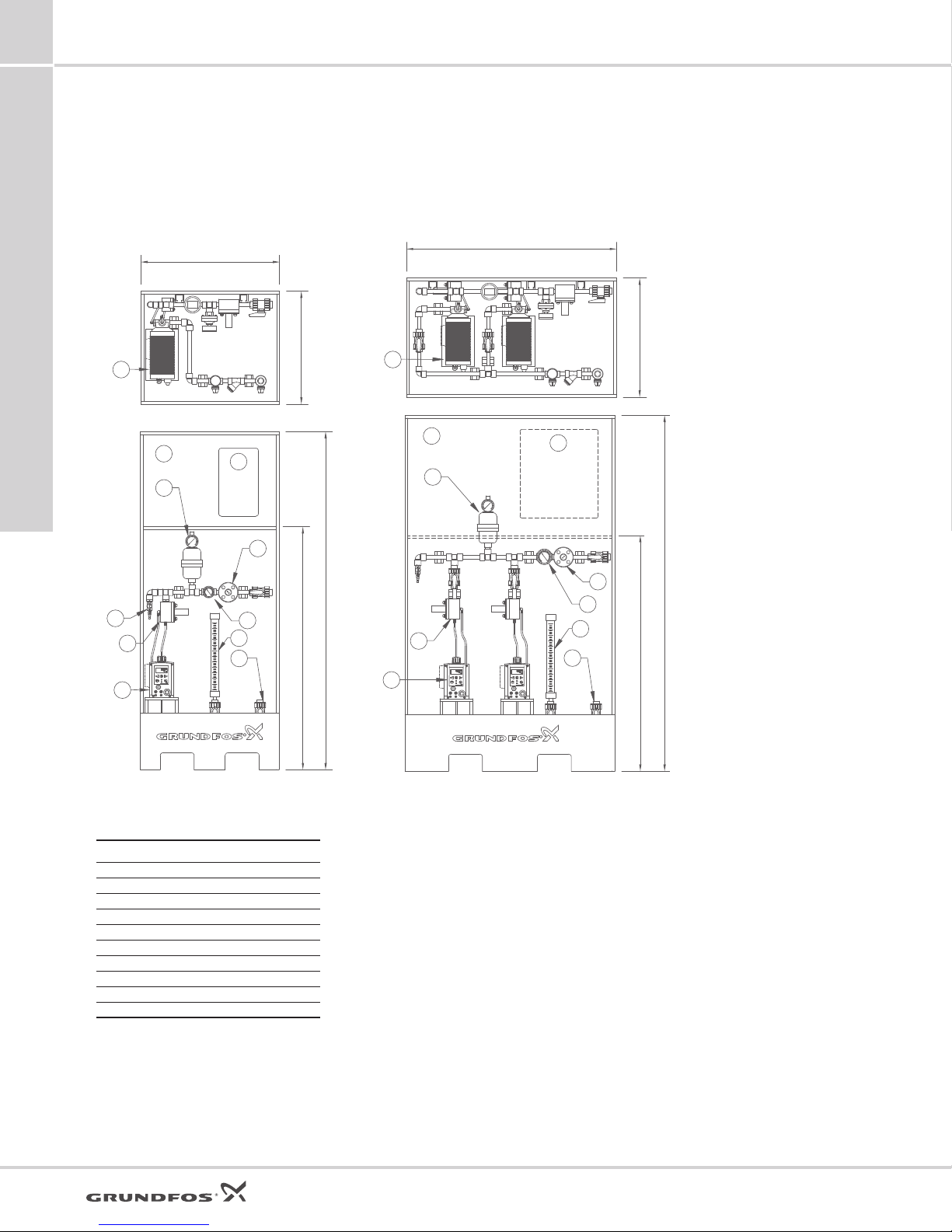

Standard skid systems with polypropylene base
Small one-pump system
with polypropylene base
Small two-pump system
with polypropylene base
TM05 4955 3012 TM05 4953 3012
Pos. Component
1 Metering pumps
2 Calibration cylinder
3 Back pressure valve
4 Pressure relief valve
5 Pressure gauge
6 Pulsation dampener
7 Ball valve
8Skid
9 FRP enclosure
10 Sample valve
8
3
10 5
4
6
7
9
2’- 0”
3’- 7” - W/O CONTROL BOX 1’- 8”
5’- 0” - W/ CONTROL BOX
1
2
1
3’- 2”
1’- 9”
5’- 3” W/ CONTROL BOX
3’- 6” W/ CONTROL BOX
1
1
4
5
89
2
3
7
6
Dosing DSS_Skid Systems.book Page 6 Wednesday, August 8, 2012 10:42 PM

Components
DSS 3
7
Medium and large one-pump system
with polypropylene base
Medium and large two-pump system
with polypropylene base
TM05 4951 3012 TM05 4949 3012
8
9
3
10
5
4
6
7
2
5’- 6” - LARGE
2’- 6” - MEDIUM
1’- 5” - MEDIUM
2’- 3” - LARGE
3’- 4” - W/O CONTROL BOX & DRIVE - MEDIUM
4’- 2” - W/O CONTROL BOX & DRIVE - LARGE
4’- 9” - W/ CONTROL BOX & DRIVE - MEDIUM
5’- 7” - W/ CONTROL BOX & DRIVE - LARGE
1
5’- 6” - LARGE
3’- 8” - MEDIUM
1’- 8” - MEDIUM
2’- 3” - LARGE
3’- 4” W/O CONTROL BOX & DRIVES - MEDIUM
4’- 2” W/O CONTROL BOX & DRIVES - LARGE
4’- 9” W/ CONTROL BOX & DRIVES - MEDIUM
5’- 7” W/ CONTROL BOX & DRIVES - LARGE
10
9
8
5
3
4
7
1
1
2
Pos. Component
1 Metering pumps
2 Calibration cylinder
3 Back pressure valve
4 Pressure relief valve
5 Pressure gauge
6 Pulsation dampener
7 Ball valve
8Skid
9 FRP enclosure
10 Optional controller
11 Sample valve
Dosing DSS_Skid Systems.book Page 7 Wednesday, August 8, 2012 10:42 PM

Components
DSS
3
8
Standard skid systems with stainless steel base
Small one-pump system
with stainless steel base
Small two-pump system
with stainless steel base
TM05 4956 3012 TM05 4954 3012
Pos. Component
1 Metering pumps
2 Calibration cylinder
3 Back pressure valve
4 Pressure relief valve
5 Pressure gauge
6 Pulsation dampener
7 Ball valve
8Skid
9 FRP enclosure
10 Sample valve
8
9
3
10
1
4
6
7
3’- 0” - W/O CONTROL BOX
4’- 6” W/ CONTROL BOX
1’- 10”
1’- 8”
1
2
3’- 6” W/O CONTROL BOX
3’- 0”
2’- 0”
5’- 0” W/ CONTROL BOX
9
8
6
10
43
5
7
1
1
2
Dosing DSS_Skid Systems.book Page 8 Wednesday, August 8, 2012 10:42 PM

Components
DSS 3
9

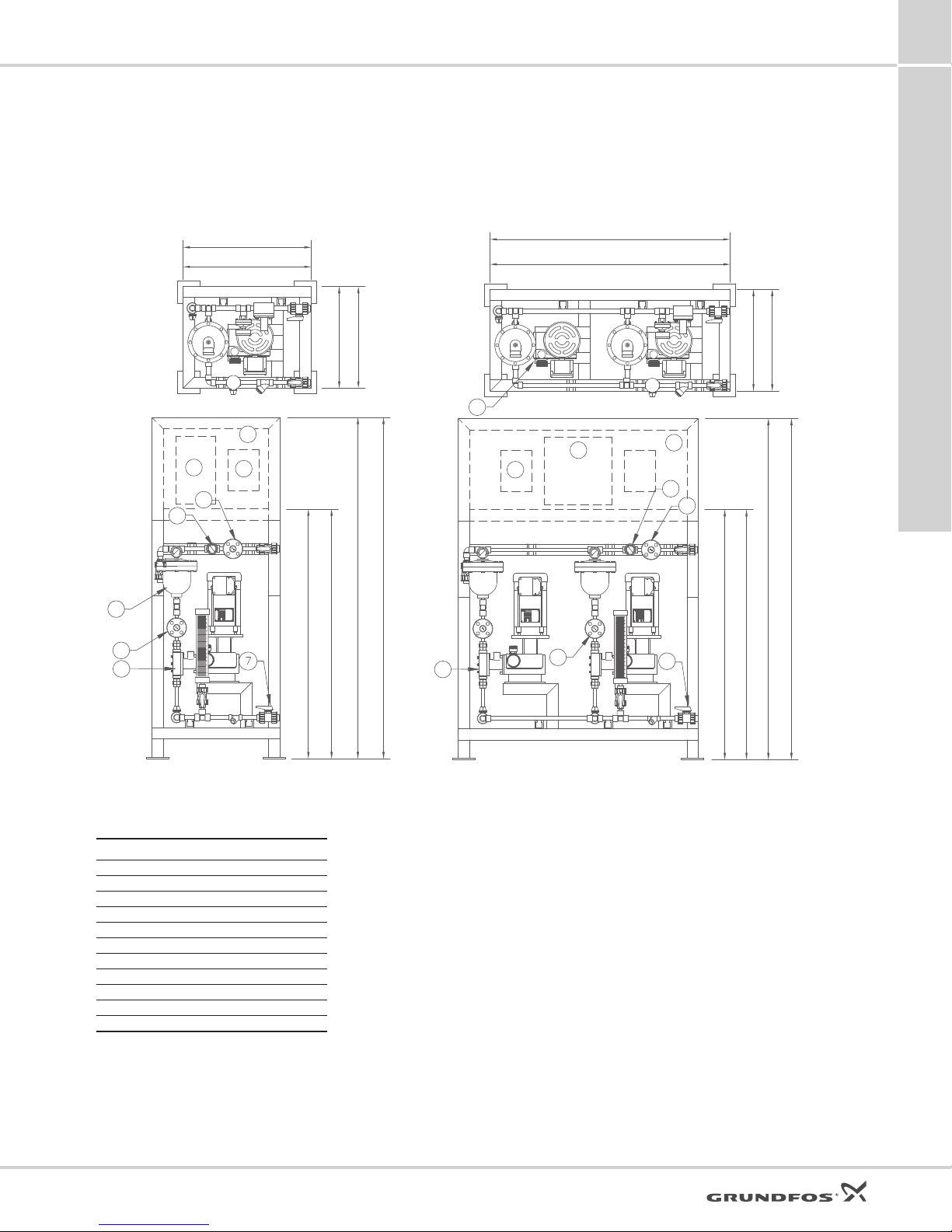

Medium and large one-pump system
with stainless steel base
Medium and large two-pump system
with stainless steel base
TM05 4952 3012 TM05 4950 3012
3’- 1” - LARGE
1’- 10” - MEDIUM
1’- 6” - MEDIUM
2’- 0” - LARGE
6
4
3
5
910
8
3’- 8” - W/O CONTROL BOX & DRIVE - MEDIUM
4’- 4” - W/O CONTROL BOX & DRIVE - LARGE
5’- 0” - W/ CONTROL BOX & DRIVE - MEDIUM
5’- 8” - W/ CONTROL BOX & DRIVE - LARGE
1
5’- 1” - LARGE
10
3’- 6” - MEDIUM
1’- 6” - MEDIUM
2’ - 0” - LARGE
3’- 8” W/O CONTROL BOX & DRIVES - MEDIUM
4’- 4” W/O CONTROL BOX & DRIVES - LARGE
5’- 0” W/ CONTROL BOX & DRIVES - MEDIUM
5’- 8” W/ CONTROL BOX & DRIVES - LARGE
98
5
3
4
1
7
1
Pos. Component
1 Metering pumps
2 Calibration cylinder
3 Back pressure valve
4 Pressure relief valve
5 Pressure gauge
6 Pulsation dampener
7 Ball valve
8Skid
9 FRP enclosure
10 Optional controller
11 Sample valve
Dosing DSS_Skid Systems.book Page 9 Wednesday, August 8, 2012 10:42 PM

Components
DSS
3
10
P&ID
Typical layout, two-pump system
Typical system components*
* Review layout, general arrangement, component and P&ID drawings
issued on specific orders as these may differ from "Typical" as shown here.
TM05 2012 4214
1/2" PVC
INLET
PUMP 1 PUMP 2
BACKUP
PI
OUTLET
1/2" PVC
50 PSI
1/2" PVC
BLEED VALVE
90 PSI90 PSI
53
6
2
1
7
4
Pos. Component
1 PVC, strainer
2 Calibration cylinder
3 Back pressure valve
4 Pressure relief valve
5 Pressure gauge
6 Pulsation dampener
7 Ball valve
Dosing DSS_Skid Systems.book Page 10 Wednesday, August 8, 2012 10:42 PM

Special application systems
DSS 4
11
4. Special application systems
Selcoperm
Electrolytic chlorination systems
Selcoperm electrolytic chlorination systems offer easy
and reliable generation of a hypochlorite solution for
disinfection applications.

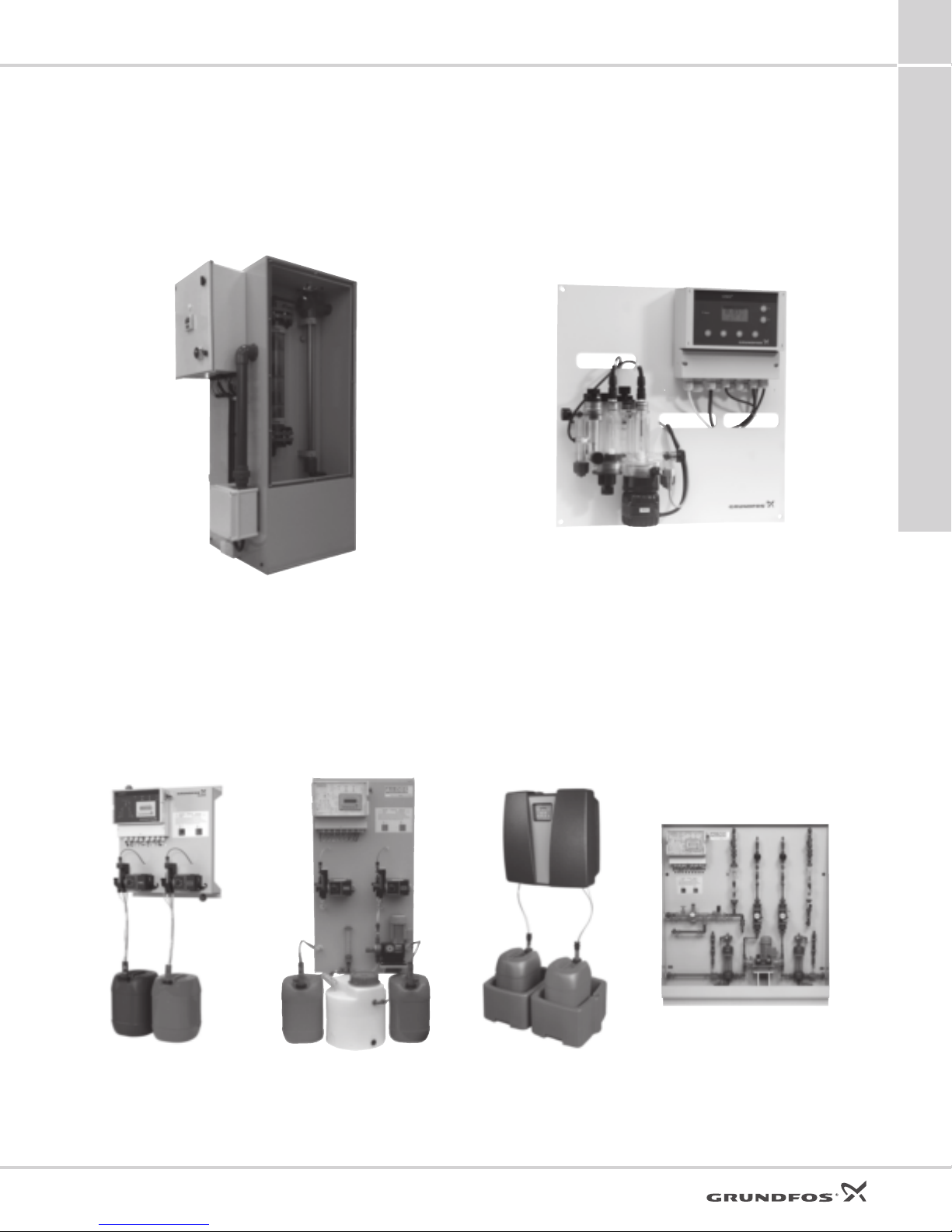

Fig. 5 Selcoperm electrolytic chlorination system
Conex®
Compact measuring systems
Our DSS systems with Conex® utilize our tried-and-
tested electrodes and controllers, combined to suit
specific applications, and installed on a mounting
board ready for quick installation.
Fig. 6 Conex® compact measuring systems
Chlorine dioxide systems
Continuous chlorine dioxide dosing ensures highly
effective disinfection and prevents the build-up of
biofilm in water pipes. Grundfos chlorine dioxide
disinfection systems can be installed in existing
systems without disrupting operations.
Fig. 7 Chlorine dioxide systems
TM04 6823 0910
TM05 4046 1506
TM05 3821 1612 TM05 3794 1612 TM05 3822 1612 TM05 3793 1612
Dosing DSS_Skid Systems.book Page 11 Wednesday, August 8, 2012 10:42 PM

Technical data
DSS
5
12

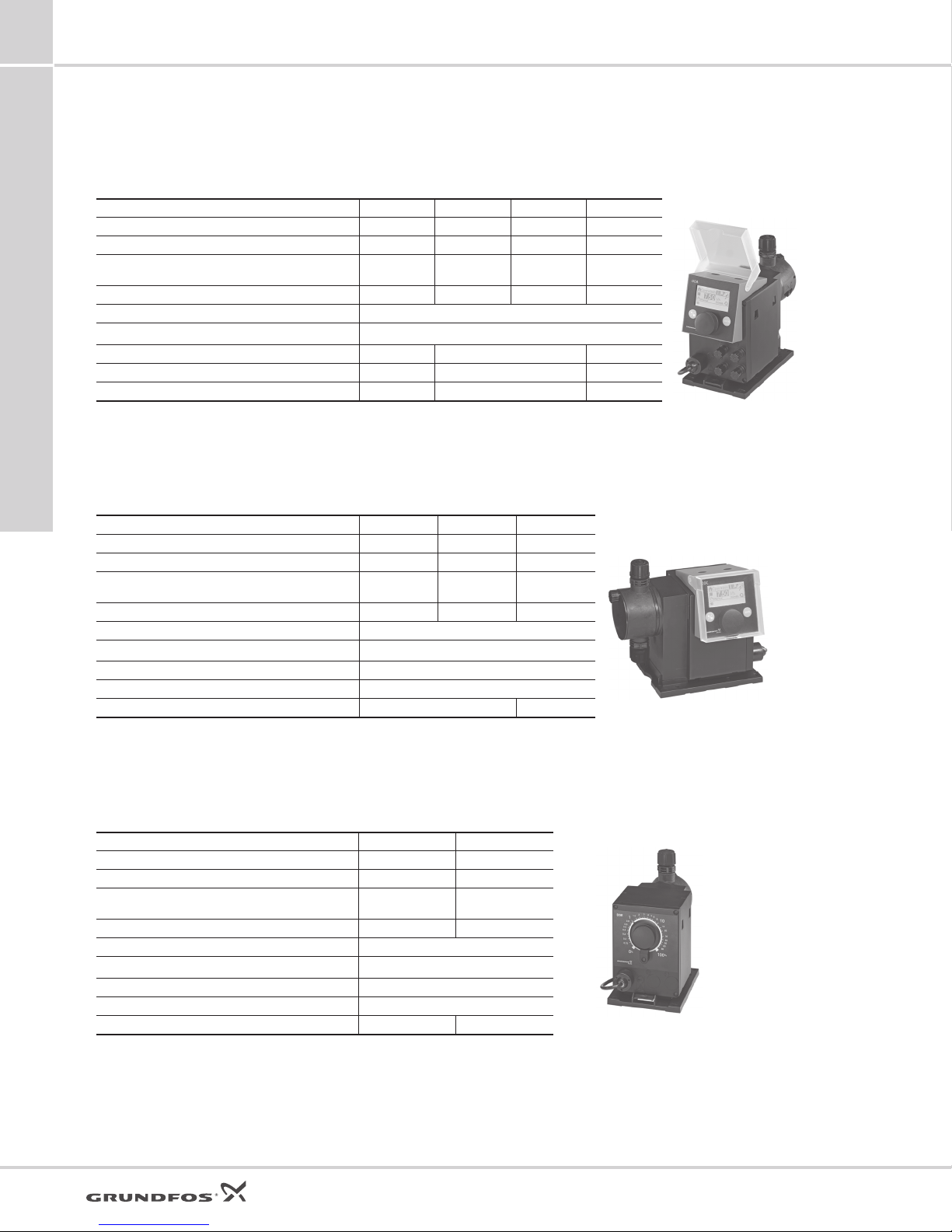

5. Technical data
DDA
SMART Digital Series (0.0007 to 8.0 gph)
DDC
SMART Digital Series (0.0015 to 4.0 gph)
DDE
SMART Digital Series (0.0015 to 4.0 gph)
Technical data 7.5-16 12-10 17-7 30-4
TM05 4007 1912
Turndown ratio (setting range) [1:X] 3000 1000 1000 1000
Max. dosing capacity [gph (l/h)] 2.0 (7.5) 3.1 (12.0) 4.5 (17.0) 8.0 (30.0)
Min. dosing capacity [gph (l/h)] 0.0007
(0.0025)
0.0031
(0.0120)
0.0045
(0.0170)
0.0080
(0.0300)
Max. operating pressure [psi (bar)] 230 (16) 150 (10) 100 (7) 60 (4)
Accuracy of repeatability [%] ± 1
Max. suction lift during operation 1) [ft (m)] 19.68 (6)
Weight (PVC, PP, PVDF) [lb (kg)] 5.3 (2.4) 5.3 (2.4) 5.8 (2.6)
Weight (stainless steel) [lb (kg)] 7.1 (3.2) 7.1 (3.2) 8.9 (4.0)
Diaphragm diameter [in (mm)] 1.73 (44) 1.97 (50) 2.92 (74)
1) Data is based on measurements with water
Technical data 6-10 9-7 15-4
TM05 4008 1912
Turndown ratio (setting range) [1:X] 1000 1000 1000
Max. dosing capacity [gph (l/h)] 1.5 (6.0) 2.4 (9.0) 4.0 (15.0)
Min. dosing capacity [gph (l/h)] 0.0015
(0.0060)
0.0024
(0.0090)
0.0040
(0.0150)
Max. operating pressure [psi (bar)] 150 (10) 100 (7) 60 (4)
Accuracy of repeatability [%] ± 1
Max. suction lift during operation 1) [ft (m)] 19.68 (6)
Weight (PVC, PP, PVDF) [lb (kg)] 5.3 (2.4)
Weight (stainless steel) [lb (kg)] 7.1 (3.2)
Diaphragm diameter [in (mm)] 1.73 (44) 1.97 (50)
1) Data is based on measurements with water
Technical data 6-10 15-4
TM05 4009 1912
Turndown ratio (setting range) [1:X] 1000 1000
Max. dosing capacity [gph (l/h)] 1.5 (6.0) 4.0 (15.0)
Min. dosing capacity [gph (l/h)] 0.0015
(0.0060)
0.0040
(0.0150
Max. pressure [psi (bar)] 150 (10) 60 (4)
Accuracy of repeatability [%] ± 5
Max. suction lift during operation 1) [ft (m)] 19.68 (6)
Weight (PVC, PP, PVDF) [lb (kg)] 5.3 (2.4)
Weight (stainless steel) [lb (kg)] 7.1 (3.2)
Diaphragm diameter [in (mm)] 1.73 (44) 1.97 (50)
1) Data is based on measurements with water
Dosing DSS_Skid Systems.book Page 12 Wednesday, August 8, 2012 10:42 PM

Technical data
DSS 5
13
DDI 222 AR
(0.02 to 39.7 gph)
DME
DME 60/150
(0.02 to 39.7 gph)
*with spring-loaded valves
DME 375/940
(0.13 to 248 gph)
*with spring-loaded valves
Technical data
TM03 4770 2706
Pump Model Vstroke
[cm3]
Max.
pressure1)
[psi (bar)]
Capacity2) [gph (l/h)] Max.
stroke rate
[strokes/min]Normal Slow Mode - 1 Slow Mode - 2
DDI 60-10 222 AR 6.63 145 (10) 15.9 (60) 10.6 (40) 6.5 (24.7) 180
DDI 150-4 222 AR 13.9 58 (4) 39.7 (150) 26.4 (100) 16.4 (62) 180
1) Observe the maximum permissible temperatures. When dosing the more viscous liquids, observe the
maximum permissible viscosity.
2) The maximum dosing flow of HV type pumps is reduced by up to 10%.
The maximum capacity is measured at maximum pump back pressure.
The pump can be operated in the range of 0.125% to 100% of the maximum dosing capacity.
Electrical data
Power supply 100-240 V, 50/60 Hz
Power consumption 50 VA
Pump type DME 60-10 DME 150-4
TM05 4010 1912
Capacity at max. pressure [gph (l/h)] 15.85 (60) 39.6 (150)
Min. capacity [gph (l/h)] 0.0198 (0.075) 0.0497 (0.188)
Max. pressure [psi (bar)] 145 (10) 58 (4)
Setting range 800:1
Stroke frequency [spm] 160
Power supply [V, Hz] 1×100-240V, 50-60 Hz
Accuracy [%] ±1% repeatability
Pump head material PP, PVDF, stainless steel
Suction lift: primed/dry [ft (m)] 6 (1.5)
Viscosity (Slow Mode) [cps] 3000* at 50 % capacity
Technical data DME 375-10 DME 940-4
TM05 4011 1912
Capacity at max. pressure [gph (l/h)] 99.1 (375) 248.3 (940)
Min. capacity [gph (l/h)] 0.124 (0.47) 0.31 (1.18)
Max. pressure [psi (bar)] 145 (10) 58 (4)
Setting range 800:1
Stroke frequency [spm] 160
Power supply [V, Hz] 1×100-240V, 50-60 Hz
Accuracy [%] ±1 % repeatability
Pump head material PP, PVDF, 316 SS
Suction lift: primed/dry [ft (m)] 19 (4.9) / 6 (1.5)
Viscosity (Slow Mode) [cps] 3000* at 50 % capacity
Dosing DSS_Skid Systems.book Page 13 Wednesday, August 8, 2012 10:42 PM

Technical data
DSS
5
14
DMX
(0.13 to 2 x 166 gph)
*Suction lift data is for water-like fluids. Please see the pump's Installation and Operating Instructions for more details and dimensional data.
TM05 4033 1912
DMX 221
pump
Max capacity Strokes
per minute
[spm]
Max.
viscosity*
[cps]
Max. suction lift* Motor
voltage
Accuracy
[%]
Linearity
[%]
[gph (l/h)] [psi (bar)] Primed [ft] Dry [ft]
4-10 1.3 (5) 145 (10.0) 35 400 13.1 13.1
1 x 115 V,
50/60 Hz +/- 1.5% +/- 4%
7-10 2.1 (8) 145 (10.0) 35 400 13.1 13.1
7,2-16 2.3 (8.6) 232 (16.0) 75 400 13.1 13.1
8-10 2.6 (10) 145 (10.0) 75 400 13.1 13.1
9-10 2.9 (11) 145 (10.0) 35 200 9.8 9.8
12-10 3.7 (14) 145 (10.0) 35 200 9.8 8.2
13,7-16 4.0 (16) 232 (16.0) 144 200 11.5 8.2
14-10 4.5 (17) 145 (10.0) 75 400 13.1 13.1
16-10 5.0 (19) 145 (10.0) 144 200 11.5 8.2
17-4 5.3 (20) 58 (4.0) 35 200 3.3 3.3
18-10 5.8 (22) 145 (10.0) 75 200 9.8 9.8
25-3 7.9 (30) 44 (3.0) 35 200 3.3 3.3
26-10 8.2 (31) 145 (10.0) 75 200 9.8 8.2
27-10 8.4 (32) 145 (10.0) 144 200 11.5 8.2
35-10 11.0 (42) 145 (10.0) 144 100 8.2 6.5
39-4 12.0 (47) 58 (4.0) 75 100 3.3 3.3
50-10 16.0 (60) 116 (8.0) 144 100 8.2 4.9
60-3 19.0 (72) 44 (3.0) 75 100 3.3 3.3
75-3,5 24.0 (90) 51 (3.5) 144 100 1.6 1.6
115-3 36.0 (138) 36 (2.5) 144 100 1.6 1.6
DMX 226
pump
Max capacity
(Duplex X 2) Strokes
per minute
[spm]
Max.
viscosity*
[cps]
Max. suction lift* Motor
voltage
Accuracy
[%]
Linearity
[%]
[gph (l/h)] [psi (bar)] Primed [ft] Dry [ft]
52-8 16.4 (62) 116 (8.0) 76 700 8.2 3.2
DMX-B:
no motor,
NEMA 56C
flange
DMX-AR:
1 X 115V,
60 Hz
+/- 1.5% +/- 4%
67-10 21.1 (80) 145 (10.0) 68 700 8.2 3.2
82-5 25.9 (98) 72 (5.0) 76 500 8.2 3.2
95-8 30.0 (114) 116 (8.0) 68 500 8.2 3.2
100-8 31.7 (120) 116 (8.0) 144 400 8.2 3.2
130-3 41.2 (156) 44 (3.0) 76 400 6.6 3.2
132-10 41.7 (158) 116 (8.0) 144 400 8.2 3.2
152-6 48.0 (182) 87 (6.0) 68 400 6.6 3.2
160-5 50.7 (192) 72 (5.0) 144 200 8.2 3.2
199-8 63.1 (239) 116 (8.0) 144 200 8.2 3.2
249-3 78.9 (299) 44 (3.0) 68 100 3.2 1.6
255-3 80.8 (306) 44 (3.0) 144 100 6.6 3.2
321-6 102.0 (385) 58 (4.0) 144 100 6.6 3.2
525-3 166.3 (630) 44 (3.0) 144 50 3.2 1.6
Dosing DSS_Skid Systems.book Page 14 Wednesday, August 8, 2012 10:42 PM

Technical data
DSS 5
15

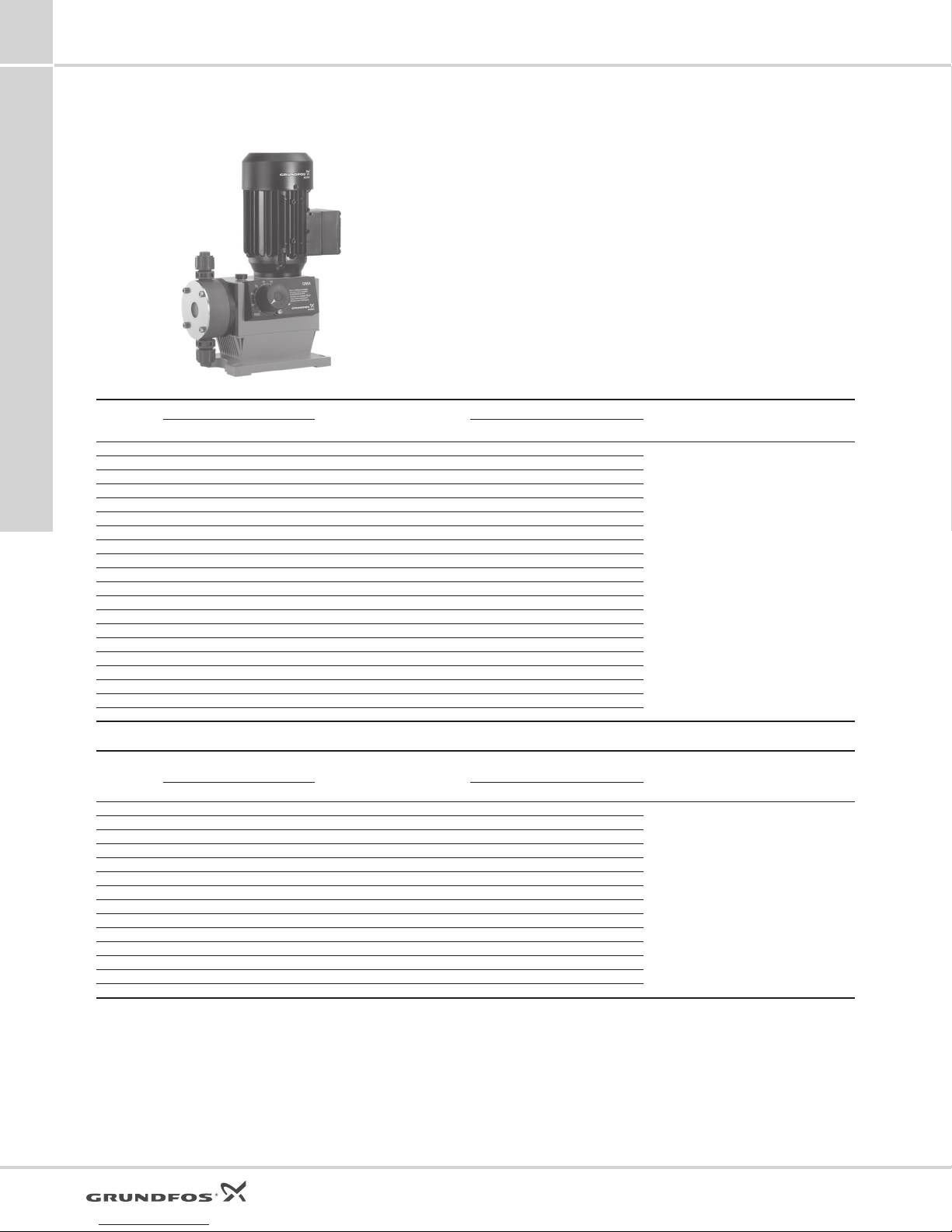

DMH
(0.07 to 2 x 278 gph)
DMH 250 DMH 280
*Viscosity rating at 60 Hz maximum strokes per minute.
**Flooded suction recommended.
The stated values are approximate and apply to standard pumps.
TM05 4045 1912
DMH
250 Series
pump
Max capacity Strokes
per minute
at 60 Hz
[spm]
Max.
viscosity*
[cps]
Max.
suction
lift
[ft]
[gph (l/h)] [psi (bar)]
251
2,2-25 0.69 (2.6) 363 (25) 17
300 3.3
2,3-16 0.74 (2.8) 232 (16) 17
2,4-10 0.77 (2.9) 145 (10) 17
4,5-25 1.43 (5.4) 363 (25) 35
4,9-16 1.55 (5.9) 232 (16) 35
5,0-10 1.58 (6.0) 145 (10) 35
11-25 3.43 (13.0) 363 (25) 75
100 —
12-16 3.7 (14.0) 232 (16) 75
13-10 4.22 (16.0) 145 (10) 75
17-25 5.28 (20.0) 363 (25) 115
18-16 5.81 (22.0) 232 (16) 115
19-10 6.07 (23.0) 145 (10) 115
252
10-16 3.17 (12.0) 232 (16) 35 300
3.3
11-10 3.45 (13.1) 145 (10) 35
23-16 7.13 (27.0) 232 (16) 75
100
24-10 7.66 (29.0) 145 (10) 75
36-16 11.35 (43.0) 232 (16) 115
37-10 11.62 (44.0) 145 (10) 115
253
21-10 6.6 (25.0) 145 (10) 35 300
3.3
43-10 13.7 (51.9) 145 (10) 75 100
67-10 20.6 (78.0) 145 (10) 115
83-10 26.1 (98.8) 145 (10) 144 10
254
50-10 15.8 (59.8) 145 (10) 32 300
3.3
97-16 30.6 (115.8) 232 (16) 65
100
102-10 32.2 (121.9) 145 (10) 65
136-16 43 (162.8) 232 (16) 90
143-10 45.4 (171.9) 145 (10) 90
166-16 52.8 (199.9) 232 (16) 110
175-10 55.4 (209.7) 145 (10) 110
202-16 63.9 (241.9) 232 (16) 134
213-10 67.3 (254.8) 145 (10) 134 5
255
194-10 61.5 (232.8) 145 (10) 65
200 Flooded** 270-10 85.5 (323.7) 145 (10) 90
332-10 105 (397.5) 145 (10) 110
403-10 128 (484.5) 145 (10) 134 5
257
220-10 69.7 (263.8) 145 (10) 33
200 3.3
440-10 139.4 (527.7) 145 (10) 65
575-10 182.2 (689.7) 145 (10) 90
770-10 244 (923.6) 145 (10) 110
880-10 278 (1052.3) 145 (10) 134 5 Flooded**
DMH
280 Series
pump
Max capacity Strokes
per minute
at 60 Hz
[spm]
Max.
viscosity*
[cps]
Max.
suction
lift
[ft]
[gph (l/h)] [psi (bar)]
280
1,3-200 0.5 (1.9) 2900 (200) 76
5Flooded**2,2-200 0.7 (2.6) 2900 (200) 115
2,5-200 0.9 (3.4) 2900 (200) 144
281
2-100 0.6 (2.3) 1450 (100) 35 100
3.3
4,2-100 1.3 (4.9) 1450 (100) 76 50
6,4-100 2.0 (7.6) 1450 (100) 115 50
8-100 2.5 (9.5) 1450 (100) 144 5
283
19-100 6.1 (23.1) 1450 (100) 65
50 3.3 27-100 8.4 (31.8) 1450 (100) 90
33-100 10.6 (40.1) 1450 (100) 110
40-100 12.7 (48.1) 1450 (100) 134 5
285
20-100 6.3 (23.8) 1450 (100) 33 100
3.3
40-100 12.7 (48.1) 1450 (100) 67
5052-100 16.6 (62.8) 1450 (100) 88
70-100 22.2 (84.0) 1450 (100) 118
80-100 25.3 (95.8) 1450 (100) 134 5
286
85-50 26.9 (101.8) 725 (50) 67 50 3.3
111-50 35.1 (132.9) 725 (50) 88
170-50 53.9 (204.0) 725 (50) 134 5 Flooded**
287
18-200 5.8 (22.0) 2900 (200) 67
50 3.3 23-200 7.4 (28.0) 2900 (200) 88
31-200 9.8 (37.1) 2900 (200) 118
36-200 11.4 (43.2) 2900 (200) 134 5
288
7.5-200 2.4 (9.1) 2900 (200) 67
50 3.3
10-200 3.3 (12.5) 2900 (200) 88
13-200 4.1 (15.5) 2900 (200) 118
15-200 4.9 (18.5) 2900 (200) 134 5
Motor
DMH B
NEMA 56C:
251, 252, 253, 254, 255, 280, 281, 283, 288
NEMA 145TC:
257,285,286,287
DMH AR 1ø115V, 60 HZ
Models 251, 252, 253, 280, 281 only
Accuracy Flow +/- 1%
Linearity +/- 2%
Dosing DSS_Skid Systems.book Page 15 Wednesday, August 8, 2012 10:42 PM

Further documentation
DSS
6
16
6. Further documentation
WebCAPS
WebCAPS is a Web-based Computer Aided Product
Selection program available on www.grundfos.com.
WebCAPS contains detailed information on more than
185,000 Grundfos products in more than 20 languages.
In WebCAPS, all information is divided into 6 sections:
• Catalog
• Literature
• Service
• Sizing
• Replacement
• CAD drawings.
Catalog
This section is based on fields of application and pump types, and
contains
• technical data
• curves (QH, Eta, P1, P2, etc) which can be adapted to the
density and viscosity of the pumped liquid and show the
number of pumps in operation
• product photos
• dimensional drawings
• wiring diagrams
• quotation texts, etc.
Literature
In this section you can access all the latest documents of a given
pump, such as
• product guides
• installation and operating instructions
• service documentation, such as Service kit catalog
and Service kit instructions
• quick guides
• product brochures, etc.
Service
This section contains an easy-to-use interactive service catalog.
Here you can find and identify service parts of both existing and
discontinued Grundfos pumps.
Furthermore, this section contains service videos showing you how
to replace service parts.
Dosing DSS_Skid Systems.book Page 16 Wednesday, August 8, 2012 10:42 PM

Further documentation
DSS 6
17
WinCAPS
Fig. 8 WinCAPS CD-ROM
WinCAPS is a Windows-based Computer Aided
Product Selection program containing detailed
information on more than 185,000 Grundfos products in
more than 20 languages.
The program contains the same features and functions
as WebCAPS, but is an ideal solution if no Internet
connection is available.
WinCAPS is available on CD-ROM and updated once a
year.
Sizing
This section is based on different fields of application and
installation examples, and gives easy step-by-step instructions in
how to
• select the most suitable and efficient pump for your installation
• carry out advanced calculations based on energy consumption,
payback periods, load profiles, life cycle costs, etc.
• analyze your selected pump via the built-in life cycle cost tool
• determine the flow velocity in wastewater applications, etc.
Replacement
In this section you find a guide to selecting and comparing
replacement data of an installed pump in order to replace the pump
with a more efficient Grundfos pump.
The section contains replacement data of a wide range of pumps
produced by other manufacturers than Grundfos.
Based on an easy step-by-step guide, you can compare Grundfos
pumps with the one you have installed on your site. When you have
specified the installed pump, the guide will suggest a number of
Grundfos pumps which can improve both comfort and efficiency.
CAD drawings
In this section it is possible to download 2-dimensional (2D) and
3-dimensional (3D) CAD drawings of most Grundfos pumps.
These formats are available in WebCAPS:
2-dimensional drawings:
• .dxf, wireframe drawings
• .dwg, wireframe drawings.
3-dimensional drawings:
• .dwg, wireframe drawings (without surfaces)
• .stp, solid drawings (with surfaces)
• .eprt, E-drawings.
01
Dosing DSS_Skid Systems.book Page 17 Wednesday, August 8, 2012 10:42 PM

18
Dosing DSS_Skid Systems.book Page 18 Wednesday, August 8, 2012 10:42 PM

19
Dosing DSS_Skid Systems.book Page 19 Wednesday, August 8, 2012 10:42 PM

GRUNDFOS Pumps Corporation
17100 West 118th Terrace
Olathe, Kansas 66061
Phone: [phone]
Telefax: [phone]
GRUNDFOS Canada Inc.
2941 Brighton Road
Oakville, Ontario L6H 6C9
Canada
Phone: [phone]
Telefax: [phone]
Bombas GRUNDFOS de Mexico S.A. de C.V.
Boulevard TLC No. 15
Parque Industrial Stiva Aeropuerto
Apodaca, N.L. Mexico 66600
Phone: [phone]
Telefax: [phone]
The name Grundfos, the Grundfos logo, and the payoff Be–Think–Innovate are registrated trademarks
owned by Grundfos Management A/S or Grundfos A/S, Denmark. All rights reserved worldwide.
Being responsible is our foundation
Thinking ahead makes it possible
Innovation is the essence
L-DSS-PG-01 0812
ECM:
Dosing DSS_Skid Systems.book Page 20 Wednesday, August 8, 2012 10:42 PM
