Grundig DVD-P 7600 User manual

DVD Service Manual
Zusätzlich erforderliche Unterlagen für den Komplettservice
Additionally required Service Documents for the Complete Service
Service
Manual
Sicherheit
Safety
Materialnr./Part No.
720108000001
DVD-P 7600
GML3600
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
Materialnummer / Part Number 720105417000
Änderungen vorbehalten / Subject to alteration
TCC 0307 MP • Prepared in Germany
http://www.grundig.com

GRUNDIG Service DVD-P 7600
1 - 2
Table of Contents
Page
General Section .................................... 1-2…1-8
General Notes ...............................................................................1-2
Technical Data...............................................................................1-4
Software Upgrade..........................................................................1-4
Operating Hints..............................................................................1-7
Layout of the PCBs
and Circuit Diagrams ......................... 2-1…2-14
Block Circuit Diagram ....................................................................2-1
Power Supply, Audio Board ...........................................................2-1
Main Board ....................................................................................2-3
– Voltage Supply ..........................................................................2-5
– Processor...................................................................................2-6
– Memory......................................................................................2-8
– Analogue....................................................................................2-9
– IN/OUT.....................................................................................2-10
Keyboard .....................................................................................2-11
Display Board ..............................................................................2-11
– Video Processor .......................................................................2-12
– Display Driver ...........................................................................2-13
– Inverter .....................................................................................2-14
Exploded View
and Spare Parts List...................................... 3-1
Inhaltsverzeichnis
Seite
Allgemeiner Teil .................................... 1-2…1-8
Allgemeine Hinweise .....................................................................1-2
Technische Daten..........................................................................1-4
Software-Upgrade .........................................................................1-4
Bedienhinweise .............................................................................1-5
Platinenabbildungen
und Schaltpläne.................................. 2-1…2-14
Blockschaltplan..............................................................................2-1
Netzteil, Audio-Platte.....................................................................2-1
Hauptplatte ....................................................................................2-3
– Spannungsversorgung ..............................................................2-5
– Prozessor...................................................................................2-6
– Speicher.....................................................................................2-8
– Analog........................................................................................2-9
– IN/OUT.....................................................................................2-10
Keyboard .....................................................................................2-11
Display-Platte ..............................................................................2-11
– Video-Prozessor .......................................................................2-12
– Display-Treiber..........................................................................2-13
– Inverter .....................................................................................2-14
Explosionszeichnung
und Ersatzteilliste.......................................... 3-1
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Material-
nummer720108000001,sowiezusätzlichdieeventuell
abweichenden, landesspezifischen Vorschriften!
Theregulations and safety instructions shall be valid
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
national deviations.
General Section
General Notes
Before opening the cabinet disconnect the mains plug!
Attention: Observe the ESD safety regulations
Wiring
Before disconnecting any leads and especially the earth connecting
leads observe the way they are routed to the individual assemblies.
On completion of the repairs the leads must be laid out as originally
fitted at the factory to avoid later failures or disturbances.
Carrying out Measurements
Whenmakingmeasurementsonsemi-conductorswithanoscilloscope,
ensure that the test probe is set to 10:1 dividing factor. If the previous
measurement was made on AC input, please note that the coupling
capacitor in the oscilloscope will be charged. Discharge via the item
being checked can damage the components.
Measured Values
The measured values given in the circuit diagrams are approxi-
mates!
Allgemeiner Teil
Allgemeine Hinweise
Vor dem Öffnen des Gehäuses den Netzstecker ziehen!
Achtung: ESD-Vorschriften beachten
Leitungsverlegung
Bevor Sie die Leitungen und insbesondere die Masseleitungen lösen,
muss die Leitungsverlegung zu den einzelnen Baugruppen beachtet
werden.
Nach erfolgter Reparatur ist es notwendig, die Leitungsführung wieder
in den werkseitigen Zustand zu versetzen um evtl. spätere Ausfälle
oder Störungen zu vermeiden.
Durchführen von Messungen
Bei Messungen mit dem Oszilloskop an Halbleitern sollten Sie nur
Tastköpfe mit 10:1 -Teiler verwenden.Außerdem ist zu beachten, dass
nach vorheriger Messung mit AC-Kopplung der Koppelkondensator
des Oszilloskops aufgeladen sein kann.Durch die Entladung über das
Messobjekt können Bauteile beschädigt werden.
Messwerte
Bei den in den Schaltplänen angegebenen Messwerten handelt es
sich um Näherungswerte!

GRUNDIG Service DVD-P 7600
1 - 3

GRUNDIG Service DVD-P 7600
1 - 4
Technische Daten
Netzspannung:................ 100-240V~, 50/60Hz Adapter (9V, 1,25A)
Akku:.......................................................................... 7,2V 3400mAh
Nennleistungsaufnahme:.......................................... Betrieb: ≤11W
Umgebungstemperatur:........................................+10°C bis +35°C
LCD-Bildschirm: .................................................... CPT 7” TFT 16:9
Bildformat:.............................................................................4:3, 16:9
Auflösung............................................................................480 x 234
Leuchtdichte ........................................................................350cd/m2
Kontrastverhältnis.................................................................... 300 : 1
Displayträgheit....................................................... Tr 12ms / Tf 18ms
Blickwinkel ...............................................40° vertikal / 60° horizontal
Wiedergabe-Norm:
– PAL ......................................................................50Hz, 625 Zeilen
– NTSC...................................................................60Hz, 525 Zeilen
Wiedergabe-System:
DVD-Video...................... DVD, DVD+RW, DVD-RW, DVD+R, DVD-R
Audio-CD.................................................................................CD-DA
CD-R und CD-RW ...........................................................MP3-Daten
Bilddaten (JPEG, Kodak Picture CD)
Videodaten (DivX)
Audio-Signal Analog:
– Frequenzbereich DVD 48/96/192kHz .......................20Hz…20kHz
– Rauschabstand ....................................................................≥65dB
– Dynamik (bei 1kHz) .............................................................≥85dB
– Übersprechen .......................................................................≥60dB
Abmessungen B x H x T:.................................... 190 x 36 x 151mm
Gewicht: ....................................................................................710g
Software-Upgrade
– Neue Software auf eine CD brennen.
– CD im DVD-P 7600 einlegen und Hinweise am Display beachten.
Achtung: Während des Updates keine Tasten drücken oder die
Spannungsversorgung unterbrechen, da sonst der U6 auf der
Hauptplatte zerstört werden kann.
Gewährleistung
Wir weisen ausdrücklich darauf hin, dass nur von GRUNDIG frei-
gegebene System-Software zulässig ist. Wurde als Fehlerursache
festgestellt, dass eine aus nicht legitimierten Quellen gleich welcher
Herkunft stammende oder eine veränderte System-Software in die
Geräte geladen wurde, so ist dies ein Fremdeingriff. Ein Fremdeingriff
führt zum Erlöschen jeglicher Gewährleistungsansprüche.GRUNDIG
muss daher alle aus diesen Gründen resultierenden Kostenerstattun-
gen generell ablehnen. Instandsetzungskosten, auch innerhalb der
Gewährleistungszeit, gehen in diesen Fällen zu Lasten des Händlers
bzw. des Endkunden.
Technical Data
Mains voltage:................. 100-240V~, 50/60Hz Adapter (9V, 1.25A)
Rechargeable battery:.............................................. 7.2V 3400mAh
Rated power consumption: ..................................Operation: ≤11W
Ambient temperature: .............................................+10°C to +35°C
LCD screen.............................................................CPT 7" TFT 16:9
Picture format: ......................................................................4:3, 16:9
Resolution........................................................................... 480 x 234
Brightness ...........................................................................350cd/m2
Contrast ratio...........................................................................300 : 1
Response time....................................................... Tr 12ms / Tf 18ms
Viewing angle ..........................................40° vertical / 60° horizontal
Playback standard:
– PAL ........................................................................ 50Hz, 625 lines
– NTSC.....................................................................60Hz, 525 lines
Playback system:
DVD Video ...................... DVD, DVD+RW, DVD-RW, DVD+R, DVD-R
Audio CD .................................................................................CD-DA
CD-R and CD-RW ............................................................. MP3 data
picture data (JPEG, Kodak picture CD)(JPEG, Kodak picture CD)picture CD)CD)
video data (DivX)(DivX)
Audio Signal Analogue:
– Frequency range DVD 48/96/192kHz .......................20Hz…20kHz
– Signal-to-noise ratio .............................................................≥65dB
– Dynamic (at 1kHz) ...............................................................≥85dB
– Crosstalk...............................................................................≥60dB
Dimensions W x H x L:........................................ 190 x 36 x 151mm
Weight: ......................................................................................710g
Software Upgrade
– Burn the new software on a CD.
– Insert the upgrade CD in the DVD-P 7600 and observe the hints onDVD-P 7600 and observe the hints onand observe the hints on
the display.
Attention: Don't press any keys and without power interruption
while software upgrading, otherwise, the U6 of the main board may
be destroyed.
Warranty / costs
We expressly point out that only operating software authorized by
GRUNDIG is allowed. If a failure is caused by an operating software
which has been downloaded from not authorized sources, indepen-
dent of its origin, or by a modified software, this represents an outside
interference. An outside interference leads to the expiration of any
warranty claims. For this reason, GRUNDIG is obliged to generally
refuse any payment due to such infringements. In such cases, the
repair costs are at the charge of the retailer or the final customer, even
within the period of warranty.

GRUNDIG Service DVD-P 7600
1 - 5
Bedienhinweise Dieses Kapitel enthält Auszüge aus der Bedienungsanleitung.
Weitergehende Informationen entnehmen Sie bitte der gerätespezifischen Bedienungsanleitung, deren Materialnummer Sie in der entsprechenden Ersatzteilliste finden.

GRUNDIG Service DVD-P 7600
1 - 6

GRUNDIG Service DVD-P 7600
1 - 7
Operating Hints This chapter contains excerpts from the operating instructions.
For further particulars please refer to the appropriate user instructions the part number of which is indicated in the relevant spare parts list.

GRUNDIG Service DVD-P 7600
1 - 8

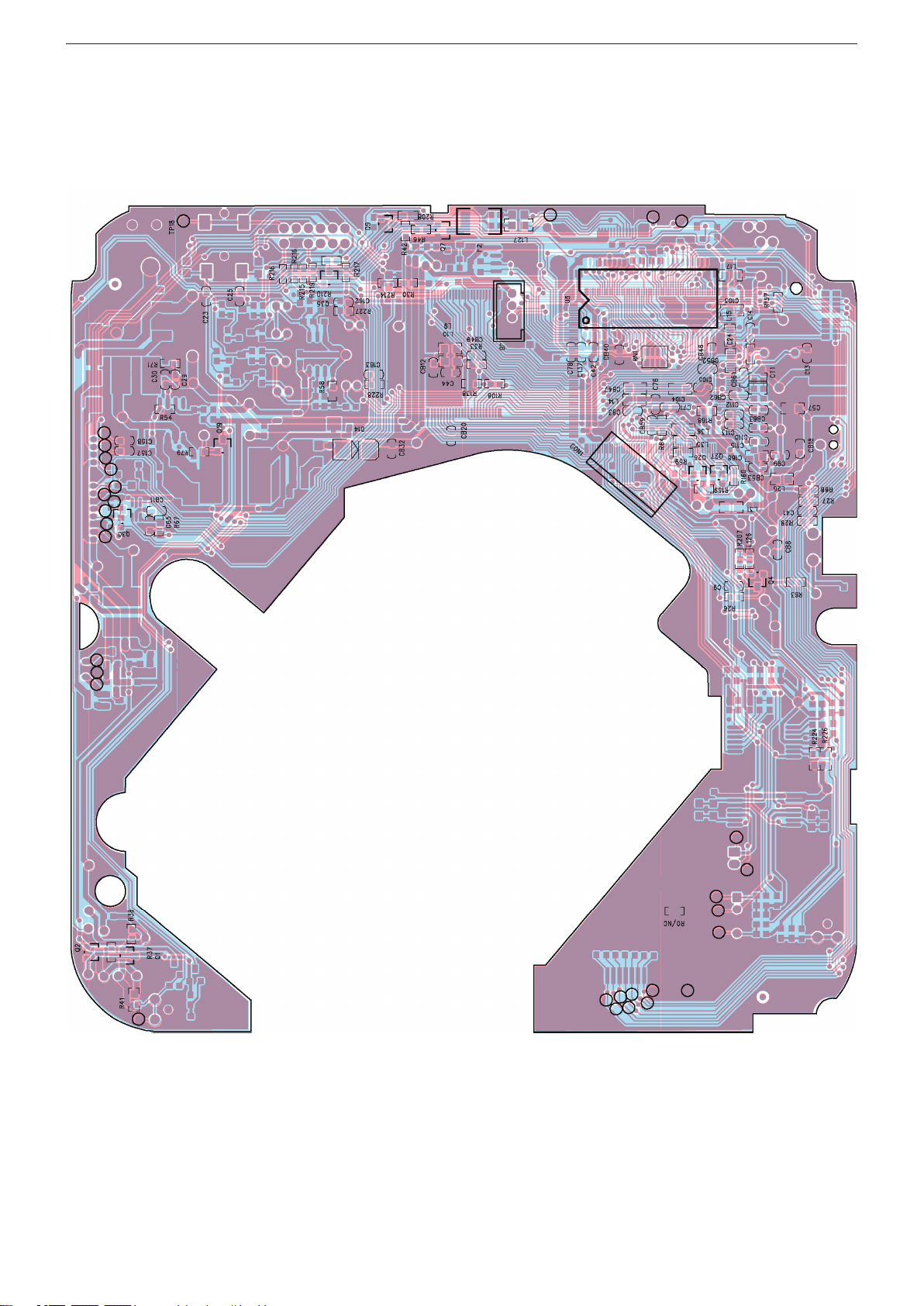

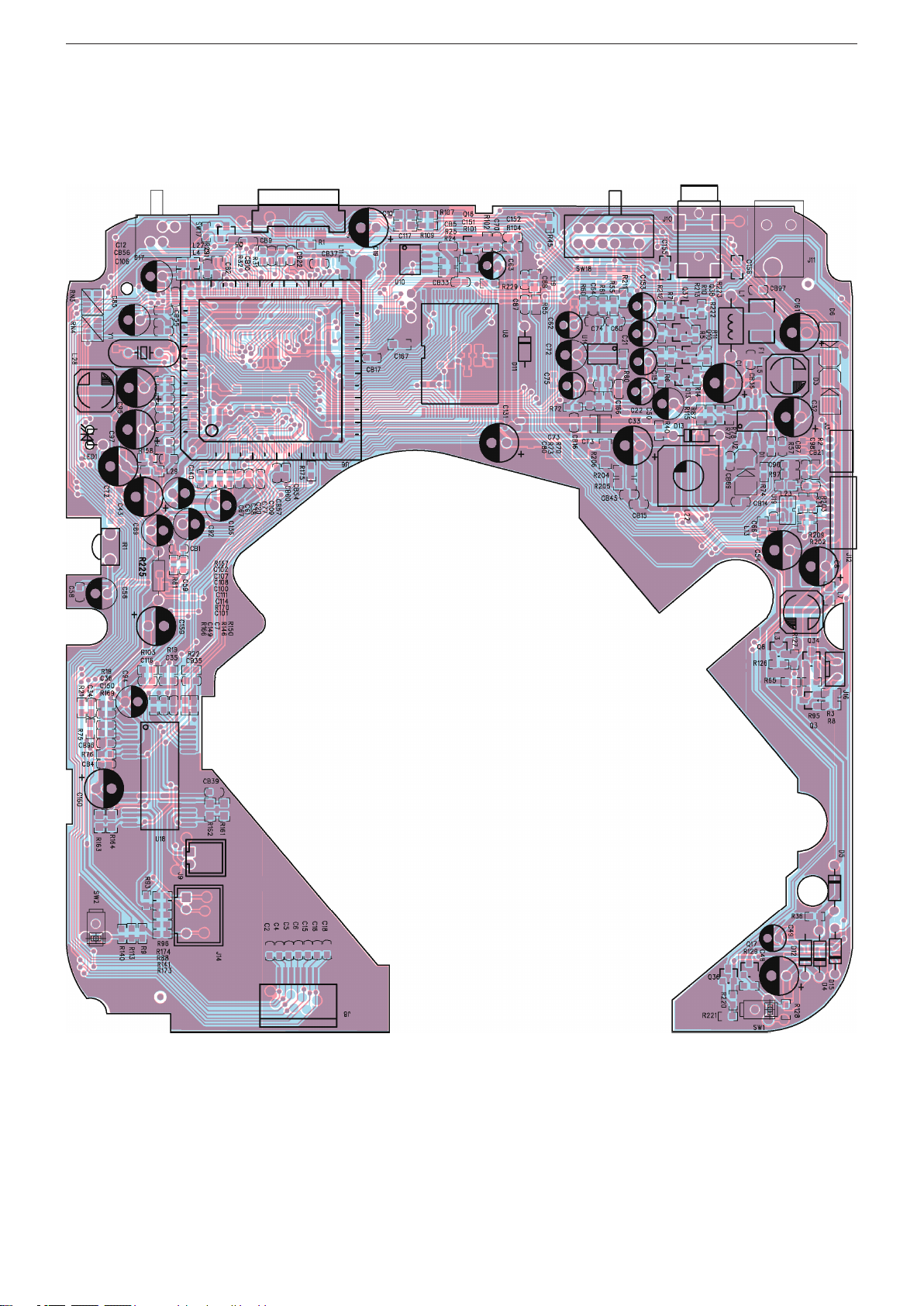

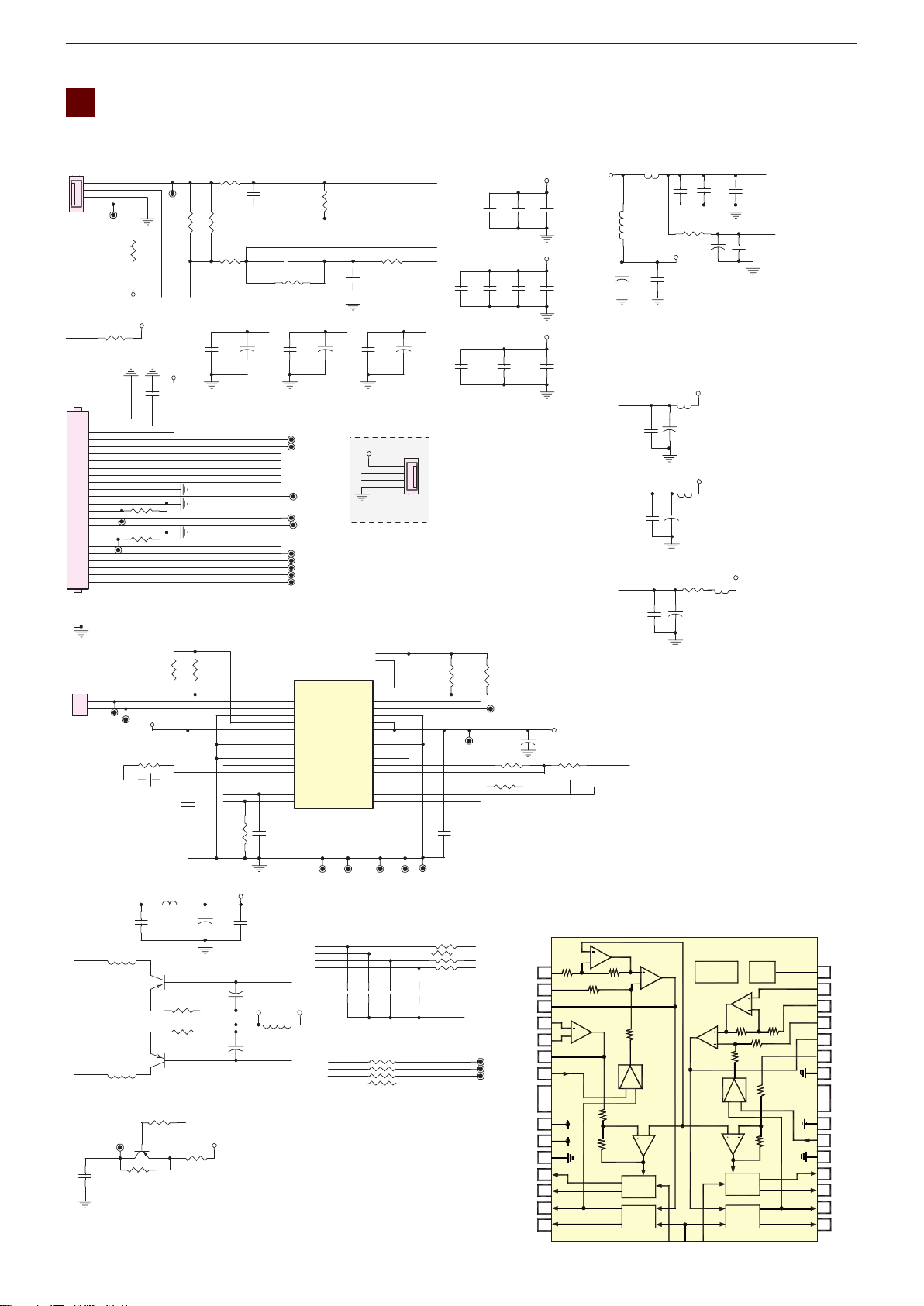

Platinenabbildungen und Schaltpläne / Layout of PCBs and Circuit Diagrams

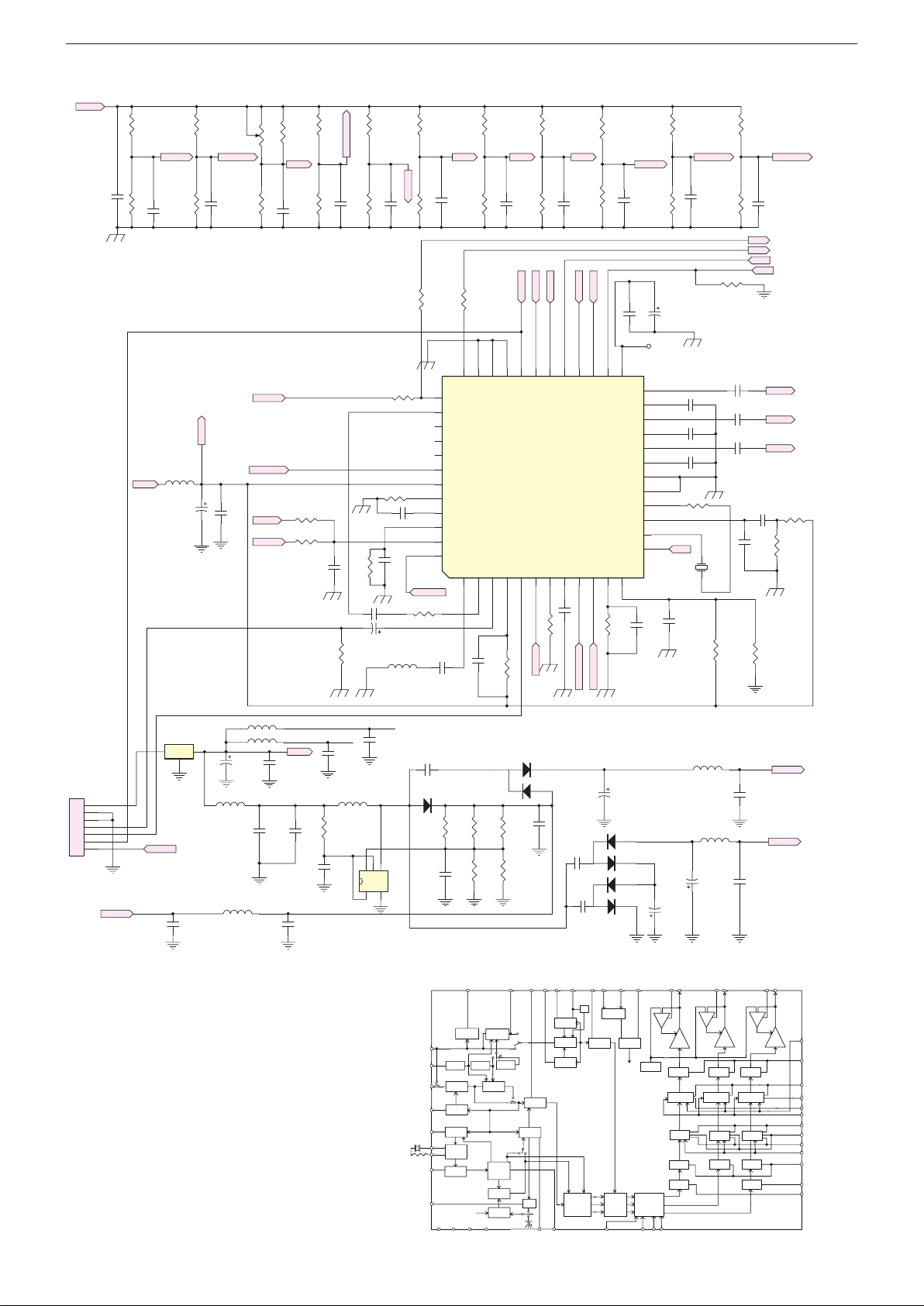

Blockschaltplan / Block Circuit Diagram
LCD
PS1080
Y
C
HSYNC
SW
R
G
B
D3031
CSC1004
DC
SS6608
+12V
+7V
-12V
7” CPT
PANEL
H.V.
TRAN
DC
HIGH
VOLTAGE
OSC
DVD
FE TE DRIVER
SPINDLE VELOCITY ERROR
FOCUS TRACK SLED DRIVER
Video OUT L R OUT
Audio AMP
Video
Filter
Video
DAC
PICK UP
DC/DC
Converter
AT5954H
Servo Driver
MTK1389E
RF Amplifier
MPEG Decoder
Servo Control
EEPROM
4MBit
27MHz
8Bit Bus
IC_DATA
IC_CLK
K4S641632H
SDRAM
24C02
EEPROM
DC/DC
Converter
Power
12V IN
+12V
5V 3.3V
1.8V
Power
Netzteil, Audio-Platte / Power Supply, Audio Board
GRUNDIG Service DVD-P 7600
2 - 1

Netzteil, Audio-Platte / Power Supply, Audio Board
1
2
3
4
CON4
CON4
1 2 3 4
8 7 6 5
ICA1
TDA2822
RA2
330
RA1
330
RA10
4.7
RA11
4.7
RA8
4.7
RA7
4.7
RA4
15K
RA21
4K7
RA22
4K7
RA3
15K
RA5
10K
RA6
10K
1 2
CA7
10uF/16V
12
CA5
10uF/16V
1 2
CA4
100uF/16V
1 2
CA6
100uF/16V
VR_VOL
10K
VR_VOL
10K
12
CA8
10uF/16V
1
2
CA2
100uF/16V
12
CA1
100uF/16V
12
CA9
0.1uF
12
CA10
0.1uF
RA13
33K
VR_BR
10K
PH2
.
14 2 3
5 6
PH1
.
12
CA18
1000P
12
CA17
1000P
12
LA3
2.2uH
1 2
CA15
1000P
RA23
330
12
CA14
1000P
12
CA11
1000P
R24
330
R
L
12
CA20
1000P
1 2
LA1
2.2uH
12
CA13
1000P
12
LA4
2.2uH
12
CA19
1000P
1 2
LA2
2.2uH RA9
1K
Z1
5V
CA22
1000P
CA23
1000P
1
2
3
4
5
AUDIO-L
AUDIO-R
9V
BRIGHT
CON2
PIN5
VR1
50K
L1
47UH
CA28
OPEN
AMP Circuit Part
Q4
C945
Q3
B1184
Q1
B1184
2
31
IC1
78L05
R2
30K
R9
100K
R11
470
R1
10K
R18
2K2
R17
3K3
C4
0.47uF
C5
0.47uF
R20
3K3
R6
221
R8
221
C2
10uF
D4
LED
R15
470
R10 33K
C1 104 R4
1.8K
R3
0.1
R13
0.1
R14
0.1
C10
104
C9
104
VSS
1
XIN
2
XOUT
3
P1.2
4
VDD 8
P0.0 7
P0.1 6
P0.2 5
IC2
S3C9444
R22
150K
C8
104
BATTERY
BAT1(7.2V)
1
2
B1
BAT1
1
2
R16 12K
D2
50K
R25
10K
R26
10K
C3
0.1uF
5
7
6
IC3
LM358 R28
1K
D1
BAS85
R23
0
+
-
DHTAB503
R7
RES
R12
RES
C7
4.7uF
NTC
C6
10uF D3
SK34
F1
FUSE 1.25A SMD
3
2
4
1
8
IC3
LM358
U1-A
R21
39K
R19
10M
DC OUTPUT
R30
221
R29
221
.
FUSE
.
FUSE
R5
100K
1
2
3
CON1
PIN3
R27
open
B-
B+
1
2
3
4
CON3
4PIN
B-
LED
B+
LED
B+
Battery Circuit Part
GRUNDIG Service DVD-P 7600
2 - 2

Hauptplatte / Main Board
Ansicht von der Bestückungsseite / View of Component Side
GRUNDIG Service DVD-P 7600
2 - 3

Hauptplatte / Main Board
Ansicht von der Lötseite / View of Solder Side
GRUNDIG Service DVD-P 7600
2 - 4

Hauptplatte – Spannungsversorgung / Main Board – Voltage Supply
1
+9V
TFT_+9V
ON/OFF_DCIN
ON/OFF_DCIN
GND
ON-DCIN
CH
REL
LCD_ON/OFF
M_DV33
URST#
URST#
M_DV33
ON/OFF_DCIN
TFT_+9V 5
ON/OFF_DCIN 4,5
GND 2,3,4,5
URST# 2
M_DV33 2
DV33
RFV33
DV33
DV33 V18
DCIN
DV33
DV33
TFT_+9V
DCIN
ON-DCIN
+9V
+9V
ON/OFF_DCIN
+
C57
10uF/10V-0805
L26
FB
R77 150k
CB32
0.1uF
F1
P200/W200
U2 MP9141
1
2
3
45
6
7
8BS
VIN
VSW
GNDFB
COMP
EN
SYNC
C29
0.022uF
R57 2.7k
+
C131
100F/16V
C30
100P
R129
20k
R126
1k
R79
NC
NC
FB
2
43
1
J11
DC-023
1
2
3
R78
300k
R127
10k
R74 15k
R87
2.2k
+
C32
100uF/16V D1
1N5819(SMD)
GRUNDIG Service DVD-P 7600
2 - 5

Hauptplatte – Prozessor / Main Board – Processor
2
RS-232
MEMORY
FLASH
IIC
HOP1200/1200W
TxD
RxD
DCKE
CS#
SCL
PRD#
SDA
DQM[0..1]
AD[0..7]
PWR#
CAS#
DQ[0..15]
PWR#
PCE#
WE#
DCLK
RAS#
MA[0..11]
KEY3 KEYSCAN_X3
KEYSCAN_X2
KEY1 KEYSCAN_X1
KEY2
FMO
TRSO TRO
FMSO
FOO
D
DMSO
SP-
LD-CD
C
T+
A
AVCC1
SP+
MDI1
LD-CD
FMSO
RFO
T+
MO_VCC
T-
F+
MDI2
F+
TRSO
LD-DVD
T-
FOSO
FOSO
F-
F-
V1P4
AVCC2
B
IOA
AVCC2
ADIN
GND
SP-
LD-DVD
SP+
TROUT
TROUT
COVER_SWITCH
STBY
TRIN
A
LIMIT
C
LIMIT
B
STBY
COVER_SWITCH
RFO
DBA1
DBA0
FS
ASDATA3
URST#
ASDATA3
ASDATA3
ASDATA3
A2
A13
A15
A11
A7
A9
A12
A19
A6
A16
A8
A1
A17
A10
A5
A0
A14
A18
A4
A3
AR
AL
Y3/CVBSS
Y5/SC
Y6/SY
WIDE/NOR
IR
V1P4
GND
D
4X
_
NACS
Y
EK4YEK
KEY6
KEY5
KEY7
KEYSCAN_Y1
KEYSCAN_Y2
RFV33
XI
ADACVDD3
TEZISLV
OP+
OPO
V20
LDO1
V20
LDO2
RFVDD3
AD3
MA10
DQ11
DQ12
Y6/SY
A18 PCE# SCL
MA4
MA11
RFV18
AR
D
MDI2
FMO
A15 A17 KEY6
MA9
DQ13
PLLVDD3 Y3/CVBSS
AD7
PWR#
ASDATA3
MA7
DBA0
XO
F
MDI1
V2P8
A9
KEY4 IR
MA3
RAS#
DQ10
DQ15
DQ2
DQ3
A4
E
LDO1
A1
DQM1
A8
OPO
A12
DACVDD3
MA6
DCLK
CAS#
WE#
DACVDD3
A5
AL
ADACVDD3
RFVDD3
OP-
AD5
MA8
A3
IR
V1P4
APLLVDD3
RFVDD3
A13 AD1 DQ5
MA1
CS#
DQ14
V1P4
LDO2
ADIN
RFVDD3
URST#
MA5
DQ8
DQ0
JITFO
DACVDD3
A
OP+
A6
A0
DCKE
DBA1
DQ9
AADVDD3
PLLVDD3
V2P8
B
TRO
A14 AD2 AD0 PRD#
RFVDD3
XO
AADVDD3
V20
A19 TXD
DQ1
DQ4
XI
DMO
AD4
MA2
MA0
APLLVDD3
A2
AD6
V1P4
A11 A16 SDA
Y5/SC
V1P4
A10
A7
DQ6 RXD DQ7
JITFN
KEY3
V1P4
OP-
C
FOO
KEY2 KEY5
FS
JITFN
DACVDD3
KEY1
IOA
KEY7
E
F
JITFO
KEYSCAN_Y1
KEYSCAN_X3
KEYSCAN_Y2
KEYSCAN_X1
KEYSCAN_X2
SL-
SL+
KEYSCAN_Y3
KEYSCAN_Y3
KEYSCAN_X4
GND
GND1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
CON1
DQM0
WIDE/NOR
AA20
AA20
MUTE
OM
D
OSMD
MUTE
POWER POWER
M_DV33
PWR# 3
CAS# 3
MA[0..11] 3
PWR# 3
SDA 3
AD[0..7] 3
DQM[0..1] 3
PRD# 3
PCE# 3
DCLK 3
WE# 3
CS# 3
RAS# 3
DCKE 3
SCL 3
DQ[0..15] 3
DBA1 2
DBA0 2
FS 4
ASDATA3 4
URST# 1
ASDATA3 4
ASDATA3 4
ASDATA3 4
6 3
9 3
23
10 3
0 3
8 3
4 3
11 3
1 3
12 3
3 3
15 3
18 3
19 3
16 3
17 3
13 3
7 3
14 3
5 3
R 4
L 4
Y3/CVBSS 4
Y5/SC 4
Y6/SY 4
WIDE/NOR 5
IR 5
GND 1,3,4,5
MUTE 4
A20 3
POWER 5
M_DV33 1
DV33
DV33
DV33
DV33
DV33LDO_AV33
M_DV33
M_DV33
DV33
MO_VCC
RFV33
ADACVDD3
V18
DV33
RFVDD3
DV33
DV33
DV33
DV33
DV33
DV33
V18
V18
DV33
DV33
V18
V18
DV33
DV33
V18
TP32
C17
47uF/16V
TP33
TP44
CB52
0.1uF
CB9
0.1uF
TP19
TP36
Q26
8550(SMD)
2
1 3
R166 20k
CB39
0.1uF
CB53 0.1uF
Y1
S27MHz(10PPM)
1 2
Q27
8550(SMD)
2
13
CB15
0.1uF
C4
220p
TP41
C18
220p
L15
FB
LED1 5*2mm RED
+
C24
10uF/16V/0805
L29
FB
C71 1uF
C116
2200pF
TP5
C106
1500pF
C6
220p
C67 1uF
RN3 33x4
12
3 4
56
78
C113
0.033uF
+
C136
47uF/16V
R4 100k
TP38
R76
10k
R164
1
TP30
L35
10uH(0805)
CB47
10uF/10V-0805
R207
0
R157
0
CB3
0.1uF
L17
FB
C102
390pF
+
C97
47uF/16V
R167 750k
TP50
CB63
0.1uF
R19 33k
R175
0
R173
10k
CB62
0.1uF
TP15
L31 FB
TP10
CB35
0.1uF
IR1
1 2 3
TP29
TP40
R150
10k
TP55
R75 20k
TP46
L28
10uH(0805)
R159 4.7
+
C104 10uF/16V/0805
C105
0.47uF/N.C
R163
1
L27
FB
R174
1
R28 10
C16
220p
+ C95
100uF/16V
R63
10
C34
0.015uF
TP16
C109
0.1uF
C7
0.1uF
1
2
3
4
5
6
7
J8
1.0-7PIN-(SMD)
8 9
R18
33k
CB8
0.1uF
C114 0.1uF
U18
5954
1
9
10
12
3
2
15
7
14
13
21
19
20
24
27
6
4
5
28
8
11
17
18
16
23
22
25
26
2930
VINFC
PVCC1
PGND
VOSL+
CF2
CF1
VOTK+
VNFFC
VOFC+
VOFC-
PVCC2
PGND
VNFTK
CTK2
BIAS
VOSL
VINSL+
VINSL-
STBY
VCC
VOSL-
VOLD+
VOLD-
VOTK-
VINLD
PREGND
CTK1
VINTK
G1G2
R140 150
TP31
CB61
1uF
C0603B
TP12 CB22
0.1uF
C20 1uF
C149
150pF
R81
680k
R27
1K
C107 0.047uF
C14
27p
R158
6.8
TP34
R88
R
CB59
0.1uF
TP45
C56
47uF/16V
TP51
R141 0
TP39
CB16
0.1uF
J14
PH-4AW
1
2
3
4
C59 2200pF
R103
680k
OPENR113
R160 4.7
C77 1uF
C38 1uF
R169 20k
TP58
J6
PH-4A
4
3
2
1
R162
1
CB56
0.1uF
R9
10k
2
4
3
1
L4
FB
TP43
C36
330pF
TP57
C12
1uF
CB17
0.1uF
R59
10
R22
15k
R93
150k
+
C94
10uF/10V-0805
CB60
0.1uF
C99
0.1uF
TP56
C150
150pF
C115
0.1uF
CB1
0.1uF/N.C
Q4
NC
2
13
R161
1
C2
220p
+
C140
47uF/16V
TP35
CB55
0.1uF
T1389E
U6
MT1389E
UQ216
2
210
3
4
5
1
212 213
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
216
28
27
30
29
32
31
43
26
25
33
34
35
36
42
41
45
39
40
46
38
37
65 64 62 61 60 59 58
52
81 77 76 55 74 73 72 71 63 83
53
54
70 57 82 75 66 68 80 69 56 67 84 85 86 87 88 89 90 91 92 93 94 95 106 96 97
204 205
98 99 100 101 102 103 104 105 107 108
162
161
160
159
158
157
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
137
138
136
135
134
133
132
131
130
129
128
126
127
125
124
123
122
121
120
118
119
117
116
115
114
113
111
112
110
109
209 215
24
214 191 189 198 197 208 207 196 211 206 203 201 202 200 199 194 195 192 184 185 182 181 180 179 186 178 177 175 173 174 164 171 170 169 168 172 167 166 165 163 193
44
47
48
49
50
51
78 79
176 183 188 190 187
DVDA
CRTPLP
DVDB
DVDC
DVDD
AGND
OSP OSN
DVDRFIP
DVDRFIN
MA
MB
MC
MD
SA
SB
SC
SD
CDFON
CDFOP
TNI
TPI
MDI1
MDI2
LDO2
LDO1
AVDD3
V2REFO
SGND
VREFO
V20
TEO
FEO
FG/ADIN1
RFLVL/RFON
CSO/RFOP
TEZISLV
OP_OUT
OP_INN
OP_INP
FOO
TRO
GPIO1/HSYNC#
TROPENPWM
PWMOUT1/ADIN0
GPIO2
FMO
DMO
HIGHA2 HIGHA3 HIGHA5 HIGHA6 DVDD3 HIGHA7 A16
IOA6
AD7 AD5 AD4 IOA18 DVSS AD2 AD1 AD0 HIGHA4 IOA0
IOA7
HIGHA0
IOOE# IOWR# A17 AD3 HIGHA1 IOCS# ALE IOA1 IOA19 IOA20 DVDD18 UWR# URD# DVDD3 UP1_2 UP1_3 GPIO6 UP1_4 UP1_5 UP1_6 UP1_7 UP3_0 RD6 UP3_1 UP3_4
ADCVDD3
ADCVSS
UP3_5 GPIO7 ICE PRST# IR INT0# DQM0# RD7 RD5 DVDD3
FS
VREF
DACVDDC
SPDIF
MC_DATA
ASDATA3
ASDATA2
ASDATA1
ASDATA0
ALRCK
ACLK
ABCK
GPIO5
DVSS
GPIO4
GPIO3
DVDD18
RA4
RA5
RA6
RA7
RA8
RA9
RA11
DVDD3
CKE
RCLK
RA3
RA2
RA1
DVDD18
RA0
RA10
BA1
BA0
RAS#
RCS#
CAS#
RWE#
DQM1
RD8
RD9
DVSS
RD11
RD10
RD12
RD13
RD14
RD15
RD0
RD2
RD1
RD3
RD4
HRFZC
IREF
SVDD3
RFGC
RFGND18
ADACVDD1
IDACEXLP
PLLVSS
RFRPAC
RFRPDC
JITFN
RFGND
RFVDD3
LPFOP
LPFIP
LPFIN
LPFON
PLLVDD3
XTALI JITFO
RFVDD18
AR/SDATA1
AVCM
ARF(SW)
ADACVSS2 ADACVSS1
APLLVSS
AL/SDATA2
APLLCAP APLLVDD
AKIN1 AKIN2
ADVCM
CVBS
R/Cr/CVBS/SY
B/Cb/SC
DACVSSA
G/Y/SY/CVBS
AADVSS
DACVDDA
DACVSSB
DACVDDB
DACVSSC
XTALO
GPIO0/VSYNC#
IOA2
DVDD18
IOA3
IOA4
IOA5
AD6 IOA21
AADVDD
ARS
ALF(CTR)
ADACVDD2
ALS/SDATA0
+ C85
100uF/16V
C35
330pF
+
C43
100uF/16V
CB20
0.1uF
C76
C
+ C89
47uF/16V
R170
15k
+
C160
220uF/10V
R96
150k
C41
100P
CB54 0.1uF
R108
NC
CB96
1uF
+ C92
47uF/16V
R26
NC
R68
1k
J9
PH-2AW
1
2
C9
0.1uF
TP28
C112
0.1uF
TP48
C108 0.047uF
C110
20pF
C13
27p
TP37
R64
10
R146 0
CB4
0.1uF
CB5
0.1uF
CB45
0.1uF
R168
100k
+
C103
10uF/16V,0805
TP27
TP49
C5
220p
C61 1uF
C15
220p
TP59
C100
0.01uF
L36
10uH(0805)
CB11
0.1uF
C111
1000pF
L14 FB
C101
2200pF
TP53
R21
10k
C82
10uF/10V-0805
L126
TP54
RN4 33x4
1 2
34
5 6
78
C58
0.1uF
TP52
CB14
0.1uF
25 26
C11
0.1uF
CB57
0.1uF
BA5954
OET2
OET1
+
+
THERMAL
SHUT DOWN -BY
STAND
SLED
+
12
13
14
10
11
6
7
5
4
3
2
1
8
9
19
15
17
16
18
21
20
23
22
24
26
25
28
27
DRIVER
ACTUATOR
DRIVER
ACTUATOR
DRIVER
DRIVER
LOADING
Vcc PV cc2 PV cc1
X2
X2
DET AMP.
DET AMP.
VINFC
CFCerr1
CFCerr2
V
VOSL
VNFFC
Vcc
PV
PGND
VOSL-
VOSL+
VOFC-
VOFC+ VOTK+
VOTK-
VOLD+
VOLD-
PGND
VNFTK
PV
BIAS
GND
V LD
CTKerr2
CTKerr1
V TK
STBY
SL+
IN
SL-VIN
IN
IN
CC2
10K 20K
7.5K
7.5K
7.5K
10K
15K
Pre GND
PGND
PV CC2
25K
10K
PGND
Vcc
CC1
CC1
PV
7.5K
20K 10K
GRUNDIG Service DVD-P 7600
2 - 6

Hauptplatte – Prozessor / Main Board – Processor
2
RS-232
MEMORY
FLASH
IIC
HOP1200/1200W
TxD
RxD
DCKE
CS#
SCL
PRD#
SDA
DQM[0..1]
AD[0..7]
PWR#
CAS#
DQ[0..15]
PWR#
PCE#
WE#
DCLK
RAS#
MA[0..11]
KEY3 KEYSCAN_X3
KEYSCAN_X2
KEY1 KEYSCAN_X1
KEY2
FMO
TRSO TRO
FMSO
FOO
D
DMSO
SP-
LD-CD
C
T+
A
AVCC1
SP+
MDI1
LD-CD
FMSO
RFO
T+
MO_VCC
T-
F+
MDI2
F+
TRSO
LD-DVD
T-
FOSO
FOSO
F-
F-
V1P4
AVCC2
B
IOA
AVCC2
ADIN
GND
SP-
LD-DVD
SP+
TROUT
TROUT
COVER_SWITCH
STBY
TRIN
A
LIMIT
C
LIMIT
B
STBY
COVER_SWITCH
RFO
DBA1
DBA0
FS
ASDATA3
URST#
ASDATA3
ASDATA3
ASDATA3
A2
A13
A15
A11
A7
A9
A12
A19
A6
A16
A8
A1
A17
A10
A5
A0
A14
A18
A4
A3
AR
AL
Y3/CVBSS
Y5/SC
Y6/SY
WIDE/NOR
IR
V1P4
GND
D
4X
_
NACS
Y
EK4YEK
KEY6
KEY5
KEY7
KEYSCAN_Y1
KEYSCAN_Y2
RFV33
XI
ADACVDD3
TEZISLV
OP+
OPO
V20
LDO1
V20
LDO2
RFVDD3
AD3
MA10
DQ11
DQ12
Y6/SY
A18 PCE# SCL
MA4
MA11
RFV18
AR
D
MDI2
FMO
A15 A17 KEY6
MA9
DQ13
PLLVDD3 Y3/CVBSS
AD7
PWR#
ASDATA3
MA7
DBA0
XO
F
MDI1
V2P8
A9
KEY4 IR
MA3
RAS#
DQ10
DQ15
DQ2
DQ3
A4
E
LDO1
A1
DQM1
A8
OPO
A12
DACVDD3
MA6
DCLK
CAS#
WE#
DACVDD3
A5
AL
ADACVDD3
RFVDD3
OP-
AD5
MA8
A3
IR
V1P4
APLLVDD3
RFVDD3
A13 AD1 DQ5
MA1
CS#
DQ14
V1P4
LDO2
ADIN
RFVDD3
URST#
MA5
DQ8
DQ0
JITFO
DACVDD3
A
OP+
A6
A0
DCKE
DBA1
DQ9
AADVDD3
PLLVDD3
V2P8
B
TRO
A14 AD2 AD0 PRD#
RFVDD3
XO
AADVDD3
V20
A19 TXD
DQ1
DQ4
XI
DMO
AD4
MA2
MA0
APLLVDD3
A2
AD6
V1P4
A11 A16 SDA
Y5/SC
V1P4
A10
A7
DQ6 RXD DQ7
JITFN
KEY3
V1P4
OP-
C
FOO
KEY2 KEY5
FS
JITFN
DACVDD3
KEY1
IOA
KEY7
E
F
JITFO
KEYSCAN_Y1
KEYSCAN_X3
KEYSCAN_Y2
KEYSCAN_X1
KEYSCAN_X2
SL-
SL+
KEYSCAN_Y3
KEYSCAN_Y3
KEYSCAN_X4
GND
GND1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
CON1
DQM0
WIDE/NOR
AA20
AA20
MUTE
OM
D
OSMD
MUTE
POWER POWER
M_DV33
PWR# 3
CAS# 3
MA[0..11] 3
PWR# 3
SDA 3
AD[0..7] 3
DQM[0..1] 3
PRD# 3
PCE# 3
DCLK 3
WE# 3
CS# 3
RAS# 3
DCKE 3
SCL 3
DQ[0..15] 3
DBA1 2
DBA0 2
FS 4
ASDATA3 4
URST# 1
ASDATA3 4
ASDATA3 4
ASDATA3 4
6 3
9 3
23
10 3
0 3
8 3
4 3
11 3
1 3
12 3
3 3
15 3
18 3
19 3
16 3
17 3
13 3
7 3
14 3
5 3
R 4
L 4
Y3/CVBSS 4
Y5/SC 4
Y6/SY 4
WIDE/NOR 5
IR 5
GND 1,3,4,5
MUTE 4
A20 3
POWER 5
M_DV33 1
DV33
DV33
DV33
DV33
DV33LDO_AV33
M_DV33
M_DV33
DV33
MO_VCC
RFV33
ADACVDD3
V18
DV33
RFVDD3
DV33
DV33
DV33
DV33
DV33
DV33
V18
V18
DV33
DV33
V18
V18
DV33
DV33
V18
TP32
C17
47uF/16V
TP33
TP44
CB52
0.1uF
CB9
0.1uF
TP19
TP36
Q26
8550(SMD)
2
1 3
R166 20k
CB39
0.1uF
CB53 0.1uF
Y1
S27MHz(10PPM)
1 2
Q27
8550(SMD)
2
13
CB15
0.1uF
C4
220p
TP41
C18
220p
L15
FB
LED1 5*2mm RED
+
C24
10uF/16V/0805
L29
FB
C71 1uF
C116
2200pF
TP5
C106
1500pF
C6
220p
C67 1uF
RN3 33x4
12
3 4
56
78
C113
0.033uF
+
C136
47uF/16V
R4 100k
TP38
R76
10k
R164
1
TP30
L35
10uH(0805)
CB47
10uF/10V-0805
R207
0
R157
0
CB3
0.1uF
L17
FB
C102
390pF
+
C97
47uF/16V
R167 750k
TP50
CB63
0.1uF
R19 33k
R175
0
R173
10k
CB62
0.1uF
TP15
L31 FB
TP10
CB35
0.1uF
IR1
1 2 3
TP29
TP40
R150
10k
TP55
R75 20k
TP46
L28
10uH(0805)
R159 4.7
+
C104 10uF/16V/0805
C105
0.47uF/N.C
R163
1
L27
FB
R174
1
R28 10
C16
220p
+ C95
100uF/16V
R63
10
C34
0.015uF
TP16
C109
0.1uF
C7
0.1uF
1
2
3
4
5
6
7
J8
1.0-7PIN-(SMD)
8 9
R18
33k
CB8
0.1uF
C114 0.1uF
U18
5954
1
9
10
12
3
2
15
7
14
13
21
19
20
24
27
6
4
5
28
8
11
17
18
16
23
22
25
26
2930
VINFC
PVCC1
PGND
VOSL+
CF2
CF1
VOTK+
VNFFC
VOFC+
VOFC-
PVCC2
PGND
VNFTK
CTK2
BIAS
VOSL
VINSL+
VINSL-
STBY
VCC
VOSL-
VOLD+
VOLD-
VOTK-
VINLD
PREGND
CTK1
VINTK
G1G2
R140 150
TP31
CB61
1uF
C0603B
TP12 CB22
0.1uF
C20 1uF
C149
150pF
R81
680k
R27
1K
C107 0.047uF
C14
27p
R158
6.8
TP34
R88
R
CB59
0.1uF
TP45
C56
47uF/16V
TP51
R141 0
TP39
CB16
0.1uF
J14
PH-4AW
1
2
3
4
C59 2200pF
R103
680k
OPENR113
R160 4.7
C77 1uF
C38 1uF
R169 20k
TP58
J6
PH-4A
4
3
2
1
R162
1
CB56
0.1uF
R9
10k
2
4
3
1
L4
FB
TP43
C36
330pF
TP57
C12
1uF
CB17
0.1uF
R59
10
R22
15k
R93
150k
+
C94
10uF/10V-0805
CB60
0.1uF
C99
0.1uF
TP56
C150
150pF
C115
0.1uF
CB1
0.1uF/N.C
Q4
NC
2
13
R161
1
C2
220p
+
C140
47uF/16V
TP35
CB55
0.1uF
T1389E
U6
MT1389E
UQ216
2
210
3
4
5
1
212 213
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
216
28
27
30
29
32
31
43
26
25
33
34
35
36
42
41
45
39
40
46
38
37
65 64 62 61 60 59 58
52
81 77 76 55 74 73 72 71 63 83
53
54
70 57 82 75 66 68 80 69 56 67 84 85 86 87 88 89 90 91 92 93 94 95 106 96 97
204 205
98 99 100 101 102 103 104 105 107 108
162
161
160
159
158
157
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
137
138
136
135
134
133
132
131
130
129
128
126
127
125
124
123
122
121
120
118
119
117
116
115
114
113
111
112
110
109
209 215
24
214 191 189 198 197 208 207 196 211 206 203 201 202 200 199 194 195 192 184 185 182 181 180 179 186 178 177 175 173 174 164 171 170 169 168 172 167 166 165 163 193
44
47
48
49
50
51
78 79
176 183 188 190 187
DVDA
CRTPLP
DVDB
DVDC
DVDD
AGND
OSP OSN
DVDRFIP
DVDRFIN
MA
MB
MC
MD
SA
SB
SC
SD
CDFON
CDFOP
TNI
TPI
MDI1
MDI2
LDO2
LDO1
AVDD3
V2REFO
SGND
VREFO
V20
TEO
FEO
FG/ADIN1
RFLVL/RFON
CSO/RFOP
TEZISLV
OP_OUT
OP_INN
OP_INP
FOO
TRO
GPIO1/HSYNC#
TROPENPWM
PWMOUT1/ADIN0
GPIO2
FMO
DMO
HIGHA2 HIGHA3 HIGHA5 HIGHA6 DVDD3 HIGHA7 A16
IOA6
AD7 AD5 AD4 IOA18 DVSS AD2 AD1 AD0 HIGHA4 IOA0
IOA7
HIGHA0
IOOE# IOWR# A17 AD3 HIGHA1 IOCS# ALE IOA1 IOA19 IOA20 DVDD18 UWR# URD# DVDD3 UP1_2 UP1_3 GPIO6 UP1_4 UP1_5 UP1_6 UP1_7 UP3_0 RD6 UP3_1 UP3_4
ADCVDD3
ADCVSS
UP3_5 GPIO7 ICE PRST# IR INT0# DQM0# RD7 RD5 DVDD3
FS
VREF
DACVDDC
SPDIF
MC_DATA
ASDATA3
ASDATA2
ASDATA1
ASDATA0
ALRCK
ACLK
ABCK
GPIO5
DVSS
GPIO4
GPIO3
DVDD18
RA4
RA5
RA6
RA7
RA8
RA9
RA11
DVDD3
CKE
RCLK
RA3
RA2
RA1
DVDD18
RA0
RA10
BA1
BA0
RAS#
RCS#
CAS#
RWE#
DQM1
RD8
RD9
DVSS
RD11
RD10
RD12
RD13
RD14
RD15
RD0
RD2
RD1
RD3
RD4
HRFZC
IREF
SVDD3
RFGC
RFGND18
ADACVDD1
IDACEXLP
PLLVSS
RFRPAC
RFRPDC
JITFN
RFGND
RFVDD3
LPFOP
LPFIP
LPFIN
LPFON
PLLVDD3
XTALI JITFO
RFVDD18
AR/SDATA1
AVCM
ARF(SW)
ADACVSS2 ADACVSS1
APLLVSS
AL/SDATA2
APLLCAP APLLVDD
AKIN1 AKIN2
ADVCM
CVBS
R/Cr/CVBS/SY
B/Cb/SC
DACVSSA
G/Y/SY/CVBS
AADVSS
DACVDDA
DACVSSB
DACVDDB
DACVSSC
XTALO
GPIO0/VSYNC#
IOA2
DVDD18
IOA3
IOA4
IOA5
AD6 IOA21
AADVDD
ARS
ALF(CTR)
ADACVDD2
ALS/SDATA0
+ C85
100uF/16V
C35
330pF
+
C43
100uF/16V
CB20
0.1uF
C76
C
+ C89
47uF/16V
R170
15k
+
C160
220uF/10V
R96
150k
C41
100P
CB54 0.1uF
R108
NC
CB96
1uF
+ C92
47uF/16V
R26
NC
R68
1k
J9
PH-2AW
1
2
C9
0.1uF
TP28
C112
0.1uF
TP48
C108 0.047uF
C110
20pF
C13
27p
TP37
R64
10
R146 0
CB4
0.1uF
CB5
0.1uF
CB45
0.1uF
R168
100k
+
C103
10uF/16V,0805
TP27
TP49
C5
220p
C61 1uF
C15
220p
TP59
C100
0.01uF
L36
10uH(0805)
CB11
0.1uF
C111
1000pF
L14 FB
C101
2200pF
TP53
R21
10k
C82
10uF/10V-0805
L126
TP54
RN4 33x4
1 2
34
5 6
78
C58
0.1uF
TP52
CB14
0.1uF
25 26
C11
0.1uF
CB57
0.1uF
GRUNDIG Service DVD-P 7600
2 - 7

Hauptplatte – Speicher / Main Board – Memory
3
TSOP 48 pin
IIC
DRAM
FLASH
A9
A3
AD3
A1
A19
A4
AD6
AD1
A17
A16
A13
A14
AD0
A2
A6
A8
A18
AD7
A7
AD5
A12
A15
A10
AD2
AD4
A11
A5
A0
DQ[0..15]
RAS#
AD[0..7]
PCE#
CAS#
PRD#
DCKE
SDA
DQM[0..1]
MA[0..11]
DCLK
SCL
PWR#
CS#
WE#
DCS#
DCAS#
DRAS#
#EW#EWD
RAS#
CS#
CAS#
DCKE
DCLK
SDCKE
SDCLK
PCE#
PRD#
PWR#
AA20
SCL
DQ0
MA6
DCAS#
DQ5
SDCLK
DQ10
DRAS#
DBA0
DWE#
DQ1
MA9
MA4
DBA1
DQ7
MA1
MA2
DQM0
DQM1
MA10
DQ6
DQ11
DQ15
MA7
DCS#
DQ13
DQ8
SDCKE
DQ4
DQ14
DQ2
DQ3
MA3
MA5
MA0
DQ9
MA8
MA11
DQ12
DBA1
DBA0
GND
A4
A5
A6
A9
A8
A7
A12
A11
A10
A3
A2
A1
A14
A19
A18
A0
A13
A17
A16
A15
SDA
AA20
SDA2
DQM[0..1]
2
WE#2
PCE#2
CAS#2
AD[0..7]2
CS#2
DCKE
2
PRD#2
SCL
2
DCLK
2
PWR#2
MA[0..11]
2
DQ[0..15]2
RAS#2
DBA1 2
DBA0 2
GND 1,3,4,5
A4 2
A5 2
A6 2
A9 2
A7 2
A8 2
A12 2
A10 2
A11 2
A3 2
A1 2
A2 2
A18 2
A14 2
A0 2
A16 2
A13 2
A15 2
A19 2
A17 2
AA20 2
DV33
SD33
DV33
DV33
FLASH_VCC
DV33
SD33
SD33
FLASH_VCC
FLASH_VCC
FLASH_VCC
L11
FB
C137
0.1uF
U10
24C02
SO8NB
1
2
3
4 5
6
7
8
NC
NC
NC
GND SDA
SCL
WP
VCC
R33
10k
R0/NC
0805
CB40
0.1uF
C42
0.1uF
R25
680
CB10
0.1uF
U8
A29800
25
24
23
22
21
20
19
18
8
10
28
47
16
29
31
33
35
7
26
38
40
42
44
30
32
14
36
39
41
43
45
37
27
11
9
34
46
6
4
5
3
2
1
48
17
12
A0
A1
A2
A3
A4
A5
A6
A7
A8
A20
OE
BYTE
A18
D0
D1
D2
D3
A9
CE
D4
D5
D6
D7
D8
D9
WP/ACC
D11
D12
D13
D14
D15
VCC
GND1
WE
A19
D10
GND2
A10
A12
A11
A13
A14
A15
A16
A17
RESET
L10
OPEN
R138
OPEN
CB46
0.1uF
R31 33
U5
K4S641632H
TSOP54
1
2
4
12
5
7
9
8
10
46
11
13
15
16
17
18
19
35
22
23
24
25
26
14
41
29
30
31
32
33
34
36
37
38
39
40
43
42
44
52
45
47
49
48
50
51
53
54
20
21
3
6
27
28
VCC
DQ0
DQ1
VSSQ
DQ2
DQ3
VCCQ
DQ4
DQ5
VSSQ
DQ6
DQ7
DQML
WE
CAS
RAS
CS
A11
A10/AP
A0
A1
A2
A3
VCC
VSS
A4
A5
A6
A7
A8
A9
NC
CKE
CLK
DQMH
NC
VCCQ
DQ8
DQ9
VSSQ
DQ10
DQ11
VCCQ
DQ12
DQ13
DQ14
DQ15
VSS
BA0/A13
BA1/A12
VCCQ
VSSQ
VCC
VSS
CB37
0.1uF
CB49
0.1uF
R32 33
C78
0.1uF
R24
680
CB33
0.1uF
L9
FB
C44
0.1uF
RN1
33x4
1 2
3 4
5 6
7 8
GRUNDIG Service DVD-P 7600
2 - 8

Hauptplatte – Analog / Main Board – Analogue
4
AVCM
AVCM
AVCM
AR
ADCIN
AL
ADCIN
MUTE_ON
MUTE_ON
SPK_L
Y5/SC
Y3/CVBSS
SC-A
SYY6/SY
VOUT
AV_IN
SPK_LL
SPK_RR
GND
IN/OUT_SW
SPK_L
FS
AR
AL
Y3/CVBSS
Y5/SC
SC-A
IN/OUT-R
Y6/SY
Y_MNI_
V
A
ON/OFF_DCIN
IN/OUT-L
MUTE
IN/OUT_SW
R
L
SPK_R
ASDATA3
GRUNDIG Service DVD-P 7600
2 - 9

Hauptplatte / Main Board – IN/OUT
5
AUDIO/VIDEO IN/OUT
TO MONITOR
TO MONITOR
0095LOBC18A
IN/OUT-R
AV_IN
M_WIDE/NOR
TFT_+9V
A+9V
M_WIDE/NOR
WIDE/NOR
IN/OUT-R
IR
ON/OFF_DCIN
A+9V
AV_IN
SPK_RR
SPK_LL
M_Y
TFT_+9V
E_PORT_+9V
ON/OFF_DCIN
IN/OUT_SW
TV_SW
SC-A
IR
WIDE/NOR
AV_IN
GND
AV_IN
IN/OUT-L
IN/OUT-R
IN/OUT-L
IN/OUT-L
TV-AUDIO_R
TV-AUDIO_L
SPK_RR
SC-A
SPK_LL
SC-A
M_Y
MR_R IN/OUT-R
SPK_RR
POWER
SPK_R
SPK_L
AVIN/OUT_SW
SPK_LL
AV_IN
ML_L
SY
IN/OUT_SW
IN/OUT-L
TV_SW
VOUT
AV_IN
POWER
TV_SW
M_Y
SY
SPK_L
SPK_R
VOUT
AV_IN 4
SPK_RR 5
SPK_LL 5
M_Y 4
TFT_+9V 1
ON/OFF_DCIN 1
IN/OUT_SW 4
IR 2
WIDE/NOR 2
SC-A 4
AV_IN 4
GND 1,2,3,4
IN/OUT-R 4
IN/OUT-L
4
POWER 2
SY 4
SPK_L 4
SPK_R 4
VOUT 4
ON/OFF_DCIN
DV33
DV33
DV33
DV33
DV33
TP21
TP65
+
C19
47uF/16V
L7
FB
+
C8
100uF/16V
TP7
R2
75
R46
1kR107
1k
TP22
SW18
SW?X2
1
3
4
2
5
6 7
8
9
10
11
12
14
13
R218
10R
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
J7
GRUNDIG Service DVD-P 7600
2 - 10

SW1
MENU
SW2
UP
SW3
RIGHT
SW4
ENTER
SW5
LEFT
SW6
DOWN
SW7
WIDE/NOR
SW8
PAUSE
SW9
PLAY
SW10
PREV
SW11
NEXT
SW12
STOP
KEYSCANX1
KEYSCANX2
KEYSCANX3
KEYSCANX4
KEYSCAN Y1
KEYSCAN Y2
KEYSCAN Y3
1
2
3
4
5
6
7
CON7
PIN7
Keyboard
Display-Platte / Display Board
GRUNDIG Service DVD-P 7600
2 - 11

Display-Platte – Video-Prozessor / Display Board – Video Processor
VSYNC
1
AY
2
FRST
3
CSY
4
COUPS
5
CLOC
6
CMCL
7
OPSI
8
CPSC
9
OPCLS
10
CPOLC
11
CBL
12
ONPO
13
HONSY
14
HOVSY
15
MVCD
16
INNP 64
IUND 63
IUNR 62
IOEH-SCL 61
IO2H-SEL 60
ICP1 59
VSS 58
OCPO 57
OOEH 56
LCDD 55
OO2H 54
OSTH2 53 OSTH1 52
OCPH3 51 OCPH2 50 OCPH1 49
DSRST 48
DPDA 47
VSS 46
DOSCO 45
IOSCO 44
HVDO 43
OCPV 42
OSTV1 41
OSTV2 40
VSS 39
DOE1 38
DOE2 37
DOE3 36
ITST1 35
ITEST 34
IRES1 33
IMODE1
17
IMODE2
18
IMODE3
19
IVPOS1
20
IVPOS2
21
VSS
22
IHPOS1
23
IHOS2
24
IAREA-SEL
25
IMODE
26
ICPO-SEL
27
ICPH-SEL
28
IODO-SEL
29
LVDD
30
IRESS
31
IRES2
32
IC101
PVI-1004
R138 39
R137 OPEN
R143 39
R144 39
R142 39
R141 39
R122 39R
R121 39R
R123 OPEN R124 OPEN R125 OPEN R126 OPEN
R127 OPEN R128 OPEN R129 OPEN R130 561
R131 561
R132
561
R136 1K
R135 1K
R114 OPEN
R113 OPEN
R102 10K
C103
103
R112 0
R111 39R
R110 39R
R109 39R
R108 OPEN
R107 39R
R106 OPEN
R105 OPEN R104 39R
R103 OPEN
R164 100 R162 OPEN R163 100 R160 39R R159 39R
R151
BRAD 600
R157 39R
C111
104
R156 39R
C104
105
C101
1uF
C102
103
R161 OPEN
VSY-IN
VDDH
CSY
HSY
PSC
PLOS
FRP
BLK
HSYOUT
VSYOUT
VDDH
VDDL
VDDH
VDDH
R/L
U/D
VDDH
VDDL
U/D
R/L
1
2
3
4
8
7
6
5
IC401
TRAP
1
H FILTER DUT
2
VIDEO IN
3
IDENT FILTER
4
CIN
5
CDLOR
6
SW
7
CILLER FILTER
8
PEAK LIMIT
9
RGB AMP
10
ACC FILTER
11
R-Y/B-Y PHASE
12
TINT 13
VCD IN 14
APC FILTER 15
VCD OUT 16
GND 17
VEE 18
R DC 19
RD 20
G DC 21
GD 22
B DC 23
BO 24
VCC2 25
BLK 26
SUB R 27 SUB B 28
FRP 29
GN1 30 GN2 31
BRIGHT 32
S/H-R 33
S/H-G 34
S/H-B 35
SYN N 36
SYNC
37
SYN SEP
38
B IN
39
G IN
40
R IN
41
CONTRAST
42
VCC
43
F ADJ
44
CLAMP
45
AGC FILTER
46
AGC D
47
48
IC201
D3031
R222
22K
R224
56K R12
OPEN
R228
18K R230
OPEN
R232
OPEN
R234
56K
R236
56K R240
27K
R242
18K
R223
8K2
R225 27K
R227
1K5 R229
12K
R231
OPEN
R233
OPEN
R235
22K R237
18K
R243
OPEN
R241
18K
C220
104 C220
104 C221
104 C222
104 C223
104
C224
103
C225
103
C226
104 C227
104
C230
104
C229
104
R201 220
R202
OPEN
R203 10M
R204 100R
R205
1M
C205
104
C204 473
C203 680P
C202
10uF/16V
C201 105
C210 105
C209 105
C208 105
X201
4.43MHZ(PAL)
C206
103
C207
474
R206
8K2
R207
5K6
R208 OR
R213
000R
R214 1K
R56
100R
R216 680K
R218 330K
R219
OPEN
C216 682
C218
105
C217
105
C211 104 C212 10uF/20V
R215 18K
C233
10uF/16V
C234
0.1U
L203
18uH
COLOR RGB-AMP
TIN
PEAK-LIMIT
SUBR
SUBB GM1 GM2 PICTURE
CSY
HSY
FRP
BLK
CONTRAST
VGH
VGL
ROUT
GOUT
BRIGHT GM1 GM2 SUBB SUBR
BOUT
C232
104
R244
22K
BRIGHT
COLOR
COLOR
PEAK-LIMIT
RGB-AMP
TIN
VDDH
CONTRAST
VCC
C233
OPEN
L201
OPEN
R246 10K
R118 101
R119 OPEN
R120 OPEN
WIDE
R116
10K
VDDH
C114
103
PDA
OSCO
OSCI
R140 39
R139 39
VDDH
GLED1
U/D
GOUT
ROUT
R152
OPEN
R153
39
R155
OPEN
R154
39
R/L
VCC1
1
2
3 4
6
5
U301
UMZ1
R306 10K
R305
15K
R303
220K
R302
10K
R301
10K
CSY
C301
150P C302
390P
C303
OPEN
R304
39K
R307
39
VDD
VCC1
VCC1
E1
B1
C2 E2
B2
C1
C228
104
BRIGHT
VCC
R245
8K2
1
2
3
4
5
6
7
CON?
CON7
WIDE
Y
C
BR
9V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
CON4
CON26
BOUT
WIDE
C10
1U
C9
6800PF
C8
10P
C7
150P
C5
68P
C6
56P
R16
560
R15
22K
R14 15K
VR1
10K
D1
ISV215
L1
6.8UH
PAD
OSCIOSCO
LA5 22uH
LA2 18uH
CA9
0.1uF
RA2
30K
RA3
27K
CA2
4.7uF/25V
CA8
1uF
LA4 22uH
DA3
BAS85
CA22
OPEN
RA1
100
CA12
1uF
CA11
1uF
CA21
0.1uF
7.5V
VGH
LA3
18uH
LA1
18uH
CA10
OPEN
CA16
0.1uF CA14
10uF/16V
CA5
4.7uF/25VV
CA4
4.7uF/25V
12 3 4
5
ICP1
SS6608
RA5
OPEN
RA7
9K1CA18
0.1U
CA3
0.1uF
CA1
4.7uF/25V
CA15
OPEN
DA1 DA214
DA4
DA214
DA6
DA214
VRB4
50K
RT6 10K
RT1 5.6K
RT8 10K
RB42 100
RT2 47K
CA6
0.01U
C1 4.7uF/25V
VDDH
VCC
C3
100P
VGL
VGH
PLOS
RT3 10
R5
2K
R4
OPEN
VDDH
R217
300
VCC2
VCC2
C249 105
C250 105
C251 105
C104
104
C103
104
CT2
0.1uF
CA17
10uF/16V
L6 18uH
Q10
SS9969
VDD
VDD1
VDDH
L3 18uH
R1
100K
R3
100K
R6
100K
R7
100K
R8
100K
R9
100K
VCC
BOUT GOUT ROUT
C11
220PF
R238
OPEN
R239
OPEN
VR2
10K
D3031
VREF INV INV INV
BRIGHT BRIGHT BRIGHT
S/H S/H S/H
gamma gamma gamma
S/H
S/H
INT/EXTSW
MATRIX
DEMOD
R-Y
G-Y
B-Y
IDENT
F/F
PAL.SW
PHASE
SHIFT
TINT
VCO
APC
ACC.DET
ACC
REG1 REG2 REG3
TRAP
COLOR
COMP
Y/C
CLAMP
AGCAMP
AGCDET
SW SYNCSEP
BGPGEN
BGP
N
Y/C
N
P
N
from SYNC IN
IDENTFIL
TINT
APC.FH
ACC.FIL
CIN
Y/C
COMP
FADJ
VIDEO IN
BLK
FRP
S/H PULSEG
S/H PULSEG
S/H PULSEG
33
35
34
9
42
30
31
27
28
32
26
29
23 2421 2219 20
36
373848
4647
45
6
1
2
3
41
5
15
14
16
13
4
1718 43 25 8 12 7
SW
394041
EXT R IN
EXT G IN
EXT B IN
R-Y/B-Y Phase
HPF
KIL.LER
B DC DET
B OUT
G DC DET
G OUT
R DC DET
R OUT
SYNC.IN
SYNC
OUT
SYNC
SEP
FILTER
AGC
OUT
CLAMP
COLOR
TRAP
H FIL OUT
COMP
H.FILTER
V
CC1
GND
V
IE
V
CC2
KILLER FIL
P
P
10
BRIGHT
BRIGHTSUB B
SUB BRIGHT R
RGB AMPLITUDE
gamma
1
gamma 2
CONTRAST
PEAK LIMIT
γ
PICTUREAGC
GRUNDIG Service DVD-P 7600
2 - 12
