Grundig DVD-P 8600/2 User manual

PORTABLE
DVD-PLAYER
DVD-P 8600/2
en

2
CONTENTS____________________________________________
4 DVD-P 8600/2
4 Special features of your DVD player
4 Packing contents
4 Environmental note
5 Information and safety
6-11 Overview
6 The top of the DVD player
7 The left side of the DVD player
8 The right side of the DVD player
8 The front of the DVD player
9 The back of the DVD player
10-11 The remote control
12-16 Connection and preparation
12 General information
12 Connecting a television or video recorder
13 Connecting external audio/video sources
13 Connecting a digital camera or an MP3 player
14 Inserting the memory card
14 Connecting earphones or headphones
15 Connecting the power supply unit
15 Activating the remote control battery
15 Changing the battery
16 Charging the battery
17-21 Settings
17 General information
18-19 System settings
19 Language settings
20-21 Parental control
21 Restoring all default settings
22 General functions
22 Switching on and off
22 Adjusting the volume
22 Setting the picture format
22 Picture settings
23-25 Disc features
23 Recordable discs
23 DVD features
23 Audio CD features
24 MP3 CD features
24 JPEG or picture CD features
24 DivX©video CD features
25 Nero Digital™ CD features

ENGLISH
3
26-34 Disc playback
26 General information on disc playback
26 Preparing for disc playback
26-27 Disc playback
27 Displaying playback information
28 Selecting chapter, file or track
28 Fast search
29 Repeat functions
30 Disc menu functions
30 Changing the camera angle for particular scenes or passages
31 Selecting and displaying subtitles
31 Switching the dubbed language or the audio format
32 MP3 CD playback
32-33 JPEG or picture CD playback
33 DivX©video CD playback
34 Nero Digital™ CD playback
35 Additional operating modes
35 SD and USB mode
36-38 Information
36 Technical data
37 General information on laser devices
37 Cleaning discs
38 Troubleshooting
CONTENTS____________________________________________

4
Special features of your DVD player
Your DVD player is suitable for playing:
– DVDs, DVD+RWs, DVD-RWs, DVD+Rs, DVD-Rs
– Audio CDs (CD-DA)
– CD-Rs and CD-RWs with MP3 data
– CD-R and CD-RW with picture data (JPEG or picture CD)
– CD-Rs and CD-RWs with audio/video data (DivX, Nero)
The DVD player decodes digital audio signals into stereo or Dolby
Digital signals to be played back via speakers or headphones. To
do this, it converts the digital signals to analogue ones and ampli-
fies them. The DVD player has a built-in battery.
Your DVD player has been given regional code 2. DVDs with other
regional codes cannot be played.
Packing contents
1DVD-P 8600/2 portable DVD player
2Remote control with 1 lithium battery 3 V CR 2025
3Car adapter for power supply in vehicle
4Audio/video adapter AV out
5Audio/video adapter e-port AV in
6USB adapter
7Power supply unit
8Earphones
9Operating manual
10 CD ROM with operating manual
The DVD player and accessories have a bag in which you can transport the
components.
DVD-P 8600/2 ____________________________________
Subject to changes in the scope of delivery.
Environmental note
This product has been made from high-quality parts and materials which
can be re-used and recycled.
Therefore, do not throw the product away with normal household waste at
the end of its life. Take it to a collection point for recycling electrical and
electronic devices. This is indicated by this symbol on the product, in the
operating manual and on the packaging.
Please find out about collection points operated by your local authority.
Help protect the environment by recycling used products.

ENGLISH
5
INFORMATION AND SAFETY____________
Please note the following instructions when using your DVD player.
The DVD player is designed to play video and audio signals. Any other use
is expressly prohibited.
When setting up the DVD player, make sure it is sufficiently ventilated. There
must be at least 10 cm space at the side, above and at the back of the
device.
When setting up the DVD player, note that furniture is often coated with
various types of varnish and plastic, which often contain chemical additives.
These additives may cause corrosion to the feet of the unit. This may leave
stains on the surface of the furniture which can be difficult or impossible to
remove.
If the DVD player is subjected to sudden changes in temperature, for
example if it is brought in from the cold to a warm room, let it stand for at
least two hours without a disc in it. Do not connect it to the mains during this
time.
The DVD player is designed for use in dry rooms. Make quite sure that the
equipment is protected from moisture (dripping and splashing water).
The laser lens is sensitive to temperature. Therefore, do not place the DVD
player near heating units or in direct sunlight, as this will impair cooling.
Do not insert foreign objects in the disc compartment of the DVD player.
Never open the DVD player casing under any circumstances. No warranty
claims are accepted for damage caused by incorrect handling.
Do not place any vessels filled with liquid, such as vases, on the DVD player.
These may be knocked over and spill fluid on the electrical components, thus
presenting a safety risk. Do not place any objects such as burning candles
on the DVD player.
Thunderstorms are a danger to all electrical devices. Even if the DVD player
is switched off, it can be damaged by a lightning strike to the mains. Always
disconnect the power supply unit of the DVD player during a storm.
If the DVD player cannot scan DVDs or CDs perfectly, use a commercially
available cleaning CD. Other cleaning methods may damage the laser
optics.
Caution:
If you use the DVD player in your car, please note that this is only allowed
when the vehicle is not moving.
The DVD player may not be used on boats and ships.
°C2h
OK
°C
PIC.
OK
PIC. OK
PIC. OK
PIC. OK
! SERVICE !! SERVICE !! SERVICE !
PIC. OK

6

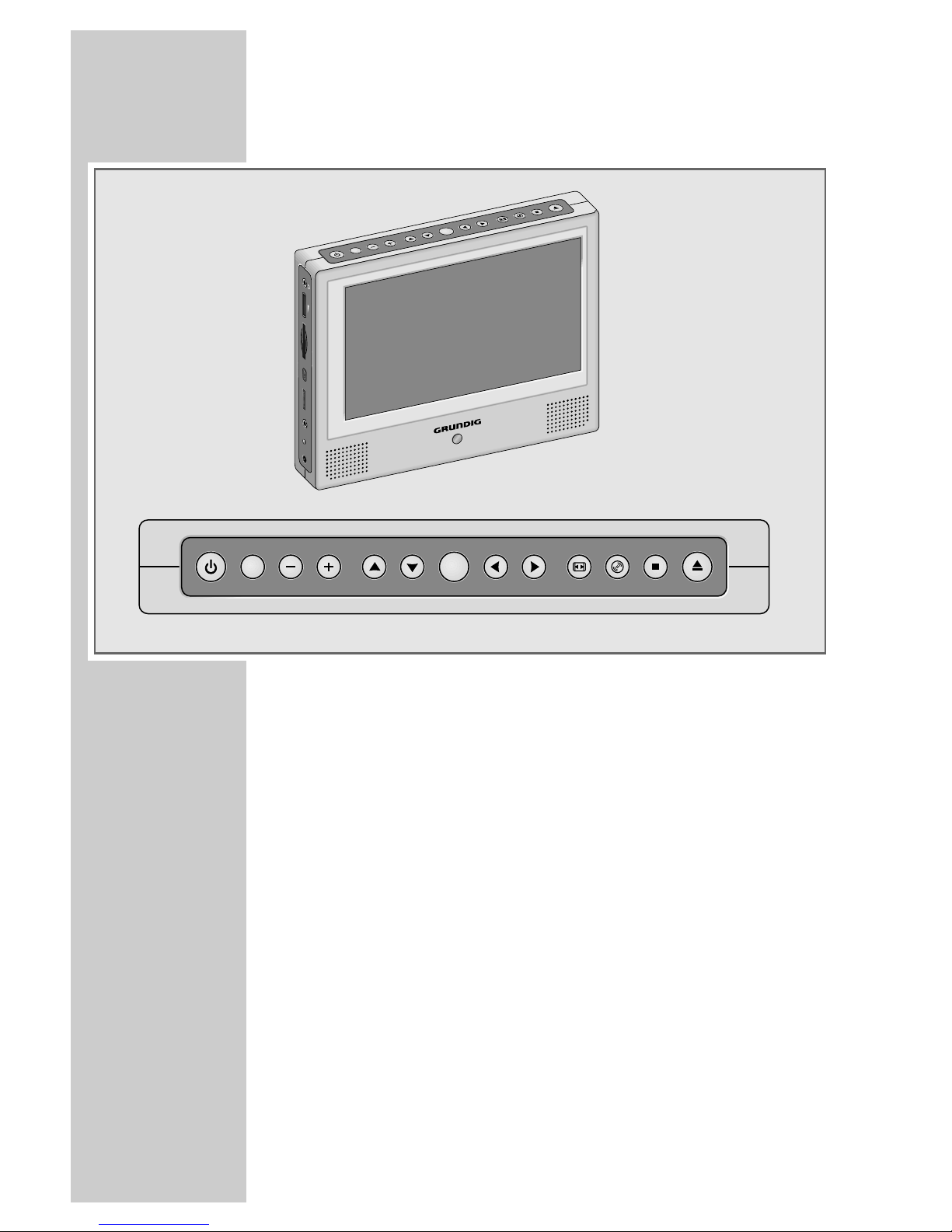

The top of the DVD player
ǼSwitches the DVD player on and off.
PIC. Opens the settings for brightness, contrast and colour.
– +Change the settings for brightness, contrast and colour.
OK In disc mode: starts playback.
In menu mode: confirms a selection in a menu.
as For navigation in menus:
AS move the cursor left/right, up/down.
qSwitches the screen display between widescreen (16:9)
and Pan Scan (4:3).
.Opens the disc menu or main menu of a DVD.
7In disc mode: interrupts or stops playback.
ɯ Ejects the disc.
OVERVIEW____________________________________________
PIC. OK
PIC.
OK
USB
E
-
PORT AV OUT
SD
DC 13,5V

ENGLISH
7
The left side of the DVD player
yConnection sockets for stereo headphones or earphones.
– The loudspeakers of the DVD player are switched off.
gAdjusts the volume.
SD Card slot for an SD memory card.
USB USB port.
E-PORT Audio/video input.
AV OUT Audio/video output.
DC 13,5 V Connection socket for the cable of the main power supply.
•Charging display (LED). Lights up green when charging,
lights up red when operating.
OVERVIEW____________________________________________
PIC. OK
USB
E
-
PORT AV OUT
SD
DC 13,5V

8
The right side of the DVD player
Disc compartment Slot for inserting a disc.
The front of the DVD player
Screen LCD screen.
IR Infrared sensor for remote control signals.
OVERVIEW____________________________________________
PIC. OK

ENGLISH
9
The back of the DVD player
Stand Pull-out stand for supporting the DVD player.
OVERVIEW____________________________________________
PIC.
OK

10
OVERVIEW____________________________________________

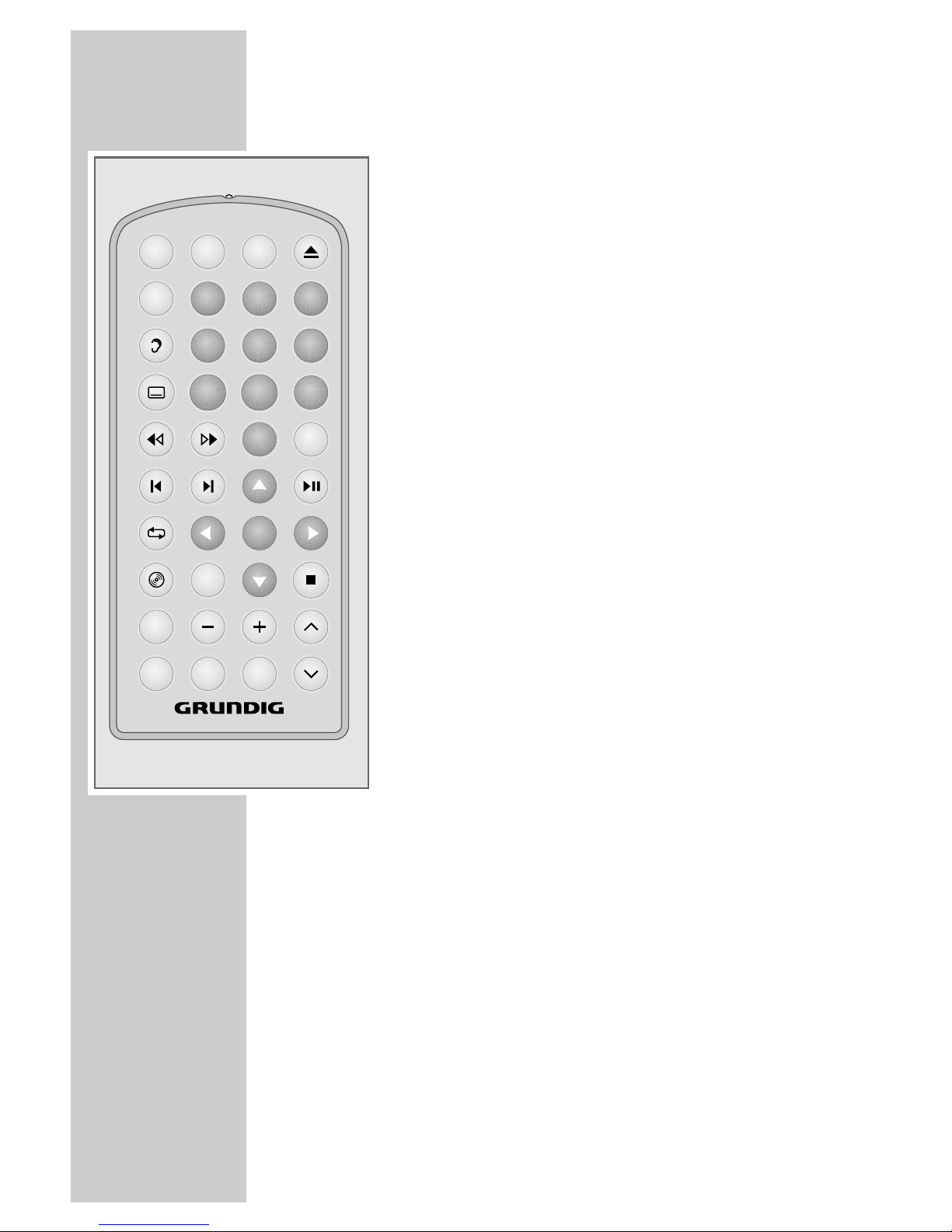

The remote control
ANGLE Selects different camera angles of certain
passages of a DVD during playback.
DVD/E-Port Switches between disc and e-port (AV input)
input sources.
DVD/SD-USB Switches between the disc, memory card
and USB input sources.
ɯ Ejects the disc.
DISP. Switches the on-screen display between
different information about the number of
chapters or tracks and playing time.
dSwitches between the various dubbed
languages.
yFor selecting and displaying subtitles on the
DVD during playback.
m, In disc mode: starts a forwards or back-
wards search at different speeds.
1 ... 0 Numerical buttons for various entries.
– – Activates the entry of tens.
56 In disc mode: select the previous or next
track/section during playback.
sII In disc mode: starts and pauses playback
(freeze-frame).
bIn DVD mode: for repeating a chapter,
track or the entire DVD.
In CD mode: for repeating a track,
a file (MP3), all tracks or all files (MP3).
.Opens the disc menu or main menu of a
DVD.
SETUP Opens the setup menu;
for exiting the setup menu.
5
SYSTEM AUTO
4
PROG
AUTO
SETUP
OK
0
- -
9
78
6
123
ANGLE DVD/
E-Port
DVD/
SD-USB
SKIP/
SEARCH
SYSTEM
PIC.
DISP.
Tele Pilot RC 5 D

ENGLISH
11
7In disc mode: interrupts or stops playback.
as For navigation in menus:
AS move the cursor left/right, up/down.
OK In menu mode: confirms a selection in a
menu.
PIC. Opens the settings for brightness, contrast
and colour.
– +Change the settings for brightness, contrast
and colour.
AUTO This has no function.
SKIP/ This has no function.
SEARCH
SYSTEM This has no function.
ɶPROG ʺThis has no function.
OVERVIEW____________________________________________
5
SYSTEM AUTO
4
PROG
AUTO
SETUP
OK
0
- -
9
78
6
123
ANGLE DVD/
E-Port
DVD/
SD-USB
SKIP/
SEARCH
SYSTEM
PIC.
DISP.
Tele Pilot RC 5 D

12
General information
It is essential that you switch off all devices that you wish to connect
to each other and unplug the power supply.
Connecting a television or video recorder
1Switch off the DVD player.
2Insert the plug of the audio video adapter supplied into the
»AV OUT« socket on the left side of the DVD player.
3Insert the plug of a standard commercial audio video cable into
the socket of the audio video adapter.
4Insert the plug of the audio cable into the corresponding input
(AV IN) of the external device.
CONNECTION/PREPARATION __________
PIC.
OK
USB
E
-
PORT AV OUT
SD
DC 13,5V
VOLPR
VIDEO
AUDIO
R
L

ENGLISH
13
Connecting external audio/video sources
1Switch off the DVD player.
2Connect the »E PORT« interface on the left side of the DVD
player with the corresponding socket (AV out) in the external
device using the audio/video adapter e-port AV.
Connecting a digital camera or an MP3 player
1Switch off the DVD player.
2Insert the digital camera or MP3 player cable into the »USB«
interface on the left of the DVD player.
Note:
To make the cable connection use the USB adapter cable sup-
plied if necessary.
CONNECTION/PREPARATION __________
PIC. OK
USB
E
-
PORT AV OUT
SD
DC 13,5V

14
Inserting the memory card
The DVD player takes SD memory cards.
1Switch off the DVD player.
2Insert the card carefully into the »SD« card slot on the left of the
device with the contacts facing to the rear until it latches into
place.
Caution:
– Do not use excessive force when inserting the card. Only
apply slight pressure.
– The memory cards are resistant to dirt and moisture, but may
only be inserted into the DVD player in a dry and clean
condition.
– Never remove memory cards during operation. This can
damage the memory card. This type of damage will invali-
date your warranty.
Removing a memory card
1Switch off the DVD player.
2Remove the memory card from the card slot by pressing the
card inwards slightly until the latch is released. Then pull out the
card.
Connecting earphones or headphones
You can also operate the DVD player with headphones or ear-
phones. The loudspeakers are switched off automatically.
Adjust the volume of the headphones or earphones with »g« on
the left of the device.
1Insert the jack plug of the headphones or earphones into the
»y« socket on the left of the DVD player.
CONNECTION/PREPARATION __________
USB
E
-
PORT AV OUT
SD
DC 13,5V
PIC.
OK
USB
SD

ENGLISH
15
Connecting the power supply unit
You can run the DVD player using the power unit supplied or with
the built-in rechargeable battery.
If the DVD player is supplied with voltage from the mains when
switched on the in-built battery is automatically switched off.
Caution:
Always switch the DVD player off before connecting or discon-
necting to the mains.
Only use the power unit supplied. Using another power supply
unit could lead to malfunction and damage.
Unplug the power supply unit if you are not using it.
1Insert the power supply unit into the »DC 13,5 V« socket on
the left of the DVD player.
2Plug the power supply unit into the wall socket.
Caution:
The only way to disconnect the device from the mains supply is
to unplug the adapter.
Activating the remote control battery
1When using it for the first time, activate the remote control bat-
tery by pulling on the film protruding from the battery holder.
Changing the battery
1Pull out the battery holder.
2When inserting the battery (3 V, lithium), make sure the positive
terminal (+) is facing upwards.
3Push the battery holder back into the remote control until it
latches into place.
Note:
If the DVD player no longer reacts properly to remote control
commands, the battery may be flat. Always remove used bat-
teries. The manufacturer accepts no liability for damage caused
by leaking batteries.
Environmental note:
Batteries, including those which contain no heavy metal, should
not be disposed of with household waste. Please dispose of
used batteries in an environmentally sound manner. Find out
about the legal regulations which apply in your area.
CONNECTION/PREPARATION __________
PIC.
USB
E
-
PORT AV OUT
SD
DC 13,5V
PIC. OK
USB
E
-
PORT AV OUT
SD
DC 13,5V
12 V

16
Charging the battery
The DVD player has a built-in lithium-ion battery.
1Insert the power supply unit into the »DC 13,5 V« socket on
the left of the DVD player.
2Plug the power supply unit into the wall socket.
3Switch the DVD player off with »Ǽ« on the top of the device.
– The rechargeable battery is charging. The LED lights up green
on the DVD player while charging. When the battery is fully
charged, the charging display lamp goes out.
Note:
The charging time is 5 to 6 hours.
CONNECTION/PREPARATION __________
PIC.
USB
E
-
PORT AV OUT
SD
DC 13,5V

ENGLISH
17
General information
The settings required for use can be made in the setup menu. Open
the setup menu on the screen of the DVD player using the remote
control. Make the settings with the remote control.
Switching on
1Press »Ǽ« on the top of the device to switch the DVD player on.
Selecting the menu language
Eight languages are available in the setup menu. The default setting
is »English«.
1Press »SETUP« to open the setup menu.
2Select »General Setup Page« by pressing »a« or »s«.
3Select »OSD Lang« with »A« or »S« and press »s« to
switch to the right column.
4Select your language using »A« or »S« and press »OK« to
confirm.
Navigating in the setup menu
1Press »SETUP« to open the setup menu.
2Select the menu item, e.g. »General Setup Page« by pressing
»a« or »s«.
3Select the line, e.g. »TV Display« using »A« or »S« and
change to the right column by pressing »s«.
4Make the setting, e.g. »Normal/PS«, with »A« or »S« and
press »OK« to confirm.
5Press »SETUP« to quit the setup menu;
or
exit the »General Setup Page« menu item by pressing »a«
and press »a« or »s« to change to the next menu item;
or
select the »Exit Setup Menu« menu item with »a« or »s« and
press »OK« to confirm.
SETTINGS ______________________________________________
- - General Setup Page - -
Set TV Display Mode
TV Display PS
Angle Mark ON
Screen Saver ON
Last Memory ON
DivX VOD
OSD Lang ENG
Normal/PS
Normal/LB
Wide
x
x
- - General Setup Page - -
Set OSD Language English
TV Display PS
Angle Mark ON
Screen Saver ON
Last Memory ON
DivX VOD
OSD Lang ENG
English
Croatian
Polish
Bulgarian
Rumanian
Slovakian
Czech
x
x

18
System settings
Setting the picture format
1Select the »General Setup Page« menu item by pressing »a«
or »s«.
2Select »TV Display« with »A« or »S« and change to the
right column with »s«.
3Press »A« or »S« to select the setting and press »OK« to
confirm.
– »Normal/PS« (4:3). Wide-screen pictures are cropped to the
left and right.
– »Normal/LB« (4:3). Wide screen format with black bars at
the top and bottom.
– »Wide« (16:9) for widescreen format. »Wide« is the default
setting.
Displaying and hiding the multi-angle symbol
This function allows a scene to be played from various camera
angles (multi-angle technology). The current angle and the total
number of angles are displayed by the multi-angle-symbol. Not all
DVD players have this function.
1Select the »General Setup Page« menu item by pressing »a«
or »s«.
2Select »Angle Mark« with »A« or »S« and press »s« to
switch to the right column.
3Press »A« or »S« to select »On« or »Off« and press »OK«
to confirm.
– »On« is the default setting.
Activating and deactivating the screen saver
1Select the »General Setup Page« menu item by pressing »a«
or »s«.
2Select »Screen Saver« with »A« or »S« and press »s« to
switch to the right column.
3Press »A« or »S« to select »On« or »Off« and press »OK«
to confirm.
– The default setting is »On«.
SETTINGS ______________________________________________
Set Angle Markl
TV Display PS
Angle Mark ON
Screen Saver ON
Last Memory ON
DivX VOD
OSD Lang ENG
On
Off
Screen Saver
TV Display PS
Angle Mark ON
OSD Lang ENG
Last Memory ON
DivX VOD
Screen Saver ON
Off
On
-- General Setup Page --
-- General Setup Page --
-- General Setup Page --
Set TV Display Mode
TV Display PS
Angle Mark ON
Screen Saver ON
OSD Lang ENG
Normal/PS
Normal/LB
Wide
Last Memory ON
DivX VOD
x
x
x
x
x
x

ENGLISH
19
Switching the last position memory function on
and off
If the memory function is switched on, the DVD player returns to the
last position where the disc was stopped when it is switched on
again.
1Select the »General Setup Page« menu item by pressing »a«
or »s«.
2Select »Last Memory« with »A« or »S« and press »s« to
switch to the right column.
3Press »A« or »S« to select »On« or »Off« and press »OK«
to confirm.
– »On« is the default setting.
Language settings
The default for all language settings is »English«. You can only
select the »Preference Page« in stop mode.
Setting the preferred dubbing language
1Select the »Preference Page« menu item by pressing »a« or
»s«.
2Select »Audio« with »A« or »S« and press »s« to switch to
the right column.
3Select your language using »A« or »S« and press »OK« to
confirm.
Setting the preferred subtitle language
1Select the »Preference Page« menu item by pressing »a« or
»s«.
2Select »Subtitle« with »A« or »S« and press »s« to switch
to the right column.
3Select your language using »A« or »S« and press »OK« to
confirm.
Setting the preferred disc menu language
1Select the »Preference Page« menu item by pressing »a« or
»s«.
2Select »Disc Menu« with »A« or »S« and press »s« to
switch to the right column.
3Select your language using »A« or »S« and press »OK« to
confirm.
SETTINGS ______________________________________________
-- General Setup Page --
Set Last Memory State
TV Display PS
Angle Mark ON
Screen Saver ON
OSD Lang ENG
Last Memory ON
DivX VOD
On
Off
x
x
- - Preference Page - -
Preferred Audio Language
Audio ENG
Subtitle Off
Parental
Default
Disc Menu ENG
English
Croatian
Polish
Bulgarian
Rumanian
Slovakian
Czech
- - Preference Page - -
Preferred Subtitle Language
Audio ENG
Subtitle Off
Parental
Default
Disc Menu ENG
Croatian
English
Polish
Bulgarian
Rumanian
Slovakian
Off
Czech
- - Preference Page - -
Preferred Menu Language
Audio ENG
Subtitle Off
Parental
Default
Disc Menu ENG
Polish
Bulgarian
Rumanian
Slovakian
Czech
English
Croatian
x
x
x
x
x
x

20
Parental control
Age restrictions for viewing can be set on some DVDs. Parental con-
trol means you can define age limits on several levels. If the DVD is
not suitable for the defined age group, then the DVD player will not
play the DVD.
You can activate and deactivate parental control using a personal
code. If you have forgotten your personal code, enter the default
code: »3308«.
Although the cover of the DVD may display an age restriction, some
DVDs are not coded appropriately. Parental control does not func-
tion on such DVDs.
Note:
You can only select the »Preferred settings page« in stop
mode.
Setting parental control
1Select the »Preferred settings page« menu item by pressing
»a« or »s«.
2Select »Locking function« with »A« or »S« and press »s«
to switch to the right column.
3Make the setting with »A« or »S« and press »OK« to con-
firm.
– The following settings are available:
1 Kid Safe: all DVDs.
2: G: for all age groups.
3: PG: parental guidance suggested.
4: PG 13: parental guidance cautioned.
5: PG R: parental guidance strongly cautioned.
6: R: restricted viewing.
7: NC 17: no viewing under 17.
8 Adults: adults only.
4Make the setting with »A« or »S« and press »OK« to con-
firm.
5Enter the four-digit code »3308«, or your personal code if you
have it, using the numerical buttons »1 ... 0« on the remote
control and press »OK« to confirm.
Note:
The »3308« code opens the settings for parental control even if
the code was changed. This is important if you have forgotten
your personal code.
SETTINGS ______________________________________________
xxxx
Password
OK
OK
- - Preference Page - -
Set Parental Control
Audio ENG
Subtitle Off
Parental
Default
Disc Menu ENG
1 Kid Safe
2 G
4 PG 13
5 PGR
6 R
7 NC17
8 Adult
3 PG
x
x
x
x
