Grundig DVD-P 7600 User manual

PORTABLE
DVD-PLAYER
DVD-P 7600
en

2
CONTENTS____________________________________________
4 DVD-P 7600
4 Special features of your DVD player
4 Packing contents
4 Environmental note
5 Information and safety
6-10 Overview
6 The front of the DVD player
8 The left side of the DVD player
8 The right side of the DVD player
9-10 The remote control
11-15 Connection and preparation
11 General information
11 Connecting a television or video recorder
12 Connecting a camcorder
12 Connecting earphones or headphones
13 Connecting the power supply unit
13 Activating the remote control battery
13 Replacing the remote control battery
14 Installing the rechargeable battery
14-15 Precautions when using the rechargeable battery
16-21 Settings
16 General information
17-18 System settings
18 Picture settings
19 Language settings
20-21 Parental control
21 Restoring all default settings
22 General functions
22 Switching on and off
22 Adjusting the volume
22 Setting the screen format manually
22 Setting the picture brightness manually
23-24 Disc features
23 Recordable discs
23 DVD features
23 Audio CD features
24 MP3 CD features
24 JPEG or picture CD features
24 DivX©Video CD features

ENGLISH
3
25-32 Disc playback
25 General information on disc playback
25 Preparing for disc playback
25-26 Disc playback
26-27 Displaying playback information
27 Selecting chapter, file or track
27 Fast search
28-29 Repeat functions
29 Disc menu functions
29 Switching the dubbed language or the audio format
30 Selecting and displaying subtitles
30 Changing the camera angle for particular scenes or passages
31 MP3 CD playback
31 JPEG or picture CD playback
31 DivX©Video CD playback
33-35 Information
33 Technical data
34 General information on laser devices
34 Cleaning discs
35 Troubleshooting
CONTENTS____________________________________________

4
Special features of your DVD player
Your DVD player is suitable for playing:
– DVDs, DVD+RWs, DVD-RWs, DVD+Rs, DVD-Rs
– Audio CDs (CD-DA)
– CD-Rs and CD-RWs with MP3 data
– CD-Rs and CD-RWs with picture data (JPEG and picture CDs)
– CD-Rs and CD-RWs with video data (DivX)
The DVD player decodes digital audio signals into stereo or Dolby
Digital signals to be played back via speakers or headphones.
To do this, it converts the digital signals to analogue ones and
amplifies them.
Your DVD player has been given regional code 2. DVDs with other
regional codes cannot be played.
Packing contents
1DVD-P 7600 portable DVD player
2Remote control
31 lithium battery 3 V CR 2025 for the remote control
4Rechargeable battery
5Car adapter for power supply in vehicle
6Audio/video adapter
7Power supply unit
8Earphones
9Operating manual
The DVD player and accessories have a bag in which you can transport the
components.
DVD-P 7600_________________________________________
Subject to changes in the scope of delivery.
Environmental note
This product has been made from high-quality parts and materials which
can be re-used and recycled.
Therefore, do not throw the product away with normal household waste at
the end of its life. Take it to a collection point for recycling electrical and
electronic devices. This is indicated by this symbol on the product, in the
operating manual and on the packaging.
Please find out about collection points operated by your local authority.
Help protect the environment by recycling used products.

ENGLISH
5

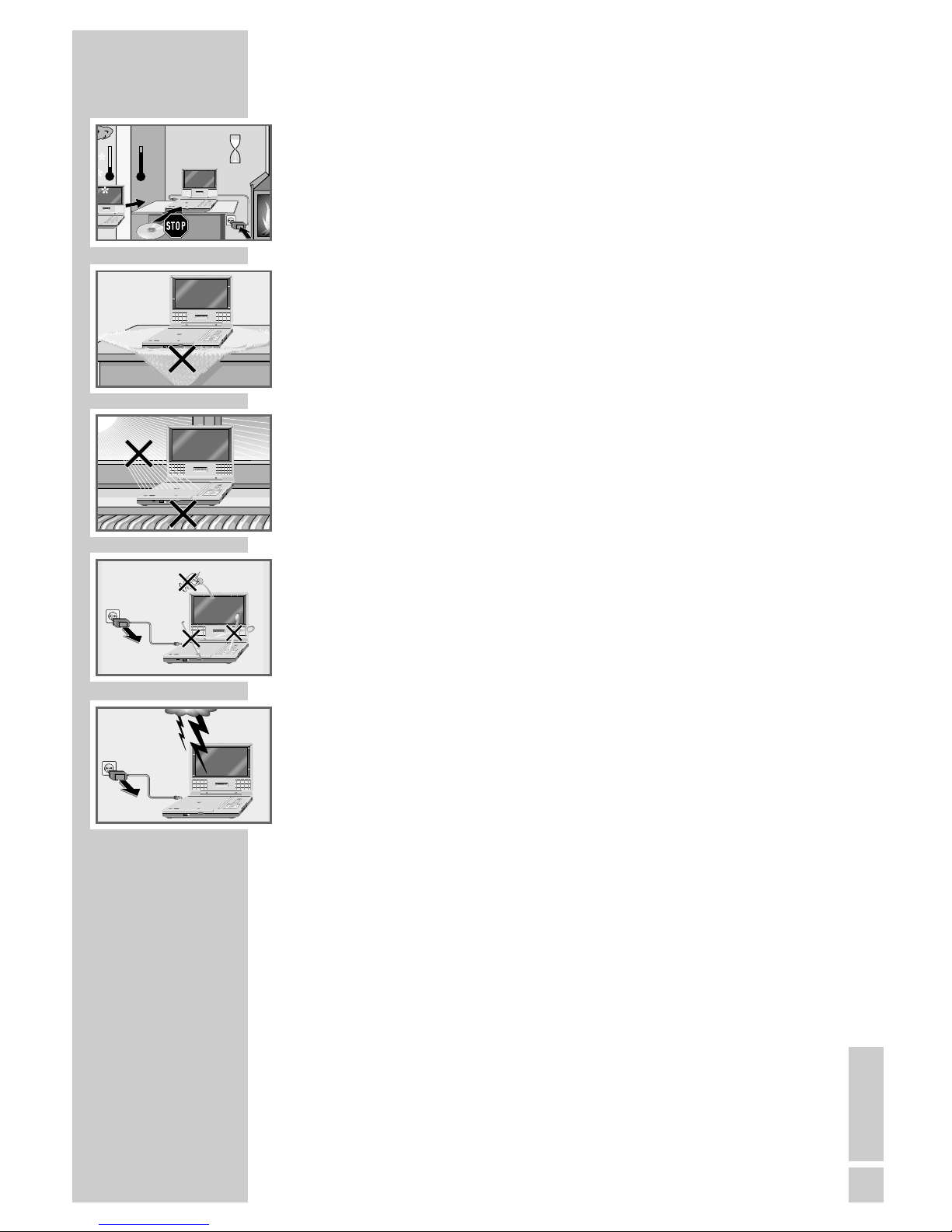

INFORMATION AND SAFETY____________
Please note the following instructions when using your DVD player.
The DVD player is designed to play video and audio signals. Any other use
is expressly prohibited.
When setting up the DVD player, make sure it is sufficiently ventilated. There
must be at least 10 cm space at the side, above and at the back of the
device.
When setting up the DVD player, note that furniture is often coated with
various types of varnish and plastic, which often contain chemical additives.
These additives may cause corrosion to the feet of the unit. This may leave
stains on the surface of the furniture which can be difficult or impossible to
remove.
If the DVD player is subjected to sudden changes in temperature, for
example if it is brought in from the cold to a warm room, let it stand for at
least two hours. Do not connect it to the mains during this time.
The DVD player is designed for use in dry rooms. Make quite sure that the
equipment is protected from moisture (dripping and splashing water).
The laser lens is sensitive to temperature. Therefore, do not place the DVD
player near heating units or in direct sunlight, as this will impair cooling.
Do not insert foreign objects in the disc compartment of the DVD player.
Never open the DVD player casing under any circumstances. No warranty
claims are accepted for damage caused by incorrect handling.
Do not place any vessels filled with liquid, such as vases, on the DVD player.
These may be knocked over and spill fluid on the electrical components, thus
presenting a safety risk. Do not place any objects such as burning candles
on the DVD player.
Thunderstorms are a danger to all electrical devices. Even if the DVD player
is switched off, it can be damaged by a lightning strike to the mains. Always
disconnect the power supply unit of the DVD player during a storm.
If the DVD player cannot scan DVDs or CDs perfectly, use a commercially
available cleaning CD. Other cleaning methods may damage the laser
optics. Always keep the disc compartment closed to prevent dust from
collecting on the laser optics.
Caution:
If you use the DVD player in your car, please note that this is only allowed
when the vehicle is not moving.
The DVD player may not be used on boats and ships.
°C2h
°C
EN
POWER OPEN
POWER OPEN
POWER OPEN
POWER OPEN
! SERVICE !! SERVICE !! SERVICE !
POWER OPEN

6
The front of the DVD player
Screen LCD screen.
ISwitches the LCD screen on and off.
MENU Opens the disc menu or main menu of a DVD.
WIDE Switches the screen display between widescreen (16:9)
and Pan Scan (4:3).
ŀ(Play) OK In disc mode: starts playback.
In menu mode: confirms a selection in a menu.
as For navigation in menus:
AS move the cursor left/right, up/down.
5a Selects the previous track or section during playback.
s6 Selects the next track or section during playback.
7In disc mode: interrupts or stops playback.
PRESS Close the disc compartment.
OVERVIEW____________________________________________
WIDE
OK
MENU
PRESS

ENGLISH
7
OVERVIEW____________________________________________
POWER Mode indicator. Lights up red during operation.
ıOPEN Opens the lid of the disc compartment.
IR Infrared sensor for remote control signals.
POWER OPEN
POWER OPEN

8
The left side of the DVD player
DC 9-12 V Connection socket for the cable of the main power supply.
Ó
A/V Audio/video input or output.
IN OUT Sliding switch. Switches the audio/video socket to input or
output signals.
E-PORT No function.
POWER Sliding switch. Switches the DVD player on and off.
OFF ON
The right side of the DVD player
– BRIGHT +Changes the brightness of the picture.
VOL. Adjusts the volume.
|
y1Connection sockets for two stereo headphones or earphones.
y2
CHARGE Charge indicator. Lights up red while charging the
rechargeable batteries.
OVERVIEW____________________________________________
A/V IN OUT
DC 9-12V ONOFF POWER
E
- PORT
BRIGHT. VOL. 21 CHARGE

ENGLISH
9
The remote control
SETUP Opens the setup menu;
exits the setup menu.
DISPLAY Switches the on-screen display between
information about the number of chapters or
tracks and playing time.
ZOOM Zooms in on scenes during playback.
SUB For selecting and displaying subtitles on the
DVD during playback.
5a In disc mode: selects the previous track or
section during playback.
s6 In disc mode: selects the next track or section
during playback.
ENTER In menu mode: confirms a selection in a menu.
WIn disc mode: starts a forwards search at
different speeds.
In menu mode: moves the cursor to the right.
QIn disc mode: starts a reverse search at
different speeds.
In menu mode: moves the cursor to the left.
ŃIn menu mode: moves the cursor upwards.
ĽIn menu mode: moves the cursor down.
7In disc mode: interrupts or stops playback.
1 ... 0 Numerical buttons for various entries.
REPEAT A-B In disc mode: marks a section, which is then
constantly repeated.
REPEAT In DVD mode: for repeating a chapter, track
1/All or the entire DVD.
In CD mode: for repeating a track, a file
(MP3), all tracks or all files (MP3).
OVERVIEW____________________________________________
SETUP
DISPLAY
ZOOM SUB
A-B
1/AII
ENTER
MENU
AUDIO
ANGLE
0
1
4
7
2
5
8
3
6
9
REPEAT

10
OVERVIEW____________________________________________
MENU Opens the disc menu or main menu of a
DVD.
AUDIO Switches between the various dubbed
languages.
ANGLE Selects different camera angles of certain
passages of a DVD during playback.
ıII In disc mode: starts and pauses playback
(freeze-frame).
SETUP
DISPLAY
ZOOM SUB
A-B
1/AII
ENTER
MENU
AUDIO
ANGLE
0
1
4
7
2
5
8
3
6
9
REPEAT

ENGLISH
11
General information
It is essential that you switch off all devices that you wish to connect
to each other and unplug the power supply.

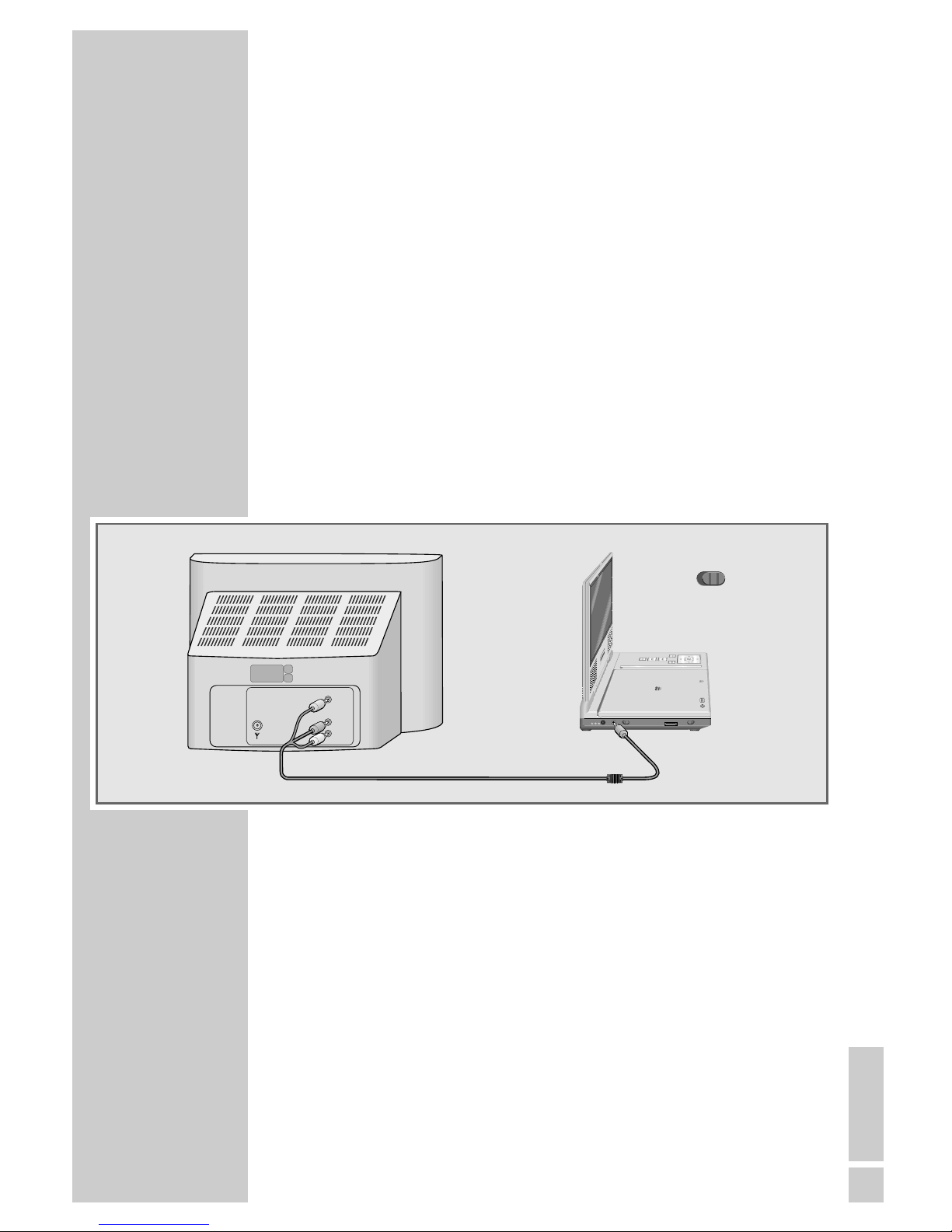

Connecting a television or video recorder
1Switch off the DVD player.
2Insert the plug of the audio video adapter supplied into the
»A/V« socket on the left side of the DVD player.
3Insert the plug of a standard commercial audio video cable into
the socket of the audio video adapter.
4Insert the plug of the audio cable into the corresponding input
(AV IN) of the external device.
5Set the »IN OUT« switch (left side of the device) of the DVD
player to »OUT«.
CONNECTION AND PREPARATION
A/V IN OUT
DC 9-12V ONOFF POWER
E
- PORT
L
AUDIO
INPUT
R
VIDEO
INPUT
IN OUT

12
Connecting a camcorder
1Switch off the DVD player.
2Insert the plug of the audio video adapter supplied into the
»A/V« socket on the left side of the DVD player.
3Insert the plug of a standard commercial audio video cable into
the socket of the audio video adapter.
4Insert the plug of the audio video cable into the corresponding
output (AV OUT) of the camcorder.
5Set the »IN OUT« switch (left side of the device) of the DVD
player to »IN«.
Connecting earphones or headphones
You can also operate the DVD player with one or two headphone or
earphone sets. The loudspeakers are switched off automatically.
The volume of the headphones or earphones can be regulated with
»VOL. |« (on the right of the device).
1Insert the headphones or earphones into socket »y1« or
»y2« of the DVD player (right side of the device).
CONNECTION AND PREPARATION
A/V IN OUT
DC 9-12V ONOFF POWER
E
- PORT
IN OUT
BRIGHT. VOL. 21 CHARGE

ENGLISH
13
Connecting the power supply unit
You can run the DVD player using the power unit or the recharge-
able battery supplied.
If the DVD player is supplied with voltage from the mains when
switched on the rechargeable battery remains switched off auto-
matically.
Caution:
Always switch the DVD player off before connecting to or dis-
connecting from the mains.
Only use the power unit supplied. Using another power supply
unit could lead to malfunction and damage.
Unplug the power supply unit if you are not using it.
1Plug the power supply unit into the »DC 9-12 V Ó«
socket of the DVD player.
2Plug the power supply unit into the wall socket.
Caution:
The only way to completely disconnect the device from the
mains is to pull out the plug.
Activating the remote control battery
1When using it for the first time, activate the remote control bat-
tery by pulling out the film protruding from the battery holder.
Replacing the remote control battery
1Pull out the battery holder.
2When inserting the battery (3 V, lithium), make sure the positive
terminal (+) is facing upwards.
3Push the battery holder back into the remote control until it
latches into place.
Note:
If the DVD player no longer reacts properly to remote control
commands, the battery may be flat. Always remove used
batteries. The manufacturer accepts no liability for damage
caused by leaking batteries.
Environmental note:
Batteries, including those which contain no heavy metal, should
not be disposed of with household waste. Please dispose of
used batteries in an environmentally sound manner. Find out
about the legal regulations which apply in your area.
CONNECTION AND PREPARATION
A/V IN OUT
DC 9-12V ONOFF POWER
E - PORT
A/V IN OUT
DC 9-12V ONOFF POWER
E - PORT
12 V

14
Installing the rechargeable battery
1Slide the rechargeable battery in its brackets and guide into the
corresponding recesses at the bottom and the back of the DVD
player until they engage.
Removing the rechargeable battery
1Press the locking mechanism »PUSH« on the rechargeable
battery and remove it.
Charging the battery
1Plug the power supply unit into the »DC 9-12 V Ó«
socket of the DVD player.
2Plug the power supply unit into the wall socket.
3Press »POWER OFF ON« (left side of the device) to switch off
the DVD player.
– The rechargeable battery is charging. During the charging
process, the loading display on the rechargeable battery
glows red. When the battery is fully charged, the charging
display lamp goes out.
Note:
The charging time is 5 to 6 hours.
Precautions when using the rechargeable battery
Observe these safety measures when charging the rechargeable
battery to prevent short circuits, overheating, smoke formation, fire
and damage to the device:
Caution:
– Do not dismantle the rechargeable battery. Do not touch the
contacts of the rechargeable battery with metal objects.
– Do not expose the rechargeable battery to direct sunlight
or leave it on the car dashboard or other areas where high
temperatures may arise – danger of explosions and fire.
– Protect the battery against water, fire and heat.
– Only use the adapter supplied to charge the rechargeable
battery.
– This battery has been especially designed for your DVD player.
Do not use it for other devices.
– Do not drop the battery or shake it vigorously.
– Keep the battery away from children.
– Fluid can emerge from the battery that can harm your eyes.
If any of this fluid should come into contact with your eyes,
rinse your eyes immediately with flowing water and seek
medical attention as soon as possible.
If the fluid comes into contact with your skin or clothing, rinse
with water immediately.
CONNECTION AND PREPARATION

ENGLISH
15
Caution:
– Remove the battery and store it in a cool place.
– Do not charge the rechargeable battery any longer than
necessary.
– Protect the rechargeable battery against smoke, vapour,
liquids and dust.
– If the battery is used in temperatures under 0 °C or above
35 °C the operating time may reduce.
CONNECTION AND PREPARATION

16
General information
The settings required for use can be made in the setup menu. Open
the setup menu on the screen of the DVD player using the remote
control. Make the settings with the remote control.
Switching on
1Press »POWER OFF ON« (left side of the device) to switch on
the DVD player.
Selecting the menu language
Four languages are available in the setup menu. The default setting
is »English«.
1Press »SETUP« to open the setup menu.
2Select the »General Setup Page« by pressing »Q« or
»W«.
3Select »OSD Language« with »A« or »S« and press »W«
to switch to the right column.
4Select your language using »A« or »S« and press »ENTER«
to confirm.
Navigating in the setup menu
1Press »SETUP« to open the setup menu.
2Select the menu item, e.g. »General Setup Page«, by pressing
»Q« or »W«.
3Select the line, e.g. »TV Display«, using »A« or »S« and
switch to the right column by pressing »W«.
4Make the setting, e.g. »Normal/PS«, with »A« or »S« and
press »ENTER« to confirm.
5Press »SETUP« to exit the setup menu;
or
exit the »General Setup Page« menu item by pressing »Q«
and press »Q« or »W« to change to the next menu item;
or
select the »Exit Setup Menu« menu item with »Q« or »W«
and press »ENTER« to confirm.
SETTINGS ______________________________________________
- - General Setup Page - -
Set OSD Language
TV Display PS
Angle Mark ON
Screen Saver ON
Last Memory ON
DivX (R) VOD
OSD Language ENG English
German
Spanish
Portuguese
x
x
- - General Setup Page - -
Set TV Display Mode
TV Display PS
Angle Mark On
Screen Saver On
Last Memory On
DivX (R) VOD
OSD Language ENG
Normal/PS
Normal/LB
Wide
x
x

ENGLISH
17
System settings
Setting the picture format
1Select »General Setup Page« by pressing »Q« or »W«.
2Select »TV Display« using »A« or »S« and switch to the
right column by pressing »W«.
3Press »A« or »S« to select the setting and press »ENTER« to
confirm.
– »Normal/PS« (4:3). Wide-screen pictures are cropped to the
left and right.
– »Normal/LB« (4:3). Wide screen format with black bars at
the top and bottom.
– »Wide« (16:9) for widescreen format. »Wide-screen« is the
default setting.
Displaying and hiding the multi-angle symbol
This function allows a scene to be played from various camera
angles (multi-angle technology). The current angle and the total
number of angles are displayed by the multi-angle-symbol. Not all
DVD players have this function.
1Select »General Setup Page« by pressing »Q« or »W«.
2Select »Angle Mark« with »A« or »S« and press »W« to
switch to the right column.
3Press »A« or »S« to select »On« or »Off« and press
»ENTER« to confirm.
– »On« is the default setting.
Activating and deactivating the screen saver
1Select »General Setup Page« by pressing »Q« or »W«.
2Select »Screen Saver« with »A« or »S« and press »W« to
switch to the right column.
3Press »A« or »S« to select setting »On« or »Off« and press
»ENTER« to confirm.
– »On« is the default setting.
SETTINGS ______________________________________________
Set Angle Mark
TV Display PS
Angle Mark On
Screen Saver On
Last Memory On
DivX (R) VOD
OSD Language ENG
On
Off
- - General Setup Page - -
- - General Setup Page - -
Set TV Display Mode
TV Display PS
Angle Mark On
Screen Saver On
OSD Language ENG
Normal/PS
Normal/LB
Wide
Last Memory On
DivX (R) VOD
x
x
x
x
Screen Saver
TV Display PS
Angle Mark On
Screen Saver On
Last Memory On
DivX (R) VOD
OSD Lanuage ENG
On
Off
- - General Setup Page - -
x
x

18
Switching the last position memory function on
and off
If the memory function is switched on, the DVD player returns to the
last position where the disc was stopped when it is switched on
again.
1Select »General Setup Page« by pressing »Q« or »W«.
2Select »Last Memory« with »A« or »S« and press »W« to
switch to the right column.
3Press »A« or »S« to select »On« or »Off« and press
»ENTER« to confirm.
– »On« is the default setting.
Picture settings
Setting the brightness
1Select »Video Quality Setup« by pressing »Q« or »W«.
2Select »Brightness« with »A« or »S« and press »ENTER« to
confirm.
3Press »Q« or »W« to select a value (between »- 19« and
»+ 20«) and press »ENTER« to confirm.
Setting the contrast
1Select »Video Quality Setup« by pressing »Q« or »W«.
2Select »Contrast« with »A« or »S« and press »ENTER« to
confirm.
3Press »Q« or »W« to select a value (between »- 15« and
»+ 16«) and press »ENTER« to confirm.
Setting the colour tint
1Select »Video Quality Setup« by pressing »Q« or »W«.
2Select »Hue« with »A« or »S« and press »ENTER« to con-
firm.
3Press »Q« or »W« to select a value (between »- 9« and
»+ 9«) and press »ENTER« to confirm.
Setting the colour saturation
1Select »Video Quality Setup« by pressing »Q« or »W«.
2Select »Saturation« with »A« or »S« and press »ENTER« to
confirm.
3Press »Q« or »W« to select a value (between »- 9« and
»+ 9«) and press »ENTER« to confirm.
SETTINGS ______________________________________________
- - General Setup Page - -
Set Last Memory State
TV Display PS
Angle Mark On
Screen Saver On
OSD Language ENG
Last Memory On
DivX (R) VOD
On
Off
x
x
- - Video Quality Setup - -
Brightness
Brightness 00
Contrast 00
Hue 00
Saturation 00
x
x
- - Video Quality Setup - -
Contrast
Brightness 00
Contrast 00
Hue 00
Saturation 00
x
x
- - Video Quality Setup - -
Hue
Brightness 00
Contrast 00
Hue 00
Saturation 00
x
x
- - Video Quality Setup - -
Saturation
Brightness 00
Contrast 00
Hue 00
Saturation 00
x
x

ENGLISH
19
Language settings
The default for all language settings is »English«. You can only
select the »Preference Page« in stop mode.
Setting the preferred dubbing language
1Select the »Preference Page« by pressing »Q« or »W«.
2Select »Audio« with »A« or »S« and press »W« to switch
to the right column.
3Press »A« or »S« to select the language and press »ENTER«
to confirm.
Setting the preferred subtitle language
1Select the »Preference Page« by pressing »Q« or »W«.
2Select »Subtitle« with »A« or »S« and press »W« to
switch to the right column.
3Press »A« or »S« to select the language and press »ENTER«
to confirm.
Setting the preferred disc menu language
1Select the »Preference Page« by pressing »Q« or »W«.
2Select »Disc Menu« with »A« or »S« and press »W« to
switch to the right column.
3Press »A« or »S« to select the language and press »OK« to
confirm.
SETTINGS ______________________________________________
- - Preference Page - -
Preferred Audio Language
Audio ENG
Subtitle Off
Parental
Default
Disc Menu ENG
English
German
Portuguese
Spanisch
- - Preference Page - -
Preferred Subtitle Language
Audio ENG
Subtitle Off
Parental
Default
Disc Menu ENG
English
Spanish
Portuguese
Off
German
- - Preference Page - -
Preferred Menu Language
Audio ENG
Subtitle Off
Parental
Default
Disc Menu ENG
Portuguese
Spanish
English
German
x
x
x
x
x
x

20
Parental control
Age restrictions for viewing can be set on some DVDs. Parental
control means you can define age limits on several levels. If the DVD
is not suitable for the defined age group, then the DVD player will
not play the DVD.
You can activate and deactivate parental control using a password.
If you have forgotten your personal password, enter default pass-
word »3308«.
Although the cover of the DVD may display an age restriction, some
DVDs are not coded correspondingly. Parental control does not
function on such DVDs.
Note:
You can only select the »Preference Page« in stop mode.
Setting parental control
1Select the »Preference Page« by pressing »Q« or »W«.
2Select »Parental« with »A« or »S« and press »W« to
switch to the right column.
3Press »A« or »S« to select the setting and press »ENTER« to
confirm.
– The following settings are available:
1: Kid Safe: all DVDs.
2: G: for all age groups.
3: PG: parental guidance suggested.
4: PG 13: parental guidance cautioned.
5: PG R: parental guidance strongly cautioned
6: R: restricted viewing.
7: NC 17: not for age groups under 17.
8: Adult: adults only.
4Press »A« or »S« to select the setting and press »ENTER« to
confirm.
5Enter password »3308«, or your personal password if you
have it, using the numerical buttons »1 ... 0« on the remote
control and press »ENTER« to confirm.
Note:
Password »3308« opens the settings for parental control even if
the password has been changed. This is important if you have
forgotten your personal password.
SETTINGS ______________________________________________
xxxx
Password
OK
OK
- - Preference Page - -
Set Parental Control
Audio ENG
Subtitle Off
Parental
Default
Disc Menu ENG
1 KID SAFE
2 G
4 PG-13
5 PG-R
6 R
7 NC-17
8 ADULT
3 PG
x
x
x
x
