Grundig WR 5408 PLL User manual

ǵ
WORLD
RECEIVER
Yacht Boy 80
WR 5408 PLL

2
___________________________________________________________________
3 Sicherheit, Informationen 13 Betrieb
4 Auf einen Blick 20 Informationen
8 Stromversorgung 201 Service
9 Einstellungen
21 Safety, Information 31 Operation
22 Overview 38 Information
26 Power supply 201 Service
27 Settings
39 Sécurité, informations 49 Utilisation
40 Vue d’ensemble 56 Informations
44 Alimentation électrique 201 Service
45 Réglages
57 Sicurezza, informazioni 67 Funzionamento
58 In breve 74 Informazioni
62 Alimentazione elettrica 201 Service
63 Impostazioni
75 Segurança, Informações 85 Funcionamento
76 Vista geral 92 Informações
80 Alimentação de corrente 201 Service
81 Regulações
93 Seguridad, información 103 Funcionamiento
94 Vista general 110 Información
98 Alimentación eléctrica 201 Service
99 Ajustes
111 Veiligheid, informatie 121 Gebruik
112 In een oogopslag 128 Informatie
116 Stroomtoevoer 201 Service
117 Instellingen
129 Bezpieczeństwo, informacje 139 Obsługa
130 Przegląd funkcji 146 Informacje
134 Zasilanie 201 Service
135 Programowanie
147 Sikkerhed, informationer 157 Funktion
148 Kort oversigt 164 Informationer
152 Strømforsyning 201 Service
153 Indstillinger
165 Säkerhet, information 175 Användning
166 En överblick 182 Information
170 Strömförsörjning 201 Service
171 Inställningar
183 Turvallisuus/tietoja 193 Asetukset
184 Yleiskatsaus 200 Tietoja
188 Virransyöttö 201 Service
189 Säädöt
DEUTSCH
ENGLISH
FRANÇAIS
ITALIANO
PORTUGUÊS
ESPAÑOL
NEDERLANDS
POLSKI
DANSK
SVENSKA
SUOMI

ENGLISH
21
Safety
To ensure that this device provides you with long-term satisfaction and
enjoyment, please observe the following instructions.
This device is designed for the playback of audio signals.
Any other use is expressly prohibited.

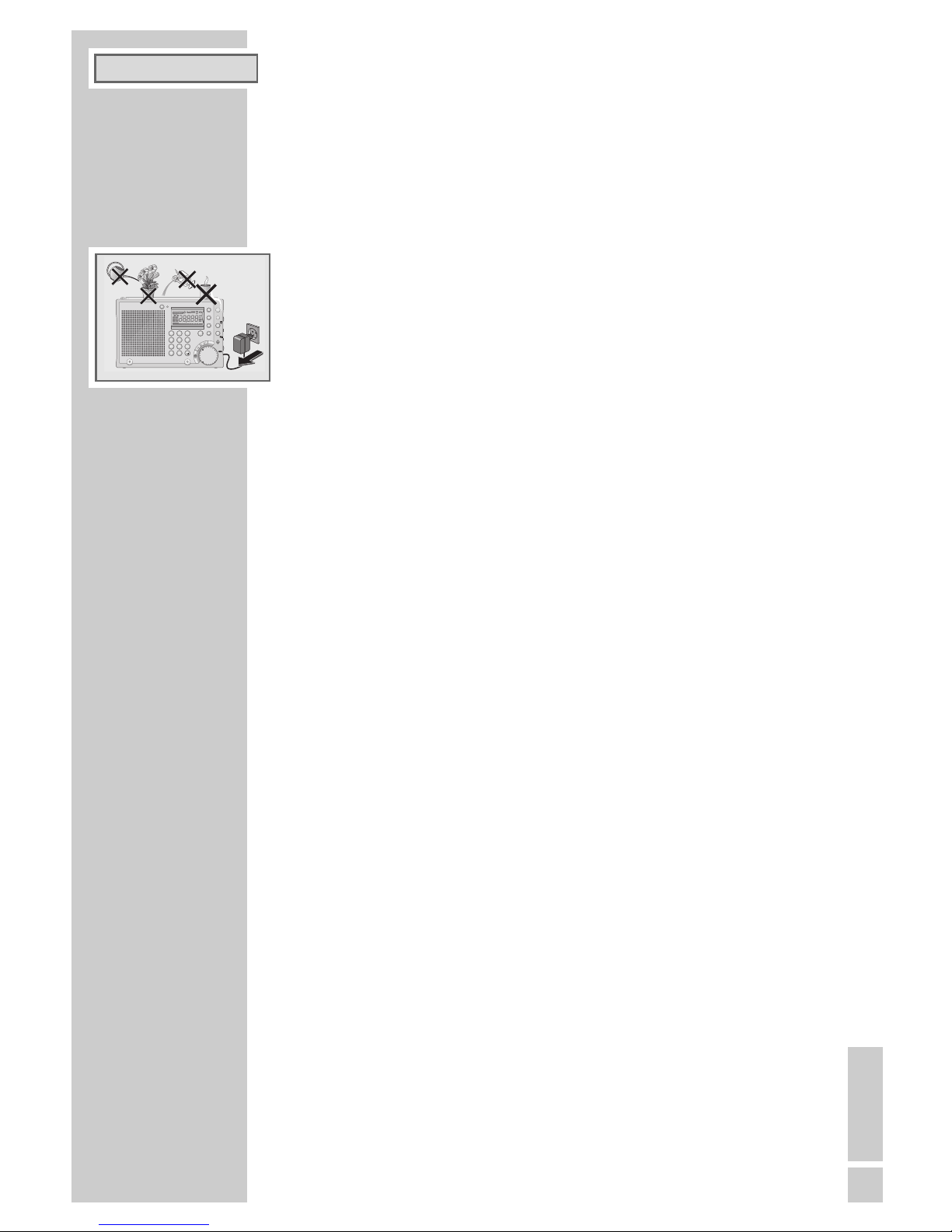

Protect the device from moisture (water drops or splashes). Do not place any
vessels such as vases on the device. These may be knocked over and spill
fluid on the electrical components, thus presenting a safety risk. Do not
place any objects such as burning candles on the device.
When deciding where to place the device, please note that furniture surfaces
are covered by various types of varnish and plastic, most of which contain
chemical additives. These additives can corrode the device supports,
leaving residues on the furniture surfaces which can be difficult or impossible
to remove.
Do not use any cleaning agent, as this may damage the casing. Clean the
device with a clean, moist leather cloth.
Never open the device casing. Warranty claims are excluded for damage
resulting from improper handling.
The type plate is located on the bottom of the device.
Attention
Continuous use of earphones at high volume can damage the user’s hea-
ring.
Environmental note
As little material as possible was used in the packaging of your device.
It consists of two separate materials: cardboard (box) and polyethylene
(bag). Please observe the local regulations for disposing of the packing
material.
Scope of delivery
1Yacht Boy 80
2Earphones
3External SW antenna
4Leather bag
5Operating manual
Note:
If the radio is fastened to the leather bag, you can use the bag to stand
it. Undo the bag at the front and fold it back. Then stand the radio at an
angle.
SAFETY, INFORMATION _____________________
ENGLISH
! SERVICE !! SERVICE !
RVIC! SERVICE !! SERVICE ! RVIC
ǵYacht Boy 80
LIGHT TUNE/ SSB
MODE
SWPAGE
CLOCK1/2
MEMO
AM/PM
SWSELECT
ON/OFF
SLEEP
DISPLAY
ALARM
LOCK
BAND
321
654
987
0C
TUNING
FINE
•
T
U
N
I
N
G
L
O
C
K
M.DEL M.SCAN FREQ./ CLOCK
! SERVICE !! SERVICE !
! SERVICE !

22

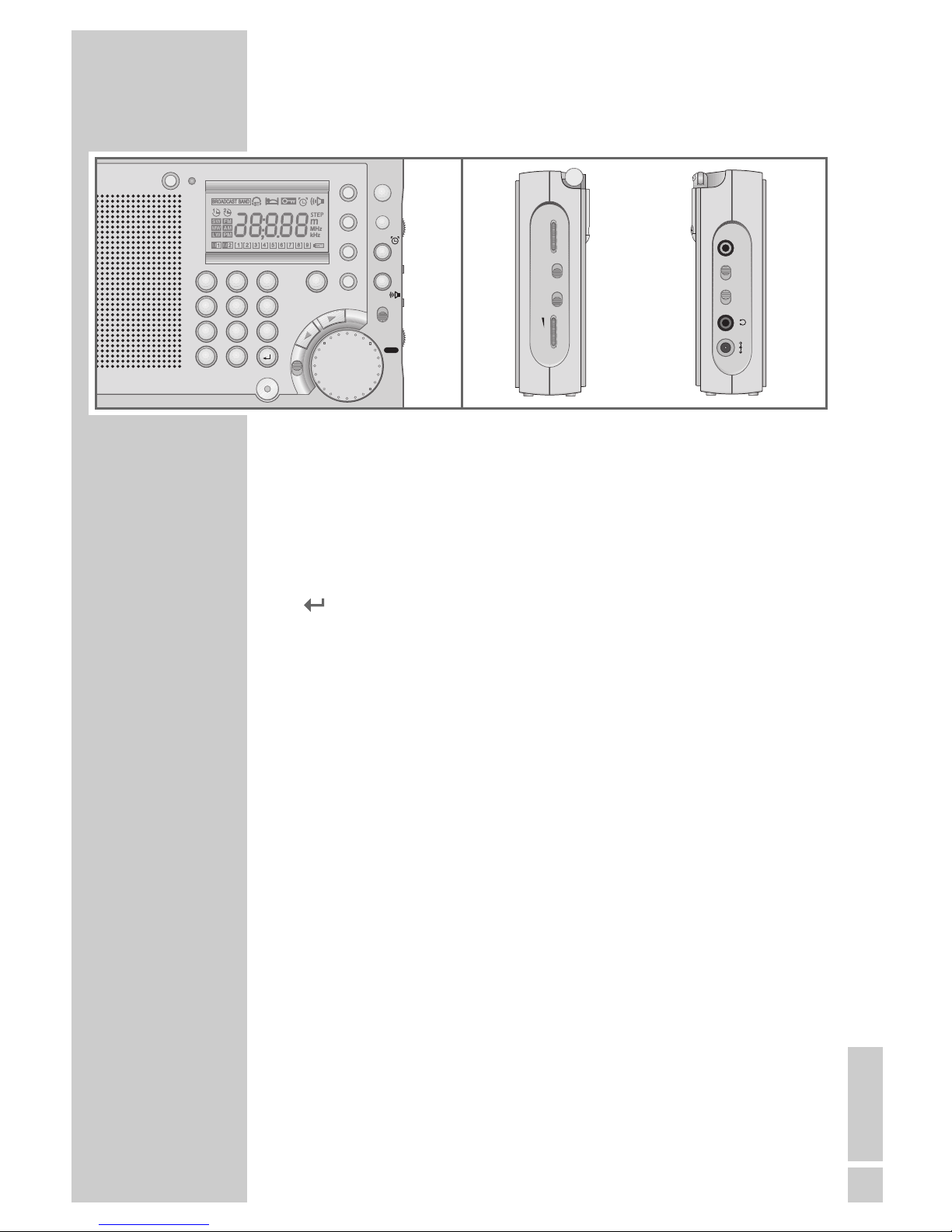

Controls
OVERVIEW ___________________________________________
Front
ON/OFF Switches the device on and off.
SLEEP For setting the sleep timer.
DISPLAY Switches the display between the frequency and time while
the radio is on.
ALARM Selects the signal tone alarm.
ALARM Selects the radio alarm.
LOCK Disables and enables the buttons.
TUNING Control dial for fine tuning to radio stations.
FINE
TUNING Disables and enables the »TUNING FINE« dial.
LOCK
ľı For setting the time.
Press briefly to change the frequency in steps.
Hold down to change the frequency quickly up or down.
MODE For setting various function modes, such as 12 or 24 hour
clock format.
SW PAGE Switches between the first and second memory levels in
CLOCK 1/2 short wave. Switches the clock between local time 1 and
local time 2, for example summer and winter time.
MEMO Activates the memory function and stores settings.
AM/PM Switches between AM and PM in 12-hour clock format.
SW SELECT Selects short wave frequency bands.
BAND Switches between the FM (VHF), SW (short wave),
MW (medium wave) and LW (long wave) frequency
bands.
ǵYacht Boy 80
LIGHT TUNE / SSB
MODE
SW PAGE
CLOCK 1/2
MEMO
AM/PM
SW SELECT
ON/OFF
SLEEP
DISPLAY
ALARM
LOCK
BAND
321
654
987
0C
TUNING
FINE
•
T
U
N
I
N
G
L
O
C
K
M. DEL M. SCAN FREQ. / CLOCK
c
ht Boy 80
LIGHT TUNE / SSB
MODE
SW PAGE
CLOCK 1/2
MEMO
AM/PM
SW SELECT
ON/OFF
SLEEP
DISPLAY
ALARM
LOCK
BAND
321
654
987
0C
TUNING
FINE
•
T
U
N
I
N
G
L
O
C
K
M. DEL M. SCAN FREQ. / CLOCK

ENGLISH
23
1 ... 9 Numerical buttons for various entries.
Select stored radio stations.
C M. DEL Deletes incorrect entries and preset stations. Switches off
the alarm.
0 M. SCAN Numerical button for various entries. Selects stored radio
stations in sequence (memory scan).
Activates frequency and time settings.
FREQ./CLOCK
LIGHT Switches on the back light of the display.
TUNE/SSB LED lights up green when tuning to radio stations. Lights
•up red when searching for an SSB (Single Side Band) station
on short wave. Lights up orange when receiving an SSB
station.
Right side of device
SSB FINE For fine-tuning SSB stations on short wave.
TUNING
SSB ON/OFF Switches the SSB function on and off.
TONE For setting the tone.
LOW HIGH
VOLUME |Adjusts the volume.
Left side of device
SW EXT. Connection socket for an external SW antenna.
ANT.
DX./LO. Switches between short-range and long-range reception.
STEREO/ Switches between stereo and mono reception.
MONO
OVERVIEW ____________________________________
c
ht Boy 80
LIGHT TUNE / SSB
MODE
SW PAGE
CLOCK 1/2
MEMO
AM/PM
SW SELECT
ON/OFF
SLEEP
DISPLAY
ALARM
LOCK
BAND
321
654
987
0C
TUNING
FINE
•
T
U
N
I
N
G
L
O
C
K
M. DEL M. SCAN FREQ. / CLOCK
SSB
OFF ON
TONE
LOW HIGH
VOLUME
SSB
FINE TUNING
STEREO/MONODX. / LQ.SW EXT. ANT. DC 6V

24
OVERVIEW ____________________________________
0Earphone socket (3.5 mm stereo socket).
Automatically switches off the loudspeaker.
DC 6 V Connection socket for mains adapter (not supplied), input
Óvoltage 6 V (200 mA).

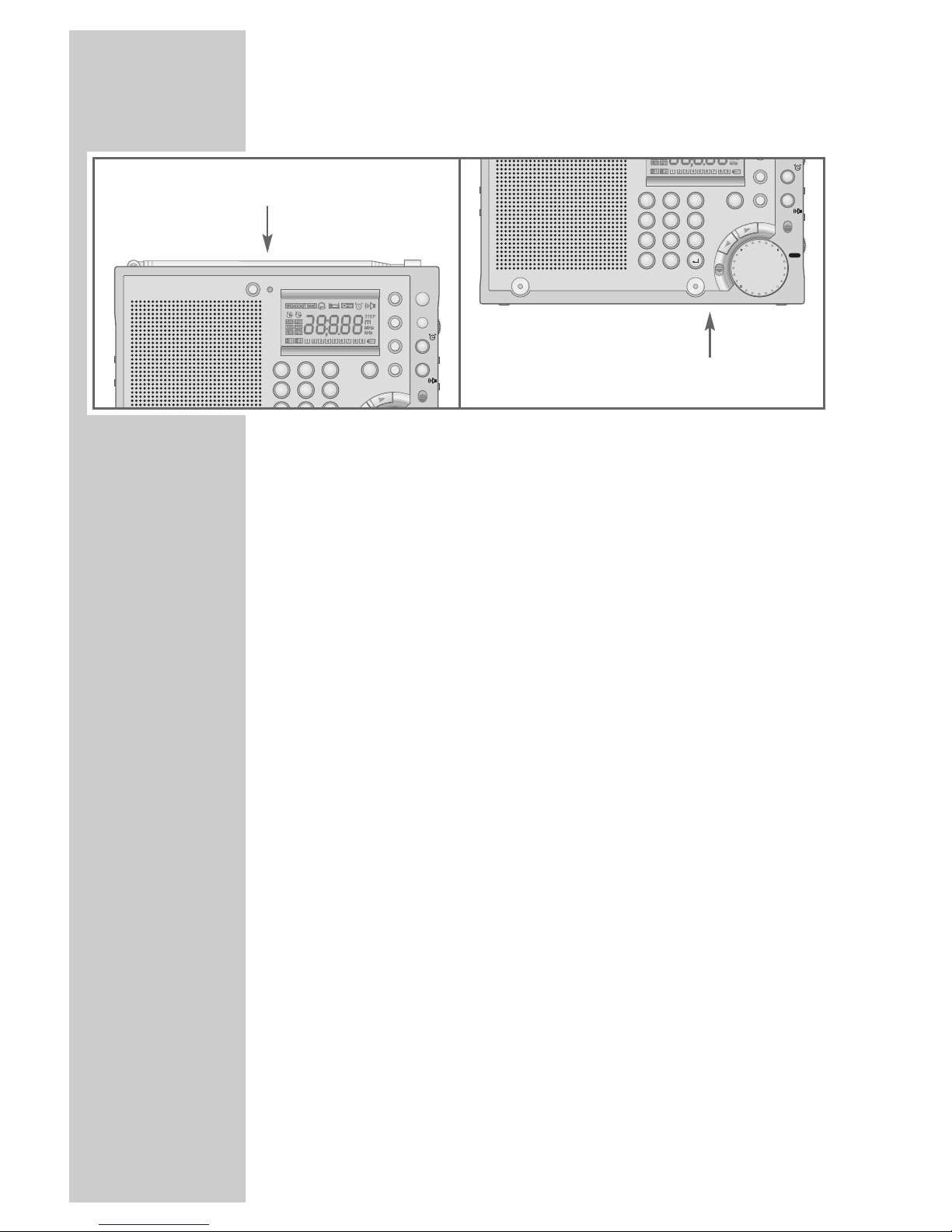

Top of device
ANTENNA Telescopic antenna for FM and SW reception.
Bottom of device
RESET Returns the device to its original setting.
Back of device
Battery compartment
Map of world time zones
Frequency scale
ǵYacht Boy 80
LIGHT TUNE / SSB
MODE
SW PAGE
CLOCK 1/2
MEMO
AM/PM
SW SELECT
ON/OFF
SLEEP
DISPLAY
ALARM
LOCK
BAND
321
654
CLOCK 1/2
MEMO
AM/PM
SW SELECT ALARM
LOCK
BAND
321
654
987
0C
TUNING
FINE
•
T
U
N
I
N
G
L
O
C
K
M. DEL M. SCAN FREQ. / CLOCK
ANTENNA
RESET

ENGLISH
25
The display
00:0.0 Frequency, time, alarm time or sleep timer
display
The radio alarm function is activated
The signal alarm function is activated
The key lock is activated
The sleep timer is activated
A stereo FM station is being received
BROADCAST A regular SW (short wave) band is set
BAND
Local time 1 is displayed
Local time 2 is displayed
Displays the SW (short wave) waveband
Displays the FM (VHF) waveband
Displays the MW (medium wave) waveband
Displays the LW (long wave) waveband
Displays the first half of the day in 12-hour format
Displays the second half of the day in 12-hour format
Display memory levels 1 and 2
Preset position displays
Flashes when the batteries are low
kHz Frequency display for MW, LW and SW
MHz Frequency display for FM
mSW frequency band display
STEP Displays the increments in which the frequency is changed
2M1M
PM
AM
LW
MW
FM
SW
OVERVIEW ____________________________________
00000
,
:.
SW FM
MW AM
LW
M1M2
PM
STEP
m
MHz
kHz
BROADCAST BAND
123456789

26
Battery operation
1Open the battery compartment on the back of the device by pressing
the marking and opening the lid.
2Insert the batteries (4 x 1.5 V, Mignon type LR6/AM3/AA).
Notes:
When the batteries are low, » « flashes in the display. Each time
you switch off the radio, the battery charge indicator, for example »3«,
appears for seven seconds. If the charge level falls below »2«, you must
change the batteries. Put in the new batteries within 3 minutes, otherwise
all stored settings will be lost.
Take out the batteries when you know that the device will not be used
for a long period of time. The manufacturer accepts no liability for
damage resulting from used batteries.
Environmental note:
Batteries, including those which contain no heavy metal, may not be
disposed of with household waste. Please dispose of used batteries in
an environmentally sound manner. Find out about the legal regulations
which apply in your area.
Mains operation (with standard 6 V/200 mA
mains adapter)
Check if the mains voltage on the mains adapter type plate corresponds to
your local mains supply. The only way to disconnect the device from the
mains supply is to unplug the adapter.
1Plug the mains adapter cable into the »DC 6 V Ó« socket on the
left of the device.
2Insert the mains adapter plug in the socket.
– The batteries in the compartment are switched off.
POWER SUPPLY___________________________________
STEREO/MONODX. / LQ.SW EXT.ANT.
DC6V
DC IN 6V

ENGLISH
27
Setting the clock
Due to the earth’s rotation, places to the west of you are behind you in time,
and places to the east are ahead of you. Therefore, the earth is divided into
24 hourly time zones. This system is based on a standard time zone called
UTC (Universal Time Coordinated), previously known as GMT (Greenwich
Mean Time). Short wave stations always give the time according to UTC.
Before you set the clock, find out your local time zone.
You can set two different local times. Local time 1 is the time where you live.
If, for example, you travel to Hong Kong, you can set the time there as local
time 2. The setting for local time 1 is retained.
Setting local time 1
When you first switch on the device, or if it has been without a power supp-
ly for a lengthy period, »0: 00« and » « for local time 1 appear in the
display to indicate that the clock has to be set.
1With the device switched off, keep pressing » FREQ./CLOCK«
until »–: ––« appears in the display and » « flashes.
Note:
If the radio is switched off, press »DISPLAY« to switch the display to
the clock, and start at step 1.
2Enter the time using the numerical buttons »1 …0« in the correct
sequence, for example »12: 30«.
Note:
if you enter the digits incorrectly, a signal sounds and »Err« flashes
briefly in the display. You then have to start again.
3Press » FREQ./CLOCK« to confirm the entry.
Setting local time 2
1With the device switched off, press »SW PAGE CLOCK 1/2«.
– Display: » « flashes for local time 2.
2Press » FREQ./CLOCK«.
– Display: » « stays lit for local time 2.
– The display is now set to local time 2.
3To set local time 2, do the same as for local time 1 (steps 1to 3).
Note:
If you are operating the device in the 12-hour format, you can choose
between »MEMO AM/PM« AM and PM.
SETTINGS __________________________

28
SETTINGS___________________________________________________
Setting and storing radio stations
There are various ways to set radio stations and store them at preset positions.
1Press »ON/OFF SLEEP« to switch on the device.
– You will hear the radio station last selected.
2Press »BAND« to select the frequency band.
Tuning radio stations directly
1Press » FREQ./CLOCK«.
– Display: »– –.– –«, e.g. » « and »MHz« flash.
2Enter the frequency using the numerical buttons »1 … 0« in four digits,
for example 1, 0, 0, 6 for »100.60«.
3Press » FREQ./CLOCK« to confirm the entry.
– Display: the frequency you entered, for example »100.60«.
– You will hear the selected radio station.
Tuning radio stations manually (1)
1Use the »TUNING FINE« dial to tune to the station you want.
– Display: the frequency in 100 or 200 kHz increments (FM), in 9 or
10 kHz increments (MW), in 3 kHz increments (LW) or in 5 kHz incre-
ments (SW).
2If you want, you can fine tune to the station by briefly pushing in and
turning the »TUNING FINE« dial.
– Display: The frequency changes in 50 kHz increments (FM) or 1 kHz
increments (MW, LW and SW).
3To return to the original mode (for example 100 kHz increments in the
FM band) push in the »TUNING FINE« dial again.
Tuning radio stations manually (2)
1Keep pressing »ľ« or »ı« until you reach the frequency you want.
– Display: the frequency changes in increments
or
Hold down »ľ« or »ı« until the frequency changes to a rapid run-
through.
– Display: the automatic search stops at the next station with a strong
signal.
Saving radio stations on preset positions
You can store up to 45 radio stations, including 18 on two memory levels
on short wave, and nine each on FM, MW and LW.
1Select the frequency band and the radio station.
FM

ENGLISH
29
SETTINGS___________________________________________________
2Press »MEMO AM/PM«.
– Display: » « and the preset number, for example » « flash.
3Press » FREQ./CLOCK« to store the radio station.
– Display: the frequency and » «.
– The current radio station is stored on preset position 1.
Storing short wave (SW) stations
The short wave band is divided into frequency bands of different lengths.
This means that very many stations and institutions use this wave band for
international communication. Therefore, you can store up to 18 SW stations
on two memory levels.
1Save short wave stations in the same way as described in the previous
section.
2Once you have stored nine stations on one memory level » «, press
»SW PAGE CLOCK 1/2« to switch to the second memory level.
– Display: » «.
3Store the remaining nine stations as described above.
Note:
If you try to store more than 18 stations and press »MEMO AM/PM«,
»FULL« appears in the display.
Automatic station search
This function allows you to automatically search for and store nine stations
in each of the FM, MW and LW bands (not SW).
1To start the search, press »ľ« and »ı« at the same time and hold them
down until you hear a signal.
– The search starts at the lowest frequency in the selected wave band,
and stores the nine stations with the strongest signals. After the search
has finished, a signal sounds and the last station stored can be heard.
– Display: » « and the preset number, for example » «.
Notes:
When you start the search, all the previously stored stations are deleted.
During the search, the status line » ... ... ...« shows the pro-
gress, but not the stations found.
You can stop the search by pressing »ON/OFF«.
You can reorganise the preset stations using MODE 50 or 51 (see
page 18).
1M
2
M
1M
1M

30
Deleting preset stations
1Enter the preset station using the numerical buttons » 1 … 9«.
– Display: the frequency and the preset number, for example » «.
2Press »MEMO AM/PM«.
– Display: The selected preset station flashes.
3Press »C M. DEL«.
– The selected preset station is deleted.
Setting the alarm time
The alarm time is always set in the time shown on the display.
You can set the alarm as a signal tone, a radio station, or both.
1Press »ALARM « (signal tone) or »ALARM « (radio station)
with the device switched off.
– Display: the alarm time most recently set, » « or » « flash.
Note:
If the radio is switched off, press »DISPLAY« to switch the display to
the clock, and start at step 1.
2Enter the alarm time using the numerical buttons » 1 … 0«.
3Press » FREQ./CLOCK« to confirm the entry.
– Display: the alarm time you entered, » « or » « stay lit.
– The device switches on at the set time with the signal tone or the radio
station most recently selected.
SETTINGS___________________________________________________

ENGLISH
31
OPERATION__________________________________________
Switching on and off
1Press »ON/OFF SLEEP« to switch on the device.
– You will hear the radio station last selected.
2Press »ON/OFF SLEEP« to switch off the device.
– Display: Local time 1 or 2.
Radio operation
Selecting the frequency band
1Select the desired waveband (FM, SW, MW or LW) by pressing
»BAND«.
2If you select short wave, you can select the frequency band by pressing
»SW SELECT«.
– Display: the SW frequency bands from »120 m« to »11 m«.
Calling up stored radio stations
1Select the station using the numerical buttons » 1 … 9« for the preset
number.
– Display: the frequency and the preset number, for example » «.
2To call up preset numbers 10 to 18 in the SW band, press »SW PAGE
CLOCK 1/2« to switch to the second memory level.
– Display: » «.
Notes:
For FM reception pull out the telescopic antenna and tilt it until you
receive the best signal. For short wave reception (SW) the antenna
should be upright. For medium wave and long wave reception, align
the antenna by turning the device.
Checking stored radio stations
You can call up all the stored radio stations in a wave band automatically
for seven seconds (memory scan).
1With the radio playing, press »0 M. SCAN«.
– The device starts with the current preset station and soon changes to
the next one.
– When you reach the station you want, press »0 M. SCAN« to stop
the function.
Swapping preset positions
1Enter the preset station to swap using the numerical buttons »1 … 9«.
2Press »MEMO AM/PM«.
– Display: the selected preset position flashes.
3Enter the new preset position using the numerical buttons » 1 … 9«.
– A signal sounds and the preset positions are exchanged.
2M

32
Adjusting the volume
1Adjust the volume using »VOLUME |« (on the right side of the
device).
Adjusting the tone
1Adjust the tone using »TONE LOW HIGH« (on the right side of the
device).
Listening with earphones
1Insert the earphone plug (ø 3.5 mm, stereo) into the »0« jack on the
left of the device.
– This automatically switches off the loudspeakers.
Switching between stereo and mono reception
FM stereo reception is only available with earphones.
1Connect the earphones and select an FM station.
2Set the »MONO/STEREO« switch (on the left of the device) to stereo.
– Display: » «.
3If the reception of the station is weak in FM stereo, move the
»MONO/STEREO« switch (on the left of the device) to mono.
– Display: » « disappears from the display.
Setting the reception sensitivity
1Set the »DX./LO.« switch (on the left of the device) to »DX.«.
– The sensitivity is set to high, in other words, long-range reception.
2If the signal is too strong, and is causing distortion, move the »DX./
LO.« switch to »LO.« (low sensitivity).
Special features of SW reception
Short wave reception
Your radio can receive signals in a number of frequency bands. It is easy to
get used to tuning to stations in the FM, MW and LW bands, since they are
always on the same frequencies.
Unfortunately, this is not always the case with short wave stations. Due to
atmospheric conditions, short wave stations must frequently broadcast on
different wavelengths. Most short wave bands are available all over the
world and can be used by international broadcasters. At present these are
the only wavelengths which provide listeners with direct reception over long
distances. For this reason, short wave frequencies are not only used by
radio stations, but also by other users such as amateur radio enthusiasts,
shipping, aircraft and radio navigation systems.
OPERATION _______________________________________________

ENGLISH
33
If you want to listen to a particular SW station, you need to know the precise
frequency and wavelength. Many short wave stations will send you broad-
casting schedules which give you the information you need. You can also
download the information from the Internet.
One station which is always up-to-date is Deutsche Welle in Bonn. You can
contact it at the following address:
Deutsche Welle Tel.: ++49 (0)228-429-3208
Technische Beratung Fax: ++49(0)228-429-3220
Kurt-Schumacher-Straße 3 E-mail: [email protected]
D-53117 Bonn www.dw-world.de
Connecting the external SW antenna
To improve short wave reception, you can connect the external SW antenna
supplied.
1Insert the plug of the antenna cable into the »SW EXT. ANT.« socket
on the left of the device.
Note:
Unroll and align the antenna to achieve the best reception. If there is
interference, you can move the »DX./LO.« switch to »LO.«.
SSB reception (for example for radio hams and
shipping)
Some short wave stations broadcast Morse code for shipping using conti-
nuous waves (CW). Voice signals, for example amateur radio, is normally
broadcast on the single side band (SSB).
1Select the SW waveband using »BAND«.
2Select the frequency band, for example »75 m«, using »SW SELECT«.
3Set the »SSB ON OFF« switch (on the right of the device) to »ON«.
– The »TUNE/SSB •« LED lights up red and then goes out.
4Slowly turn the »SSB FINE TUNING« dial on the right of the device
until you achieve a clear reception.
– If an SSB station is received, the »TUNE/SSB •« LED lights up
orange.
Notes:
For fine tuning, you can also press in the »TUNING FINE« dial.
The range for SSB fine tuning is around ± 1.5 kHz.
OPERATION _______________________________________________

34
Alarm mode
Displaying the alarm time
1Press »ALARM « or »ALARM «.
– Display: briefly, the alarm time most recently set, » « or » «
flash.
Alarm with signal tone
1With the device switched off, press »ALARM « (signal tone).
– Display: the last alarm time set, » « flashes.
2Enter the alarm time using the numerical buttons »1 … 0«.
3Press » FREQ./CLOCK« to confirm the entry.
– Display: the alarm time you entered, » « stays lit.
– The device switches on with the signal tone at the set time (alarm
duration 1 hour). The signal tone increases in volume for one minute,
stops for a minute and starts again.
Alarm with radio station
1Press »ON/OFF SLEEP« to switch on the device.
2Select the frequency band and the radio station.
3Adjust the alarm volume using »VOLUME |« (on the right of the
device).
4Press »DISPLAY« to switch the display to the clock.
5Press »ALARM « (radio station).
– Display: the last alarm time set, » « flashes.
6Enter the alarm time using the numerical buttons »1 … 0«.
7Press » FREQ./CLOCK« to confirm the entry.
– Display: the alarm time you entered, » « stays lit.
8Press »ON/OFF SLEEP« to switch off the device.
– The device switches the radio on at the set time (alarm duration
1 hour).
Cancelling the alarm for the day
1Press »ON/OFF SLEEP« while the alarm is sounding.
– The alarm (signal tone or radio) stops, but the alarm function remains
activated for the next day at the set time.
Cancelling alarm stand-by
1Press »ALARM « or »ALARM «.
– Display: the set alarm time, » « or » « flash.
2To deactivate the alarm, press »C M. DEL«.
– Display: the alarm time and » « or » « go out, and you can see
the current time.
OPERATION _______________________________________________

ENGLISH
35
Sleep timer mode
The device has a sleep-timer, which switches it off at a time you set.
Setting the sleep timer
1With the radio playing, press and hold down »ON/OFF SLEEP«.
– Display: the sleep times »60«, »30«, »15«, »120«, »90« and again
»60«, » « flashes.
2To set the desired switch-off time, release »ON/OFF SLEEP«.
– Display: after a pause, the frequency, » « stays lit.
Deactivating the sleep timer
1To deactivate the sleep timer, press »ON/OFF SLEEP« to switch off the
device.
– Display: the time, » « goes out.
Additional functions
Displaying local time 1 or 2
If you have set two local times, local time 1 (» «) is normally displayed.
1To temporarily change from local time 1 to local time 2, press
»SW PAGE CLOCK 1/2«.
– Display: Local time 2 and » «.
– After seven seconds the display returns to local time 1.
2To permanently change from local time 1 to local time 2, press
»SW PAGE CLOCK 1/2« and then » FREQ./CLOCK«.
– Display: Local time 2 and » «.
3To permanently change from local time 2 to local time 1, press
»SW PAGE CLOCK 1/2« and then » FREQ./CLOCK«.
– Display: Local time 1 and » «.
OPERATION _______________________________________________

36
Setting various function modes
Using the »MODE« button and a two-digit code, which you enter using the
numerical keys »0 ... 9«, you can change various functions:
This is how to change the various function modes:
1Press »MODE«.
– Display: »( )« flashes.
2Enter the code, for example »40«, using »0 ... 9«.
– Display: »( 40 )« flashes.
3Press » FREQ./CLOCK« to confirm.
– Display: briefly »OFF«, then the time or frequency.
– The signal tone is deactivated.
Switching on the back lighting for the display
1Press »LIGHT« to switch on the display lighting for 7 seconds.
2Press »LIGHT« to switch off the display lighting.
Disabling and enabling the buttons
1To disable the buttons, move »LOCK« to the »•« position.
– Display: » «.
2To enable the buttons, move »LOCK« to the opposite position.
– Display: » « disappears from the display.
OPERATION _______________________________________________
Function
FM frequency change
in 100 kHz steps
MW frequency change
in 9 kHz steps
Time display in 12
hour format
Signal tone off
Arrange stations in
sequence from low to
high frequency range
Function
FM frequency change
in 200 kHz steps
MW frequency chan-
ge in 10 kHz steps
Time display in 24
hour format
Signal tone on
Arrange stations in
sequence from low to
high frequency range
Code
11
21
31
41
51
Code
10
20
30
40
50
MODE ˯
MODE ˯
MODE ˯
MODE ˯
MODE ˯

ENGLISH
37
Disabling and enabling the fine tuning dial
In order to prevent the frequency being changed accidentally, you can disa-
ble the »TUNING FINE« dial.
1To disable the dial, move »TUNING LOCK« to the »•« position.
2To enable the dial, move »TUNING LOCK« to the opposite position.
Deleting all settings
You can reset the device to its original state. All settings are lost when you
do this.
1Press »RESET« on the bottom of the device using a suitable implement
such as a paper clip.
– The times, alarm time and radio settings are deleted.
OPERATION _______________________________________________

38
This device is noise-suppressed according to the applicable EU directives.
This product fulfils the European directives 89/336/EEC, 73/23/EEC and
93/68/EEC.
This device conforms to the safety regulation DIN EN 60065 (VDE 0860)
and therefore the international safety regulation IEC 60065.
Technical data
Power supply
Battery operation 4 x 1.5 V (type Mignon LR 6/AM 3/AA)
Mains operation 6 V (200 mA) mains adapter, DC
Output 300 mW 10% THD
Antennas
Telescopic antenna FM (VHF) and SW (short wave)
Ferrite rod antenna MW (long wave) and LW (medium wave)
Frequency bands
FM (VHF) 87.5 ... 108 MHz
MW (medium wave) 520 ... 1710 kHz or 522 ... 1710 kHz
LW (long wave) 153 ... 283 kHz
SW 1 ... 14 (short wave) 120 m 2.3 ... 2.495 MHz
90 m 3.2 ... 3.4 MHz
75 m 3.85 ... 4.0 MHz
60 m 4.75 ...5.06 MHz
49 m 5.9 ... 6.2 MHz
41 m 7.1 ... 7.35 MHz
31 m 9.4 ... 9.99 MHz
25 m 11.6 ... 12.1 MHz
21 m 13.5 ... 13.87 MHz
19 m 15.1 ... 15.8 MHz
16 m 17.48 ... 17.9 MHz
15 m 18.9 ... 19.02 MHz
13 m 21.45 ... 21.75 MHz
11 m 25.6 ... 26.1 MHz
Sockets
DC socket Ø 4.0 mm, 6 V (200 mA)
Earphone jack Ø 3.5 mm stereo, 2 x 32 Ωimpedance
SW antenna socket Ø 3.5 mm Mono
Dimensions and weight
W x H x D 184 mm x 120 mm x 40 mm
Weight 510 g
Technical and design modifications reserved.
INFORMATION_____________________________________
