GSS PTIS 1000 User manual

English
PTIS 1000
Head-End DVB-T Converter to IP
DVB-T to SPTS
CLASS
KLASSE
GSS
Grundig SAT Systems GmbH
Beuthener Strasse 43
D-90471 Nuremberg
Phone: +49 (0) 911 / 703 8877
Fax: +49 (0) 911 / 703 9210
E-mail: [email protected]
Internet: http://www.gss.de

- 2 - PTIS 1000
Contents
1 Safety regulations and notes .....................................................................................4
2 General information .................................................................................................5
2.1 Packing contents..........................................................................................5
2.2 Meaning of the symbols used........................................................................5
2.3 Technical specifications ................................................................................5
2.4 Description .................................................................................................7
2.5 Software query............................................................................................8
3 Assembly .................................................................................................................9
3.1 Installing the cassette....................................................................................9
3.2 EMC regulations..........................................................................................9
3.3 Overview of the cassette ............................................................................10
3.4 Connecting the cassette..............................................................................11
3.5 Updating the software................................................................................11
3.6 Retrofitting a CA module ............................................................................12
4 The control panel at a glance ..................................................................................13
4.1 Menu items...............................................................................................13
4.2 Control panel............................................................................................13
5 Programming .........................................................................................................14
5.1 Programming procedure................................................................................. 14
Channel strips "Tuner A" (without CA module) and "Tuner B"..........................14
Channel strip "Tuner A" with CA module......................................................16
5.2 Programming the cassette ..........................................................................17
Selecting the cassette, displaying the software version....................................17
Setting the Ethernet parameters ...................................................................18
Setting the IP address of the cassette ............................................................18
Setting the address range ...........................................................................19
Setting the address of the gateway ..............................................................19
Setting the UDP port .................................................................................... 19
Selecting the input transport stream..............................................................20
Setting the input channel ............................................................................21
Setting the hierarchical modulation ..............................................................22
Allocating the IP addresses .........................................................................23
Switching the IP address off or on................................................................23
Selecting the transmission protocol...............................................................23
Setting the port number ..............................................................................23
Copying the settings to all IP addresses ........................................................24
Defining the quantity of data packets ...........................................................25
Setting the forward error correction .............................................................25
Setting the transmission channel ..................................................................25
Copying the settings to all IP addresses ........................................................25
Setting IP addresses for services ..................................................................26
Allocating IP addresses to services manually .................................................26
Allocating IP addresses to services automatically ...........................................26

- 3 - PTIS 1000
Allocating services manually .......................................................................27
Selecting the sound options of the service.....................................................28
Switching DVB service information on or off..................................................28
Displaying the output data rate....................................................................29
Factory reset .............................................................................................29
Saving settings ..........................................................................................30
5.2.1 Operation with a CA module............................................................31
Setting the PID monitoring ................................................................31
Configuring the CA module..............................................................31
Descrambling services .....................................................................33
6 Final procedures.....................................................................................................34

- 4 - PTIS 1000
1 Safety regulations and notes
• Assembly, installationand servicingshouldbecarried out by authorised
electricians.
 • Switchofftheoperatingvoltageofthesystembeforebeginningwithassem-
bly or service work or pull out the mains plug.
 • Donotperforminstallationandserviceworkduringthunderstorms.
 • Installthesystemsoitwillnotbeabletovibrate…
 - inadust-free,dryenvironment
 - insuchamannerthatitisprotectedfrommoisture,fumes,splashingwa-
ter and dampness
- somewhere protected from direct sunlight
- not within the immediate vicinity of heat sources
- in an ambient temperature of 0 °C to +50 °C. In case of the formation of
condensation wait until the system is completely dried.
 • Ensurethatthehead-endstationisadequatelyventilated.Donotcoverthe
ventilation slots.
 • Bewareofshortcircuits
 • Noliabilityisacceptedforanydamagecausedbyfaultyconnectionsor
inappropriate handling.
 • Observetherelevantstandards,regulationsandguidelinesontheinstalla-
tion and operation of antenna systems.
 • The standards IEC/EN/DINEN50083 and IEC/EN/DINEN60728 must
be observed.
 • For further information please read the assembly instructions for the head-
end station used.
• Test the software versions of the head-end station and the cassette and
update them if necessary. The current software versions can be found at
"www.gss.de".
Take action to prevent static discharge when working on the device!
Electronic devices should never be disposed of in the household rubbish. In
accordance with directive 2002/96/EC of the European Parliament and the
European Council from January 27, 2003 which addresses old electronic and
electrical devices, such devices must be disposed of at a designated collection
facility. At the end of its service life, please take your device to one of these
public collection facilities for proper disposal.

- 5 - PTIS 1000
2 General information
2.1 Packing contents
1 Cassette PTIS 1000
2 HF cables
1 CD (assembly instructions)
1 Brief assembly instructions
1 Measuring log
2.2 Meaning of the symbols used
Important note
—> General note
 •  Performingworks
2.3 Technical specifications
The devices meet the following EU directives:
 2006/95/EC,2004/108/EC
The product fulfils the guidelines and standards for CE labelling.
Unless otherwise noted all values are specified as "typical".
HF input
Channels: .........................................................C05…C12,C21…C69
Frequencyrange:................................... 177.5…226.5,474…858MHz
Input level: ...............................................................60dBμV…80dBμV
Loop through output gain......................................................0dB…3dB
Return loss: ..................................................................................> 8 dB
Impedance:.................................................................................... 75 Ω
Symbol rate ............................................................... acc. to EN 300744
LAN interface
Standard: .............................................................................100-BASE-T
Data rate:............................................................................... ≤80 MBit
Protocols:.......................................................... UDP(UserDataProtocol),
RTP (Real-Time Transport Protocol)

- 6 - PTIS 1000
ASI interfaces
Standard: .....................................................................DIN EN 50083-9
Format:................................................................MPEG ISO IEC 13818-1
User data rate: ................................................................. 2…90Mbit/s
Impedance:.................................................................................... 75 Ω
Level (input / output): ..................................................... 800mVpp ± 10%
Return loss (input):............................................... >17dB(5…270MHz)
Connections
HF inputs: ...........................................................................2 IEC sockets
HF loop-through outputs:.......................................................2 IEC sockets
HF output:..........................................................1 IEC socket (no function)
LAN:................................................................................1 RJ 45 socket
ASI input: ..........................................................................1 BNC socket
ASI output:.........................................................................1 BNC socket
Connection strip (10-pin):...................for supply voltages and control circuits
RS 232 socket: ..................................... serial interface for software update
Common Interface: ....................... 1 (several services can be descrambled).

- 7 - PTIS 1000
2.4 Description
The cassette is a DVB-T/SPTS converter which combines COFDM-modulated
services (programmes) and transport streams supplied via the ASI interface
into one transport stream in the TPS module. This is emitted via the LAN inter-
faceandcancontainupto16services.ForoperatingthecassetteinaLAN
networkitcanbeassigneditsownIPaddress.Thecassetteisequippedwith
two tuners. The accompanying channel strips consist of the digital tuners and
the digital signal processing levels. The resulting transport streams from the
" Tuner A "/" Tuner B " channel strips and from the transport streams supplied
via the ASI socket (ASI – Asynchronous Serial Interface according to DIN EN
50083-9)cantakeupto16servicesandareeachassignedanIPaddress.
The signal supplied into the ASI input is provided again via the ASI output.

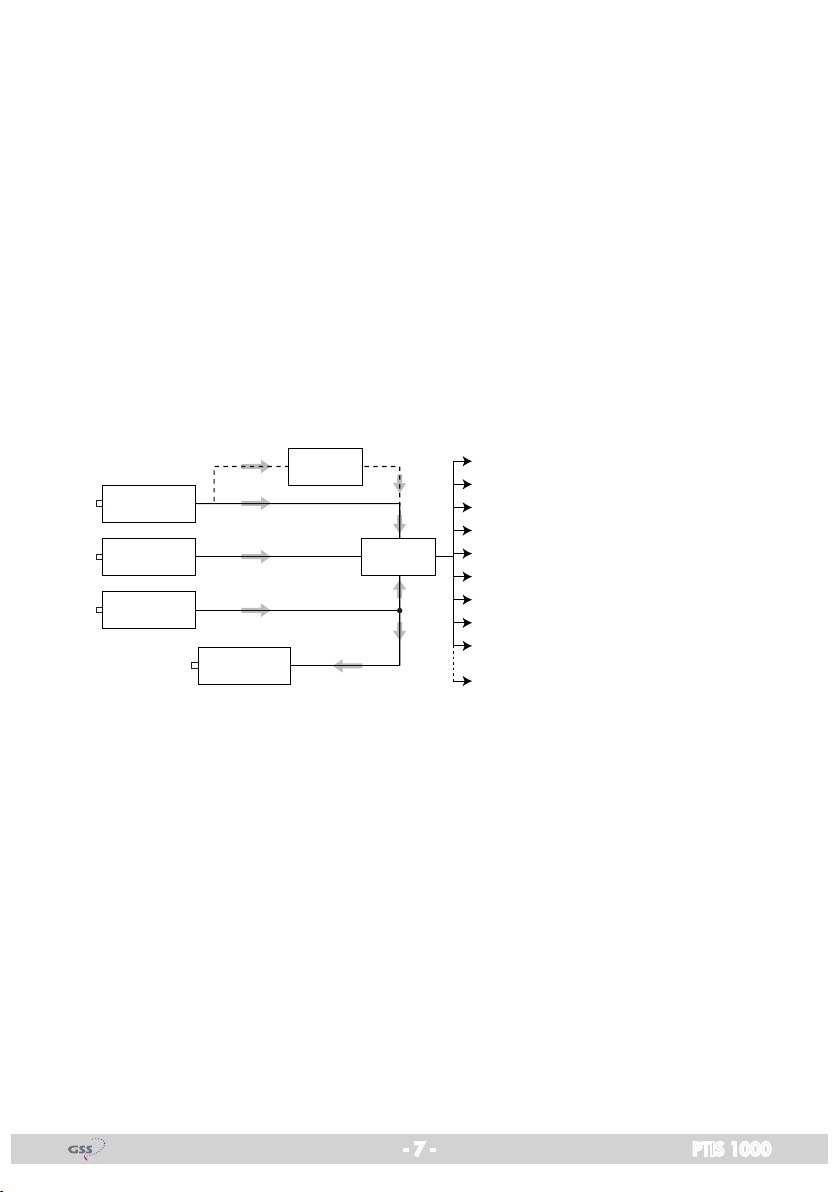

Principle signal path:
TPS
"Tuner A"
"Tuner B"
CA-ModulCA module
ASI input
ASI output
IP address: Port:
Service 1 212.40.50.90 : 1234
Service 2 212.40.50.91 : 1234
Service 3 212.40.50.92 : 1234
Service 4 212.40.50.93 : 1234
Service 5 212.40.50.94 : 1234
Service 6 212.40.50.95 : 1234
Service 7 212.40.50.96 : 1234
Service 8 212.40.50.97 : 1234
Service 9 212.40.50.98 : 1234
Service 16 212.40.50.105: 1234
 Inthehead-endstationdisplay,thechannelstripsofthecassetteareindicated
with " Bx …A " (" Tuner A ") or " Bx …B " (" Tuner B "). The channel strip " Tuner A "
can decode encoded services via a corresponding CA module and a dedicat-
ed smart card. The cassette is programmed using the head-end station control
unit.
Two LEDs in the channel strips provide an indication with their colour whether
anHFsignalispresentornot.Inamenu,thetransmissionofDVBservicein-
formation(EIT,TDTandSDT)orteletext(TXT)canbeindividuallyactivatedor
deactivated.
EIT (Event Information Table):
 Foreachservice,eventinformationistransmitted(suchasstartingtime,dura-
tion,scramblingetc.)

- 8 - PTIS 1000
TDT (Time Date Table):
The transmitted table contains the current time and date.
SDT (Service Description Table):
Information relating to the scrambling is also sent with the name of each serv-
ice.
The LEDs for the LAN interface show whether a network connection exists and
whether a data transfer is in progress.
When the head-end station is switched on, the two-line LC display shows the
software version of the control unit.
To operate this cassette the software version of the control unit must be "V 41"
or higher. You can find the current operating software for the control unit and
the cassette, the software "BE-Flash" and the current assembly instructions on
the website "www.gss.de".
The cassette is designed for use in the following head-end stations:
PSU12,PSU8,PGT8 and PST 19-1.
2.5 Software query
Control unit
If necessary, you can activate the indication of the software version of the
control unit manually:
 • Pressanytwokeysonthecontrolunitofthehead-endstationsimultaneously
until the display goes dark and the software version, e.g. "V 41" appears.
Cassette
After activating the cassette the software version of the cassette is displayed
(see page 17).

- 9 - PTIS 1000
3 Assembly
3.1 Installing the cassette
– Ensure the head-end station is mounted so it will not be able to vibrate.
Avoid,forexample,mountingthehead-endstationontoaliftshaftorany
other wall or floor construction that vibrates in a similar way.
– Before installing or changing a cassette unplug the power cable from the
mains power socket.

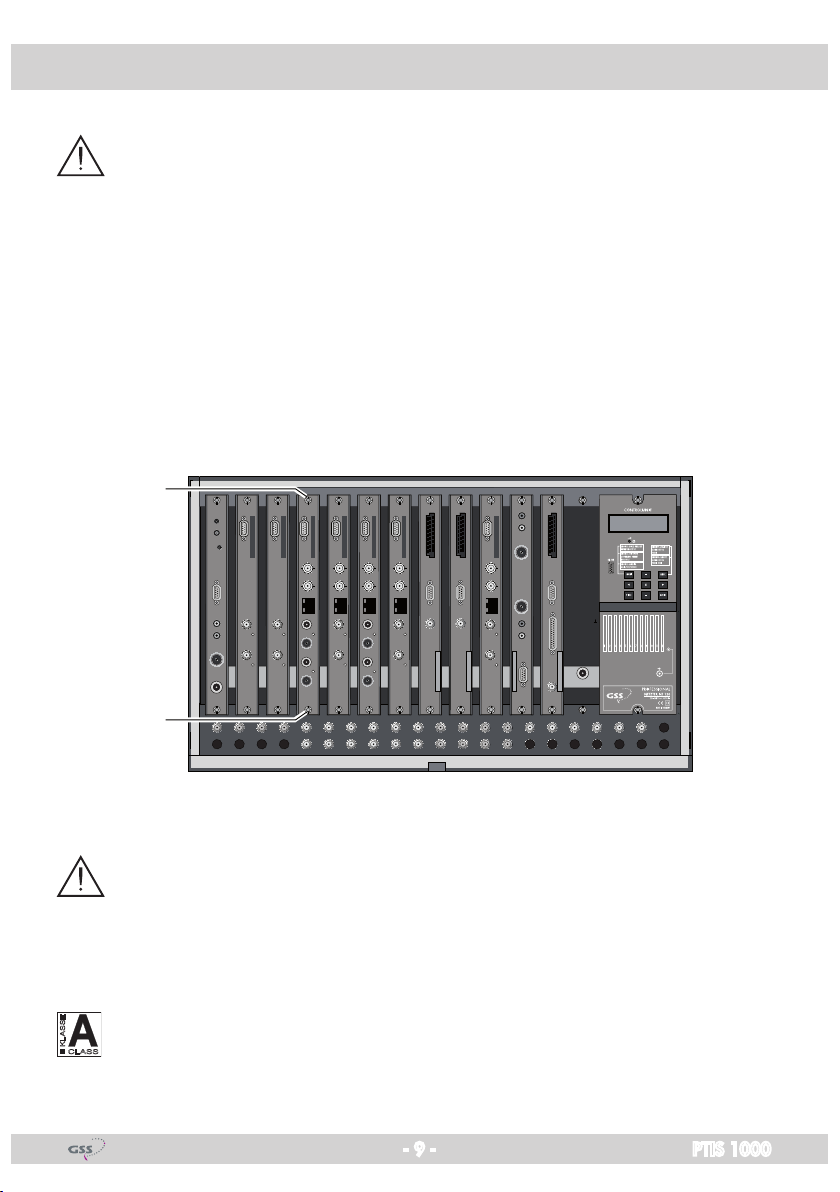

 • Removethefasteningscrews1of an unoccupied slot from the bracket of
the head-end station.
 • Insertthecassetteinthisslotandpushitintothehousing.
 • Alignthecassetteandapplyslightpressuretoconnectittotheconnections
of the board and the HF bus bar.
 • Fastenthecassettewiththescrews1.
0°
KASSETTE KASSETTE KASSETTE KASSETTE KASSETTE KASSETTE KASSETTE KASSETTE KASSETTE KASSETTE KASSETTE KASSETTE
AUSGANG
max. 90 dBµV
ACHTUNG!
Vor dem Kassettenwechsel
unbedingt denNetzstecker ziehen.
CAUTION!
Before changing cassettes remove
mains plug.
GrundigSATSystems
1
1
3.2 EMC regulations
To comply with the current EMC regulations, it is necessary to connect the lines
leading in and out of the head-end station using cable terminals.
When mounting the cassette in a head-end station which is installed in a 19"
cabinet, make sure the connections leading in and out for the 19" cabinet are
made using cable terminals.
CLASS
KLASSE
The attenuation of shielding of the connection lines for ASI and antenna must
meet the requirements for "Class A".

- 10 - PTIS 1000
 • Inserttherequirednumberofcableterminalsintheopeningsprovidedin
the head-end station or in the 19 " cabinet.
—> Cable terminals are not included in the scope of delivery.
Tighten the nuts of the cable terminals until the teeth on the lock washers put un-
der have penetrated the exterior coating and a good connection is made between
the housing / 19" cabinet and cable terminals.
3.3 Overview of the cassette

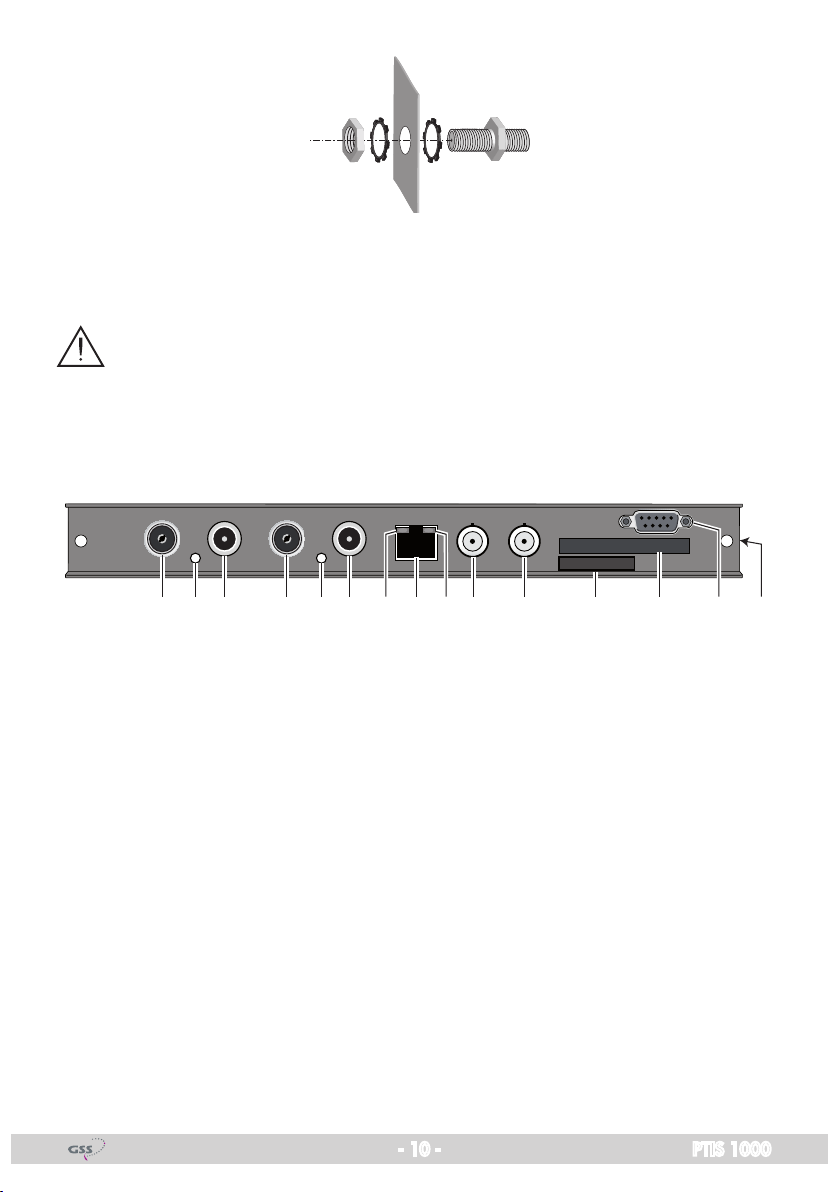

7 8 9 0 ! # $32 65 @ %41
1 HF input (channel strip " B ")
2 Status LED of the channel strip " B "
3 Loop-through output of HF input 1
4 HF input (channel strip " A ")
5 Status LED of the channel strip " A "
6 Loop-through output of HF input 4
7 Status LED of the LAN interface (yellow LED – data transfer)
8 LAN socket
9 Status LED of the LAN interface (green LED – network connection)
0 ASI input
! ASI output
@ Type label
# Slot for a CA module
$ D-SUB socket "RS 232"
% MAC address
