GSS PTDT 9200 User manual

English
CLASS
KLASSE
PTDT 9200
Terrestrial Digital
Terrestrial
GSS
Grundig SAT Systems GmbH
Beuthener Strasse 43
D-90471 Nuremberg
Phone: +49 (0) 911 / 703 8877
Fax: +49 (0) 911 / 703 9210
E-mail: [email protected]
Internet: http://www.gss.de

- 2 - PTDT 9200
Contents
1 Safety regulations and notes..............................................................................4
2 General information ..........................................................................................5
2.1 Packing contents ................................................................................ 5
2.2 Meaning of the symbols used............................................................... 5
2.3 Technical data.................................................................................... 6
2.4 Description ........................................................................................ 7
2.5 Software query .................................................................................. 7
2.6 How the TPS module works.................................................................. 8
Station filter ....................................................................................... 8
Stuffing ............................................................................................. 8
Changing the Transport stream and ORGNET-ID .................................... 8
Changing the NIT............................................................................... 8
3 Assembly ..........................................................................................................9
3.1 Installing the cassette .......................................................................... 9
3.2 EMC regulations .............................................................................. 10
3.3 Cassette overview ............................................................................ 11
3.4 Connecting the cassette..................................................................... 11
4 The control panel at a glance ...........................................................................12
4.1 Menu items...................................................................................... 12
4.2 Control panel................................................................................... 12
5 Programming ..................................................................................................13
5.1 Preparation...................................................................................... 13
5.2 Notes on level setting........................................................................ 13
5.3 Programming procedure.................................................................... 13
5.4 Programming the cassette ................................................................. 16
Selecting the cassette........................................................................ 16
Selecting the channel strip................................................................. 17
Channel / Frequency setting.............................................................. 18
Output channel ................................................................................ 18
Output frequency ............................................................................. 18
Switching the modulator off or on....................................................... 19
Adjusting the output levels of the channel strips .................................... 19
Selecting the Tuner (only channel strip B)............................................. 20
Input channel ................................................................................... 20
Hierarchical modulation.................................................................... 22
Station filter ..................................................................................... 22
COFDM parameters ......................................................................... 24

- 3 - PTDT 9200
Output signal ......................................................................................27
Bandwidth of the output signal...................................................... 27
Carrier modulation...................................................................... 27
Inverting the user signal ............................................................... 27
Transmission parameters ................................................................... 28
Transmission mode...................................................................... 28
Code rate .................................................................................. 28
Guard interval............................................................................ 28
Transmitter identification.................................................................... 29
Stuffing ........................................................................................... 30
Substitute signal in the case of an incorrect input signal ........................ 31
Transport stream ID and the ORGNET-ID ............................................. 31
Network Information Table (NIT)......................................................... 32
Deleting a PID.................................................................................. 33
Renaming a PID ............................................................................... 33
Factory reset.................................................................................... 34
Saving settings................................................................................. 34
6 Final procedures..............................................................................................35
7 Channel and frequency tables..........................................................................36

- 4 - PTDT 9200
1 safety regulations and notes
• Assembly,installation andservicing should becarriedout by authorised
electricians.
 • Switchofftheoperatingvoltageofthesystembeforebeginningwithassem-
bly or service work or pull out the mains plug.
 • Donotperforminstallationandserviceworkduringthunderstorms.
 • Installthesystemsoitwillnotbeabletovibrate…
 - inadust-free,dryenvironment
 - insuchamannerthatitisprotectedfrommoisture,fumes,splashingwa-
ter and dampness
- somewhere protected from direct sunlight
- not within the immediate vicinity of heat sources
- in an ambient temperature of 0 °C to +50 °C. In case of the formation of
condensation wait until the system is completely dried.
 • Ensurethatthehead-endstationisadequatelyventilated.Donotcoverthe
ventilation slots.
 • Bewareofshortcircuits
 • Noliabilityisacceptedforanydamagecausedbyfaultyconnectionsor
inappropriate handling.
 • Observetherelevantstandards,regulationsandguidelinesontheinstalla-
tion and operation of antenna systems.
 • ThestandardsIEC/EN/DINEN50083resp.IEC/EN/DINEN60728must
be observed.
 • For further information please read the assembly instructions for the head-
end station used.
• Test the software versions of the head-end station and the cassette and
update them if necessary. The current software versions can be found at
"www.gss.de".
Take action to prevent static discharge when working on the device!
Electronic devices should never be disposed of in the household rubbish. In
accordance with directive 2002/96/EC of the European Parliament and the
European Council from January 27, 2003 which addresses old electronic and
electrical devices, such devices must be disposed of at a designated collection
facility. At the end of its service life, please take your device to one of these
public collection facilities for proper disposal.

- 5 - PTDT 9200
2 general information
2.1 PaCking Contents
1 Cassette PTDT 9200
2 HF cables
1 Brief assembly instructions
1 Measuring log
2.2 meaning of the symbols used
Important note
—> General note
 •  Performingworks

- 6 - PTDT 9200
2.3 teChniCal data
The devices meet the following EU directives:
 2006/95/EC,2004/108/EC
The product fulfils the guidelines and standards for CE labelling (page 37).
Unless otherwise noted all values are specified as "typical".
HF input
Channels: ..........................................................C5…C12,C21…C69
Frequency range: ................................ 177.5…226.5,474…858MHz
Input level:.............................................................. 60dBμV…80dBμV
Loop through output gain..................................................................0 dB
Symbol rate ...............................................................acc. to EN 300744
COFDM modulator
Signal processing: ......................................................... DIN EN 300744
Transmission modes: ................................................................2k,4k,8k
Types of modulation:........................................ QPSK,16QAM,64QAM
Code rates:............................................................ 1/2,2/3,3/4,5/6,7/8
Guard intervals: ......................................................... 1/4,1/8,1/16,1/32
HF output
Frequency range: ............................................. 42.0MHz…860.0MHz
Channels: ..........................................................C5…C12,C21…C69
Output level: ............................................................................. 96 dBμV
Output impedance:......................................................................... 75 Ω
Connections
HF inputs: ...........................................................................2 IEC sockets
HF loop-through outputs: ......................................................2 IEC sockets
HF output: ...........................................................................1 IEC socket
Connection strip (10-pin): ..................for supply voltages and control circuits
RS-232 socket: ..................................... serial interface for software update
Remote maintenance
Remotely controllable (via PSW 1000*): ..............................................yes
Remote update (via BEflash*):.............................................................yes
(* and a corresponding management unit)

- 7 - PTDT 9200
2.4 desCriPtion
The cassette converts two incoming COFDM -modulated signals into two out-
going COFDM-modulated signals with free selectable frequency . Individual
stations can be deleted. The cassette has two DVB-T inputs and one HF output.
General
The cassette is equipped with two channel strips (" A " and " B "). The channel
stripsconsistoftheDVB-Ttuners,thedigitalsignalpreparationunitsandthe
output converter. The channel strips are indicated in the head-end station dis-
play with "Bx …A" and "Bx …B". The control of the cassette takes place via
the control unit of the head-end station.
Two LEDs provide an indication of the input signal quality based on their col-
our and indicate if the respective channel strip is switched on (LED illuminates)
or off. The integrated TPS module (Transport Stream Processing) processes the
data of the transport streams.
The COFDM modulated HF output signals are sent through the HF output of the
cassette to the output collector. The common output level of the channel strips
can be set at the output collector.
 Whenthehead-endstationisswitchedon,thetwo-lineLCdisplayshowsthe
software version of the control unit. To operate this cassette the software ver-
sion of the control unit must be "V 43" or higher. You can find the current op-
eratingsoftwareforthecontrolunitandthecassette,thesoftware"BE-Flash"
and the current assembly instructions on the website "www.gss.de".
The cassette is designed for use in head-end stations of the profi line.
2.5 software query
Control unit
 If necessary, you can activate the indication of the software version of the
control unit manually:
 • Pressanytwokeysonthecontrolunitofthehead-endstationsimultaneously
untilthedisplaygoesdarkandthesoftwareversion,e.g."V 43" appears.

- 8 - PTDT 9200
2.6 how the tPs module works
 After decoding COFDM-modulated signals, the demodulated data streams
can be accessed via the integrated TPS module. These data streams, also
calledtransportstreams,containseveralstationsinalltheircomponents(vid-
eo,audio,dataandserviceinformation),whichcanbechangedusingtheTPS
module.
station filter
 Individual stations can be deleted. This reduces the data rate and, conse-
quently,theoutputsymbolrate.
stuffing
 Thetransportstreamispaddedusingwhatisknownaszerodata.Thisensures
a steady and constant output data rate.
Changing the tr ansPort stream and orgnet-id
The transport stream ID can be changed. If the stations of a transponder are
splitintothetransportstreamsofthechannelstrips"A"and"B",oneofthe
both transport streams a new identification must be allocated to realise the
channel search of the settop boxes connected without mistakes.
If the ORGNET-ID is changed a new NIT must be generated.
Changing the nit
The transport stream contains data in the form of tables which the receiv-
ers evaluate and require for convenient use. The TPS module can adjust the
"Network Information Table" (NIT) to accommodate the new station data. The
"NIT" contains data which is required by the set-top boxes connected to the
cable network for the automatic search feature.

- 9 - PTDT 9200
3 assembly
3.1 installing the Cassette
– Ensure the head-end station is mounted so it will not be able to vibrate.
Avoid,forexample,mountingthehead-endstationontoaliftshaftorany
other wall or floor construction that vibrates in a similar way.
– Before installing or changing a cassette unplug the power cable from the
mains power socket.
 • Removethefasteningscrews1of an unoccupied slot from the bracket of
the head-end station.
 • Insertthecassetteinthisslotandpushitintothehousing.
 • Alignthecassetteandapplyslightpressuretoconnectittotheconnections
of the board and the HF bus bar.
 • Fastenthecassettewiththescrews1.
0°
1
1
KASSETTE KASSETTE KASSETTE KASSETTE KASSETTE KASSETTE KASSETTE KASSETTE KASSETTE KASSETTE KASSETTE KASSETTE
AUSGANG
max. 90 dBµV
ACHTUNG!
Vor dem Kassettenwechsel
unbedingt denNetzstecker ziehen.
CAUTION!
Before changing cassettes remove
mains plug.
GrundigSATSystems

- 10 - PTDT 9200
3.2 emC regul ations
To comply with the current EMC regulations, it is necessary to connect the lines
leading in and out of the head-end station using cable terminals.
When mounting the cassette in a head-end station which is installed in a 19"
cabinet, make sure the connections leading in and out for the 19" cabinet are
made using cable terminals.
CLASS
KLASSE
The attenuation of shielding of the connection lines for ASI and antenna must
meet the requirements for "Class A".
 • Inserttherequirednumberofcableterminalsintheopeningsprovidedin
the head-end station or in the 19 " cabinet.
Tighten the nuts of the cable terminals until the teeth on the lock washers put un-
der have penetrated the exterior coating and a good connection is made between
the housing / 19" cabinet and cable terminals.

- 11 - PTDT 9200
3.3 Cassette overview
7
6
4
3
2
5
1
1HF input (channel strip " B ")
2 Status LED of the channel strip " B "
3 Loop-through output of HF input 1
4 HF input (channel strip " A ")
5 Status LED of the channel strip " A "
6 Loop-through output of HF input 4
7 D-SUB socket "RS 232"
—> The operating software of the cassette can be updated via the 9-pin
D-SUB socket "RS 232" using a PC or notebook and the software
"BE-Flash". You can find the current operating software on the web-
site "www.gss.de".
3.4 ConneCting the Cassette
 • ConnecttheHFconnectionstotheinputs"A"(tuner"A")and"B"(tuner"B").
 • Connectthehead-endstationtothemains.

- 12 - PTDT 9200

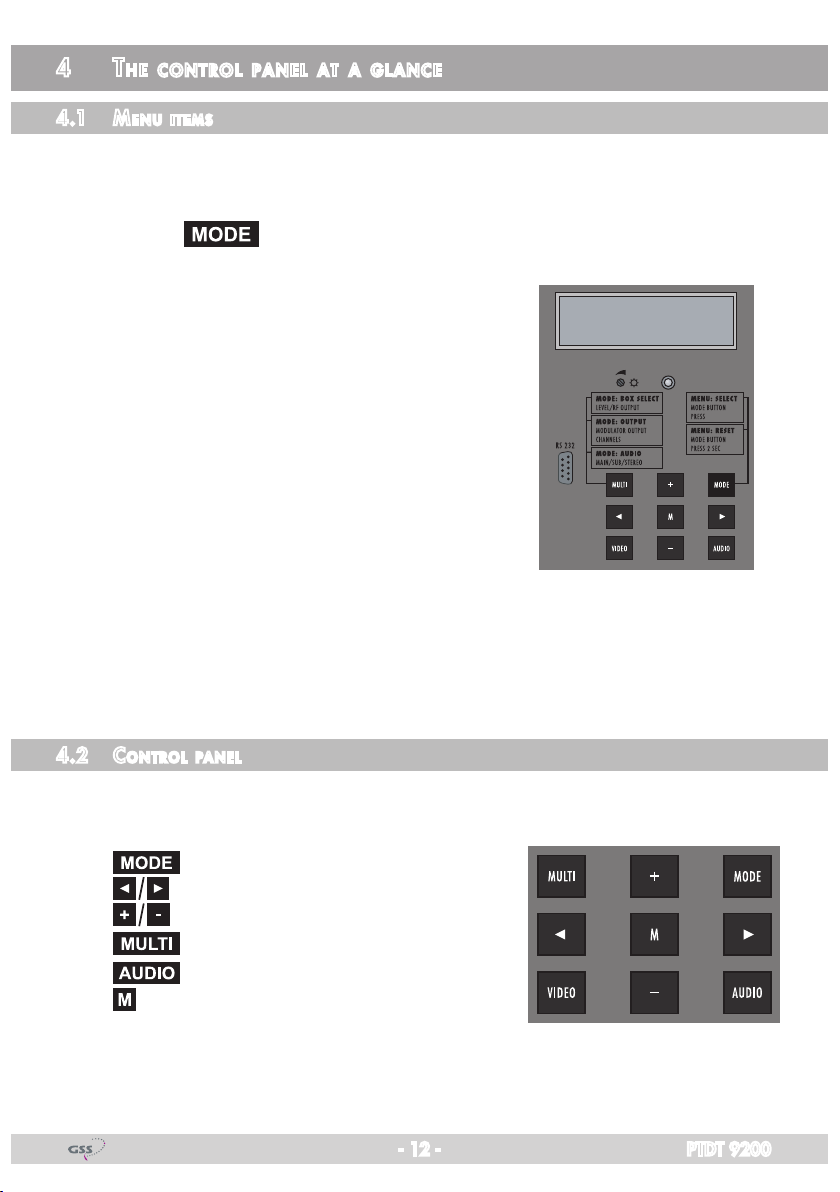

4 the Control Panel at aglanCe
4.1 menu items
Programme the cassette using the buttons on the control unit of the head-end
station. The two-line display of the control unit then shows the menus.
The parameters and functions to be set are underlined.
Use the key to select the following main menu items:
– Channel strip
– Channel / frequency setting
– Output channel / output frequency
– Output level
– Input channel
– Hierarchical modulation
– Station filter
– Output signal
– Transmission parameters
– Station identification
– Stuffing
– Substitute signal
– Transport stream and ORGNET-ID
– Network Information Table (NIT)
– Network/operator identification
– Deleting a PID
– Renaming a PID
– Factory reset
4.2 Control Panel
The key pad on the head-end station is used to scroll through the menus step-
by-step:
scrolls forward through the menus.
select parameters in the menus.
setvalues,initiateactions.
selects sub-menus.
scrolls backward through the menus.
saves all entries.
BE-Remote V43
PROFESSIONAL

- 13 - PTDT 9200
5 Programming
5.1 PreParation
 • Test the software versions of the head-end station and the cassette and up-
date them if necessary.
The current software versions can be found on the website " www.gss.de " .
 • ConnectthetestreceivertotheHFoutputorthetestoutputofthehead-end
station.
 • Settheoutputchannel/outputfrequencyofthe cassette (page 18) and adjust
the TV test receiver to this channel / frequency.
 • Switch on the channel strip (modulator) if necessary ( page 19). For each chan-
nelstrip,thereisastatusLED (2/ 5,page11) which indicates if the chan-
nel strip is switched on.
 • Balancetheoutputlevelsofthechannelstrips"A" and "B" if the difference
in level is ≥ 1 dB (page 19).
5.2 notes on level setting
In order to prevent interference within the head-end station and the cable sys-
tem,theoutputlevelofthecassettemustbedecreasedby8dBcomparedto
analogue cassettes.

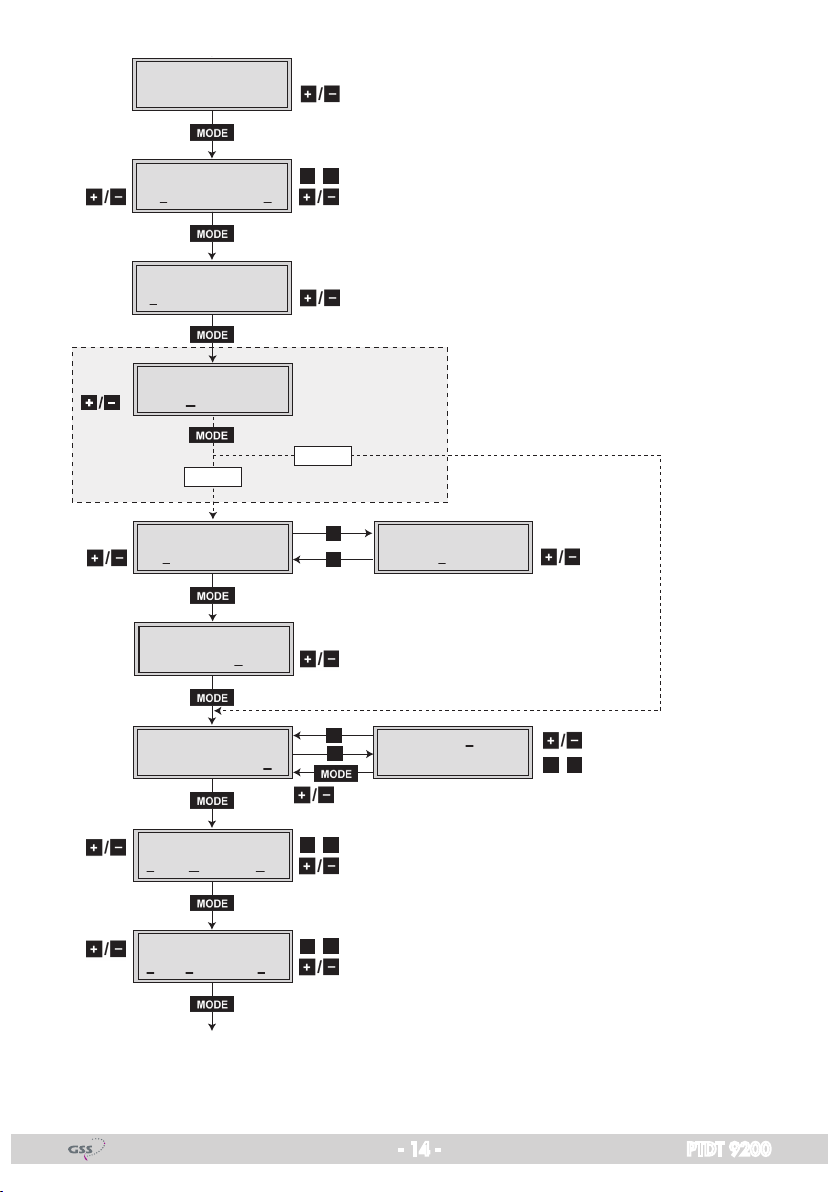

5.3 Programming ProCedure
Bx 4B
Tuner B
INPUT
Tuner A / Tuner B
nur Kanalzug B
only channel strip B
Tuner B
Tuner A
Bx 4A/B
Freq.
OUTPUT
Channel / Freq.
A / B
Bx 4A/B
850.00 MHz
OUTPUT
on on / off
Bx 4A/B
-3 dB
LEVEL
0… -10 dB
Bx 4A/B
Filter
PROGRAM
off
01/10Bx 4A/B TV +
Das Erste
Programme entfernen / hinzufügen
Removing / activating stations
nächster Service (Programm)
next service (station)
▶
◀/
on -> off
Bx 4A/B
8MHz QAM64
COFDM-MODE
POS
▶
◀/
5…8MHz QPSK…QAM64
positiv / negativ
positive / negative
Bx 4A/B
2k C7/8
COFDM-MODE
G1/32
▶
◀/
2 … 8k C1/2 … C7/8
G1/4 … G 1/32
Bx 4A/B
CELL 0x0000
COFDM TPS
off
▶
◀/
0x0000 … 0xFFFF
on / off
Bx 4A/B
34363 (32502)
STUFFING
Bx 4A/B
Single Carrier
FAILURE
Null Packets … Single Carrier
Bx 4A/B
off
NIT
=> Make ▶
on / off Make
Bx 4A/B
PID 0x0000
DROP
off
▶
◀/
Bx 4A/B
0x0000 –> 0000
REMAP
off
▶
◀/
on / off
▶
◀/
on / off
▶
◀/
B
BE–Remote
please wait …
V 43
Box 4
V 19
DVBT-TPS
COFDM – – –
Bx 4A
V 19
DVBT-TPS
COFDM 850
+
t > 10 s
A
▶
◀/
Ein / On
M
M
B
A
▶
Bx 4
Defaults
FACTORY
=>
Bx 4
STORE
FACTORY
=> M
auf Werkseinstellung
zurücksetzen und speichern
reset to factory defaults
and store
▶
Box 1
..............
..............
..............
Bx 1A
C5-12,S3-24
TWIN-SAT
C07
Böx 4
C5-12,S3-24
TWIN-SAT
C07
Box 5
..............
..............
..............
▶
◀/Bx 4A/B
0x0001,0100
TS/ONID
off
▶
◀/
off / on
Bx 4A/B
C60 0
INPUT
OK
Bx 4A/B
Priority: high
INPUT
Bx 4A/B
C60 (786.0)
INPUT
OK
high / low
-64 … +64
◀
▶
Bedienhinweise
"blättert" Menüs vorwärts.
"blättert" Menüs rückwärts.
wählen die Eingabeposition
wählt Untermenü
stellen Werte ein,.
speichert alle Eingaben.
1zeigt die Eingabeposition
Operating Hints
scrolls forward through the menu.
scrolls backward through the menu.
select the enter position.
selects a submenu.
set values and triggers actions.
saves all entries.
1shows the enter position
Page 15

- 14 - PTDT 9200
Bx 4B
Tuner B
INPUT
Tuner A / Tuner B
nur Kanalzug B
only channel strip B
Tuner B
Tuner A
Bx 4A/B
Freq.
OUTPUT
Channel / Freq.
A / B
Bx 4A/B
850.00 MHz
OUTPUT
on on / off
Bx 4A/B
-3 dB
LEVEL
0… -10 dB
Bx 4A/B
Filter
PROGRAM
off
01/10Bx 4A/B TV +
Das Erste
Programme entfernen / hinzufügen
Removing / activating stations
nächster Service (Programm)
next service (station)
▶
◀/
on -> off
Bx 4A/B
8MHz QAM64
COFDM-MODE
POS
▶
◀/
5…8MHz QPSK…QAM64
positiv / negativ
positive / negative
Bx 4A/B
2k C7/8
COFDM-MODE
G1/32
▶
◀/
2 … 8k C1/2 … C7/8
G1/4 … G 1/32
Bx 4A/B
CELL 0x0000
COFDM TPS
off
▶
◀/
0x0000 … 0xFFFF
on / off
Bx 4A/B
34363 (32502)
STUFFING
Bx 4A/B
Single Carrier
FAILURE
Null Packets … Single Carrier
Bx 4A/B
off
NIT
=> Make ▶
on / off Make
Bx 4A/B
PID 0x0000
DROP
off
▶
◀/
Bx 4A/B
0x0000 –> 0000
REMAP
off
▶
◀/
on / off
▶
◀/
on / off
▶
◀/
B
BE–Remote
please wait …
V 43
Box 4
V 19
DVBT-TPS
COFDM – – –
Bx 4A
V 19
DVBT-TPS
COFDM 850
+
t > 10 s
A
▶
◀/
Ein / On
M
M
B
A
▶
Bx 4
Defaults
FACTORY
=>
Bx 4
STORE
FACTORY
=> M
auf Werkseinstellung
zurücksetzen und speichern
reset to factory defaults
and store
▶
Box 1
..............
..............
..............
Bx 1A
C5-12,S3-24
TWIN-SAT
C07
Böx 4
C5-12,S3-24
TWIN-SAT
C07
Box 5
..............
..............
..............
▶
◀/Bx 4A/B
0x0001,0100
TS/ONID
off
▶
◀/
off / on
Bx 4A/B
C60 0
INPUT
OK
Bx 4A/B
Priority: high
INPUT
Bx 4A/B
C60 (786.0)
INPUT
OK
high / low
-64 … +64
◀
▶
Bedienhinweise
"blättert" Menüs vorwärts.
"blättert" Menüs rückwärts.
wählen die Eingabeposition
wählt Untermenü
stellen Werte ein,.
speichert alle Eingaben.
1zeigt die Eingabeposition
Operating Hints
scrolls forward through the menu.
scrolls backward through the menu.
select the enter position.
selects a submenu.
set values and triggers actions.
saves all entries.
1shows the enter position

- 15 - PTDT 9200
Bx 4B
Tuner B
INPUT
Tuner A / Tuner B
nur Kanalzug B
only channel strip B
Tuner B
Tuner A
Bx 4A/B
Freq.
OUTPUT
Channel / Freq.
A / B
Bx 4A/B
850.00 MHz
OUTPUT
on on / off
Bx 4A/B
-3 dB
LEVEL
0… -10 dB
Bx 4A/B
Filter
PROGRAM
off
01/10Bx 4A/B TV +
Das Erste
Programme entfernen / hinzufügen
Removing / activating stations
nächster Service (Programm)
next service (station)
▶
◀/
on -> off
Bx 4A/B
8MHz QAM64
COFDM-MODE
POS
▶
◀/
5…8MHz QPSK…QAM64
positiv / negativ
positive / negative
Bx 4A/B
2k C7/8
COFDM-MODE
G1/32
▶
◀/
2 … 8k C1/2 … C7/8
G1/4 … G 1/32
Bx 4A/B
CELL 0x0000
COFDM TPS
off
▶
◀/
0x0000 … 0xFFFF
on / off
Bx 4A/B
34363 (32502)
STUFFING
Bx 4A/B
Single Carrier
FAILURE
Null Packets … Single Carrier
Bx 4A/B
off
NIT
=> Make ▶
on / off Make
Bx 4A/B
PID 0x0000
DROP
off
▶
◀/
Bx 4A/B
0x0000 –> 0000
REMAP
off
▶
◀/
on / off
▶
◀/
on / off
▶
◀/
B
BE–Remote
please wait …
V 43
Box 4
V 19
DVBT-TPS
COFDM – – –
Bx 4A
V 19
DVBT-TPS
COFDM 850
+
t > 10 s
A
▶
◀/
Ein / On
M
M
B
A
▶
Bx 4
Defaults
FACTORY
=>
Bx 4
STORE
FACTORY
=> M
auf Werkseinstellung
zurücksetzen und speichern
reset to factory defaults
and store
▶
Box 1
..............
..............
..............
Bx 1A
C5-12,S3-24
TWIN-SAT
C07
Böx 4
C5-12,S3-24
TWIN-SAT
C07
Box 5
..............
..............
..............
▶
◀/Bx 4A/B
0x0001,0100
TS/ONID
off
▶
◀/
off / on
Bx 4A/B
C60 0
INPUT
OK
Bx 4A/B
Priority: high
INPUT
Bx 4A/B
C60 (786.0)
INPUT
OK
high / low
-64 … +64
◀
▶
Bedienhinweise
"blättert" Menüs vorwärts.
"blättert" Menüs rückwärts.
wählen die Eingabeposition
wählt Untermenü
stellen Werte ein,.
speichert alle Eingaben.
1zeigt die Eingabeposition
Operating Hints
scrolls forward through the menu.
scrolls backward through the menu.
select the enter position.
selects a submenu.
set values and triggers actions.
saves all entries.
1shows the enter position
Page 13

- 16 - PTDT 9200
5.4 Progr a mming the Casset te
—> Pressing the button for longer than 2 seconds cancels the
programming procedure. This takes you back to the programme
item "Selecting the cassette" from any menu. Any entries that have
not been saved are reset to the previous settings.
—> Entries in the menus can be saved by pressing the key. You are
taken back to the "Selecting the cassette" menu item.
 • Switchonthehead-endstation
—> The display shows the software version (e.g. V 43)
—> The processor reads the cassettes ‘ data (approx. 10 seconds).
BE–Remote
please wait …
V 43
t > 10 s
Ein / On
seleCting the Cassette
B
o
x
1
.
............
.
..............
.............
.
Bo
x
5
..............
..............
..............
+
Box 4
V 19
DVBT-TPS
COFDM – – –
 • Selectthe cassette you want to programme (e.g. Box 4) by repeatedly press-
ing the button if necessary.
—> The display shows e.g. the menu "Box 4 DVBT-TPS" :
"Box 4" stands for slot 4
"DVBT-TPS" Type of cassette
"V 19" Software version of the cassette

- 17 - PTDT 9200
seleCting the Channel striP
Selecting channel strip "A"
 • Pressthe button to select channel strip "A".
Box 4
V 19
DVBT-TPS
COFDM – – –
Bx 4A
V 19
DVBT-TPS
COFDM C21
—> Button selects the previous cassette.
Selecting channel strip "B"
Box 4
V 19
DVBT-TPS
COFDM – – –
Bx 4A
V 19
DVBT-TPS
COFDM 850
Bx 4B
V 19
DVBT-TPS
COFDM 858
Box 5
..............
..............
..............
Box 3
..............
..............
..............
 • Pressthe button to select channel strip "B".
—> The display shows e.g. the menu "Bx 4B DVBT-TPS" :
"Bx" stands for cassette(box),
"4" for slot 4,
"B" for channel strip "B"
"DVBT-TPS" Type of cassette
"858" adjusted frequency
—> Button selects channel strip "A".
—> Button selects the following cassette.
 • Pressthe button.
—> The "Channel / frequency setting" – "OUTPUT" menu is activated.

- 18 - PTDT 9200
Channel / frequenCy set ting
 Inthismenu,youcanselectthechannelorfrequencysettingfortheadjustment
oftheHFoutput.ThechannelsettingcoverstherangeofchannelsC5…C12
andC21…C69,thefrequencysettingcoverstherangefrom42.0MHzto
860.0MHz.
Bx 4A
Freq.
OUTPUT
 • Use to select channel setting "Channel" or frequency setting "Freq.".
 • Pressthe button.
—> The "Output channel" or "Output frequency" – "OUTPUT" menu is
activated.
outPut Channel
 Inthismenuyousettheoutputchannelofthechannelstrip(C5…C12,C21
…C69).Additionallythemodulatorofthechannelstripcanbeswitchedoff
or on ( page 19 ).
Bx 4A
C68
OUTPUT
on
 • Use the buttons to set the output channel.
outPut frequenCy
In this menu you set the output frequency of the channel strip (42.0…860.0MHz) .
Additionallythemodulator ofthechannel strip canbeswitched off or on ( page19 ) .
Bx 4A
850.00MHz
OUTPUT
on
 • Usethe buttons to place the cursor under the digit to be set for the
frequency display then use to set the output frequency wished.

- 19 - PTDT 9200
switChing the modulator off or on
Bx 4A
C68
OUTPUT
on
 • Toswitchoffthemodulatorplacethecursorunder"on" using the button
and switch "off" the modulator of the channel strip using the buttons.
—> The status LED is switched off (see also page 11).
—> The switched off modulator is indicated by " - - - " in the display
instead of the channel or frequency display.
 • Inthecasethemodulatorisswitched"off" use the to switch it "on".
 • Pressthe button.
—> The "Adjusting the output levels of the channel strips" – "LEVEL" menu
is activated.
adjusting the outPut levels of the Channel striPs
This menu item is used to set the output levels of the modulators of the channel
strips "A" and "B" to the same value.
Bx 4A
-3 dB
LEVEL
 • Measureandnotedowntheoutputlevelofthechannelstrip.Toadjustthe
output level to the output levels of the other cassettes please pay attention to
chapter 6 "Final procedures".
 • Byrepeatedlypressingthe button scroll back to the "Selecting the
channel strip" menu.
 • Selecttheotherchannelstrip (page 17) and set the following menu items:
 • Select"Channel/frequencysetting"(page18).
 • Setthe"Outputchannel"or"Outputfrequency"( page 18).
 • Switchonthemodulatorifnecessary( page 19).
 • Measureandnotedowntheoutputlevel.
 • Activatethe "LEVEL" menu of the channel strip with the higher output level.
 • Bypressi ng adjust the higher output level of the one channel strip

- 20 - PTDT 9200
to the lower output level of the other channel strip incrementally ("0 " …
" –10 dB").
 • Pressthe button.
Channel strip A:
—> The menu "Input channel" – INPUT" is activated (page 21).
Channel strip B:
—> The "Selecting the Tuner" – "INPUT Tuner …"menu is activated.
seleCting the tuner (only Channel striP b)
In this menu you can select which tuner (input A or B) is to use (only for channel
strip B). So the transport streams of the receiving stage "A" can be split into
two output transport streams.
Bx 4B
Tuner B
INPUT
 • Pressthe buttons to select the tuner wished.
 • Pressthe button.
Selection Tuner Line A:
—> The menu "Station filter " – "PROGRAM" is activated (page 22).
Selection Tuner Line B:
—> The menu "Input channel" – INPUT" is activated.
inPut Channel
If three dots " …"appearinthesecondlineofthedisplay,thecassetteisinthe
"station search" mode. Please wait until the process has finished.
 OncetheHFreceiverhassynchronisedtotheinputsignal,"OK" is displayed.
If "– –" appears in the second line of the display, there is no input signal
present. Check the configuration of the antenna system and the head-end sta-
tion as well as the preceding settings of the cassette .
Bx 4A
C66 0
INPUT
OK
Bx 4A
C66 (834.0)
INPUT
OK Ï
Å
