GSS HDMT 1000 MPTS User manual

Grundig SAT SystEms
GSS
Grundig SAT Systems GmbH
Beuthener Strasse 43
D-90471 Nuremberg
Phone: +49 (0) 911 / 703 8877
Fax: +49 (0) 911 / 703 9210
E-mail: [email protected]
Internet: http://www.gss.de
Assembly Instructions
Assembly Instructions
English
A
A
CLASS
CLASS
KLASSE
KLASSE
HDMT 1000 MPTS
Head-End DVB-T Converter to IP
DVB-T to MPTS

- 2 -
- 2 -
Contents
1 Safety regulations and notes......................................................................................4
2 General information..................................................................................................5
2.1 Packing contents..........................................................................................5
2.2 Meaning of the symbols used........................................................................5
2.3 Technical specifications ................................................................................5
2.4 Description .................................................................................................6
2.4.1 Input signal path “INROUTE”..............................................................7
2.4.1.1 Menu setting “A+ASI=1 B+ASI=2”.......................................7
2.4.1.2 Menu setting “A+B+ASI=1 ASI=2”.......................................7
2.4.2 Output signal path “OUTROUTE” ........................................................8
2.4.2.1 Menu setting “ASI => ASI”....................................................8
2.4.2.2 Menu setting “1=>ASI ASI=>MA” .......................................8
2.4.2.3 Menu setting “2=>ASI ASI=>MB”........................................9
2.4.3 General ...........................................................................................9
2.5 Software query..........................................................................................10
3 Assembly................................................................................................................ 11
3.1 Installing the cassette..................................................................................11
3.2 EMC regulations........................................................................................11
3.3 Overview of the cassette ............................................................................12
3.4 Connecting the cassette..............................................................................13
3.5 Updating the software................................................................................13
3.6 Retrofitting a CA module ............................................................................14
4 The control panel at a glance...................................................................................15
4.1 Menu items...............................................................................................15
4.2 Control panel............................................................................................15
5 Programming..........................................................................................................16
5.1
Programming procedure ..............................................................................16
5.1.1 Channel strips “A” (without CA module) and “B”.................................16
5.1.2 Channel strip “A” with CA module ....................................................19
5.2 Programming the cassette ..........................................................................20
Selecting the cassette, displaying the software version....................................20
Setting the Ethernet parameters ...................................................................21
Setting the IP address of the cassette ............................................................21
Setting the address range ...........................................................................22
Setting the address of the gateway ..............................................................23
Setting the UDP port...................................................................................23
Selecting the input signal path.....................................................................24
Selecting the output signal path...................................................................24
Setting the ASI transfer rate.........................................................................25
Setting the ASI options ...............................................................................26
Selecting the channel strip ..........................................................................27
Switching the IP address off or on................................................................27
Selecting the transmission protocol...............................................................27

- 3 -
- 3 -
Setting the port number ..............................................................................27
Defining the quantity of data packets ...........................................................29
Setting the forward error correction .............................................................29
Setting the transmission channel ..................................................................29
Setting the output IP address .......................................................................30
Setting the input channel ............................................................................30
Setting the hierarchical modulation ..............................................................32
Setting the station filter ...............................................................................33
Displaying the output data rate....................................................................37
Network Information Table (NIT)..................................................................37
Network/operator identification..................................................................38
Deleting a PID...........................................................................................39
Renaming a PID.........................................................................................39
Saving settings ..........................................................................................40
5.2.1 Operation with a CA module............................................................40
Setting the operating voltage for the CA module .................................40
Setting the PID monitoring ................................................................41
Configuring the CA module..............................................................42
Decoding services ...........................................................................43
6 Final procedures .....................................................................................................44

- 4 -
- 4 -
1 Safety regulations and notes
• Assembly, installation and servicing should be carried out by authorised
electricians.
• Switch off the operating voltage of the system before beginning with as-
sembly or service work or pull out the mains plug.
• Do not perform installation and service work during thunderstorms.
• Install the system so it will not be able to vibrate…
- in a dust-free, dry environment
- in such a manner that it is protected from moisture, fumes, splashing
water and dampness
- somewhere protected from direct sunlight
- not within the immediate vicinity of heat sources
- in an ambient temperature of -20 °C to +50 °C.
• Ensure that the head-end station is adequately ventilated. Do not cover
the ventilation slots.
• Beware of short circuits
• No liability is accepted for any damage caused by faulty connections or
inappropriate handling.
• Observe the relevant standards, regulations and guidelines on the instal-
lation and operation of antenna systems.
• Earth the receiving system in accordance with DIN EN 50083-1 / 60728-
11 and VDE 0855 (earthing, equipotential bonding rail).
• Test the software versions of the head-end station and the cassette and
update them if necessary. The current software versions can be found at
”www.gss.de”.
• For further information please read the assembly instructions for the
head-end station used.
Take action to prevent static discharge when working on the device.
Electronic devices should never be disposed of in the household rubbish. In
accordance with directive 2002/96/EC of the European Parliament and
the European Council from January 27, 2003 which addresses old elec-
tronic and electrical devices, such devices must be disposed of at a desig-
nated collection facility. At the end of its service life, please take your
device to one of these public collection facilities for proper disposal.

- 5 -
- 5 -
2 General information
2.1 Packing contents
1 Cassette HDMT 1000 MPTS
2 HF cables
1 CD (assembly instructions)
1 Brief assembly instructions
2.2 Meaning of the symbols used
Important note
—> General note
• Performing works
2.3 Technical specifications
The devices meet the following EU directives:
2006/95/EC, 2004/108/EC
The product fulfils the guidelines and standards for CE labelling.
HF input
Channels: C05 … C12, C21 … C69
Frequency range: 177.5 … 226.5, 474 … 858 MHz
Input level: 60 dBµV … 80 dBµV
Return loss: > 8 dB
Impedance: 75 Ω
Symbol rate acc. to EN 300744
LAN interface
Standard: 100-BASE-T
Data rate: ≤80 MBit
Protocols: UDP (User Data Protocol),
RTP (Real-Time Transport Protocol)
ASI interfaces
Standard: DIN EN 50083-9
Format: MPEG ISO IEC 13818-1
User data rate: 2 … 90 Mbit/s

- 6 -
- 6 -
Impedance: 75 Ω
Level (input / output): 800 mVpp ± 10%
Return loss (input): > 17 dB (5 … 270 MHz
Connections
HF inputs: 2 IEC sockets
HF loop-through outputs: 2 IEC sockets
HF output: 1 IEC socket (no function)
LAN: 1 RJ 45 socket
ASI input: 1 BNC socket
ASI output: 1 BNC socket
Connection strip (10-pin): for supply voltages and control circuits
RS 232 socket: serial interface for software update
Common Interface: 1 (several services can be decoded.
2.4 Description
The cassette is a DVB-T / MPTS converter which combines COFDM-modulated
services (programmes) and transport streams supplied via the ASI interface into
two transport streams in the TPS module according to chapter 2.4.1. The trans-
port streams are emitted, equipped with IP addresses via the LAN interface.
Principle signal path:
For operating the cassette in a LAN network it can be assigned its own IP ad-
dress.
The cassette has two HF inputs and one LAN interface. Additionally is equipped
with one ASI input and one ASI output (ASI – Asynchronous Serial Interface
according to DIN EN 50083-9)
Channel strip "A"
Channel strip "B"
IP address: Port:
Service 1
Service 2
Service 3 212.40.90 : 1234
Service 4
Service …
Service A
Service B 212.40.91 : 1234
Service C
Service …

- 7 -
- 7 -
The transport stream fed via the ASI socket can be inserted into the transport
streams of the receiving stages via the TPS module. T he signal path is set in the
menu items input signal path “INROUTE” and output signal path ”OUTROUTE” .

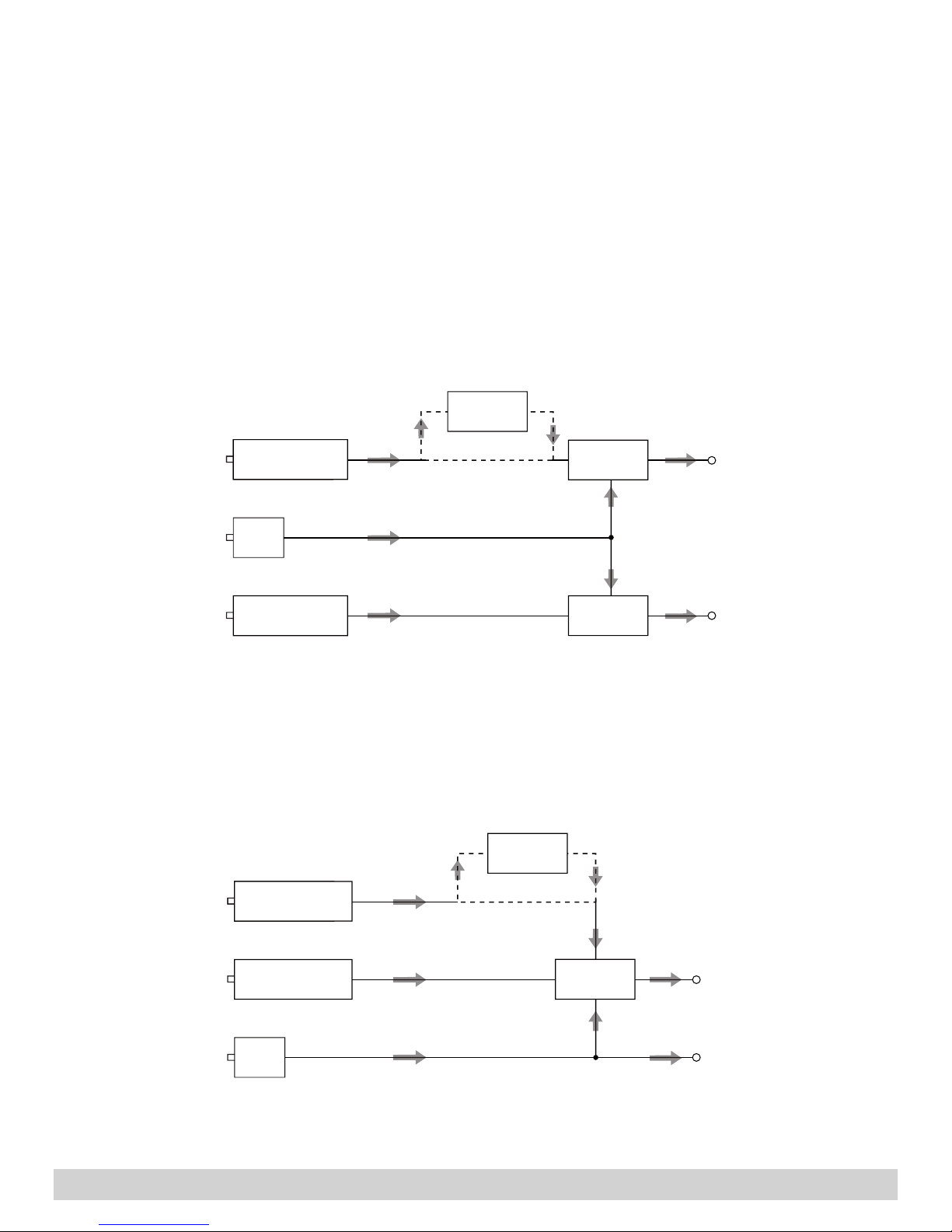

2.4.1 Input signal path “INROUTE”
2.4.1.1 Menu setting “A+ASI=1 B+ASI=2”
The transport streams of the receiving stage of channel strip ”A” “TS A” and of
the ASI input “TS ASI” generate the transport stream 1. The transport streams
of the receiving stage of channel strip ”B” “TS B” and of the ASI input “TS ASI”
generate the transport stream 2.
2.4.1.2 Menu setting “A+B+ASI=1 ASI=2”
The transport streams of the receiving stages of channel strips ”A” “TS A”,
”B” “TS B” and of the ASI input “TS ASI” generate the transport stream 1.
The
“TS ASI” transport stream fed via the ASI input generates the transport stream 2.
Transport stream 1
Transport stream 2
ASI input
Empfangsteil
"A"
Receiving stage
channel strip "A"
HF input ”A“
Receiving stage
channel strip "B"
HF input ”B“
TPS
TPS
TS ASI
TS A
TS B
CA module
ASI input
Empfangsteil
"A"
HF input ”A“
TPS
TS ASI
TS A
TS B
CA module
HF input ”B“
Receiving stage
channel strip "A"
Receiving stage
channel strip "B"Transport stream 1
Transport stream 2

- 8 -
- 8 -

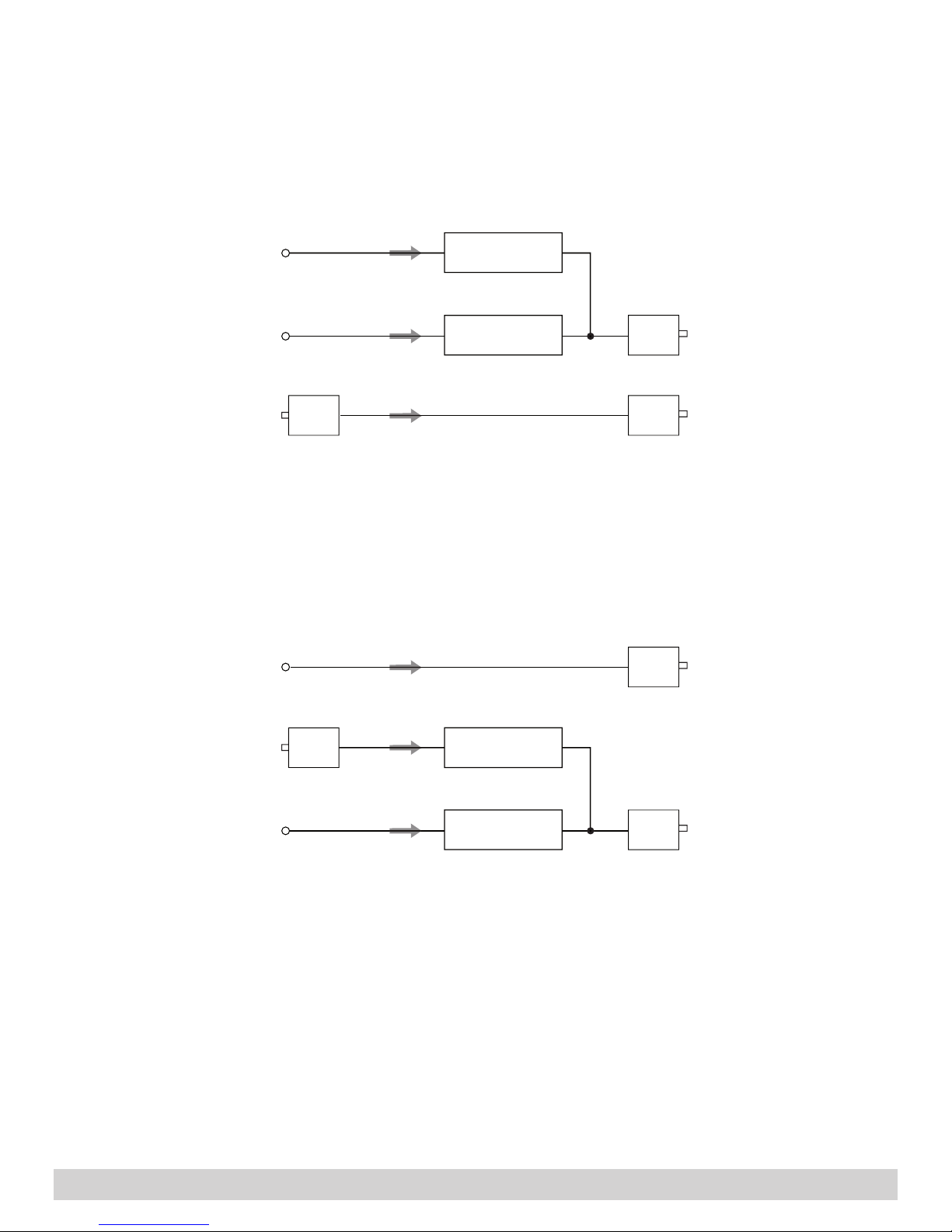

2.4.2 Output signal path “OUTROUTE”
2.4.2.1 Menu setting “ASI => ASI”
The transport streams 1 (channel strip “A”) and 2 (channel strip “B”) equipped
with IP addresses are provided at the LAN interface. The transport stream from
the ASI input “TS ASI” is made available via the ASI output.
2.4.2.2 Menu setting “1=>ASI ASI=>MA”
The transport stream 1 is made available via the ASI output.
The transport stream 2 (channel strip ”B”) and the transport stream fed via the
ASI input (channel strip ”A”, ”MA”) are provided at the LAN interface equipped
with IP addresses.
ASI input ASI output
TS ASI
Transport stream 1
Transport stream 2 LAN interface
Channel strip "A"
”OUT-IP”
Channel strip "B"
”OUT-IP”

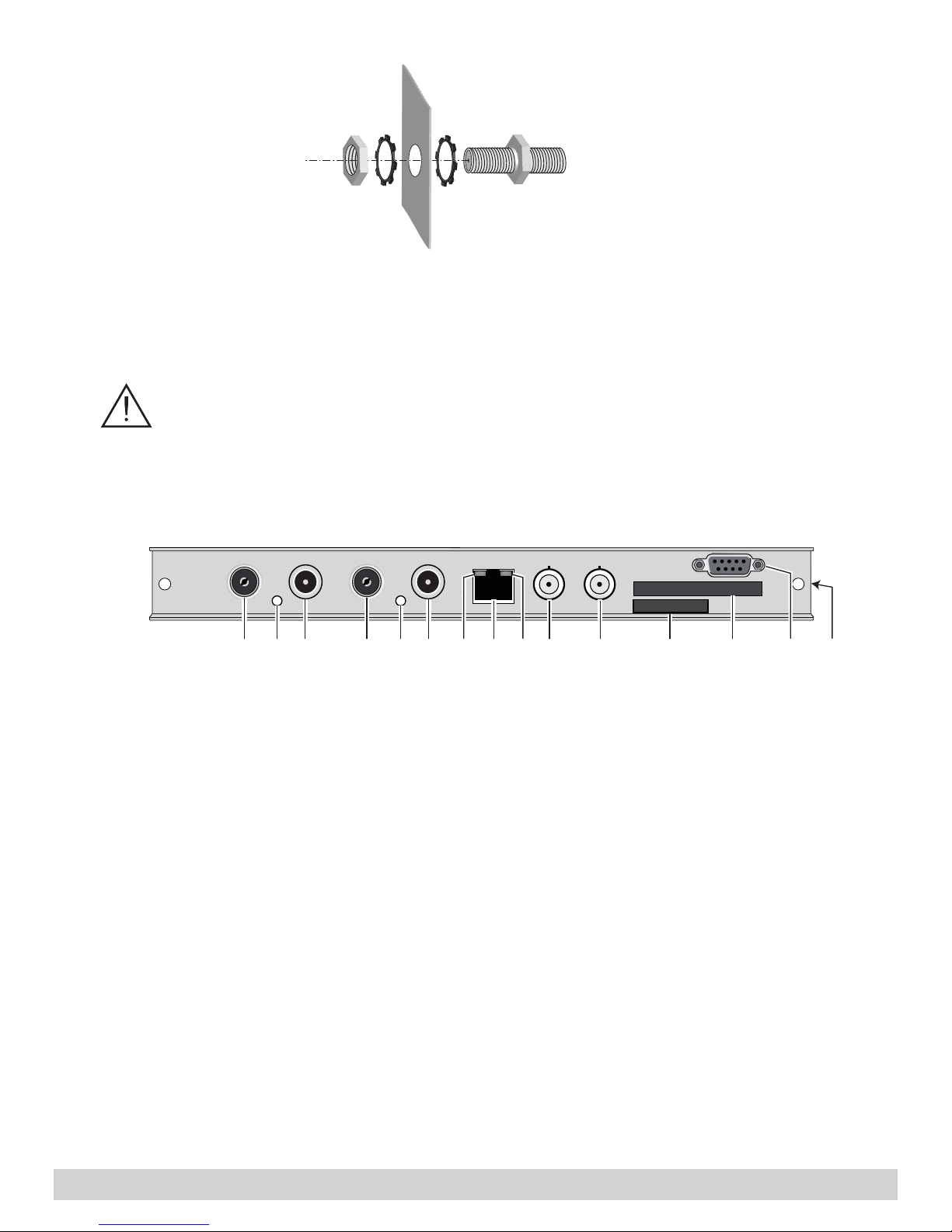

ASI output
LAN interface
ASI input
Transport stream 1
Transport stream 2
Channel strip "A"
”OUT-IP”
Channel strip "B"
”OUT-IP”

- 9 -
- 9 -
2.4.2.3 Menu setting “2=>ASI ASI=>MB”
Transport stream 1 (channel strip ”A”) and the transport stream fed via the ASI
input (channel strip ”B”, ”MB”) are provided at the LAN interface equipped
with IP addresses. The transport stream 2 is made available via the ASI output.
2.4.3 General
The cassette is equipped with two channel strips (“A” and “B”).
The channel
strips consist of the digital tuners and the digital signal processing levels. In
the head-end station display, the channel strips of the cassette are indicated with

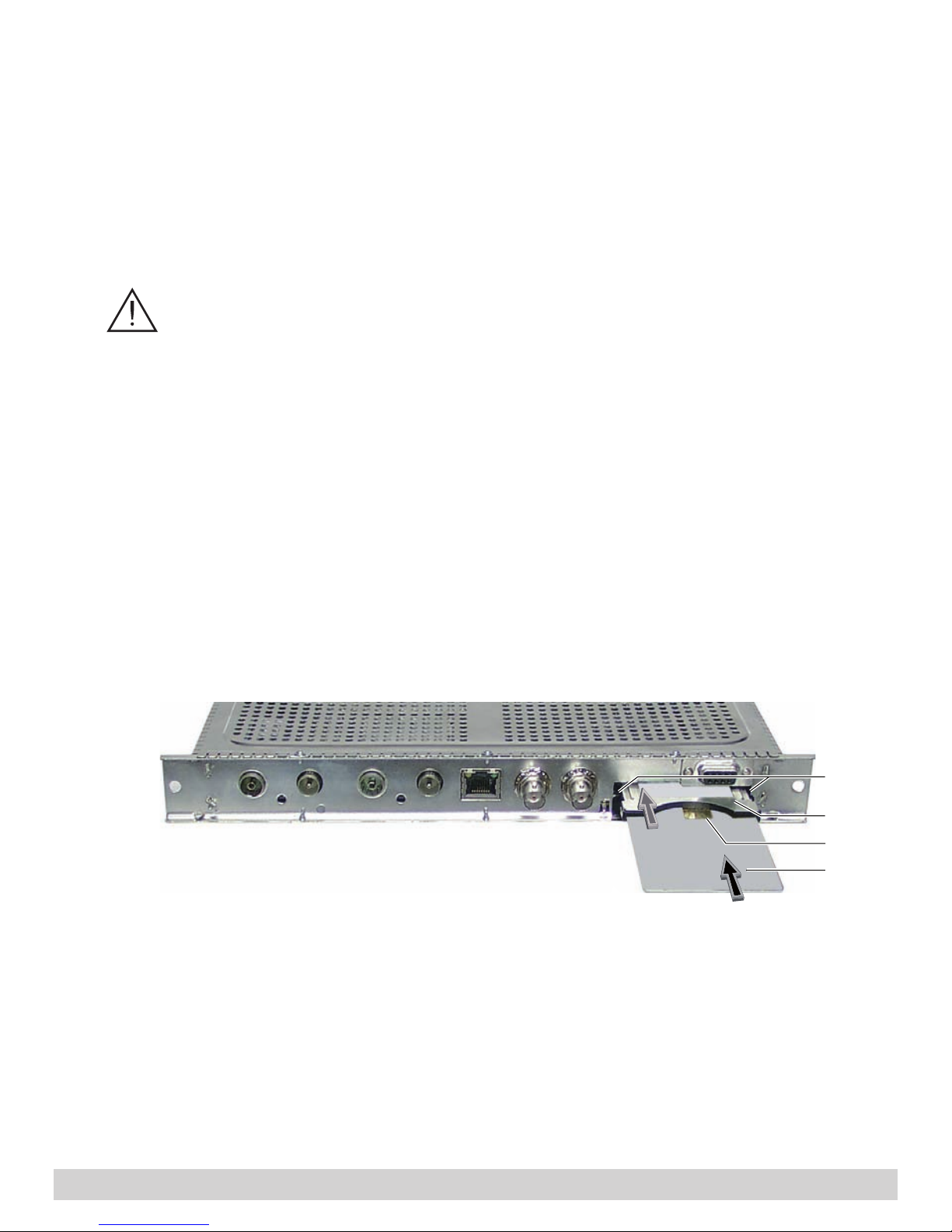

“ Bx …A ” or “ Bx …B ”. The channel strip “ A ” can decode encoded services via
a corresponding CA module. The cassette is programmed using the head-end
station control unit.
Two LEDs in the channel strips provide an indication with their colour whether an
HF signal is present or not.
The LEDs for the LAN interface show whether a network connection exists and
whether a data transfer is in progress.
When the head-end station is switched on, the two-line LC display shows the
software version of the control unit.
To operate this cassette the software version of the control unit must be “V 40”
or higher. You can find the current operating software for the control unit and
the cassette, the required update software “BE-Flash” and the current assembly
instructions on the website “www.gss.de”.

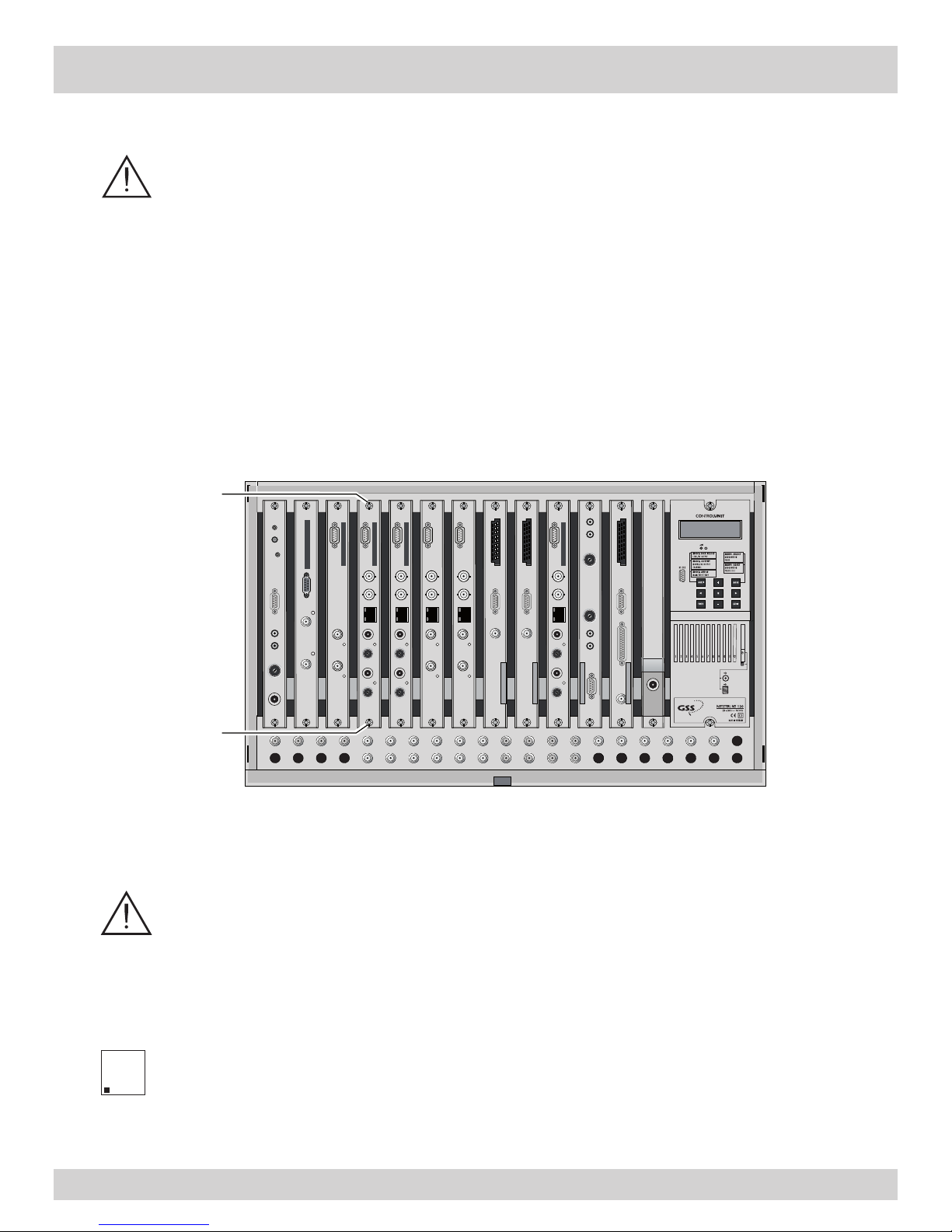

The cassette is designed for use in the following head-end stations:
– STC 1200
– STC 316
– STR 19-8
– PST 19-1
ASI output
LAN interface
ASI input
Transport stream 1
Transport stream 2
Channel strip "A"
”OUT-IP”
Channel strip "B"
”OUT-IP”

- 10 -
- 10 -
2.5 Software query
Control unit
If necessary, you can activate the indication of the software version of the con-
trol unit manually:
• Press any two keys on the control unit of the head-end station simultaneously
until the display goes dark and the software version, e.g. “V 40” appears.
Cassette
After activating the cassette the software version of the cassette is displayed (s.
page 20).
