GSS HDE 200 User manual

English
GSS
Grundig SAT Systems GmbH
Beuthener Strasse 43
D-90471 Nuremberg
Phone: +49 (0) 911 / 703 8877
Fax: +49 (0) 911 / 703 9210
Email: [email protected]
Internet: http://www.gss.de
HDE 200
Head-End Digital Encoder
CLASS
KLASSE

- 2 - HDE 200
Contents
1 Safety regulations ...............................................................................................3
2 General information ............................................................................................3
2.1 Scope of delivery .................................................................................. 3
2.2 Technical data....................................................................................... 4
2.3 Description ........................................................................................... 5
2.3.1 Software versions......................................................................... 6
3 Installation ..........................................................................................................6
3.1 Installing the cassette.............................................................................. 6
3.2 Connecting the cassette.......................................................................... 7
4 The control panel at a glance ...............................................................................9
4.1 Menu items........................................................................................... 9
4.2 Control panel........................................................................................ 9
5 Programming .................................................................................................... 10
5.1 The menus at a glance ..........................................................................10
5.2 Programming the cassette ......................................................................11
Selecting the cassette............................................................................11
Selecting the channel strip, displaying the software version........................12
Setting the input parameters...................................................................12
– Setting the type of video signal............................................................13
– Setting the colour subcarrier................................................................13
– Setting the aspect ratio .......................................................................13
Setting the bit rate of the video signal .....................................................13

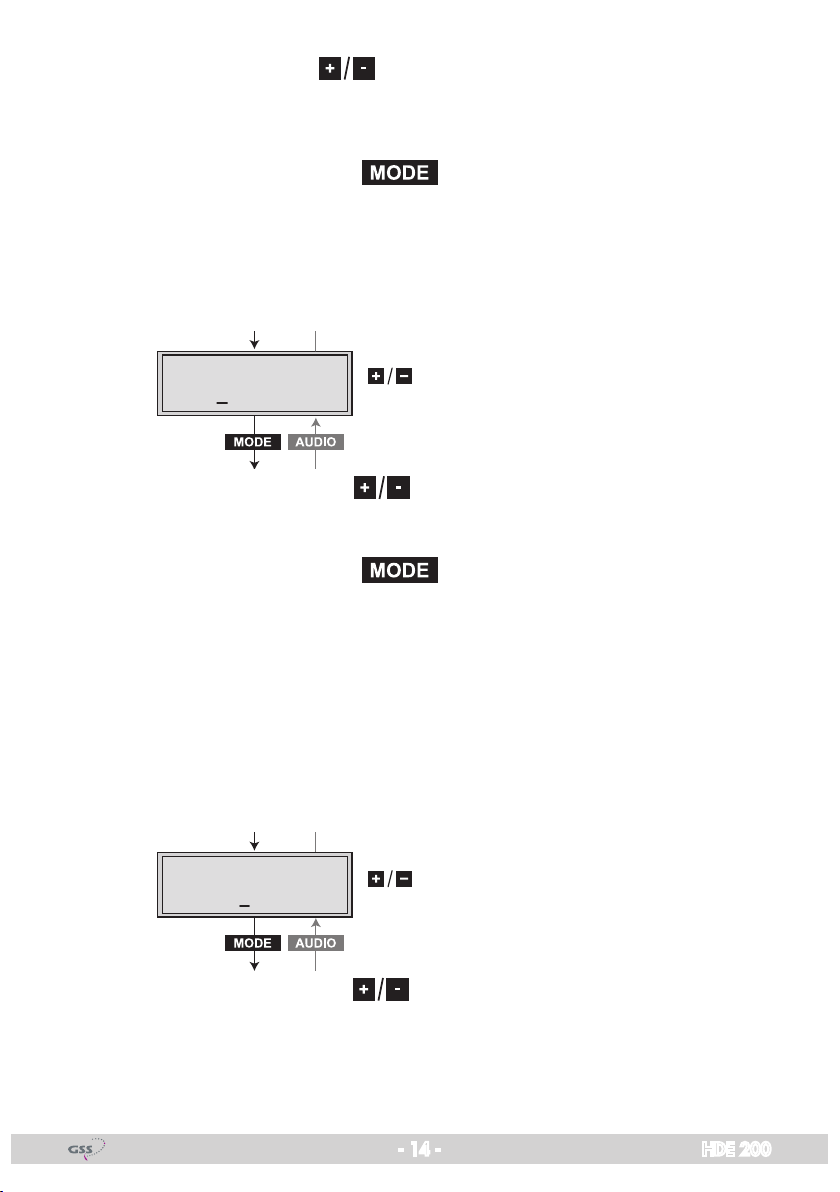

Setting the picture sharpness..................................................................14
Setting the bit rate of the audio signal .....................................................14
Setting the type and level of the audio signal...........................................15
– Setting the type of the audio signal ......................................................15
– Setting the volume..............................................................................15
Saving settings .....................................................................................16

- 3 - HDE 200
1 Safety regulations
Note
•Assembly,installationandservicingshouldbecarriedoutbyauthorisedelec-
tricians.
•Switchofftheoperatingvoltageofthesystembeforebeginningwithassembly
or service work or pull out the mains plug.
•Installthesystem…
- In a dust-free, dry environment
- In such a manner that it is protected from moisture, fumes, splashing water and
dampness
- Where it is protected from direct exposure to sunlight
- Not within the immediate vicinity of heat sources
- At an ambient temperature of < 50 °C.
• Make sure the device is adequately ventilated. Do not cover the ventilation slots!
•Avoidshortcircuits!
•Noliabilityisacceptedforanydamagecausedbyfaultyconnectionsorinap-
propriate handling.
•Observetherelevantstandards,regulationsandguidelinesontheinstallation
and operation of antenna systems.
•EarththeSATreceiverinaccordancewithDINEN50083andVDE0855
(equipotential bonding).
•Donotperforminstallationand service work during thunderstorms.
Observe the ESD protective measures!
Electronic devices should never be disposed of in the household rubbish. In
accordance with directive 2002/96/EC of the European Parliament and the
European Council from January 27, 2003 which addresses old electronic and
electrical devices, such devices must be disposed of at a designated collection
facility. At the end of its service life, please take your device to one of these
public collection facilities for proper disposal.
2 General information
2.1 Scope of delivery
1 HDE 200 cassette; 2 connection cables; 1 CD (assembly instructions)

- 4 - HDE 200
2.2 Technical data
The requirements of the following EU directives are met:
73/23/EEC, 89/336/EEC
The product fulfills the guidelines and standards for CE labelling.
Input:
Video Signal type: CVBSsignal
Input level: typ.1Vpp
Input impedance: 75 Ω, nominal
Frequency range: 20Hz…5MHz
Audio Input level: typ.500mVrms
Input impedance: typ. 10 kΩ
Frequency range: 20Hz…15kHz
Connections:
Audio inputs: 4 cinch sockets
 Videoinputs: 2 cinch sockets
 Outputs: 2DVB-SPIsockets(25-pin,SUB-D)
Connection strip (10-pin): for supply voltages and control circuits
Socket RS-232: Update interface
1
14
13
25
PIN Abbreviation Signal
1CLOCK+ Clock for data word
2 GND Earth
3 DATA 7+ (MSB) Data bit 7 (MSB)
4 DATA 6+ Data bit 6
5 DATA 5+ Data bit 5
6 DATA 4+ Data bit 4
7 DATA 3+ Data bit 3
8 DATA 2+ Data bit 2
9 DATA 1+ Data bit 1
10 DATA 0+ (LSB) Data bit 0 (LSB)
11 DVALID+ Validdataword
12 PSYNC+ Package sync
13 GND Earth
PIN Abbreviation Signal
14 CLOCK– Clock for data word,
inverted
15 GND Earth
16 DATA 7 – (MSB) Data bit 7, inverted (MSB)
17 DATA 6 – Data bit 6, inverted
18 DATA 5 – Data bit 5, inverted
19 DATA 4 – Data bit 4, inverted
20 DATA 3 – Data bit 3, inverted
21 DATA 2 – Data bit 2, inverted
22 DATA 1 – Data bit 1, inverted
23 DATA 0 – (LSB) Data bit 0 (LSB), inverted
24 DVALID– Validdataword,inverted
25 PSYNC – Package sync, inverted

- 5 - HDE 200
2.3 Description
The HDE 200 cassette is used to feed standardised analogue audio and video
signals into 2 SPI data streams from completely different audio and video sourc-
es (e.g. audio and video reproduction devices, test picture generators, observa-
tion cameras etc.) . It is equipped with 2 stereo/audio inputs and 2 video inputs.
The video signals are supplied by a processor that encodes them in real time.
The stereo audio signals are transferred via an adjustable amplifier to the encoder
and are encoded according to the MPEG 1/ Layer II standard. The bit rates are
adjustable.
The cassette supports the D1 format (720 x 576 pixels) at data rates of
1.5…6Mbit/sec.Thesedataratesincludea16-bitstereoaudiochannel.
At the DVB-SPI output sockets (25-pin, SUB-D) a transport stream is provided accord-
ingtoISO/IEC13818forsubsequentprocessinginthe HDM 20x QMX cassettes.
The operating software of the cassette can be updated ("BE Flash" software)
using a PC or notebook via the 9-pin SUB-D socket. You can find the current
operating software for the cassette on the website "www.gss.de".
When the head end station is switched on, the two-line LC display briefly shows
the software version of the control unit and then the cassette type of the slot oc-
cupied first.
If no key is pressed for five minutes, the software version of the control unit is
displayed.
The cassettes are intended for use in the head end stations STC 316, STC 1200,
STR 19-8 and PST 19-1.

- 6 - HDE 200
2.3.1 Software versions
Cassette
How to query the software version of the cassette is described in the "Selecting
the channel strip, displaying the software version" section on page 12.
Control unit
If necessary, you can activate the indication of the software version of the con-
trol unit manually:
•Pressanytwokeysonthecontrolunitoftheheadendstationsimultaneously
until the display goes dark and the software version, e.g. " V 41 ", is displayed.
3 Installation
3.1 Installing the cassette
Note
Before inserting or changing cassettes, pull the mains plug of the head end
station out of the mains socket.
• Screw the fastening screws 1of an unoccupied slot out of the bracket of the
head end station.
•Insertthecassetteinthisslotandpushitintothehousing.
•Alignthecassetteandapplyslightpressuretoconnectittotheconnectionsof
the board on the back of the housing.
•Fastenthecassettewiththescrews1.
1
1
CASSETTE CASSETTE CASSETTE CASSETTE CASSETTE CASSETTE CASSETTE CASSETTE CASSETTE CASSETTE CASSETTE CASSETTE
MESSAUSGANG
A
CLASS
KLASSE
ACHTUNG!
Vor dem Cassettenwechsel
unbedingt Netzstecker ziehen!
CAUTION!
Before changing cassettes remove
mains plug!

- 7 - HDE 200
3.2 Connecting the cassette
To comply with the current EMC regulations, it is necessary to connect the
lines leading in and out of the head end station (e.g. cinch, HF) using cable
terminals.
When mounting the cassette in an STR 19-8 or PST 19-1 head end station
which is installed in a 19" cabinet, make sure that the connections leading in
and out (e.g. cinch, HF) at the 19" cabinet are made using cable terminals.
•Inserttherequirednumberofstandardcableterminals(e.g.cinch,HF)inthe
openings provided (knock-outs) in the front of the head end station or the
19" cabinet. The cable terminals used are standard and are not included in
the scope of delivery.
Caution
Tighten the nuts of the cable terminals until the teeth on the lock washers put
under the nuts have penetrated the exterior coating and a good connection
is made between the housing and cable terminal.
Note:
– The following connection example show possible connection schemes.

- 8 - HDE 200
•Connecttheperipheraldevicesviacableterminalstothecinchinputsockets
"Video" V(yellow), "Audio R" R(red) and "Audio L" L(white) of channel
strips "A" and "B".
—> Input of the mono audio signal at the "Audio L" Linput (white).
•ConnecttheDVB-SPIoutputs(25-pinSub-D)ofchannelstrips"A" and "B" to
the corresponding inputs of the HDM 20x QMX cassette.
•Connecttheheadendstationtothemains.
Note:
The "RS232" socket (9-pin Sub-D) is for updating the operating software of the
cassette using a PC or notebook. Use the "BE-Flash" software as the update
software. You can find the current operating software of the cassette on the
website "www.gss.de".
Channel strip “A“
DVB-SPI Audio / Video
output inputs
V L R V L R RS232
Channel strip “B“
DVB-SPI Audio / Video
output inputs

- 9 - HDE 200
4 The control panel at a glance
4.1 Menu items
Use the keys of the control unit of the head end station to program the cassette.
The menus appear on the two-line display of the control unit.
Use the key to select the following
main menu items:
– Cassette
– Channel strip
– Input parameters
– Bit rate of the video signal
– Picture sharpness
– Bit rate of the audio signal
– Audio signal / audio level
4.2 Control panel
The keypad on the head end station is used to scroll through the menus and
menu items one at a time:
scrolls forward through the menu.
s crolls backward through the menu.
set values and triggers actions.
select parameters in the menus.
saves all entries.
BE-Remote V41
please wait . . .

- 10 - HDE 200
5 Programming

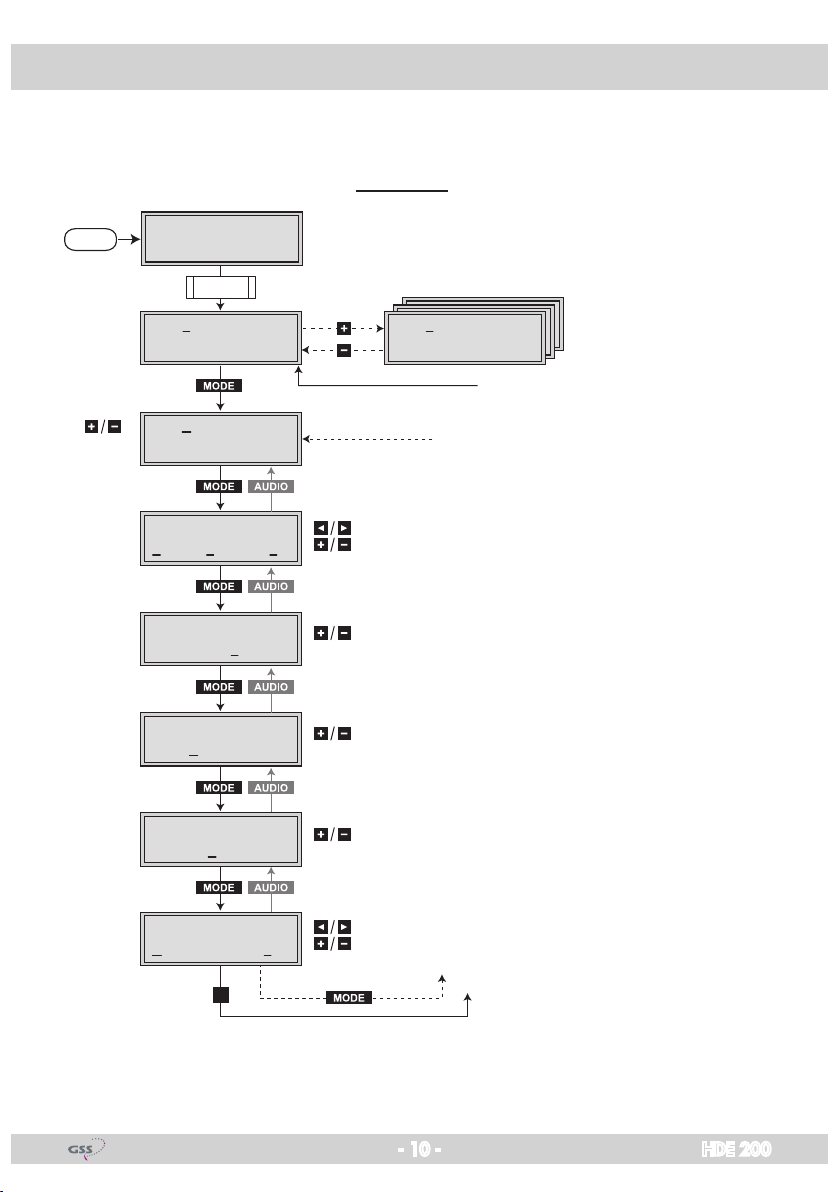

5.1 The menus at a glance
Note:
The parameters to be set are underlined (cursor).
Bx 1A
ENCODER
DVB
V 3
Bx 1A
C5-12,S3-24
TWIN-SAT
C07
Böx 4
C5-12,S3-24
TWIN-SAT
C07
Box 2
S21-S41
MULTIPLEX
S41
Kanalzug
Channel strip
A / B
t > 10 s
Ein/On
BE–Remote
Please wait ...
V 41
Box 1
ENCODER
DVB
- - -
INPUT
4:3
Bx 1A
Video
BITRATE
4.0Mbit/s
Bx 1A
Standard
Bx 1A
FBAS 4.43
VIDEO
A
B
M
AUDIO
0dB
B
A
FBAS/ SVHS
4.43 / 3.58
4:3 / 16:9
2.0 … 14 Mbit/s
Standard / Sharp / Soft
Bx 1A
Audio 256
BITRATE
kbit/s 192 … 384 kbit/s
Bx 1A
Stereo Stereo / Stereo J / Dual
-11 dB … +11 dB
