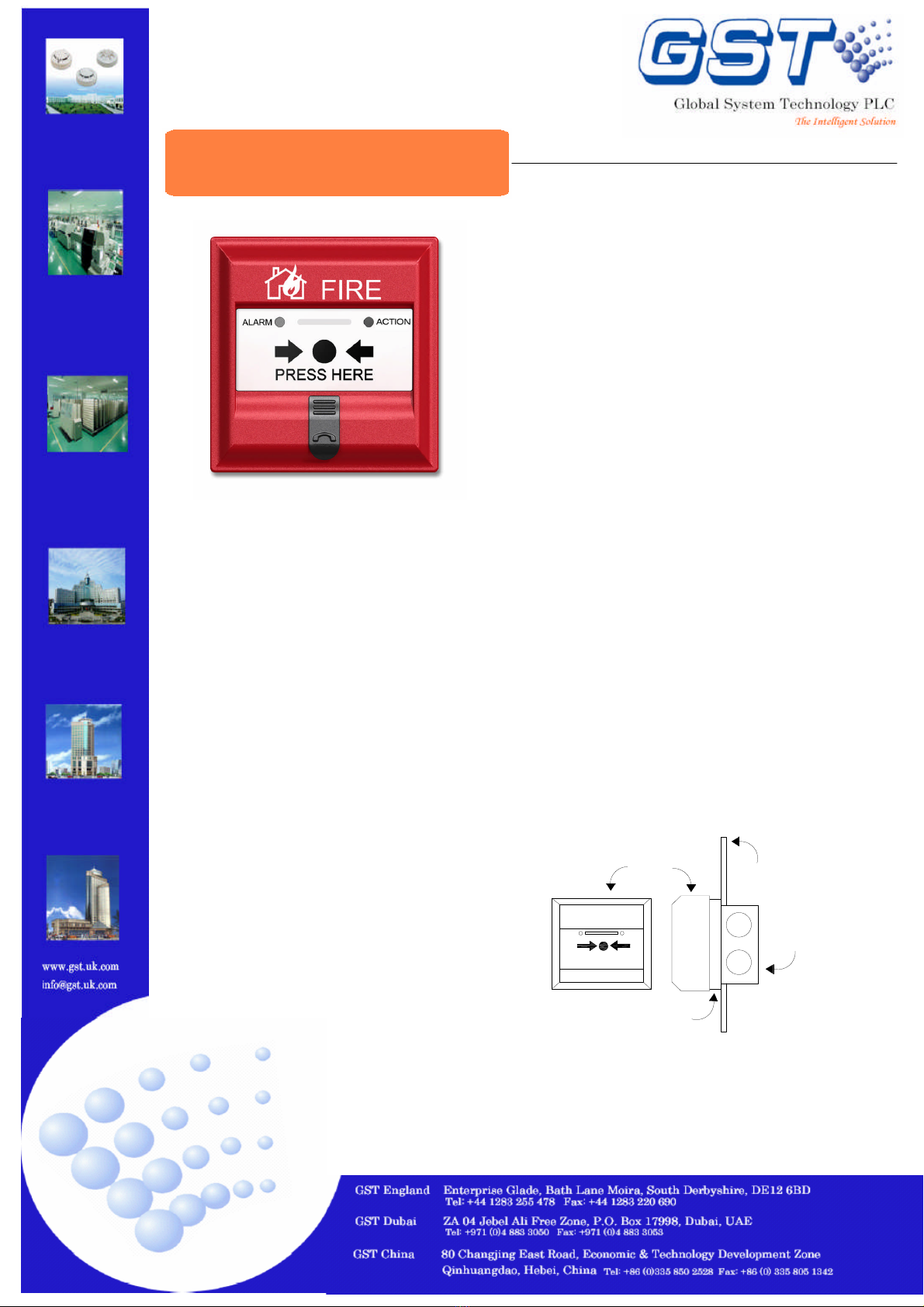

Addressable Manual
Call Point I-9202
Features and Benefits
1. Compatible with latest EN standards
2. Re-settable (non-breaking glass)
3. Additional volt free contact
4. Electronically addressed (by P-9910B)
5. Simple installation and test
Description
Designed for the purpose of raising an alarm
manually once verification of a fire or
emergency condition exists, by pressing the
non breakable glass. Meets the standard
requirement of EN 54 part 11, European
Standard and approved by Loss Prevention
Certificate Board (LCPB).
The I-9202 constructed of high impact red
ABS with a modern pleasing appearance.
The terminating back box enables first fix
installation and termination leaving the fascia
with integral electronics to be simply plugged
into base at the time of commissioning. Non
breakable glass that can be reset with the
GST standard reset key.
The I-9202 operated via a micro-switch that
when pressed a signal will be transmitted
and the volt free contact will be latched.
Contain integral LED indicator to denote
operational mode.
Electronic addressing can be done through
Handheld Programming device (P-9910B),
purchased separately.
Technical Specifications
Standard: EN54-part 11
Protection rating: IP 40
Operating voltage: 24Vdc Loop
Operating current:
Standby current 0.8mA
Alarm Current 2mA
Operating temperature: -10°C to
+50°C
N/O Output contact: 60Vdc, 0.1A
Contact resistance: 100mΩ
Relative humidity: 95%
Application: Indoor use
Visual Indicator: LED, Red ( lit
steady when alarm, 3 sec interval
blinking at normal state)
Material and colour: ABS, red
Wiring: 1 pair non polarized
Dimensions: 97x100x45.5mm
Mounting Base
The location of manual call point should be
installed in compliance with all local codes
and / or NFPA 72 National Fire Alarm Code,
NFPA 70 National Electrical Code.
Installed onto a standard one gang
electrical box.






  



Addressable Manual
Call Point I-9202
Wiring and Connection
Connect the wires to the required terminal
according to the wire diagram. The Z1, Z2 is
for addressable Loop, non-polarized while the
K1, K2 is intended to normally open passive
contacts, can provide 100mA/24Vdc capacity..
The cable must be fire rated type and the
size depends on the distance and application.
Minimum size gauge is 1.0mm².
  
  

 

Programming
The address of the manual call point can be
programmed using GST handheld
programmer (P-9910), purchased separately.
Connect the two wires of the handheld
programmer to Z1 and Z2 terminals of the
manual call point (I-9202)



Selection of compatible Control
Panels
Compatible with all GST Fire Alarms Panels
GST 100, GST 200, GST 500, GST 5000,
GST 9000.
Ordering Information``
Part No Description Weight
/Kg
Pack
Qty
per
Box
I-9202 Addressable
Manual Call
Point
.156 120
