GUDEL FlexxPump4 B User manual

OPERATING MANUAL

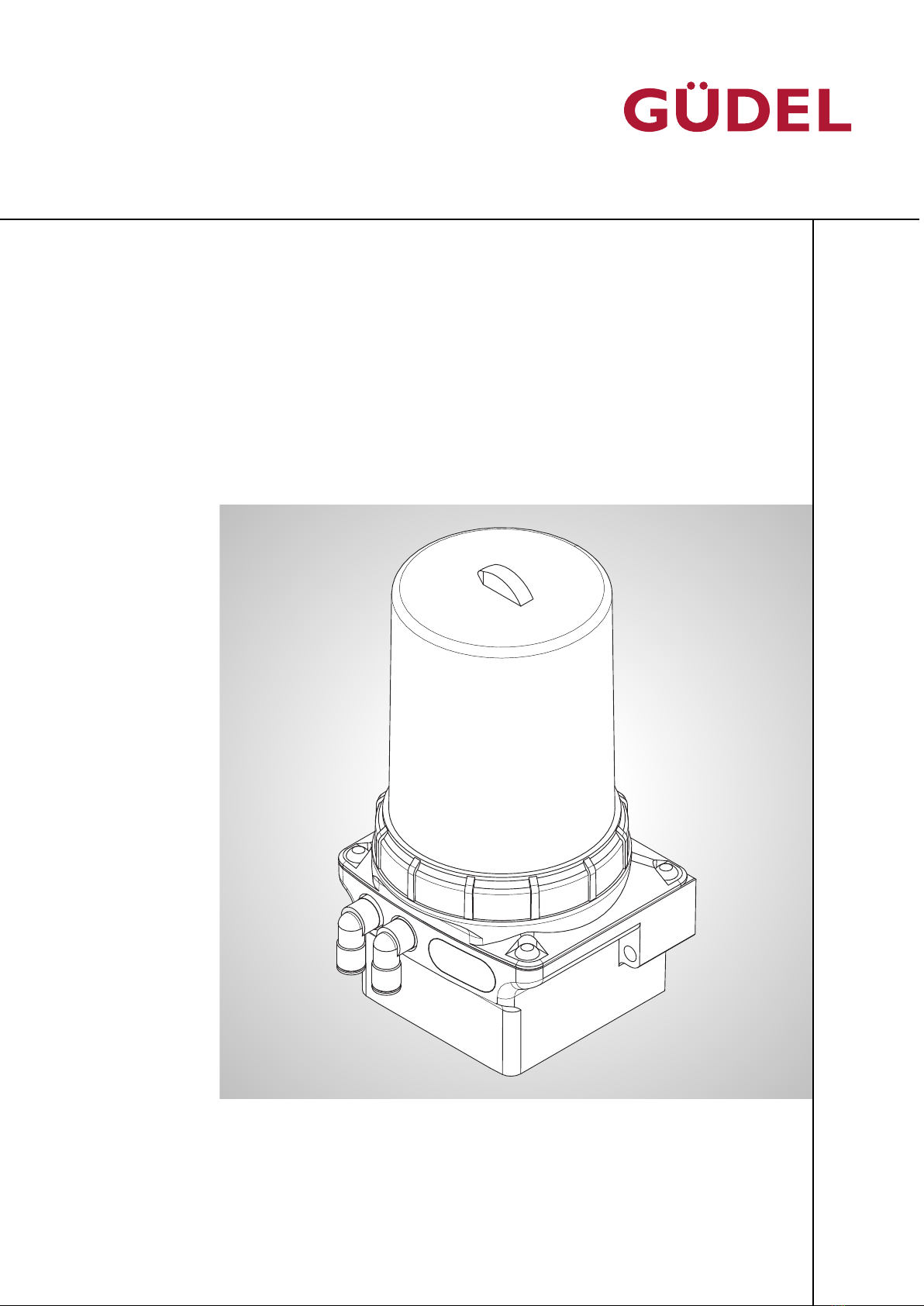

FlexxPump4B lubrication system
Project / Order:
Bill of materials:
Serial number:
Year of manufacture:
BETRIEBSANLEITUNG FLEXXPUMP4B LUBRICATION SYSTEM3421295627_V1.0_EN-US
B1X.xxxxxxxxx-xxxx
10xxxxxx
2019

© GÜDEL
Translation of the original instructions
This manual contains standard illustrations that may deviate from the original.
In the case of special models, options, or technical changes, the scope of deliv-
ery may differ from the descriptions here. Reprinting the instructions, in whole
or in part, requires our permission. Subject to change due to technical im-
provements.
3421295627_v1.0_EN-US

Revision history
Version Date Description
1.0 02.03.2021 Basic version
Tab.-1 Revision history
