GUDEL Memolub HPS User manual

SERVICE MANUAL
Automatic lubrication system
Memolub HPS
Project / Order:
Bill of materials:
Serial number:
Year of manufacture:
SERVICEANLEITUNG AUTOMATIC LUBRICATION SYSTEM MEMOLUB HPS9007199349414283_V2.0_EN-US
B1X.XXXXXXXX
101XXXXX
2019

© GÜDEL
Translation of the original instructions
This manual contains standard illustrations that may deviate from the original.
In the case of special models, options, or technical changes, the scope of deliv-
ery may differ from the descriptions here. Reprinting the instructions, in whole
or in part, requires our permission. Subject to change due to technical im-
provements.
9007199349414283_v2.0_EN-US

Revision history
Version Date Description
2.0 10.07.2019 Entire manual updated
New:
• Outputs open and closed Ü211
1.0 25.05.2016 Basic version
Table-1 Revision history
Revision history
SERVICE MANUAL Automatic lubrication system
Memolub HPS
9007199349414283_v2.0_EN-US
3

Revision history
SERVICE MANUAL Automatic lubrication system Memolub
HPS
9007199349414283_v2.0_EN-US
4

Table of contents
1 Safety 7
1.1 General ............................... ................................ 7
2 Design, function 9
2.1 Design................................ .................................9
2.2 Function ............................................................. 10
2.2.1 Functional description of progressive distributor..........................11
2.2.1.1 All outputs open........................... ............................14
2.2.1.2 Output closed .........................................................15
3 Operation 17
3.1 Setting the lubrication cycle / lubrication quantity................ 17
4 Replacing the cartridge 19
5 Replacing the battery 21
6 Lubricants 23
6.1 Lubrication ............................ ..............................23
6.2 Lubricant table ...................................................... 24
7 Malfunctions / Troubleshooting 25
Index 31
Table of contents
SERVICE MANUAL Automatic lubrication system Memolub
HPS
9007199349414283_v2.0_EN-US
5

Table of contents
SERVICE MANUAL Automatic lubrication system Memolub
HPS
9007199349414283_v2.0_EN-US
6

1 Safety
1.1 General
Read the entire manual before working with the product. The manual con-
tains important information for your personal safety. The manual must be
read and understood by all persons who work on the product in any of the
product life phases.
Read the Safety chapter of the superordinate manual before working with the
product. It contains important information for your personal safety. The
chapter must be read and understood by all persons who work on the prod-
uct in any of the product's phases. You are obligated to implement the infor-
mation and warnings it contains, wherever they pertain to the product.
WARNING
Automatic startup
During work on the product, there is danger of the machine starting up auto-
matically. This can lead to severe or fatal injuries!
Before working in the danger area:
• Secure vertical axes (if equipped) against falling.
• Switch off the superordinate main power supply. Secure it against being
switched on again (main switch for the complete system)
• Before switching on the system again, make sure that no one is in the dan-
ger area
Safety
SERVICE MANUAL Automatic lubrication system
Memolub HPS
9007199349414283_v2.0_EN-US
7

Safety
SERVICE MANUAL Automatic lubrication system Memolub
HPS
9007199349414283_v2.0_EN-US
8

2 Design, function
2.1 Design
The automatic lubrication system of the drive module consists of a small lubri-
cant dispenser with progressive distributor with several outputs. The auto-
matic lubrication system lubricates the guideway and rack of the equipped
axes automatically. The lubricating pinion unit lubricates the rack. The wiper
and lubrication unit lubricates the guideway.
A
B
C
E D
Fig.2-1 Design of the MEMOLUB automatic lubrication system
A Lubricating pinion unit D Progressive distributor
B Wiper and lubrication unit E Lubricant dispenser
C Lubrication line
Design, function
SERVICE MANUAL Automatic lubrication system
Memolub HPS
9007199349414283_v2.0_EN-US
9

2.2 Function
Lubrication is an important part of the maintenance.
The following are the most important elements for achieving effective lubrica-
tion to optimize productivity:
• Lubricant dispenser
• Lubrication point
• Lubrication quantity
• Lubrication cycle
MEMOLUB is a powerful (25 bar) and precise electro-mechanical lubricant
dispenser. The lubrication is centralized and automated. The lubricant is con-
tained in a cartridge. With the progressive distributor, several points can be
lubricated simultaneously.
Design, function
SERVICE MANUAL Automatic lubrication system Memolub
HPS
9007199349414283_v2.0_EN-US
10

2.2.1 Functional description of progressive distributor
The progressive distributor evenly distributes the incoming lubricant to all
outputs that are in use. If an output is closed, the output on the opposite
side from it will discharge double the quantity of lubricant.
I
II
III
A B C
E DF

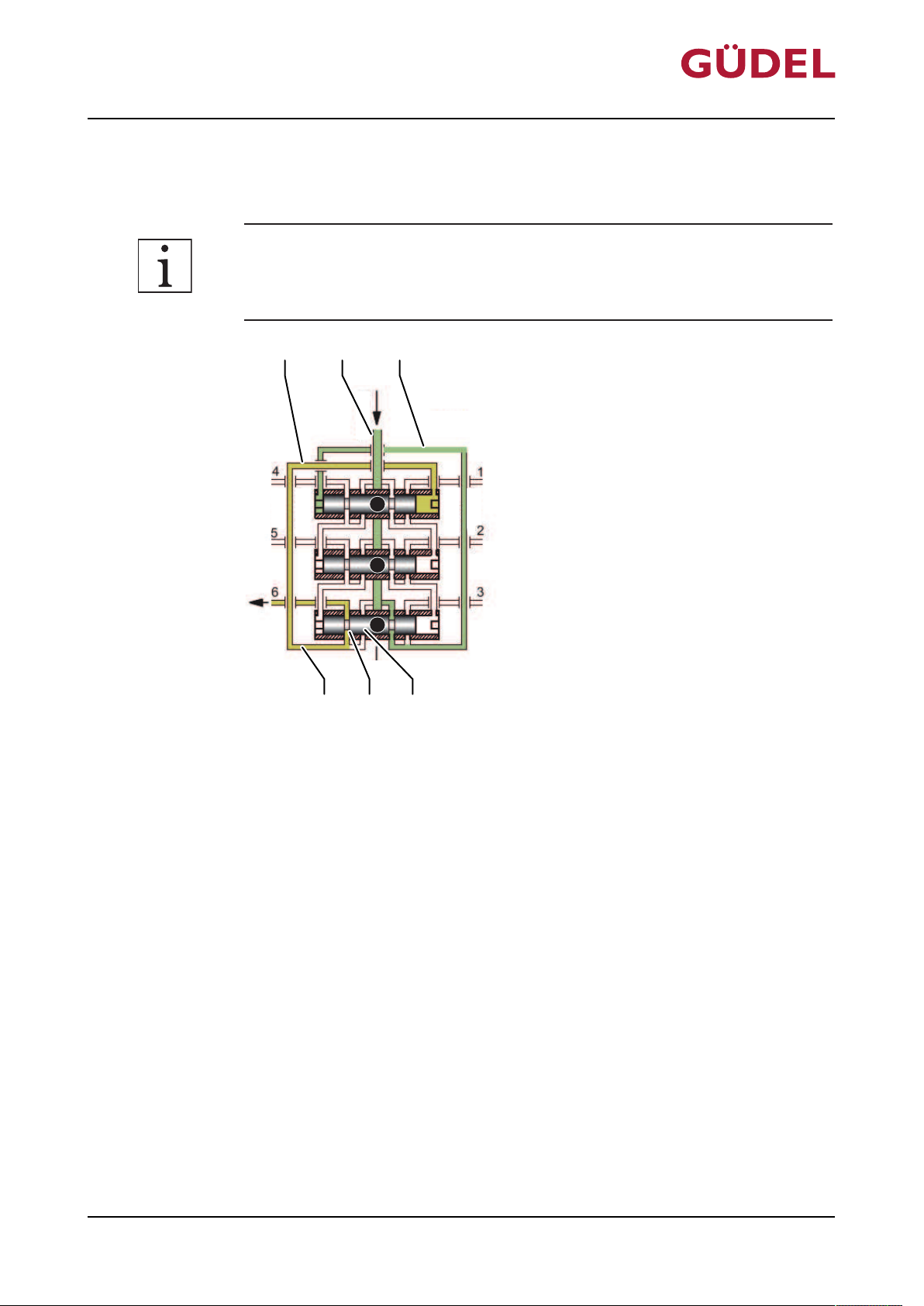

Fig.2-2 Function of the progressive distributor 1
A Left changeover line D Piston
B Main line E Ring groove
C Right changeover line F Lubricant
From the main line, the lubricant flows through the right-hand ring groove of
piston III. The changeover line moves piston I to its right-hand end position.
The lubricant displaced by piston I goes through the left changeover line and
exits at output 6.
Design, function
SERVICE MANUAL Automatic lubrication system
Memolub HPS
9007199349414283_v2.0_EN-US
11

I
II
III

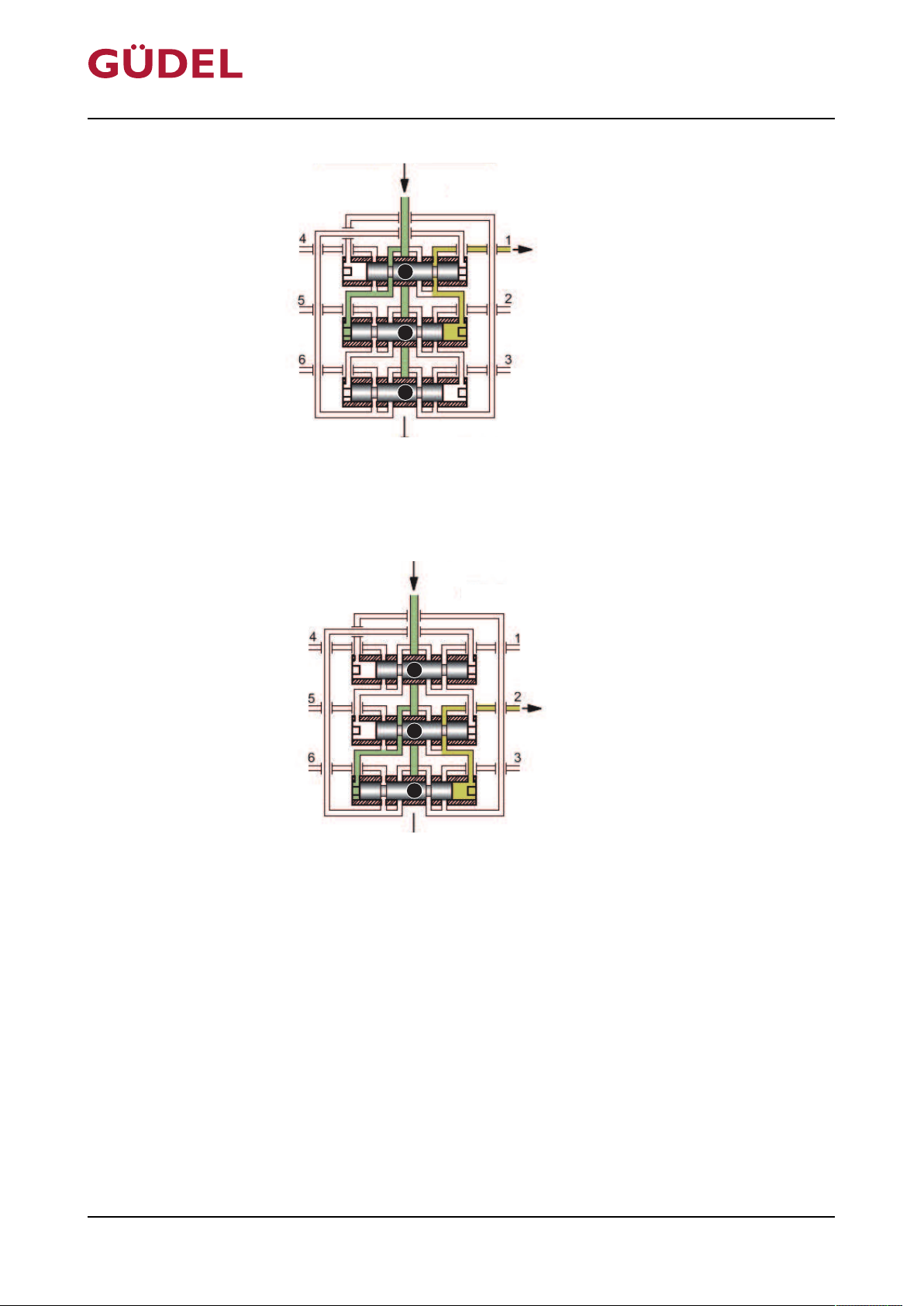

Fig.2-3 Function of the progressive distributor 2
After piston I has moved, lubricant flows to the left side of piston II and
pushes the piston to its right-hand end position. The displaced lubricant exits
through output 1.
I
II
III
Fig.2-4 Function of the progressive distributor 3
After piston II has moved, lubricant flows to the left side of piston III and
pushes the piston to its right-hand end position. The displaced lubricant exits
through output 2.
Design, function
SERVICE MANUAL Automatic lubrication system Memolub
HPS
9007199349414283_v2.0_EN-US
12

I
II
III
Fig.2-5 Function of the progressive distributor 4
After piston III has moved, lubricant flows to the right side of piston I and
pushes the piston to its left-hand end position. The displaced lubricant exits
through output 3. The progressive distributor continues to follow the func-
tional sequence as described, until all outputs have been supplied with lubri-
cant.
As long as pressure is generated by the lubricant, the entire procedure keeps
repeating in the progressive distributor.
Design, function
SERVICE MANUAL Automatic lubrication system
Memolub HPS
9007199349414283_v2.0_EN-US
13

2.2.1.1 All outputs open
The progressive distributor evenly distributes the incoming lubricant to all
outputs. The opposite outputs are operated by the same piston. For the iden-
tical conveying volume to be output at the opposite outputs, the headless set
screw must close the connecting passage of the two outputs. The progressive
distributor is normally supplied ex works with the headless set screw fitted.
1
3
4
5
6
2
0.2cm3
0.2cm3
Output
Output
Piston
The same conveying volumes are output by the piston at output 1 and
output 2. The connecting passage between the two outlets is closed
with the headless set screw.
Headless set
screw
Connecting passage
Fig.2-6 All outputs open (the internals of the progressive distributor are shown in simplified form)
Design, function
SERVICE MANUAL Automatic lubrication system Memolub
HPS
9007199349414283_v2.0_EN-US
14

2.2.1.2 Output closed
The connecting passage between opposite outputs is closed with a headless
set screw ex works. In some cases, outputs on the progressive distributor
may be closed. The headless set screw must then be removed. As a result, the
piston conveys twice the volume to the open output.
NOTE
Lubricating film missing
If an output is closed without removing the headless set screw from the con-
necting passage between the opposite outputs, the progressive distributor
will not work. The piston cannot move. A missing lubricating film on guide-
ways and racks leads to damage to the product. This results in operational
failure.
1
3
4
5
6
2
0 cm3
0 cm3
Output closed
Output
Piston
Output 2 is closed. The connecting passage between the two outlets
is closed with the headless set screw. The piston is blocked by the
enclosed conveying volume. The progressive distributor does not
work.
Connecting
passage Headless set
screw
û
• Always remove the headless set screw from the connecting passage if you
want to close the outputs
Design, function
SERVICE MANUAL Automatic lubrication system
Memolub HPS
9007199349414283_v2.0_EN-US
15

1
3
4
5
6
2
0 cm3
0.4 cm3
Output closed
Output
Piston
Double the conveying volume is output by the piston at output 1.
Output 2 is closed. The connecting passage between the two outlets
is open.
Connecting
passage
ü
Fig.2-7 Output closed (the internals of the progressive distributor are shown in simplified form)
Design, function
SERVICE MANUAL Automatic lubrication system Memolub
HPS
9007199349414283_v2.0_EN-US
16

3 Operation
3.1 Setting the lubrication cycle / lubrication
quantity
The following table shows the lubricant consumption when standard settings
are used.
You can find additional settings in the third-party documentation from
MEMOLUB.
Lubrication cycle The lubrication cycle is 48 hours long. Perform lubrication work at the latest
when the first signs of tribocorrosion (reddish discoloration of the track)
show.
Emptying time of
the cartridge
The emptying time was measured using the black dosing ring. This is the de-
fault setting at Güdel.
Cartridge 120 ml Cartridge 240 ml Cartridge 480 ml
12 months 24 months 36 months
Table3-1 Emptying time of the cartridge
Lubrication quan-
tity
Per lubrication cycle, the lubricant dispenser discharges the following lubrica-
tion quantity to the progressive distributor:
Lubrication quantity [ml] Lubrication quantity per output
on the progressive distributor
[ml]
0.635 0.1015
Table3-2 Lubrication quantity per lubrication cycle: at the lubricant dispenser / at an output of the progressive
distributor
The lubrication quantity per output on the progressive distributor is usually
equal. However, closing an output affects the lubrication quantity per output.
Operation
SERVICE MANUAL Automatic lubrication system
Memolub HPS
9007199349414283_v2.0_EN-US
17

Operation
SERVICE MANUAL Automatic lubrication system Memolub
HPS
9007199349414283_v2.0_EN-US
18

4 Replacing the cartridge
Fig.4-1 Replacing cartridge
Lubrication ex
works
Specification Lubrication quantity
ÜChapter6.1, 223 ÜChapter6.1, 223
Table4-1 Lubricants: Guideways, racks, and pinions
Replace the cartridge as described in the MEMOLUB third-party documenta-
tion.
Replacing the cartridge
SERVICE MANUAL Automatic lubrication system
Memolub HPS
9007199349414283_v2.0_EN-US
19

Replacing the cartridge
SERVICE MANUAL Automatic lubrication system Memolub
HPS
9007199349414283_v2.0_EN-US
20
