Guild PPL900GH User manual

GUILD
900W Planer
Instruction Manual
Important - Please read these instructions fully before operating or maintaining your Guild planer
These instructions contain important information that will help you get the best from your Guild
planer, ensuring it remains safe to operate.
If you need help or have damaged or missing parts, call the Customer Helpline on 0333 3201989
After Sales Support
PPL900GH
UK/Ireland 0333 3201989
[e-mail]

Customer Helpline 0333 3201989
2
Contents
Safety Information.....................................................................................................3
In The Box..................................................................................................................7
Accessories................................................................................................................7
Operating Instructions.............................................................................................10
Maintenance.............................................................................................................15
Technical Data..........................................................................................................15
Environmental Protection........................................................................................16
Guarantee................................................................................................................17
Declaration of Conformity........................................................................................17
Plug Replacement (Uk & Ireland Only) ....................................................................18

Customer Helpline 0333 3201989
3
Safety Information
Important - Please read these instructions fully before starting assembly
Warning Symbols
The following warning symbols appear throughout this assembly manual and
indicate the appropriate safety measures you should take when assembling and
operating the guild planer.
To reduce the risk of injury, Please read the instruction manual
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Double insulation
Waste electrical products must not be disposed of with household waste. Please recycle
where facilities exist. Check with your local authorities or retailer for recycling advice.

Customer Helpline 0333 3201989
4
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool
or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the
dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not
use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of an RCD reduces the risk of electric
shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating power tools
may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that
have the switch on invites accidents.
Safety Information
Important - Please read these instructions fully before starting assembly
General Power Tool Safety Warnings
Original Instructions

Customer Helpline 0333 3201989
5
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or
a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce
dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power
tools. Such preventive safety measures reduce the risk of starting the power tool
accidentally.
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the power tool’s operation. If
damaged, have the power tool repaired before use. Many accidents are caused by
poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended could
result in a hazardous situation.
5) Service
Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
Safety Information
Important - Please read these instructions fully before starting assembly
General Power Tool Safety Warnings

Customer Helpline 0333 3201989
6
1. Wait for the cutter to stop before setting the tool down. An exposed rotating cutter
may engage the surface leading to possible loss of control and serious injury. Note The
above warning applies only to planers without an automatic closing guard.
2. Hold the power tool by insulated gripping surfaces only, because the cutter may
contact its own cord. Cutting a “live” wire may make exposed metal parts of the power
tool “live” and could give the operator an electric shock.
3. Use clamps or another practical way to secure and support the workpiece to a stable
platform. Holding the work by your hand or against the body leaves it unstable and
may lead to loss of control.
Additional safety rules for planner
1. Always wear a dust mask.
Safety Information
Important - Please read these instructions fully before starting assembly
Planer Safety Warnings

Customer Helpline 0333 3201989
7
In The Box
Parts
1
5
11
10
2
6
14
13
12
15
16
17
18
19
20
3
7
8
9
4
Rebate guide fastening screw（2pcs）
Cutting depth scale
Cutting depth adjustment knob
Dust bag (SEE FIG I)
Blade (SEE FIG J)
Blade clamp (SEE FIG J)
Spanner (SEE FIG J)
Large pulley (SEE FIG O)
Pinion (SEE FIG O)
Base plate stand knob (SEE FIG P)
On/off switch
Lock-off switch
Hand grip areas
Dust extraction cover
Belt cover
Fastening screw
Parallel guide
8Base plate
V-grooves
Rebate guide
Accessories
Parallel guide 1pc
Rebate guide 1pc
Blades (on tool) 2pc
Spanner 1pc
Dust bag 1pc
2 3
5
6
7
10
11
89
41312 1
11

Customer Helpline 0333 3201989
8
NOTE: Before using the tool, read the instruction book carefully.
Intended Use
The tool is intended for planing of firmly supported wooden materials, such as beams and
boards. It is also suitable for beveling edges and rebating.

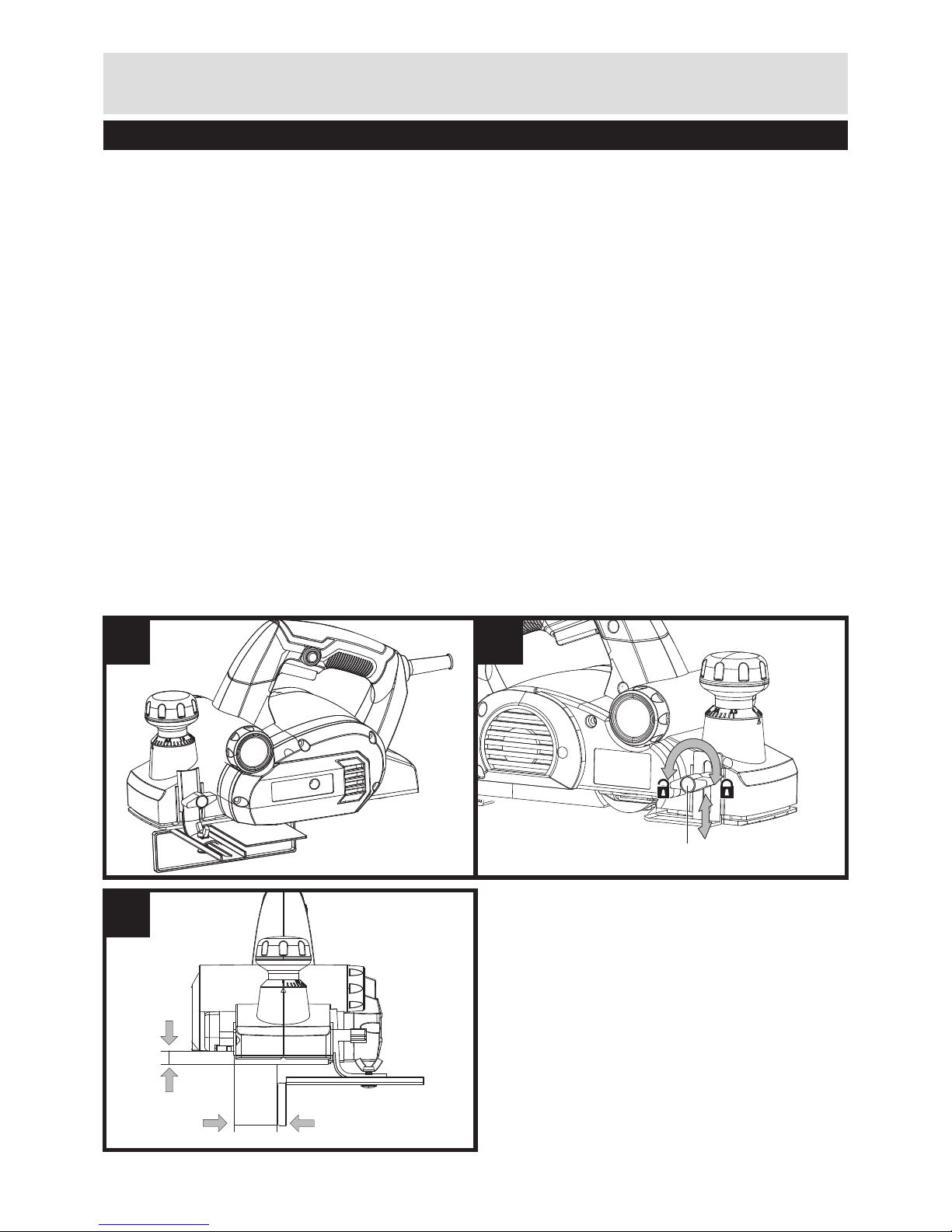

1. SAFETY ON/OFF SWITCH (SEE FIG A)
The switch is locked off to prevent accidental starting. Depress the lock off button then
the on/off switch and release the lock off button. To switch off, just release the on/off
switch.
WARNING: Danger of kickback! Apply the tool to the work piece only when
switched on.

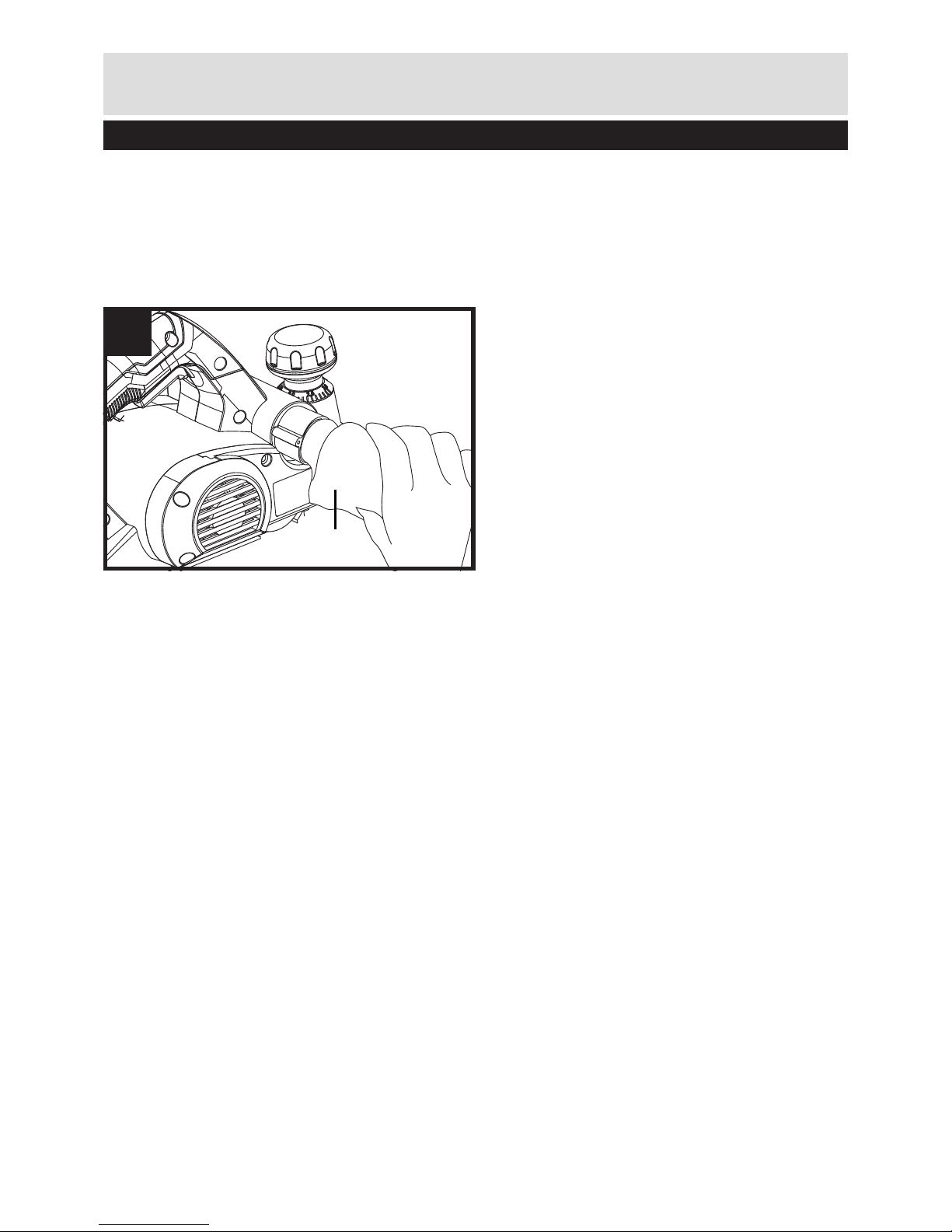

2. CUTTING DEPTH ADJUSTMENT (SEE FIG B)
The planing depth can be adjusted from 0 to 3mm. Rotate the cutting depth adjustment
knob (13) to set the required cutting depth with the scale (12). Clockwise rotation
increases the planing depth; anticlockwise rotation reduces the planing depth.
It is recommended that test cuts be made in scrap wood after each adjustment to make
sure that desired amount of wood is being removed by your planer.
NOTE: To protect blades during storage, transporting, etc., set blade depth adjustment
knob to 0.
Operating Instructions
A B 13

Customer Helpline 0333 3201989
9
45o
9
Operating Instructions

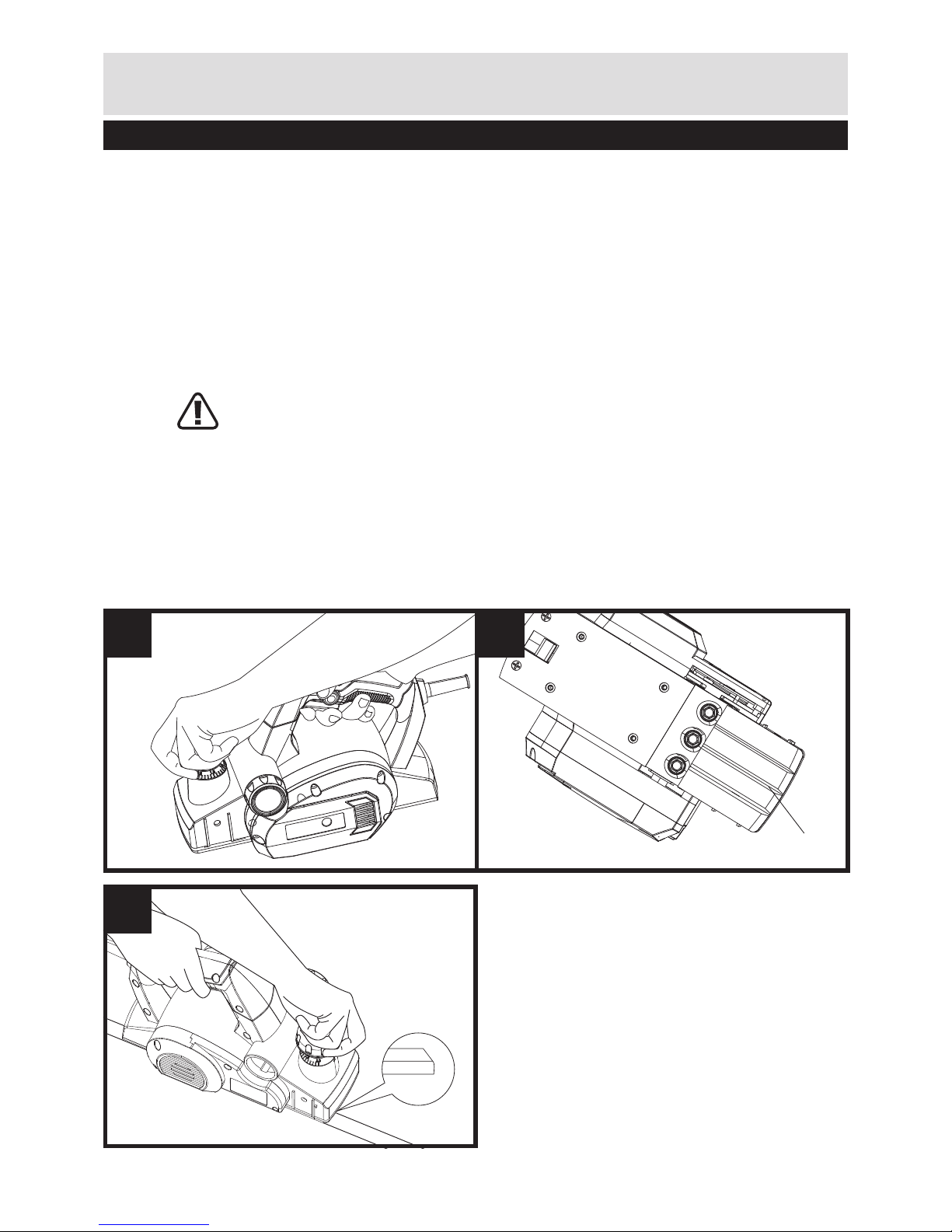

3. STANDARD SURFACE PLANING (SEE FIG C)
Set the desired cutting depth. Position the front part of the base plate flat onto the
work surface. Make sure that the blades are not touching the workpiece. Switch the
tool on and push your planer forward and it will start cutting. Always maintain all of
the base plate flat on the work surface to prevent the cutting blade jumping. Move the
plane evenly over the work surface.
Be careful to avoid hitting nails during operation. It could nick, crack, or damage
blades. We suggest that you always keep an extra set of blades on hand for
replacement.
4. EDGE CHAMFERING (SEE FIG D, E)
CAUTION: Always use both hands on the tool for any operation. It assures to
maintain control and avoid the risk of serious personal injury. The workpiece
must always be properly supported and clamped so that both hands will be free to
control the planer.
Using the V-groove (9) in the base plate you can make a chamfer on the work piece
edge. Guide the planer along the edge and maintain a constant angle and force to
produce a good finish. You can control the angle of the chamfer with your hands. Make
a test chamfer on a scrap piece of wood. Maintain downward pressure to keep your
planer flat at the beginning and the end of the work surface.
C D
E

Customer Helpline 0333 3201989
10
b
a
11
Operating Instructions

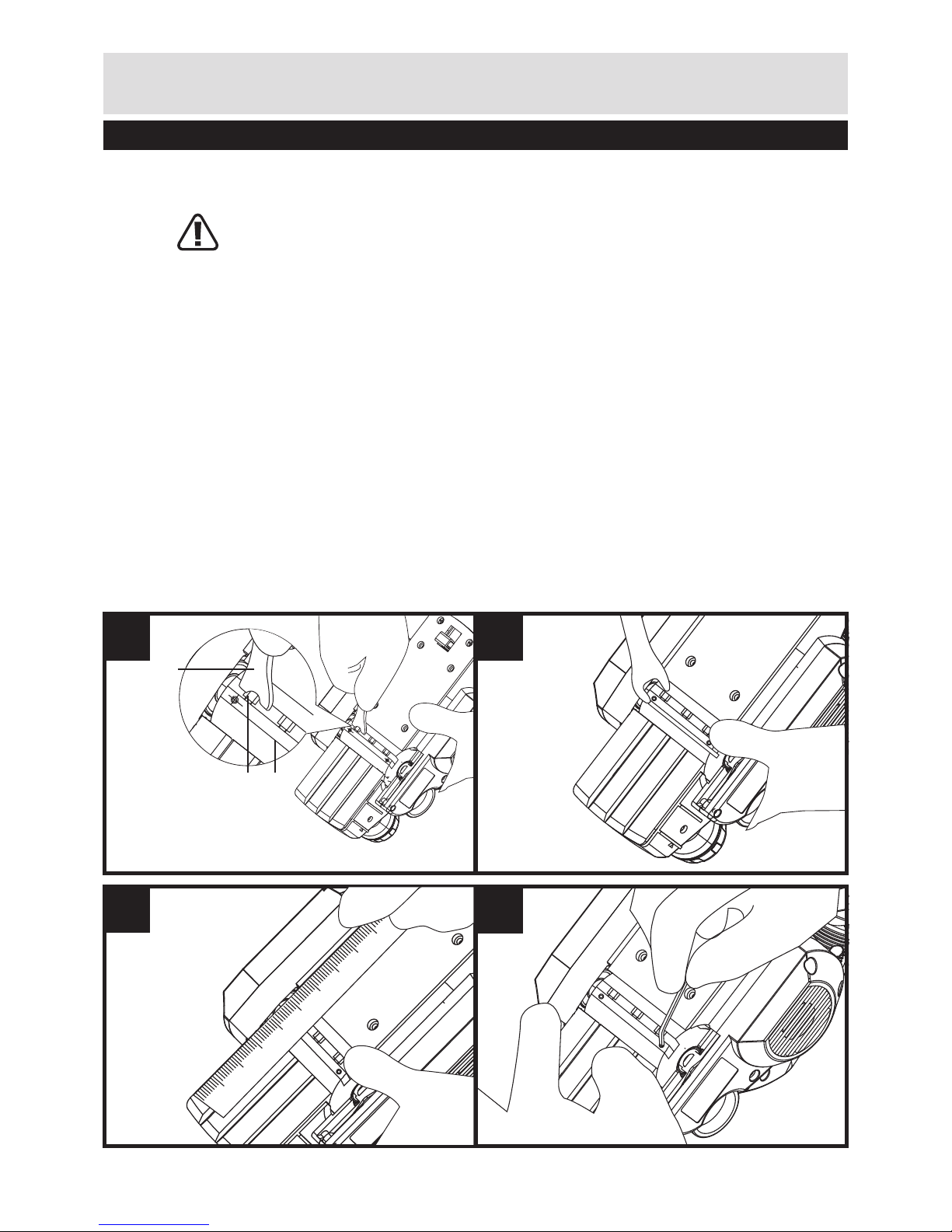

5. USING THE PARALLEL GUIDE (SEE FIG F)
Insert the screw provided through the hole on the support of parallel guide (7). Turn the
screw into the nut on the housing. Fix the parallel guide on the support of parallel guide
with the screw and nut. Ensure the screws are tightened securely.
NOTE: The parallel guide should be fitted on the left of housing.
To adjust the required width of cut, loosen the nut and slide the parallel guide to the
required position. Retighten the nut fully.
Use the parallel guide while cutting. The guide should be held firmly against the edge of the
workpiece.
6. USING THE REBATE (SEE FIG G)
Insert the screw(11) provided through the slot on the Rebate. Turn the screw into the nut on
the housing.
The cut depth adjustment can be set from 0 to 18mm.
To adjust the depth of cut, place the planer on a flat board, then loosen the screw and slide the
cut depth adjustment guide up and down for required depth. Tighten the thumb screw fully.
7. REBATING (SEE FIG H)
The width of rebating cut (a) is adjustable by moving the parallel guide. The depth of
rebating cut (b) is determined by moving the Rebate, and the number of passes made along
the workpiece. Make sure that the plane is guided with a lateral supporting pressure.
H
F G

Customer Helpline 0333 3201989
11
14
Operating Instructions
I
8. USING THE DUST BAG (SEE FIG I)
Your planer is equipped with a dust bag for collection of wood chips in the work area.
Make sure the zipper on the bag is fully closed. To fit the dust bag, simply insert the tube
end of the bag into the dust extraction outlet. There are two dust extraction outlets on
opposite sides, and the dust bag can be inserted into either one, with the other coverd by
the dust extraction cover. Then switch on and start planing.
CLEANING DUST EXHAUST OUTLET AND EMPTYING THE DUST BAG
After using your planer for an extended period of time or when planing wet green timber,
chips may build-up in the dust exhaust outlet and require clearing. Chip build-up restricts
air flow and causes the motor to overheat. Turn off the planer and remove the dust bag
from the dust exhaust outlet. Clean the chip and dust exhaust outlet of your planer with a
small piece of wood. Do not use your hands or fingers. Unzip the dust bag and empty all
chips from it. Ensure collar is free from debris.
We recommend emptying the dust bag every 3-6 minutes.
Operating Instructions

Customer Helpline 0333 3201989
12
1516
17
Operating Instructions
9. BLADE FITTING AND CHANGING (SEE FIG J, K, L, M)
NOTE: Dull and worn blade cannot be reground and must be replaced. Always replace
blades in pairs.
WARNING: Remove power cord from the socket before carrying out any adjustments
or changing blades. Always put on gloves when replacing blades.
Using the blade spanner provided to loosen the three installation screws approximately 1/2
rotation anticlockwise.
NOTE: Do not over-loosen the screws. If the screws are too loose, the alignment of the new
blade will not be accurate.
Before removing the old blades, take notice of the direction of cut as well as how the
tapered edge of the old blades are oriented. The tapered edge of the new blades must be in
the same orientation as the original blades.
Press the safety cover down with your finger. Push the blade out with the tip of a spanner
(or a screwdriver) and then remove.
NOTE: There is no need to remove the blade clamp as this will change the factory settings
for cutting blade height control.
NOTE: If a blade cannot be pushed out easily after loosening the screws, use a piece of
wood to break the blade loose from the blade clamp, with a short sharp blow. Then push
with a screwdriver to remove the blades. If necessary, tap the piece of wood sharply with a
small hammer to break the blades loose.
L
J K
M

Customer Helpline 0333 3201989
13
18
19
Before reinserting a new or reverse blade, always clean both the blade and the blade seat
if dirty. Slide the blade into the clamp with a spanner (or a screwdriver) in the correct
orientation. Check the blade is equal with the clamp. Retighten the three blade screws with
the spanner.
Repeat the above procedure to change the other blade.
After the blades are replaced, check if the blades are parallel and in the same surface as
the rear base plate with a ruler. If not, you can adjust the blades with the hexagonal wrench
provided. Firstly loosen the three screws on the blade clamp. Turn the socket head screw
clockwise, the blade will be risen. Turn it anticlockwise, the blade will be lowered down.
Finally retighten the three screws fully.
10. REPLACING A DRIVE BELT (SEE FIG N, O)
WARNING:
1. Remove the plug from the socket before carrying out any adjustment, servicing or
maintenance.
2. The cutting blades will be turning and may cause injury.
3. Always put on gloves when operation.
Loosen the screws and remove the belt cover. Remove the worn drive belt from the large
pulley and the pinion and clean them. Lace the new belt on the top of the pinion and turn it
manually, press it on the large pulley. Make sure that the drive belt runs exactly along the
length grooves of the pinion and the pulley. Replace the belt cover. Install the cover screw
and tighten fully.
Operating Instructions
N O

Customer Helpline 0333 3201989
14
P
Operating Instructions
11. BASEPLATE STAND (SEE FIG P, Q)
Uplift the rear of the planer, the base plate stand knob (20) can make the tool to be
set down directly and protect the cutting blades from any damage and the blades from
damaging the surface (SEE FIG P). When planing, the stand will be pushed away by the end
of the wood. Always check the stand is free to move on the base plate. (SEE FIG Q)
12. CORRECT PLANER BLADE SETTING (SEE FIG R)
Your planing surface will end up rough and uneven, unless the blade is set properly and
securely.
The blade must be mounted so that the cutting edge is absolutely level, that is, parallel to
the surface of the rear base. Fig. R shows some examples of proper and improper settings.
(A) Front base (Moveable shoe)
(B) Rear base (Stationary shoe)
1) Correct setting
Although this side view cannot show it, the edges of the blade run perfectly parallel to
the rear base surface.
2) Nicks in surface
Cause: one or both blades fails to have edge parallel to rear base line.
3) Gouging at start
Cause: one or both blade edges fails to protrude enough in relation to rear base line.
4) Gouging at end
Cause: one or both blade edges protrude too far in relation to rear base line.
R
P Q
20

Customer Helpline 0333 3201989
15
Voltage 220-240V~50Hz
Power input 900W
No load speed 16000/min
Max cutting depth 3mm
Max cutting width 82mm
Max rebate depth 18mm
Protection class /II
Machine weight 3.10kg
Maintenance
Remove the plug from the socket before carrying out any adjustment, servicing or
maintenance.
Your power tool requires no additional lubrication or maintenance. There are no user
serviceable parts in your power tool. Never use water or chemical cleaners to clean your
power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep
the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you
may see sparks through the ventilation slots. This is normal and will not damage your
power tool.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
Technical Data Table
Noise Information
Technical Data
A weighted sound pressure LpA : 77dB(A)
A weighted sound power LwA : 88dB(A)
KpA & KwA= 3dB(A)
Wear ear protection.

Customer Helpline 0333 3201989
16
Environmental Protection
Waste electrical products must not be disposed of with household waste. Please
recycle where facilities exist. Check with your local authorities or retailer for
recycling advice.
The declared vibration total value may be used for comparing one tool with another, and
may also be used in a preliminary assessment of exposure.
WARNING: The vibration emission value during actual use of the power tool can
differ from the declared value depending on the ways in which the tool is used
dependant on the following examples and other variations on how the tool is used:
The tool being in good condition and well maintained.
The use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING: To be accurate, an estimation of exposure level in the actual conditions
of use should also take account of all parts of the operating cycle such as the times
when the tool is switched off and when it is running idle but not actually doing the job.
This may significantly reduce the exposure level over the total working period.
Helping to minimize your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions and keep well lubricated (where
appropriate).
If the tool is to be used regularly then invest in anti vibration accessories.
Avoid using tools in temperatures of 10oC or less.
Plan your work schedule to spread any high vibration tool use across a number of days.
Technical Data
Vibration total values (triax vector sum) determined according to EN 60745:
Vibration emission value ah= 4.789m/s2
Uncertainty K = 1.5m/s²
Vibration Information

Customer Helpline 0333 3201989
17
This product is selected for DOMESTIC USE ONLY and not for business use.
This product is guaranteed against manufacturing defects for a period of 24 months. This
does not cover the product where the fault is due to misuse, abuse, use in contravention of
the instructions, or where the product has been the subject of unauthorised modifications
or alterations, or has been the subject of commercial use. In the event of a problem with
the product within the guarantee period please return it to your nearest store. If the item is
shown to have an inherent defect present at the time of sale, the store will provide you with
a replacement. Your statutory rights remain unaffected.
Issue1 08/2015
Guarantee
Declaration of Conformity
This Guild 900W Planer model number PPL900GH fully complies with the Machinery
Directive 2006/42/EC, Electromagnetic Compatibility Directive 2004/108/EC(before
2016/04/20) and 2014/30/EC(since 2016/04/20), RoHS Directive 2011/65/EU and the
following harmonized EU standards
EN 60745-2-14:2009 /A2:2010
EN 60745-1: 2009 + A11: 2010
EN 55014-1: 2006 + A1:2009 + A2:2011
EN 55014-2: 1997 + A1:2001 + A2:2008
EN 61000-3-2: 2014
EN 61000-3-3: 2013
This declaration is made under the sole responsibility of Argos Ltd, 489/499 Avebury
Boulevard, Milton Keynes, MK9 2NW
Category Technical Manager signed
Issued 20/10/2015

Customer Helpline 0333 3201989
18
If you need to replace the fitted plug then follow the instructions below.
IMPORTANT
The wires in the mains lead are colored in accordance with the following code:
Blue – Neutral
Brown – Live
As the colors of the wires in the mains lead of this appliance may not correspond with the
coloured markings identifying the terminals in your plug, proceed as follows. The wire
which is coloured blue must be connected to the terminal which is marked with N. The
wire which is coloured brown must be connected to the terminal which is marked with L.
WARNING:
Never connect live or neutral wires to the earth terminal of the plug. Only fit an
approved BS1363/A plug and the correct rated fuse.
Note: If a moulded plug is fitted and has to be removed take great care in disposing of the
plug and severed cable, it must be destroyed to prevent engaging into a socket.
Plug Replacement (Uk & Ireland Only)
Connect
Blue to N
(neutral)
Outer sleeve
firmly clamped
Cable grip
Brown L (live)
13 Amp fuse approved
to BS1362
