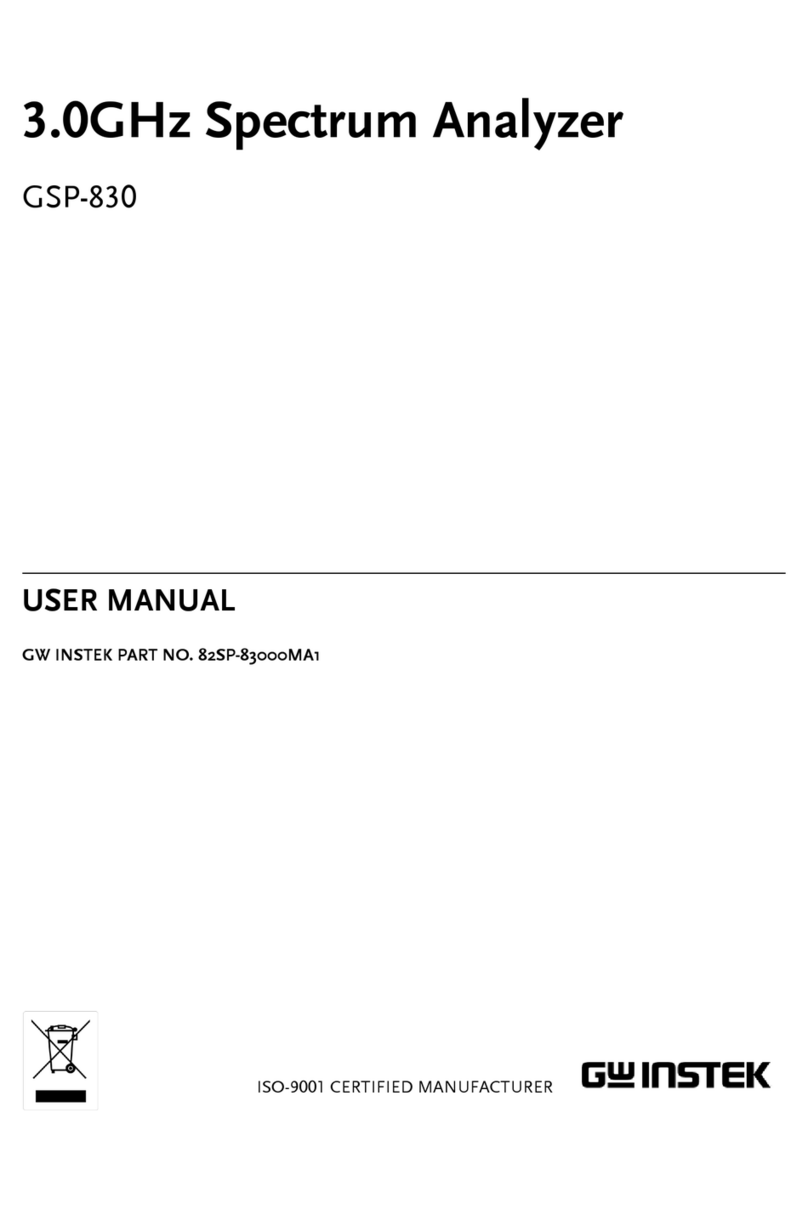

GW Instek GSP-830 User manual

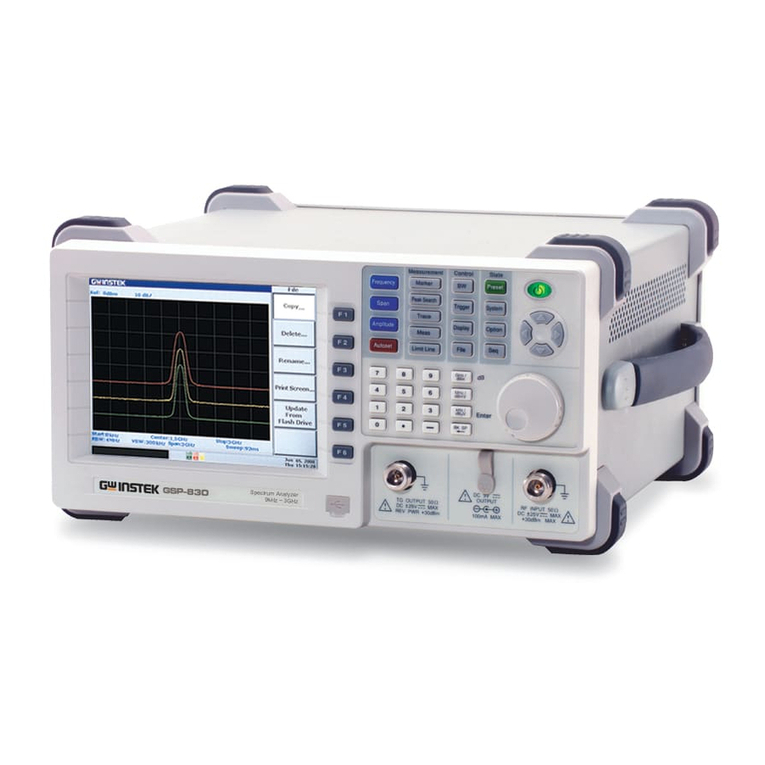

3.0GHz Spectrum Analyzer
GSP-830
USER MANUAL
GW INSTEK PART NO. 82SP-83000MA1
ISO-9001 CERTIFIED MANUFACTURER

This manual contains proprietary information, which is protected by copyrights. All rights
are reserved. No part of this manual may be photocopied, reproduced or translated to
another language without prior written consent of Good Will company.
The information in this manual was correct at the time of printing. However, Good Will
continues to improve products and reserves the rights to change specification,
equipment, and maintenance procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng City, Taipei County 236, Taiwan.

Table of Contents
3
Table of Contents
SAFETY INSTRUCTIONS.................................................................................7
Safety Symbols .................................................................................. 7
Safety Guidelines...............................................................................8
GETTING STARTED .........................................................................................11
GSP-830 Characteristics................................................................12
Package Contents .............................................................................13
Front Panel Overview.......................................................................14
Rear Panel Overview........................................................................17
Display Overview .............................................................................20
Tilt Stand & Power Up .....................................................................22
Error Check ......................................................................................23
Functionality Check .........................................................................24
QUICK REFERENCE.......................................................................................26
Operation Shortcuts........................................................................ 27
Menu Tree .........................................................................................33
Preset Contents................................................................................41
FREQUENCY/SPAN ......................................................................................42
View Signal (Center and Span) ......................................................43
View Signal (Start and Stop)..........................................................45
Full/Zero Span ................................................................................. 47
Recall the Last Span Setting..........................................................48
AMPLITUDE ..................................................................................................49
Set Vertical Scale............................................................................50
Amplitude Correction......................................................................53
Use Pre-Amplifier GAP-801 (Optional)..........................................58
Set Input Impedance .......................................................................59
AUTOSET......................................................................................................60
MARKER .......................................................................................................63

GSP-830 User Manual
4
Activate/de-activate marker(s)....................................................64
Move marker(s)................................................................................67
Show Markers in Table................................................................... 69
PEAK SEARCH ..............................................................................................70
Search Signal Peaks.........................................................................71
Show Peak Table...............................................................................73
TRACE ..........................................................................................................75
View traced waveform ....................................................................76
Move Marker to Trace .....................................................................78
Run Trace Math ............................................................................... 80
Select Signal Detection Mode.........................................................82
POWER MEASUREMENT............................................................................... 84
ACPR Measurement......................................................................... 85
OCBW Measurement........................................................................ 88
N dB Measurement.......................................................................... 90
Phase Jitter Measurement............................................................. 91
LIMIT LINE ................................................................................................... 92
Edit Limit Line.................................................................................. 93
Run Pass/Fail test.......................................................................... 96
BANDWIDTH ................................................................................................ 98
Select RBW (Resolution BandWidth)............................................. 99
Select VBW (Video BandWidth)...................................................... 101
RBW/VBW Auto Mode Contents .................................................... 102
Set Sweep time .............................................................................. 104
Average Waveform......................................................................... 104
TRIGGER..................................................................................................... 106
DISPLAY...................................................................................................... 110
Change Display Brightness............................................................. 111
Activate Display Line ....................................................................... 111
Enter Display Title........................................................................... 112
Use Split Display ............................................................................. 113

Table of Contents
5
Use VGA Output ................................................................................114
Save Display Image to USB Flash Drive........................................114
FILE ............................................................................................................. 116
File Location and File Type .............................................................117
File Copy Step...................................................................................118
File Delete Step................................................................................121
File Rename Step ............................................................................123
Save Display Image to USB Flash Drive.......................................124
PRESET ...................................................................................................... 126
SYSTEM.......................................................................................................127
Save/Recall Panel Setting ............................................................128
Configure Communication Interface............................................129
View System Information................................................................131
Set Date/Time.................................................................................135
Synchronize GSP-830 with Other Device................................... 136
Select Menu Language................................................................... 138
Service operation menu ............................................................... 138
SEQUENCE.................................................................................................. 139
Edit Sequence..................................................................................140
Run Sequence..................................................................................143
TRACKING GENERATOR.............................................................................. 145
DEMODULATOR .......................................................................................... 147
EMI FILTER ................................................................................................. 149
BATTERY / DC OPERATION ........................................................................ 151
Battery Operation............................................................................151
DC Operation ...................................................................................152
PC SOFTWARE............................................................................................ 153
Install Software ..............................................................................154

GSP-830 User Manual
6
Connect Software .......................................................................... 155
Use Software .................................................................................. 158
REMOTE CONTROL....................................................................................... 161
Configure Interface ....................................................................... 162
Command Syntax............................................................................ 164
Command Set.................................................................................. 165
FAQ............................................................................................................. 178
Appendix.................................................................................................... 180
GSP-830 Specification..................................................................180
Optional Items Specifications ...................................................... 182
Declaration of Conformity............................................................ 184
INDEX ......................................................................................................... 185

錯誤! 尚未定義樣式。
7
SAFETY INSTRUCTIONS
This chapter contains important safety instructions that
you must follow when operating GSP-830 and when
keeping it in storage. Read the following before any
operation to insure your safety and to keep the best
condition for GSP-830.
Safety Symbols
These safety symbols may appear in this manual or on GSP-830.
WARNING
Warning: Identifies conditions or practices that could
result in injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that could
result in damage to GSP-830 or to other properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal

GSP-830 User Manual
8
Safety Guidelines
•Make sure that the RF input level and the Tracking
Generator output reversed power level do not exceed
+30dBm.
•Do not supply an input signal to the Tracking
Generator output.
•Do not place any heavy object on GSP-830.
•Avoid severe impacts or rough handling that leads to
damaging GSP-830.
•Do not discharge static electricity to GSP-830.
•Use only mating connectors, not bare wires, for the
terminals.
•Do not block or obstruct the cooling fan vent opening.
•Do not perform measurement at power source and
building installation site (Note below).
•Do not disassemble GSP-830 unless you are qualified
as service personnel.
General Guideline
CAUTION
(Note) EN 61010-1:2001 specifies the measurement categories and
their requirements as follows. GSP-830 falls under category II.
•Measurement category IV is for measurement performed at the
source of low-voltage installation.
•Measurement category III is for measurement performed in the
building installation.
•Measurement category II is for measurement performed on the
circuits directly connected to the low voltage installation.
Power Supply
WARNING
•AC Input voltage: 100 ~ 240 V AC, 50/60Hz
•DC Input voltage: 12V DC, 40W maximum
•The power supply voltage should not fluctuate more
than 10%.
•Connect the protective grounding conductor of the
AC power cord to an earth ground, to avoid electrical
shock.
Battery
CAUTION
•Rating: 10.8V Li-Ion battery pack x 2
•Turn Off the main power switch before installing or
taking out the battery packs.

錯誤! 尚未定義樣式。
9
Fuse
WARNING
•Fuse type: T1.6A/ 250V
•Make sure the correct type of fuse is installed before
power up.
•To ensure fire protection, replace the fuse only with
the specified type and rating.
•Disconnect the power cord before fuse replacement.
•Make sure the cause of fuse blowout is fixed before
fuse replacement.
Cleaning GSP-830 •Disconnect the power cord before cleaning.
•Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid into
GSP-830.
•Do not use chemical or cleaner containing harsh
material such as benzene, toluene, xylene, and acetone.
•Location: Indoor, no direct sunlight, dust free, almost
non-conductive pollution (Note below)
•Relative Humidity: < 90%
•Altitude: < 2000m
•Temperature: 18°C to 28°C
Operation Environment
(Note) EN 61010-1:2001 specifies the pollution degrees and their
requirements as follows. GSP-830 falls under degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of dielectric
strength or surface resistivity”.
•Pollution degree 1: No pollution or only dry, non-conductive pollution
occurs. The pollution has no influence.
•Pollution degree 2: Normally only non-conductive pollution occurs.
Occasionally, however, a temporary conductivity caused by
condensation must be expected.
•Pollution degree 3: Conductive pollution occurs, or dry,
non-conductive pollution occurs which becomes conductive due to
condensation which is expected. In such conditions, equipment is
normally protected against exposure to direct sunlight, precipitation,
and full wind pressure, but neither temperature nor humidity is
controlled.
Storage Environment •Location: Indoor
•Relative Humidity: < 85%
•Temperature: 0°C to 40°C

GSP-830 User Manual
10
Power cord for the United Kingdom
When using GSP-830 in the United Kingdom, make sure the power cord
meets the following safety instructions.
NOTE: This lead / appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the
following code:
Green/ Yellow: Earth
Blue: Neutral
Brown: Live (Phase)
As the colours of the wires in main leads may not correspond with the
colours marking identified in your plug/appliance, proceed as follows:
The wire which is coloured Green & Yellow must be connected to the Earth
terminal marked with the letter E or by the earth symbol or coloured Green
or Green & Yellow.
The wire which is coloured Blue must be connected to the terminal which is
marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the terminal marked
with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment or contact
the supplier.
This cable/appliance should be protected by a suitably rated and approved
HBC mains fuse: refer to the rating information on the equipment and/or
user instructions for details. As a guide, cable of 0.75mm2 should be
protected by a 3A or 5A fuse. Larger conductors would normally require 13A
types, depending on the connection method used.
Any moulded mains connector that requires removal /replacement must be
destroyed by removal of any fuse & fuse carrier and disposed of immediately,
as a plug with bared wires is hazardous if a engaged in live socket. Any
re-wiring must be carried out in accordance with the information detailed on
this label.

錯誤! 尚未定義樣式。
11
GETTING STARTED
This chapter describes GSP-830 in a nutshell, including
its main features, package contents, and front / rear /
display panel introduction. After going through the
overview, follow the Power-up sequence and
Functionality check section to properly setup GSP-830.
GSP-830 package GSP-830 Characteristics ....................................................................12
Package Contents.................................................................................13
Panel introduction Front Panel Overview...........................................................................14
Rear Panel Overview............................................................................17
Display Overview.................................................................................20
Status Icon Overview ...........................................................................21
Setup Tilt stand..............................................................................................22
Power Up..............................................................................................22
Error Check .........................................................................................23
Functionality Check.............................................................................24

GSP-830 User Manual
12
GSP-830 Characteristics
GSP-830 is a middle- to high-range digital storage
spectrum analyzer suitable for wide range of applications,
such as production testing, research, and field
verification.
Performance •Low noise floor: -117dBm @600MHz, 3k RBW
•Fast sweep: 50ms ~ 25.6s range
•Compact size: 330(W) x 170(H) x 340(D) mm
•Light weight: 5.8kg (without options)
Features •Autoset
•5 markers with Delta Marker and Peak functions
•3 traces
•Power measurements: ACPR, OCBW, N-dB, Phase
Jitter
•Pass/Fail test with Limit Line editing
•Split windows with separate settings
•Sequence programming (user-defined macro)
•6.4″TFT color LCD, 640 x 480 resolution
•Phone output (available in optional Demodulator)
•AC/DC/Battery multi-mode power operation
Interface •USB host for storage device connection
•USB slave/RS232/GPIB(optional) for PC software
connection and remote control
•Direct VGA display image output
•Reference signal input/output for synchronization
•External trigger signal input
Optional Items •Tracking Generator
•Pre-Amplifier (11.5dB, 6GHz)
•±1ppm stability module
•EMI filter with 9kHz/120kHz RBW and 6-dB
bandwidth
•Battery pack
•Demodulator
•300Hz/10kHz/100kHz RBW
•GPIB interface

錯誤! 尚未定義樣式。
13
Package Contents
Contact your dealer in case there is a missing item.
GSP-830 + pre-installed
optional items
The following, if bundled, are factory installed items.
•Option01 Tracking Generator
•Option03 ±1ppm Stability module
•Option04 300Hz RBW
•Option05 9kHz & 120kHz RBW (*)
•Option06 10/100kHz RBW (*)
•Option07 AM/FM Demodulator, 10/100kHz RBW (*)
* Among Option 05 ~ 07, only one can be installed at a
time.
Peripherals •Power cord
•User Manual (this document)
Option02 Battery Packs*2
Option08 GPIB Inerface
GSC-001 Soft carrying case
GKT-001 General Kit set
ADP-002: SMA (J/F) to N (P/M) adaptor x 2
ATN-100: 10dB Attenuator
GTL-303: RF Cable assembly (RD316+SMA(P)x2,60cm)x2
GSC-002: Kit box
Other Optional items
GKT-002 CATV Kit set
ADP-001: BNC (J/F) to N (P/M) adaptor x 2
ADP-101: BNC(P/M) 50Ωto BNC(J/F) 75Ωadaptor x2
GTL-304: RF Cable assembly (RG223,N(P)-N(J),30cm)x2
GSC-003: Kit box
GKT-003 RLB Kit set
GAK-001: Cal. Kit, termination, N(P), 50Ω
GAK-002: Cap with chain, N(P)
GTL-302: RF Cable assembly (RG223+N(P)x2, 30cm) x2
GSC-004: Kit box
GAP-801 Pre-Amplifier, 9kHz ~ 6GHz, 10dB gain
GKT-006 EMI Probe Set
GTP-3000 RF Probe for EMI Use
GTL-401 DC Power Cord

GSP-830 User Manual
14
Front Panel Overview
A LCD Display TFT Color display, 640x480 resolution. For display
setting details, see page110.
B F1~F6 Function Keys F 1 ~
F 6
Soft keys linked to the menu that appears
on the right side of the display.
C Main Keys Frequency
Span
Amplitude
Autoset
Frequency key (page42), together with
Span key, configures horizontal
(frequency) scale.
Amplitude key (page49) configures
vertical (amplitude) scale and input
impedance.
Autoset key (page60) automatically
configures the most appropriate
horizontal and vertical scale for input
signal.

錯誤! 尚未定義樣式。
15
D Measurement keys
Limit Line
Meas
Trace
Peak Search
Marker
Marker key (page63) activates markers
and places them on specified locations.
Peak Search key (page70) searches peak
signals and configures peak ranges/orders.
Trace key (page75) activates trace signals,
configures them, and runs trace math
operations.
Measurement key (page84) configures
and runs 4 types of power measurements:
ACPR, OCBW, N-dB, and Phase jitter.
Limit Line key (page92) configures
high/low limit lines and runs Pass/Fail
test.
E Control keys
Display
BW
Trigger
File
BW key (page98) configures RBW/VBW
width, sweep time length, and waveform
averaging number.
Trigger key (page106) selects trigger type,
sets trigger running mode / delay /
frequency, and activates external trigger
input.
Display key (page110) configures LCD
dimmer, edits and shows display line/title,
and activates split windows.
File key (page116) saves/recalls/deletes
trace waveform, limit line, amplitude
correction, sequence (macro), and panel
setup. It also saves display image through
USB port.
F State Keys
Seq
Option
System
Preset
Preset key (page41or126) resets GSP-830
to a predefined state.
System key configures date/time
(page135), GPIB/RS232C interface
(page129), and language (page138). Shows
system information (page131) and self test
result (page134). Saves/recalls panel setup
(page128).
Option key configures Tracking
Generator (page145), Demodulator
(page147), Battery (page151), and External
reference frequency (page136).
Seq key (page139) edits and runs sequence
(user-defined macro).

GSP-830 User Manual
16
G Power Key
Power key selects the power state
between Standby mode (Red LED On)
and Power On mode (Green LED On).
For main power On/Off, use the Power
switch on the rear panel. For power up
sequence, see page22.
H Arrow Key
Arrow key selects parameters in various
occasions; Up/Right for increasing,
Down/Left for decreasing.
I Scroll Knob
Scroll knob sets or selects parameters in
various occasions. In some cases,
i
t works
in tandem with the Arrow key.
J Input Terminal
  Ω
 

 ± 
Input terminal accepts RF input signal.
Maximum +30dBm, 50Ω.
K Pre-Amplifier Power
Supply Terminal
 

 

Pre-Amplifier power supply terminal
provides power for the optional
GAP-801 pre-amplifier. For details, see
page58.
L Numerical keys set various parameters. In some cases,
they work in tandem with the Arrow key / Scroll knob.
Numerical Keys
Example Key sequence
9kHz
−3.8dB
1.0mS
9 + Enter
Correction
M TG Output Terminal
(Optional)
  Ω

 ± 
Outputs the optional Tracking
Generator signal. Reversed power
should not exceed +30dBm. For details,
see page145.
N USB Output
Connector
USB host, typeA, male connector saves
and recalls data or display image
(page116).

錯誤! 尚未定義樣式。
17
Rear Panel Overview
A Frequency
Adjustment Point

☺
Adjusts the internal reference signal
frequency; for service operation only.
B GPIB Connector
(Optional)
Optional 24 pin female GPIB connector
for remote control (page161). For
interface setting details, see page130.
C USB Connector
Type B mini connector for PC software
connection (page153) and remote control
(page161). For interface setting details,
see page129.
D RS232C Connector
9 pin female connector for PC software
connection (page153) and remote control
(page161). For interface setting details,
see page129.

GSP-830 User Manual
18
E Phone Output
(Optional)

3.5mm phone jack for audio output.
Available when the optional
Demodulator is installed. For details,
see page147.
F Battery Pack
(Optional)
Optional battery pack for portable
usage. Installed together with DC
operation module. For details, see
page151.
G Main Power Switch
The main switch for turning On/Off
the power. For Power up sequence, see
page22.
H Fuse Socket
Stores T1.6A 250V rating fuse. For fuse
related safety instructions, see page8.
I Power Cord Socket
Accepts the
A
C power cord, 100~240V,
50/60Hz rating. For power related
safety instructions, see page8.
J DC Power Input
 

 

Optional power input, DC 12V, 40W
max rating. Installed together with the
battery pack. For details, see page152.
K VGA Output
15pin, female VGA connector that
outputs 640 x 480 resolution display
image to an external monitor. For
details, see page114.

錯誤! 尚未定義樣式。
19
L External Trigger
Input  


Accepts a trigger signal from
an external device. For
details, see page106.
M Reference Output

 
Outputs +5V TTL, 10MHz
reference signal used for
synchronizing GSP-830 with
external device. For details,
see page136.
N Reference Input
 
Accepts a signal from an
external device, used for
synchronization with
GSP-830. For details, see
page137.

GSP-830 User Manual
20
Display Overview
A Traces & Waveforms Input signal and trace that appears on the main display
area. Input signal & TraceA: Green, TraceB: Red,
TraceC: Yellow. For trace details, see page75.
B Title Title of the current display. For details, see page112.
C Reference
Level/Scale
Reference amplitude level and vertical scale. For
amplitude details, see page49.
D Marker Information
The frequency and amplitude for the active marker /
delta marker. For marker details, see page63.
E Function Menu The menu associated with F1~F6 function keys on the
right side of the display.
F Date and Time Current date and time. For setup details, see page135.
G Frequency/
Bandwidth
Upper line: shows the Start/Stop frequency (page45)
and the Center frequency (page43).
Lower line: shows the Video bandwidth (page101), the
Resolution bandwidth (page99), the frequency Span
(page43), and the Sweep time (page104).
