Gymnova 2830 User manual
11/07/17
2830
1
CS 30056 - 45 RUE GASTON DE FLOTTE
13375 MARSEILLE CEDEX 12 (FRANCE)
TEL : 33.(0).4.91.87.51.20 - FAX : 33.(0).4.91.93.86.89
1
1
HARNESS BELT M'16
ASSEMBLY INSTRUCTIONS
Warning:
The apparatus should be used by only one person at a time, supervised by a qualified individual and with appropriate
landing mats or a landing pit.
Using this equipment for purposes other than those originally intended is not allowed.
Compliance:
This equipment complies with the requirements of the European standard EN 358 « Personal Protective Equipment ».
Recommendations:
As shown in French Standard NF S52-400 the following is recommended:
-keep these instructions for subsequent reference (inspection, maintenance, etc.).
-periodically carry out predictive maintenance.
- depending on how much it is used have the equipment serviced yearly or every few years.
Packaging:
1 Pack: Dimensions: 310 x 210 x 200 mm Weight: 1.2 Kg Volume: 0,01 m3
I. Belt adjustment
NM278-GB
KEEP THIS
DOCUMENT

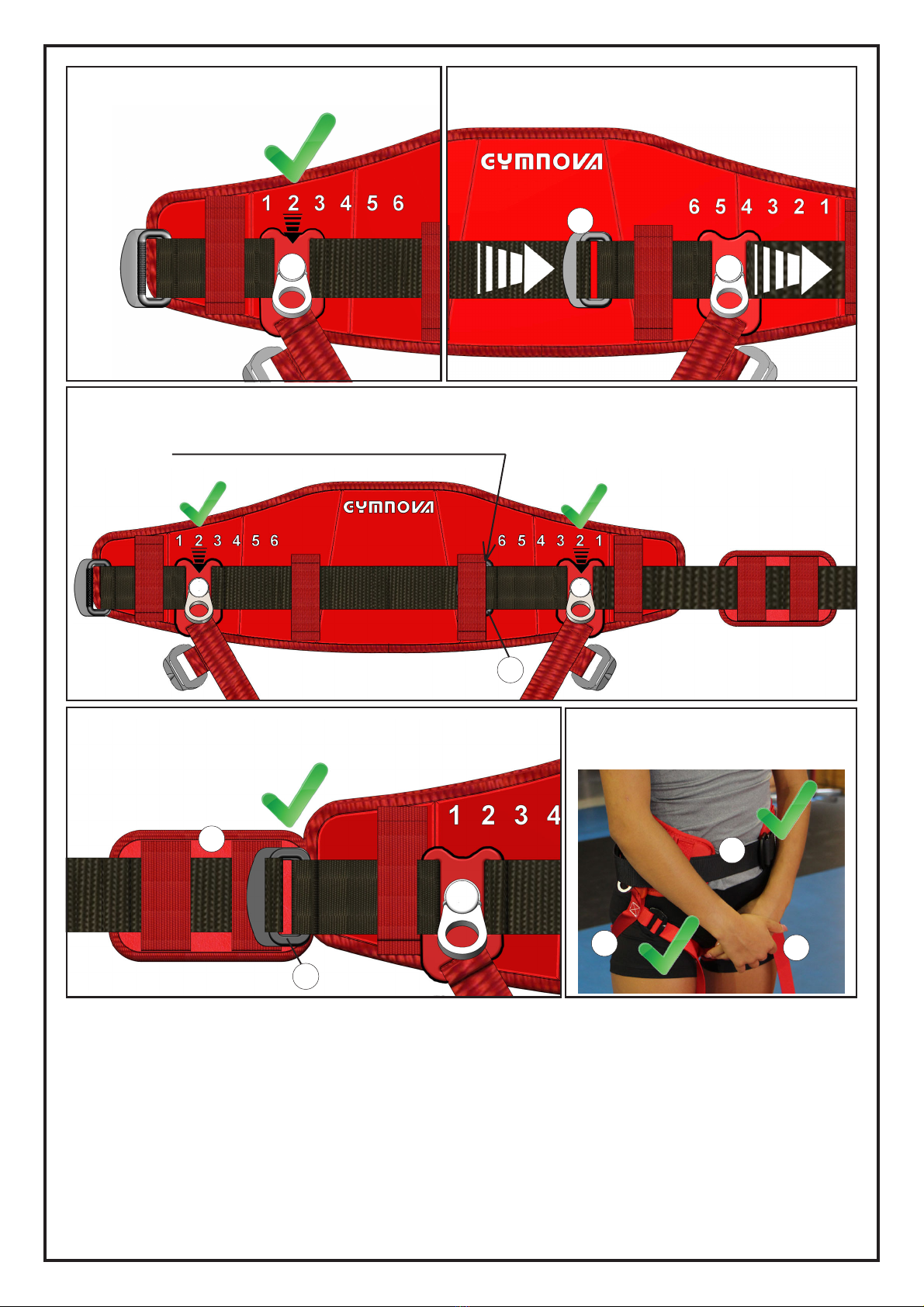

Position the belt on oneself. Center the backrest (1): check which N°(from 1 to 6) is positionned on the iliac crest
(located on the sides, where your arms falling freely: see the black arrows).
Constantly aiming to improve our products, we reserve the right to make changes to the equipment and dimensions without further discussion.
2 3
4
56
6
55
6
2
44
3
6
II. Maintenance:
1/ A regular cleaning of the assembly allows better viewing of the problems, if any (distortion, breakage, or corrosion).
2/ Before use, check wear parts and safety elements each time for good condition and operation:
-complete trunnions (5),
-safety buckles (6) & crotch (4) straps buckles, the entire straps (3 & 4), the backrest (1),and all the seams.
3/ Important:
- The replacement of this belt is strongly advised after 5 years service life and/or storage.
-If a problem is detected or suspected, do not use the equipment as long as it has not been checked by a
technician.
-Any damaged or distorted piece should be replaced as soon as possible.
III. Stockage:
Always store the equipment away from humidity and heat.
Remove the belt. Match the concave part of the
trunnion (5) with the number finded step 1.
Using the safety buckle (6) slide the strap so that the
concave part of the other trunnion (5) match the same
number as step 2.
It is possible, depending on the settings, that the
safety buckle (6) slide under or will be located
under belt loops.
NM278-GB - Page 2
Use protective pad (2) for large body tipes: it protects against the contact
of the safety buckle (6).
Optionnal protective pad (2)
for small body tipes.
Attach & tighten crotch straps (4).
Tighten firmly the belt strap (3).
Ref.: 2830
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
PAR : M. CHARBONNEAU LE : 11/07/17
12
6
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
2830/20
2830/10
-
-
-
-
2830/02
2830/01
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1
1
2
2
2
1
1
1
3
5
5
6
4
4
7
HARNESS BELT M'16
REFERENCE OBSERVATION
REP NBR DESIGNATION
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Service kit
each
included in 7
included in 7 & 8
included in 7
included in 7
each
each
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Pair of trunnions
Complete strap
Metal safety buckles
Complete trunnion
Crotch strap
Strap with trunnions
Protective pad with loops
Backrest with loops
NM278-GB
THIS DOCUMENT IS THE PROPERTY OF GYMNOVA, IT IS CONFIDENTIAL AND SHALL NOT BE REPRODUCED.
To order spare parts, please provide the description, reference and delivery date of the entire apparatus.
Constantly aiming to improve our products, we reserve the right to make changes to the equipment and dimensions without further discussion.
