GYS ERGO LIFT 650 User manual

User manual
ERGO LIFT 650
EN
Operation and maintenance manual
73502-V4-01/09/2020 www.gys.f r
EN

ERGO LIFT 650
1
Safety and functional check
In order to guarantee that your ERGO LIFT 650 lift has been manufactured in strict compliance with
safety standards, here are the results of the tests that your product has been subjected to before
shipment (please always keep this manual provided when you purchased the equipment).
The following elements are present:
 Technical notice board on the back of the hydraulic power station.
 Serial numbers on the technical notice board and on the lift.
 Instructions for use
 Maximum authorised load capacity of 2,000 kg.
 Raise "↑" and lower "↓" on the cable control.
 CE identification on the lift.
Controlled operation and safety:
Pressure relief valve set at 140 bar max.
Verify:
 No-load function test over a complete cycle
 Operation of the emergency stop button
 Controls automatically return to initial position
 No damage to the cylinders, the power supply cable, and the wired remote control cable
 Tight fastening of all bearing screws
 Condition of the hydraulic hose (tightness and watertightness of all connections)
 Operation with the maximum load over a complete cycle
 Checking the function of the safety device in the event of a hydraulic hose rupture under load.
Serial No Date: Name or controller number:
EC Certi icate o Con ormity
You can download the certificate of conformity from our website: www.gys.fr.
heading: PRODU T_ ARROSSERIE_ ARROSSERIE_LEVAGE

ERGO LIFT 650
2
Thank you for choosing GYS In order to obtain maximum satisfaction from your ERGO LIFT 650 and for your
safety, please read these operating instructions carefully before first use and keep them in a safe place for
future reference.
BACKGROUND INFORMATION
These operating instructions contain important information for installation in order to ensure proper
commissioning and operational safety of the ERGO LIFT. Complying with the documentation reduces risks
and extends the life of the product. This manual contains a form to certify regular security checks. Use the
"Regular Safety Inspection" form and the "Maintenance Log" to archive the inspections (It is advisable to
make a copy of the forms before filling them in for the first time).
Installation and cont ol:
Safety work and safety checks are reserved exclusively for specially trained persons. These persons are
referred to in this documentation as experts and/or authorised persons.
LIMITATIONS OF LIABILITY
The ERGO LIFT is a mobile lift designed in compliance with standards. All data and advice in this manual
have been collected in accordance with its applicable standards and regulations and our extensive knowledge
and experience.
The manufactu e cannot be held esponsible in case of mate ial and physical damage that could lead to
death by:
• Non-obse vance of the inst uctions fo use
• Imp ope o dange ous use
•Employment of unskilled pe sons
• Unautho ized p ocessing on the ERGO LIFT
•Insufficient maintenance
INTENDED INTENDED USE
The ERGO LIFT is designed for the repair of passenger vehicles. It allows vehicles to be lifted safely.
Maximum authorised load capacity of 2,000 kg.
Intended use of the ERGO LIFT includes familiarisation with these operating instructions in their entirety and
observance of all the instructions contained herein, with particular reference to the safety instructions. The
ERGO LIFT must be used and handled in accordance with these operating instructions.
A safety perimeter must be defined in which no one must be present during the lifting operation (minimum
2m around the vehicle to allow escape if necessary).
The lifting of persons or other objects is not allowed. No one must be inside the vehicle to be lifted. It is
forbidden for persons to climb onto the load or the load support device when these are in the raised position.
The ERGO LIFT must be used inside a work room and protected from bad weather (IP 20, wind, rain and
negative temperature).
The operating temperature range is between 5°C and 40°C maximum. In case of prolonged storage in a place
where the temperature is below 0°C, allow at least 12 hours before use by storing it in the workplace.
Do not use in excessively humid conditions. If water is splashed directly onto the lift, use a clean cloth to wipe
it off.

ERGO LIFT 650
3
This equipment is delivered with a 16 A CEE7/7 type plug and must only be used on a single-phase 230 V
(50Hz) electrical installation.
Never lift loads on sloping ground (>3°). The floor must be flat and strong enough to prevent the ERGO LIFT
from sinking under the weight of the load (35kg/cm²). Under no circumstances should the ERGO Lift be placed
on an inspection hatch on the floor.
It is forbidden to use the ERGO LIFT on a boat/vessel (stability problem).
Thoroughly clean the supporting surface of the vehicle and the rubber pads of the ERGO LIFT before each
use.
Remove all grease and oil stains that could cause the vehicle to slip.
Work underneath the vehicle is not permitted.
Vehicles should only be lifted at the lifting points recommended by the car manufacturers. Make sure that
the ERGO LIFT does not come into contact with areas close to the airbag activation sensors during and after
the lift.
Do not place the rubber pads on an area with plastic trim.
Take care of the electrical cables as well as the hydraulic hose.
It is advisable to avoid driving on the hose connecting the lift to the hydraulic unit. When this is not possible,
parking on it should be avoided.
In the event of a violent impact on the load-bearing and/or structural elements of the ERGO LIFT, it is
imperative to take the product out of service and contact your dealer or the manufacturer in order to assess
the damage before putting it back into service.
In case of doubt about the strength of the vehicle structure (presence of rust) - Do not lift the vehicle.
Enforce safety and risk prevention standards in the country's workplaces (the country's labour code). In
addition, this also includes the obligation to carry out all inspection and maintenance work at regular intervals.
In the event of improper use of the lift, the operational safety of the ERGO LIFT is not guaranteed.
Damage to persons and property, also on vehicles, caused by improper use of the device is in no way the
responsibility of the manufacturer, but of the operator handling the ERGO LIFT.
ERGO LIFT must not be used in a potentially explosive atmosphere and it is not recommended to work next
to a heat source. The ERGO LIFT has not been designed for use in a spray booth.
It is forbidden to use spare parts other than original parts certified by the manufacturer.
Also ensure that the wired control cannot be tampered with by unauthorised persons while you are working
around the vehicle.

ERGO LIFT 650
4
PACKAGING AND UNLOADING
The ERGO LIFT user and maintenance manual is included in the packaging of the hydraulic unit. On
delivery, check for external transport damage. In case of visible damage, leave the goods and packaging
as they are. Do not use the goods and contact your dealer directly. Failing this, a reservation must be made
to the carrier. Under no circumstances can GYS be held responsible.
Unloading can be done with a forklift or hand pallet truck as soon as the pallet is placed on the floor. Wear
gloves and safety shoes. Take into account the centre of gravity noted on the packaging when picking up
and moving the pallet.
1- Determine an area with sufficient space and good lighting.
2- Unpack and place the hydraulic power unit on the ground, aligning the beam so that it is not folded on itself
and/or twisted.
Retrieve the accessories (rubber pads, drawbar accessories, wheels and pins).
3- Remove the cardboard cover on the lift and carry out a visual inspection to check that nothing is damaged
and that there are no visible oil leaks at the connections.
***There may be "traces of oil" prior to first use that are related to the manufacturing process. Wipe
with a clean, dry cloth if necessary ***
4- Connect the hydraulic group to the mains and press the "ON" button on the side of the hydraulic group.
The button lights up to indicate that the hydraulic power unit is energised.
5- Press the up button or " ↑" on the remote control until the lift reaches the very top (no need to top up the
oil, the unit is ready for use). A double beep will indicate that the maximum position has been reached. The
Packing with lift

ERGO LIFT 650
5
motor should stop automatically and it should no longer be possible to lift. If this is not the case, please refer
to ANOMALIES, CAUSES, REMEDIES on page 14.

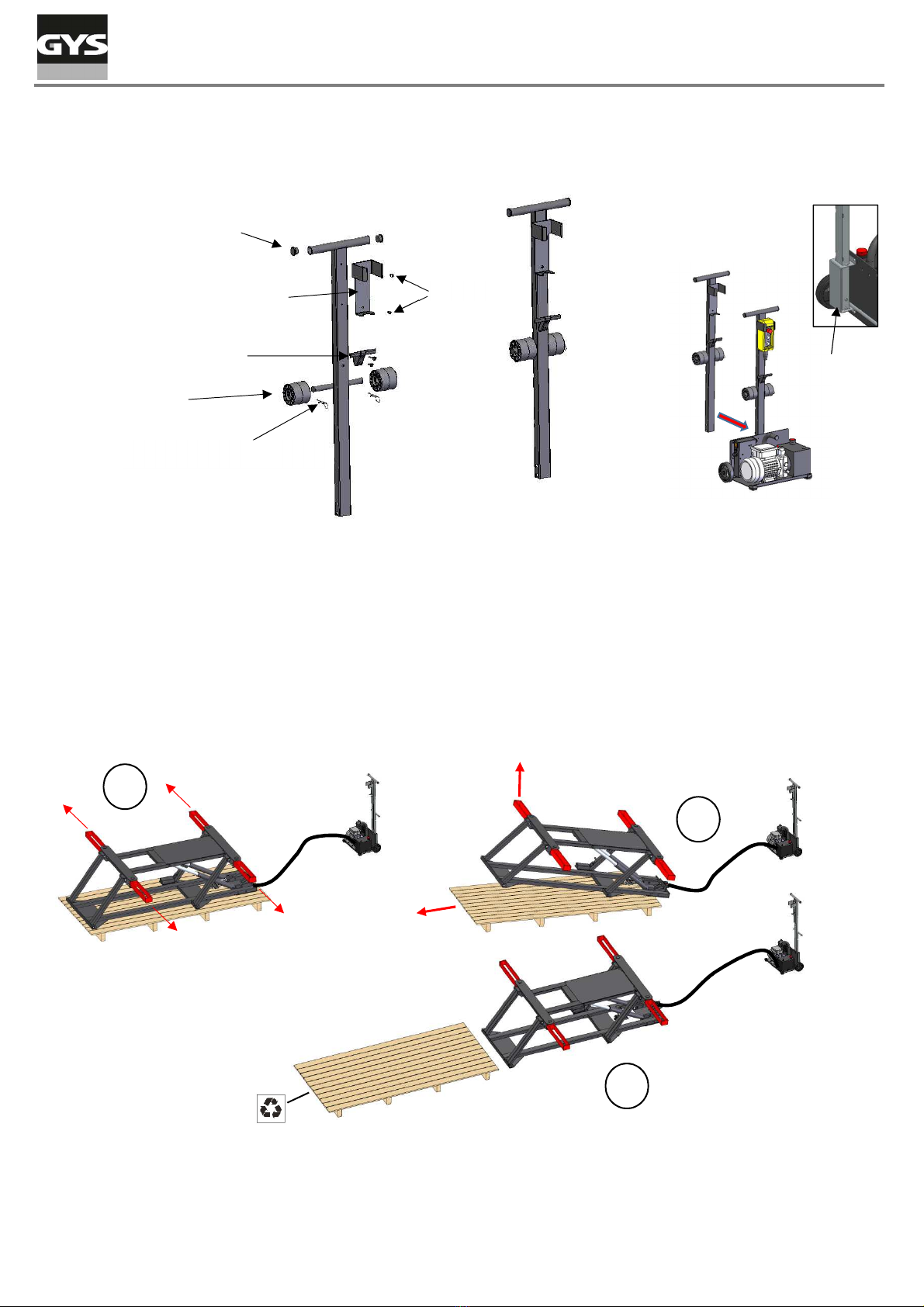

6- Retrieve and assemble the manoeuvring drawbar and attach it to the hydraulic unit to be able to move it
more easily.
7- Remove the 4 screws from the lift that fixes it to the pallet.
8- With the help of a strap and a firmly attached hoist (weight to be lifted 130kg max.) lift the table by the
lightest side of the lift (front of the lift) then remove the pallet under the table. Be careful not to injure yourself
and don't hesitate to be in a group to carry out the manoeuvre in complete safety (3 people recommended).
Never get under the hoist or put yourself in a dangerous situation).
If you do not have a hoist, you can remove the lift from the pallet manually. Position the 4 arms of the table
to have as many holds as possible as shown in the picture below. Lift the lighter side first and gradually
remove the pallet from underneath.
Packages should not be placed in a bin but in a recycling bin .
1
2
3
stoppers
remote control holder
wheels
pins
screw
cables support
Drawbar
support

ERGO LIFT 650
6
Hydraulic fluid is dangerous if splashed in the eyes or if it comes into contact with blood. In
this case, contact your doctor immediately. Never reach over your hand to check for a hydraulic
leak: risk of cut and contamination in the bloodstream that could lead to death.
INDIVIDUAL PROTECTION
The operator must be equipped in accordance with the occupational risk prevention standards applicable in
his/her country and must adopt all necessary measures to maintain safety at his/her workstation. During
manoeuvres, the operator must ensure his own safety and that of the people and objects around him. The
operator must take into consideration all the recommendations quoted in this manual.
START UP
Make sure you have the necessary protection: safety shoes and gloves.

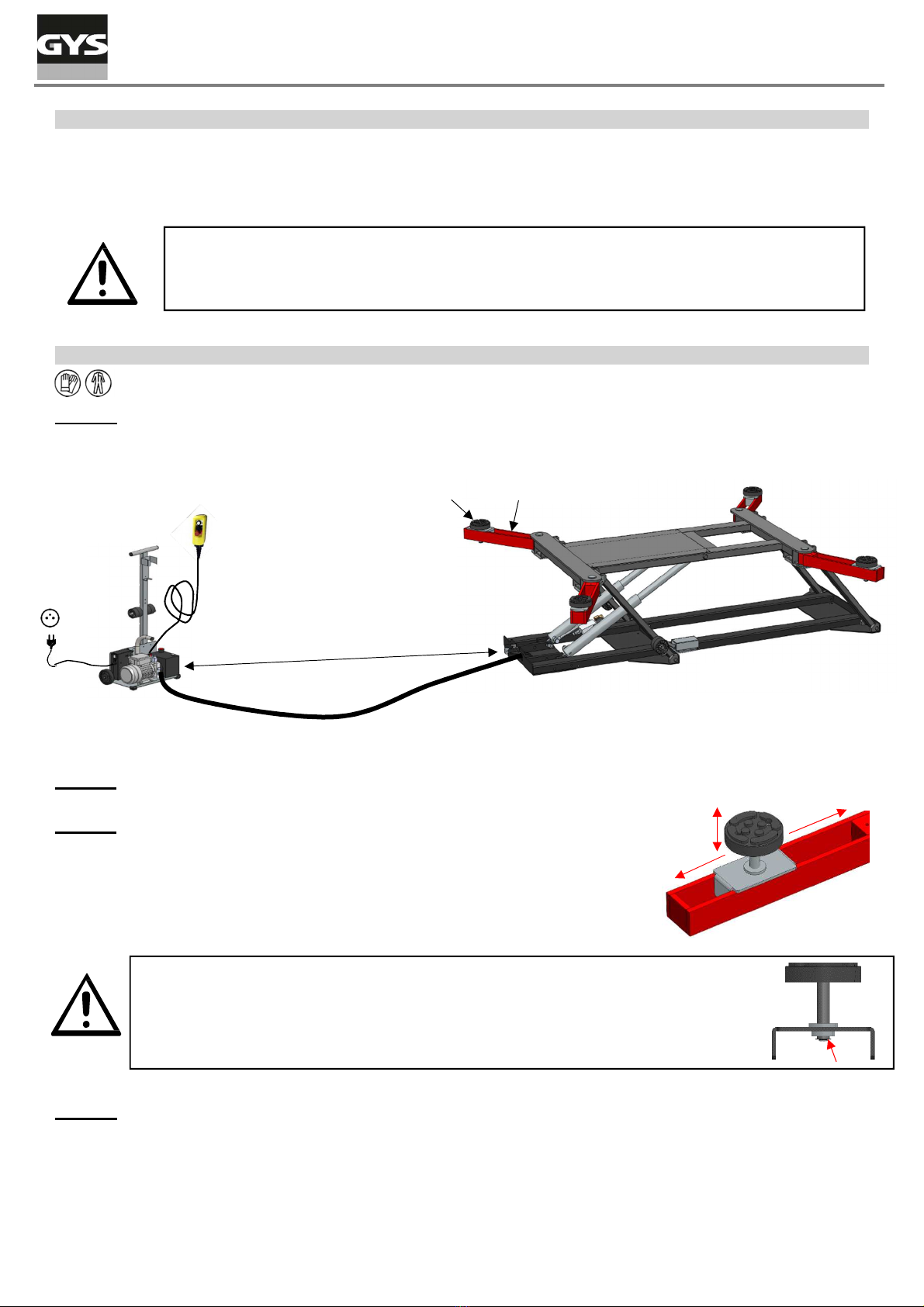

Step 1: Place the ERGO LIFT on the floor and position the hydraulic unit 3 metres from the lift, making sure
that the beam is not twisted and bent.
Step 2: Connect the hydraulic unit to an electrical outlet and set the button to "ON".
Step 3: Place the 4 runners on the load-bearing elements.
It is possible to adjust the runners in height (1) and all along the arm (2).
Each skate is equipped with a solidly attached mechanical stop - never use a skate
without a stop.

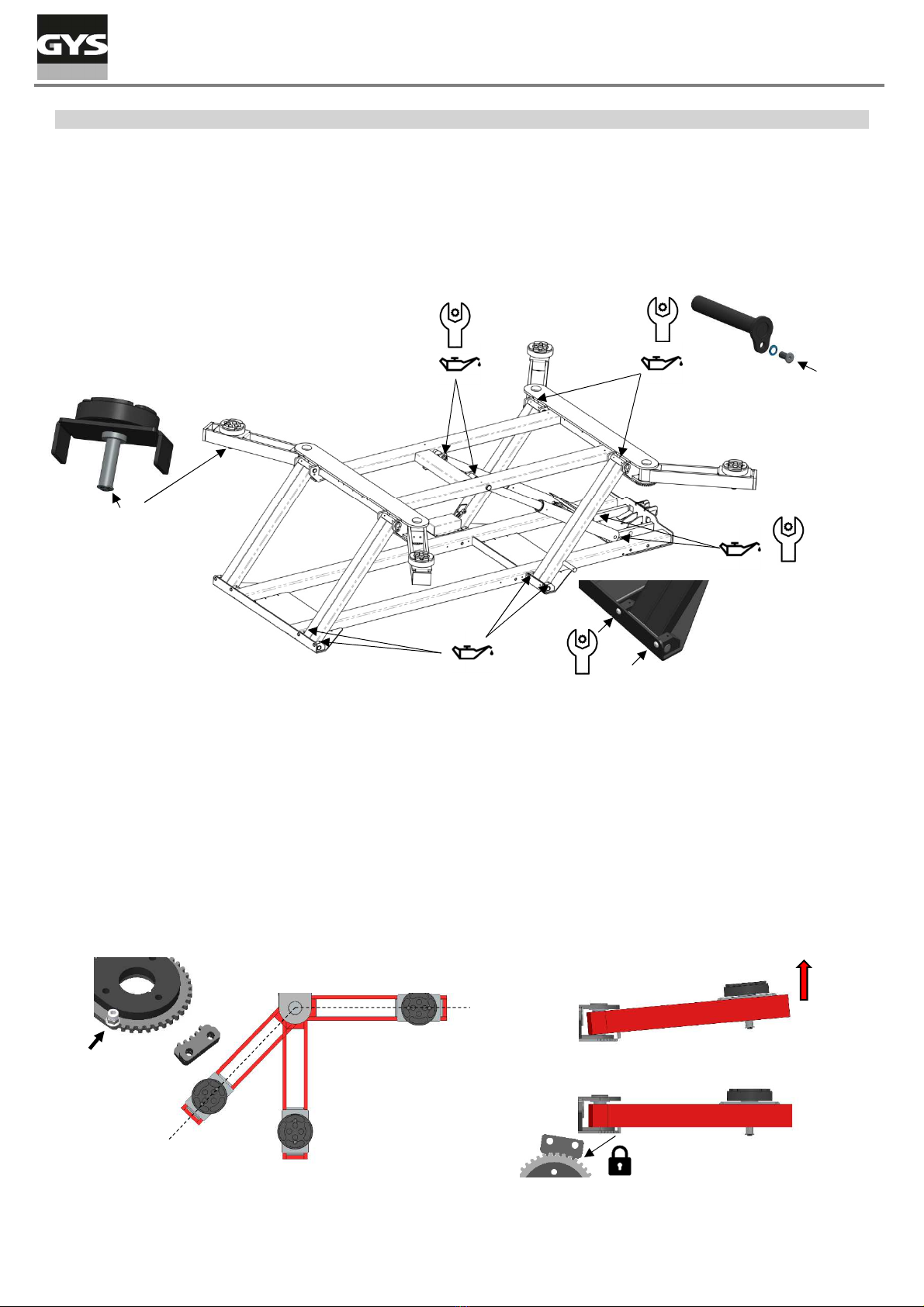

Step 4: It is possible to move the supporting elements (= arms) of the lift at an angle. To do this, lift the end
of the arm in order to release the movement, position it as desired and release it. After each repositioning,
check that the arm is securely in place and locked into a safety catch by making a left-to-right movement.
Never perform this operation with your foot. Always make this adjustment with your hand to carry out the
necessary checks of the correct positioning of each load-bearing element.
Hoist
Hydraulic power
Supporting element
Rubber pad
3m min
(1)
(2)
Remote control
Manoeuvring
drawbar
Electrical
outlet

ERGO LIFT 650
7
Step 5: Using the remote control:
Press the up button or "↑" to raise the lift. As long as the button is held down, the lift will rise until a double
beep sounds (end position reached by the sensor). Automatically when the button is released, the lift stops.
Press the down button or "↓" to lower the lift. A beep for 2 seconds preceded by the descent of the table will
be heard each time the button is pressed and an audible signal will be emitted throughout the descent to
warn people around the manoeuvre. Automatically when the button is released, the lift stops.
In case of an emergency, it is possible to stop the ascent and descent of the lift by pressing the red emergency
stop button. To disengage it, pull the button and at the same time make a quarter turn.
Step 6: Moving the lift

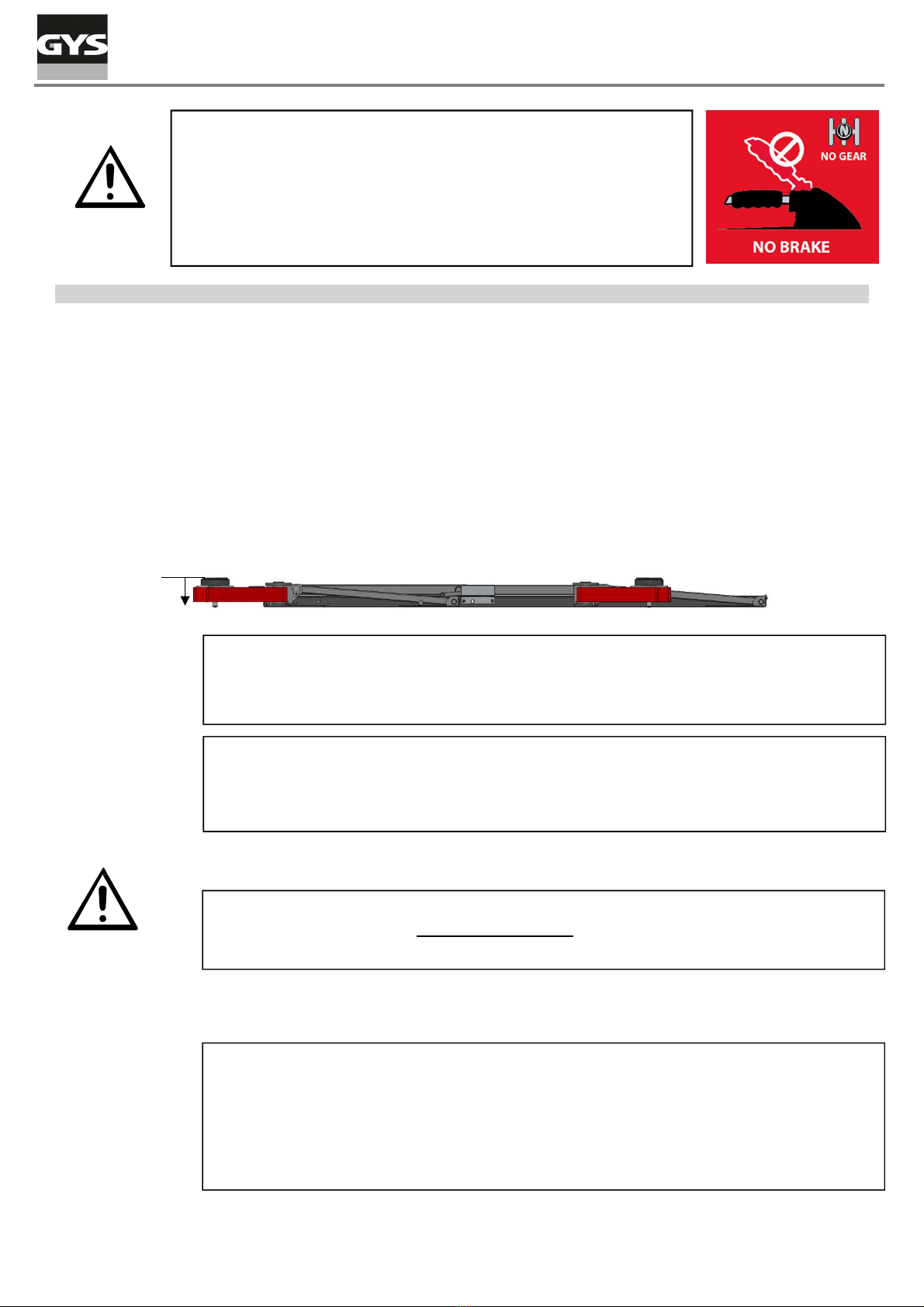

a- The lift must be raised about 15 centimetres from the ground.
b- Insert the 2 wheels and the safety pins.
c- Lower the lift to the floor.
d- Fold the 4 arms towards the inside of the lift.
e- Move the group close to the lift and place it on the lift as shown in the figure below.
f- Insert the operating tiller at the level of the slot on the lift.
g- Press and push lightly on the tiller to move the lift wherever you want on level ground with no slope
(<3°).
Max position
Min position
1
2
3
STOP
Going
Down
Limit switch sensor
Manoeuvring
Drawbar
support

ERGO LIFT 650
8
Once the area has been determined, place the lift and carry out the reverse manoeuvre without forgetting to
remove the 2 wheels and the pins and store them on the support at the level of the manoeuvring tiller.
OPERATING INSTRUCTIONS
To achieve optimum safety, it is recommended to define an area in which other objects
or walls will be at a certain distance (2m minimum). All ascent and descent manoeuvres
must be carried out with the best possible attention on the part of the operator. Within
the defined area, it is forbidden for people to park when the lift is in motion. In order to
guarantee the operator's safety, the control box must be located at a distance that allows
an escape route in case of emergency. It must be taken into account that the vehicle
will move 30cm towards the front of the lift when going up and down.
Make sure that the vehicle is as centred as possible on the longitudinal axis of the lift.
Remove the skates
Folded arms
2m
2m
Safety zone
Wheels removed
obligatorily
2m
2m
NO
Back
Front
Wheel +
pin
Hydraulic power pack
3m min

ERGO LIFT 650
9
Then spread the arms completely apart and put the rubber pads on them. Position the skids below the grip
points provided by the car manufacturers.
Once the support arm has been correctly positioned, check that it is correctly in place and locked by simply
moving it from right to left.
Lift the vehicle a short distance (all 4 wheels should be about 10 to 15 cm off the ground) and check that the
skids are correctly positioned and that the vehicle is stable. Once this check has been carried out, lift the
vehicle to the desired height and store the remote control.
Maximum loading principle of the lift :
This self-stable lift has been dimensioned to accept a maximum working load (M.W.L.) of 2000kg as shown
in the figures below and regardless of the position of the arms (open angle or fully closed). This means that
it is necessary to respect a loading of 60% of the mass on the front of the lift and 40% on the back of the lift
and vice versa. It is designed to accept a reversible load.
By respecting the alignment of the lift with the longitudinal axis of the vehicle and by positioning the rubber
pads below the gripping points identified by the car manufacturers, you will respect this principle and be able
to lift the load safely. This information is to be found on the lift so that the user does not exceed the maximum
load depending on the situation (position of the engine in the vehicle according to the direction of the lift).
600kg
400kg
600kg
600kg
600kg
400kg
400kg
60%
1200kg
40%
800kg
40%
400kg
1200kg
60%
400kg
Front Back
