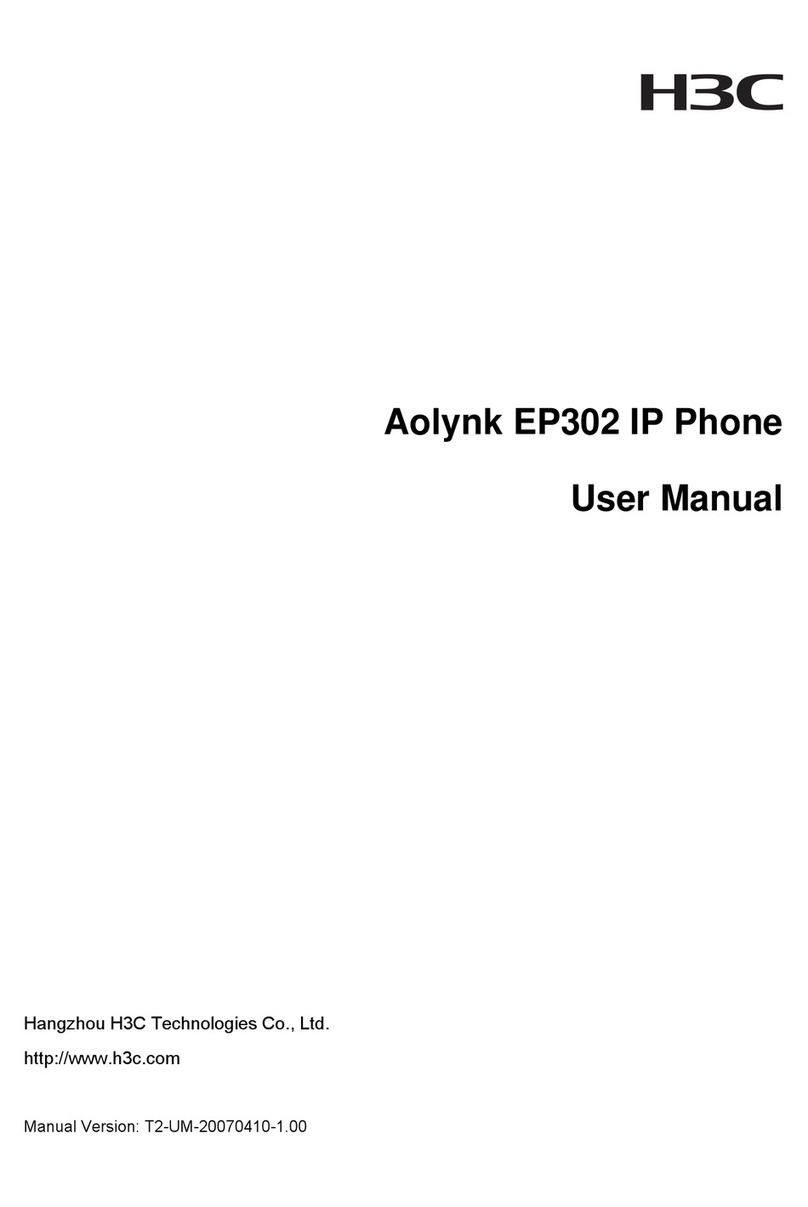

H3C Aolynk EP302 User manual

Aolynk EP302 IP Phone Quick Start-(V1.00)
1 Packing List
If any item is broken or missing, contact your local dealer timely.
2 Safety Instructions
Use the phone indoors only. Outdoor cabling is prohibited. Read the technical
specifications of the phone before installing and using the phone, and follow the
instructions below to ensure its proper operation.
1

3 Introduction
Aolynk EP302 IP Phone (hereinafter referred to as the EP302) is specially designed for
business users. With elegant appearance and rich features, the EP302 works together
with an XE series IP PBX to present a wonderful VoIP world to users.
The EP302 provides slightly different functions, LCD displays and menu items when
working with different IP PBXs (XE2000 series and XE7000 series).
This manual describes the functions and menus of the EP302 when working with an
XE7000 series IP PBX. It also describes the slight differences in functions and menus
when the EP302 works with an XE2000 series IP PBX.
To simplify description, we use “EP302-XE7000” to refer to the scenario that the EP302
works with an XE7000 series IP PBX, and use “EP302-XE2000” to refer to the scenario
that the EP302 works with an XE2000 series IP PBX.
4 Preparations
4.1 Appearance
2
4
3
1
c
5
d
e
7
7
a
6,b
8
2

4.2 Keys and LEDs
Item Key/LED Description
1 0 to 9, *, #
Used to enter the numbers 0 to 9 and symbols asterisk (*)
and pound (#). Among these keys, 2to 9can be used to
enter numbers 2 to 9 and letters A(a) to Z(z), and 1can be
used to enter the number 1 and some special characters,
such as dot (.) and hyphen (-).
2 Soft key There are three soft keys below the LCD panel. When you
press a soft key, you will run the corresponding command
currently displayed on the LCD.
3 MENU key
Surrounded by the direction keys, the MENU key is used to
enter the main menu.
4 Direction key Four direction keys: Up, Down, Left, Right. Used to scroll the
menu or move the cursor.
5 Speed dial
key
Four keys. From the top down, they correspond to the four
numbers (1 through 4) in the speed dial menu. You can dial
out a number by pressing the corresponding speed dial key.
6 Line key Two keys. From the bottom up, they correspond to the two
voice lines (line 1 and line 2 respectively). You can switch
between these two lines when each line has a call.
7 Common
function key
These keys are for common functions. In the clockwise
direction are: Speaker ( ), REDIAL, TRANSFER,
CONFERENCE, HOLD, MUTE, VOL (volume control) and
VMAIL (call forward to voice mailbox).
8 Footstand
adjustment
button
On the left side of the phone. Pressing it down allows you to
adjust the angle of the phone base. Put the phone facing
upward, hold down the button labeled by “8” in the phone
picture with your left hand, and adjust the angle of the phone
base with your right hand.
a Call status
LED
ON: There are one or more unchecked voice messages.
Blinking: There is an incoming call.
OFF: Other situations.
b Line switch
LED
ON: This line is in use.
OFF: This line is not in use.
Slow blinking (once every 3 seconds): A call is on hold.
Fast blinking (twice per second): This line has an incoming
call.
3

c Speaker LED
ON: The speaker phone function is being used.
OFF: The speaker phone function is not being used.
d MUTE LED
ON: The mute function is being used.
OFF: The mute function is not being used.
e VMAIL LED
ON: The Call Forward to Voice Mailbox function is enabled.
OFF: The Call Forward to Voice Mailbox function is
disabled.
Note: EP302-XE2000 does not support the Call Forward to
Voice Mailbox function, so this LED is always off.
4

5 Cable Connections
Before you use the phone, connect the handset, dedicated power adapter and LAN cable
to the bottom of the phone correctly as illustrated in the following figure. The connection
of the phone to the PC is optional.
The EP302 can be powered through the dedicated power adapter, or through the
Ethernet (provided that the device connected to the EP302 LAN port is PoE-capable). On
the EP302, the LAN port supports PoE, while the PC port does not.
You can adjust the angle of the phone base. Use one hand to press and hold down the
button labeled by 8 in the phone appearance picture, and use the other hand to adjust the
footstand on the phone back.
5

6 Setup
After the installation and cable connections, you can set up the phone now (through keys).
Your EP302 must have an IP address before it can be accessed to and work in the
network. This IP address can be either automatically obtained through DHCP or statically
configured. Ask your network administrator for the access method of your EP302 and set
up your phone accordingly. The following section describes setup procedures for
accessing the network through DHCP. (The description below is for EP302-XE7000, and
the menu items for EP302-XE2000 may be slightly different from it.)
Step LCD Display
1. Ask your network administrator for your account
information (phone number, password, and so on),
the NCP server IP address and the PBX IP address.
Note: if you need to set up the NCP server address
(provided by the network administrator), go to the
next step. Otherwise, go to step 6.
—
2. Power on the EP302 (or power cycle it if it is
already powered on). Press MENU when the
message on the right appears.
H3C Model ep302-
Wait for NCP M
3. Press the Down direction key to turn to the next
screen. Then press 3 on the keypad to select 3 NCP
IP.
H3C Test Menu
Scroll – Options
1 View Settings
2 Network Settings
4. Select 1 NCP IP and enter the IP address of the
NCP server provided by the network administrator.
Press the #key to save the settings.
Note: to save the settings, press the #key; to cancel
the settings, press MENU.
1 NCP IP
192.168.1.32
2 Alt SrvrIP
0.0.0.0
5. Press MENU twice to return to the screen shown
on the right. H3C Model EP302-
Wait for NCP M
6. Wait while the EP302 downloads programs
automatically. H3C Model EP302-
Downloading…
7. When the standby screen appears (displayed
“offline”), configure the registration information of the
phone.
6

8. Press MENU and select 6. Advanced Settings >
1. Network Settings > 1. Primary PBX IP. Input the
primary PBX IP address and press OK to save your
settings. Press Back to return to the Advanced
Settings page.
9. Select 4. Account Info. Enter the phone number
and password, and then press OK. It returns to the
Advanced Settings page.
For the EP302-EX2000, you also need to enter
information for the phone user.
10. Press Back twice. The message “Registration
succeeded” appears and then the standby screen
appears. The phone setup is now completed.
EP302-XE7000:
EP302-XE2000:
7

7 Using the Phone
The operations on the EP302 to receive a call, use the speaker phone function and redial
a number are the same as on other regular phones, and thus will not be elaborated in this
manual. The following sections describe other common functions of the EP302.
7.1.1 Place a call
Pick up the handset, dial the number and press the Call soft key.
Whether or not you need to press the Call soft key to place a call depends on the dial
rules on the IP PBX.
7.1.2 Use the user directory
Note: The EP302-XE2000 does not have the UsrDir soft key in its main menu and
standby screen and does not support the user directory service described
in this section.
To view the user directory or dial a number from it, press the UsrDir soft key in the
standby mode and select the global directory or local directory.
7.1.3 View the call records
To view the call records, press the Record soft key in the standby mode.
7.1.4 Forward calls to the voice mailbox
Note: The EP302-XE2000 does not support voice mailbox and thus does not have
the call forward to voice mailbox function.
With this function enabled, all incoming calls will be forwarded to the voice mailbox. The
phone will ring once when a call comes in, and the call is then forwarded to the voice
mailbox (the caller will hear a voice prompt asking him/her to leave a message).
To enable/disable the Call Forward to Voice Mailbox function, press the VMAIL ( ) key
on the phone.
7.1.5 Put a call on hold
The call hold function allows you to answer or place a new call without terminating the
on-going call. When this function is used, neither party of the original call can hear the
other side.
To put a call on hold, press the HOLD key during an on-going call. The corresponding line
switch LED starts to blink slowly. To resume the call, press the HOLD key again.
For example, if you are on a call with user A and you want to place a call to user B, but
you do not want to lose the current call with user A, you can do the following.
Step Operation
1 Put the call with user A on hold.
8

2 Press the line key for the call to user B, and dial user B’s telephone number.
3 When finishing talking with user B, press the line key corresponding to the
call with user A to resume the call with user A and end the call with user Bat
the same time.
7.1.6 Use the call waiting function
With this function enabled, you can answer a new call (the call status LED and line switch
LED start to blink) during an on-going call without terminating the current call, and you
can switch between these two calls.
Caution: Before switching a call, you should put the current call on hold. Otherwise, the
current call will be ended.
Step Operation
1 You are on a call and a second call comes in.
2 Press the
HOLD key to put the current call on hold.
3 Press the line key corresponding to the second call to answer it.
4 To switch between these two calls, repeat steps 2 and 3.
Caution: Before you switch to another line, you need to put the current line on
hold. Otherwise, the current line will be terminated.
7.1.7 Transfer a call
This feature allows you to transfer an on-going call with one party to another, so that a call
is established between the other two parties. Call transfer functions are classified into
attended transfer (not supported by the EP302-XE2000) and unattended transfer. The
following section describes unattended transfer.
Step Operation
1 You are on a call with one party (user A), and you want to transfer the call to
another party (user B).
2 Press the
TRANSFER key.
3 Enter the telephone number of another party (user B).
4 Press the TRANSFER key again. Your phone returns to the standby mode
and you can hang up.
9

7.1.8 Use the three-party conference function
During a call, you can create a conference call to let a third party join the call. There are
two types of three-party conferences: announced and unannounced. The following table
describes how to create an announced three-party conference.
Step Operation
1 You are on a call with one party (user A), and you want to invite another
party (user B) to join the call.
2 Press the
CONFERENCE key to put the call with user A on hold.
3
Dial user B’s telephone number. After user B answers the call and agrees to
join the conference call, press the CONFERENCE key again. The
three-party conference is established, and the indicator and duration of the
conference call appear on the screen.
7.1.9 Adjust volumes
zHandset: Pick up the handset. Press VOL+ to increase the volume and press VOL- to
decrease the volume.
zRinger: Without picking up the handset, press VOL+ to increase the volume and
press VOL- to decrease the volume.
zSpeaker: Press the Speaker key. Press VOL+ to increase the volume and press
VOL- to decrease the volume.
Note: For more information about the features of the EP302, refer to the user
manual in the CD that came with the phone. Alternatively, you can visit the
Website www.h3c.com to download the latest software and user manual for
your EP302.
10

8 FAQs
8.1.1 How can I enter alphabetic characters in the LCD configuration
mode?
The EP302 provides a similar input method as a cell phone for you to input alphabetic
characters. The number keys on the keypad can also be used to input letters.
For example, the number key 2can be used to input “2”, and also letters a, b, c, A, B, and
C. Press 2once to enter “2”, and press 2 quickly two, three, four, five, six, and seven
times to enter letters a, b, c, A, B, and C respectively.
If you want to enter two different characters that are located on the same key, input the
first one and wait a while (about 2 seconds) before inputting the second one.
8.1.2 How can I have my EP302 powered through PoE?
The LAN port of the EP302 supports PoE, while the PC port does not. So the EP302 can
be powered through the LAN port and the network cable without the need of an external
power supply. If the Ethernet access device to which the EP302 is attached supports PoE,
you can connect one end of the network cable to the LAN port of the EP302 and the other
end to the PoE port of the access device. In this case, the EP302 is powered through the
network cable.
8.1.3 Why can’t I do some settings when the phone is offline?
Many voice service settings of the EP302 are stored on the IP PBX, so operations
concerning setup modification are not supported in offline state.
8.1.4 Why does my phone still display “Offline” or “Logging in” or
“Logging out” after I complete the registration configuration?
Check that the network cable connection is correct, and the account information and
network settings that you configured are consistent with the network administrator’s
requirements. If both items are correct and the problem still exists, please contact your
network administrator for help.
8.1.5 How can I restore the EP302 to default settings?
In step 3 of the phone setup, select 8. Restore Default, and then follow the instructions
to restore the EP302 to default settings.
11

9 Technical Specifications
Item Description
Port
Two Ethernet ports: RJ-45, 10Base-T/100Base-TX,
10/100 Mbps auto-negotiation, MDI/MDIX auto-sensing,
IEEE802.3/802.3u compliant, duplex mode auto-negotiation.
The LAN port supports PoE (IEEE802.3af)
One handset port: connects the phone and the handset
Power consumption <5 W
Power supply 48 VDC , 0.25 A
Physical dimensions
(H × W × D) 107 × 260 × 193 mm (4.2 × 10.2 × 7.6 in.)
Operating
temperature 0°C to 40°C (32°F to 104°F)
Storage temperature –10°C to +70°C (14°F to 158°F)
Operating humidity
(noncondensing) 20% to 85%
Storage humidity
(noncondensing) 10% to 90%
© 2006-2007 Hangzhou H3C Technologies Co., Ltd.
Address: 310 Liuhe Road, Zhijiang Science Park,
Hangzhou 310053, P. R. China
Website: http://www.h3c.com
E-mail: [email protected]
12
