1 H3C S1200 switch series power
adapters
CAUTION:
The
available H3C power adapter models vary by country and region. To avoid damages, contact
the local H3C sales agent or engineers when using an H3C power adapter.
This document provides the specifications and views of H3C power adapters.
DA-06D12
The DA-06D12 indoor power adapter is designed for H3C S1205 and S1208 switches. It provides
DC power to the switch and offers output short-circuit and output overvoltage protections.

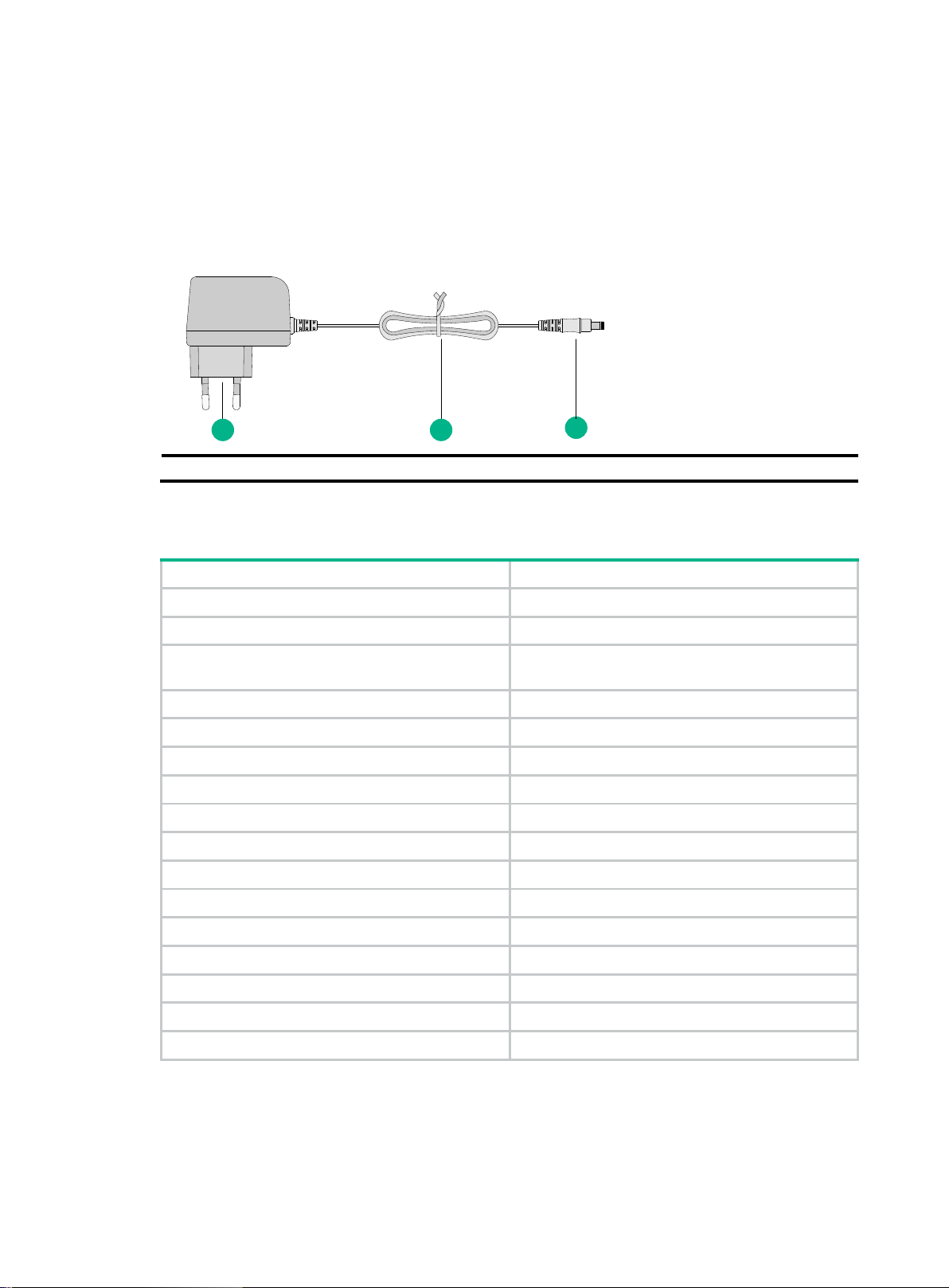

Figure 1-1 DA-06D12 power adapter view
(1) AC power input receptacle
(2) DC power cord
(3) DC power output plug
Table 1-1 provides the DA-06D12 power adapter specifications.
Table 1-1 DA-06D12 power adapter specifications
Item
Specification
Manufacturer’s name or trade mark Asian Power Devices Inc.
Commercial registration number 91440300571970932M
Address YangMing Industrial, No.10, Maliu Road, Henggang Street, Long
Gang District, Shenzhen, China
Model identifier DA-06D12
Rated input voltage 100 VAC to 240 VAC
Input AC frequency 50/60 Hz
Maximum input current 0.3 A
Rated output voltage 12.0 V
Rated output current 0.5 A
Output power ≤6.0 W
Average active efficiency 78.88%
Efficiency at low load (10%) N/A
No-load power consumption 0.10 W
1 2 3

2
Item
Specification
Temperature 0°C to 40°C (32°F to 104°F)
Humidity (noncondensing) 5% RH to 95% RH
Safety certifications CCC/CE/TUV-GS/UL
AC power cord Detachable, with a C8 connector, compliant with the ACpower cord
requirements in the country or region
FSP040-DWAW2
The FSP040-DWAW2 indoor power adapter is designed for H3C S1205-PWR switches. It provides
DC power to the switch and offers output short-circuit and output overvoltage protections.
Figure 1-2 FSP040-DWAW2 power adapter view
(1) AC power input receptacle
(2) DC power cord
(3) DC power output plug
Table 1-2 provides the FSP040-DWAW2 power adapter specifications.
Table 1-2 FSP040-DWAW2 power adapter specifications
Item
Specification
Manufacturer’s name or trade mark FSP TECHNOLOGY INC.
Commercial registration number 84239055
Address NO. 22, Jianguo E. Rd., Taoyuan Dist., Taoyuan City
330, Taiwan
Model identifier FSP040-DWAW2
Rated input voltage 100 VAC to 240 VAC
Input AC frequency 50/60 Hz
Maximum input current •1.5 A (115 VAC, fully loaded)
•0.8 A (230 VAC, fully loaded)
Rated output voltage 54.0 VDC
Rated output current 0.74 A
Output power ≤40.0 W
Average active efficiency 88.59%
Efficiency at low load (10%) 78.59%
No-load power consumption 0.075 W
Temperature •Operating: –10°C to +45°C (14°F to 113°F)
•Storage: –40°C to +70°C (–40°F to +158°F)
Humidity (noncondensing) •Operating: 5% RH to 95% RH
123

3
Item
Specification
•Storage: 5% RH to 95% RH
Safety certifications CE/TUV-GS/UL/CCC
AC power cord Detachable, with a C14 connector, compliant with the AC
power cord requirements in the country or region
FSP090-AWAN2
The FSP090-AWAN2 indoor power adapter is designed for H3C S1208-PWR switches. It provides
DC power to the switch and offers output short-circuit and output overvoltage protections.
Figure 1-3 FSP090-AWAN2 power adapter view
(1) AC power input receptacle
(2) DC power cord
(3) DC power output plug
Table 1-3 provides the FSP090-AWAN2 power adapter specifications.
Table 1-3 FSP090-AWAN2 power adapter specifications
Item
Specification
Manufacturer’s name or trade mark FSP TECHNOLOGY INC.
Commercial registration number 84239055
Address NO. 22, Jianguo E. Rd., Taoyuan Dist., Taoyuan City 330, Taiwan
Model identifier FSP090-AWAN2
Rated input voltage 100 VAC to 240 VAC
Input AC frequency 50/60 Hz
Maximum input current 1.2 A (100 VAC, fully loaded)
Rated output voltage 54.0 VDC
Rated output current 1.67 A
Output power ≤90.0 W
Average active efficiency 88.0%
Efficiency at low load (10%) 90.35%
No-load power consumption 0.21 W
Temperature 0°C to 40°C (32°F to 104°F)
Humidity (noncondensing) 5% RH to 95% RH
Safety compliance certifications TUV-GS/UL/CCC/CE
AC power cord With a C13 connector, compliant with the AC power cord
requirements in the country or region
1 2 3

4
WA-06D12FG
The WA-06D12FG indoor power adapter is designed for H3C S1205 and S1208 switches. It
provides DC power to the switch and offers output short-circuit and output overvoltage protections.
Figure 1-4 WA-06D12FG power adapter view
(1) AC power input plug
(2) DC power cord
(3) DC power output plug
Table 1-4 provides the WA-06D12FG power adapter specifications.
Table 1-4 WA-06D12FG power adapter specifications
Item
Specification
Manufacturer’s name or trade mark Asian Power Devices Inc.
Commercial registration number 91440300571970932M
Address YangMing Industrial, No.10, Maliu Road, Henggang
Street, Long Gang District, Shenzhen, China
Model identifier WA-06D12FG
Rated input voltage 100 VAC to 240 VAC
Input AC frequency 50/60 Hz
Maximum input current 0.3 A
Rated output voltage 12.0 V
Rated output current 0.5 A
Output power ≤6.0 W
Average active efficiency 78.88%
Efficiency at low load (10%) N/A
No-load power consumption 0.10 W
Temperature 0°C to 40°C (32°F to 104°F)
Humidity (noncondensing) 5% RH to 95% RH
Safety certifications CE/TUV-GS
