Haan Steamer Cleaner HS-10 User manual

HAAN
STEAM CLEANER
USER MANUAL
HAAN CORPORATION

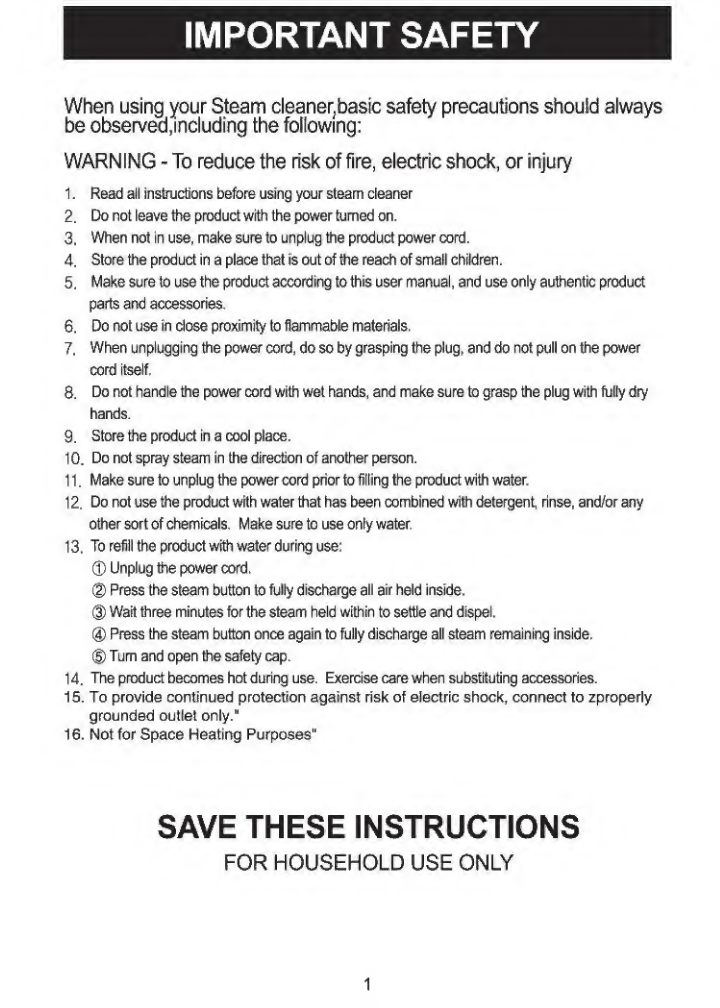

IMPORTANT SAFETY
When using your Steam cleaner,basic safety precautions should always
be observed,including the following;
WARNING - To reduce the risk of fire, electric shod<, or injury
1. Read all instrudions before using your steam cieaner
2. Do not Eeave the product with the power turned on.
3. When not in use, make sure to unplug the product power cord.
4. Store the prod uct in a place that is out of the reach of small children.
5 Make sure to use the product according to this user manual, and use only authentic product
parts and accessories,
6, Do not use in dose proximity to flammable mateiials.
7. When unplugging the power cord, do so by grasping the plug, and cio not pull on the power
cord itself.
5. Do not handle the power cord with wet hands, and make sure to grasp the plug with liiily dry
hands.
9. Store the product in a tx3ol place.
10. Do not spray steam in the direction of another person.
11. Make sure to unplug the power ojrd prior to filling the product with water
12. Do not use the product with water that has been combined with detergent, rinse, and/or any
other sort of chemicals. Make sure to use only water,
13. To refill the product with water during use:
0 Unplug the power cord.
(2) Press the steam button to fully discharge all air held inside.
® Wail three minutes for the steam held within to settle and dispel.
® Press the steam button once again to fully discharge all steam remaining inside.
© Turn and open tie safety cap.
14. The product becomes hot during use. Exercise care when substituting accessories.
15. To provide continued protection against risk of electric shock, connect to zproperly
grounded outlet only."
16. Not for Space Heating Purposes"
SAVE THESE INSTRUCTIONS
FOR HOUSEHOLD USE ONLY
1

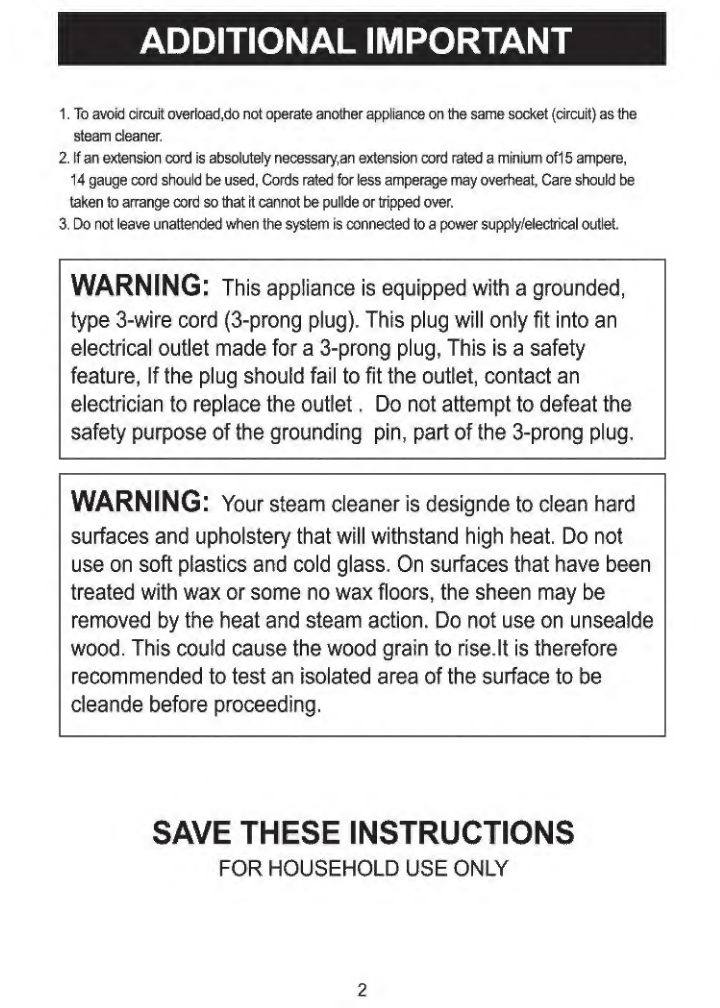

ADDITIONAL IMPORTANT
1. To avoid cirojit overload,do not operate another appliance on the same socket (drcult) as the
steam cleaner
2. If an extensbn cord is absolutely necessary an extension cord rated a nninium of15 ampere,
14 gauge cord should be used, Cords rated for less amperage may overheat, Care should be
taken to arrange cord so that It cannot be pullde or tripped over.
3. Do not leave unattended when the system is connected to a power supply/electrical outlet.
WARNING: This appliance is equipped with a grounded,
type 3-wire cord (3-prong piug). This piug wiii only fit into an
eiectricai outlet made for a 3-prong plug, This is a safety
feature, If the plug should fail to fit the outlet, contact an
electrician to replace the outlet. Do not attempt to defeat the
safety purpose of the grounding pin, part of the 3-prong plug.
WARNING: Your steam cleaner is designde to dean hard
surfaces and upholstery that will withstand high heat. Do not
use on soft plastics and cold glass. On surfaces that have been
treated with wax or some no wax floors, the sheen may be
removed by the heat and steam action. Do not use on unsealde
wood. This could cause the wood grain to rise.lt is therefore
recommended to test an isolated area of the surface to be
cleande before proceeding.
SAVE THESE INSTRUCTIONS
FOR HOUSEHOLD USE ONLY
2

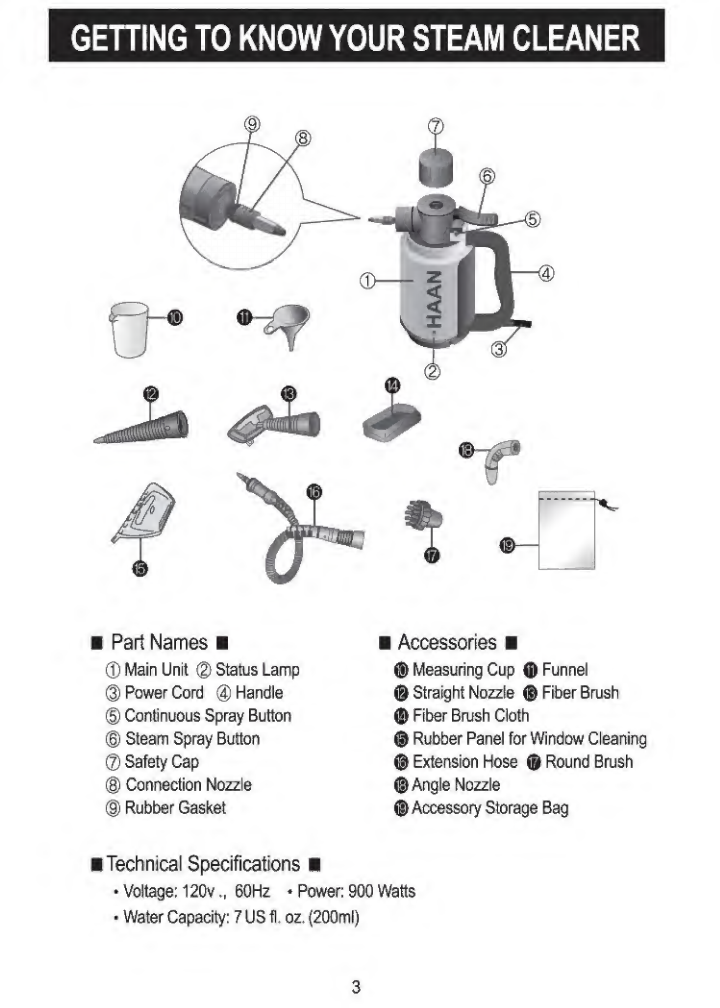

GEHING TO KNOW YOUR STEAM CLEANER
■ Part Names ■
0 Main Unit © Status Lamp
©PowerCord ©Handle
® Continuous Spray Button
© Steam Spray Button
® Safety Cap
® Connection Nozzle
® Rubber Gasket
■ T echnical Specifications i
* Voltage: 120v60Hz * Power: 500
* Water Capacity: 7 US 1 oz. (200ml)
■ Accessories ■
® Measuring Cup ® Funnel
® Straight Nozzle ® Fiber Brush
® Fiber Brush Cloth
® Rubber Panel for Window Cleaning
® Extension Hose ® Round Brush
® Angle Nozzle
® Accessory Storage Bag
Watts
3

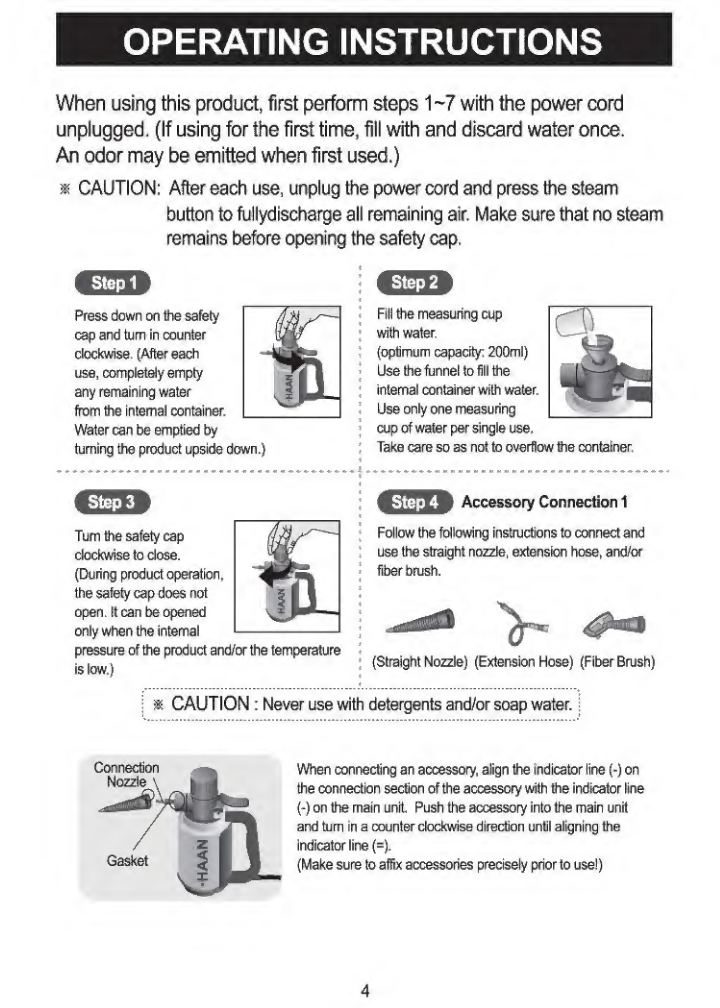

OPERATING INSTRUCTIONS
When using this product, first perform steps 1~7 with the power cord
unplugged. (If using for the first time, fill ™ th and discard water once.
An odor may be emitted when first used.)
m CAUTION: After each use, unplug the power cord and press the steam
button to fullydisctiarge all remaining air. Make sure that no steam
remains before opening the safety cap.
Press down on the safely
cap and turn in counter
ctockwse. (After each
use, completely empty
any remaining water
from the internal xntainer.
Water can be emptied by
turning the product upside down.)
Fill the measuring cup
with water.
(optimum capacity: 200ml)
Use the funnel to fill the
internal container with water
Use only one measuring
cup cf water per single use.
Take care so as not to overfiow the container.
Turn the safety cap
clockwise to dose.
(During product operation,
the safety cap does not
open. It can be c^)ened
only when the Internal
pressure of the product and/or the temperature
is low.)
Accessory Connection 1
Follow the followir)g instructions to connect and
use the straight nozzle, extension hose, arxt/or
fiber brush.
(Straight Nozzle) (Extension Hose) {Fiber Brush)
^ CAUTION: Never use with detergents and/or soap water.
When connecting an accessory, align tl^ indicator line (-) on
the oonneclion section of the accessory with the indicator line
(-) on the main unit Push the accessory into the main unit
and turn in a counterclockwise direction until aligning the
indicator line (=).
(Make sure to affix accessortes precisely prior to usel)
4

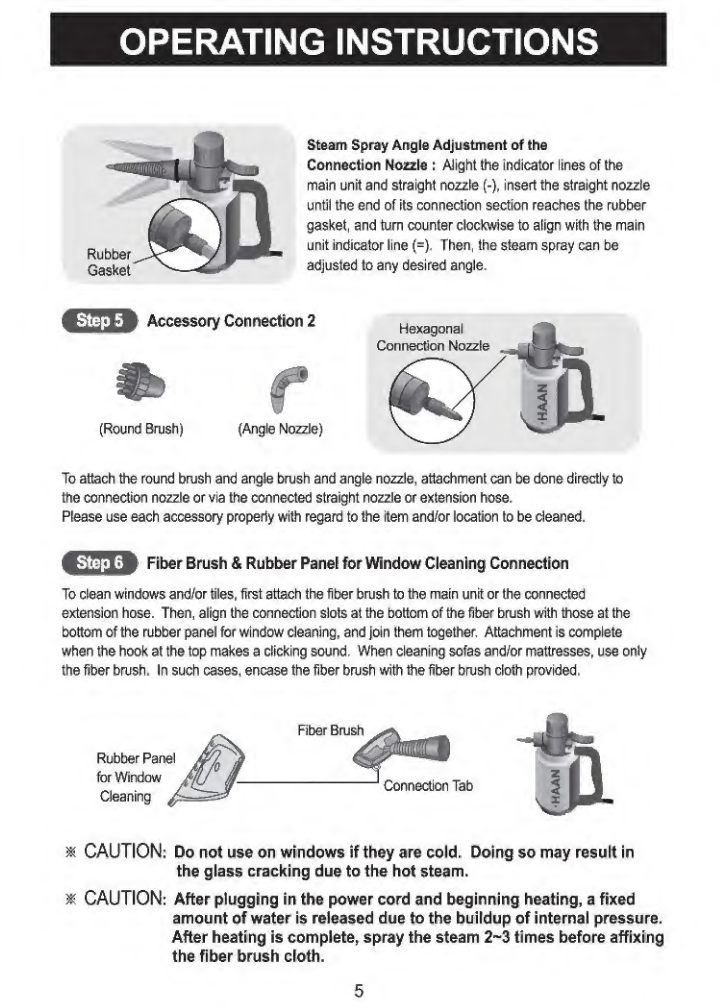

OPERATING INSTRUCTIONS
Rubber
Gasket
Steam Spray Angle Adjustment of the
Connection Nozzle : Alight the indicator iines of the
main unit and straight nozzle (-), insert the straight nozzle
until the end of its connection section reaches the rubber
gasket, and turn counter clockwise to align with the main
unit indicator line (=). Then, the steam spray can be
adjusted to any desired angle.
Accessory Connection 2
(Round Brush) (Angie Nozzle)
To attach the round brush and angle brush and angle nozzle, a^diment can be done directiy to
the connection nozzle or via the connected straight nozzle or extension hose.
Please use each accessory properly with regard to fre item and/or location to be cleaned.
Fiber Brush & Rubber Panet for Window Cleaning Connection
To clean windows ar>d/or tiles, first attach the fiber brush to the main unit or the connected
extension hose. Then, align the connection slots at the bottom of the fiber brush with those at the
bottom of the rubber panel for window cleaning, and join them together. Attachment is compiete
when the hook at the top makes a clicking sour>d. When cieaning sofas and/or mattresses, use only
the fiber brush. In such cases, encase the fiber brush with the fiber brush cioti provided.
M CAUTION: Do not use on windows if they are cold. Doing so may result in
the glass cracking due to the hot steam.
^ CAUTION: After plugging in the power cord and beginning heating, a fixed
amount of water is released due to the buildup of internal pressure.
After heating is complete, spray the steam 2-3 times before affixing
the fiber brush cioth.
5

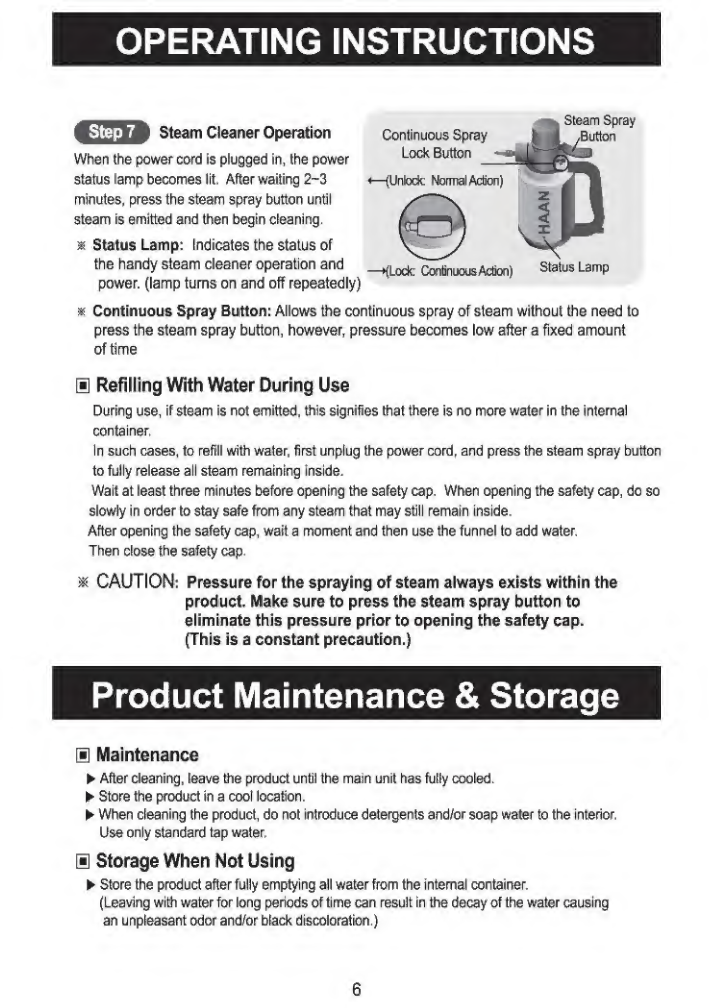

OPERATING INSTRUCTIONS
Steam Cleaner Operation
When the power cord is plugged in, the power
status lamp becomes lit. After waiting 2-3
minutes, press the steam spray button until
steam is emitted and then begin cleaning
^ Status Lamp: Indicates the status of
the handy steam cleaner operation and
power, (lamp turns on and off repeatedly)
^ Continuous Spray Button; Allows the continuous spray of steam without the need to
press the steam spray button, however, pressure becomes low after a fixed amount
of time
@ Refilling With Water During Use
During use, if steam is not emitted, this signifies that there is no more water in the internal
container.
in such cases, to refill with water, first unplug the power cord, and press the steam spray button
to fully release all steam remaining Inside.
Wait at least three minutes before opening the safety cap. When opening the safety cap, do so
slowly in order to stay safe from any steam that may still remain inside.
After opening the safety cap, wait a moment and then use the funnel to add water.
Then close the safety cap.
^ CAUTION: Pressure for the spraying of steam always exists within the
product. IVtake sure to press the steam spray button to
eliminate this pressure prior to opening the safety cap.
(This Is a constant precaution.)
— Klod^'- Continuous AiCtiOT) Status Lamp
Product Maintenance & Storage
@ Maintenance
^ After cleaning, leave the product until the main unit has fully cooled.
Store the product in a cool location.
► When cleaning the product, do not introduce detergents and/or soap water to the interior.
Use only standard tap water.
@ storage When Not Using
► Store the product after fully emptying all water from the internal contair^er.
(Leaving with water for long periods of time can result in the decay of the water causing
an unpleasant odor and/or black discoloration.)
6

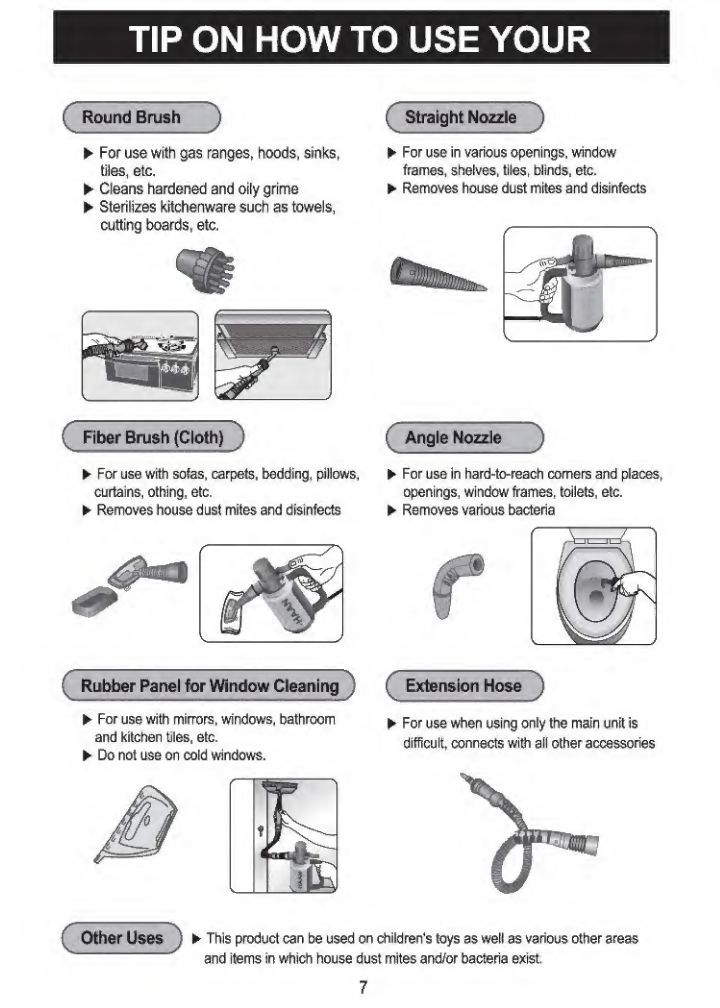

TIP ON HOW TO USE YOUR
Roynd Brush ^
^ For use with gas ranges, hoods, sinks,
tiles, etc.
^ Cleans hardened and oily grime
► Sterilizes kitchenware such as towels,
cutting boards, etc.
Q Straight Nozzle ^
^ For use in various openings, window
frames, shelvesr tiles, blinds, etc.
^ Removes house dust mites and disinfects
Fiber Brush (CloUi)") Angle Nozzle )
^ For use with sofas, carpets, bedding, pillows,
curtains, othing, etc.
► Removes house dust mites and disinfects
^ For use in hard-to-reach comers and places,
openings, window frames, toilets, etc.
► Removes various bacteria
Rufafaer Panel for Window Cleaning ^
► For use with mirrors, windows, bathroom
and kitchen tiles, etc.
^ Do not use on cold windows.
Q Extension Hose ^
^ For use when using only the main unit is
difficult, connects wifi all other accessories
other Uses ^
► This produd can be used on children's toys as welt as various other areas
and items in which house dust mites ar>d/or bacteria exist,
7

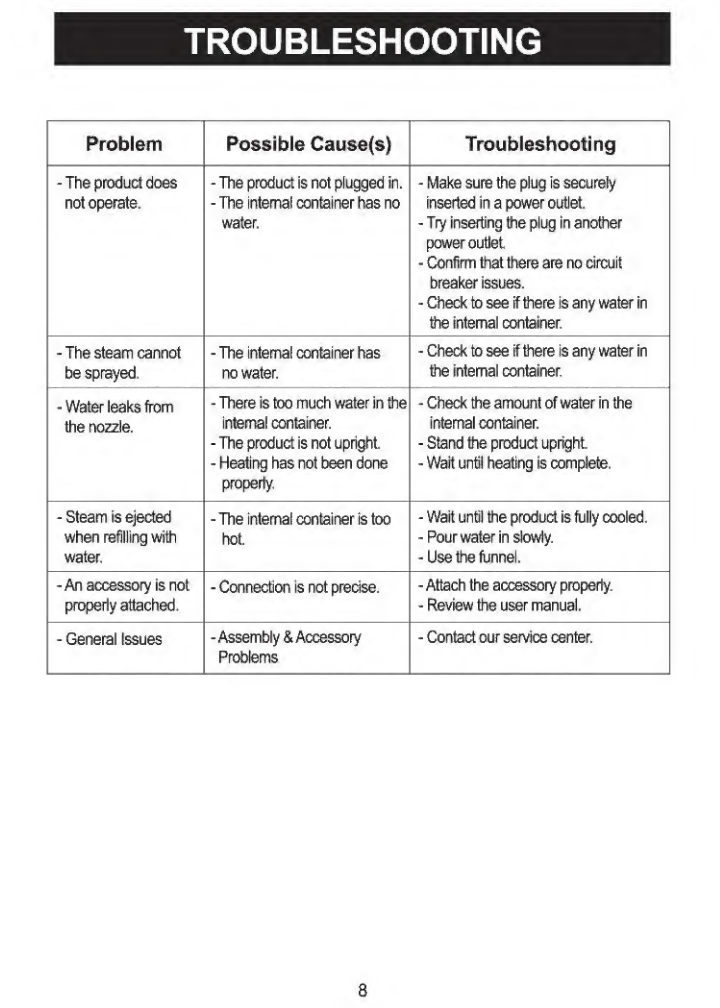

TROUBLESHOOTING
Problem
Possible Cause(s} Troubleshooting
- The pnodyct does
not operate.
- The product is not plugged in.
- The internal container has no
water
- Make sure the plug is securely
inserted in a power outlet.
- Try Inserting the plug In another
power outlet
- Confirm that there are no circuit
breaker issues.
- Check to see if there is any water in
the Internal container.
- The steam cannot
be sprayed.
- The internal contair^r has
no water.
- Check to see if tiere is any water in
the Internal coitainer.
- Water leaks from
the nozzle.
- There is too much water in the
internal container.
- The product is not upright.
- Heating has not been done
property.
- Check the amount of water in the
internal container.
- Stand the product upright
- Wait until heating is complete.
- Steam is ejected
when refilling with
water.
- The internal container is too
hot.
- Wait until the product is fully cooled.
- Pour water in slowly.
- Use the funnel.
-Anacce^ory is not
properly attached,
- Connection is rx)t precise.
-Attach the accessory properly.
- Review the user manual
- General Issues
- Assembly & Accessory
Problems
- Contact our service cmV^r.
8

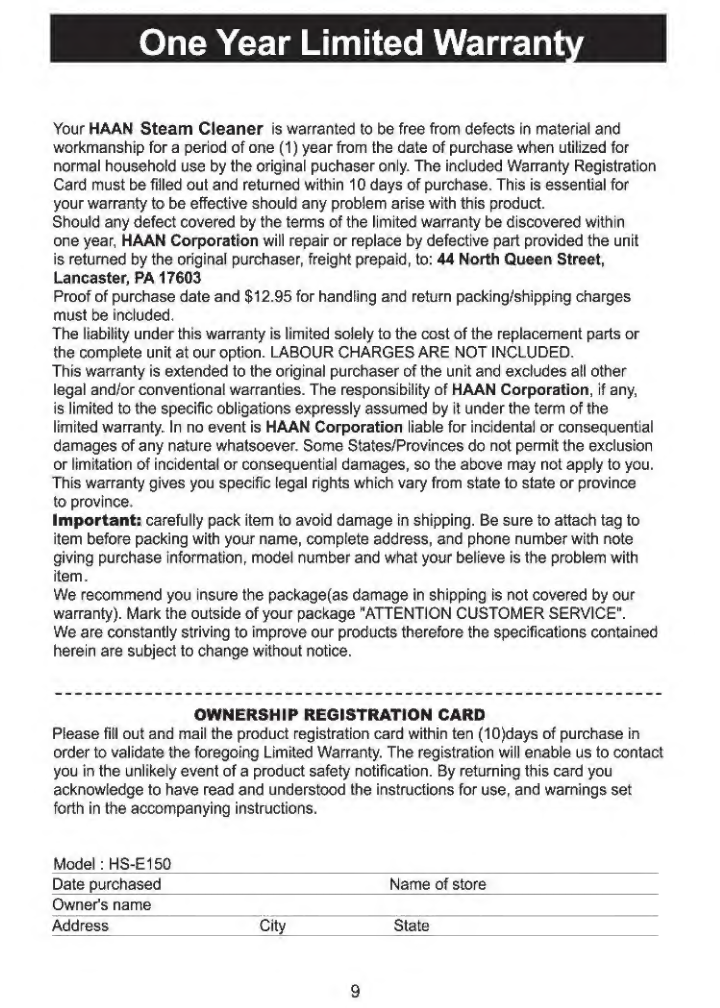

One Year Limited Warranty
Your HAAN Steam Cleaner is warranted to be free from defects in material and
workmanship for a period of one (1) year from the date of purchase when utilized for
normal household use by the original puchaser only. The included Warranty Registration
Card must be filled out and returned within 10 days of purchase. This is essential for
your warranty to be effective should any problem arise with this product.
Should any defect covered by the terms of the limited warranty be discovered within
one year, HAAN Corporation will repair or replace by defective part provided the unit
is returned by the original purchaser, freight prepaid, to: 44 North Queen Street,
Lancaster, RA 17603
Proof of purchase date and $12.95 for handling and return packing/shipping charges
must be included.
The liability under this warranty is limited solely to the cost of the replacement parts or
the complete unit at our option. LABOUR CHARGES ARE NOT INCLUDED.
This warranty is extended to the original purchaser of the unit and excludes all other
legal and/or conventional warranties. The responsibility of HAAN Corporation, if any,
Is limited to the specific obligations expressly assumed by it under the term of the
limited warranty. In no event is HAAN Corporation liable for incidental or consequential
damages of any nature whatsoever. Some States/Provinces do not permit the exclusion
or limitation of incidental or consequential damages, so the above may not apply to you.
This warranty gives you specific legal rights which vary from state to state or province
to province.
Important: carefully pack item to avoid damage in shipping. Be sure to attach tag to
item before packing with your name, complete address, and phone number with note
giving purchase information, model number and what your believe is the problem with
Item.
We recommend you insure the package (as damage in shipping is not covered by our
warranty). Mark the outside of your package "ATTENTION CUSTOMER SERVICE".
We are constantly striving to improve our products therefore the specifications contained
herein are subject to change without notice.
OWNERSHIP REGISTRATION CARO
Please fill out and mail the product registration card within ten (lO)days of purchase in
order to validate the foregoing Limited Warranty. The registration will enable us to contact
you in the uni ike iy event of a product safety notification. By returning this card you
acknowledge to have read and understood the instructions for use, and warnings set
forth in the accompanying instructions.
Model: HS-E150
Date purchased Name of store
Owner's name
Address City State
9
