Hach Met One 6000 Series User manual

701246
Met One 6000 Series Particle Counter
USER MANUAL
March 2009, Edition 2
© HACH Company, 2009. All rights reserved. Printed in the U.S.A. jk/kt

1
Table of Contents
Section 1 Specifications....................................................................................................................3
Section 2 General information.........................................................................................................5
2.1 Safety information........................................................................................................................5
2.1.1 Use of hazard information...................................................................................................5
2.1.2 Precautionary labels ...........................................................................................................5
2.1.3 Class 1 LASER ...................................................................................................................6
2.2 Configuration options...................................................................................................................6
2.3 General product information ........................................................................................................7
2.4 Status LED indicator description..................................................................................................7
2.5 Theory of operation......................................................................................................................8
2.6 Country-specific approval for Wi-Fi device ..................................................................................9
Section 3 Installation........................................................................................................................11
3.1 Component list...........................................................................................................................11
3.2 Installation overview...................................................................................................................12
3.3 Installation guidelines.................................................................................................................13
3.4 Mechanical installation...............................................................................................................13
3.4.1 Installing the particle counter............................................................................................13
3.4.2 Tubing installation............................................................................................................. 14
3.4.3 Sample probe installation..................................................................................................16
3.4.3.1 Sample probe kits ....................................................................................................16
3.4.3.2 Sample probe guidelines..........................................................................................17
3.5 Wiring safety information ...........................................................................................................17
3.6 Electrical installation ..................................................................................................................18
3.6.1 Wire preparation ...............................................................................................................18
3.6.2 Power requirements..........................................................................................................18
3.6.3 RS485 wiring.....................................................................................................................18
3.6.4 RS232 wiring.....................................................................................................................20
3.6.5 Pulse wiring.......................................................................................................................20
3.6.6 Ethernet wiring..................................................................................................................21
3.6.7 Wireless installation..........................................................................................................22
3.6.8 Analog wiring ....................................................................................................................23
3.6.9 Setting the analog scaling.................................................................................................25
3.6.10 Testing Analog Output....................................................................................................26
3.6.10.1 Channel Scaling Test.............................................................................................26
3.6.10.2 Flow alarm test.......................................................................................................28
Section 4 Operation..........................................................................................................................29
4.1 Configure the particle counter....................................................................................................29
4.1.1 Configuration setup...........................................................................................................29
4.1.2 Utility program operation...................................................................................................30
4.2 Particle counter communication.................................................................................................32
4.2.1 RS485 serial output with Modbus RTU protocol...............................................................32
4.2.2 Ethernet with ModbusTCP protocol..................................................................................34
4.2.2.1 LAN setup ................................................................................................................35
4.2.2.2 Ethernet LED indicators...........................................................................................36
4.2.3 Pulse output modes..........................................................................................................36
4.2.4 Analog output....................................................................................................................37
4.3 Wireless.....................................................................................................................................37
4.3.1 Wireless with Modbus TCP protocol.................................................................................37
4.3.1.1 Wireless configuration..............................................................................................37
4.3.1.2 Ethernet setup..........................................................................................................37
4.3.1.3 Wireless setup..........................................................................................................38

2
Table of Contents
4.3.1.4 Network configuration...............................................................................................40
4.3.1.5 Wireless LED indicators ...........................................................................................40
4.4 Firmware update ........................................................................................................................41
Section 5 Maintenance.....................................................................................................................43
5.1 Maintenance schedule ...............................................................................................................43
5.2 Cleaning the instrument .............................................................................................................43
5.2.1 Wipe down.........................................................................................................................43
5.2.2 Zero counting.....................................................................................................................43
5.2.3 Purging..............................................................................................................................44
5.3 Tubing replacement....................................................................................................................44
5.4 Calibration..................................................................................................................................44
Section 6 Troubleshooting..............................................................................................................45
6.1 Troubleshooting table.................................................................................................................45
Section 7 Replacement parts and accessories..........................................................................47
7.1 Parts and accessories................................................................................................................47
Section 8 Contact information .......................................................................................................49
8.1 Return procedures......................................................................................................................49
8.2 Technical support.......................................................................................................................49
Section 9 Limited warranty.............................................................................................................51
Appendix A Modbus register maps...............................................................................................53
A.1 Identity information.....................................................................................................................53
A.2 Counter configuration.................................................................................................................54
A.3 Data label...................................................................................................................................55
A.4 Sample data...............................................................................................................................55
A.5 Buffered sample data.................................................................................................................56
A.6 Buffered record block.................................................................................................................57
A.7 Sample mode parameters..........................................................................................................58
A.8 Diagnostic data..........................................................................................................................58
A.9 Sensor calibration information ...................................................................................................59
A.10 Miscellaneous functions...........................................................................................................59
A.11 Application-specific information ...............................................................................................59
A.12 Ethernet configuration..............................................................................................................60
A.13 Wireless configuration..............................................................................................................60
A.14 Last sample data......................................................................................................................61
Appendix B FXB communication ..................................................................................................63
B.1 Command and data syntax........................................................................................................63
B.2 Command responses.................................................................................................................65
B.3 Data record format.....................................................................................................................65
B.3.1 Data record format examples............................................................................................68

3
Section 1 Specifications
Specifications are subject to change without notice.
Instrument
Light source Long Life Laser™ diode
Weight 0.82 kg (1.8 lb)
Dimensions (W x D x H) 13.56 cm x 8.93 cm x 12.06 cm (5.34 in. x 3.52 in. x 4.75 in.) (refer to Figure 1)
Enclosure 304 stainless steel
Status indicator Multi-colored LED for normal status, count alarm, count alert, sensor failure, flow
failure or communication failure
Power requirements 9–28 VDC (source: Class 2 limited energy, < 150 VA)
Power consumption, maximum Serial and pulse units: 3.3 W; Ethernet unit: 4.3 W; Analog: 3.5 W;
Wireless: 7.1 W. Maximum amperage requirement: 1 A
Operating temperature 10 to 32 °C (50 to 90 °F)
Storage temperature –40 to 70 °C (–40 to 158 °F)
Operating humidity 5 to 95% relative humidity, non-condensing
Storage humidity 5 to 98% relative humidity, non-condensing
VHP Tolerance The sensor flow path is tolerant to Vaporous Hydrogen Peroxide for VHP-based
standard cleanroom disinfecting and cleaning cycles.
Port sizes
Model 6003: barb fitting for 0.32 cm (1/8-inch) ID inlet tubing, 0.64 cm (¼-inch) ID
outlet tubing
Model 6005: barb fitting for 0.32 cm (1/8-inch) ID inlet tubing, 0.64 cm (¼-inch) ID
outlet tubing
Model 6015: barb fitting for 0.64 cm (¼-inch) ID inlet tubing, 0.64 cm (¼-inch) ID
outlet tubing
Signal output options
Pulse
Analog 4–20 mA
Serial RS232 with Modbus RTU or FXB communication protocol (no networking)
Serial RS485 with Modbus RTU or FXB communication protocol
Ethernet with ModbusTCP protocol
Data storage 1000 samples/records. Overwrites oldest record when buffer is full.
Sampling
Number of size channels Standard: 2; optional: 4 (exception—pulse units have 2 channels only)
Flow rate
Model 6003: 0.1 cfm (2.83 Lpm) ±10%
Model 6005: 0.1 cfm (2.83 Lpm) ±10%
Model 6015: 1.0 cfm (28.3 Lpm) ±10%
Sensitivity
Model 6003: 0.3 µm at 0.1 cfm (2.83 Lpm)
Model 6005: 0.5 µm at 0.1 cfm (2.83 Lpm)
Model 6015: 0.5 µm at 1.0 cfm (28.3 Lpm)
Range
Model 6003: 0.3 µm to 10.0 µm at 0.1 cfm (2.83 Lpm)
Model 6005: 0.5 µm to 10.0 µm at 0.1 cfm (2.83 Lpm)
Model 6015: 0.5 µm to 10.0 µm at 1.0 cfm (28.3 Lpm)
Flow control Through critical orifice
Inlet pressure Ambient to 2.5 mm (0.1 in) Hg vacuum
Vacuum requirements At least 406 mm (16 in.) Hg (542 mbar)

4
Specifications
Counting efficiency
Model 6003: 50% (± 20%) for 0.3 µm, (100% ± 10% at 1.5 times the minimum
sensitivity). Fully complies with ISO21501-4.
Model 6005: 50% (± 20%) for 0.5 µm, (100% ± 10% at 1.5 times the minimum
sensitivity). Fully complies with ISO21501-4.
Model 6015: 50% (± 20%) for 0.5 µm, (100% ± 10% at 1.5 times the minimum
sensitivity). Fully complies with ISO21501-4.
Coincidence loss
Model 6003/6005 (all output options): 5% at 70,600,000 particles/m3
(2,000,000 particles/ft3)
Model 6015 (all output options except for pulse): 5% at 14,000,000 particles/m3
(400,000 particles/ft3)
False count rate One or less in five minutes
Wireless
Network standards IEEE 802.11b; IEEE 802.11g
Frequency range 2.412–2.484 GHz
Antenna connector 1, no diversity supported. Impedance 50 ohms
Data rates 1, 2, 5.5, 11 Mbps (802.11b); 6, 9, 12, 18, 24, 36, 48, 54 Mbps (802.11g)
Number of selectable sub-channels Up to 14 channels. Profiles available will include USA, France, Japan, Spain,
Canada and "Other" (multiple countries)
Security WEP 64/128, WPA, WPA2, PSK, TKIP
Range Up to 91m (300 ft) indoors1
Transmit output power 14 dBm or 25 milliwatts
Protocols supported ARP, UDP, TCP, DHCP, Auto IP
Power consumption, maximum 9.7 W (wireless unit)
Certifications
Instrument CE mark2
Power Supply PULS CS5 Series Certified to UL & CSA standards by UL (cULus mark) and CE mark2
1 Maximum range may be reduced depending on several factors. Refer to section 3.6.7 on page 22.
2 Refer to the product Declaration of Conformance (available on request).
Figure 1 Met One 6000 dimensions

5
Section 2 General information
The contents of this manual is thought to be accurate. The manufacturer is not liable for
direct, indirect, special, incidental or consequential damages resulting from any defect or
omission in this manual, even if advised of the possibility of such damages. In the interest
of continued product development, the manufacturer reserves the right to make
improvements in this manual and the products it describes at any time, without notice or
obligation.
Revised editions are found on the manufacturer’s web site.
2.1 Safety information
Read this entire manual before unpacking, setting up or operating this equipment. Pay
attention to all danger and caution statements. Failure to do so could result in serious
injury to the operator or damage to the equipment.
To ensure that the protection provided by this equipment is not impaired, do not use or
install this equipment in any manner other than that specified in this manual.
2.1.1 Use of hazard information
DANGER
Indicates a potentially or imminently hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING
Indicates a potentially or imminently hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation that may result in minor or moderate
injury.
Notice: Indicates a situation that is not related to personal injury.
Important Note: Indicates a situation which, if not avoided, may cause damage to the
instrument. Information that requires special emphasis.
Note: Information that supplements points in the main text.
2.1.2 Precautionary labels
Read all labels and tags attached to the instrument. Personal injury or damage to the
instrument could occur if not observed.
Electrical equipment marked with this symbol may not be disposed of in European public disposal systems after 12
August of 2005. In conformity with European local and national regulations (EU Directive 2002/96/EC), European
electrical equipment users must now return old or end-of life equipment to the Producer for disposal at no charge to
the user.
Note: To return for recycling, contact the equipment producer or supplier for instructions on how to return end-of-life
equipment, producer-supplied electrical accessories, and all auxiliary items for proper disposal.
This is the safety alert symbol. Obey all safety messages that follow this symbol to avoid potential injury. If on the
instrument, refer to the instruction manual for operation or safety information.
This symbol indicates that a risk of electrical shock and/or electrocution exists.
This symbol indicates the need for protective eye wear.

6
General information
2.1.3 Class 1 LASER
A Class 1 LASER is installed in this instrument. Class 1 LASERS are products where the
radiant power of the LASER beam accessible (the accessible emission) is always below
the Maximum Permissible Exposure value. Therefore, for Class 1 LASERS the output
power is below the level at which it is believed eye damage will occur. Exposure to the
beam of a Class 1 LASER will not result in eye injury. Class 1 LASERS may therefore be
considered safe. However, Class 1 LASER products may contain LASER systems of a
higher Class but there are adequate engineering control measures to ensure that access
to the beam is not reasonably likely. This Class 1 Laser product complies with 21 CFR
Chapter 1, subchapter J. It is evaluated and tested in accordance with EN 61010-1,
Safety Requirements for Electrical Equipment for Measurement and Control and
Laboratory Use and IEC/EN 60825-1, Safety of Laser Products.
2.2 Configuration options
Figure 2 shows the part number configurations for the Met One 6000 particle counter.
This symbol indicates a laser device is used in the equipment.
This symbol indicated the presence of devices sensitive to Electro-static Discharge (ESD) and indicated that care
must be taken to prevent damage with the equipment.
This symbol identifies the location of a fuse or current limiting device.
This symbol indicates that the instrument contains a Class 1 LASER device.
LASER CLASS 1
Figure 2 Part number description of available configurations1
1Flow rate: 0 = 0.1 cfm (for 0.3µm and 0.5µm sensitivity); 1 = 1.0 cfm (for 0.5µm sensitivity only)
2Sensitivity: 3 = 0.3 µm minimum sensitivity; 5 = 0.5 µm minimum sensitivity
3Exhaust location: D = Bottom (down) exhaust; S = Side exhaust
4Flow measurement: F = with flow measurement; N = without flow measurement
5Communication: E = Ethernet; S = Serial I/O Options2; A = Analog; W = Wireless3
1 Example: for a counter with a 0.1 cfm flow rate, 0.5 µm sensitivity, bottom exhaust port, flow measurement and RS485
communication, order part numbers 2088605-DF-S and 20888600-485.
2 Specify the type of serial I/O configuration with an additional part number. RS232 = 20888600-232; RS485 = 20888600-485;
Pulse = 20888600-PLS. This additional part number must be ordered for each counter (at no additional cost).
3 Contact a Hach customer service representative for wireless availability in the country where the counter is located.

7
General information
2.3 General product information
Figure 3 shows a diagram of the Met One 6000 particle counter. The remote airborne
particle counters use a laser diode light source and collection optics for particle detection.
The air quality of a clean room can be monitored by placing multiple particle counters at
specific locations in the room.
The Met One 6000 particle counter has three main components—the sensor, counting
electronics and communication electronics. Room air is pulled through the particle
counter by a vacuum source. The sensor detects the particles that enter the counter. The
counting electronics store the count data. The data is transferred to the central monitoring
software through the communication electronics and relevant communication protocols.
2.4 Status LED indicator description
The particle counter has a multi-color LED indicator (Figure 3) that indicates the status of
the system. The colors indicate normal, alarm, alert or failure (refer to Table 1). The limits
that activate the indicator can be changed using the central monitoring software or the
setup utility (section 4.1.2 on page 30).
Figure 3 Overview of Met One 6000 particle counter
1Inlet tube fitting, ¼-in. or 1/8-in. 7Connection indicators (Ethernet and Wi-Fi units only)
2Status LED indicator 8Ethernet RJ45 connector (Ethernet unit only)
3Antenna (Wi-Fi unit only) 95-pin connector for power (Ethernet and Wi-Fi units only)
4Service port for setup or external indicator light 10 Tube fitting to vacuum (or quick-connect fitting)
5Dip switch for serial RS485 units only 11 Tube fitting to vacuum, alternate location
6RH Temp port for temperature/humidity sensor 12 10-pin connector for power and communication (all units
except Ethernet and Wi-Fi)

8
General information
Important Note: A yellow LED can be activated from the central monitoring software with
ModBus protocol to flash for count alert. The yellow LED cannot be activated with FX
protocol. If not activated by the software, the yellow LED will only turn on during startup
initialization.
For a description of the Ethernet LED indicators, refer to section 4.2.2.2 on page 36. For
a description of the Wireless LED indicators, refer to section 4.3.1.5 on page 40.
2.5 Theory of operation
The sensor in the Met One 6000 air particle counter contains a laser diode light source
that illuminates an area called the view volume with intense light. Particles in the sample
pass through the view volume and scatter the laser light, which is then collected through
the collection optics and focused onto a photodiode. The intensity of scattered light varies
depending on the size of the particle. The photodiode detects and converts the light
signal to electrical pulses, the magnitude of which is proportional to the particle size. The
information processed by the on-board controller electronics are then communicated to
the central monitoring system through the communication electronics.
The pulses are counted and measured by electronics on a circuit board containing
counting operations circuitry. Comparators are used to measure pulse height and sort the
signals into channels according to size. Counting circuits count the pulses in each
channel. The results indicate the particle counts for each size channel.
Calculations, if required by the operator, are performed and the data is available to the
I/O circuits for the facility monitoring system software through suitable communication
protocol or for peripheral devices. The firmware that controls counter operations is stored
in flash memory. The counting operations circuitry can also process external analog
signals from environmental probes when used.
Additional circuitry provides device controls for the sample flow and external accessories.
Power regulation and distribution circuits control the proper levels and internal application
of DC voltages.
Isokinetic sampling probes
The isokinetic sampling probe is designed for accurate sampling in laminar flow
environments. The velocity of air in the probe is close to that of a typical vertical or
horizontal laminar flow environment such as a clean room or clean hood. The probe will
match the vertical (or horizontal) flow speed of the air in order to collect representative
samples of the cleanroom laminar flow for the particle counter. Refer to Figure 4 for a
comparison of sampling with and without the isokinetic probe.
Table 1 LED indicator description
LED color Indication System status
Green Flashing (3 second) Normal operation sampling
Green Steady Normal operation not sampling
Red Solid or flashing Count alarm
Blue Steady Sensor failure
Blue Flashing Communication failure
Blue One short flash, one long flash Flow failure

9
General information
2.6 Country-specific approval for Wi-Fi device
Warning
Hach Company and its vendors disclaim any responsibility of providing network
and access point security with the purchase, installation and operation of its
wireless air particle counters. Network and access point security is the sole
responsibility of the customer using the wireless particle counters. Hach Company
and its vendors will not be liable for any indirect, special, incidental or
consequential damages caused by the breach in network security even if Hach
Company or its vendors has been given advanced notice of the possibility of such
damages.
Products with the wireless option contain a Wi-Fi device operating in the 2.4Ghz range.
The Antenna used for this transmitter must be installed to provide a separation distance
of at least 20 cm from all persons and must not be co-located or operated in conjunction
with any other antenna or transmitters.
Products with the wireless option contain a Modular RF Device within
FCC ID: R68WIPORT
IC ID: 3867A-WIPORT
Figure 4 Isokinetic probe function
1No probe in non-laminar air flow 3No probe in laminar air flow—particles are missed
2To particle counter 4Isokinetic probe in laminar air flow—most accurate

10
General information
Regulatory RF Device Approvals:
FCC: Approved as a Modular Device under a TCB Grant of Authorization.
FCC ID: R68WIPORT
IC: Approved as a Modular Device under Certificat D'Acceptabilite' Technique
C-REL ID: 3867A-WIPORT
COFETEL: Approved as a modular device by certificate of Homologation
CFT: RCPLAW108-1337
Notified Body Opinion: Compliant under the R&TTE Directive 1999/5/EC to the essentials
requirements of Article 3.2 according to the assessment procedures in Article 10(5) and
Annex IV for (class-2 equipment) and marked as CE1177.
Harmonized countries approved for operation - ISO country codes
Country ISO31662 letter code
Austria AT
Belgium BA
Denmark DK
Finland FI
France FR
Germany DE
Greece GR
Hungary HU
Ireland IE
Italy IT
Mexico MX
Poland PL
Portugal PT
Spain ES
Sweden SE
United Kingdom GB
Iceland IS
Norway NO
Switzerland CH
Turkey TR
Netherlands NL

11
Section 3 Installation
Important Note: Approved personnel only must install or commission the equipment.
3.1 Component list
Compare each item in Figure 5 to the items in the shipment. Keep the packaging
materials to use when the counter is sent to the factory for calibration. If an item is
missing or damaged, contact the manufacturer. Refer to Section 8 on page 49.
Figure 5 Instrument components1
1Met One 6000 Particle Counter 85-pin connector with clam shell (Ethernet and Wireless
units only)
2Antenna (Wi-Fi unit only) 910-pin connector with clam shell (all units except
Ethernet and Wireless)
3DIN rail mounting kit 10 RH/Temp probe (optional)
4DIN rail 11 Isokinetic Probe for 0.1 cfm flow option
5Clip screw (2x) 12 Isokinetic Probe for 1.0 cfm flow option
6Clip (2x) 13 External LED Indicator (optional)
7Service port cable (8-pin DIN to 9-pin serial)
1 Not shown: user manual.

12
Installation
3.2 Installation overview
The tasks that follow are necessary to install the particle counter (refer to Figure 6):
1. Install the counter on a flat surface or a wall (section 3.4.1 on page 13)
2. Install the vacuum tubing (section 3.4.2 on page 14)
3. Install the sample probe and tubing (section 3.4.3 on page 16)
4. Install the wires for power and communications (section 3.6 on page 18)

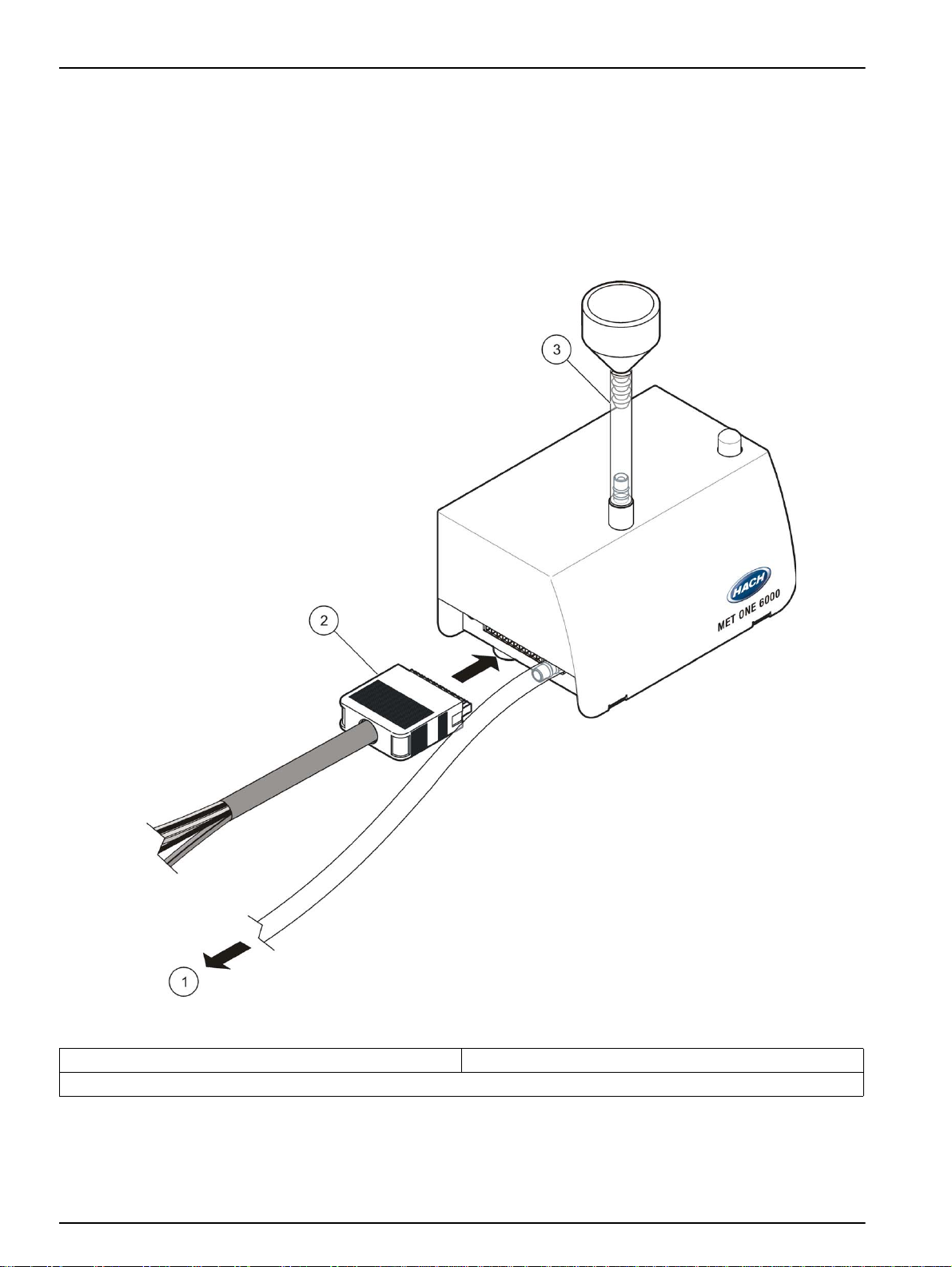

Figure 6 Installation overview
1To vacuum pump 3Isokinetic probe—direct mount
2Connector for power and communications

13
Installation
3.3 Installation guidelines
Important Note: Stop the vacuum pump and put a cover on the sample inlet connection
before a cleaning or disinfecting cycle is started.
Refer to the following general guidelines during installation.
•If the room is washed down at regular intervals, installthe counter outside of the room.
Only the intake and vacuum tubes will go into the clean room. As an alternative, put
the particle counter in the clean room in a sealed box. Connect all tubes and cables to
the particle counter through the box.
•Put the vacuum pump in a central location. There must be sufficient vacuum for all
particle counters in the network.
•Make sure that the temperature in the installation area is not more than the specified
temperature for the particle counter (refer to Specifications on page 3). A high
temperature decreases the life of the electronic components and laser.
•Keep the distance between the particle counter and the sampling point to a minimum.
Make sure that the distance is not more than 3 m (10 ft).
•Make sure that the tubing does not bend and restrict the air flow (refer to section 3.4.2
on page 14).
•Follow the Sampling guidelines on page 17 to prevent sampling errors.
Vacuum system guidelines
Important Note: Put the vacuum pump in a central location. There must be sufficient
vacuum for all particle counters in the network.
•Capacity—a minimum vacuum capacity of 16 inches Hg (542 mbar) is necessary at
each particle counter. The vacuum is necessary to control the flow rate at each
particle counter.
•Distribution manifold—use a distribution manifold that will keep the vacuum loss to a
minimum. Typical materials used for vacuum distribution include brazed copper pipe,
schedule 80 PVC pipe or tubing such as Cobolite®.
•Distribution valves—use short tubing lengths to supply the vacuum from the
distribution manifold to the individual particle counters. Use a valve and a barb fitting
of the correct dimension at each location.
•Minimize piping loss—all junctions, elbows and the tubing length increase the vacuum
loss in a system. The loss increases as the distance from the vacuum source to the
counters and the number of junctions and elbows increase.
3.4 Mechanical installation
3.4.1 Installing the particle counter
Install the particle counter on a level surface or on a wall with one of these kits:
•DIN rail kit (included with counter)—use to quickly remove the counter from the wall.
•Terminal box kit (optional)—use to quickly disconnect the vacuum line and wires (refer
to Parts and accessories on page 47. The instructions are supplied with the kit.)
•Wall plate (optional)—use for permanent installation (refer to Parts and accessories
on page 47. The instructions are supplied with the kit.)
DIN rail installation
The DIN rail kit lets the user quickly attach and remove the counter from the wall.

14
Installation
Prerequisites:
DIN rail kit (refer to Parts and accessories on page 47). Kit contents:
•DIN rail section, approximately 6 in. length
•2 clips
•2 clip screws
Installation procedure:
Complete the following steps to install the particle counter with the DIN rail kit.
1. Attach the 2 clips to the counter with the supplied screws (Figure 7).
2. Attach the DIN rail to a wall with customer-supplied hardware. Make sure that the
flanges on the rail point away from the wall.
3. Align the clips on the counter with the top flange of the DIN rail and push to lock
in position.
Note: To remove the particle counter from the rail, lift the bottom of the counter.
3.4.2 Tubing installation
Use hooks or cable ties to hold the tubing and prevent a bend in the tubing. A bend in the
tubing can restrict the air flow and cause the following problems:
•A restriction on the sampling side can cause particles to collect on the inside of
the tubing. The particles will not be counted. The collected particles can release at
random, which will cause spikes in the count level.
•A restriction on the vacuum side will cause the vacuum to fall below specified
levels. The low vacuum can cause a flow alarm and low particle count.
Figure 7 DIN rail installation
1DIN rail 2Clip screw (2x) 3Clip (2x)

15
Installation
Prerequisites:
•Sample tubing—Hytrel®Bevaline, Tygon®or equivalent
•Vacuum tubing—Hytrel Bevaline, Tygon or equivalent
•Tubing hooks or cable ties
Installation procedure:
Important Note: Do not connect the vacuum tube to the vacuum source until the room is
ready for sampling.
Complete the following steps to install the intake or vacuum tubing.
1. Cut the intake (sample) tubing to connect the counter to the sample probe. Keep the
tube length to a minimum. Make sure that the length is not more than 3 m (10 ft).
Note: A tube length that is longer than 3 meters can cause a loss of particles > 1 µm. If a longer
length is necessary, compare the results between a portable particle counter and the remote
particle counter. A lower result in the remote counter indicates a tube length that is too long.
2. Cut the vacuum tubing to connect the counter to the vacuum source. Keep the tube
length to a minimum.
3. Put a cover on the tube ends to make sure that unwanted material does not go in the
tubes during installation.
4. Support the tubing with hooks or cable ties at intervals that are not more than 4 feet
apart. Make sure that the tubing has a minimum bend radius of 4-inches (refer to
Figure 8).
5. Connect the intake tubing to the fitting on the top of the particle counter. Connect the
other end of the tubing to the isokinetic probe.
6. Connect the vacuum tubing to the fitting on the bottom (or side) of the counter. Do not
connect the other end to the vacuum until the room is ready for sampling.
Figure 8 Tubing installation guidelines
1Bend radius—minimum of 102 mm (4 in.) 2Tubing supports—4 feet maximum between supports

16
Installation
3.4.3 Sample probe installation
The sample probe must be installed correctly to prevent contamination of the counter and
to get a representative sample of the area.
3.4.3.1 Sample probe kits
The following optional kits are available for installing the sampling probe. Refer to
Figure 9 and Parts and accessories on page 47 for order information.
•Direct mount—the probe is installed on a short piece of tubing directly on top of the
counter (Figure 6). Use this probe when the particle counter can be located where the
sample is collected. Use the direct mount probe to keep particle loss to a minimum.
•T-type wall bracket—the probe is installed in a wall bracket. The tubing is cut to
connect the probe to the counter.
•Vertical wall mount—the probe is connected to a stainless steel tube and bracket. Use
this probe for installation on equipment with stainless steel tubing. The probe can be
located where the sample is collected.
•Through-wall mount—the probe is connected to a stainless steel tube and wall
bracket. Use this probe to collect samples on the other side of a wall from the counter.
•Ceiling mount—the probe is connected to a stainless steel tube (J-hook or 90 degree)
and ceiling bracket. Use this probe to collect samples in the middle of a room or when
the particle counter is installed above the room.
Figure 9 Probe mount options
1Through-wall mount 4Vertical wall mount
2Ceiling mount—J hook 5T-type wall bracket
3Ceiling mount—90 degree

17
Installation
3.4.3.2 Sample probe guidelines
The position of an isokinetic probe is very important for count accuracy. Refer to the
sampling guidelines and Figure 4 on page 9 before installation.
Sampling guidelines
•Keep the sample probe a minimum of 12 inches from loose materials, dust, liquids
and sprays.
•Keep the sample probe a minimum of 12 inches from potential contamination sources
such as an instrument exhaust fan.
•Laminar flow—install at least 1 sample probe per 25 sq. ft. of surface area.
•Turbulent flow—install at least 2 sample probes per clean room.
•Position the sampling probe to face the direction of flow (refer to Figure 4 on page 9).
•Powders will contaminate the sensor and cause incorrect results or a counter failure.
•Liquids will contaminate the internal optics of the sensor and change the calibration of
the counter. Liquids can be suspended in air in the form of oil droplets.
•The vapors from drying adhesives or other chemicals can permanently coat the
sensor optics or other internal parts.
•All types of smoke will contaminate the sensor.
•Vapors that contain corrosives will quickly cause permanent damage to the optics or
electronics of the counter.
3.5 Wiring safety information
When making any wiring connection to the instrument, obey the warnings and notes that
follow. Obey all warnings and notes in the installation sections. For more safety
information refer to section 2.1 on page 5.
Important Note: Always remove power to the instrument before an electrical connection
is made.
Electrostatic discharge (ESD) considerations
To keep hazards and ESD risks to a minimum, remove power to the instrument when a
maintenance procedure does not require power.
Internal electronic components can be damaged by static electricity. This damage can
cause degraded instrument performance or instrument failure.
To prevent ESD damage to the instrument, complete the following steps:
•Before touching an electronic component, discharge static electricity from the body.
Touch an earth-grounded metal surface such as the chassis of an instrument or a
metal conduit or pipe.
•To keep static build-up to a minimum, avoid excessive movement. Transport
static-sensitive components in anti-static containers or packaging.
•To discharge static electricity from the body and keep it discharged, wear a wrist strap
connected by a wire to earth ground.
•Handle all static-sensitive components in a static-safe area. If possible, use anti-static
floor pads and work bench pads.

18
Installation
3.6 Electrical installation
Refer to the following sections for the communication option that is used:
•RS485 (section 3.6.3 on page 18)
•RS232 (section 3.6.4 on page 20)
•Pulse (section 3.6.5 on page 20)
•Ethernet (section 3.6.6 on page 21)
•Wireless (section 3.6.7 on page 22)
•Analog (section 3.6.8 on page 23)
3.6.1 Wire preparation
Complete the following steps before connecting wires to the terminal blocks.
1. Press the tabs on the sides of the terminal block to open the block.
2. Properly prepare each wire by removing the insulation on the wires by ¼ inch.
3.6.2 Power requirements
DANGER
Electrocution hazard. Do not connect this product directly to an AC power source.
DANGER
Electrocution hazard. The output voltage of the power supply unit for this product
must not exceed 28 VDC.
An external power source that can supply 24 VDC is necessary to supply power to the
instruments. The maximum number of units that can connect to the power source can
change with the communication option. Contact the factory for more information.
3.6.3 RS485 wiring
Refer to Figure 10 and Table 2 to install a particle counter with RS485 communication.
Figure 10 Terminal assignments—RS485 communication
