Hach AS1000 User manual

DOC022.97.80516
Sample changer AS1000
01/2018, Edition 5
User Manual
Manuel de l’utilisateur
Manual del usuario
Manual do Usuário
用户手册
取扱説明書
사용 설명서

English..............................................................................................................................3
Français......................................................................................................................... 18
Español.......................................................................................................................... 33
Português...................................................................................................................... 48
中文................................................................................................................................. 63
日本語............................................................................................................................. 76
한글................................................................................................................................. 91
2

Table of contents
Specifications on page 3 Maintenance on page 15
General information on page 4 Troubleshooting on page 16
Installation on page 9 Replacement parts and accessories on page 16
Operation on page 14
Specifications
Specifications are subject to change without notice.
Specification Details
Dimensions (W x H x D) 395 x 300 x 535 mm (15.55 x 11.81 x 21.06 in.)
Weight approximately Approximately 10 kg (22.05 lb)
Enclosure Lifting module: Enamelled steel and PP; Rotating module: PP
Pollution degree 2
Installation category II
Protection class 2
Operating temperature 15 to 40 °C (59 to 104 °F)
Storage temperature –5 to 40 °C (23 to 104 °F)
Relative humidity 20 to 80%, non-condensing
Maximum sound power level 60 dBA
Power requirements Instrument input: 24 VDC, 2.5 A; External plug-in power supply: Input
100–240 VAC, 50-60 Hz, 1.5 A, Class I; output, 24 VDC, 2.5 A
Magnetic stirrer1RCA connector, maximum voltage 12 V, maximum current 150 mA
Rotating module connection2RJ45 telephone connector
Communications RJ11 connector, RS232 inputs/outputs
Tray rotational speed 4 rpm (nominal)
Vertical movement (sensor
holder)
88 mm (3.5 in.)
Tray positions 12, 20 or 30
Sample beakers (H x D) 50 mL: 96 x 29 mm (3.77 x 1.14 in.); 50 mL: 88 x 60 mm (3.46 x 2.36 in.);
90 mL: 75 x 43 mm (2.95 x 1.69 in.); 150 mL: 88 x 60 mm (3.46 x 2.36 in.)
Certifications Safety: IEC/EN 61010-1; EMC: IEC/EN 61326-1
1For the supplied stirrers only.
2For the supplied trays only.
English 3

Specification Details
Korean certification User Guidance for EMC Class B Equipment
가정용을 포함하는 EMC 등급 B 장치에
대한 사용자 지침
사용자안내문
B 급 기기 ( 가정용 방송통신기자재 )
이 기기는 가정용 (B 급 ) 전자파적합기기로서 주로 가정에서 사용하는 것을
목적으로 하며 , 모든 지역에서 사용 할 수 있습니다.
Warranty 1 year (EU: 2 years)
General information
In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential
damages resulting from any defect or omission in this manual. The manufacturer reserves the right to
make changes in this manual and the products it describes at any time, without notice or obligation.
Revised editions are found on the manufacturer’s website.
Safety information
N O T I C E
The manufacturer is not responsible for any damages due to misapplication or misuse of this product including,
without limitation, direct, incidental and consequential damages, and disclaims such damages to the full extent
permitted under applicable law. The user is solely responsible to identify critical application risks and install
appropriate mechanisms to protect processes during a possible equipment malfunction.
Please read this entire manual before unpacking, setting up or operating this equipment. Pay
attention to all danger and caution statements. Failure to do so could result in serious injury to the
operator or damage to the equipment.
Make sure that the protection provided by this equipment is not impaired. Do not use or install this
equipment in any manner other than that specified in this manual.
Use of hazard information
D A N G E R
Indicates a potentially or imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Indicates a potentially or imminently hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION
Indicates a potentially hazardous situation that may result in minor or moderate injury.
N O T I C E
Indicates a situation which, if not avoided, may cause damage to the instrument. Information that requires special
emphasis.
4 English

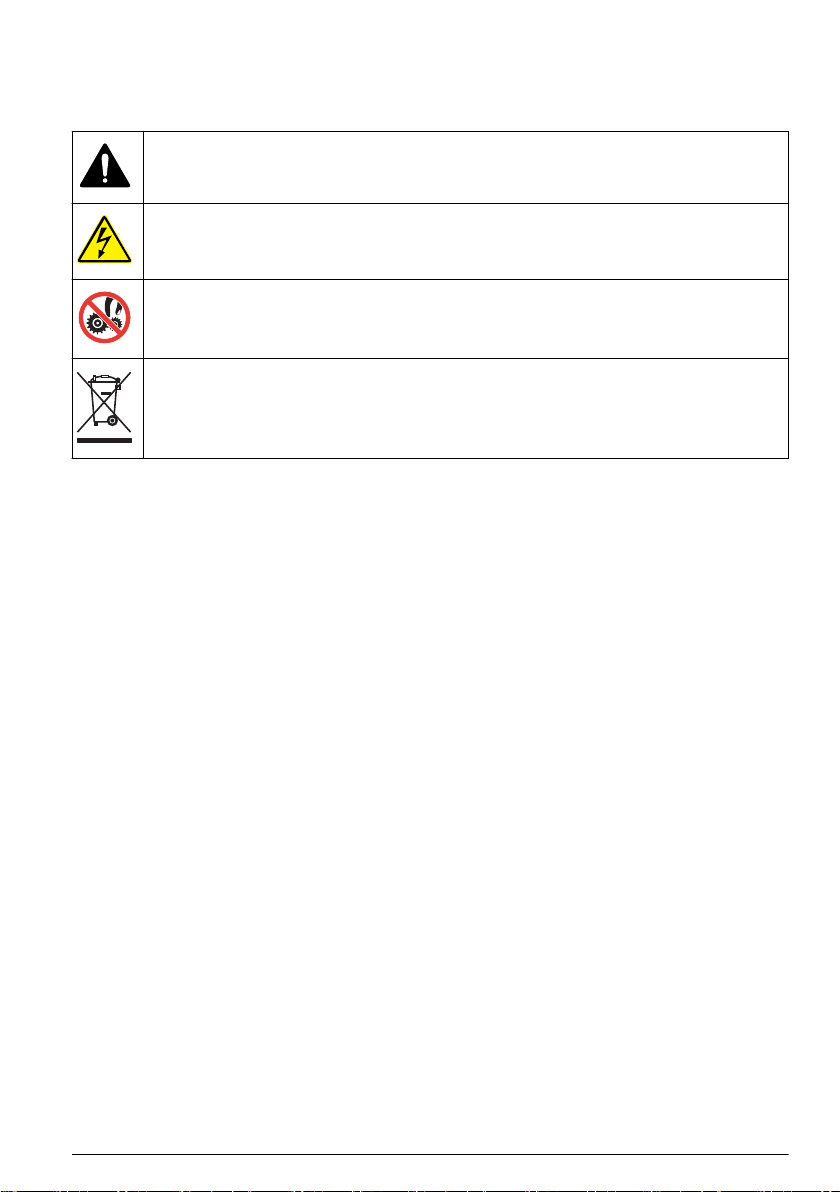

Precautionary labels
Read all labels and tags attached to the instrument. Personal injury or damage to the instrument
could occur if not observed. A symbol on the instrument is referenced in the manual with a
precautionary statement.
This is the safety alert symbol. Obey all safety messages that follow this symbol to avoid potential
injury. If on the instrument, refer to the instruction manual for operation or safety information.
This symbol indicates that a risk of electrical shock and/or electrocution exists.
This symbol indicates a potential pinch hazard.
Electrical equipment marked with this symbol may not be disposed of in European domestic or public
disposal systems. Return old or end-of-life equipment to the manufacturer for disposal at no charge to
the user.
Certification
Canadian Radio Interference-Causing Equipment Regulation, IECS-003, Class B:
Supporting test records reside with the manufacturer.
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de classe B répond à toutes les exigences de la réglementation canadienne
sur les équipements provoquant des interférences.
FCC Part 15, Class "B" Limits
Supporting test records reside with the manufacturer. The device complies with Part 15 of the FCC
Rules. Operation is subject to the following conditions:
1. The equipment may not cause harmful interference.
2. The equipment must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications to this equipment not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment. This equipment has been tested
and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case the user will be required to
correct the interference at their expense. The following techniques can be used to reduce
interference problems:
1. Move the equipment away from the device receiving the interference.
2. Reposition the receiving antenna for the device receiving the interference.
3. Try combinations of the above.
English 5

Chemical and Biological Safety
D A N G E R
Chemical or biological hazards. If this instrument is used to monitor a treatment process and/or
chemical feed system for which there are regulatory limits and monitoring requirements related to
public health, public safety, food or beverage manufacture or processing, it is the responsibility of the
user of this instrument to know and abide by any applicable regulation and to have sufficient and
appropriate mechanisms in place for compliance with applicable regulations in the event of malfunction
of the instrument.
N O T I C E
Never use this instrument to do tests on living beings.
Normal operation of this device may require the use of chemicals or biological samples.
• Do not use the instrument in samples that could cause a biological hazard.
• Observe all cautionary information printed on the original solution containers and safety data
sheets prior to their use.
• Dispose of all consumed solutions in accordance with the local and national regulations and laws.
• Select the type of protective equipment suitable to the concentration and quantity of the dangerous
material being used.
Product overview
The TitraLab AS1000 series is an automatic sample changer used in analytical laboratories with the
TitraLab AT1000 series analyzers. There are three sampler models:
• AS1000.XX.20090: Sampler for TitraLab AT1000 series, 20 beakers, 90 mL
• AS1000.XX.30050: Sampler for TitraLab AT1000 series, 30 beakers, 50 mL
• AS1000.XX.12150: Sampler for TitraLab AT1000 series, 12 beakers, 50/150 mL
The sampler is PC-controlled with the TM1000 software. The instrument has a tray that holds the
sample beakers. Refer to Table 1 for instrument configurations. The rotating module turns the tray to
change the sample position while the lifting module moves sensors and tubes up and down into each
sample. The sampler has an integrated magnetic stirrer. Use the sampler for a wide variety of
aqueous sample applications. Refer to the analyzer and software documentation for more
information. Refer to Figure 1.
Note: The type of tray, probe holder and beakers is dependent on the model. Refer to Table 1.
6 English

Figure 1 Sampler
1 Lifting module 6 Tray
2 Probe and tubes holder 7 Rotating module
3 Sample beakers 8 Magnetic stirrer
4 Blue LED (Flashes when the tray is in position 1.
For the remaining positions, the LED is on.)
9 Power switch
5 Green LED (ON/OFF indicator LED) 10 Rear panel
Table 1 Instrument configurations
Model Tray positions Beakers Minimum sample volume (mL)3Tubes4Probes5
Combined Pt-Pt/ISE
AS1000.XX.20090 20 90 mL 51 30 3 1
AS1000.XX.30050 30 50 mL 21 11 3 1
AS1000.XX.12150 12 50 mL 46 19 4 2
150 mL 70 39 4 2
Product components
Make sure that all components have been received. Refer to Figure 2. If any items are missing or
damaged, contact the manufacturer or a sales representative immediately.
3Some probes can require a larger minimum sample volume. Make sure that the sensing part of
the probe is fully into the sample during the measurement.
4Maximum number of tubes (suction tube not included).
5Maximum number of accepted probes.
English 7

Figure 2 Sampler components
1 Lifting module 9 RS-232 adapter cable with USB/Serial adapter
2 Tray screw cap 10 TM1000 software
3 Tube holder 11 Tray
4 Rotating module 12 Sample beakers
5 Power cord 13 Magnetic stir bars
6 Power supply 14 Probe holder
7 Base with magnetic stirrer 15 Ring adapters for 50 mL beaker
8 Ethernet cables
Note: The type of tray, probe holder and beakers is dependent on the model.
8 English

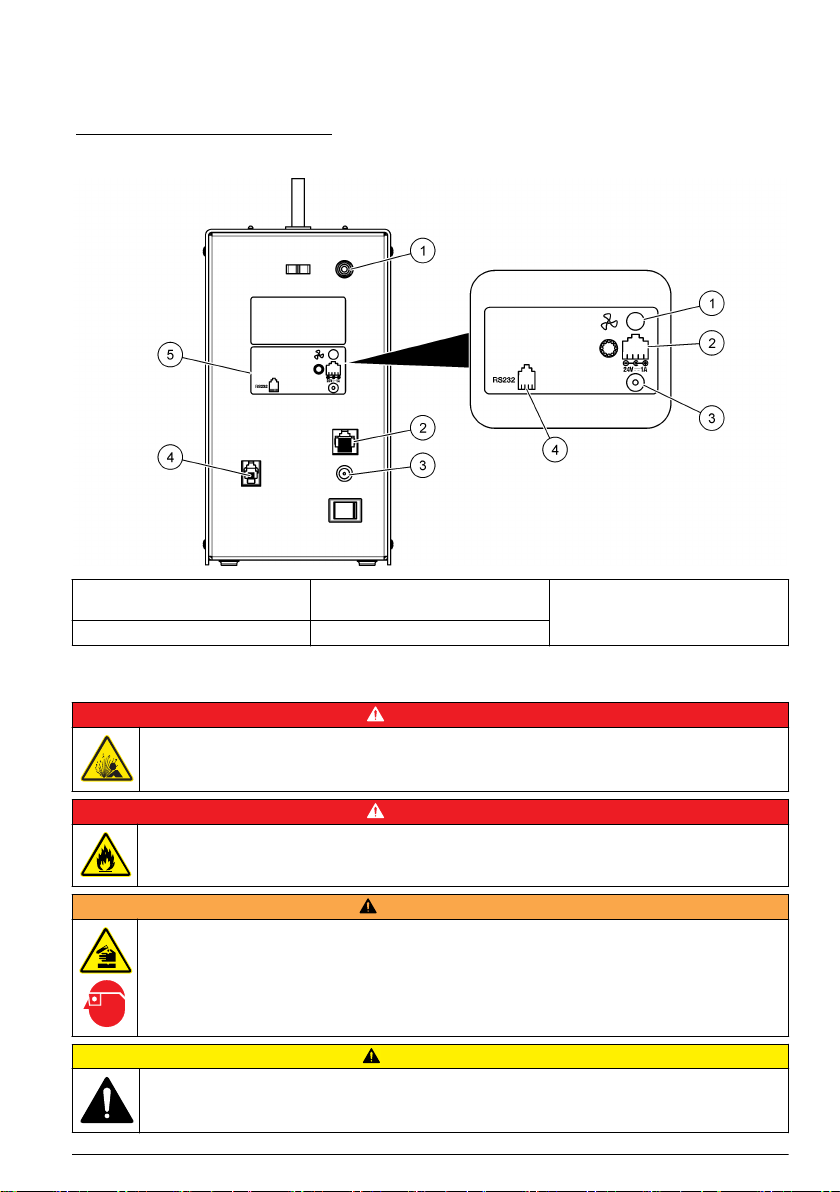

Instrument connections
Connect the power supply, the rotating module, the magnetic stirrer and the PC to the rear panel of
the instrument. Refer to Figure 3 for instrument connections.
Figure 3 Instrument connections
1 Magnetic stirrer connection 3 External power supply
connection
5 Connections label
2 Rotating module connection 4 PC connection
Installation
D A N G E R
Explosion hazard. The instrument is not approved for installation in hazardous locations.
D A N G E R
Fire hazard. This product is not designed for use with flammable liquids.
WARNING
Chemical exposure hazard. Obey laboratory safety procedures and wear all of the personal protective
equipment appropriate to the chemicals that are handled. Refer to the current safety data sheets
(MSDS/SDS) for safety protocols.
CAUTION
Multiple hazards. Only qualified personnel must conduct the tasks described in this section of the
document.
English 9

This instrument is rated for an altitude of 2000 m (6562 ft) maximum. Although the use of this
equipment above the 2000 m altitude does not show any substantial safety concern, the
manufacturer recommends that users with concerns contact technical support.
Installation guidelines
• This instrument is for indoor use only.
• The power supply connector on the rear panel must be easily accessible so the power can be
disconnected quickly in case of emergency.
• Keep the instrument away from temperature extremes, including heaters, direct sunlight and other
heat sources.
• Put the instrument on a stable and level surface in a well ventilated place.
• Make sure that there is at least 15 cm (6 in.) of space on all sides of the instrument to prevent
electrical parts from overheating.
• Do not operate or keep the instrument in dusty, damp or wet locations.
• Always keep the surface of the instrument and all accessories dry and clean.
Assemble the instrument
Refer to the illustrated steps that follow.
10 English

Connect to AC power
CAUTION
Electrical shock and fire hazards. Make sure that the supplied cord and non‐locking plug meet the
applicable country code requirements.
WARNING
Fire hazard. Use only the external power supply that is specified for this instrument.
1. Connect the power cord to the power supply.
2. Connect the power supply to the instrument (refer to Instrument connections on page 9).
3. Connect the power cord to an electrical outlet.
English 11

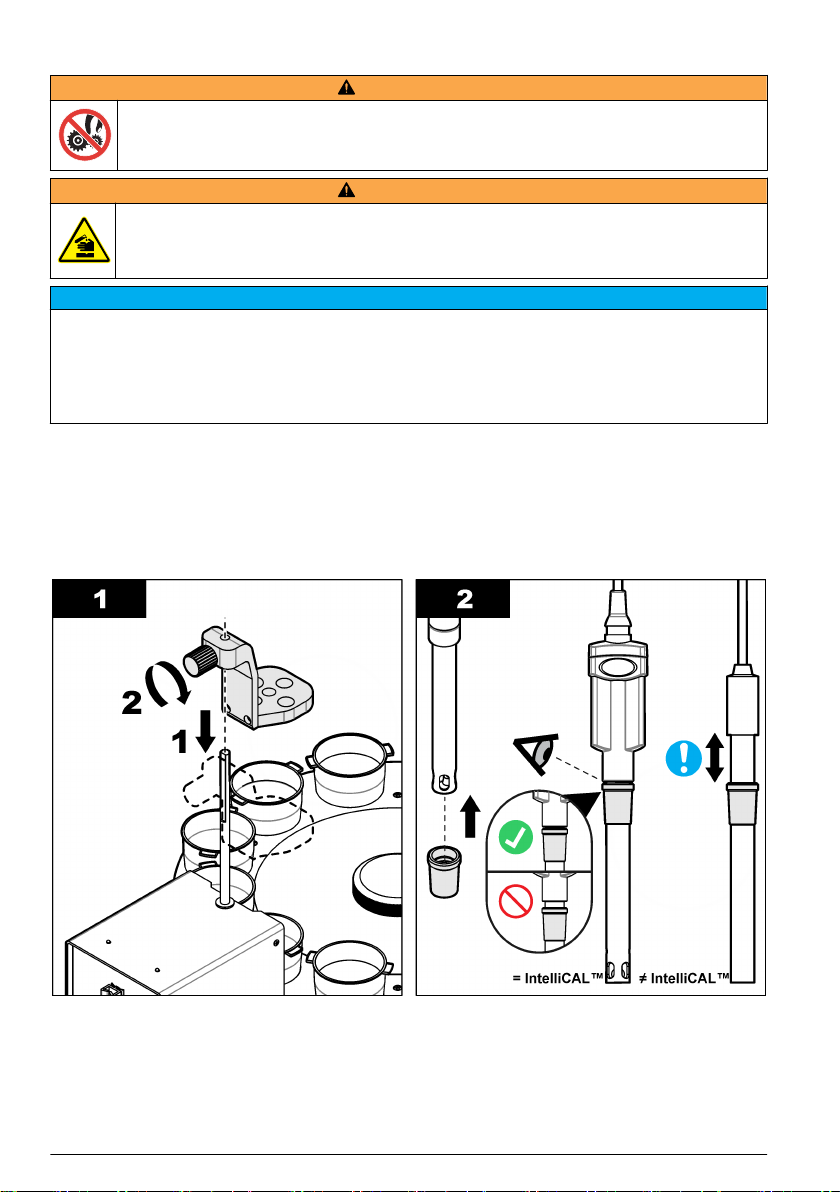

Install the probe holder and tubes
WARNING
Pinch hazard. Parts that move can pinch and cause injury. Do not touch moving parts.
WARNING
Chemical hazard. Make sure that the reagent tubes and all the sample beakers are in the correct
position in the tray to avoid leaks and the potential escape of reagents. Make sure that the tubes and
beakers are installed before using the instrument. Do not use the instrument if the tubes or beakers are
not installed.
N O T I C E
It is necessary to install the probes correctly. Make sure that:
• The sensing part of the probe is fully into the sample.
• The probe will not hit the magnetic stir bar when the holder moves down.
• When the holder is in the upper position, the probe will not hit the beakers when the tray moves.
• The probe adapter is in the correct position. Different sensor requires different probe adapter position.
Pre-requisites:
• Make sure that the instrument is connected to a PC with the TM1000 software installed. Refer to
Operate the instrument by computer on page 14.
• Set the instrument power to on. The rod moves to the upper position and the tray turns to position
1. The blue LED flashes to show that the tray is in position 1.
Refer to the illustrated steps that follow to complete the probe holder and tube installation:
12 English

English 13

Operation
D A N G E R
Chemical exposure hazard. Obey laboratory safety procedures and wear all of the personal protective
equipment appropriate to the chemicals that are handled. Refer to the current safety data sheets
(MSDS/SDS) for safety protocols.
Operate the instrument by computer
The instrument must connect to a computer for configuration. Refer to the TM1000 software help for
specific information.
Refer to Figure 4 for a recommended installation configuration.
Figure 4 Recommended configuration
14 English

Maintenance
D A N G E R
Multiple hazards. Only qualified personnel must conduct the tasks described in this section of the
document.
D A N G E R
Electrocution hazard. Remove power from the instrument before doing maintenance or service
activities.
WARNING
Multiple hazards. The technician must make sure that the equipment operates safely and correctly
after maintenance procedures.
N O T I C E
Do not disassemble the instrument for maintenance. If the internal components must be cleaned or repaired,
contact the manufacturer.
Maintenance schedule
Table 2 shows the recommended schedule of maintenance tasks. Refer to Table 2 to identify the
maintenance items. Facility requirements and operating conditions may increase the frequency of
some tasks.
Table 2 Maintenance schedule
Task as necessary 3 months 1 year
Clean the instrument on page 15 X X
Clean spills on page 16 X
Clean the probe on page 16 X
Service maintenance (contact technical support) X
Clean the instrument
N O T I C E
Never use flammable or corrosive solvents to clean any part of the instrument. Use of these solvents may
degrade the environmental protection of the unit and may void the warranty.
1. Make sure that the probe holder is in the upper position. Refer to the TM1000 software.
2. Remove the probes and tubes from the holder. Clean the holder with a moist cloth if necessary.
3. Set the instrument to off.
4. Remove all of the sample beakers.
5. Remove the tray. Use tap water to clean the tray. Remove all stains and spills.
6. Disconnect all cables.
7. Remove the rotating module and then the lifting module from the base.
8. Clean the exterior surface with a moist cloth or with a mixture of water and mild detergent. Dry
with a soft cloth.
9. Assemble the instrument. Refer to Assemble the instrument on page 10.
English 15

Clean spills
CAUTION
Chemical exposure hazard. Dispose of chemicals and wastes in accordance with local, regional and
national regulations.
1. Obey all facility safety protocols for spill control.
2. Discard the waste according to applicable regulations.
Clean the probe
Refer to the probe documentation for information about the probe maintenance.
Troubleshooting
Problem Possible cause Solution
The blue indicator LED is off. The tray was moved manually. Start the instrument or send an order from
the software.
The tray does not stop at
position 1 or at any specified
position.
The sampler does not sense the
beaker or position 1 of the tray.
Restart the instrument. If the rod does not
move to the upper position and the tray stops
at position 1, contact technical support.
The sensor holder does not
complete the vertical
movement.
There is an internal damage Contact technical support.
The beakers are not aligned.
The sensors are not in the
correct position.
There is too much noise when
the sampler operates.
The tray or one of the modules
was not correctly installed.
Make sure that all instrument components
are correctly installed.
The sampler does not operate. There is a communication
failure between the instrument
and the PC.
Examine the instrument and instrument
cables for damage. Make sure that the
cables are correctly connected. Restart the
instrument. If damage is found or the
problem continues, contact technical support.
The green indicator LED is off. Power is not supplied to the
instrument.
Make sure that power is supplied to the
instrument and that the instrument is set to
on. If there is power and the instrument does
not start contact technical support.
Replacement parts and accessories
WARNING
Personal injury hazard. Use of non-approved parts may cause personal injury, damage to the
instrument or equipment malfunction. The replacement parts in this section are approved by the
manufacturer.
Note: Product and Article numbers may vary for some selling regions. Contact the appropriate distributor or refer to
the company website for contact information.
Description Item no.
Set of beakers, 50 mL (10x) LZE108
Set of beakers, 150 mL (10x) LZE109
16 English

Replacement parts and accessories (continued)
Description Item no.
Set of beakers, 50 mL (20x) LZE193
Set of beakers, 90 mL (30x) LZE194
Holder, one probe LZE191
Holder, two probes LZE192
Magnetic stir bar, PTFE coated, 6 x 20 mm (10x) LZE136
Magnetic stir bar, PTFE coated, 12 x 4.5 mm (30x) LZE217
TM1000 Software with Ethernet cables LZE127
Tube holder, 4 positions LZE141
RS232 cable with a USB adapter for TitraLab 1000 Series LZE195
Ring adapter for 50-mL beaker LZE213
Power supply (without power cable) LZE144
Power cable (EU) YAA080
Power cable (US) XLH055
Power cable (UK) XLH057
English 17

Table des matières
Caractéristiques techniques à la page 18 Entretien à la page 30
Généralités à la page 19 Dépannage à la page 31
Installation à la page 24 Pièces de rechange et accessoires à la page 31
Fonctionnement à la page 29
Caractéristiques techniques
Ces caractéristiques sont susceptibles d'être modifiées sans avis préalable.
Caractéristique Détails
Dimensions (L x H x P) 395 x 300 x 535 mm (15,55 x 11,81 x 21,06 pouces)
Poids valeurs approximatives Environ 10 kg (22,05 lb)
Boîtier Module de levage : acier émaillé et PP ; Module rotatif : PP
Niveau de pollution 2
Catégorie d’installation II
Classe de protection 2
Température de fonctionnement 15 à 40 °C (59 à 104 °F)
Température de stockage -5 à 40 °C (23 à 104 °F)
Humidité relative 20 à 80 %, sans condensation
Niveau de puissance sonore
maximal
60 dBA
Alimentation électrique Entrée sur l'instrument: 24 VCC, 2,5 A ; Alimentation secteur
externe : 100-240 VAC, 50-60 Hz, 1,5 A, classe I ; sortie, 24 VCC, 2,5 A
Agitateur magnétique1Connecteur RCA, tension maximum 12 V, courant maximum 150 mA
Connexion du module rotatif2Connecteur téléphonique RJ45
Communications Connecteur RJ11, entrées/sorties RS232
Vitesse de rotation du plateau 4 tpm (nominale)
Mouvement vertical (porte-capteur) 88 mm (3,5 po.)
Positions du plateau 12, 20 ou 30
Béchers d'échantillon (H x P) 50 mL : 96 x 29 mm (3,77 x 1,14 po.); 50 mL : 88 x 60 mm (3,46 x
2,36 po.); 90 mL : 75 x 43 mm (2,95 x 1,69 po.); 150 mL : 88 x 60 mm
(3,46 x 2,36 po.)
Certifications Sécurité : CEI/EN 61010-1; EMC : CEI/EN 61326-1
1Pour les agitateurs fournis uniquement.
2Pour les plateaux fournis uniquement.
18 Français

Caractéristique Détails
Certification Coréenne User Guidance for EMC Class B Equipment
가정용을 포함하는 EMC 등급 B 장치에
대한 사용자 지침
사용자안내문
B 급 기기 ( 가정용 방송통신기자재 )
이 기기는 가정용 (B 급 ) 전자파적합기기로서 주로 가정에서 사용하는 것
을 목적으로 하며 , 모든 지역에서 사용 할 수 있습니다.
Garantie 1 an (UE : 2 ans)
Généralités
En aucun cas le constructeur ne saurait être responsable des dommages directs, indirects, spéciaux,
accessoires ou consécutifs résultant d'un défaut ou d'une omission dans ce manuel. Le constructeur
se réserve le droit d'apporter des modifications à ce manuel et aux produits décrits à tout moment,
sans avertissement ni obligation. Les éditions révisées se trouvent sur le site Internet du fabricant.
Consignes de sécurité
A V I S
Le fabricant décline toute responsabilité quant aux dégâts liés à une application ou un usage inappropriés de ce
produit, y compris, sans toutefois s'y limiter, des dommages directs ou indirects, ainsi que des dommages
consécutifs, et rejette toute responsabilité quant à ces dommages dans la mesure où la loi applicable le permet.
L'utilisateur est seul responsable de la vérification des risques d'application critiques et de la mise en place de
mécanismes de protection des processus en cas de défaillance de l'équipement.
Veuillez lire l'ensemble du manuel avant le déballage, la configuration ou la mise en fonctionnement
de cet appareil. Respectez toutes les déclarations de prudence et d'attention. Le non-respect de
cette procédure peut conduire à des blessures graves de l'opérateur ou à des dégâts sur le matériel.
Assurez-vous que la protection fournie avec cet appareil n'est pas défaillante. N'utilisez ni n'installez
cet appareil d'une façon différente de celle décrite dans ce manuel.
Interprétation des indications de risques
D A N G E R
Indique une situation de danger potentiel ou imminent qui, si elle n'est pas évitée, entraîne des blessures graves,
voire mortelles.
AVERTISSEMENT
Indique une situation de danger potentiel ou imminent qui, si elle n'est pas évitée, peut entraîner des blessures
graves, voire mortelles.
ATTENTION
Indique une situation de danger potentiel qui peut entraîner des blessures mineures ou légères.
A V I S
Indique une situation qui, si elle n'est pas évitée, peut occasionner l'endommagement du matériel. Informations
nécessitant une attention particulière.
Étiquettes de mise en garde
Lisez toutes les informations et toutes les étiquettes apposées sur l’appareil. Des personnes peuvent
se blesser et le matériel peut être endommagé si ces instructions ne sont pas respectées. Un
Français 19

symbole sur l'appareil est référencé dans le manuel et accompagné d'une déclaration de mise en
garde.
Ceci est le symbole d'alerte de sécurité. Se conformer à tous les messages de sécurité qui suivent ce
symbole afin d'éviter tout risque de blessure. S'ils sont apposés sur l'appareil, se référer au manuel
d'utilisation pour connaître le fonctionnement ou les informations de sécurité.
Ce symbole indique qu'il existe un risque de choc électrique et/ou d'électrocution.
Ce symbole indique un danger de pincement potentiel.
Le matériel électrique portant ce symbole ne doit pas être mis au rebut dans les réseaux domestiques
ou publics européens. Retournez le matériel usé ou en fin de vie au fabricant pour une mise au rebut
sans frais pour l'utilisateur.
Certification
Réglementation canadienne sur les équipements radio provoquant des interférences,
IECS-003, Classe B
Les données d'essai correspondantes sont conservées chez le constructeur.
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de classe B répond à toutes les exigences de la réglementation canadienne
sur les équipements provoquant des interférences.
FCC chapitre 15, limitations de classe B
Les données d'essai correspondantes sont conservées chez le constructeur. L'appareil est conforme
à la partie 15 de la règlementation FCC. Le fonctionnement est soumis aux conditions suivantes :
1. Cet équipement ne peut pas causer d'interférence nuisible.
2. Cet équipement doit accepter toutes les interférences reçues, y compris celles qui pourraient
entraîner un fonctionnement inattendu.
Les modifications de cet équipement qui n’ont pas été expressément approuvées par le responsable
de la conformité aux limites pourraient annuler l’autorité dont l’utilisateur dispose pour utiliser cet
équipement. Cet équipement a été testé et respecte les limitations d'un appareil numérique de
classe B, conformément au chapitre 15 de la réglementation FCC. Ces limites ont pour but de fournir
une protection raisonnable contre les interférences néfastes lorsque l’équipement fonctionne dans un
environnement commercial. Cet équipement génère, utilise et peut irradier l'énergie des fréquences
radio et, s'il n'est pas installé ou utilisé conformément au mode d'emploi, il peut entraîner des
interférences dangereuses pour les communications radio. Le fonctionnement de cet équipement
dans une zone résidentielle risque de causer des interférences nuisibles, dans ce cas l'utilisateur doit
corriger les interférences à ses frais Les techniques ci-dessous peuvent permettre de réduire les
problèmes d'interférences :
1. Éloigner l'équipement du dispositif qui reçoit l'interférence.
2. Repositionner l’antenne de réception du périphérique qui reçoit les interférences.
3. Essayer plusieurs des techniques ci-dessus à la fois.
20 Français
