Table of Contents
1 Specifications on page 3
2 Online user manual on page 4
3 General information on page 4
4 Installation on page 8
5 Startup on page 15
6 Maintenance on page 17
7 Troubleshooting on page 19
Section 1 Specifications
Specifications are subject to change without notice.
Specification Details
Dimensions (W x H x D) 38 x 44 x 70 mm (15.0 x 17.4 x 27.6 in.)
Weight 29 to 32 kg (64.0 to 70.6 lb)
Pollution degree 2
Overvoltage category II
Parameters TOC, TNb
Oxidation method TOC: Non-dispersive infrared detection (NDIR); TNb:
Chemiluminescence
Temperature Furnace temperature 1050 °C (1922 °F) maximum
Measuring range 0 to 30,000 mg/L
Detection limit TC, TIC, NPOC: 50 µg/L; TNb: 20 µg/L
Repeteability Until 10 mg/L: < 5%; More than 10 mg/L: < 2%
Sample volume 10 to 1000 µL
Power requirements Analyzer: 100-240 VAC ±10%, 50/60 Hz; 16 A (with safety ground);
750 W maximum
PC: 100-240 VAC ±10%, 50/60 Hz; 16 A (with safety ground); 90 W
maximum
Monitor: 100-240 VAC ±10%, 50/60 Hz; 16 A (with safety ground);
100 W maximum
Operating temperature 20 to 30 °C (68 to 86 °F)
Storage temperature -20 to 60 °C (-4 to 140 °F)
Relative humidity 20 to 80%, non-condensing
Altitude 2000 m (6562 ft) maximum
Environmental conditions Indoor use
Gas supply Type: Oxygen or synthetic air; Quality: 99,998% minimum (4.8);
Pressure: 3 to 10 bar (43.5 to 145 PSI)
Gas connection 1/8-inch Swagelok male connector for 1/8/-inch OD tubing1
1Supplied with the analyzer.
English 3

Specification Details
Gas consumption QP 1680-TOC: 150 mL/min2
QP 1680-TOC/TNb: 200 mL/min 2
QP 1680-TNb: 150 mL/min
Certifications CE, UKCA, certified to UL safety standards
Warranty 1 year (EU: 2 years)
Section 2 Online user manual
This Basic User Manual contains less information than the User Manual, which is available on the
manufacturer's website.
Section 3 General information
In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential
damages resulting from any defect or omission in this manual. The manufacturer reserves the right to
make changes in this manual and the products it describes at any time, without notice or obligation.
Revised editions are found on the manufacturer’s website.
3.1 Safety information
The manufacturer is not responsible for any damages due to misapplication or misuse of this product
including, without limitation, direct, incidental and consequential damages, and disclaims such
damages to the full extent permitted under applicable law. The user is soley responsible to identify
critical application risks and install appropriate mechanisms to protect processes during a possible
equipment malfunction.
Please read this entire manual before unpacking, setting up or operating this equipment. Pay
attention to all danger and caution statements. Failure to do so could result in serious injury to the
operator or damage to the equipment.
Make sure that the protection provided by this equipment is not impaired. Do not use or install this
equipment in any manner other than that specified in this manual.
3.1.1 Use of hazard information
D A N G E R
Indicates a potentially or imminently hazardous situation which, if not avoided, will result in death or
serious injury.
WARNING
Indicates a potentially or imminently hazardous situation which, if not avoided, could result in death
or serious injury.
CAUTION
Indicates a potentially hazardous situation that may result in minor or moderate injury.
N O T I C E
Indicates a situation which, if not avoided, may cause damage to the instrument. Information that
requires special emphasis.
2The analyzer uses 300 mL/min more to remove NPOC.
4 English

3.1.2 Precautionary labels
Read all labels and tags attached to the instrument. Personal injury or damage to the instrument
could occur if not observed. A symbol on the instrument is referenced in the manual with a
precautionary statement.
This is the safety alert symbol. Obey all safety messages that follow this symbol to avoid
potential injury. If on the instrument, refer to the instruction manual for operation or safety
information.
This symbol indicates that a risk of electrical shock and/or electrocution exists.
This symbol indicates that the marked item can be hot and should not be touched without
care.
This symbol identifies the presence of a strong corrosive or other hazardous substance
and a risk of chemical harm. Only individuals qualified and trained to work with chemicals
should handle chemicals or perform maintenance on chemical delivery systems
associated with the equipment.
This symbol indicates that the object is heavy.
Electrical equipment marked with this symbol may not be disposed of in European
domestic or public disposal systems. Return old or end-of-life equipment to the
manufacturer for disposal at no charge to the user.
3.2 Intended use
The QP 1680-TOC/TNb analyzer is intended for use by individuals who measure water quality
parameters in the laboratory.
3.3 Product overview
The QP 1680-TOC/TNb analyzer measures non-purgeable organic carbon (NPOC) and total bound
nitrogen (TNb) in aqueous samples. The analyzer also measures total carbon (TC), total inorganic
carbon (TIC) and calculates total organic carbon (TOC).
The analyzer has an integrated sampler that analyzes carbon and nitrogen in different water
matrices. The analyzer connects to a PC with the TE Instruments Software (TEIS2) for operation and
automation. Refer to Figure 1 and Figure 2.
English 5

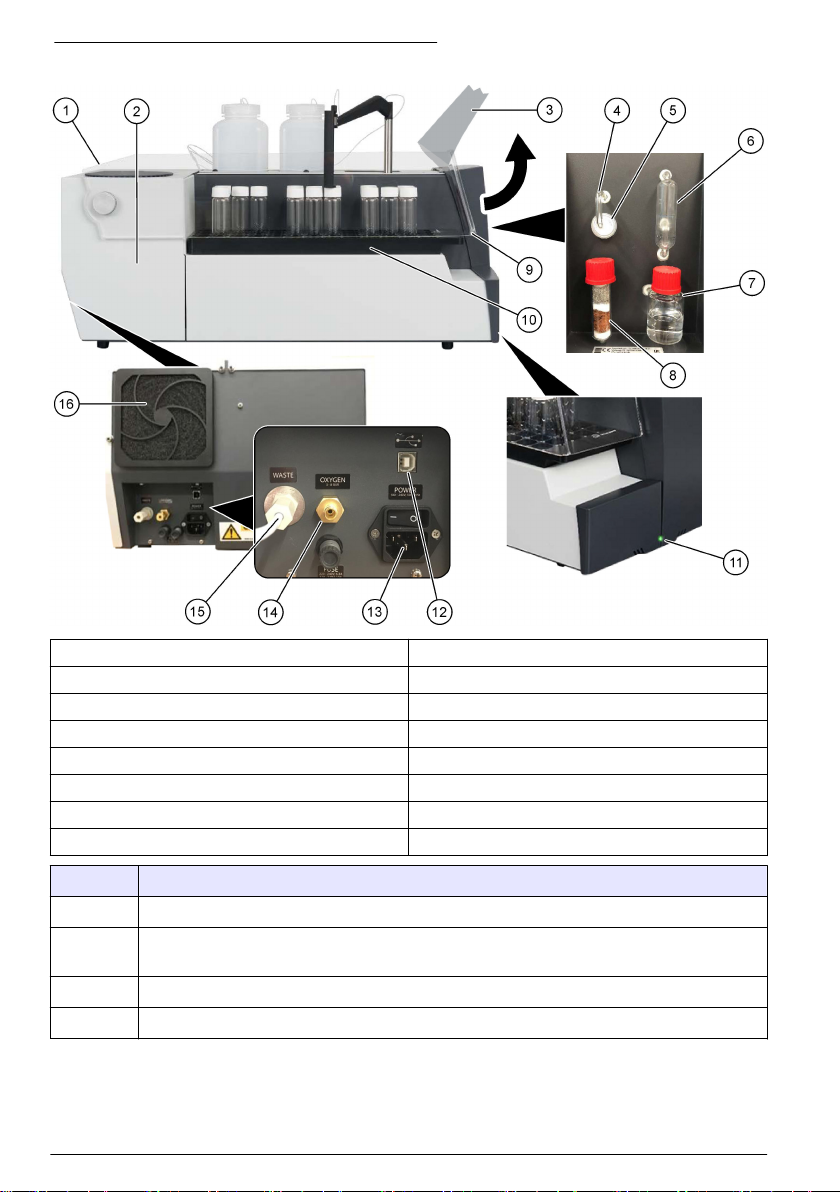

Figure 1 Product overview—Front and side views
1 QP 1680-TOC/TNb analyzer 9 Safety cover
2 Furnace compartment 10 Stirrer and sampler
3 Front cover 11 LED indicator
4 Filter holder 12 USB port type B
5 Particle filter, 5 µm 13 Power supply connection an power switch
6 IC vessel 14 1/8" swagelock oxygen port
7 Humidifier 15 Waste connection
8 Halogen scrubber 16 Fan
LED color Description
Green The analyzer is prepared for use.
Yellow The analyzer is not prepared for use. Some parameters are not within the
measurement range.
Blue The analyzer is in operation.
Red The analyzer has no connection to the TEIS2 software.
6 English

Figure 2 Product overview—Top view
1 Furnace injection point 5 Reagent container (ultra-pure water)
2 Waste port 6 Reagent container (acid)
3 IC injection point 7 Optional waste container
4 Sampler arm 8 Vial tray, 65 or 96 samples
3.4 Product components
Make sure that all components have been received. Refer to Figure 3. If any items are missing or
damaged, contact the manufacturer or a sales representative immediately.
English 7

Figure 3 Product components
1 Analyzer 8 Sample tray
2 Sample introduction needle, stainless steel 9 USB cable
3 Combustion tube 10 24-mL sample vials, glass (100x)
4 Filter holder 11 1-L containers (3x)
5 Humidifier assembly 12 USB flash drive with TEIS2 software
6 Halogen scrubber 13 PTFE blue-stripe tubing, 1/8-inch OD, 2 m
(includes the nut and ferule)
7 IC vessel 14 Power cord
Section 4 Installation
D A N G E R
Multiple hazards. Only qualified personnel must conduct the tasks described in this
section of the document.
8 English

4.1 Installation guidelines
WARNING
Fire hazard. This product is not designed for use with flammable liquids.
CAUTION
Chemical exposure hazard. Obey laboratory safety procedures and wear all of the
personal protective equipment appropriate to the chemicals that are handled. Refer to
the current safety data sheets (MSDS/SDS) for safety protocols.
CAUTION
Chemical exposure hazard. Dispose of chemicals and wastes in accordance with local,
regional and national regulations.
N O T I C E
This instrument is sensitive to electromagnetic and electromechanical interference. These
interferences may have an effect on the analysis performance of this instrument. Do not put this
instrument near equipment that may cause interference.
Install the instrument:
• Indoors in a clean, dry, well-ventilated and temperature-controlled location
• In a location with a flat surface to prevent the unit from movement
• In a location with minimum mechanical vibrations and electronic noise
• In a location with no electromagnetic interferences from equipment such as transmitters, power
switching, etc.
• In an environmental enclosure that supplies protection from precipitation and direct sunlight
• In a location where there is sufficient clearance to make plumbing and electrical connections
• In a location where the display is easily seen by the user
• In a location with a compatible waste container for the drain tube
4.2 Prepare the reagents and standards
WARNING
Chemical exposure hazard. Obey laboratory safety procedures and wear all of the
personal protective equipment appropriate to the chemicals that are handled. Refer to
the current safety data sheets (MSDS/SDS) for safety protocols.
• Wear protective clothing, safety glasses or face protections and rubber gloves.
• Prepare the reagents in a fume hood.
• Use only glass or PTFE labware.
• Make sure that all of the bottles vent to air after installation.
• Make sure that the applicable accident prevention regulations are observed.
• Dispose of substances correctly and in accordance with the applicable regulations.
For NPOC and IC analysis, a solution of strong acid (e.g., HCl 3 mol/L) is added with a capacity to
transfer 300 ppm of IC from the sample vial (40 mL) into CO2. Use 500 mL of acid solution to prepare
approximately 750 NPOC samples. Adjust the acid concentration or amount of acid added based on
the sample pH or buffering strength to get a sample pH less than 2. Make sure that the sample pH is
less than 2 before the analysis.
English 9

Table 1 Reagents and standards
Chemical Specification
Ultra-pure water (UPW) Electrical conductivity at 25°C: 0.0555 μS/cm
maximum; electrical resistivity at 25°C:
18 MΩ·cm minimum
Note: UPW is used to prepare standards or dillutions. 2.5 L of
UPW is necessary for the analyzer installation.
Phosphoric acid (H3PO4) 85% w/w3Used to prepare the 9.33% phosphoric acid
solution (1 mol/L)
Note: The recommended acid solution is phosphoric acid
(H3PO4). As an alternative, other strong acids can be used.
Phosphoric acid solution (H3PO4) (1 mol/L)
9.33% w/w
54.9 mL is used to prepare 500 mL of solution.
Hydrochloric acid (HCl) 36% w/w Used to prepare the 10.4% hydrochloric acid
solution.
Hydrochloric acid solution (HCl) (3 mol/L) 10,4%
w/w
144.7 mL is used to prepare 500 mL of solution.
Sulfuric acid (H2SO4) 96% w/w Used to prepare the 13.5% sulfuric acid solution
Sulfuric acid solution (H2SO4) (1,5 mol/L) 13,5%
w/w
70.3 mL is used to prepare 500 mL of solution.
4.3 Remove the transport locks
WARNING
Personal injury hazard. Instruments or components are heavy. Use assistance to install
or move.
N O T I C E
Use the bottom of the analyzer to lift the analyzer. Do not use the plastic covers or the sampler arm
to lift the analyzer or damage to the analyzer can occur.
Remove the magnetic lock and transportation strips from the analyzer. Refer to Figure 4 and the
steps that follow:
1. Remove the white stirrer lock.
2. Remove the white strip.
3. Remove the red warning strip..
4. Discard the red warning strip
5. Install the white strip again.
3Concentration of the solution in terms of percentage composition. x% w/w solution equals X
grams of solute dissolved in 100 grams of solution.
10 English

Figure 4 Remove the transport locks
4.4 Connect to carrier gas
D A N G E R
Fire and explosion hazard. Oil and grease can burn with explosive violence when there is
oxygen. Make sure that all parts that are in contact with oxygen do not have grease or
oil.
The instrument cannot operate without a carrier gas connection. An oxygen or synthetic air supply
must be within 2 m (6.5 ft) of the rear of the analyzer. Use the supplied gas inlet tubing to connect
oxygen or synthetic air. Refer to Specifications on page 3 for the gas supply specifications.
Connect the analyzer to a carrier gas as follows:
1. Open the gas air supply for some seconds to remove unwanted material.
2. Use a wrench to connect the supplied PTFE blue-stripe tubing to the gas supply and the Oxygen
port. Refer to Figure 5.
3. Do not open the gas supply. Make sure that the carrier gas connection is leak tight.
English 11

Figure 5 Connect to carrier gas
4.5 Connect the waste tubing
The analyzer has a waste connector to discard the water after the analysis. Refer to Figure 6 and the
steps that follow.
1. Use 4-mm OD tubing to connect the waste. The waste connector is a push-in connector. Push
the tubing firmly into the waste connector.
2. Put the other end of the tubing in a sink or a waste container within 3 m (9.8 ft) of the analyzer.
Figure 6 Connect the waste tubing
4.6 Assemble the combustion tube
Do not start the analyzer without the combustion tube installed. Refer to Figure 7and the steps that
follow.
1. Remove the top cover of the furnace.
2. Put the combustion tube in the furnace.
3. Use the thumbscrews to attach the furnace tube.
4. Do not connect the gas line to the combustion tube.
12 English

Figure 7 Assemble the combustion tube
4.7 Assemble the sampler arm
1. Use the supplied 4-mm allen screw to attach the head of the sampler arm to the sampler.
2. Put the sample introduction needle into the guide of the sampler arm.
4.8 Connect the PC and power
D A N G E R
Electrical shock and fire hazards. Make sure that the supplied cord and non‐locking plug
meet the applicable country code requirements.
D A N G E R
Electrocution hazard. Protective Earth Ground (PE) connection is required.
English 13

D A N G E R
Electrocution and fire hazard. Attach the power cord so that it cannot touch hot surfaces.
A PC with TEIS2 software installed is necessary to operate the analyzer.
1. Put the PC near to the analyzer. Make all of the necessary PC connections.
2. Use the supplied USB cable to connect the PC to the analyzer. Refer to Figure 8.
Note: Make sure that the USB cable is not parallel to a power cable or electrical noise interference on the
connection can occur.
3. Make sure that the power switch of the analyzer is set to OFF. Connect the supplied power cord
to a grounded electrical outlet.

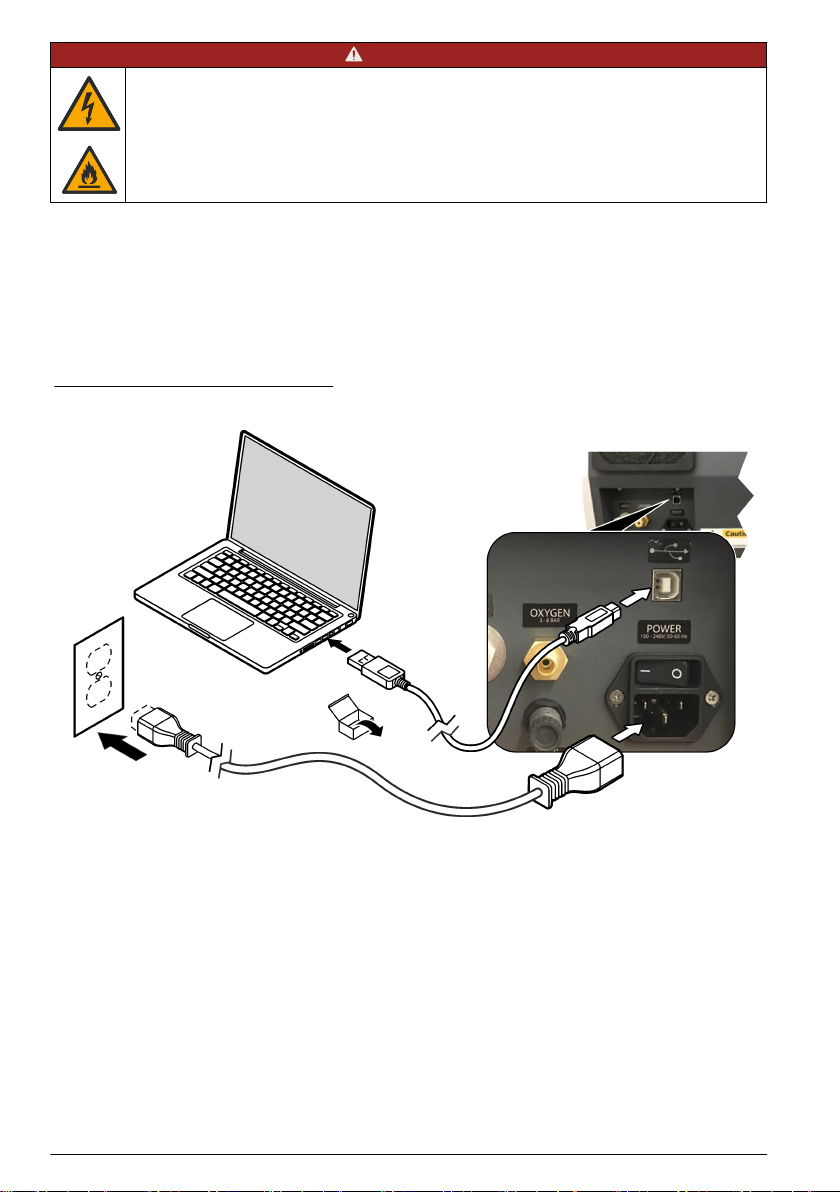

Figure 8 Connect the PC and power
4.9 Install the software
Note: Do not start the TEIS2 software at this moment. Not loading the correct database will cause the instruments
to malfunction.
Use the supplied USB flash drive to install the TEIS2 software on the PC as follows.
1. Connect the USB flash drive to the PC.
2. Go to USB > Software > 3rd part. Install two software programs:
a. AbdeRdr90_en-Us.exe
b. vcredist_x86.exe (internet version) or dotNetFx40_Full_x86_x64.exe (off-line version)
3. Go to USB > Software > TEIS > V2.x.x.
4. Install Setup_TEIS2.msi.
5. Open the TEIS2 software. "No database found" shows.
14 English

6. Click OK.
7. Select the database from the USB flash drive. Go to USB > Database > Backup 20XX.XXX >
TEIS_DATA.FDB
8. Close the software and restart the PC.
Section 5 Startup
Items to collect: flow meter
The first time the analyzer is used, do the steps that follow:
1. Set the PC to on.
2. Set the power switch of the analyzer to on.
3. Open the gas supply. Make sure that the gas pressure is less than 8 bar (116 PSI).
4. Start the TEIS2 software. Login with service engineer credentials.
5. Wait until all of the devices in the software show as connected.
6. Use the flow meter to examine the gas connections. Then, install the correct item.
a. Connect a flow meter to the lower right connection of the humidifier.
The flow must be 150 mL/min ± 5 %.
b. Fill the humidifier with ultra-pure water. Carefully connect the humidifier.
Note: Make sure to push the humidifier in a straight line into the connector or damage to the connector can
occur.
c. Connect the flow meter to the carrier gas tubing in the top of the furnace.
The flow must be 150 mL/min ± 5 %.
d. Connect the carrier gas tubing at the top of the furnace. Install the top cover of the furnace.
e. Connect the flow meter to the middle connection of the IC vessel.
English 15

The flow must be 150 mL/min ± 5 %.
f. Carefully install the IC vessel. Apply pressure in the middle of the IC vessel.
g. Connect the flow meter to the bottom connection of the halogen scrubber.
The flow must be 150 mL/min ± 5 %.
h. Carefully install the halogen scrubber. Apply pressure in the middle of the halogen scrubber.
i. Connect the flow meter to the bottom connection of the filter.
The flow must be 150 mL/min ± 5 %.
j. Install the filter holder with the particle filter.
7. In the TEIS2 software, open Visual devices.
The Total flow box shows the total flow in mL/min. For analyzers without nitrogen detector, the
flow must be 150 mL/min ± 5 %. For analyzers with nitrogen detector, the flow must be
200 mL/min ± 5 %.
16 English

8. Start the method "Test method: Send sampler to IC port to check system pressure". The analyzer
sends the Sampler to the IC port to close the IC port inlet.
The Condenser box shows the temperature of the condenser. When set at 1 °C, the value must
be 1 °C ± 0.5 °C.
The Oxygen pressure box shows the internal pressure of the oxygen or synthetic air. The value
must be 1800 to 2300 mbar.
9. Remove the containers from the analyzer.
In Visual devices, make sure that the values for the weigh unit cups are 0 g ± 10 g.
10. Install the containers filled with the applicable reagents in the weight units. Use the color label to
identify the tubing for each container.
• Weight unit 1: ultra pure water. Connect the two green tubes.
• Weight unit 2: acid. Connect the red tube.
• Weight unit 3: waste. Use 4-mm PTFE tubing for the waste. As an alternative, put the tube in a
sink.
11. In Visual devices, examine the cooling and heating values.
For analyzers with nitrogen detector, the cooling value must be 10 °C ± 5 %. The heater value
must be 50 °C ± 5 %.
12. Examine the furnace temperature values.
For analyzers without nitrogen detector, the value must be 680 °C ± 5 %. For analyzers with
nitrogen detector, the value must be 720 °C ± 5 %.
13. Install the tray in the analyzer. Make sure that the tray shows in Visual devices.
14. Open and close the front cover. Make sure that the status of the front cover shows in Visual
devices.
5.1 Examine the sampler tubing
Make sure to fix the sampler tubing with the tubing clamps. Make sure that the routing of the sampler
tubing is correct. The tubing must let the sampler arm move freely.
Section 6 Maintenance
WARNING
Multiple hazards. Only qualified personnel must conduct the tasks described in this
section of the document.
CAUTION
Chemical exposure hazard. Obey laboratory safety procedures and wear all of the
personal protective equipment appropriate to the chemicals that are handled. Refer to
the current safety data sheets (MSDS/SDS) for safety protocols.
CAUTION
Chemical exposure hazard. Dispose of chemicals and wastes in accordance with local,
regional and national regulations.
6.1 Maintenance schedule
WARNING
Multiple hazards. Only qualified personnel must repair and do maintenance tasks of
compressed gas cylinders and accessories.
English 17

Table Table 2 shows the recommended schedule of maintenance tasks. Facility requirements and
operating conditions may increase the frequency of some tasks.
Table 2 Maintenance schedule
Task 1 day 1 week 30 days 90 days 365 days
Examine for leaks and spills. Clean as necessary. X
Make sure that the tubing in the reagent
containers touches the bottom of the container.
X
Make sure that the waste container has sufficient
capacity. Discard waste as necessary.
X
Examine the level in the humidifier. Fill as
necessary.
X
Examine the injection needle for damage. Replace
if damaged.
X
Examine the movement of the sampler X
Clean the furnace injection port. X
Replace all UPW in the UPW reagent container. X
Replace the particle filter. X
Examine all tubing from the reagent containers for
damage.
X
Examine for dust at the air intake points of the
analyzer. Replace the fan filter if necessary.
X
Examine for leaks at the reagent containers.
Replace the containers as necessary.
X
Examine the O-ring of the furnace tube (red, top of
the furnace tube)
X
Examine the O-ring of the furnace injection port
(black)
X
Examine the halogen scrubber. Replace as
necessary.
X
Replace the catalyst. X
Annual maintenance4X
4An annual maintenance inspection by a factory-trained and certified service engineer is
recommended. The annual maintenance includes important checks and part replacements to
keep the analyzer in good condition.
18 English

6.2 Clean spills
CAUTION
Chemical exposure hazard. Dispose of chemicals and wastes in accordance with local,
regional and national regulations.
1. Obey all facility safety protocols for spill control.
2. Discard the waste according to applicable regulations.
6.3 Stop the analyzer
Do the steps that follow to stop the analyzer for short periods (4 hours or more).
1. In the TEIS2 software, go to Task manager and select System method.
2. Select Standby method.
3. Click Add system method. The method shows in the Task manager.
4. Select hold for all other tasks in the task manager. Click Start.
5. Wait until the analyzer completes the Standby procedure.
6.4 Shutdown the analyzer
N O T I C E
Do not set the analyzer to off until the shutdown procedure is complete and the furnace
temperature has decreased to room temperature or damage to the analyzer will occur.
Do the steps that follow to prepare the analyzer to be stopped for a long period (more than 7 days):
1. In the TEIS2 software, go to Task manager and select System method.
2. Select Shutdown method from the list.
3. Click Add system method. The method shows in the Task manager.
4. Select hold for all other tasks in the task manager. Click Start.
5. Wait until the analyzer completes the shutdown procedure.
6. Set the analyzer to off.
Section 7 Troubleshooting
WARNING
Burn hazard. The furnace gets extremely hot. Do not touch. The outer surface of the
analyzer may become hot. Keep chemicals away from hot surfaces.
Make sure to set the analyzer to off. Let the analyzer temperature decrease to room temperature
before a disassembling operation.
English 19

Problem Possible cause Solution
Leakage or loss of
flow
There is a problem in the
furnace injection point.
Add a drop of UPW on top of the furnace
injection point. If there are air bubbles, remove
and fully clean the injection port. As an
alternative, replace the injection port.
There is a problem in IC
injection point. • Add a drop of UPW on top of the IC
injection point. If there are air bubbles, use
a spray bottle to put some UPW into the IC
injection point.
• If the IC injection point continues to push
the UPW out, the condenser has a possible
blockage. Set the condenser temperature to
20 °C (68 °F). Wait 30 minutes. Use the
spray bottle to put some UPW into the IC
injection point. The flow should come back
to the standard value. Contact technical
support.
There is a problem in
particle filter.
The analysis can form CuCl, which is a tiny
powder that can cause a blockage in the filter.
The blockage can increase the pressure,
which can cause the measured flow to be
lower than expected. Use compressed air to
clean the particle filter. Replace the particle
filter.
There is a leak after the
furnace tube is assembled.
The O-ring that seals the bottom of the furnace
tube can expand or shrink during furnace
operation. Remove the complete furnace and
use a flathead screwdriver to tighten the O-
ring.
No air bubbles in
the reagent bottle
UPW
The system startup does
not work.
Make sure that the system starts up correctly.
If the startup is unsuccessful, the oxygen
valves can be damaged. Contact technical
support to replace the oxygen valves.
Area counts too
high
There is a problem in the
needle or needle sleeve. • Examine the needle and the needle sleeve
for damage.
• Make sure that the sleeve starts at 21 mm
from the bottom of the needle. Replace the
needle if necessary.
There is a problem in the
particle filter or a leak in the
system. The pH value of the
acid is incorrect.
• Examine the particle filter. Replace the
particle filter if necessary.
• Make sure that the pH value of the acid is
less than 2.
• Compare the current flow of the instrument
to the flow of the samples in the calibration
line used to calculate the current samples.
The flow has an effect on the area
measured from a sample. A lower flow gives
a higher area count and vice versa.
20 English
