hager 4700S Service manual

4700 Series Surface Vertical Rod Exit Device
Installation Instructions
Grade 1
I-ED00793
Rev 4, Rev Date: 05/31/2018 Page 1of 8
Hager Companies 139 Victor Street, St. Louis, MO 63104 [phone] www.hagerco.com
TOOLS REQUIRED
Metal
Wood
Wood and Metal
Screws
For wood doors, drill
1/8” hole
Machine Screws
#7 drill, ¼”-20 tap
#16 drill, #12-24 tap
Sex Bolts
Drill 5/16” thru from device
side. Drill 3/8” from other side
(pull side).
Check building and fire codes
to see if your application
requires the use of sleeve
nuts and bolts.

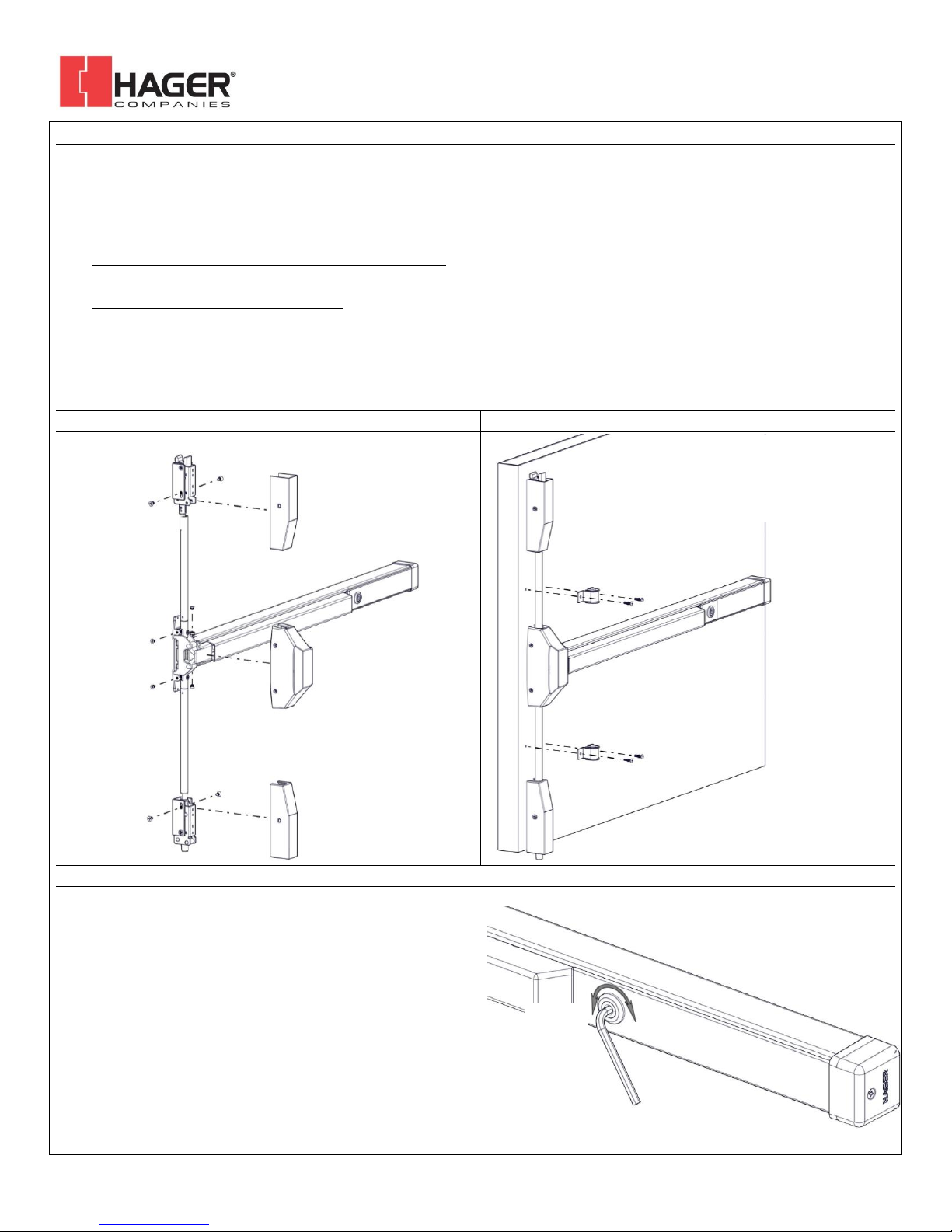

DEVICES COVERED IN THIS DOCUMENT:
4700S Panic Surface Vertical Rod Device 4700L Panic Less Bottom Rod (LBR) Device
4700SF Fire Exit Surface Vertical Rod Device
#16 Drill
#12-24 Tap
#7 Drill
¼”-20 Tap
1/8” Drill

4700 Series Surface Vertical Rod Exit Device
Installation Instructions
Grade 1
I-ED00793
Rev 4, Rev Date: 05/31/2018 Page 2of 8
Hager Companies 139 Victor Street, St. Louis, MO 63104 [phone] www.hagerco.com
DOGGING DEVICE
(ONLY ON PANIC HARDWARE)
BOTTOM STRIKE

4700 Series Surface Vertical Rod Exit Device
Installation Instructions
Grade 1
I-ED00793
Rev 4, Rev Date: 05/31/2018 Page 3of 8
Hager Companies 139 Victor Street, St. Louis, MO 63104 [phone] www.hagerco.com
1. CUT EXIT DEVICE TO LENGTH
2. MARK DOOR AND DRILL MOUNTING HOLES
The exit device comes in two models, one sized for a 36”
door width and one sized for a 48” door width. For other
door widths, cut exit device to appropriate length.
Recommended overall length of the exit device is equal
to door width minus 4 inches. Cut with hack saw or metal
cutting saw blade. Deburr edges.
DOOR WIDTH RANGE FOR EXIT DEVICES
36” MODEL
30” – 36” DOOR WIDTH
48” MODEL
36” – 48” DOOR WIDTH
Measure horizontal center line of exit device at 40” from
finished floor. Apply template to door using centerline and
edge of door. Mark and drill holes as shown on template.
Be sure the vertical centerline for the exit device mounting
holes is 2 ¼” from the edge of the door.
-For metal doors, drill and tap for ¼”-20 machine screws
-For wood doors, pre-drill 1/8” holes
-If mounting trim, drill 5/16” clearance holes on exit device side
of door (push side) and ½” holes on pull side. Trim requires
an additional ½” clearance hole for the trim actuating shaft.
-If using Sex Bolts, drill 5/16” clearance holes on exit device
side of door (push side) & 3/8” on pull side
3. INSTALL EXIT DEVICE
4. INSTALL END CAP
Remove head cover from exit
device chassis. Mount exit device
using the 2 mounting holes
indicated on template.
If using trim, be sure to line up
trim actuating shaft (tailpiece)
with cam located on back of exit
device chassis.
Remove the bottom screw
and spacer in the latch head
Screws:
Metal door, Sex Bolt, or Trim: ¼”-20 machine screws (2)
Wood door: #12 wood screws (2)
Remove end cap from end cap bracket. Mark hole locations
by either using template or holding end cap bracket up
against door. Be sure exit device is level before inserting
end cap bracket lip into end of device body. Mark and drill /
tap holes. Install end cap bracket and end cap.
-For metal doors, drill and tap for ¼”-20 machine screws
-For wood doors, pre-drill 1/8” holes
-For Sex Bolts, drill 5/16” clearance holes on exit device side
(push side) and 3/8” on pull side.
Screws:
Metal door or Sex Bolt: ¼”-20 machine screws (2)
Wood door: #12 wood screws (2)
RECOMMENDED EXIT DEVICE LENGTH=DOOR WIDTH –4”
EXIT DEVICE
MOUNTING HOLE
DEVICE
CENTERLINE
TRIM ACTUATOR
CLEARANCE HOLE
Ø1/2” (if required)
EXIT DEVICE
MOUNTING HOLE
2 7/8”
(73 mm)
2 ¼”
(57 mm)

4700 Series Surface Vertical Rod Exit Device
Installation Instructions
Grade 1
I-ED00793
Rev 4, Rev Date: 05/31/2018 Page 4of 8
Hager Companies 139 Victor Street, St. Louis, MO 63104 [phone] www.hagerco.com
1 7/16”
(37 mm)
5. INSTALL BOTTOM LATCH MOUNTING BRACKET (Skip this step if installing as LBR)
Remove bottom latch cover and mounting bracket from bottom latch assembly. Apply
template to door using edge of door and either top of threshold or finished floor. Mark and
drill holes as shown on template. If using bottom strike, use template to mark location for
bottom strike anchor. Be sure the vertical centerline for the bottom latch mounting holes
is 1 7/16” from the edge of door. Install bottom latch mounting bracket.
-For metal doors, drill and tap for 1/4”-20 machine screws
-For wood doors, pre-drill 1/8” holes
-For Sex Bolts, drill 5/16” clearance holes on exit device side (push side) and 3/8” on pull
side.
Screws:
Metal door or Sex Bolt: 1/4”-20 machine screws (2)
Wood door: #12 wood screws (2)
6. INSTALL BOTTOM STRIKE (Skip this step if using a panic threshold or installing as LBR)
STEP 1: Bottom strike anchor location should already be marked. If
not, extend bottom latch mounting bracket centerline to
finished floor or threashold
STEP 2: Cut out hole in finished floor or threashold for bottom strike.
For flush mounting, the hole depth should be 13/16” deep.
For surface mounting, the hole depth should be 11/16”
STEP 3: At bottom of strike cutout, mark and drill Ø1/2” by 7/8” deep
hole for screw anchor
STEP 4: Insert anchor and secure bottom strike to anchor
NOTE: If required, grout around bottom strike to acquire flush and
level floor. If bottom strike is being installed in a saddle
threshold, a minimum 1/2” gap is required at bottom of door.
Screws:
1/4"-20 machine screw and anchor assembly
DOOR
BOTTOM STRIKE INSTALLATION
(SURFACE MOUNTING SHOWN)
1”
(25 mm)
11/16”
(18 mm)
7/8”
(22 mm)
1/4"-20 MACHINE SCREW
BOTTOM STRIKE
ANCHOR
1” X 1 ¼” CUTOUT
DRILL Ø ½” X ⅞” DEEP
FINISHED FLOOR
7/16”
(11 mm)
13/16”
(21 mm)
1”
(25 mm)
Ø1/2”
(13 mm)
1 7/16”
(37 mm)
1 1/4”
(32 mm)
DOOR
BOTTOM STRIKE CUT-OUT
(TOP VIEW)
SURFACE MOUNTED
BOTTOM STRIKE
FLUSH MOUNTED
BOTTOM STRIKE

4700 Series Surface Vertical Rod Exit Device
Installation Instructions
Grade 1
I-ED00793
Rev 4, Rev Date: 05/31/2018 Page 5of 8
Hager Companies 139 Victor Street, St. Louis, MO 63104 [phone] www.hagerco.com

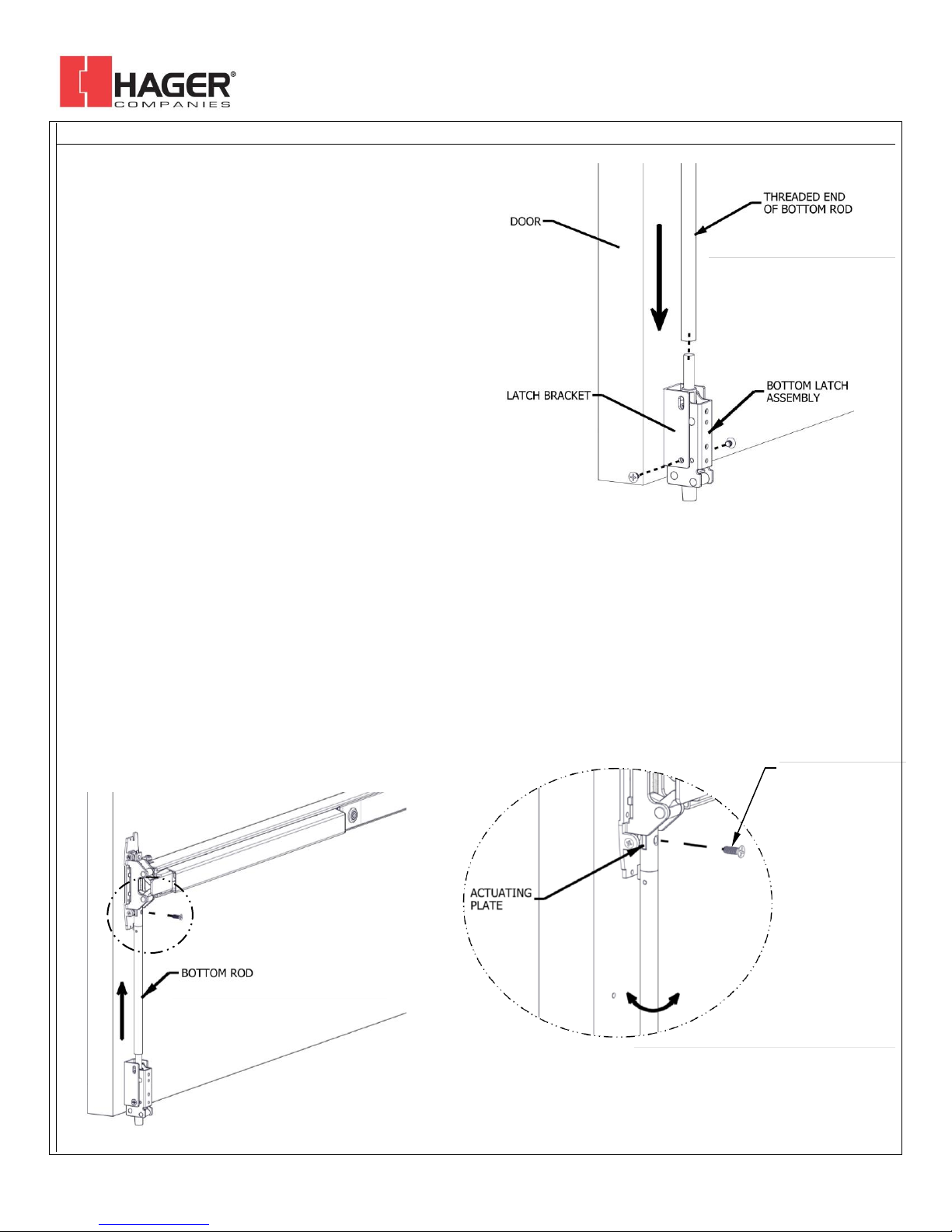

7. INSTALL BOTTOM LATCH AND ROD (Skip this step if installing LBR)
STEP 1: Install bottom latch assembly to bottom latch
bracket using provided screws and bottom two
holes in bracket (see figure 1)
STEP 2: Screw threaded end of bottom rod halfway onto
bottom latch assembly.
STEP 3: Before aligning the top end of the bottom rod with
the actuating plate, lift up on the bottom rod until
you feel the resistance from the bottom latch
spring. At this point, stop pulling up (see figure 2).
STEP 4: Continue holding rod up while aligning the top end
of the bottom rod with the actuating plate. Align
by rotating rod clockwise or counterclockwise until
the holes line up (see detail A).
STEP 5: Use the provided machine screw to attach rod to
actuating plate. Be sure actuating plate on the
chassis is in the down position (see detail A).
NOTE: The bottom latch assembly has a security feature.
This requires the bottom rod to be adjusted as
described above. Be sure there is no slack in the
bottom latch. To check for slack, grab the bottom
rod and pull up. If it doesn’t pull the latch bolt up
immediately, there is too much slack. Disconnect
the top of the bottom rod, screw bottom rod
further onto bottom latch assembly. Reconnect top
end and check again.
CHECK INSTALLATION by pushing on exit device push bar.
Make sure bottom latch is retracted when push bar is
depressed. Bottom latch should clear the finished floor, strike,
or threshold. Bottom latch should have 3/8” throw.
STEP 2: INSTALL BOTTOM ROD
STEP 1: INSTALL BOTTOM LATCH
ASSEMBLY
FIGURE 1
STEP 4: ROTATE BOTTOM ROD CLOCKWISE
OR COUNTERCLOCKWISE TO ALIGN WITH
HOLE IN ACTUATING PLATE
STEP 5: ATTACH
ROD WITH PROVIDED
MACHINE SCREW
DETAIL A
STEP 3: LIFT UP ON BOTTOM ROD
FIGURE 2

4700 Series Surface Vertical Rod Exit Device
Installation Instructions
Grade 1
I-ED00793
Rev 4, Rev Date: 05/31/2018 Page 6of 8
Hager Companies 139 Victor Street, St. Louis, MO 63104 [phone] www.hagerco.com
8. INSTALL TOP MOUNTING BRACKET
Remove top latch cover and mounting bracket from top latch
assembly. Fold and apply template to door using edge of door
and face of top stop. Mark and drill holes as shown on
template for both top latch bracket and strike. Be sure the
vertical centerline for the top latch mounting holes is 1 7/16”
from the edge of door. Install top mounting bracket.
-For metal doors, drill and tap for 1/4"-20 machine screws
-For wood doors, pre-drill 1/8” holes
-For Sex Bolts, drill 5/16” clearance holes on exit device side (push
side) and 3/8” on pull side
Screws:
Metal doors or Sex Bolt: 1/4"-20 machine screws (2)
Wood door: #12 wood screws (2)
9. INSTALL TOP LATCH AND STRIKE
STEP 1: Install top strike to face of stop
using only the two outer slotted
mounting holes.
STEP 2: Install top latch assembly to top
mounting bracket using provided
screws and top two holes in
bracket.
STEP 3: Close door, check alignment of
strike and top latch, adjust if
required, and install screw into
center hole in strike.
-For metal stop, drill and tap for #12-24
machine screws
-For wood stop, pre-drill 1/8” holes
Strike Screws:
Metal Stop:
#12-24 button head machine screws (2)
#12-24/#10 flat head combo machine/wood screw (1)
Wood Stop:
#10 button head wood screws (2)
#12-24/#10 flat head combo machine/wood screw (1)
1 3/16”
(30 mm)
9/16”
(15 mm)
1 1/2”
(38 mm)
1 7/16”
(37 mm)
DOOR
FRAME SOFFIT
INSTALL THIS SCREW LAST
1 7/16”
(37 mm)
1 7/8”
(48 mm)

4700 Series Surface Vertical Rod Exit Device
Installation Instructions
Grade 1
I-ED00793
Rev 4, Rev Date: 05/31/2018 Page 7of 8
Hager Companies 139 Victor Street, St. Louis, MO 63104 [phone] www.hagerco.com
10. INSTALL TOP ROD
STEP 1: Thread top rod half-way onto top latch threaded connector.
STEP 2: Use the provided machine screw to attach rod connector onto
actuating plate, but do not attach top rod and rod connector yet.
Align the edge of rod connector next to top rod and mark a cutting
line on top rod. Be sure actuating plate on the chassis is in the down
position.
STEP 3: Remove top rod and cut top rod with hack saw or metal cutting saw
blade. Deburr edges.
STEP 4: Slide newly cut rod into drilling guide until it stops. Drilling guide
sets the hole location so be sure rod is fully inserted.
STEP 5: Lay the rod with the drilling guide flat on a table. Use one of the
existing 1/8” guide holes on any side of the drilling guide and drill
an 1/8” hole through the rod.
STEP 6: Install rod connector:
-Slide the rod connector into the newly drilled end of the rod and
line up the hole in the rod connector with the hole that was just
drilled into the rod.
-Use a hammer to tap the provided spring pin into the hole until
it is fully seated. Check that there is a secure connection
between the rod and rod connector.
STEP 7: Be sure the top latch is in the locked position. Thread top rod half-
way onto top latch threaded connector. Fasten bottom end of top
rod onto actuating plate on exit device chassis. This may require
raising or lowering the top rod by threading it clockwise or
counterclockwise on the top latch threaded connector.
STEP 1: THREAD TOP ROD ONTO
TOP LATCH CONNECTOR
STEP 2: INSTALL ROD CONNECTOR
AND USE EDGE TO MARK WHERE
TO CUT TOP ROD
STEP 3: CUT TOP ROD WITH HACKSAW
ROD CONNECTOR
CUTTING EDGE
Rod (Cut to proper length)
Drilling Guide
STEP 4: FULLY INSERT ROD INTO
DRILLING GUIDE
STEP 5: DRILL 1/8” THRU HOLE USING
THE GUIDE HOLE AND DRILL ON A FLAT
SECURE SURFACE
Rod (Cut to
proper length)
Drilling Guide
1/8” Drill Bit
Drill Guide Hole
Completed Rod with
Spring Pin Connection
Rod
Spring Pin
Rod Connector
STEP 6: DRIVE SPRING PIN INTO
ROD / ROD CONNECTOR WITH A
HAMMER TO SECURE
STEP 7: INSTALL TOP ROD. THREAD
ROD ONTO TOP LATCH CONNECTOR.
FASTEN ROD CONNECTOR TO
ACTUATING PLATE.
TYPICAL TOP ROD LENGTH
DOOR
HEIGHT
ROD
LENGTH
6’ 8”
31 ¼”
7’
35 ¼”
8’
47 ¼”
THIS CHART REPRESENTS THE TYPICAL LENGTH
OF THE TOP ROD WITHOUT THE ROD CONNECTOR

4700 Series Surface Vertical Rod Exit Device
Installation Instructions
Grade 1
I-ED00793
Rev 4, Rev Date: 05/31/2018 Page 8of 8
Hager Companies 139 Victor Street, St. Louis, MO 63104 [phone] www.hagerco.com
11. ADJUST AND TEST INSTALLATION
EXIT DEVICE OPERATION
When push bar is depressed and the door is opened, the top and bottom latch should be held retracted until door closes. When the
push bar is released both latches remain in the retracted state. When the door closes and the top latch engages with the top strike,
it releases the holding mechanism and allows the bottom latch to fully extend.
If the latches do not work smoothly when opening and closing the door, adjust the rod accordingly:
If the bottom latch does not clear the strike or threshold:
-Disconnect the bottom rod from the actuating plate and rotate the rod clockwise, which will raise the rod and latch bolt.
If the top latch does not clear the strike:
-Disconnect the top rod from the actuating plate and rotate the rod clockwise, which will shorten the overall distance. This
will allow the top latch to completely rotate out of the way of the strike.
If the top latch will not stay in unlocked position after opening door:
-Check that the latch is not too far away from the strike. If so, add one of the included top strike shims to lower top strike.
-After adjusting the strike, readjust the top rod length to that the latch falls smoothly into the unlocked state.
12. INSTALL COVERS
13. INSTALL ROD GUIDES
Install chassis head cover and both top and bottom latch covers.
14. DOGGING DEVICE
For increasing the life of this device, dog device during
high traffic periods of the day. (A dogging device is not
available on fire rated models).
Dogging:
Depress push bar, then insert dogging hex wrench and
turn clockwise 90°. The push bar will remain depressed
and the latch will stay retracted.
Release Dogging:
Hold push bar, then insert dogging hex wrench and turn
counterclockwise 90°. The push bar will return to the up
position and latch will extend to secure door.
Install top and bottom rod
guides centered between latch
cover and head cover or at
desired height.
RELEASE
DOGGING
DOGGING
SCREWS:
Metal Door: 10-24 machine screws (4)
Wood Door: #10 wood screws (4)
