Hagie STS/DPS Series User manual

5 - DASH / AUTO
2019 STS/DPS
OPERATOR’S MANUAL
493774
CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some of its
constituents are known to the State of
California to cause cancer, birth defects,
and other reproductive harm.

5 - DASH / AUTO

CONTENTS
5 - DASH / AUTO
Covers Machine Serial Numbers: STS10/STS12/STS14/STS16 19001-19500 Part No. 493774
© 2018-20 Hagie Manufacturing Company. Clarion, Iowa USA Rev. 19G200110
Some of the material used in this manual may be the reproduced works of Deere & Co.
1 – INTRODUCTION
A Word From Hagie Manufacturing Company ...................................................................1-1
About This Manual .............................................................................................................1-1
Safety Messages Used In This Manual .............................................................................1-2
Service and Assistance ......................................................................................................1-2
Product Warranty ...............................................................................................................1-2
Identification .......................................................................................................................1-2
Specifications .....................................................................................................................1-7
Torque Values ..................................................................................................................1-22
2 – SAFETY AND PRECAUTIONS
Intended Use ......................................................................................................................2-1
Safety Precautions .............................................................................................................2-1
Seat Belt ............................................................................................................................2-7
Rotating Beacon ................................................................................................................2-7
Emergency Stop ................................................................................................................2-8
Emergency Exit ..................................................................................................................2-8
Fire Extinguisher ................................................................................................................2-9
Safety Decals .....................................................................................................................2-9
3 – CAB
Seat - Operator ..................................................................................................................3-1
Seat - Operator (Premium) ................................................................................................3-2
Seat - Instructor .................................................................................................................3-5
Operator’s Station ..............................................................................................................3-5
Machine Display ...............................................................................................................3-29
4 – ENGINE AND DRIVE SYSTEMS
Engine - Starting ................................................................................................................4-1
Engine Aftertreatment - Final Tier 4 ...................................................................................4-3
Hydrostatic Drive ..............................................................................................................4-12
All-Wheel Steer (AWS) ....................................................................................................4-17
5 – HYDRAULIC SYSTEMS
Hydraulic System Components ..........................................................................................5-1
Reversible Fan ...................................................................................................................5-5
Tread Adjustment - Hydraulic ............................................................................................5-7
Ladder ..............................................................................................................................5-11
Pressure Washer .............................................................................................................5-13
6 – ELECTRICAL SYSTEMS
Batteries .............................................................................................................................6-1
Battery Disconnect Switch .................................................................................................6-2

Battery Tender ...................................................................................................................6-3
Fuses and Relays ..............................................................................................................6-5
Fuse and Relay Ratings ...................................................................................................6-10
7 – SPRAY SYSTEMS
Spray Booms - 90/100’ ......................................................................................................7-1
Spray Booms - 120’ Hybrid ................................................................................................7-9
Spray Boom - Rear ..........................................................................................................7-26
Solution System Components ..........................................................................................7-28
Solution System - Operation ............................................................................................7-38
Fence Row Applicator ......................................................................................................7-42
Filling Your Solution Tank ................................................................................................7-43
Draining Your Solution Tank ............................................................................................7-49
Rinse System ...................................................................................................................7-50
Foam Marker System .......................................................................................................7-54
Modular Injection System .................................................................................................7-56
Application .......................................................................................................................7-66
8 – DPS
Solution System Components - Dual Product ....................................................................8-1
Solution System Operation - Dual Product ......................................................................8-13
Rinse System - Dual Product ...........................................................................................8-18
Filling Your Solution Tank - Dual Product ........................................................................8-31
Draining Your Solution Tank - Dual Product ....................................................................8-35
Application - Dual Product ...............................................................................................8-37
9 – MAINTENANCE AND STORAGE
Service - Fluids ..................................................................................................................9-1
Service - Filters ................................................................................................................9-11
Service - Lubrication ........................................................................................................9-25
Service - Engine Drive Belt ..............................................................................................9-31
Service - Bolt Torque .......................................................................................................9-31
Service - Toe-In ...............................................................................................................9-33
Service - Miscellaneous ...................................................................................................9-35
Service Intervals ..............................................................................................................9-39
Storage ............................................................................................................................9-43
10 – MISCELLANEOUS
Transporting .....................................................................................................................10-1
Lifting Your Machine ........................................................................................................10-5
Quick-Tach System - Spray Booms .................................................................................10-7
Air Suspension Exhaust .................................................................................................10-19
Hand Wash System .......................................................................................................10-19
Hood Operation ..............................................................................................................10-22
Ladder - Fuel Fill ............................................................................................................10-23
Tall Crop Package - Installation .....................................................................................10-26

5 - DASH / AUTO
1-1
SECTION 1 – INTRODUCTION
A WORD FROM HAGIE
MANUFACTURING
COMPANY
Congratulations on the purchase of your
STS Sprayer! Read this operator’s manual
and become familiar with operating
procedures and safety precautions before
attempting to operate your sprayer.
As with any piece of equipment, certain
operating procedures, service, and
maintenance are required to keep your
machine in top running condition. We have
attempted herein to cover all of the
adjustments required to fit varying
conditions. However, there may be times
when special care must be considered.
NOTE: The operator is responsible for
inspecting the machine and its
attachments, as well as having parts
repaired or replaced when continued
use of the product causes damage or
excessive wear to other parts.
Hagie Manufacturing Company reserves
the right to make changes in the design and
material of any subsequent sprayer without
obligation to existing units.
Thank you for choosing a Hagie sprayer
and we ensure you of our continued interest
and support in its optimal performance for
you. We are proud to have you as a
customer!
ABOUT THIS MANUAL
This manual will aid you in the proper
operation and service of your machine. It is
the responsibility of the user to read the
operator’s manual and comply with the
correct and safe operating procedures, as
well as maintain the product according to the
service information provided in the
Maintenance and Storage Section elsewhere
in this manual.
Photographs and illustrations used in this
manual are of general nature only. Some of
the equipment and features shown may not
be available on your machine.
Information described in this manual was
correct at the time of printing. Because of
Hagie Manufacturing Company’s continuous
product improvement, certain information
may not be included in this manual. To obtain
the most current operator’s manual for your
machine, please visit www.hagie.com.
Keep this manual in a convenient place for
easy reference. This manual is considered a
permanent fixture of the product. In the event
of resale, this manual must accompany the
machine.
If you do not understand any part of this
manual or require additional information or
service, contact your local John Deere dealer
for assistance.
NOTICE
Any pictures or illustrations contained
within this manual that depict situations
with shields, guards, rails, or lids
removed are for demonstration only.
Keep all shields and safety devices in
place at all times.

1-2
SECTION 1 –
INTRODUCTION
SAFETY MESSAGES USED
IN THIS MANUAL
The following safety messages found
throughout this manual alert you of situations
that could become potentially dangerous to
the operator, service personnel, or
equipment.
NOTE: A “Note” is intended to make special
mention of, or remark on.
SERVICE AND ASSISTANCE
Please contact your local John Deere
dealer for service and assistance.
PRODUCT WARRANTY
Please contact your local John Deere
dealer for further information.
IDENTIFICATION
Each machine is identified by means of a
frame serial number. This serial number
denotes the model, year in which it was built,
and the number of the sprayer.
For further identification, the engine,
solution pump, hydraulic pumps, and
attachments each have serial numbers, and
the planetary wheel hubs have identification
plates that describe the type of mount and
gear ratio.
To ensure prompt, efficient service when
ordering parts or requesting service repairs,
record the serial numbers and identification
numbers in the following spaces provided.
Machine
The machine serial number is stamped on
the front right-hand side of frame (behind the
front leg).
DANGER
The signal word DANGER indicates a
hazardous situation which, if not
avoided, will result in death or serious
injury.
WARNING
The signal word WARNING indicates a
hazardous situation which, if not
avoided, could result in death or serious
injury.
CAUTION
The signal word CAUTION indicates a
hazardous situation which, if not
avoided, could result in minor or
moderate injury. CAUTION may also be
used to alert against unsafe practices
associated with events which could lead
to personal injury.
NOTICE
The signal word NOTICE indicates
operator awareness which, if not
avoided, may result in personal or
property damage.
NOTICE
Reference to right and left-hand used
throughout this manual refers to the
position when seated in the operator’s
seat facing forward.

SECTION 1 –
INTRODUCTION
1-3
Engine
STS10/STS12
The engine has a primary identification
plate located on the engine itself that
provides engine serial number, as well as
other manufacturer information.
A secondary identification plate is located
near the emission label on the rear left-hand
frame (open hood to access).
STS14/STS16
The engine has an identification plate
located on the right-hand side (above
batteries) that provides engine serial
number, as well as other manufacturer
information.
Machine Serial Number
-Typical View
Serial No. _______________________
Engine Identification Plate - STS10/STS12
-Typical View
Serial No. _______________________
Engine Identification Plate - STS14/STS16
-Typical View
Serial No. _______________________

1-4
SECTION 1 –
INTRODUCTION
Solution Pump
The solution pump has an identification
plate mounted on the side of pump that
provides pump serial number, as well as
other manufacturer information. Refer to your
Parts Manual for specific part number.
Hydraulic Pumps
The PC, LS, Fan, and Drive Pumps each
have an identification plate mounted on the
side of pump that provides pump serial
number, as well as other manufacturer
information. Refer to your Parts Manual for
specific part number.
Wheel Motors
The wheel motors each have an
identification plate mounted on the side of
motor that provides motor serial number, as
well as other manufacturer information. Refer
to your Parts Manual for specific part
number.
Solution Pump Identification Plate
* View shown from beneath machine
-Typical View
Serial No. _______________________
• Drive
Pump
•PC
Pump
• Fan
Pump
•LS
Pump
Hydraulic Pumps
* Top view shown
-Typical View
_______________________ PC Pump
_______________________ Fan Pump
_______________________ LS Pump
_______________________ Drive Pump

SECTION 1 –
INTRODUCTION
1-5
Wheel Hubs
The wheel hubs each have an
identification plate mounted on the front of
hub that provides hub serial number, as well
as other manufacturer information, including
gear ratio. Refer to your Parts Manual for
specific part number.
Spray Booms
The spray booms have an identification
plate mounted on the lower right-hand side of
transom that provides boom model and serial
number.
Wheel Motor Identification Plates
-Typical View
_______________________ Right Front
_______________________ Right Rear
_______________________ Left Front
_______________________ Left Rear
Wheel Hub Identification Plate
-Typical View
_______________________ Right Front
_______________________ Right Rear
_______________________ Left Front
_______________________ Left Rear
Spray Boom Identification Plate
-Typical View

1-6
SECTION 1 –
INTRODUCTION
Steel Spray Booms (90/100’)
Hybrid Spray Booms (120’)
90/100’ Steel Spray Boom
Identification Plate
-Typical View
Serial No. _______________________
120’ Hybrid Boom Identification Plate
-Typical View
Serial No. _______________________

SECTION 1 –
INTRODUCTION
1-7

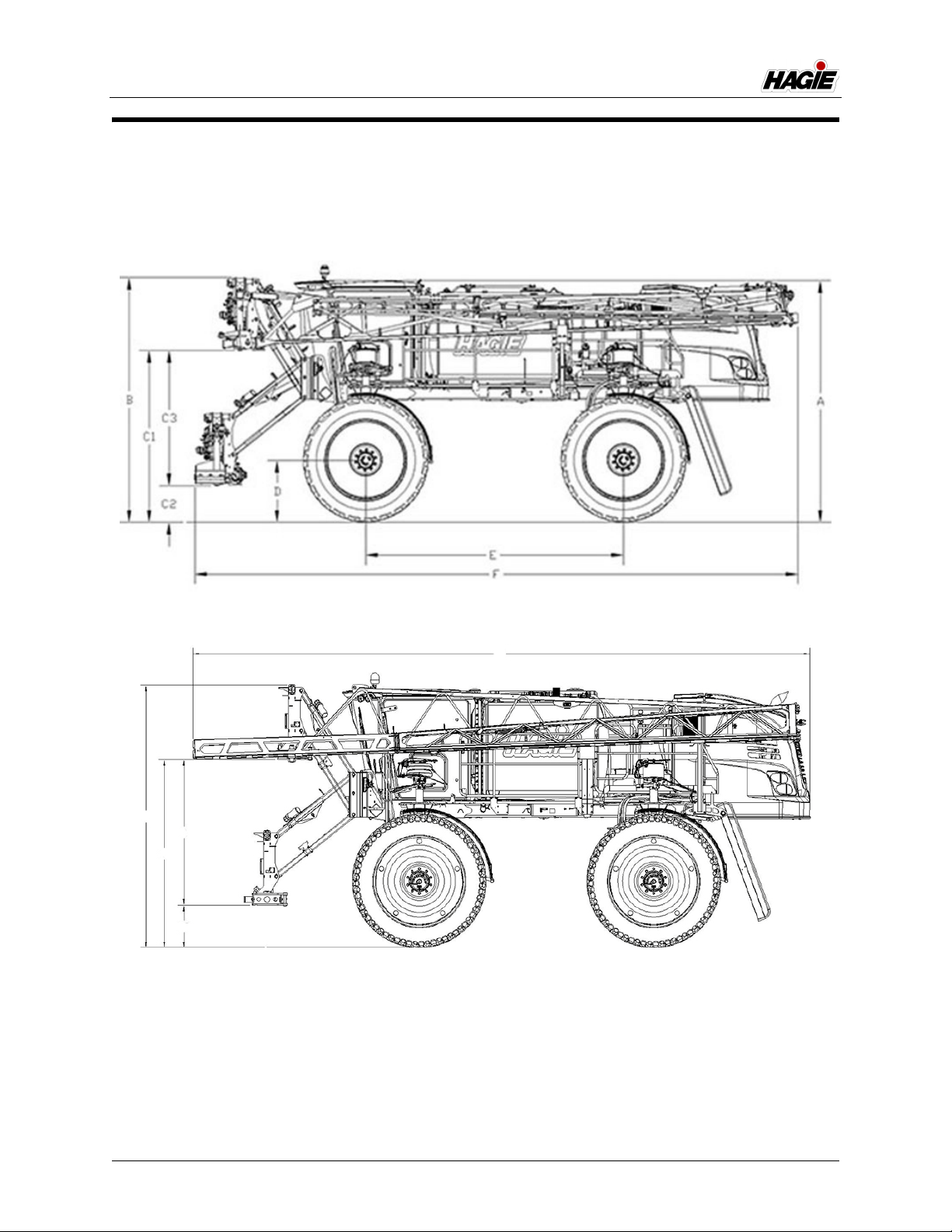

SPECIFICATIONS
Machine Dimensions
NOTE: Dimensions on your machine may vary, depending on tire size.
Your machine may vary,
depending on boom option
Illustration 1a
B
C3
C1
C2
F
Illustration 1b (120’ Hybrid Boom)

1-8
SECTION 1 –
INTRODUCTION
* Tread width is measured from center of tire at ground.
** Refer to “Tire Specifications” provided elsewhere in this section for a complete listing of tire options when configuring machine specifications on your
model.
Description Specification
90’ Boom 100’ Boom 120’ Hybrid Boom
AOverall Machine Height (from top of cab)
NOTE: Overall machine height dimension does
not include the cab-mounted rotating
beacon or the optional GPS unit.
154” (391.2 cm) ** 154” (391.2 cm) ** 154” (391.2 cm) **
B Raised Transom Height
See Illustration 1b/2b
153” (388.6 cm) **
(from top of lights)
153” (388.6 cm) **
(from top of lights)
• 153”/388.6 cm
(from top of transom) **
• 155.5”/395 cm (from top of
solution hose) **
C3 Transom Lift Range (C1 minus C2)
See Illustration 1b/2b
86” (104” - 18”)
218.4 cm (264.2-45.7 cm)
86” (104” - 18”)
218.4 cm (264.2-45.7 cm)
87” (110” - 23”)
221 cm (279.4-58.4 cm)
D Static Loaded Hub Height 38 3/8” (97.5 cm) ** 38 3/8” (97.5 cm) ** 38 3/8” (97.5 cm) **
EWheel Base • STS10/STS12: 140”/355.6 cm
• STS14/STS16: 166”/421.6 cm
• STS10/STS12: 140”/355.6 cm
• STS14/STS16: 166”/421.6 cm
• STS10/STS12: 140”/355.6 cm
• STS14/STS16: 166”/421.6 cm
F Overall Length
See Illustration 1b/2b
NOTE: Overall machine length will vary,
depending on boom option.
Dimensions do not include the
optional rear boom.
• STS10/STS12: 336”/853.4 cm
• STS14/STS16: 362”/919.5 cm
• STS10/STS12: 336”/853.4 cm
• STS14/STS16: 362”/919.5 cm
• STS10/STS12: 371.3”/943.1 cm
• STS14/STS16: 397.3”/10 m
GOverall Width
(booms folded, 120”/304.8 cm tread)
See Illustration 1b/2b
144” (365.8 cm) 144” (365.8 cm) 168” (426.7 cm)
H Frame Clearance (to mainframe) 76” (193 cm) ** 76” (193 cm) ** 76” (193 cm) **
ILower Leg Clearance (from shield) 31” (78.7 cm) ** 31” (78.7 cm) ** 31” (78.7 cm) **
J Tread Width* • 120” (304.8 cm) **
• 160” (406.4cm) **
• 120” (304.8 cm) **
• 160” (406.4cm) **
• 120” (304.8 cm) **
• 160” (406.4cm) **
G
Illustration 2a Illustration 2b (120’ Hybrid Boom)
Your machine may vary, depending on boom option

SECTION 1 –
INTRODUCTION
1-9
General Information
Frame Type
• 4” x 8” (10.2 cm x 20.3 cm) modular
platform frame
Suspension
• 4-wheel, individual, auto air-ride
Shipping Width
• 144”/365.8 cm (with 90/100’ steel boom)
• 168”/426.7 cm (with 120’ hybrid boom)
Approximate Dry Weight
STS10
• 23,466 lbs./10,644 kg (machine only)
• 27,586 lbs./12,512 kg (with 90’ steel
boom)
• 27,586 lbs./12,512 kg (with 100’ steel
boom)
• 27,626 lbs./12,530 kg (with 120’ hybrid
boom)
STS12
• 24,346 lbs./11,043 kg (machine only)
• 28,466 lbs./12,912 kg (with 90’ steel
boom)
• 28,466 lbs./12,912 kg (with 100’ steel
boom)
• 28,506 lbs./12,930 kg (with 120’ hybrid
boom)
STS12 (DPS)
• 24,696 lbs./11,201 kg (machine only)
• 28,966 lbs./13,138 kg (with 90’ steel
boom)
• 28,966 lbs./13,138 kg (with 100’ steel
boom)
• 29,006 lbs./13,156 kg (with 120’ hybrid
boom)
STS14
• 24,926 lbs./11,306 kg (machine only)
• 29,046 lbs./13,175 kg (with 90’ steel
boom)
• 29,046 lbs./13,175 kg (with 100’ steel
boom)
• 29,086 lbs./13,193 kg (with 120’ hybrid
boom)
STS16
• 25,069 lbs./11,371 kg (machine only)
• 29,189 lbs./13,239 kg (with 90’ steel
boom)
• 29,189 lbs./13,239 kg (with 100’ steel
boom)
• 29,229 lbs./13,258 kg (with 120’ hybrid
boom)
STS16 (DPS)
• 25,419 lbs./11,529 kg (machine only)
• 29,689 lbs./13,466 kg (with 90’ steel
boom)
• 29,689 lbs./13,466 kg (with 100’ steel
boom)
• 29,729 lbs./13,484 kg (with 120’ hybrid
boom)
NOTICE
Because Hagie Manufacturing
Company offers a variety of options, the
illustrations in this manual may show a
machine equipped other than standard.
Machine dimension and weight values
may vary, depending on available
equipment.

1-10
SECTION 1 –
INTRODUCTION

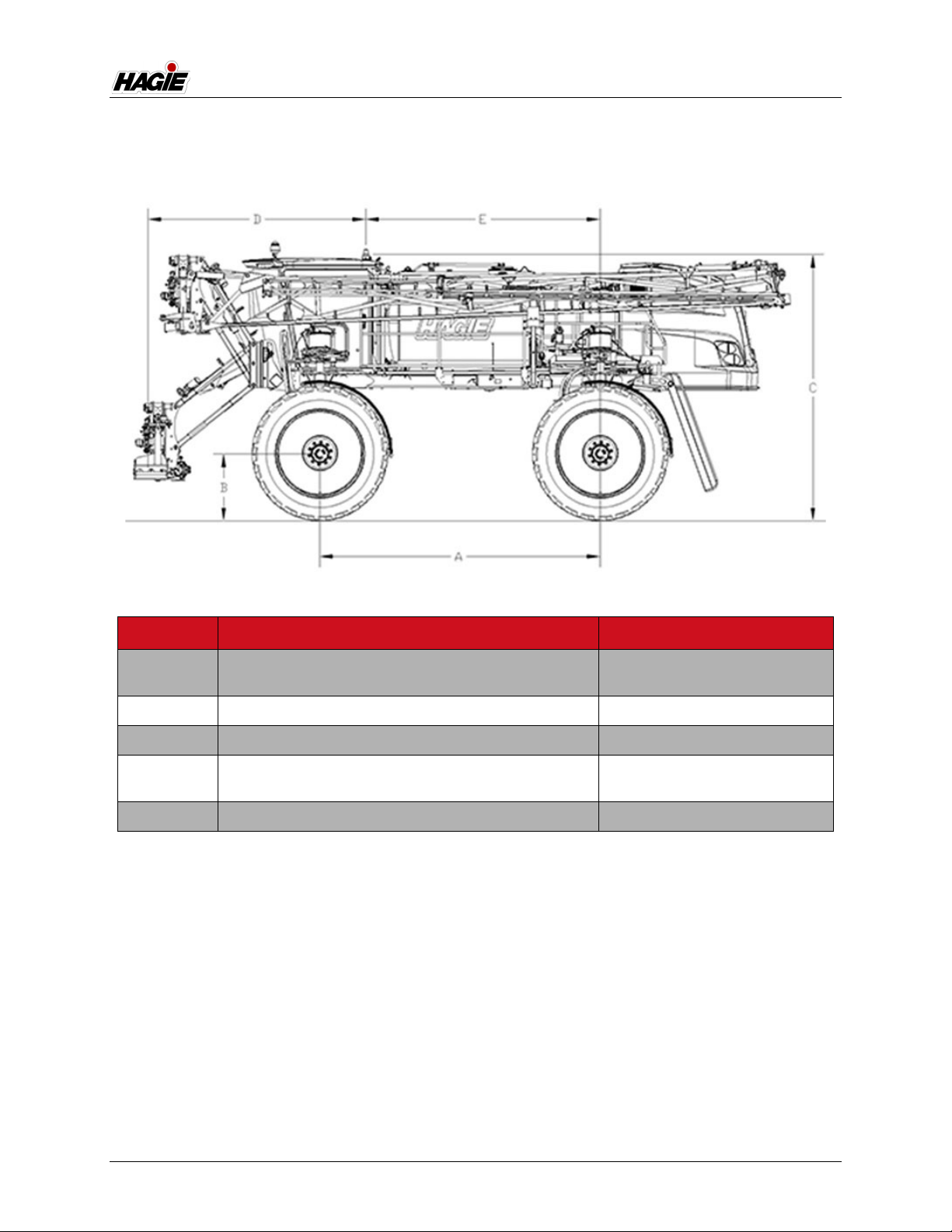

Spray System GPS Specifications
-If Equipped
NOTE: Dimensions on your machine may vary, depending on tire size.
Detail Description Specification
AWheel Base • STS10/STS12: 140” (355.6 cm)
• STS14/STS16: 166” (421.6 cm)
B Static Loaded Hub Height 38 3/8” (97.5 cm) **
COverall Sprayer Height (from middle of GPS unit) 156.4” (397.3 cm) **
D Length
(from front of boom spray tips to center of GPS unit)
129.8” (329.7 cm)
ELength (from center of GPS unit to center of rear hub) 112.8” (286.5 cm)
Your machine may vary,
depending on boom option

SECTION 1 –
INTRODUCTION
1-11
Settings and Calibration
Record settings and calibration values
used in the following spaces provided when
programming your spray system console.
Refer to this information for future reference.
Record calculated calibration values in the spaces provided below.
Speed Cal Section
Widths
Meter Cal Rate Cal Valve Cal Tank Volume
1. 1. 1. 1. 1. 1.
2. 2. 2. 2. 2.
3. 3. 3. 3. 3.
4. 4. 4. 4. 4.
5. 5. 5. 5. 5.
6.
7.
8.
9.
10.

1-12
SECTION 1 –
INTRODUCTION
Machine Specifications
Description Specification
Engine
Manufacturer John Deere
Model •STS10/STS12 - Final Tier 4 PSS 6.8L
•STS14/STS16 - Final Tier 4 PSS 9.0L
Type • Electronic w/Air-to-Air Cooler and Dual Stage
Turbo Charger
• Diesel Oxidation Catalyst/Diesel Particulate
Filter (DOC/DPF)
• Cooled Exhaust Gas Recirculation (EGR)
• Selective Catalytic Reduction (SCR)
Number of Cylinders 6
Displacement •STS10/STS12 - 6.8L (415in3)
•STS14/STS16 - 9.0L (549 in3)
Horse Power STS10
• 280 hp (209 kW) @2400 rpm
• 300 hp (224 kW) @2400 rpm (peak power)
STS12
• 300 hp (224 kW) @2400 rpm
• 300 hp (224 kW) @2400 rpm (peak power)
STS14
• 300 hp (223 kW) @2200 rpm
• 333 hp (248 kW) @2000 rpm (peak power)
STS16
• 375 hp (279 kW) @2200 rpm
• 413 hp (308 kW) @2000 rpm (peak power)
Fuel Type Ultra-Low Sulfur Diesel (ULSD)
Fuel System Filtered, Direct-Injected
Air Cleaner Dry-Type, Dual Element
Engine Air Filter Restriction Monitors Engine Control Unit (ECU)
Slow Idle 850 RPM
Fast Idle (no load) •STS10/STS12 - 2400 RPM
•STS14/STS16 - 2200 RPM
Hydrostatic Drive
Hydrostatic Pump Danfoss H1-Series
Drive Train All-Wheel 4-Wheel Drive
Speed Ranges Speed Ranges 1-20 (operator selected)

SECTION 1 –
INTRODUCTION
1-13
• Solution Tank Transport Limit
(Transportation Tank Level Switch)
•STS10 - 350 gallons (1324L)
•STS12 - 450 gallons (1703L)
•STS14 - 500 gallons (1892L)
•STS16 - 600 gallons (2271L)
Hydrostatic Wheel Motors Danfoss H1-Series
Final Drives Planetary Gear Reduction Hubs (Fairfield C017)
• Lubrication Oil Bath
Brakes (Parking) Multiple Disk, Spring Applied, Hydraulically
Released
Brakes (Friction) Hydraulically Applied (Front Wheels), Internal to
Hubs
Auxiliary Hydraulic System
Steering System Hydraulic, Priority Circuit, PC Pump
• Control Full-Time Power
• Steering Cylinders Double Acting (w/dynamic alignment system*)
* Under normal field conditions
• Turning Radius^
NOTE: May vary, depending on tire size.
STS10/STS12
• 25 ft./7.5 m (No AWS/AWS “Off”)
• 18 ft./5.5 m (AWS “On”, if equipped)
STS14/STS16
• 27 ft./8 m (No AWS/AWS “Off”)
• 20 ft./6 m (AWS “On”, if equipped)
All Wheel Steer (AWS) - if equipped^ Coordinated Steering
Solution System Hydraulic Pump Load Sense (LS) Pump
Cooling Fan Hydraulic Pump Hydrostatic Closed-Loop Pump
Spray System
Booms • 90/100’ (Steel) - 9 sections
• 120’ (Hybrid) - 9 sections
• Type 1” (2.5 cm) Schedule 5 Stainless Wet Boom
Plumbing
• Controls Electro-Hydraulic (fold/lift/level)
• Level Shock Absorber Gas-Charged Accumulator
• 90/100-ft. Outer Boom Hydraulic Breakaway Self-Actuated
• 120-ft. Inner Boom Breakaway Hydraulic, Manual Reset
• 120-ft. Outer Boom Breakaway Mechanical w/Spring, Auto Reset
Solution Fill Connection
• Quick-fill Connection 3” (7.6 cm) Inner Diameter

1-14
SECTION 1 –
INTRODUCTION
Solution Tank •STS10 - Polyethylene (standard), Stainless
Steel (optional)
•STS12/STS14/STS16 - Stainless Steel
(standard)
Agitation Jet-Type w/Electric Valve Variable Control
General Spray System
• Pump • Centrifugal-Hydraulically Driven w/Proportional
Control Valve
• Hypro® 9306-HM1C-BU w/Silicon Carbide
Seals
• 3” (7.6 cm) Inlet/2” (5.1 cm) Outlet Plumbing
• Flow Meter Electromagnetic: 3-190 GPM (11.4-719.2 l/min)
• Boom Solution Valves Ball Valves, Electric Actuation, Stainless Ball/
Stem, PTFE Seats
• Pressure Gauge 160 PSI (11 bar), Glycerin Filled
• Console • Raven (optional)
• Ag Leader® (optional)
• John Deere (optional)
• Fence Row Nozzle Remote Activated (left and right)
• Rear Nozzle Remote Activated
Solution Circuit Pressure (Maximum) 100 PSI (6.9 bar)
Modular Injection System (if equipped)
Chemical Tank(s) 55 gallons (208L)/each
Injection Pump(s) Raven Sidekick Pro™ (5-200 oz./min.)
Mixer 3” (7.6 cm) Poly
Foam Marker System (if equipped)
Make Hagie Concentrate Foamer
Type Boom Mix
Rinse System
Spray System Rinse
(solution tank, pump, and booms)
2 Rotating Rinse Balls (inside tank)
Air Purge - if equipped Remote Activated (purges pump suction line,
pump, and boom plumbing)
Dual Product Spray System (if equipped)
Boom Plumbing •Single Product System (9-section 1”/2.5 cm
schedule 5 stainless wet boom plumbing)
•Dual Product System (5-section 1”/2.5 cm
schedule 5 stainless wet boom plumbing)

SECTION 1 –
INTRODUCTION
1-15
Solution Tank STS12
• Stainless Steel
• 1200-gal./4542L (split)
(Tank 1 = 600-gal./2271L, Tank 2 = 600-gal./
2271L)
STS16
• Stainless Steel
• 1600-gal./6056L (split)
(Tank 1 = 1000-gal./3785L, Tank 2 = 600-gal./
2271L)
Agitation Jet-Type w/Electric Valve Variable Control
Solution Quick-Fill Connection 3” (7.6 cm) Inner Diameter
General Spray System
• Solution Pump (2) • Centrifugal-Hydraulically Driven w/Proportional
Control Valve
• Hypro® 9306-HM1C-BU w/Silicon Carbide
Seals
• 3” (7.6 cm) Inlet; 2” (5.1 cm) Outlet Plumbing
• Flow Meter (2) Electromagnetic: 3-190 GPM (11.4-719.2 l/min)
• Boom Solution Valves (2) Ball Valves, Electric Actuation, Stainless Ball/
Stem, PTFE Seats
• Pressure Gauge (2) 160 PSI (11 bar), Glycerin Filled
• Console • Raven (optional)
• Ag Leader® (optional)
• John Deere 2630 (optional)
Solution Circuit Pressure (Maximum) 100 PSI (6.9 bar)
Rinse System
• Spray System Rinse
(solution tank, pumps, and booms)
Rotating Rinse Ball (inside each side of tank)
• Air Purge - if equipped Remote Activated (purges pump suction line,
pump, and boom plumbing)
• Rinse Tank
(same standard spray system)
• Polyethylene
• 100-gal. (378L)
Electrical System
General Electrical System
• Battery Dual 12V, Negative Ground (CCA)
• Alternator 240 AMP, Voltage Regulated
• Starter 12V w/Solenoid
Lights (Exterior)
• Front of Cab 2 Trapezoidal Headlights, 2 Floodlights, 2
Rotating Amber Beacon Lights
