5 - DASH / AUTO
SECTION 1 – INTRODUCTION
A WORD FROM HAGIE
MANUFACTURING COMPANY
Congratulations on the purchase of your STS
Sprayer! Read this operator’s manual and
become familiar with operating procedures and
safety precautions before attempting to operate
your sprayer.
As with any piece of equipment, certain
operating procedures, service, and maintenance
are required to keep your machine in top running
condition. We have attempted herein to cover all
of the adjustments required to fit varying
conditions. However, there may be times when
special care must be considered.
NOTE: The operator is responsible for
inspecting the machine and its
attachments, as well as having parts
repaired or replaced when continued use
of the product causes damage or
excessive wear to other parts.
Hagie Manufacturing Company reserves the
right to make changes in the design and material
of any subsequent sprayer without obligation to
existing units.
Thank you for choosing a Hagie sprayer and
we ensure you of our continued interest and
support in its optimal performance for you. We
are proud to have you as a customer!
ABOUT THIS MANUAL
This manual will aid you in the proper
operation and service of your machine. It is the
responsibility of the user to read the operator’s
manual and comply with the correct and safe
operating procedures, as well as maintain the
product according to the service information
provided in the Maintenance and Storage
Section elsewhere in this manual.
Photographs and illustrations used in this
manual are of general nature only. Some of the
equipment and features shown may not be
available on your machine.
Information described in this manual was
correct at the time of printing. Because of Hagie
Manufacturing Company’s continuous product
improvement, certain information may not be
included in this manual. To obtain the most
current operator’s manual for your machine,
please visit www.hagiehelp.com.
Keep this manual in a convenient place for
easy reference. This manual is considered a
permanent fixture of the product. In the event of
resale, this manual must accompany the
machine.
If you do not understand any part of this
manual or require additional information or
service, contact your local John Deere dealer for
assistance.
SAFETY MESSAGES USED IN
THIS MANUAL
The following safety messages found
throughout this manual alert you of situations
that could become potentially dangerous to the
operator, service personnel, or equipment.
NOTICE
Any pictures or illustrations contained
within this manual that depict situations
with shields, guards, rails, or lids
removed are for demonstration only.
Keep all shields and safety devices in
place at all times.
DANGER
This symbol indicates a hazardous
situation which, if not avoided, will result
in serious injury or death.

SECTION 1 –
INTRODUCTION
1-2
NOTE: A “Note” is intended to make special
mention of, or remark on.
SERVICE AND ASSISTANCE
Please contact your local John Deere
dealer for service and assistance.
PRODUCT WARRANTY
Please contact your local John Deere
dealer for further information.
IDENTIFICATION
Each machine is identified by means of a
frame serial number. This serial number
denotes the model, year in which it was built,
and the number of the sprayer.
For further identification, the engine,
solution pump, hydraulic pumps, and
attachments each have serial numbers, and
the planetary wheel hubs have identification
plates that describe the type of mount and
gear ratio.
To ensure prompt, efficient service when
ordering parts or requesting service repairs,
record the serial numbers and identification
numbers in the following spaces provided.
Machine
The machine serial number is stamped on
the front right-hand side of frame (behind the
front leg).
WARNING
This symbol indicates a potentially
hazardous situation which, if not
avoided, could result in moderate/
serious injury or death.
CAUTION
This symbol indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury. It may also be used to
alert against unsafe practices.
NOTICE
This symbol indicates operator
awareness which, if not avoided, may
result in personal or property damage.
NOTICE
Reference to right and left-hand used
throughout this manual refers to the
position when seated in the operator’s
seat facing forward.

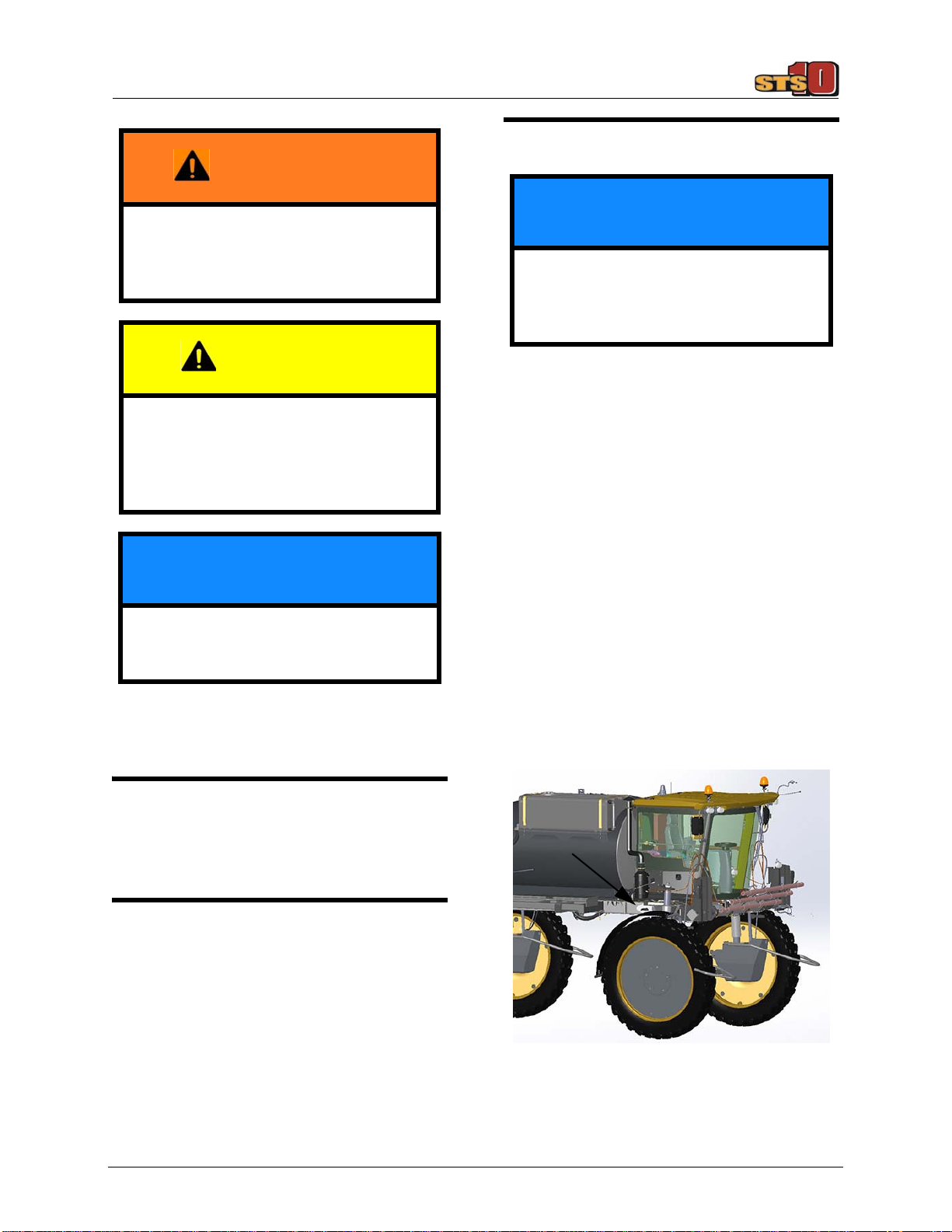

Machine Serial Number
-Typical View
Serial No. _______________________

1-3
SECTION 1 –
INTRODUCTION

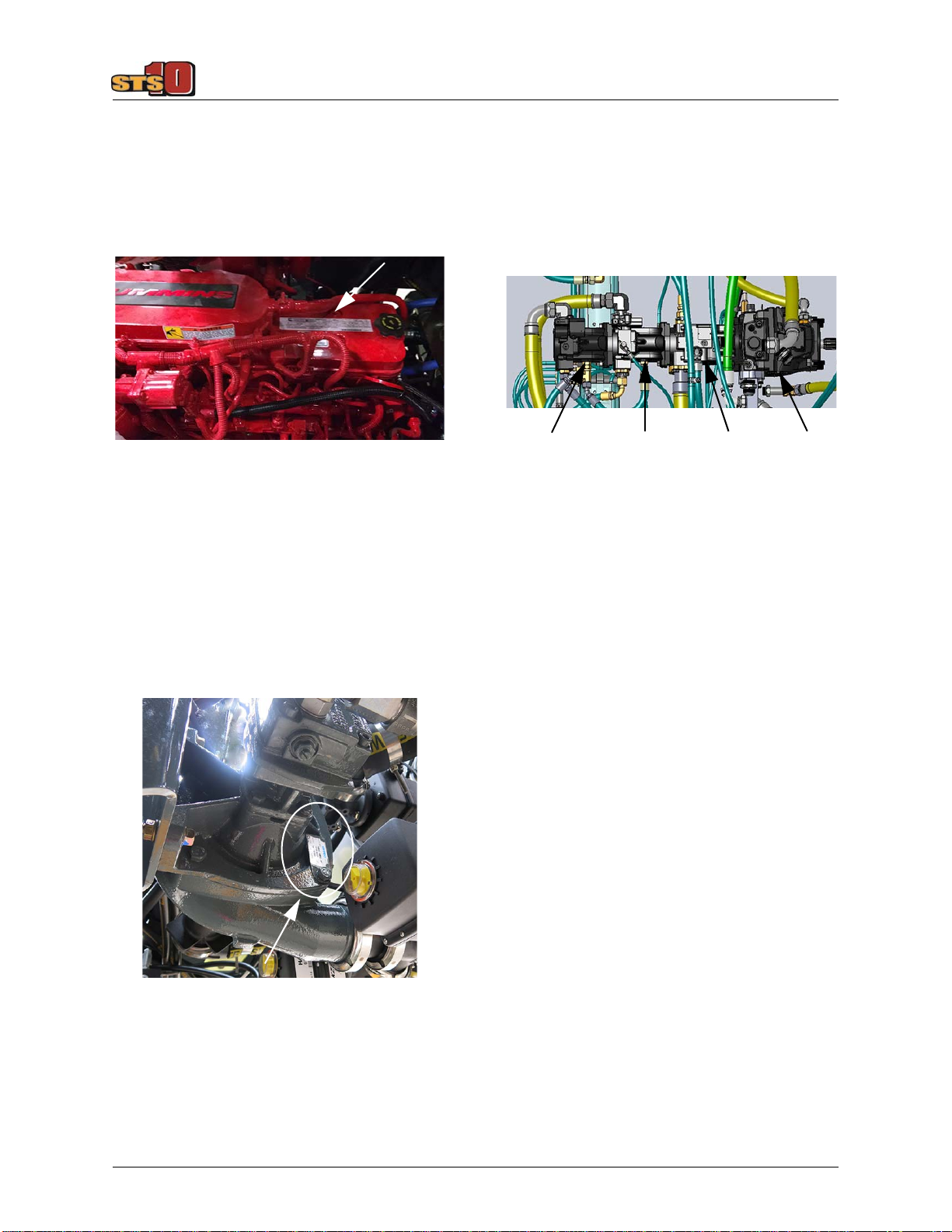

Engine
The engine has an identification plate
mounted on top of engine near the oil fill port
that provides engine serial number, as well
as other manufacturer information. Refer to
your Parts Manual for specific part number.
Solution Pump
The solution pump has an identification
plate mounted on the side of pump that
provides pump serial number, as well as
other manufacturer information. Refer to your
Parts Manual for specific part number.
Hydraulic Pumps
The PC, LS, and Drive Pumps each have
an identification plate mounted on the side of
pump that provides pump serial number, as
well as other manufacturer information. Refer
to your Parts Manual for specific part
number.
Wheel Motors
The wheel motors each have an
identification plate mounted on the side of
motor that provides motor serial number, as
well as other manufacturer information. Refer
to your Parts Manual for specific part
number.
Engine Identification Plate
-Typical View
Serial No. _______________________
Solution Pump Identification Plate
* View shown from beneath machine
-Typical View
Serial No. _______________________
• Drive
Pump
•PC Pump 1 •PC Pump 2 •LS
Pump
Hydraulic Pumps
* Top view shown
-Typical View
_______________________ PC Pump 1
_______________________ PC Pump 2
_______________________ LS Pump
_______________________ Drive Pump

SECTION 1 –
INTRODUCTION
1-4
Wheel Hubs

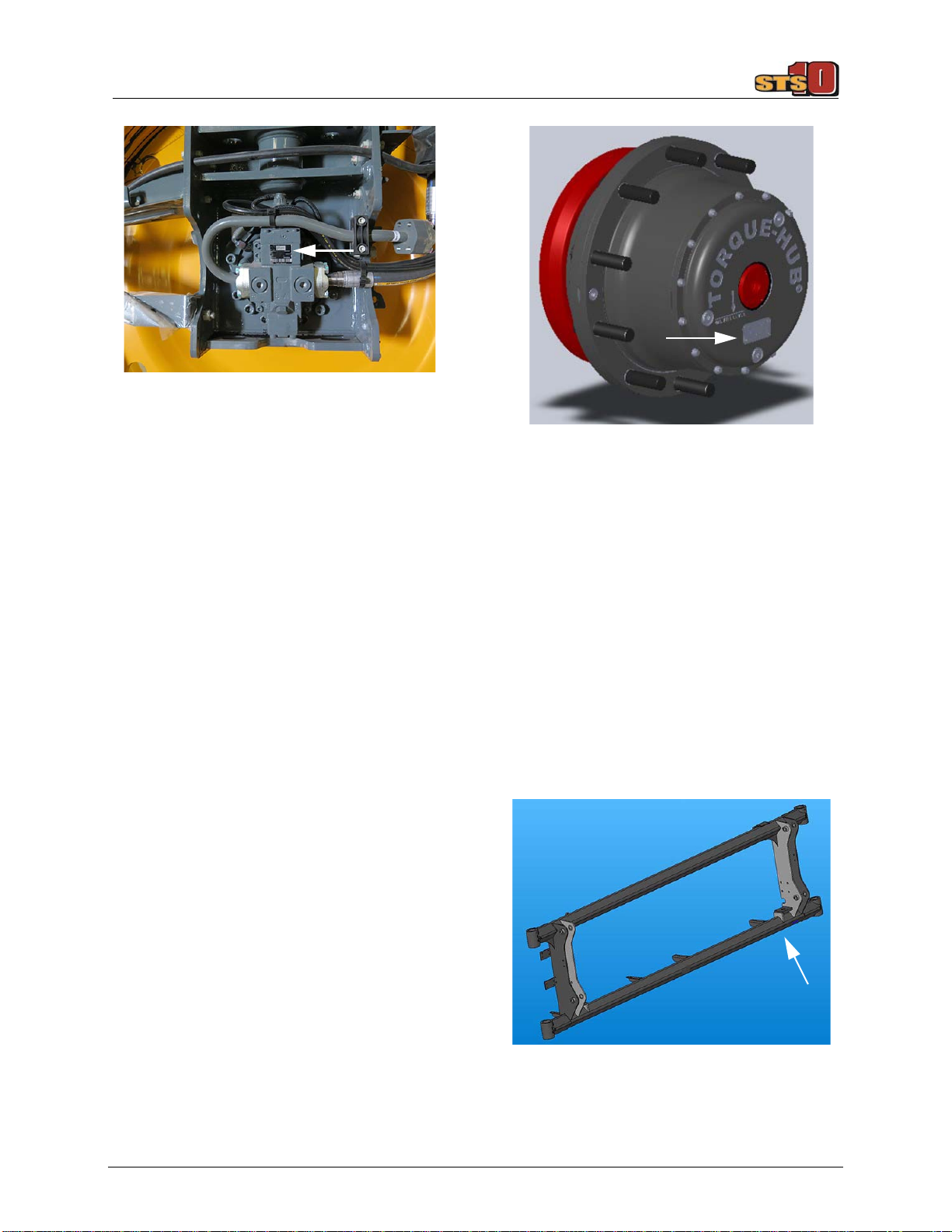

The wheel hubs each have an
identification plate mounted on the front of
hub that provides hub serial number, as well
as other manufacturer information, including
gear ratio. Refer to your Parts Manual for
specific part number.
Spray Boom
Steel Spray Booms (90/100’)
The steel spray boom serial number is
stamped on the bottom right-hand side of
transom.
Wheel Motor Identification Plates
-Typical View
_______________________ Right Front
_______________________ Right Rear
_______________________ Left Front
_______________________ Left Rear
Wheel Hub Identification Plate
-Typical View
_______________________ Right Front
_______________________ Right Rear
_______________________ Left Front
_______________________ Left Rear
Steel Spray Boom Serial Number
-Typical View
Serial No. _______________________

1-5
SECTION 1 –
INTRODUCTION

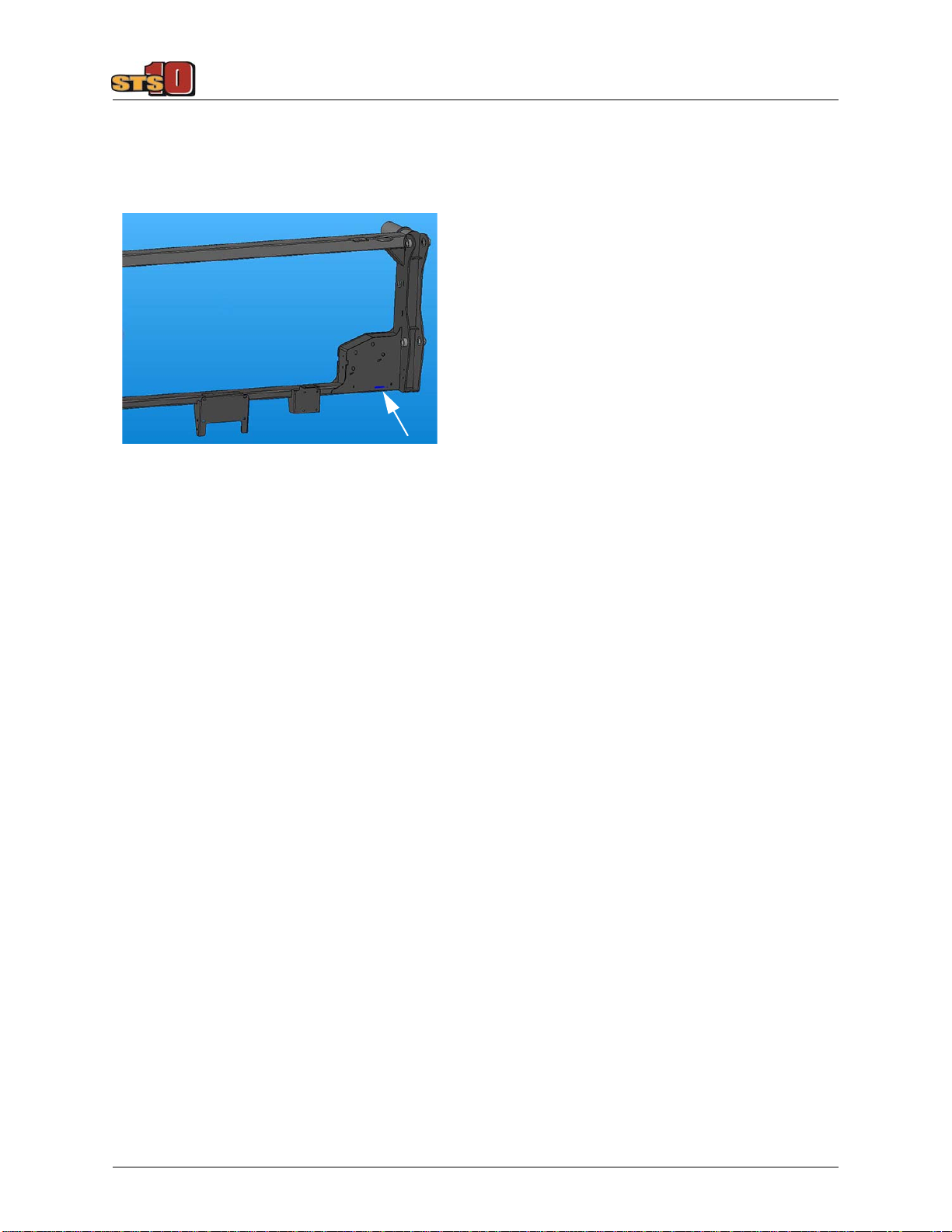

Aluminum Spray Booms (120/132’)
The aluminum spray boom serial number
is stamped on the lower right-hand side of
fixed transom.
Aluminum Spray Boom Serial Number
-Typical View
Serial No. _______________________

SECTION 1 –
INTRODUCTION
1-6
SPECIFICATIONS
NOTE: Dimensions on your machine may vary, depending on tire size.
Detail Description Specification
90-ft.
Boom
100- ft.
Boom
120-ft.
Boom
132-ft.
Boom
AOverall Sprayer Height (from top of cab)
NOTE: Overall machine height dimension does not
include the cab-mounted rotating
beacons or the optional GPS unit.
154” **
(391.2 cm) **
154” **
(391.2 cm) **
154” **
(391.2 cm) **
154” **
(391.2 cm) **
B Raised Transom Height 153” **
(388.6 cm) **
(from top of lights)
153” **
(388.6 cm) **
(from top of lights)
153” **
(388.6 cm) **
(from top of fixed
transom)
153” **
(388.6 cm) **
(from top of fixed
transom)
C3 Transom Lift Range (C1 minus C2) 86”
(104” - 18”)
218.4 cm
(264.2-45.7 cm)
86”
(104” - 18”)
218.4 cm
(264.2-45.7 cm)
86”
(104” - 18”)
218.4 cm
(264.2-45.7 cm)
86”
(104” - 18”)
218.4 cm
(264.2-45.7 cm)
D Static Loaded Hub Height 38 3/8” **
(97.5 cm) **
38 3/8” **
(97.5 cm) **
38 3/8” **
(97.5 cm) **
38 3/8” **
(97.5 cm) **
EWheel Base 140” (355.6 cm) 140” (355.6 cm) 140” (355.6 cm) 140” (355.6 cm)
F Sprayer Length
NOTE: Overall machine length will vary, depending
on boom size. Dimensions do not
include the optional rear boom.
336” (853.4 cm) 336” (853.4 cm) 370” (939.8 cm) 410” (1041.4 cm)
GWidth (booms folded, 120”/304.8 cm tread) 144” (365.8 cm) 144” (365.8 cm) 169” (429.3 cm) 169” (429.3 cm)
H Frame Clearance (to tread adjust bolts) 74” (188 cm) ** 74” (188 cm) ** 74” (188 cm) ** 74” (188 cm) **
ILower Leg Clearance (from shield) 31” (78.7 cm) ** 31” (78.7 cm) ** 31” (78.7 cm) ** 31” (78.7 cm) **
J Tread Width* 120” - In **
(304.8 cm - In) **
160” - Out **
(406.4cm - Out) **
120” - In **
(304.8 cm - In) **
160” - Out **
(406.4cm - Out) **
120” - In **
(304.8 cm - In) **
160” - Out **
(406.4cm - Out) **
120” - In **
(304.8 cm - In) **
160” - Out **
(406.4cm - Out) **
Illustration shown with 120-ft. boom

1-7
SECTION 1 –
INTRODUCTION
* Tread width is measured from center of tire at
ground.
** Refer to “Tire Specifications” provided else-
where in this section for a complete listing of tire
options when configuring machine specifications
on your model.
General Information
•Frame Type: 4 x 8” (10.2 x 20.3 cm)
modular platform frame
•Suspension: 4-wheel, individual, auto
air-ride
•Shipping Width:
- 144”/365.8 cm (with 90/100’ boom)
- 169”/429.3 cm (with 120/132’ boom)
•Approximate Dry Weight:
- 20,360 lbs./9,235 kg (machine only)
- 24,860 lbs./11,276 kg (with 90’ boom)
- 25,360 lbs./11,503 kg (with 100’ boom)
- 26,260 lbs./11,911 kg (with 120’ boom)
- 26,960 lbs./12,228 kg (with 132’ boom)
NOTICE
Because Hagie Manufacturing
Company offers a variety of options, the
illustrations in this manual may show a
machine equipped other than standard.
Height and weight values may vary,
depending on available equipment.

SECTION 1 –
INTRODUCTION
1-8
Spray System GPS Specifications
-If Equipped
NOTE: Dimensions on your machine may vary, depending on tire size.
Detail Description Specification
AWheel Base 140” (355.6 cm)
B Static Loaded Hub Height 38 3/8” (97.5 cm)
COverall Sprayer Height (from middle of GPS unit) 156.4” (397.3 cm)
D Length
(from front of boom spray tips to center of GPS unit)
129.8” (329.7 cm)
ELength (from center of GPS unit to center of rear hub) 112.8” (286.5 cm)

1-9
SECTION 1 –
INTRODUCTION
Settings and Calibration
Record settings and calibration values
used in the following spaces provided when
programming your spray system console.
Refer to this information for future reference.
Circle the selected setting on the spray system console for the following options:
Record calculated calibration values in the spaces provided below.
Units • US (Acres) • SI (Hectares) • Turf
(1,000 sq. ft./
92 sq. m)
Speed
Sensor
• SP1 (Wheel Speed) • SP2 (Radar/GPS)
Control Type • Liquid Spray • Gran 1
(Single Belt
Bed)
• Gran 2
(Split Belt
Bed/Single
Encoder)
• Gran 3
(Split Belt
Bed/Dual
Encoders)
• Spinner RPM
Control
Valve Type • Standard
Valve
•Fast Valve • Fast Close
Valve
• Pulse Width
Modulated
Valve
• Pulse Width
Modulated
Close Valve
Speed Cal Section
Widths
Meter Cal Rate Cal Valve Cal Tank Volume
1. 1. 1. 1. 1. 1.
2. 2. 2. 2. 2.
3. 3. 3. 3. 3.
4. 4. 4. 4. 4.
5. 5. 5. 5. 5.
6.
7.
8.
9.
10.

SECTION 1 –
INTRODUCTION
1-10
Description Specification
Engine
Manufacturer Cummins®
Model QSB 6.7
Type Electronic with air-to-air cooler and turbo
charger
Number of Cylinders 6
Displacement 6.7 liters (408.9 c.i.)
Horse Power •Tier 4 Final - 300 hp/224 kW
•Tier 3 - 275 hp/205 kW (Export only)
Fuel Type •Tier 4 Final - Ultra-low sulfur diesel (ULSD)
•Tier 3 - No. 2 diesel (Export only)
Fuel System Filtered, direct-injected
Air Cleaner Dry-type, dual element
Engine Air Filter Restriction Monitors Filter Minder® (Electrical and Mechanical)
Slow Idle 850 RPM
Fast Idle (no load) 2500 RPM
Hydrostatic Drive
Hydrostatic Pump Danfoss H1-Series
Drive Train All-Wheel 4-Wheel Drive
Speed Ranges Speed Ranges 1-20 (operator selected)
Hydrostatic Wheel Motors Danfoss H1-Series
Final Drives Planetary gear reduction hubs (Fairfield C017)
• Lubrication Oil bath
Brakes (Parking) Multiple disk, spring applied, hydraulically
released
Auxiliary Hydraulic System
Steering System Hydraulic, priority circuit, PC Pump
• Control Full-time power
• Steering Cylinders Double acting
• Turning Radius^
NOTE: May vary, depending on tire size. • 25 ft./7.5 m (No AWS/AWS “Off”)
• 18 ft./5.5 m (AWS “On”, if equipped)
All Wheel Steer (AWS) - if equipped^ Coordinated steering
Solution System Hydraulic Pump Load Sense (LS) Pump

1-11
SECTION 1 –
INTRODUCTION
Cooling Fan Hydraulic Pump PC Pump
Spray System
Booms 90/100/120/132-ft. (9 sections)
• Type 1” (2.5 cm) schedule 5 stainless wet boom
plumbing
• Controls Electro-hydraulic (fold/lift/level)
• Level Shock Absorber Gas charged accumulator
• 90/100-ft. Outer Boom Hydraulic Breakaway Self-actuated, auto-reset hydraulic
• 120/132-ft. Inner Boom Breakaway Hydraulic, manual reset
• 120/132-ft. Outer Boom Breakaway Mechanical with spring, auto-reset
Solution Fill Connection
• Quick-fill Connection 3” (7.6 cm) inner diameter
Solution Tank
• Standard Polyethylene
• Optional Stainless steel
Agitation Jet-type with electric valve variable control
General Spray System
• Pump • Centrifugal-hydraulically driven w/proportional
control valve
• Hypro® 9306-HM1C-BU w/silicon carbide
seals
• 3” (7.6 cm) inlet/2” (5.1 cm) outlet plumbing
• Flow Meter Electromagnetic: 3-190 GPM (11.4-719.2 l/min)
• Boom Solution Valves Ball valves, electric actuation, stainless ball and
stem, PTFE seats
• Pressure Gauge 100 PSI (6.9 bar), glycerin filled
• Console • Raven (optional)
• Ag Leader® (optional)
• Fence Row Nozzle Remote activated (left and right)
• Rear Nozzle Remote activated
Solution Circuit Pressure 100 PSI (6.9 bar) - maximum
Modular Injection System (if equipped)
Chemical Tank(s) 55-gallons (208 L)/each
Injection Pump(s) Raven Sidekick Pro™ (5-200 oz./min.)
Mixer 3” (7.6 cm) poly

SECTION 1 –
INTRODUCTION
1-12
Cover Crop Interseeder (if equipped)
Box Capacity 80 or 100 cu. ft.
Box Material Steel painted
Compatible with Dry Fertilizer No
Spread Width 60 ft.
Number of Application Sections 1
Foam Marker System (if equipped)
Make Hagie Concentrate Foamer
Type Boom Mix
Rinse System
Spray System Rinse
(solution tank, pump, and booms)
2 rotating rinse balls (inside tank)
Air Purge - if equipped Remote activated (purges pump suction line,
pump, and boom plumbing)
Electrical System
General Electrical System
• Battery Dual 12V, negative ground (CCA)
• Alternator (Tier 4 Engine) 200 AMP, voltage regulated
• Starter 12V with solenoid
Lights (Exterior)
• Front of Cab 2 trapezoidal headlights, 2 floodlights, 2 rotating
amber beacon lights
• Transom 2 trapezoidal headlights
• Transom Mount 2 trapezoidal headlights (high/low beam), 2 oval
amber lights (combined)
• Boom Cradle 2 trapezoidal floodlights (1 on each cradle), 2
oval amber lights (1 on each cradle)
• Rear Engine Hood 2 round red lights, 2 round amber lights
• Spray Boom Indicators
(located on boom, if equipped)
1 oval white, 2 oval amber, 9 oval red
• Night Spray - if equipped 2 trapezoidal lights (1 on each main boom fold
section)
Cab and Instruments
Sound Level (cab interior) 86 dBA (maximum)
Cab (General) Tilt steering, wipers/washers, dual side mirrors,
dome light, tinted glass, instructor seat

1-13
SECTION 1 –
INTRODUCTION
^ Operators with machines equipped with All-Wheel Steer (AWS) pay special attention.
Temperature Control Full range
A/C Charge Type R-134A
Fresh Air Filtration • RESPA® cab filter
• Charcoal filter
Seat Air ride
Instruments Tachometer (RPM), fuel level, engine coolant
temperature, aftertreatment level
Machine Display Hour meter, battery voltage, engine oil pressure,
ground speed, engine diagnostics, tread
adjustment, parking brake, machine/engine
malfunction warnings, engine exhaust filtration
warning, high exhaust temperature warning, low
hydraulic oil level, low coolant level, low fuel
level, grid heater, cab air pressure
Stereo AM/FM radio with CD/MP3/Bluetooth
Fluid Capacities
Solution Tank 1000 gallons (3785 L)
Fuel Tank 135 gallons (511 L)
Engine Oil Pan (including filter and cooler) 17.6 quarts (16.7 L), SAE 15W-40
Engine Oil Dipstick (L-H mark) 2 quarts (1.9 L)
Engine Cooling System
(including block, lines, and radiator)
•Tier 4 - 14 gallons (53 L), ethylene glycol
•Tier 3 - 12.5 gallons (47 L), ethylene glycol
(Export only)
Diesel Exhaust Fluid (DEF) Tank
(Tier 4 Final Engines)
10 gallons (37 L), diesel exhaust fluid
Hydraulic Oil
(including lines, filter, cooler, etc.)
• 50 gallons/189 L (25 or 60 GPM Hydraulic
Pump Package)
• 60 gallons/227 L (80 GPM Hydraulic Pump
Package)
Hydraulic Oil Reservoir • 32 gallons/121 L (25 or 60 GPM Hydraulic
Pump Package)
• 38 gallons/143 L (80 GPM Hydraulic Pump
Package)
Wheel Hubs (4) 62 oz. (1.83 L)/each, 75W-90 synthetic gear oil
Rinse System Tank 100 gallons (378.5 L)
Hand Wash Tank 4 gallons (15 L)
Foam Marker Tank 1 gallon (3.8 L), foam concentrate
Air Conditioning System (Charge) 4.00 lbs. (1.81 kg), R-134A

SECTION 1 –
INTRODUCTION
1-14
* Static load radius is suggested and will vary with load.
TIRE SPECIFICATIONS (STANDARD)
Size Make Model Load
Rating
(Weight/
Speed)
Air
Pressure
(Max PSI)
Tread
Width
(in.)
Load
Capacity
(lbs.)
Overall
Diameter
(in.)
Static
Load
Radius*
(in.)
Rolling
Circum.
(in.)
Gross
Flat
Plate
(in2)
650/65R38 Alliance 550 166D 46 25.4 13,220 71.4 32.4 214.6 - - -
IF380/90R46 Alliance 363 168D 64 15.3 12,330 72.5 33.6 220.8 - - -
IF480/80R50 Alliance 363 166D 44 18.9 14,010 80.2 37.0 242.2 - - -
650/65R38 Firestone® 9000 166D 46 26.0 9,100 72.4 32.4 218.0 480
VF380/105R50 Firestone Radial All
Trac RC
179D 64 16.2 17,100 80.7 37.3 244.0 327
320/90R50 Goodyear® Ultra
Sprayer
161A8 78 12.4 10,200 73.6 33.0 220.0 - - -
380/90R46 Goodyear Ultra
Sprayer
168A8 78 15.0 12,300 72.7 32.8 219.0 - - -
IF320/105R54 Goodyear Ultra
Sprayer
167D 64 12.9 12,000 80.1 35.4 236.0 215
IF380/105R50 Goodyear Ultra
Sprayer
177D 70 14.9 16,100 80.7 36.1 241.0 305
IF520/85R42 Goodyear Ultra Torq 170A8 52 20.3 13,200 76.5 34.3 230.0 - - -
480/80R42 Goodyear Dyna Torq 166A8 58 18.7 11,700 73.3 33.3 221.0 - - -
VF380/90R46 Michelin® Spraybib 173D 64 15.1 14,330 72.5 33.4 217.7 267
VF420/95R50 Michelin Spraybib 177D 52 16.3 16,094 80.8 36.9 240.9 - - -
VF480/80R50 Michelin Yieldbib 166B 23 18.4 11,680 80.3 35.5 237.6 450

1-15
SECTION 1 –
INTRODUCTION
* Static load radius is suggested and will vary with load.
TIRE SPECIFICATIONS (METRIC)
Size Make Model Load
Rating
(Weight/
Speed)
Air
Pressure
(Max
Bar)
Tread
Width
(cm)
Load
Capacity
(kg)
Overall
Diameter
(cm)
Static
Load
Radius*
(cm)
Rolling
Circum.
(cm)
Gross
Flat
Plate
(cm2)
650/65R38 Alliance 550 166D 3.2 64.5 5,996 181.4 82.3 545.1 - - -
IF380/90R46 Alliance 363 168D 4.4 38.9 5,592 184.2 85.3 560.8 - - -
IF480/80R50 Alliance 363 166D 3.0 48.0 6,354 203.7 94.0 615.2 - - -
650/65R38 Firestone 9000 166D 3.2 66.0 4,127 183.9 82.3 553.7 3096.8
VF380/105R50 Firestone Radial All
Trac RC
179D 4.4 41.1 7,756 205.0 94.7 619.8 2109.7
320/90R50 Goodyear Ultra
Sprayer
161A8 5.4 31.5 4,626 186.9 83.8 558.8 - - -
380/90R46 Goodyear Ultra
Sprayer
168A8 5.4 38.1 5,579 184.7 83.3 556.3 - - -
IF320/105R54 Goodyear Ultra
Sprayer
167D 4.4 32.8 5,443 203.5 89.9 599.4 1387.1
IF380/105R50 Goodyear Ultra
Sprayer
177D 4.8 37.8 7,302 205.0 91.7 612.1 1967.7
IF520/85R42 Goodyear Ultra Torq 170A8 3.6 51.6 5,987 194.3 87.1 584.2 - - -
480/80R42 Goodyear Dyna Torq 166A8 4.0 47.5 5,307 186.2 84.6 561.3 - - -
VF380/90R46 Michelin Spraybib 173D 4.4 38.4 6,500 184.2 84.8 553.0 1722.6
VF420/95R50 Michelin Spraybib 177D 3.6 41.4 7,300 205.2 93.7 611.9 - - -
VF480/80R50 Michelin Yieldbib 166B 1.6 46.7 5,298 204.0 90.2 603.5 2903.2

SECTION 1 –
INTRODUCTION
1-16
NOTE: There are no adjustments to the loads and pressures in the above table for lower speeds or stationary service.
NOTE: Minimum inflation pressures for IF agricultural tires used as singles = 12 psi.
TIRE LOAD LIMITS (LBS) AT VARIOUS COLD INFLATION PRESSURES (PSI)
Inflation (psi)6 9 12151720232629
650/65R38 Alliance N/A N/A 5,880 N/A 7,440 N/A 8,810 N/A 10,040
IF380/90R46 Alliance N/A N/A 4,270 N/A 5,460 6,170 6,720 N/A 7,310
IF480/80R50 Alliance N/A N/A 5,810 6,520 7,310 8,260 9,030 9,520 9,780
650/65R38 Firestone 4,180 5,080 5,840 6,800 7,600 8,250 9,100 9,650 9,900
VF380/105R50 Firestone 4,680 5,520 6,400 7,400 8,250 9,350 10,200 10,700 11,400
320/90R50 Goodyear N/A 2,760 3,200 3,640 4,080 4,540 4,940 5,200 5,520
380/90R46 Goodyear N/A 3,300 3,860 4,400 5,080 5,520 6,150 6,400 6,800
IF320/105R54 Goodyear N/A N/A 4,540 5,080 5,840 6,400 7,150 7,400 7,850
IF380/105R50 Goodyear N/A N/A 5,520 6,400 7,150 8,050 8,800 9,100 9,650
IF520/85R42 Goodyear N/A N/A 6,950 7,850 8,800 9,900 10,700 11,400 11,700
480/80R42 Goodyear N/A 4,080 4,800 5,520 6,150 6,950 7,600 8,050 8,250
VF380/90R46 Michelin N/A N/A N/A N/A N/A N/A N/A N/A N/A
VF420/95R50 Michelin N/A N/A N/A N/A N/A N/A N/A 11,350 11,830
VF480/80R50 Michelin 5,200 6,240 7,290 7,330 9,370 10,530 11,680 N/A N/A
TIRE LOAD LIMITS (LBS) AT VARIOUS COLD INFLATION PRESSURES (PSI) - CONTINUED
Inflation (psi)3541465258647075
650/65R38 Alliance 11,170 12,220 13,220 N/A N/A N/A N/A N/A
IF380/90R46 Alliance 7,780 8,520 9,270 9,780 10,330 11,230 N/A N/A
IF480/80R50 Alliance 10,620 N/A N/A N/A N/A N/A N/A N/A
650/65R38 Firestone 10,700 11,700 N/A N/A N/A N/A N/A N/A
VF380/105R50 Firestone 12,000 13,200 13,900 15,200 15,700 17,100 N/A N/A
320/90R50 Goodyear 5,840 6,400 6,950 7,400 7,850 8,550 9,100 9,650
380/90R46 Goodyear 7,150 7,850 8,550 9,100 9,650 10,500 11,400 12,000
IF320/105R54 Goodyear 8,250 9,100 9,650 N/A 11,000 12,000 N/A N/A
IF380/105R50 Goodyear 10,200 11,400 12,000 N/A 13,600 14,800 16,100 N/A
IF520/85R42 Goodyear 12,800 N/A N/A N/A N/A N/A N/A N/A
480/80R42 Goodyear 8,800 9,650 10,500 11,000 11,700 N/A N/A N/A
VF380/90R46 Michelin 9,650 11,020 12,020 12,790 13,230 14,330 N/A N/A
VF420/95R50 Michelin 12,790 14,000 15,210 16,090 N/A N/A N/A N/A
VF480/80R50 Michelin N/A N/A N/A N/A N/A N/A N/A N/A

1-17
SECTION 1 –
INTRODUCTION
NOTE: There are no adjustments to the loads and pressures in the above table for lower speeds or stationary service.
NOTE: Minimum inflation pressures for IF agricultural tires used as singles = .8 bar.
TIRE LOAD LIMITS (KG) AT VARIOUS COLD INFLATION PRESSURES (BAR)
Inflation (bar) .4 .6 .8 1.0 1.2 1.4 1.6 1.8 2.0
650/65R38 Alliance N/A N/A 405.4 N/A 513.0 N/A 607.4 N/A 692.2
IF380/90R46 Alliance N/A N/A 294.4 N/A 376.5 425.4 463.3 N/A 504.0
IF480/80R50 Alliance N/A N/A 400.6 449.5 504.0 569.5 622.6 656.4 674.3
650/65R38 Firestone 288.2 350.3 402.7 468.8 524.0 568.8 627.4 665.3 682.6
VF380/105R50 Firestone 322.7 380.6 441.3 510.2 568.8 644.7 703.3 737.7 786.0
320/90R50 Goodyear N/A 190.3 220.6 251.0 281.3 313.0 340.6 358.5 380.6
380/90R46 Goodyear N/A 227.5 266.1 303.4 350.3 380.6 424.0 441.3 468.8
IF320/105R54 Goodyear N/A N/A 313.0 350.3 402.7 441.3 493.0 510.2 541.2
IF380/105R50 Goodyear N/A N/A 380.6 441.3 493.0 555.0 606.7 627.4 665.3
IF520/85R42 Goodyear N/A N/A 479.2 541.2 606.7 682.6 737.7 786.0 806.7
480/80R42 Goodyear N/A 281.3 330.9 380.6 424.0 479.2 524.0 555.0 568.8
VF380/90R46 Michelin N/A N/A N/A N/A N/A N/A N/A N/A N/A
VF420/95R50 Michelin N/A N/A N/A N/A N/A N/A N/A 782.6 815.6
VF480/80R50 Michelin 358.5 430.2 502.6 505.4 646.0 726.0 805.3 N/A N/A
TIRE LOAD LIMITS (KG) AT VARIOUS COLD INFLATION PRESSURES (BAR) - CONTINUED
Inflation (bar) 2.4 2.8 3.2 3.6 4.0 4.4 4.8 5.2
650/65R38 Alliance 770.1 842.5 911.5 N/A N/A N/A N/A N/A
IF380/90R46 Alliance 536.4 587.4 639.1 674.3 712.2 774.3 N/A N/A
IF480/80R50 Alliance 732.2 N/A N/A N/A N/A N/A N/A N/A
650/65R38 Firestone 737.7 806.7 N/A N/A N/A N/A N/A N/A
VF380/105R50 Firestone 827.4 910.1 958.4 1048.0 1082.5 1179.0 N/A N/A
320/90R50 Goodyear 402.7 441.3 479.2 510.2 541.2 589.5 627.4 665.3
380/90R46 Goodyear 493.0 541.2 589.5 627.4 665.3 723.9 786.0 827.4
IF320/105R54 Goodyear 568.8 627.4 665.3 N/A 758.4 827.4 N/A N/A
IF380/105R50 Goodyear 703.3 786.0 827.4 N/A 937.7 1020.4 1110.1 N/A
IF520/85R42 Goodyear 882.5N/AN/AN/AN/AN/AN/AN/A
480/80R42 Goodyear 606.7 665.3 723.9 758.4 806.7 N/A N/A N/A
VF380/90R46 Michelin 665.3 759.8 828.7 881.8 912.2 988.0 N/A N/A
VF420/95R50 Michelin 881.8 965.3 1048.7 1109.4 N/A N/A N/A N/A
VF480/80R50 Michelin N/A N/A N/A N/A N/A N/A N/A N/A

2-1
5 - DASH / AUTO
SECTION 2 – SAFETY AND PRECAUTIONS
INTENDED USE
Most accidents occur as the result of failure to
follow basic and fundamental safety rules and
precautions. Recognizing potential safety
hazards, following correct and safe operating
procedures described in this manual, and
complying with safety warnings located
throughout the machine may reduce the risk of
accidents.
There is no way to completely eliminate the
potential for danger when operating agricultural
equipment. Therefore, you must study this
operator’s manual and understand how to
operate the sprayer controls for safe operation
before using the sprayer, its attachment, or any
sprayer equipment. Likewise, never let anyone
operate the machine without proper instruction.
Do not operate the sprayer, its attachment, or
any sprayer equipment for anything other than
their intended uses. Hagie Manufacturing
Company shall not be liable for any damage,
injury, or death associated with improper use of
the sprayer, its attachment, or any sprayer
equipment.
Do not make any modifications such as, but
not limited to, weldments, add-ons, adaptations,
or changes from the original design of the
sprayer. Such modifications may become safety
hazards to you and others and will void all
warranties.
Replace missing, faded, or damaged safety
signs. Refer to “Safety Decals” elsewhere in this
section for correct sign and placement.
SAFETY PRECAUTIONS
NOTE: If your machine is equipped with All
Wheel Steer (AWS), pay special
attention to components, operating
instructions, and safety precautions
marked with ^.
Do Not Bypass Safety Start
• Start the machine from the operator’s seat
only.
• The parking brake must be engaged before
starting the engine.
Use Caution While Driving ^
• Never drive near ditches, embankments,
holes, mounds, or other obstacles.
• Never drive on hills too steep for safe
operation.
• Reduce machine speed before turning.
• Do not permit passengers to ride on the
machine while it is moving. Failure to comply
may result in passenger falling off of machine
and/or obstructing the operator’s view.
NOTICE
This machine is designed for and
intended to be used for the application of
chemicals and fertilizers to field crops.
Use in any other way or for any other
purpose is considered misuse of this
machine.
