5 - DASH / AUTO
SECTION 1 – INTRODUCTION
The following patent decal is located along the
frame behind the front right-hand leg and
provides current patents issued on your machine.
NOTE: Hagie Manufacturing Company reserves
the right to make changes to any current
patents or patents pending at any time,
without notice.
A WORD FROM HAGIE
MANUFACTURING COMPANY
Congratulations on the purchase of your STS
Sprayer! Read this operator’s manual and
become familiar with operating procedures and
safety precautions before attempting to operate
your sprayer.
As with any piece of equipment, certain
operating procedures, service, and maintenance
are required to keep your machine in top running
condition. We have attempted herein to cover all
of the adjustments required to fit varying
conditions. However, there may be times when
special care must be considered.
NOTE: The operator is responsible for
inspecting the machine and it’s
attachments, as well as having parts
repaired or replaced when continued use
of the product causes damage or
excessive wear to other parts.
Hagie Manufacturing Company reserves the
right to make changes in the design and material
of any subsequent sprayer without obligation to
existing units.
Thank you for choosing a Hagie sprayer and
we ensure you of our continued interest and
support in its optimal performance for you. We
are proud to have you as a customer!
ABOUT THIS MANUAL
This manual will aid you in the proper
operation and service of your machine. It is the
responsibility of the user to read the operator’s
manual and comply with the correct and safe
operating procedures, as well as maintain the
product according to the service information
provided in the Maintenance andStorage Section
elsewhere in this manual.
Photographs and illustrations used in this
manual are of general nature only. Some of the
equipment and features shown may not be
available on your machine.
Hagie Manufacturing Patent Decal
(Located along the frame
behind the front right-hand leg)
NOTICE
Any pictures contained within this
operator’s manual that depict situations
with shields, guards, rails, or lids
removed are for demonstration only.
Hagie Manufacturing Company strongly
urges the operator to keep all shields
and safety devices in place at all times.
NOTICE
Reference to right and left-hand used
throughout this manual refers to the
position when seated in the operator’s
seat facing forward.

SECTION 1 –
INTRODUCTION
1-2
Information described in this manual was
correct at the time of printing. Because of
Hagie Manufacturing Company’s continuous
product improvement, certain information
may not be included in this manual.
Keep this manual in a convenient place for
easy reference. This manual is considered a
permanent fixture of the product. In the event
of resale, this manual should accompany the
machine.
If you do not understand any part of this
manual or require additional information or
service, contact the Hagie Research and
Development department.
SAFETY MESSAGES USED
IN THIS MANUAL
The following safety messages found
throughout this manual alert you of situations
that could become potentially dangerous to
the operator, service personnel, or
equipment.
NOTE: A “Note” is intended to make special
mention of, or remark on.
SERVICE AND ASSISTANCE
For service and assistance, please contact:
Hagie Manufacturing Company
721 Central Avenue West
P.O. Box 273
Clarion, IA 50525-0273
[phone] OR [phone]
www.hagiehelp.com
REPORTING ACCIDENTS,
INJURIES, OR SAFETY
CONCERNS
Should an accident or injury occur
involving the use of a Hagie product, or if you
have a product safety concern, report such
information directly to Hagie Customer
Support at [phone].
DANGER
This symbol indicates a hazardous
situation which, if not avoided, will result
in serious injury or death.
WARNING
This symbol indicates a potentially
hazardous situation which, if not
avoided, could result in moderate/
serious injury or death.
CAUTION
This symbol indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury. It may also be used to
alert against unsafe practices.
NOTICE
This symbol indicates operator
awareness which, if not avoided, may
result in personal or property damage.

1-3
SECTION 1 –
INTRODUCTION
IDENTIFICATION
Each machine is identified by means of a
frame serial number. This serial number
denotes the model, year in which it was built,
and the number of the sprayer.
For further identification, the engine,
solution pump, hydraulic pumps, and
attachments each have serial numbers, and
the planetary wheel hubs have identification
plates that describe the type of mount and
gear ratio.
To ensure prompt, efficient service when
ordering parts or requesting service repairs,
record the serial numbers and identification
numbers in the following spaces provided.
Sprayer
The sprayer serial number is stamped on
the right-hand side frame (behind rear leg).
Engine
The engine has an identification plate
mounted on top of engine near the oil fill port
that provides engine serial number, as well as
other manufacturer information. Refer to
your Parts Manual for specific part number.
Solution Pump
The solution pump has an identification
plate mounted on the side of pump that
provides pump serial number, as well as other
manufacturer information. Refer to your
Parts Manual for specific part number.
NOTICE
Reference to right and left-hand used
throughout this manual refers to the
position when seated in the operator’s
seat facing forward.
Sprayer Serial Number
-Typical View
Serial No. _______________________
Engine Identification Plate
-Typical View
Serial No. _______________________
Solution Pump Identification Plate
* View shown from beneath machine
-Typical View
Serial No. _______________________

SECTION 1 –
INTRODUCTION
1-4

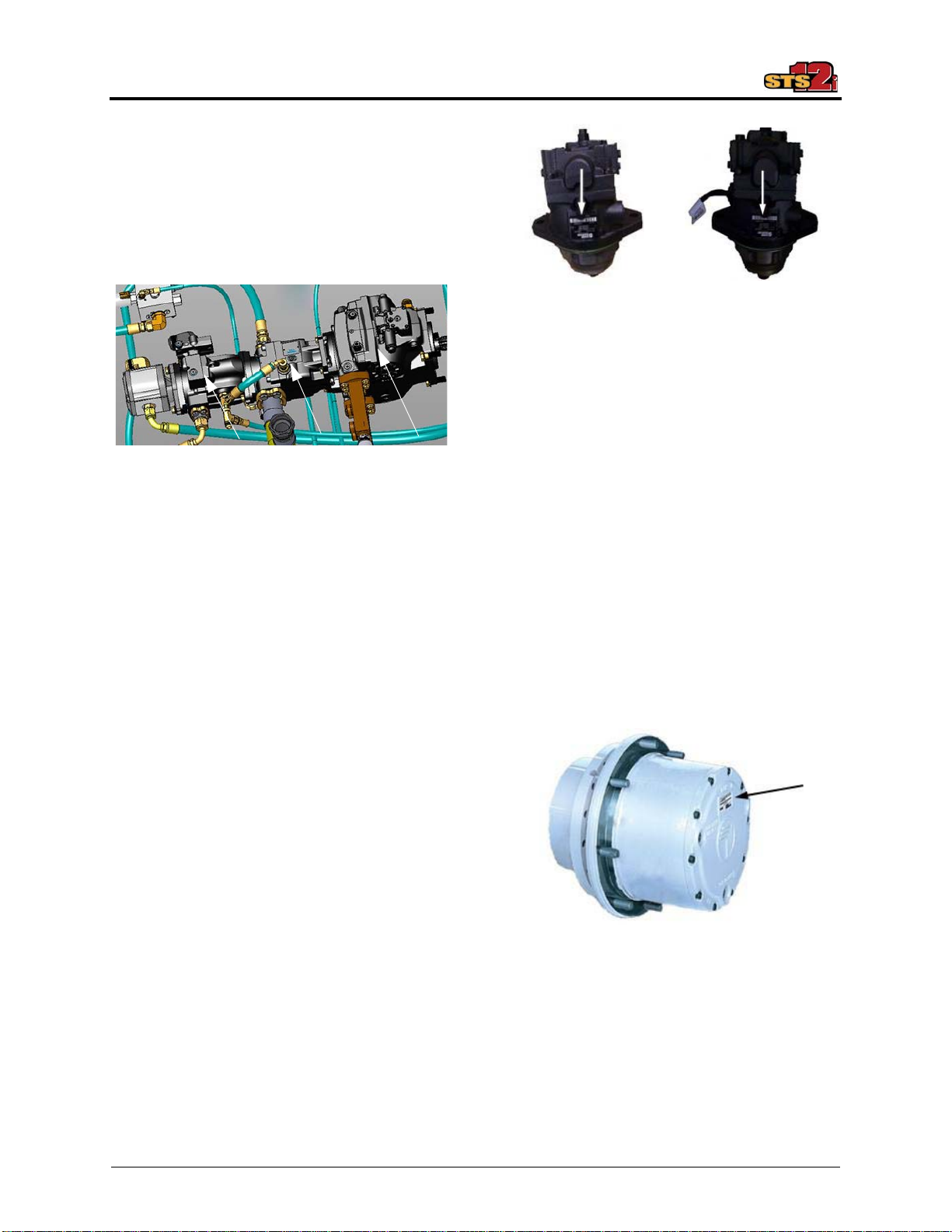

Hydraulic Pumps
The PC, LS, and Drive Pumps each have
an identification plate mounted on the side of
pump that provides pump serial number, as
well as other manufacturer information.
Refer to your Parts Manual for specific part
number.
Wheel Motors
The wheel motors each have an
identification plate mounted on the side of
motor that provides motor serial number, as
well as other manufacturer information.
Refer to your Parts Manual for specific part
number.
Wheel Hubs
The wheel hubs each have an
identification plate mounted on the front of
hub that provides hub serial number, as well
as other manufacturer information, including
gear ratio. Refer to your Parts Manual for
specific part number.
Hydraulic Pumps
* Top view shown
-Typical View
_______________________ PC Pump
_______________________ LS Pump
_______________________ Drive Pump
•PC
Pump
•LS
Pump
•Drive
Pump
Front Rear
Wheel Motor Identification Plates
-Typical View
_______________________ Right Front
_______________________ Right Rear
_______________________ Left Front
_______________________ Left Rear
Wheel Hub Identification Plate
-Typical View
_______________________ Right Front
_______________________ Right Rear
_______________________ Left Front
_______________________ Left Rear

1-5
SECTION 1 –
INTRODUCTION
Spray Boom
Steel Spray Booms (90/100’)
The steel spray boom serial number is
stamped on the bottom right-hand side of
transom.
Aluminum Spray Booms (120/132’)
The aluminum spray boom serial number
is stamped on the lower right-hand side of
fixed transom.
Steel Spray Boom Serial Number
-Typical View
Serial No. _______________________
Aluminum Spray Boom Serial Number
-Typical View
Serial No. _______________________

SECTION 1 –
INTRODUCTION
1-6

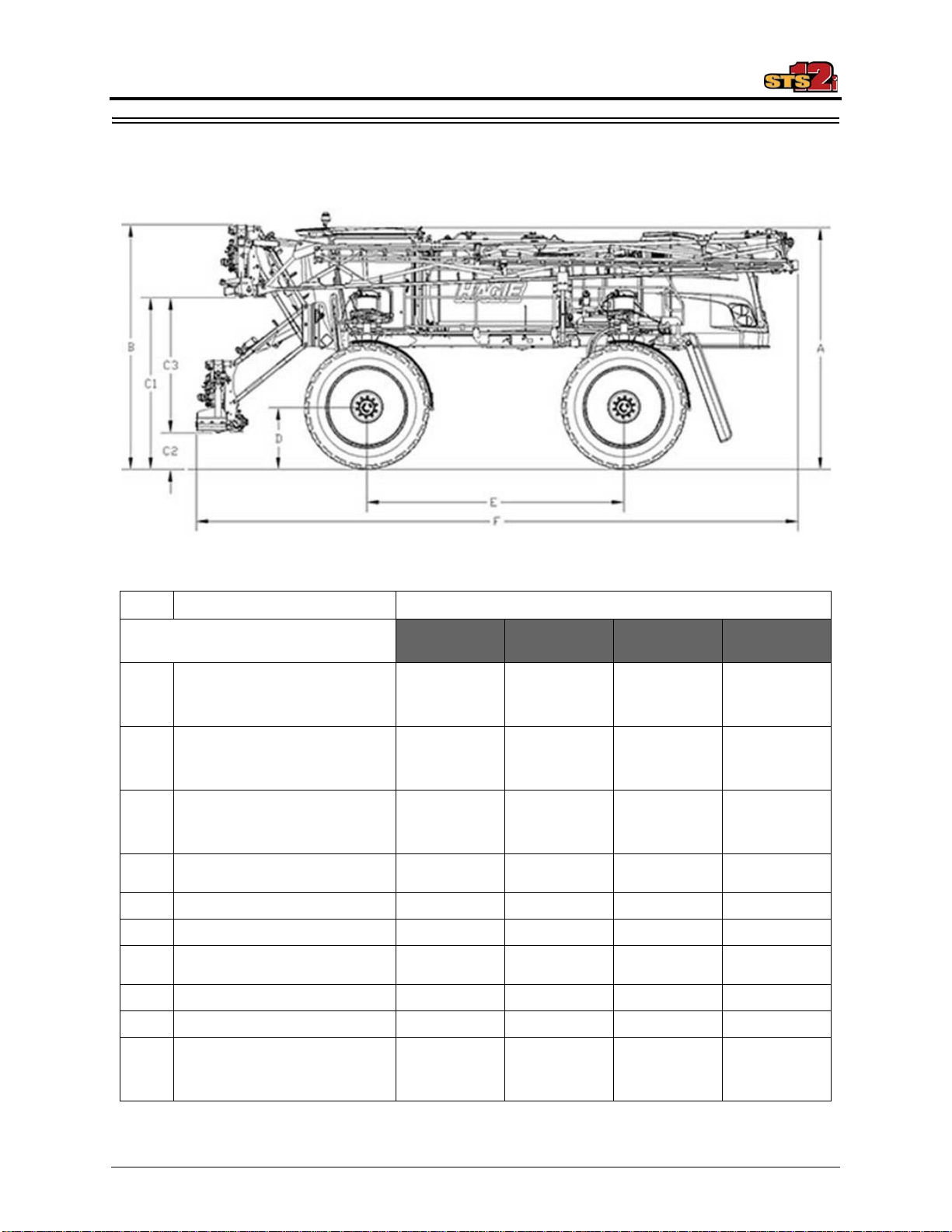

SPECIFICATIONS
NOTE: 380/90 R54 tires used for the following machine dimensions.
Detail Description Specification
90-ft.
Boom
100- ft.
Boom
120-ft.
Boom
132-ft.
Boom
A Overall Sprayer Height (from top of cab)
NOTE: Sprayer height dimension does not
include the cab-mounted rotating
beacons or the optional GPS unit.
154” **
(391.2 cm) **
154” **
(391.2 cm) **
154” **
(391.2 cm) **
154” **
(391.2 cm) **
B Raised Transom Height 153” **
(388.6 cm) **
(from top of lights)
153” **
(388.6 cm) **
(from top of lights)
153” **
(388.6 cm) **
(from top of fixed
transom)
153” **
(388.6 cm) **
(from top of fixed
transom)
C3 Transom Lift Range (C1 minus C2) 86”
(104” - 18”)
218.4 cm
(264.2-45.7 cm)
86”
(104” - 18”)
218.4 cm
(264.2-45.7 cm)
86”
(104” - 18”)
218.4 cm
(264.2-45.7 cm)
86”
(104” - 18”)
218.4 cm
(264.2-45.7 cm)
D Static Loaded Hub Height 38 3/8” **
(97.5 cm) **
38 3/8” **
(97.5 cm) **
38 3/8” **
(97.5 cm) **
38 3/8” **
(97.5 cm) **
E Wheel Base 166” (421.6 cm) 166” (421.6 cm) 166” (421.6 cm) 166” (421.6 cm)
F Sprayer Length 336” (853.4 cm) 336” (853.4 cm) 370” (939.8 cm) 410” (1041.4 cm)

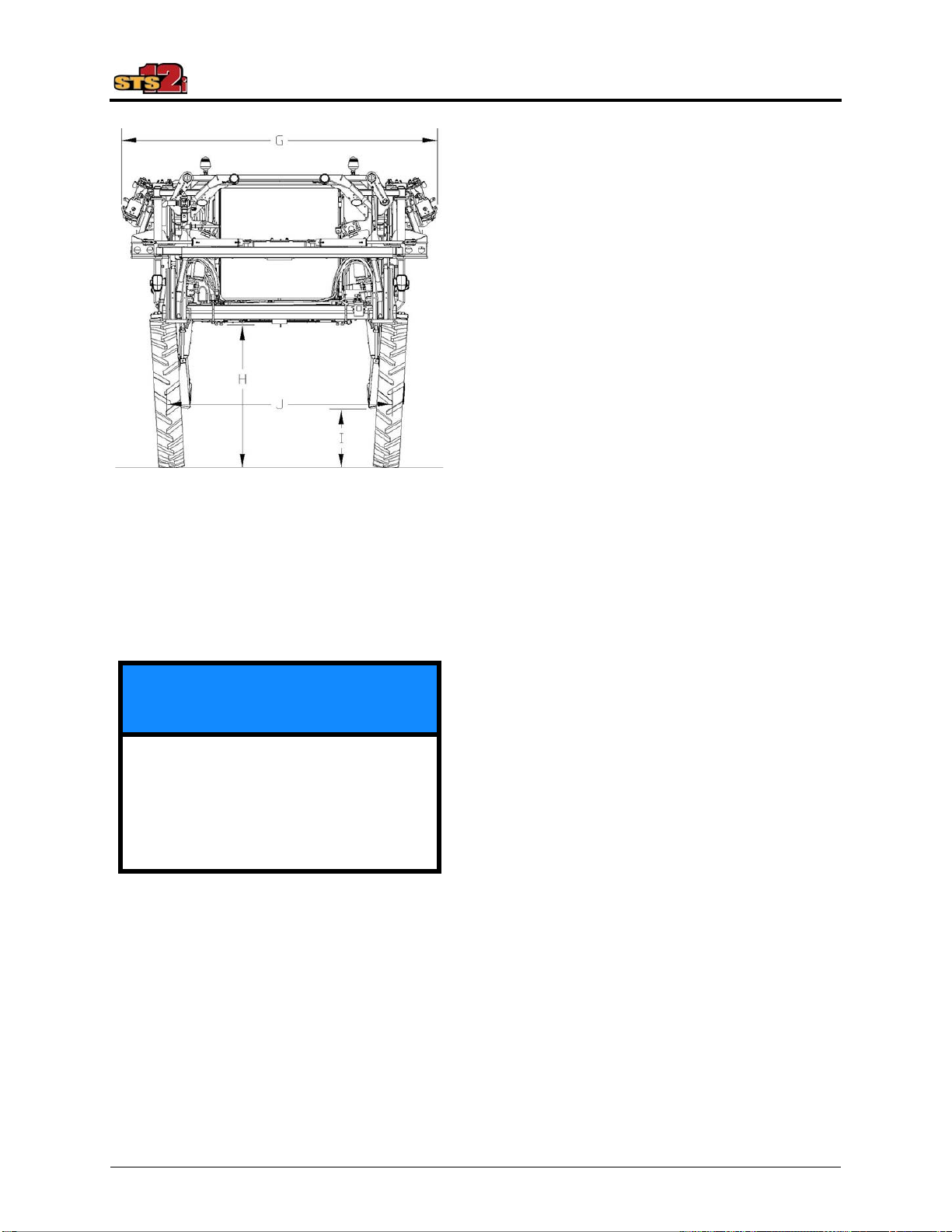

GWidth
(booms folded, 120”/304.8 cm tread)
144” (365.8 cm) 144” (365.8 cm) 177” (449.6 cm) 177” (449.6 cm)
H Frame Clearance (to tread adjust bolts) 74” (188 cm) ** 74” (188 cm) ** 74” (188 cm) ** 74” (188 cm) **
I Lower Leg Clearance (from shield) 31” (78.7 cm) ** 31” (78.7 cm) ** 31” (78.7 cm) ** 31” (78.7 cm) **
J Tread Width* 122” - In **
(309.9 cm - In) **
154” - Out **
(391.2 cm - Out) **
122” - In **
(309.9 cm - In) **
154” - Out **
(391.2 cm - Out) **
122” - In **
(309.9 cm - In) **
154” - Out **
(391.2 cm - Out) **
122” - In **
(309.9 cm - In) **
154” - Out **
(391.2 cm - Out) **

1-7
SECTION 1 –
INTRODUCTION
* Tread width is measured at half (1/2) the tire
height.
** Refer to “Tire Specifications” provided elsewhere
in this section for a complete listing of tire options
when configuring machine specifications on your
model.
General Information
•Frame Type: 4 x 8” (10.2 x 20.3 cm)
modular platform frame
•Suspension: 4-wheel, individual, auto
air-ride
•Shipping Width:
- 144”/365.8 cm (with 90/100’ boom)
- 177”/449.6 cm (with 120/132’ boom)
•Approximate Dry Weight:
- 24,210 lbs./10,981 kg (machine only)
- 28,710 lbs./13,022 kg (with 90’ boom)
- 29,210 lbs./13,249 kg (with 100’ boom)
- 30,110 lbs./13,657 kg (with 120’ boom)
- 30,810 lbs./13,975 kg (with 132’ boom)
NOTICE
Because Hagie Manufacturing
Company offers a variety of options, the
illustrations in this manual may show a
machine equipped other than standard.
Height and weight values may vary,
depending on available equipment.

SECTION 1 –
INTRODUCTION
1-8

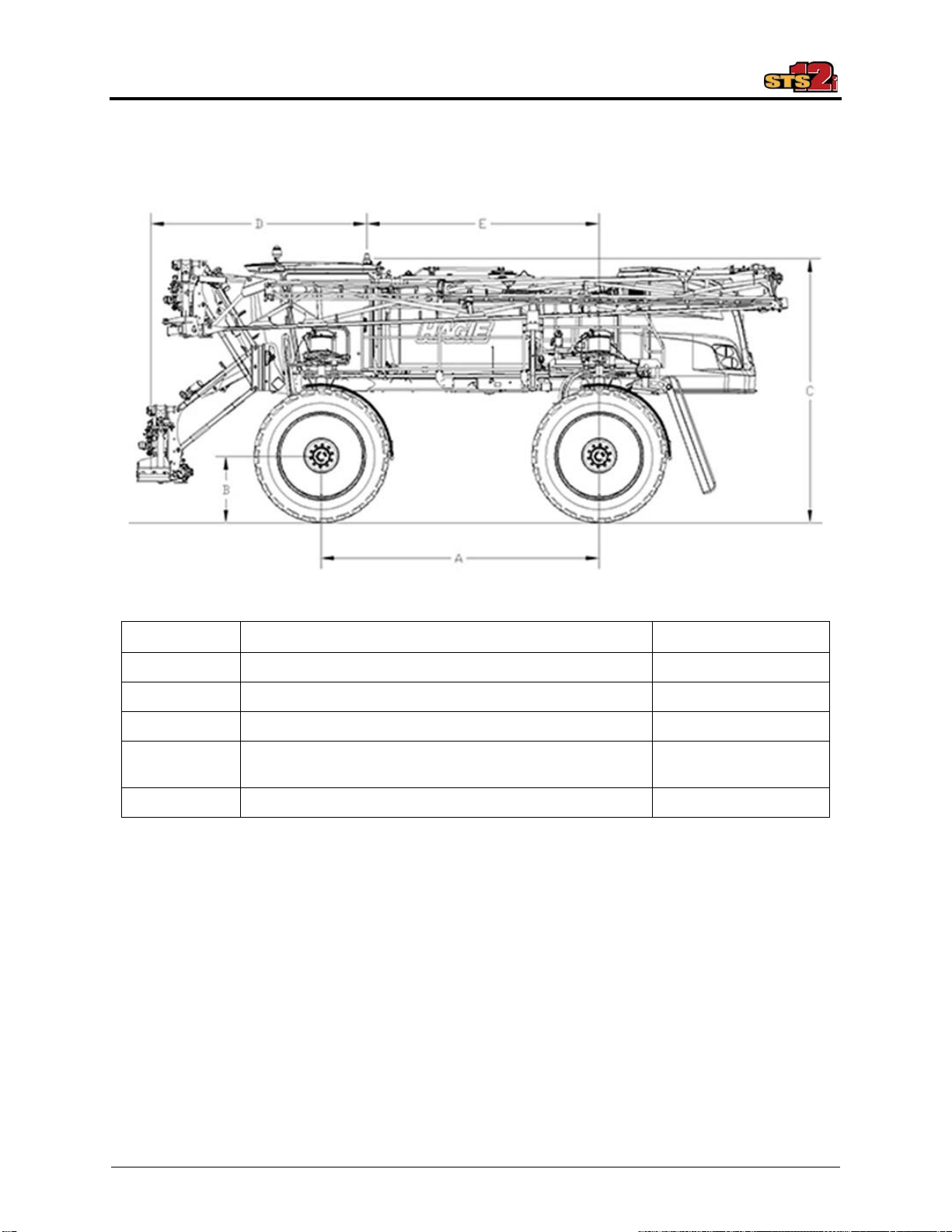

Spray System GPS Specifications
-If Equipped
NOTE: 120-ft. boom and 380/90 R54 tires used for the following machine dimensions.
NOTE: Dimensions may vary depending on
boom and tire options.
Detail Description Specification
A Wheel Base 166” (421.6 cm)
B Static Loaded Hub Height 38 3/8” (97.5 cm)
C Overall Sprayer Height (from middle of GPS unit) 156.4” (397.3 cm)
D Length
(from front of boom spray tips to center of GPS unit)
129.8” (329.7 cm)
E Length (from center of GPS unit to center of rear hub) 138.8” (352.6 cm)

1-9
SECTION 1 –
INTRODUCTION
Settings and Calibration
Record settings and calibration values
used in the following spaces provided when
programming your spray system console.
Refer to this information for future reference.
Circle the selected setting on the spray system console for the following options:
Record calculated calibration values in the spaces provided below.
Units • US (Acres) • SI (Hectares) • Turf
(1,000 sq. ft./
92 sq. m)
Speed
Sensor
• SP1 (Wheel Speed) • SP2 (Radar/GPS)
Control Type • Liquid Spray • Gran 1
(Single Belt
Bed)
• Gran 2
(Split Belt
Bed/Single
Encoder)
• Gran 3
(Split Belt
Bed/Dual
Encoders)
• Spinner RPM
Control
Valve Type • Standard
Valve
• Fast Valve • Fast Close
Valve
• Pulse Width
Modulated
Valve
• Pulse Width
Modulated
Close Valve
Speed Cal Section
Widths
Meter Cal Rate Cal Valve Cal Tank Volume
1. 1. 1. 1. 1. 1.
2. 2. 2. 2. 2.
3. 3. 3. 3. 3.
4. 4. 4. 4. 4.
5. 5. 5. 5. 5.
6.
7.
8.
9.
10.

SECTION 1 –
INTRODUCTION
1-10
Description Specification
Engine
Manufacturer Cummins®
Model QSB 6.7
Type Electronic with air-to-air cooler and turbo
charger
Number of Cylinders 6
Displacement 6.7 liters (360 c.i.)
Horse Power •Tier 4 Final - 300 hp (220.7 KW)
•Tier 3 - 275 hp (202.3 KW)
Fuel Type •Tier 4 Final - Ultra-low sulfur diesel (ULSD)
•Tier 3 - No. 2 diesel
Fuel System Filtered, direct-injected
Air Cleaner Dry-type, dual element
Engine Air Filter Restriction Monitors Filter Minder®
Slow Idle 850 RPM
Fast Idle (no load) 2300 RPM
Hydrostatic Drive
Hydrostatic Pump Danfoss (H1-Series)
Drive Train All-Wheel 4-Wheel Drive
Speed Ranges^ Speed Ranges 1-20 (operator selected)
Hydrostatic Wheel Motors Danfoss (H1-Series)
Final Drives Planetary gear reduction hubs
(Bonfiglioli or Fairfield)
• Lubrication Oil bath
Brakes (Parking Only) Multiple disk, spring applied, hydraulically
released
Auxiliary Hydraulic System
Steering System Hydraulic, priority circuit
• Control Full-time power
• Steering Cylinders Double acting
• Turning Radius^• 25 ft./7.5 m (No AWS/AWS “Off”)
• 18 ft./5.5 m (AWS “On”, if equipped)
All Wheel Steer (AWS) - if equipped^ Coordinated steering

1-11
SECTION 1 –
INTRODUCTION
Solution System Hydraulic Pump Load Sense (LS) Pump
Cooling Fan Hydraulic Pump Gear Pump
Spray System
Booms 90/100/120/132-ft. (9 sections)
•Type •Dry
• Wet (optional)
• Controls Electro-hydraulic (fold/lift/level)
• Level Shock Absorber Gas charged accumulator
• 90/100-ft. Outer Boom Hydraulic Breakaway Self-actuated, auto-reset hydraulic
• 120/132-ft. Inner Boom Breakaway Hydraulic, manual reset
• 120/132-ft. Outer Boom Breakaway Mechanical with spring, auto-reset
Solution Fill Connection
• Quick-fill Connection 3” (7.6 cm) inner diameter
Solution Tank
• Standard 1200 gal. (4542.5 L) stainless steel
Agitation Jet-type with electric valve variable control
General Spray System
• Pump Centrifugal-hydraulically driven with proportional
control valve
• Solution Valves Ball valves (manual or electric)
• Pressure Gauge 100 PSI (6.9 bar) glycerin filled
• Console • Raven (optional)
• Ag Leader (optional)
• Fence Row Nozzle Remote activated (left and right)
• Rear Nozzle Remote activated
Solution Circuit Pressure 100 PSI (6.9 bar) - maximum
Chemical Injection System
Chemical Tanks • (2) 60-gallon/227 L tanks
• (1) 120-gallon/454 L tank
Mechanical Agitators (if equipped) 60-gallon/227 L tanks (Tanks 1 and 3)
Injection Pumps Raven Sidekick Pro™ (5-200 oz./min.)
Mixer 2”/2.5 cm poly
Foam Marking System
Make Richway Versa Trac
Type Boom Mix

SECTION 1 –
INTRODUCTION
1-12
Rinse System
Spray System Rinse
(solution tanks, pump, and booms)
Standard
Electrical System
General Electrical System
• Battery Dual 12V, negative ground (CCA)
• Alternator 200 AMP, voltage regulated
• Starter 12V with solenoid
Lights (Exterior)
• Front of Cab 2 trapezoidal headlights, 2 floodlights, 2 rotating
amber beacon lights
• Transom 2 trapezoidal headlights (if equipped)
• Transom Mount 2 trapezoidal headlights (high/low beam), 2 oval
amber lights (combined)
• Boom Cradle 2 trapezoidal floodlights (1 on each cradle), 2
oval amber lights (1 on each cradle)
• Rear Engine Hood 2 round red lights, 2 round amber lights
• Spray Boom Indicators
(located on boom, if equipped)
1 oval white, 2 oval amber, 9 oval red
Cab and Instruments
Sound Level (cab interior) 86 dBA (maximum)
Cab (General) Tilt steering, wipers/washers, dual side mirrors,
dome light, tinted glass, instructor seat
Temperature Control Full range
A/C Charge Type R-134a
Fresh Air Filtration • RESPA® cab filter
• Charcoal filter
Seat Air-ride
Instruments Tachometer (RPM), fuel level, engine coolant
temperature
Machine Display Hour meter, battery voltage, engine oil pressure,
ground speed, engine diagnostics, tread
adjustment, parking brake, machine/engine
malfunction warnings, engine exhaust filtration
warning, high exhaust temperature warning, low
hydraulic oil level, low coolant level, low fuel
level, grid heater, cab air pressure
Stereo AM/FM radio with CD/MP3/Bluetooth (if
equipped)

1-13
SECTION 1 –
INTRODUCTION
^ Operators with machines equipped with All-Wheel Steer (AWS) pay special attention.
Fluid Capacities
Solution Tank 1200 gal. (4542.5 L)
Fuel Tank 135 gallons (511 L)
Engine Oil Pan (including filter and cooler) 17.6 quarts (16.7 L), SAE 15W-40
Engine Oil Dipstick (L-H mark) 2 quarts (1.9 L)
Engine Cooling System
(including block, lines, and radiator)
• Tier 4 Final - 14 gallons (53 L), ethylene glycol
•Tier 3 - 12.5 gallons (47 L), ethylene glycol
Diesel Exhaust Fluid (DEF) Tank
(Tier 4 Final Engines)
10 gallons (37 L)
Hydraulic Oil (including lines, filter, cooler, etc.) 50 gallons (189 L)
Hydraulic Oil Reservoir 32 gallons (121 L)
Wheel Hubs (4) •Bonfiglioli = 40 oz./each (1.18 L),
75W-90 synthetic oil
•Fairfield = 62 oz./each (1.83 L),
75W-90 synthetic oil
Rinse System Tank 100 gallons (378.5 L)
Hand Wash Tank 4 gallons (15 L)
Foam Marker 3 gallons (11.4 L), foam concentrate

SECTION 1 –
INTRODUCTION
1-14
* Static load radius is suggested and will vary with load.
TIRE SPECIFICATIONS (STANDARD)
Size Make Model Load
Rating
(Weight/
Speed)
Air
Pressure
(Max PSI)
Tread
Width
(inch
es)
Load
Capacity
(lbs.)
Overall
Diameter
(inches)
Static
Load
Radius*
(inches)
Rolling
Circum.
(inches)
Gross
Flat
Plate
(in2)
320/90R50 Goodyear® Ultra
Sprayer
161A8/B 78 12.4 10,200 73.6 33.8 219 235
320/90R50 Titan® TT49V 161A8/B 78 12.5 10,200 72.6 34.2 220 170
320/105R54 Goodyear Ultra
Sprayer
166A8 75 13.2 11,700 80.6 37.7 242 243
380/105R50 Firestone® 9100 R1 168B 64 16 12,300 80.8 37.5 244 297
IF380/105R50 Firestone 9100 R1 177B 70 17 16,100 80.8 37 244 345
380/85R46 Goodyear Dyna
Tor que
165A8 75 15.2 11,400 71.8 32.9 217 N/A
380/90R46 Goodyear Ultra
Sprayer
168A8/B 78 14.4 12,300 72.6 32.6 217 277
VF380/90R46 Michelin® Spraybib 173D 64 15.1 14,330 72.5 33.4 217 267
380/90R46 Alliance 350 172D 84 14.9 13,880 71.8 33.1 215 N/A
380/90R54 Goodyear Ultra
Sprayer
170A8/B 75 14.3 13,200 80.9 37.5 244 305
520/85R46 Michelin Agribib 158A8 28 20.3 10,030 80.7 36.2 240 441
TIRE SPECIFICATIONS (METRIC)
Size Make Model Load
Rating
(Weight/
Speed)
Air
Pressure
(Max
Bar)
Tread
Width
(cm)
Load
Capacity
(kg)
Overall
Diameter
(cm)
Static
Load
Radius*
(cm)
Rolling
Circum.
(cm)
Gross
Flat
Plate
(cm2)
320/90R50 Goodyear® Ultra
Sprayer
161A8/B 5.4 31.5 4,626 186.9 85.9 556.3 1516.1
320/90R50 Titan® TT49V 161A8/B 5.4 31.8 4,626 184.4 86.9 558.8 1096.8
320/105R54 Goodyear Ultra
Sprayer
166A8 5.2 33.5 5,307 204.7 95.8 614.7 1567.7
380/105R50 Firestone® 9100 R1 168B 4.4 40.6 5,579 205.2 95.3 619.8 1916.1
IF380/105R50 Firestone 9100 R1 177B 4.8 43.2 7,302 205.2 94 619.8 2225.8
380/85R46 Goodyear Dyna
Tor que
165A8 5.2 38.6 5,170 182.4 83.6 551.2 N/A
380/90R46 Goodyear Ultra
Sprayer
168A8/B 5.4 36.6 5,579 184.4 82.8 551.2 1787.1
VF380/90R46 Michelin® Spraybib 173D 4.4 38.4 6,500 184.2 84.8 551.2 1722.6
380/90R46 Alliance 350 172D 5.8 37.8 6,295 182.4 84.1 546.1 N/A
380/90R54 Goodyear Ultra
Sprayer
170A8/B 5.2 36.3 5,987 205.5 95.3 619.8 1967.7
520/85R46 Michelin Agribib 158A8 1.9 51.6 4,549 205 91.9 609.6 2845.2

1-15
SECTION 1 –
INTRODUCTION
NOTE: There are no adjustments to the loads and pressures in the above table for lower speeds or
stationary service.
NOTE: Minimum inflation pressures for IF agricultural tires used as singles = 12 psi.
TIRE LOAD LIMITS (LBS) AT VARIOUS COLD INFLATION PRESSURES (PSI)
Inflation
(psi)
6 9 12 15 17 20 23 26 29
320/90R50 2,270 2,760 3,200 3,640 4,080 4,540 4,940 5,200 5,520
320/90R50 2,270 2,760 3,200 3,640 4,080 4,540 4,940 5,200 5,520
320/105R54 2,680 3,200 3,740 4,300 4,800 5,360 5,840 6,150 6,400
380/105R50 3,300 3,960 4,680 5,360 6,000 6,600 7,400 7,600 8,050
IF380/105R50 3,300 4,800 5,520 6,400 7,150 8,050 8,800 9,100 9,650
380/85R46 2,680 3,200 3,740 4,300 4,800 5,360 5,840 6,150 6,400
380/90R46 2,830 3,300 3,860 4,400 5,080 5,520 6,150 6,400 6,800
VF380/90R46 N/A N/A N/A N/A N/A N/A N/A N/A 9,500
380/90R46 3,280 4,620 5,430 6,240 6,500 6,950 7,300 7,770 8,180
380/90R54 3,000 3,640 4,300 4,800 5,520 6,000 6,600 6,950 7,400
520/85R46 4,610 5,510 6,420 7,320 8,220 9,130 10,030 N/A N/A
TIRE LOAD LIMITS (LBS) AT VARIOUS COLD INFLATION PRESSURES (PSI)
(CONTINUED)
Inflation
(psi)
35 41 46 52 58 64 70 75
320/90R50 5,840 6,400 6,950 7,400 7,850 8,550 9,100 9,650
320/90R50 5,840 6,400 6,950 7,400 7,850 8,550 9,100 9,650
320/105R54 6,950 7,600 8,050 8,550 9,100 9,900 10,700 11,700
380/105R50 8,550 9,350 10,200 10,700 11,400 12,300 N/A N/A
IF380/105R50 10,200 11,400 12,000 12,800 13,600 14,800 16,100 N/A
380/85R46 6,800 7,600 8,050 8,550 9,100 9,900 10,700 11,400
380/90R46 7,150 7,850 8,550 9,100 9,650 10,500 11,400 12,000
VF380/90R46 10,200 11,150 12,020 12,790 13,230 14,330 N/A N/A
380/90R46 9,000 9,780 10,530 11,250 12,500 12,940 13,400 13,880
380/90R54 7,850 8,550 9,350 9,900 10,500 11,400 12,300 13,200
520/85R46 N/A N/A N/A N/A N/A N/A N/A N/A

SECTION 1 –
INTRODUCTION
1-16
NOTE: There are no adjustments to the loads and pressures in the above table for lower speeds or
stationary service.
NOTE: Minimum inflation pressures for IF agricultural tires used as singles = .8 bar.
TIRE LOAD LIMITS (KG) AT VARIOUS COLD INFLATION PRESSURES (BAR)
Inflation
(bar)
.4 .6 .8 1.0 1.2 1.4 1.6 1.8 2.0
320/90R50 1,029 1,251 1,451 1,651 1,850 2,059 2,240 2,358 2,503
320/90R50 1,029 1,251 1,451 1,651 1,850 2,059 2,240 2,358 2,503
320/105R54 1,215 1,451 1,696 1,950 2,177 2,431 2,649 2,789 2,903
380/105R50 1,496 1,796 2,122 2,431 2,721 2,993 3,356 3,447 3,651
IF380/105R50 1,496 2,177 2,503 2,903 3,243 3,651 3,991 4,127 4,377
380/85R46 1,215 1,451 1,696 1,950 2,177 2,431 2,649 2,789 2,903
380/90R46 1,283 1,496 1,750 1,995 2,304 2,503 2,789 2,903 3,084
VF380/90R46 N/A N/A N/A N/A N/A N/A N/A N/A 4,309
380/90R46 1,487 2,095 2,463 2,830 2,948 3,152 3,311 2,524 3,710
380/90R54 1,360 1,651 1,950 2,177 2,503 2,721 2,993 3,152 3,356
520/85R46 2,091 2,499 2,912 3,320 3,728 4,141 4,549 N/A N/A
TIRE LOAD LIMITS (KG) AT VARIOUS COLD INFLATION PRESSURES (BAR)
(CONTINUED)
Inflation
(bar)
2.4 2.8 3.2 3.6 4.0 4.4 4.8 5.2
320/90R50 2,649 2,903 3,152 3,356 3,560 3,878 4,127 4,377
320/90R50 2,649 2,903 3,152 3,356 3,560 3,878 4,127 4,377
320/105R54 3,152 3,447 3,651 3,878 4,127 4,490 4,853 5,307
380/105R50 3,878 4,241 4,626 4,853 5,171 5,579 N/A N/A
IF380/105R50 4,626 5,171 5,443 5,806 6,169 6,713 7,302 N/A
380/85R46 3,084 3,447 3,651 3,878 4,127 4,490 4,853 5,171
380/90R46 3,243 3,560 3,878 4,127 4,377 4,762 5,171 5,443
VF380/90R46 4,626 5,057 5,452 5,801 6,001 6,500 N/A N/A
380/90R46 4,082 4,436 4,776 5,102 5,669 5,869 6,078 6,295
380/90R54 3,560 3,878 4,241 4,490 4,762 5,171 5,579 5,987
520/85R46 N/A N/A N/A N/A N/A N/A N/A N/A

1-17
SECTION 1 –
INTRODUCTION
2015 PRODUCT WARRANTY
Hagie Manufacturing Company Product Warranty
Hagie Manufacturing Company warrants each new Hagie product to be free under normal use and service
from defects in workmanship and materials for a period of lesser of: two (2) years or 1,000 hours from the
date of delivery on all Agricultural Products. Hagie Manufacturing Company makes this warranty from the
original delivery date and is transferable to a purchaser from the original purchaser of this equipment,
given there is remaining time left under the year and hour warranty standard stated above. This warranty
shall be fulfilled by repairing or replacing free of charge any part that shows evidence of defect or improper
workmanship, provided the part is returned to Hagie Manufacturing Company within thirty (30) days of the
date that such defect or improper workmanship is discovered, or should have been discovered. Labor to
repair said items will be covered by standard labor time rates. Freight charges of defective parts are not
covered by this warranty and are the responsibility of the purchaser. No other express warranty is given
and no affirmation of Hagie Manufacturing Company, by words or action, shall constitute a warranty.
Hagie Manufacturing Company limits its warranty to only those products manufactured by Hagie
Manufacturing Company and does not warrant any part or component not manufactured by Hagie
Manufacturing Company, such as parts or components being subject to their manufacturer’s warranties, if
any. Excluded from this warranty are parts subjected to accident, alteration, or negligent use or repair. This
warranty does not cover normal maintenance such as engine tune ups, adjustments, inspections, nor any
consumables such as tires, rubber products, solution system valves, wear parts, wiper blades, etc.
Hagie Manufacturing Company shall not be responsible for repairs or replacements which are
necessitated, in whole or in part; by the use of parts not manufactured by or obtainable from Hagie
Manufacturing Company nor for service performed by someone other than Hagie authorized personnel,
unless authorized by Hagie Manufacturing Company. Customer acknowledges that it is not relying on
Hagie Manufacturing Company’s skill or judgment to select finish goods for any purpose and that there are
no warranties which are not contained in this agreement.
In no event shall Hagie Manufacturing Company’s tort, contract, or warranty liability exceed the purchase
price of the product. The foregoing limitation will not apply to claims for personal injury caused solely by
Hagie Manufacturing Company’s negligence.
Hagie Manufacturing Company shall not be liable for damages, including special, incidental or
consequential damages or injuries (damage and repairs of equipment itself, loss of profits, rental or
substitute equipment, loss of good will, etc.) arising out of or in connection with performance of the
equipment or its use by customer, and Hagie Manufacturing Company shall not be liable for any special,
incidental or consequential damages arising out of or in connection with Hagie Manufacturing Company’s
failure to perform its obligation hereunder. HAGIE MANUFACTURING COMPANY’S ENTIRE LIABILITY
AND THE CUSTOMER’S EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT OF PARTS
COVERED UNDER THIS WARRANTY. THIS WARRANTY IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO THE IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

SECTION 1 –
INTRODUCTION
1-18
Emissions Limited Warranty
The following emissions components are covered under a 5 year/3,000 hour limited warranty. Some of the
components listed may be covered under the manufacturer’s limited warranty.
Air Handling System and Associated Plumbing
• Charge Air Cooler
• Charge Air Cooler Plumbing
• Charge Air Temperature Sensor
Engine Electronic Components
• Wire harness circuits connected at both ends to emissions warrantable components
Exhaust System (upstream of last Aftertreatment)
• Exhaust gas piping from turbocharger out to the last Aftertreatment device
Exhaust Aftertreatment
• Urea Quality Sensor
• Urea Level Sensor
• Urea Tank and Lines
• Urea Tank/Line Heating Elements or Heater Exchanger and Pipe
• Urea Temperature Sensors
• Tank Heater Coolant Control Valve
• Line Heater Control Relay
Vehicle Electronic Components
• On Board Diagnostic (OBD) Malfunction Indicator Lamp (MIL)
• Diesel Exhaust Fluid (DEF) Indicator Lamp
Refer to the engine operator’s manual (Section W) for detailed information on products warranted, cover-
age, and limitations under the engine manufacturer’s warranty.
