Haier ESA3159 User manual

Haier
What The World Comes Home To TM
RoomAir(onditioner
ElectronicControl
Climatisation de Pi@e
CommandoEiectronique
Acon@ion_@rDeAir÷
ControlElectr6nico
ESA3159, ESA3189, ESA3189-L
Usern_d
f .......
ON/OFF
®
MODE SPEED TIMER
@ @
@..........
.................................................................................J
i
0010555512
(ESA3159,ESA3189,ESA3189=L Onlly)
Read instructionsbefore installing.
Call I=877-337-3639 for questionsonparts and services.
Liralosinstructionsavant de proc6der 6 I'installation.
Pour tautes questionsconcernant les pi_ces et I'entretien,camposez le 1-877-337-3639.
Lea las Instruccianes antes de instalar el aparata
LI6menosa! 1-877-337-3639 si tiene preguntas sabre repuestas o servicios

Thank you for buying a dependable, energy-saving and easy-to-operate
HALERroom air conditioner. This manual contains useful information for
you to maintain, operate, install and safely use your room air conditioner.
Your air conditioner cleans, cools and dehumidifies the air in your room to
provide you with the ultimate bvel of comfort.
Phase read instructions carefully before using the product. Also, do not
forget to fill out and mail the Product Registration Cord.
Record Your Model and Serlol Number.
Forall your servicecalls during thewarranty period, thefollowing
informationwill be needed.Attachthe salesreceiptto thisguide and keep
for future reference.Thisinformationcan be obtained from theserialplate,
which ison your air conditioner.Thisiseitheron thecabinet (sideor back),
or you may haveto removethefront grille to locateit.
Model Number: ..............................................................
Serial Number: ...............................................................
Date of Purchase: ...........................................................
Dealer's Name: ..............................................................
Dealer's Address: ............................................................
Dealer's Phone Number: ...................................................
TABLE
RECEPTACLE AND FUSE TYPES
_TED VOLTS 125/60 250/60
AMPS 15 20 15 20 30
FUSE SiZE 15 20* 15 20* 30
TiME DELAY FUSE
(or circuit braker) Plug Plug Plug

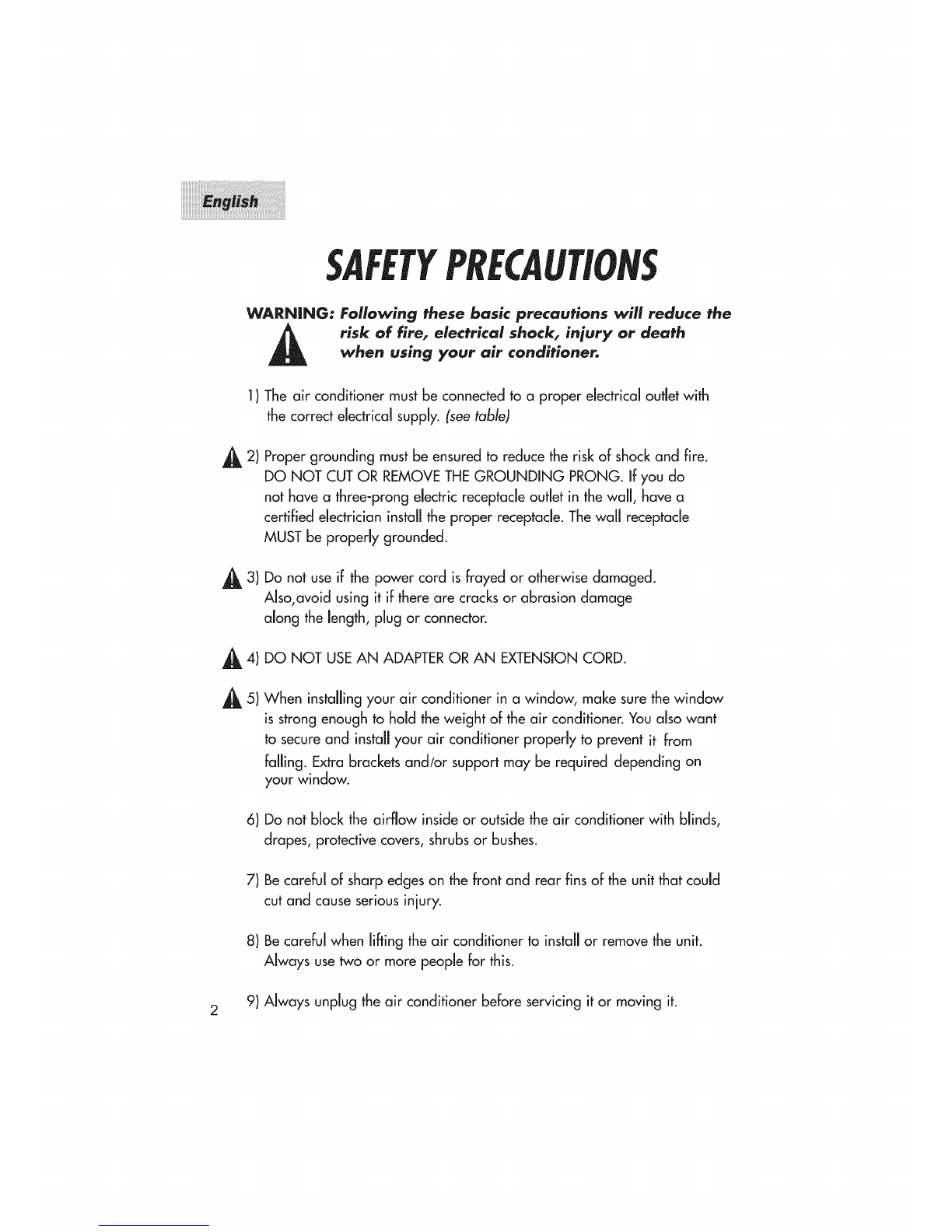

SAFETYPRECAUTIONS
WARNING: Foflowing these basic precautions wifl reduce the
risk of fire, electrical shock, injury or death
when using your air conditioner.
1) The air conditioner must be connected to a proper electrical outlet with
the correct electrical supply. (see table)
Proper grounding must be ensured to reduce the risk of shock and fire.
DO NOT CUT OR REMOVE THE GROUNDING PRONG. if you do
not have a three-prong electric receptacle outlet in the wall, have a
certified electrician install the proper receptacle. The wall receptacle
MUST be properly grounded.
Do not use if the power cord is frayed or otherwise damaged.
Also, avoid using it if there are cracks or abrasion damage
along the length, pJug or connector.
4) DO NOT USEAN ADAPTER OR AN EXTENSION CORD.
When installing your air conditioner in a window, make sure the window
is strong enough to hold the weight of the air conditioner. You also want
to secure and install your air conditioner properly to prevent it from
falling. Extra brackets and;or support may be required depending on
your window.
6) Do not bbck the airflow inside or outside the air conditioner with blinds,
drapes, protective covers, shrubs or bushes.
7) Be careful of sharp edges on the front and rear fins of the unit that could
cut and cause serious injury.
8) Be careful when Jifling the air conditioner to install or remove the unit.
Always use two or more people for this.
29) Always unplug the air conditioner before servicing it or moving it.

A Ward From Haler
Product Registration
Safety Precautions
Warnings
Electrical Safety
Tips
Energy Saving Guide
Features
Operating Guide
Normal Operating Sounds
Operating instructions
installations

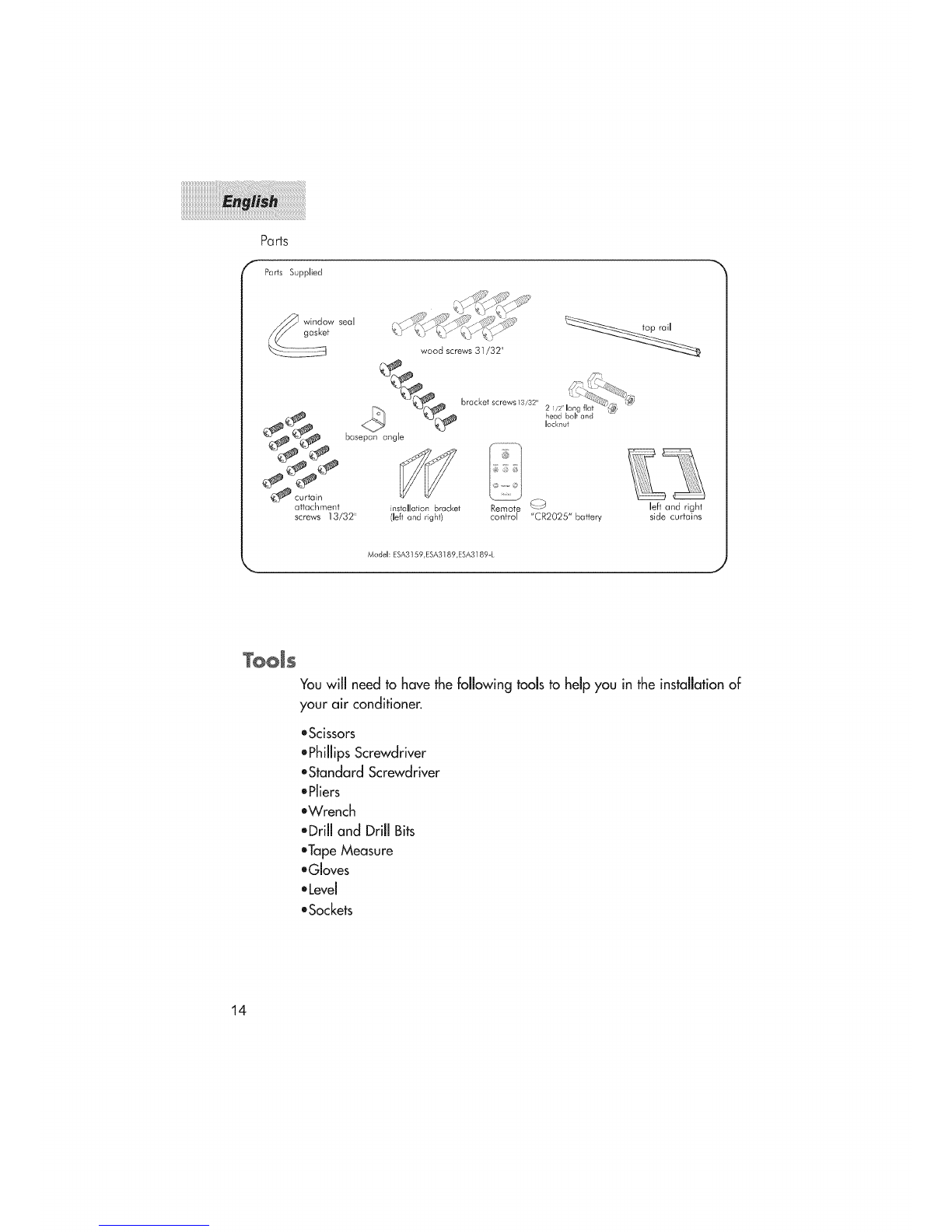

Parts
Tools

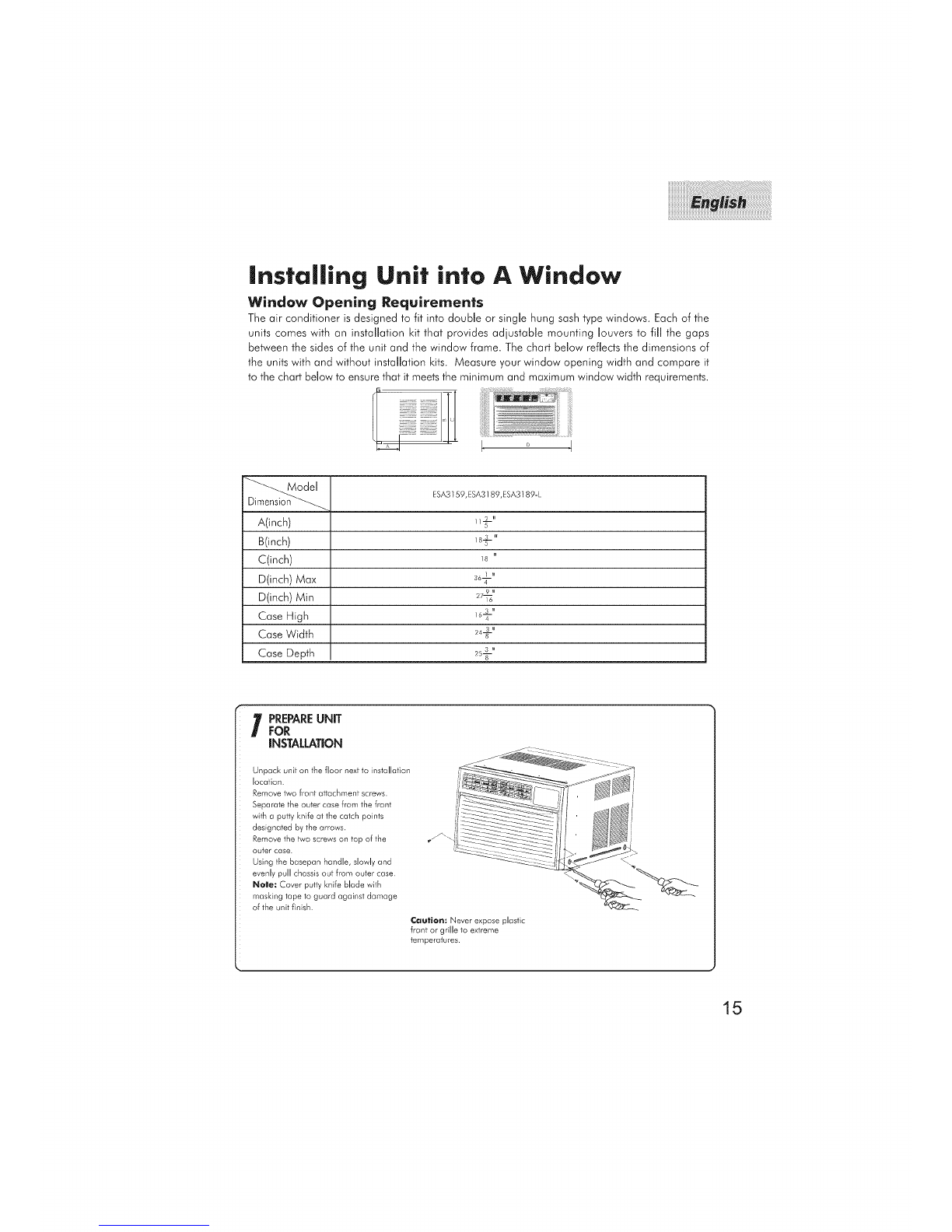

Installing Unit into A Window
Clean and Care Guide
PAGE
1
1
2
4
4
5
5
6-7
8-128
8-12
13-20
14
14
15-20
21-22
22-23
24
3

.................i!!!!i

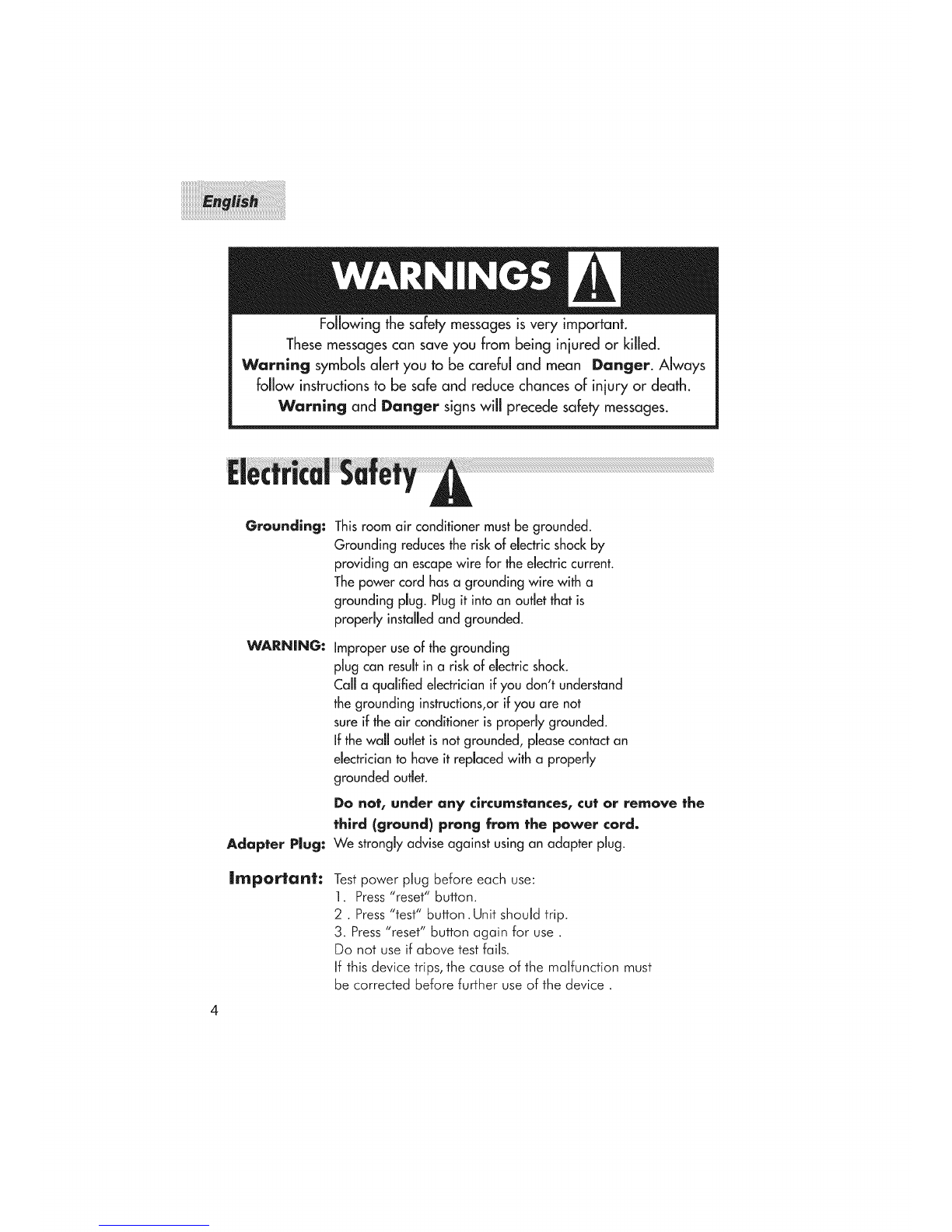

Following the safety messages is very important.
These messages can save you from being injured or killed.
Warning symbols alert you to be careful and mean Danger. Always
follow instructions to be safe and reduce chances of injury or death.
Warning and Danger signs will precede safety messages.
r
4
Grounding:
WARNING:
Thisroom air conditioner mustbe grounded.
Grounding reducesthe risk of electric shockby
providing an escapewire for the electriccurrent.
Thepower cord has a grounding wire with a
grounding pbg. Hug it into an outlet thatis
properly installedand grounded.
improper useof the grounding
pbg can resultin a risk of ebctric shock.
Call a qualified electricianif you don't understand
the grounding instructions,orif you are not
sure if the air conditioner is properly grounded.
if thewall outlet is not grounded, pleasecontact an
electrician to have it replaced with a properly
grounded outlet.
DO nat_, under any clrcurnstances_, cut or remove the
third (ground) prong from the power cord.
We stronglyadvise against usingan adapter plug.
Testpower plug before each use:
1. Press"reset" button.
2 . Press"test" button. Unit should trip.
3. Press"reset" button again for use.
Do not useif above test fails.
If this device trips, the cause of the malfunction must
be corrected before further use of the device .

®
o
0

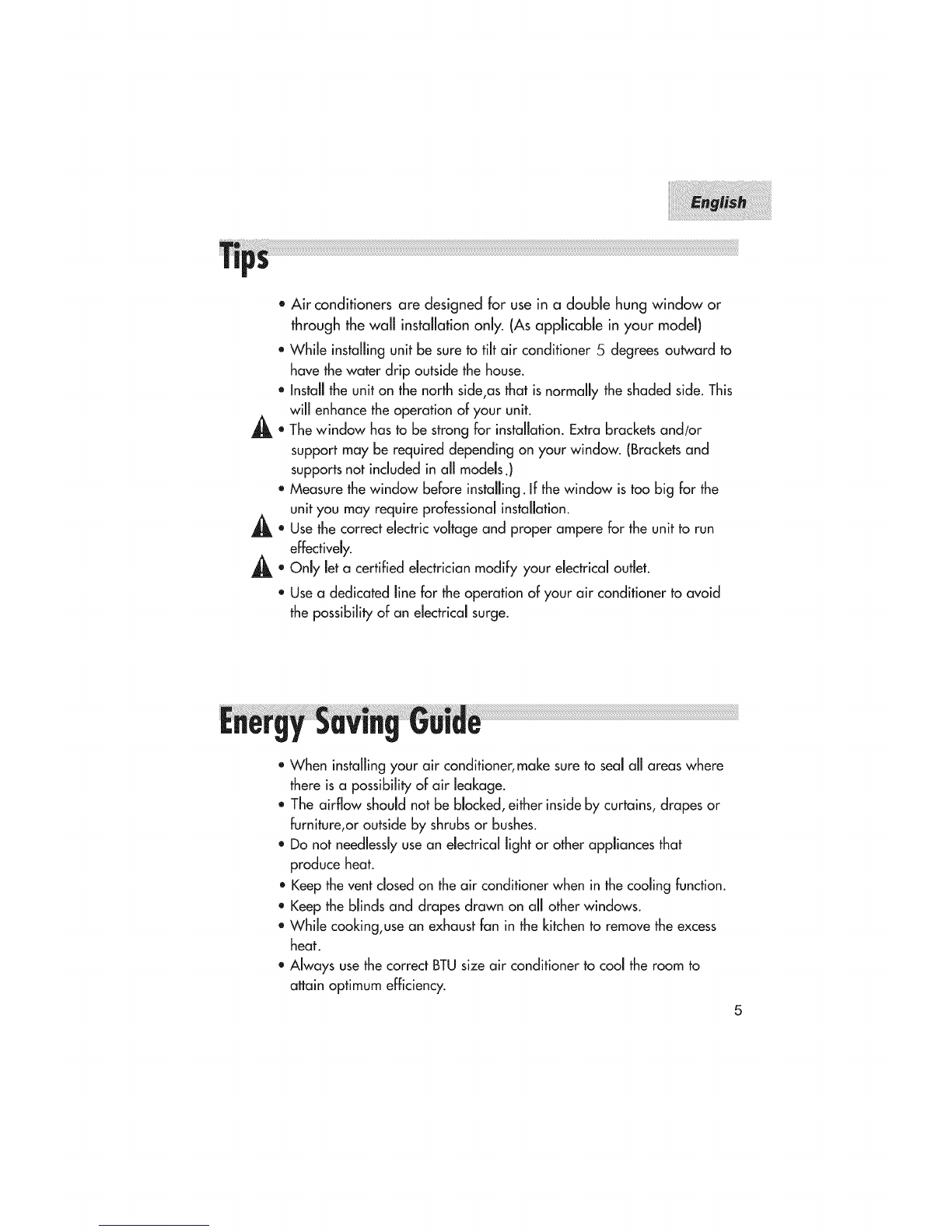

Air conditioners are designed for use in a doubb hung window or
through the wall installation only. {As applicabb in your model)
WhiJe installing unit be sure to tih air conditioner 5 degrees outward to
have the water drip outside the house.
Install the unit on the north side,as that is normally the shaded side. This
will enhance the operation of your unit.
The window has to be strong for installation. Extra brackets and/or
support may be required depending on your window. (Brackets and
supports not included in all models.)
Measure the window before installing, if the window is too big for the
unit you may require professional installation.
Use the correct ebctric voltage and proper ampere for the unit to run
effectively.
Only let a certified ebctrician modify your electricaJ outbt.
Use a dedicated line for the operation of your air conditioner to avoid
the possibiJity of an ebctrical surge.
• When installing your air conditioner, make sure to seal all areas where
there is a possibility of air bakage.
e The airflow should not be blocked, either inside by curtains, drapes or
furniture,or outside by shrubs or bushes.
o Do not needlessly usean electrical light or other appliances that
produce heat.
Keep the vent closed on the air conditioner when in the cooling function.
o Keep the blinds and drapes drawn on all other windows.
o WhiJe cooking,use an exhaust fan in the kitchen to remove the excess
heat.
• Always use the correct BTUsize air conditioner to cool the room to
attain optimum efficiency. S

vent
controller
louvers
easy-access
filters
1,Thermostat
This allows you to adjust the temperature of the
air--the lower the setting,the cooler the air
temperature. With this you can set the
temperature to your desired comfort level. You
can set the temperature between 61°F and 86°
F.
2.Fan Speed
With this you can control the fan speed aswell
as the A/C (cooling) speed.
You have 3 levels of A/C Speed to set at your
desired level. LO will circulate air at the lowest
velocity, MED at medium velocity and HIGH
will circulate at the maximum, velocity.You have
3 levels of Fan Speed to set at your desired
comfort level: HIGH, MED and LOW.
3. Function
Your air conditioner has 4 Functions.
a) COOL
Here the air conditioner will operate the
compressor and the desired fan speed setto
give you cold air for your comfort.
b) FAN
You can run the fan without the A/C function
on cooler days. The fan can be set to run at
6
3speeds asdesired.
c) DEHUMIDIFY
This enables your air conditioner to operate as
a dehumidifier aswell. Jfwill remove the excess
moisture from the air to keep your room at a
comfortable, dry stage. You can usethis feature
alone in case you do not wish to use the air
conditioner.
d) ENERGYSAVER
When this feature is "On", the fan will shut off
three minutes after the compressor cycles off.
Thiswill reduce energy consumption and noise.
When the compressor turns back on, the fan
will turn on at the same time. In the "Off"
position, the fan will not shut off when the
compressor cycles off.
4.Timer
Your air conditioner can be setto go on or off
at your desire. This can be programmed up to
24 hours in advance.
5.4-Way Air Flow
The air directional louvers let you control the
direction of the airflow to the desired direction.
Theairflow can be directed up-down-right side-
Jeffside.

!!!!!!!!!!!!!!!!!ililiiiiiiiiiii!!¸i!!!!¸ii¸ii¸iiiiliii!i!iiiiiiiiiiiiiiiiiii¸ii!:!iii¸i¸i¸i¸ii¸iii¸i¸i¸i¸ii¸iiiiiiiiiil
iiiiiiiiiiiiii!iii!il
_###############################################_,,_

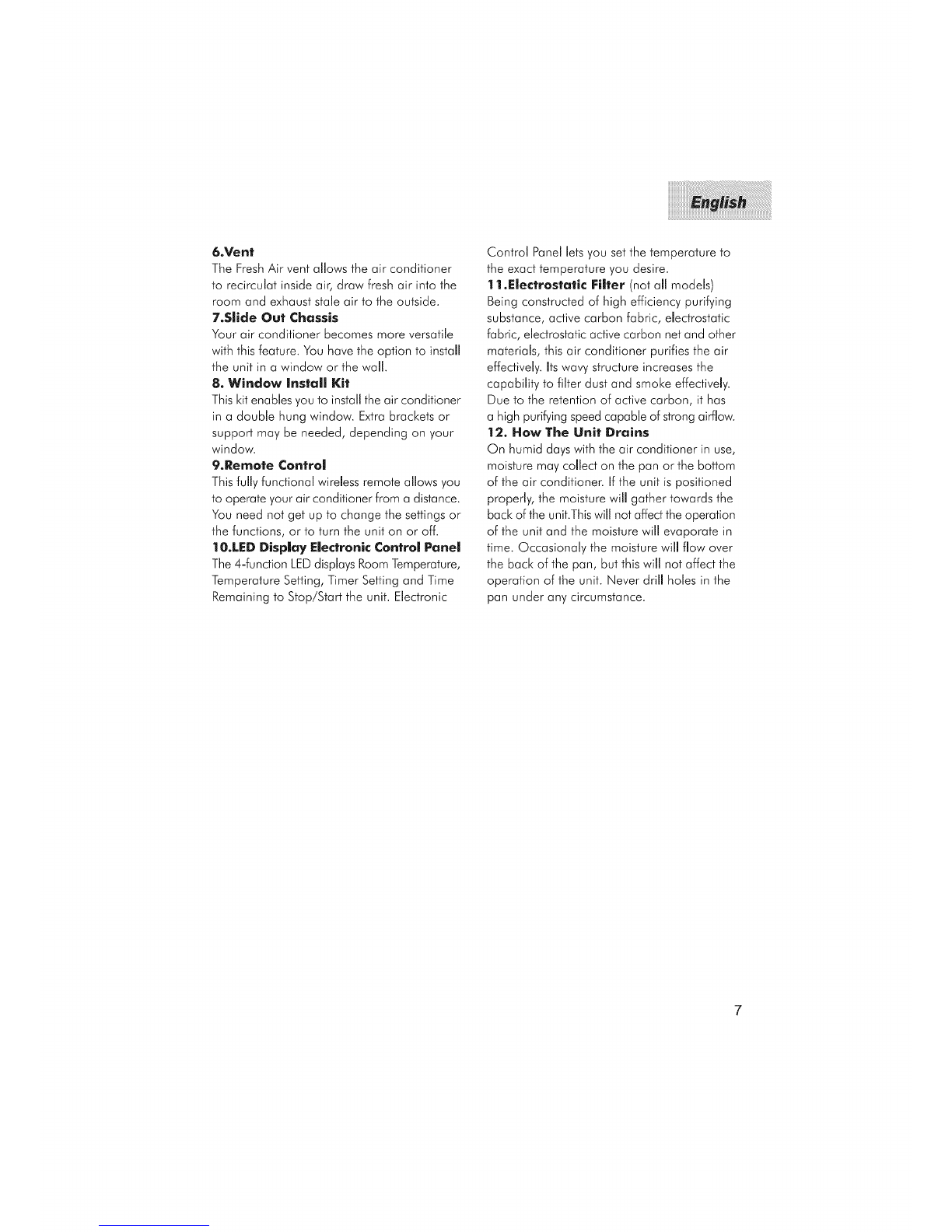

6.Vent
The FreshAir vent allows the air conditioner
to recirculaf inside air, draw fresh air into the
room and exhaust stale air to the outside.
7.Slide Out Chassis
Your air conditioner becomes more versatile
with this feature. You have the option to install
the unit in a window or the wall.
8. Window Install Kit
This kit enables you to installthe air conditioner
in a double hung window. Extrabrackets or
support may be needed, depending on your
window.
9.Remote Control
This fully functional wireless remote allows you
to operate your air conditioner from a distance.
You need not get up to change the settings or
the functions, or to turn the unit on or off.
10.LED Display Electronic Control Panel
The4-fundion LEDdisplaysRoom Temperature,
Temperature Setting, Timer Setting and Time
Remaining to Stop/Start the unit. Electronic
Control Panel lets you set the temperature to
the exact temperature you desire.
11 .Electrostatic Filter (not all models)
Being constructed of high efficiency purifying
substance, active carbon fabric, electrostatic
fabric, electrostatic active carbon net and other
materials, this air conditioner purifies the air
effectively. Its wavy structure increases the
capability to filter dust and smoke effectively.
Due to the retention of active carbon, it has
a high purifying speedcapable of strong airflow.
12. How The Unit Drains
On humid days with the air conditioner in use,
moisture may collect on the pan or the bottom
of the air conditioner. If the unit ispositioned
properly, the moisture will gather towards the
back of the unit.Thiswill not affectthe operation
of the unit and the moisture will evaporate in
time. Occasionaly the moisture will flow over
the back of the pan, but this will not affect the
operation of the unit. Never drift holes in the
pan under any circumstance.
7

Nor aJ Operating Sounds
The following sounds are normally heard during the operation of an air conditioner.
, Cool airflow movement as dictated bythe set fan speed.
*Water sounds. This is normal since your air conditioner also acts as a dehumidifier.
Thus you will hear water sounds from water drops falling on the condenser.
oAs the refrigerant flows through the inner sealed tubing, a rushing noise may be
Occur.
*Rattling or vibrating noises may be heard due to poor wall or window installation.
*High pitch compressor sound may be heard.
Operating Instwctions
The following are the operating instructions of your electronic air conditioner.
Remote control and contro| panel operations
After installing your air conditioner, plug it into the proper electrical outlet in the
wall. Keep the vent in the closed position. Now set the air conditioner at your
comfort level. This fully functional wireless remote allows you to operate your air
conditioner without having to get up and go to the unit. The full function feature
allows you to change the settings and turn the unit on or off from the remote itself.
This control pad works the same as the control pad on the air conditioner. (See
Fig. #1) f
Fig. #1
Remote Contro|
ON/OFF
TEMP/TIME @
8

!!!!!!!!!!!!!!!!!ililiiiiiiiiiii!!¸i!!!!¸ii¸ii¸iiiiliii!i!iiiiiiiiiiiiiiiiiii¸ii!i!iii¸i¸i¸i¸ii¸iii¸i¸i¸i¸ii¸iiiiiiiiiil
iiiiiiiiiiiiii!iii!il
IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII_

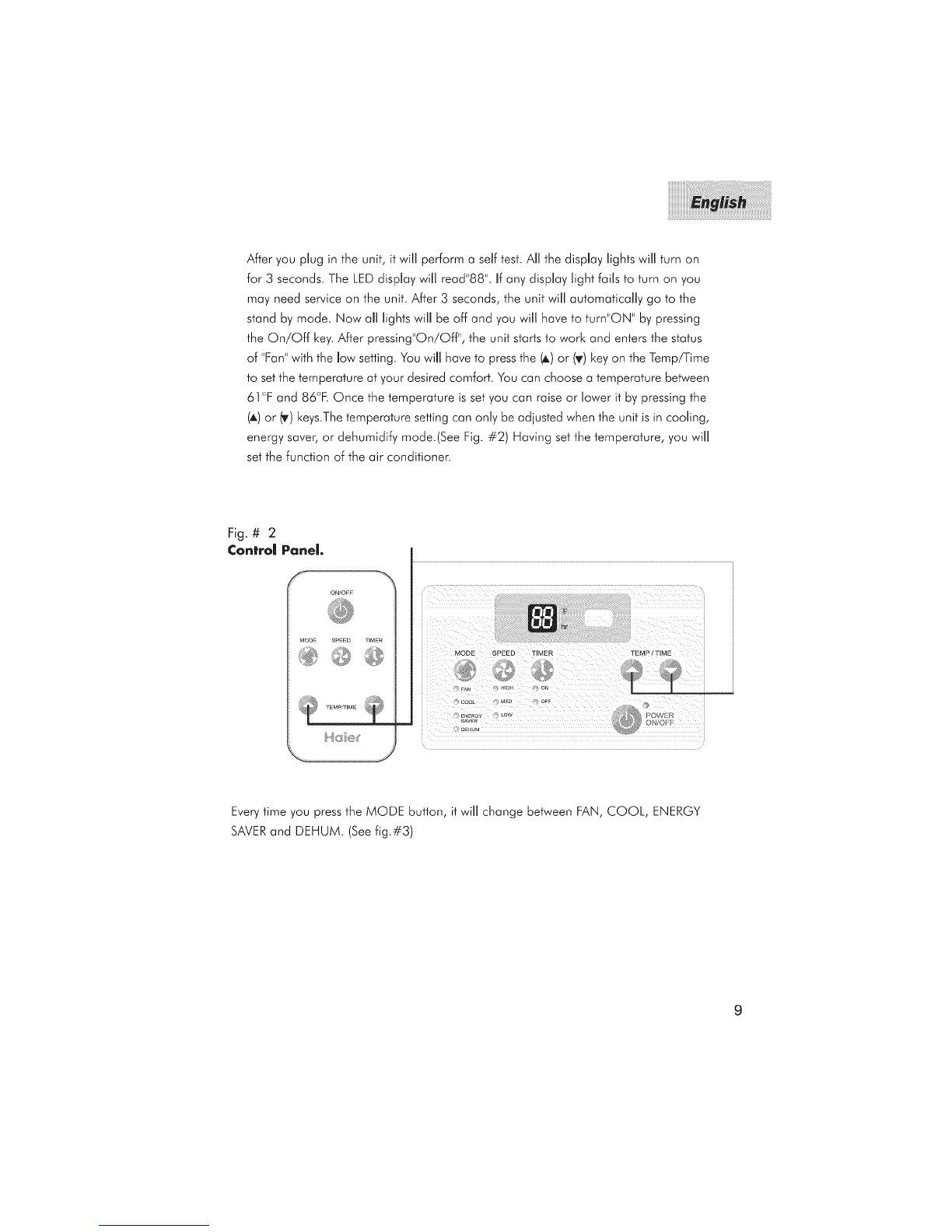

After you plug in the unit, it will perform a selftest. All the display lights will turn on
for 3 seconds. The LEDdisplay will read"88L If any display light fails to turn on you
may need service on the unit. After 3 seconds, the unit will automatically go to the
stand by mode. Now all lights will be off and you will have to turn"ON" by pressing
the On/Off key.After pressing"On/Off", the unit starts to work and enters the status
of "Fan"with the low setting. You will have to pressthe (A)or (T) keyon the Temp/Time
to setthe temperature at your desired comforL You can choose a temperature between
61°F and 86°F. Once the temperature isset you can raise or lower it by pressing the
(A)or (_)keys.Thetemperature setting can only be adjusted when the unit is in cooling,
energy saver,or dehumidify mode.(See Fig. #2) Having setthe temperature, you will
set the function of the air conditioner.
Fig. #2
Control Panel.
ON/OFF
MODE SPEED TIMER
TEMP/TIME
"-_....... J
_OOL _eD OFF
_NFRCY LOW
_AVER
J_HUM
POW_: R
ON/OFF
Everytime you pressthe MODE button, it will change between FAN, COOL, ENERGY
SAVERand DEHUM. (Seefig.#3)
9

?##############################################_,_
Fig.# 3
Control Panel l
ON/OFF
iJ
SPEED TIMER
@.........@
_ J
_[E SPEED TIMER
rA_ _ GH ON
COO M_O OP_
LNEr_n_ LOW PO NER
SAVER ")N/O
DEHU_/
Once the mode function is established, you will have to set the fan speed. (Seefig. #4)
Everytime you pressthe SPEEDbutton, fan speed will change between LOW, HIGH and
MED.
1) Ifyou choose the COOL mode you can run the fan in one of the 3 speeds: HIGH, MED,
or LOW.
2) For cool days you may want to run the "FAN" function• Here the fan runs at one of 3
speeds (HIGH fan, MED fan, LOW fan) asdesired by you.
3) The dehumidify function removes excessmoisture from the air on excessivelyhumid days.
Tr: temperature inside the room.
Ts:the settemperature.
1) When Tr>Ts+3°F, the compressor will run the fan continuously at the selected speed•
2) When Ts-I°F_<Tr_<Ts+3°F,the compressor will cycle for 10 minutes on and 6 minutes off.
3) When Tr<Ts-I°F, the compressor will shut off.
The dehumidification process takes place between the set temperature-1 and 3°Fabove
the set temperature•
4) Energy Saver: The unit runsthe same asthe COOL setting in the ENERGYSAVERmode.
But the fan will be off 3 minutes after the compressor cycle off.
10

Fig. # 4
Contn:_l Panel.
_NER6 LO_ ¢_OW _
SAWR OH/OFF
DE_U_
Timer On or Timer Off mode is used to pre-start or shut off your unit in advance. You can
program this up to 24 hours in advance. You can use the Timer in 4 functions, i.e. COOL,
ENERGYSAVER,DEHUMID or FAN.
o Timer on (SeeFig.#5)
The unit must be on to setthe timer. Unit will shut down automatically after it accepts the
settingsin 5 seconds. Usethis mode to pre-set the starttime of the unit 24 hours in advance.
a) PressTIMERON. LEDdisplay will show 'XX"(timeset last time). When power is connected
for the first time, LEDdisplay will show "01".
b) Setthe desired number of hours by pressing the (A)pad of the Temp/Time buffons, once
for each hour. Ifyou passed the desired time, use the (T) pad key to lower the selection.
c) After you setTIMER ON, LEDdisplay will show the time. This time displayed means:
the unit will starts after X hours.
• Timer off ( See Fig. #5)
The unit must be running to settime off. Use this to preset the time you would like the
unit to shut off.
a) PressTIMEROFF. LEDdisplay will show "XX"(time setlast time).When power is connected
for the first time, LEDdisplay will show "01".
b) Set desired number by pressing the (_,)pad of the Temp/Time buttons, once for each
hour. If you pass the desired time, use the (_,)pad keyto lower the selection.
c) After you set TIMEROFF, LEDdisplay will show the room temperature about 5 seconds
later.
When using the timer, the unit will revert to the last COOL and FAN settingswhen activated.
The timer must be reset everytime you choose i-ouse it.
11

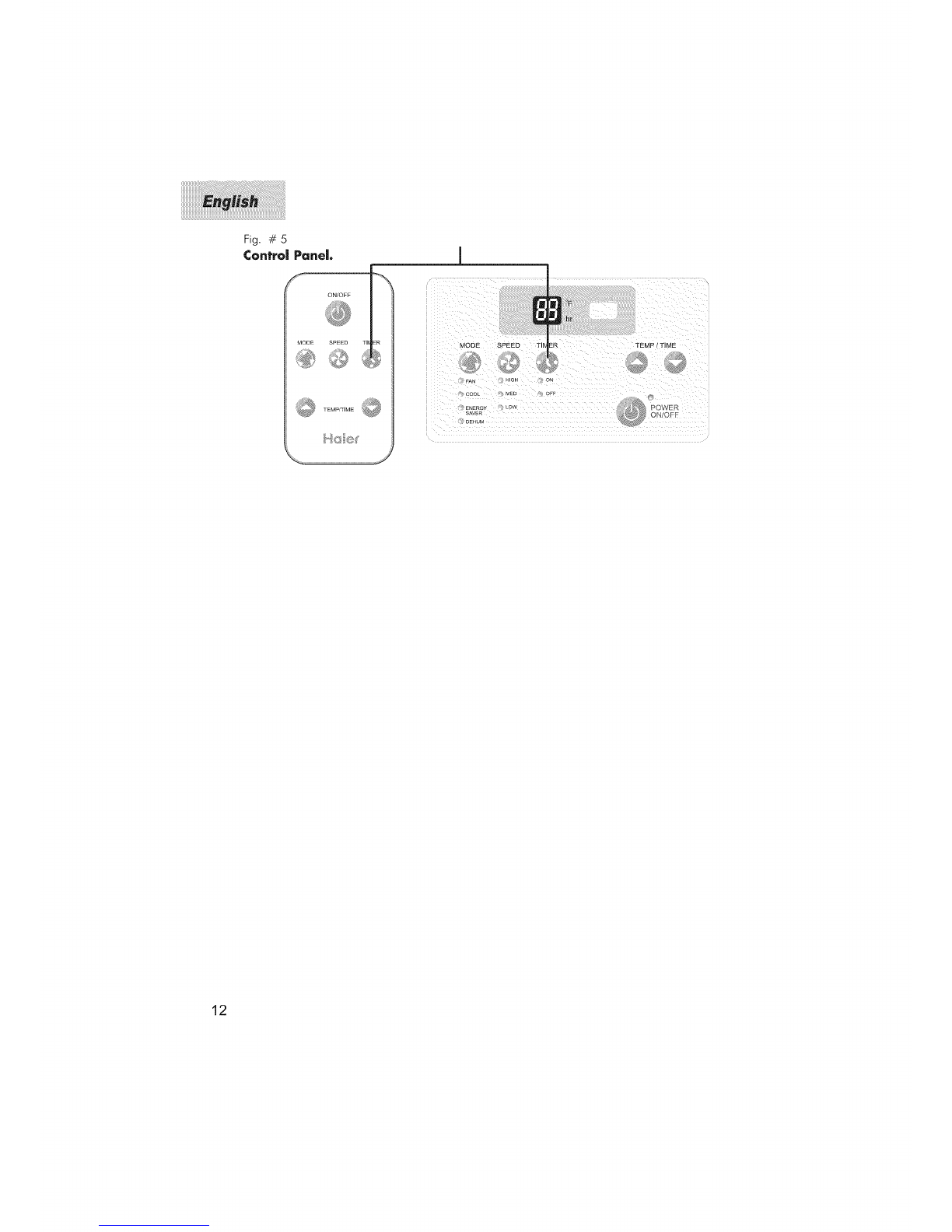

Fig. # 5
Control Panel.
ON/OFF
,0
MOD SPED TI ER
@.........@
t!e:_e:
MODE
_AN HGH On
ENERGY O_
SAWD
_FHUM
POWER
/OFF
12

Before you install your air conditioner, check the following:
1)The unit is free of all obstructions inside and outside the room, e.g. drapes, curtains,
furniture, plants, shrubs, bushes, trees, other structures like buildings, garage, etc.
The air conditioner must have a clear, unobstructed airflow through the condenser to
remove heat.
2) The window isstrong enough to hold the weight of the air conditioner. Extrabrackets
or supports may be needed depending on your windows. (Bracketsor supports not
provided in all models)
3) The windowsill and track are strong enough to hold the weigh of the air conditioner.
4) The wall is strong enough to hold the unit. Extrabrackets or supports may be needed
depending on the wall. (Bracketsor supports not provided in all models).
5) There isadequate and proper power supply near the air conditioner.
6) DO NOT use adapter plugs.
7) DO NOT use extension cords.
8) DO NOT cut or remove the ground prong.
9) DO NOT modify the plug or the electrical wall outlet in any way. If plug does not
fit the electrical outlet have a certified electrician do the necessary change.
_1_10) DO NOT connect electrical power to the unit before installation.
_1_11) DO NOT use if power cord is worn out, frayed or otherwise damaged. Avoid using
if there are cracks or abrasion damage along the length, plug or connection.
_IL 12) Be careful of exposed sharp edges of the cabinet and sharp coils (fins) on the
back of the unit that could cut and cause serious injury.
13

Parts
fPar_s Supplied
window seal
gasket
_'_ curtain
attachment
screws 13/32'
.J
wood screws 31/32'
%
bas_ingle _ bracket screws/3/32 H
2 1/2 long flat
head bolt and
Iocknut
inslallation bracket left and right
(left and right) side curtains
Remote _-'_
control "CR2025" battery
Model: ESA3159,ESA3189,ESA3189-L
You wiJJneed to have the foJJowingtooJsto heJpyou in the instaJJationof
your air conditionen
oScissors
•PhiJJipsScrewdriver
_Standard Screwdriver
ePJiers
"Wrench
oDriJJand DriJJBits
oTapeMeasure
oGJoves
oLeveJ
_Sockets
14

|nstalling Unit into A Window
Window Opening Requirements
The air conditioner is designed to fit into double or single hung sash type windows. Each of the
units comes with an instalJation kit that provides adjustable mounting louvers to fiJl the gaps
between the sides of the unit and the window frame. The chad below reflects the dimensions of
the units with and without installation kits. Measure your window opening width and compare it
to the chart below to ensure that it meets the minimum and maximum window width requirements,
I D I
ESA3159,ESA3189,ESA3189-L
A(inch) l_"
B(inch) 187_ "
C(inch) 18"
D(inch) Max 36_"
D(inch) Min
Case High
Case Width 24_-"
Case Depth 2s_--"
IREPAREUNIT
FOR
INSTALLATION
Unpack unil on the floor nexl to inslallafion
location.
Remove two front altachmenl screws.
Separate the outer case from the front
with a puffy knife a11he calch points
designated by the arrows.
Remove the two screws on top of the
outer case.
Using lhe basepan handle, slowly and
evenly pull chassis out from outer case.
Note: Cover pulty knife blade with
masking tape to guard against damage
of the uni1 finish.
Caution: Never expose plastic
front or grille to extreme
temperatures.
15

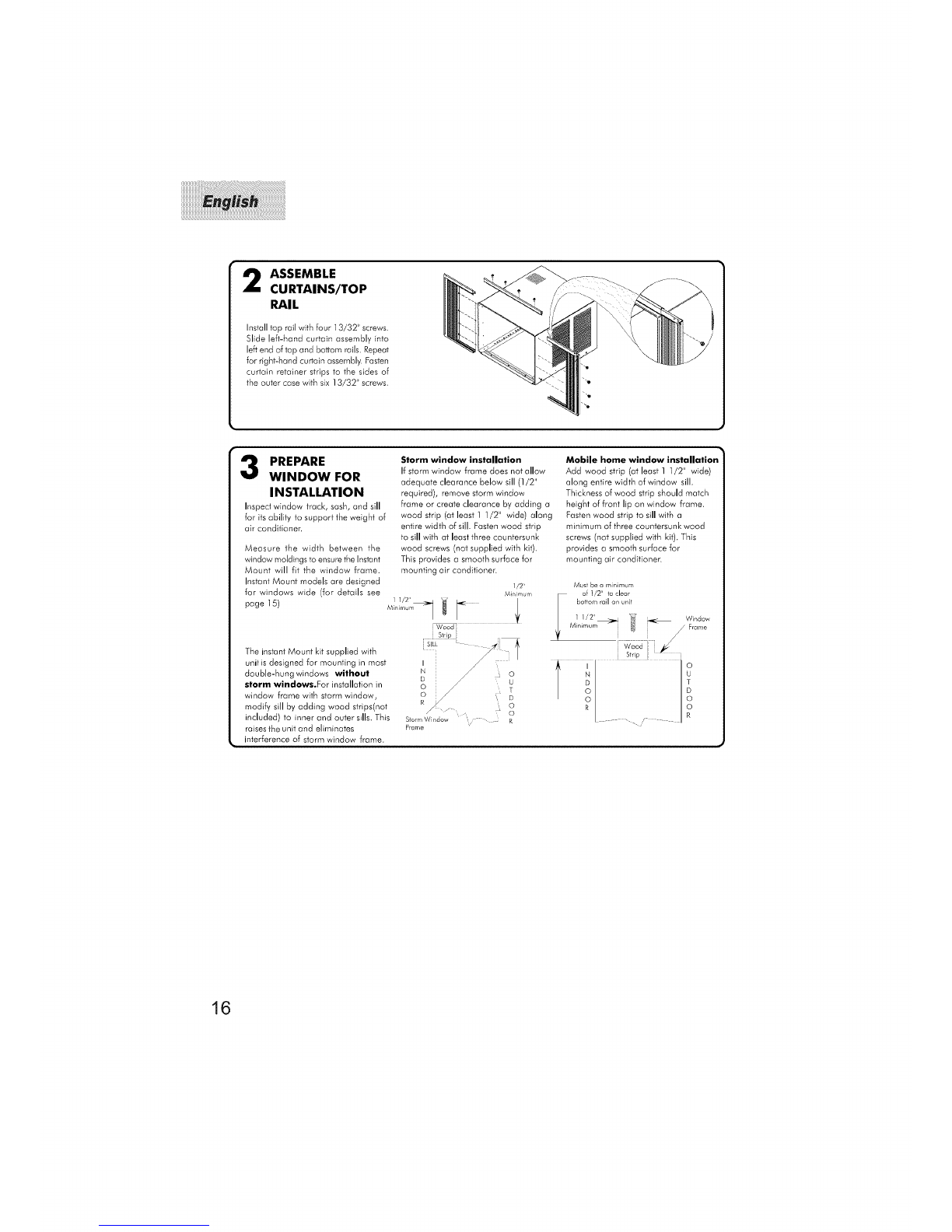

ASSEMBLE
CURTAINS/TOP
RAIL
Install top rail with four 13/32 '_screws.
Slide left-hand curtain assembly into
left end of top and bottom rails_ Repeat
for right-hand curtain assembly. Fasten
curtain retainer strips to the sides of
the outer case with six 13/32 '_screws,
PREPARE
WINDOW FOR
INSTALLATION
Inspec_window track, sash, and sill
for its ability to support the weight of
air conditioner,
Measure the width between the
window moldings to ensure the Instant
Mount will fit the window frame,
Instant Mount models are designed
for windows wide (for details see
page 15)
The instant Mount kit supplied with
unitis designed for mounting in most
double-hung windows without
storm windows.For installation in
window frame with storm window,
modify sill by adding wood strips(not
included) to inner and outer sills, This
raises the unit and eliminates
interference of storm window frame.
Storm window installation
If storm window frame does not allow
adequate clearance below sill (1/2 _
required), remove storm window
frame or create clearance by adding a
wood strip (at least 1 1/2' wide) along
entire width of sill. Fasten wood strip
to sill with at least three countersunk
wood screws (noi supplied wiih kit)_
This provides a smooth surface for
mounting air conditioner.
1/2
Min mum
"4 I
/
NJi:, O
ZZ u
sR i ?, oD
orm n ow - R
Frame
Mobile home window installatior
Add wood strip (at least 1 1/2' wide)
along entire width of window sill,
Thickness of wood str g should match
height of front lip on window frame.
Fasten wood strip to sill with a
minimum of three countersunk wood
screws (not supplied with kit), This
provides a smooth surface for
mounting air conditioner.
Mustbe a m_nimum
_/ af I/2" toclear
Boltomrail onunt
i ......... o
D I_
D
S 8
RR
/
16

iNSTALL OUTER
CASE iN WINDOW
Place outer case in window. Lower
sash until il res[s behind fron1 flange
of fop rail. Boffom rail must rest
behind window sill.
_rail
Install left & right installation bracket
and as shown in fig. Install bolt(2 ]/2' long flat head
bolt and Iocknut) to the installation bracket and adjust
them to proper length ,then use 6(19/32")screws to fix
the bracket on 1hecase.
inlo 1he sash lhrough clearance hole in curtains,
Use a wood block between the leveling bolts and the wall
if the wall is weak or if the weight of the air conditioner
falls between the studs in the wall. J
17

iNSTALL SASH BRACKET
&SEAL GASKET
Install sash bracket on fop of indoor window sash
with one wood screw 31/32' to prevent raising of
window from the outside. Screw the anchor directly
into the side of window frame. For hard wood or
metal window frames, drill a pilot hole to start the screw.
Important:Be careful not to drill the pilot hole too deep.
Add a piece of tape lo the drill bit as a depth gauge.
Also stay clear of glass. Be careful no1to damage the
function of the window.
Cut window seal gasket to width of window. Stuff window
seal strip between the outdoor window glass and the top of
the indoor sash. This will stop air leakage which reduces
efficiency.
RETURN
CHASSISTO THE
OUTER CASE
Find someone to help you replace
the chassis in outer case. Replace
front panel and grille,
Caution:
For security purposes, reinstall screws
at cabinet's sides, removed in step
one.
IMPORTANT:
Because the window sash helps keep
the unit in window, make certain the
window sash contacts the outer case
before reinstalling the chassis.
18

Wall |nsta|latians: slide-outchassisonly
Note: Removethe 2 shipping screwson the top of the air conditioner
that hold the chassisto the outer shell casing. Once removed,
thesedo not have to be re-instalbd. To ensure that your air
conditioner is properly installed in the wall, it is recommended
that it be installed by a certified technicianwho is familiar with
through the wall installations.
1) Using wood, 1" or more in thickness,build a wooden frame to fit the
casing/cabinet dimensions of the unit which you have purchased.
2) Measure the outside width and the height of the frame to determine the
cutout dimensions necessary for the opening in the wall. The depth of the
frame will depend on the depth of the wall. Thefinished frame must be set
in the inside wall. The frame has to be squared and leveled. Rememberthe
frame has to be nailed securely tothe wall studs. (See Fig. # 19)
Fig. # 19
3) Now to install, insert the casing into the wall opening. (Removethe
chassisout first following steps 1 - 6in Slide-out chassissection).
Make surethat the cabinet is at least 1/2" inch inside the room. Also the
side louvers should not be Blocked. This is to have proper air circulation in
and around the compressor. (SeeFig. # 20)
lg
