Haier HSU-09LE04 User manual

Please read this operation manual before using the air conditioner.
OPERATION MANUAL
0010511927
SPLIT TYPE ROOM AIR CONDITIONER
HSU-07LD03
HSU-18LE04
HSU-12LE04
HSU-22LE04
HSU-09LE04
FJT-12L
FJT-18L
FJT-24L

Maximum: D.B/ W.B
1
10.The appliance must be installed on strong enough supporter.
9.Young children should be supervised ensure that they do not play with the appliance.
8. The appliance is not intended to use by young children or infirm persons without supervision.
7. The waste battery should be disposed properly.
6. After installation, the power plug should be easily reached.
5. The wiring method should be in line with the local wiring standard.
4. The distance between the indoor unit and the floor should be more than 2m.
3. If the fuse on PC board is broken please change it with the type of T. 3.15A/250V.
11.The wiring diagram is attached inside the machine.
or a similar qualified person. The type of connecting wire is H05/07RN-F or 245IEC57(YZW).
2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent

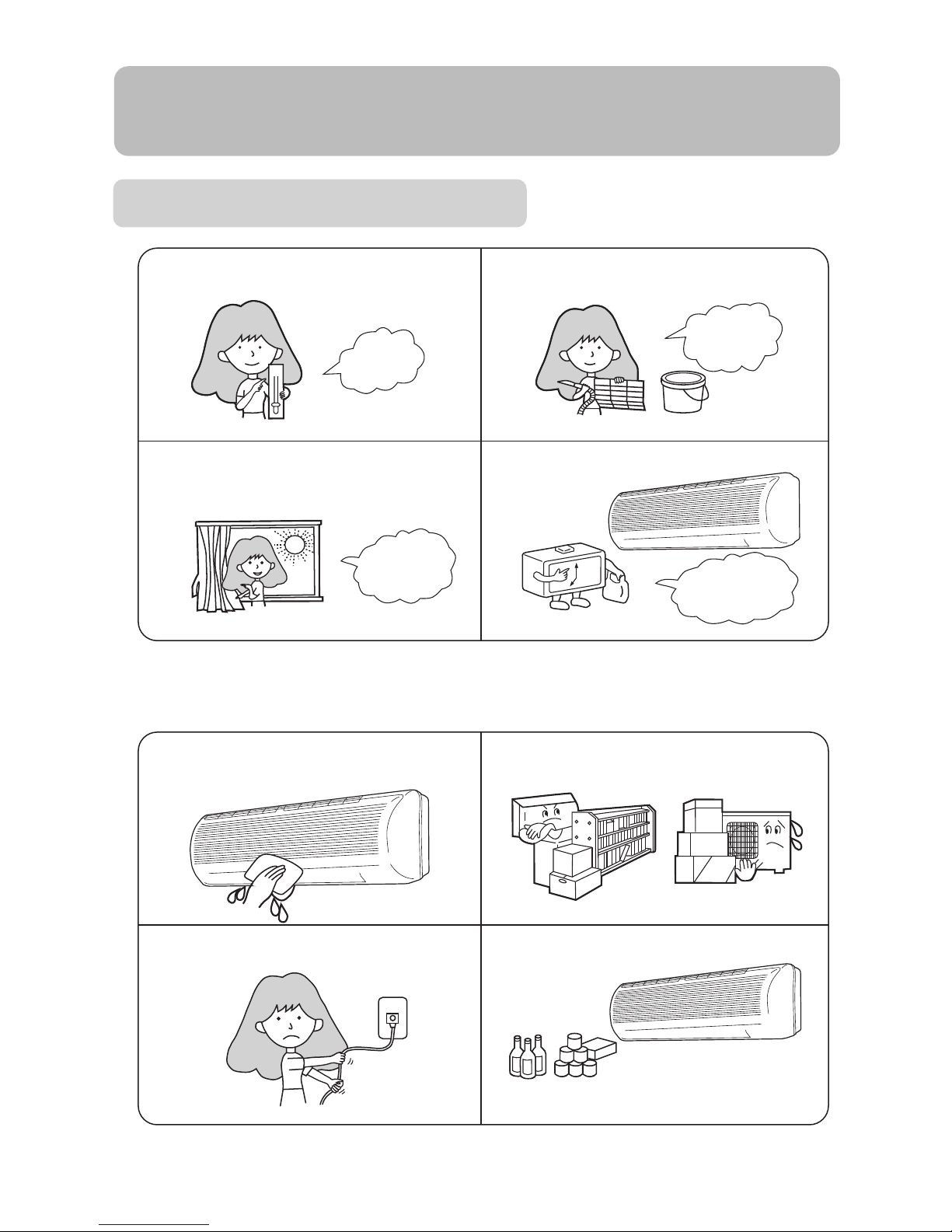

Cautions
The machine is adaptive in following situation
I. Applicable ambient temperature range:
Cooling
Indoor
Outdoor
Maximum: D.B / W.B 32oC/23oC
18oC/14oC
43oC/26oC
18oC
Minimum: D.B / W.B
Minimum: D.B

2
Parts and Functions
Indoor Unit
Inlet grille
Air filter
Horizontal flap Power indicator Timer mode indicator Operation mode indicator
Remote signal receiver

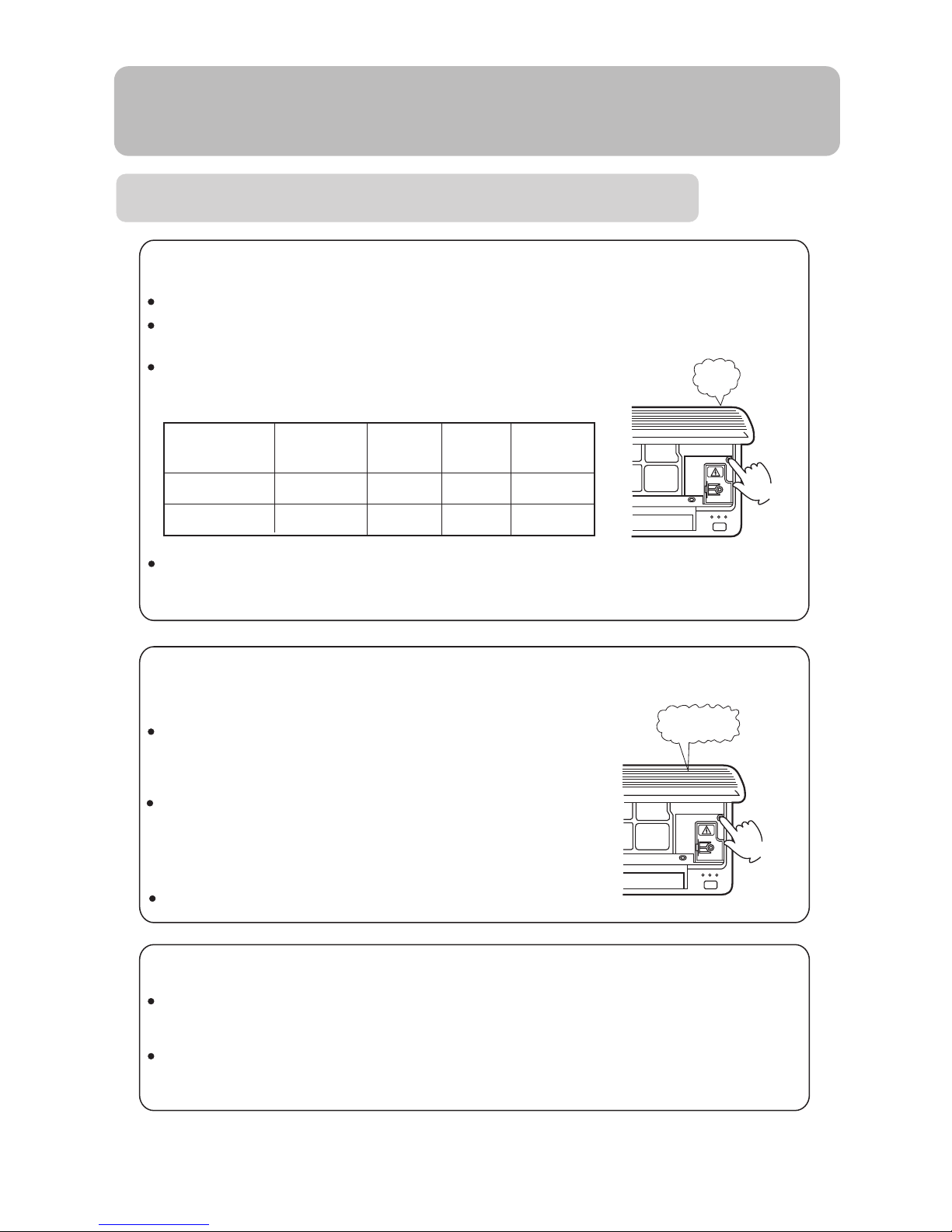

Emergency switch(manual)
Test running switch(manual)
Use remote controller to
adjust up and down air flow.
(Don't adjust it manually.)
Lights up when unit starts. Lights up when Timer operation
is selected. Lights up during compressor
running.
A beeping sound is generated when
a signal from remote controller is
received.
Used when remote controller is lost or
defective. Unit will run temporarily.
Used only for test running in cooling
when room temp. is below 16
o
C.
Don't use it in normal operation.
OUTLET
INLET
CONNECTING PIPING AND ELECTRICAL WIRING
DRAIN HOSE
Outdoor Unit
HSU-18LE04
HSU-09LE04 HSU-12LE04
For 22k unit, the power plug is on the outdoor unit
Actual inlet grille may vary from the one shown in the manual according to
the product purchased
HSU-22LE04
HSU-07LD03
FJT-12L FJT-18L
FJT-24L

3
Parts and Functions
Operation
NOTE: Cooling only unit do not have displays and functions related with heating
ON/OFF TEMP
MODE SET
FAN TIMER
SWING CLOCK
SLEEP
LOCK RESET
5
6
7
8
9
10
19
20
21
22
23
4
1
2
3
11
12
13
14
15
16
A
U
T
O
ON OFF
AM
PM
o
C
17
18
24
HEALTH
FAN
DRY
COOL
AUTO
1. Mode display
2. SWING display
3. FAN SPEED display LO MED HIAUTO
5. SLEEP display
6. LOCK display
7. SIGNAL SENDING display
8. TIMER OFF display
9. TIMER ON display
10. CLOCK display
11. TEMP display
12. POWER ON/OFF
Used for unit start and stop.
13. MODE
Used to select AUTO run, COOL,
DRY and FAN operation
14. FAN
Used to select fan speed LO, MED, HI, AUTO
15. HOUR
Used to set clock and timer setting.
16. SWING
Used to set auto fan direction.
17. SLEEP
Used to select sleep mode.
18. LOCK
Used to lock buttons and LCD
display.
19. TEMP.
Used to select your desired temp.
20. SET
Used to confirm timer and clock settings.
21. TIMER
Used to select TIMER ON, TIMER OFF,
TIMER ON-OFF
22. CLOCK
Used to set correct time
23. RESET
normal condition.
Used to reset the controller back to
4. HEALTH display
24. HEALTH
Used to operate the healthy function

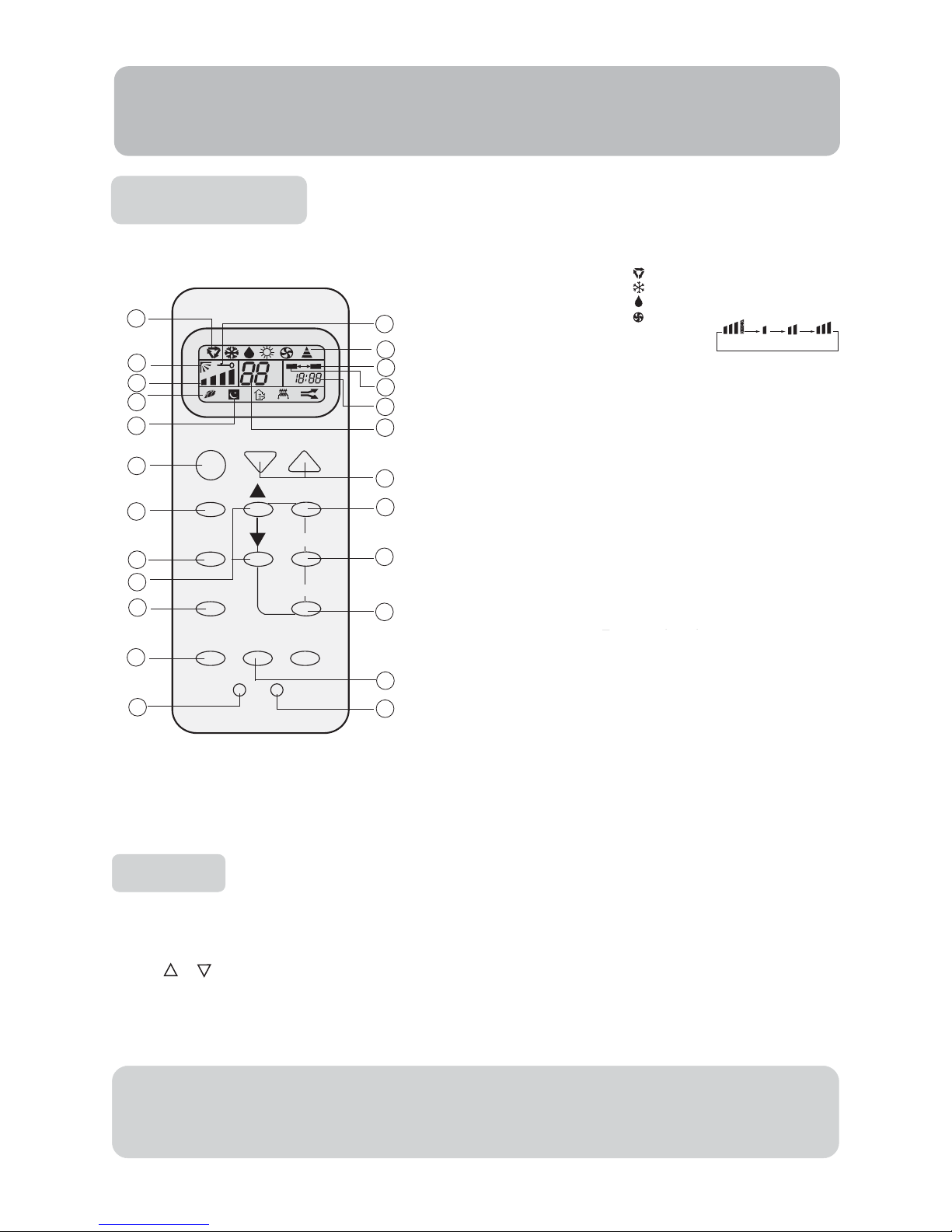

Buttons and display of the remote controller.
Clock set
When unit is started for the first time and after replacing batteries in remote controller,
clock should be adjusted as follows:
Press CLOCK button, "AM" or "PM" flashes.
Press or to set correct time. Each press will increase or decrease 1min. If the
button is kept depressed, time will change quickly.
After time setting is confirmed, press SET, "AM "and "PM" stop flashing, while clock
starts working.
Hints
After replacing with new batteries, remote controller will conduct self-check, displaying
all information on LCD. Then, it will become normal.

4
Parts and Functions
Operation
Hints
After replacing with new batteries, remote controller will conduct self-check, displaying
all information on LCD. Then, it will become normal.
NOTE: Cooling only unit do not have displays and functions related with heating
Buttons and display of the remote controller.
like the following figure:
If the unit which you purchased has not healthy function, Remote controller should
ON/OFF TEMP
MODE SET
FAN TIMER
SWING CLOCK
SLEEP
LOCK RESET
5
6
7
8
9
10
18
19
20
21
22
4
1
2
3
11
12
13
14
15
16
17
A
U
T
O
ON OFF
AM
PM
o
C
FAN
DRY
COOL
AUTO
1. Mode display
2. SWING display
3. FAN SPEED display
4. SLEEP display
5. LOCK display
6. SIGNAL SENDING
7. TIMER OFF display
8. TIMER ON display
9. CLOCK display
10. TEMP display
11. POWER ON/OFF
Used for unit start and stop.
12. MODE
Used to select AUTO run, COOL,
DRY and FAN operation
13. FAN
Used to select fan speed LO, MED, HI, AUTO
14. HOUR
Used to set clock and timer setting.
15. SWING
Used to set auto fan direction.
16. SLEEP
Used to select sleep mode.
17. LOCK
Used to lock buttons and LCD
display.
18. TEMP.
Used to select your desired temp.
19. SET
Used to confirm timer and clock settings.
20. TIMER
Used to select TIMER ON, TIMER OFF,
TIMER ON-OFF
21. CLOCK
Used to set correct time
22. RESET
normal condition.
Used to reset the controller back to
LO MED HIAUTO
Clock set
When unit is started for the first time and after replacing batteries in remote controlle
clock should be adjusted as follows:
Press CLOCK button, "AM" or "PM" flashes.
Press or to set correct time. Each press will increase or decrease 1min. If the
button is kept depressed, time will change quickl
After time setting is confirmed, press SET, "AM "and "PM" stop flashing, while clock
starts working.

5
Operation

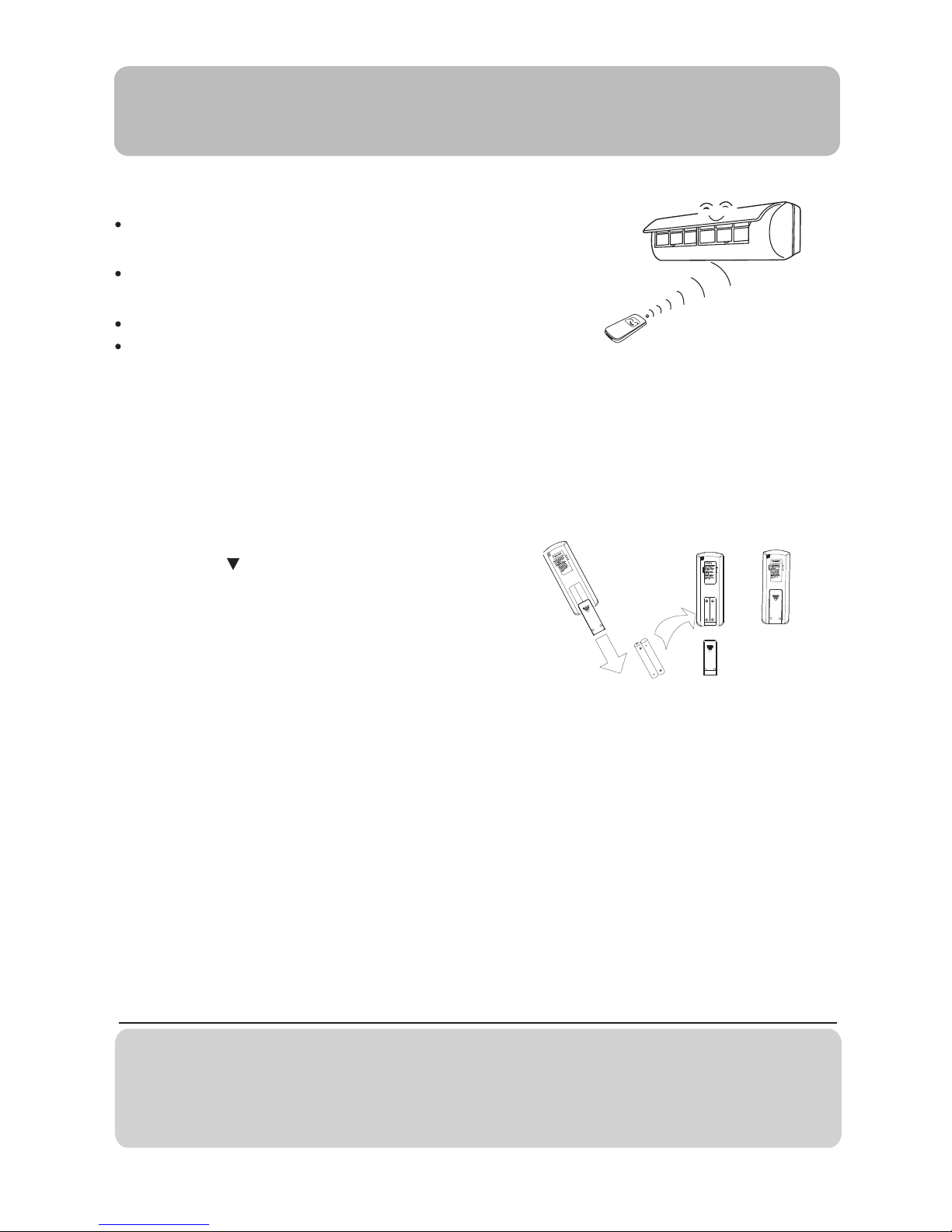

Remote controller's operation
When in use, put the signal transmission head directly to the
receiver hole on the indoor unit.
The distance between the signal transmission head and the
receiver hole should be within 7m without any obstacle as well.
Don't throw the controller, prevent it from being damaged.
When electronic-started type fluorescent lamp or change-over
type fluorescent lamp or wireless telephone is installed in the
room, the receiver is apt to be disturbed in receivering the signals
so the distance to the indoor unit should be shorter.
Loading of the battery
Load the batteries as illustrated. 2 R-03 batteries, resetting key (cylinder)
Remove the battery cover:
Slightly press " " and push down the cover.
Load the battery:
Be sure that the loading is in line with the" + "/"-"
pole request as illustrated.
Put on the cover again
Confirmation indicator:
In disorderation, reload the batteries or load the new batteries after 6mins.
Note:
Use two new same-typed batteries when loading.
If the remote controller can't run normally or doesn't work at all,
use a sharp pointed item to press the reset key.
Hint:
Remove the batteries in case unit won't be in usage for a long period.
If there are any display after taking-out just need to press reset key.
Power failure resume(please set and apply as necessary)
If sudden power failure occurs, the unit will resume original operation when power is
supplied again.
Note: When sudden power failure happens during unit operation in power failure resume mode,
the air conditioner is not desired for use in a long period, please shut off the power
supply in case that the unit automatically resume operation when power is re-supplied,
or press ON/OFF to turn off the unit when power resumes.
if

(4) Unit stop
(1) Unit start
6

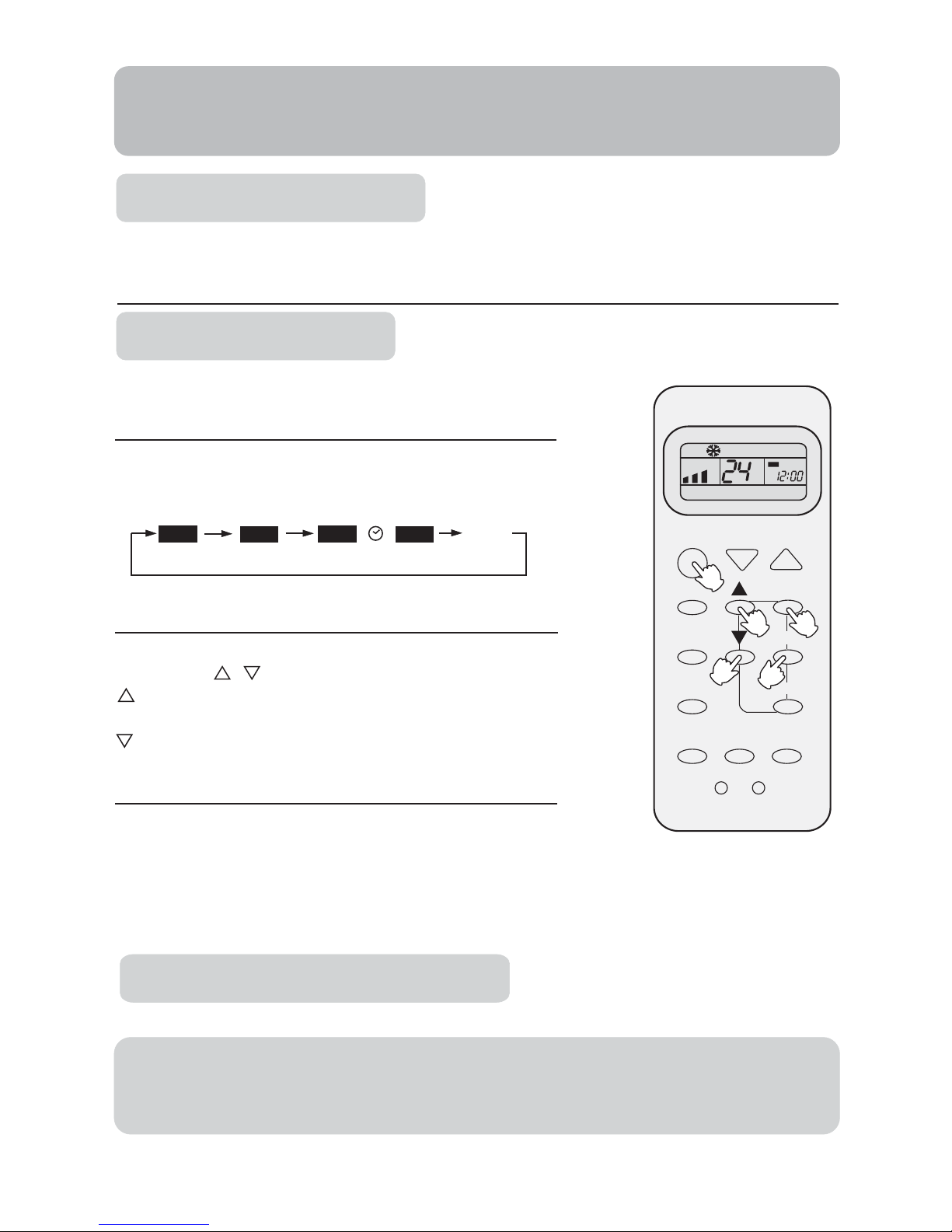

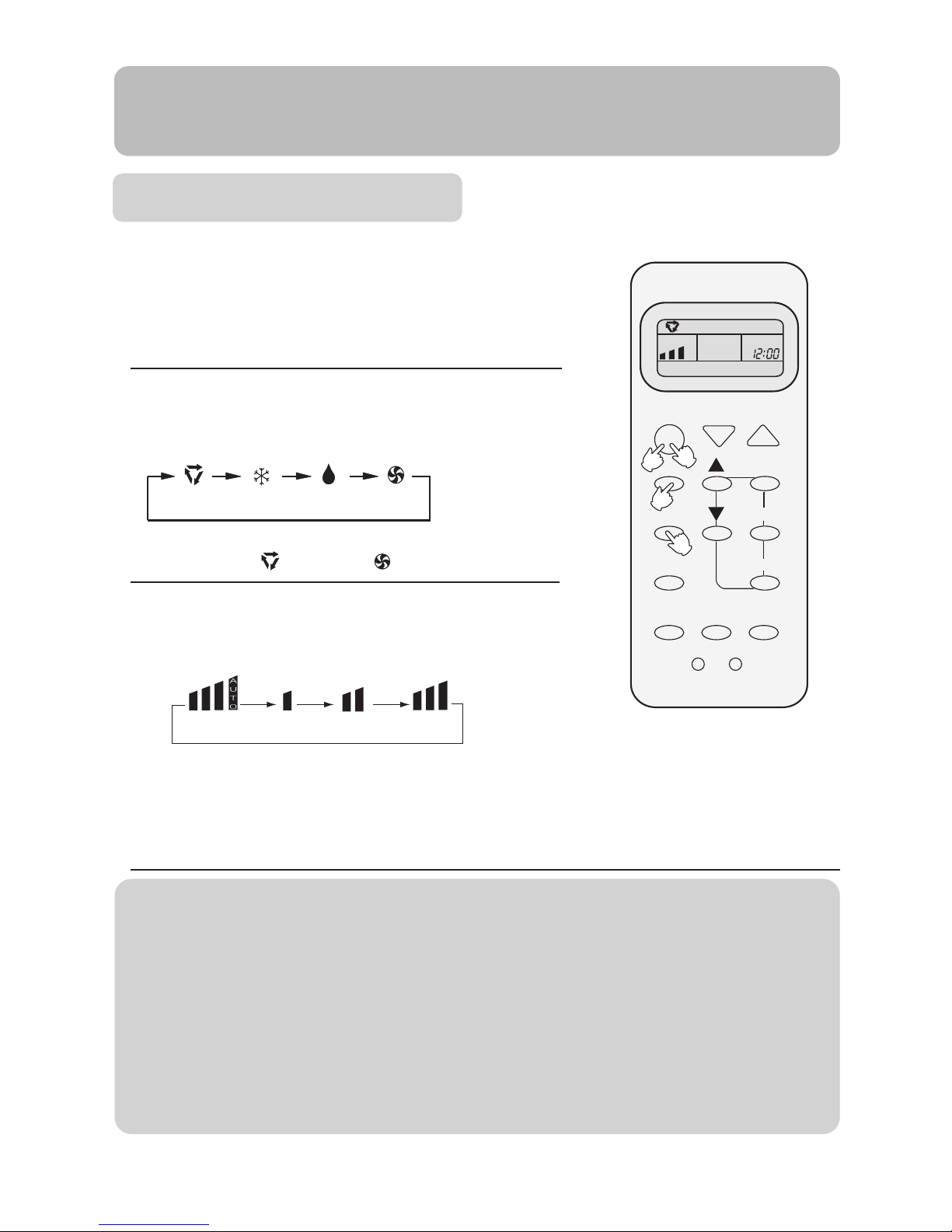

Auto run, Fan operation Enjoy yourself by just a gentle press.
Operation
mode changes as follows:
Press ON/OFF button, unit starts.
Previous operation status appears on display.
(Not Timer setting)
Power indicator on indoor unit lights up.
(2) Select operation mode
Press MODE button. For each press, operation
AUTO COOL DRY FAN
Unit will run in selected mode.
Stop display at " " AUTO or " "FAN.
(3) FAN
Press FAN button. For each press, fan speed changes
as follows:
AUTO LO MED HI
Unit will run at selected fan speed.
Note:AUTO is not available in FAN mode. Press ON/OFF button.
Only time remains on LCD.
All indicators on indoor unit go out.
Vertical flap closed automatically.
Hints
Remote controller can memorize settings in each operation mode. To run it next time just
select the operation mode and it will start with the previous setting.
No reelecting is needed.(TIMER ON/OFF needs reelecting)
Cautions: Note:
On cooling only unit, heating mode is not available, The above information is the
After replacing batteries, press ON/OFF, and display explanation of the displayed
becomes as follows: information therefore varies
Operation mode: AUTO, Temp. No with those displayed in actual
operation.
ON/OFF TEMP
SET
TIMER
CLOCKSWING
SLEEP
LOCK RESET
FAN
MODE
HEALTH
1
2
3
4

Press MODE button. For each press, operation
Recommendations:
7
Operation

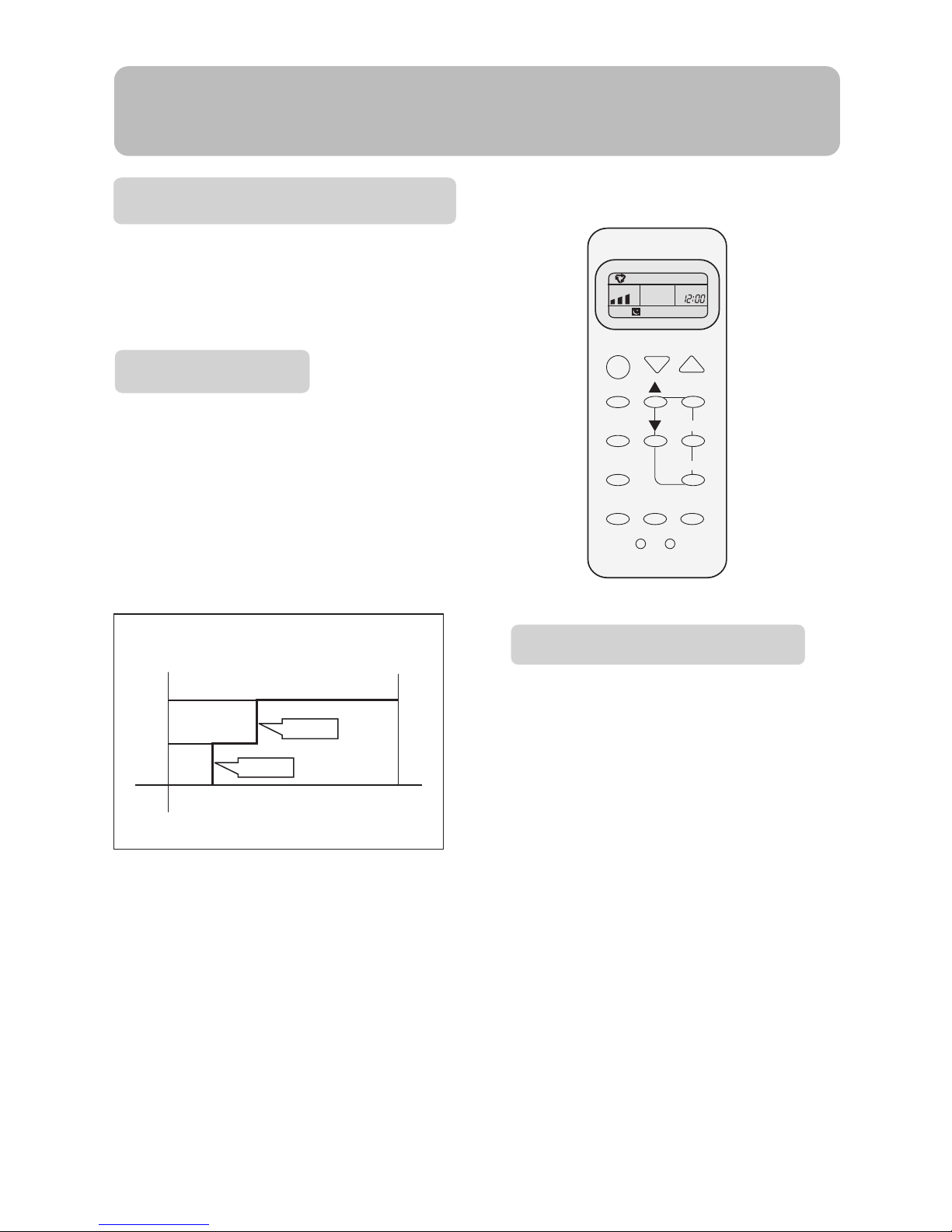

COOL and DRY operation
Use COOL in summer.
Use DRY in spring, autumn and in damp climate.
(1) Unit start
mode changes as follows:
Press ON/OFF button, unit starts.
Previous operation status appears on display. (Not Timer setting)
Power indicator on indoor unit lights up.
(2) Select operation mode
AUTO COOL DRY FAN
Unit will run in operation mode displayed on LCD.
Stop display at your desired mode.
(3) Select temp. setting
Press TEMP button.
Every time the button is pressed, temp. setting increases 1oC
Every time the button is pressed, temp. setting decreases 1oC
Unit will start running to reach the temp. setting on LCD.
Press FAN button. For each press, fan speed changes
(4) Fan speed selection
as follows:
AUTO LO MED HI
just press ON/OFF button and unit will run in previous status.
Unit runs at the speed displayed on LCD.
Hints
On cooling only unit, heating mode is not available.
Remote controller can memorize each operation status. When starting it next time,
COOL operation starts when room
temp. is higher than temp. setting. Ultra-low air flow
Temp. setting+2oC
Temp. setting
On reaching temp. setting, unit
will run in mild DRY mode.
ON/OFF TEMP
SET
TIMER
CLOCKSWING
SLEEP
LOCK RESET
FAN
MODE
In DRY mode, when room temperature becomes
lower than temp.setting+2oC,unit will run intermittently
at LOW speed regardless of FAN setting.
HEALTH
1
2
3
4
3
5
6

8
Operation

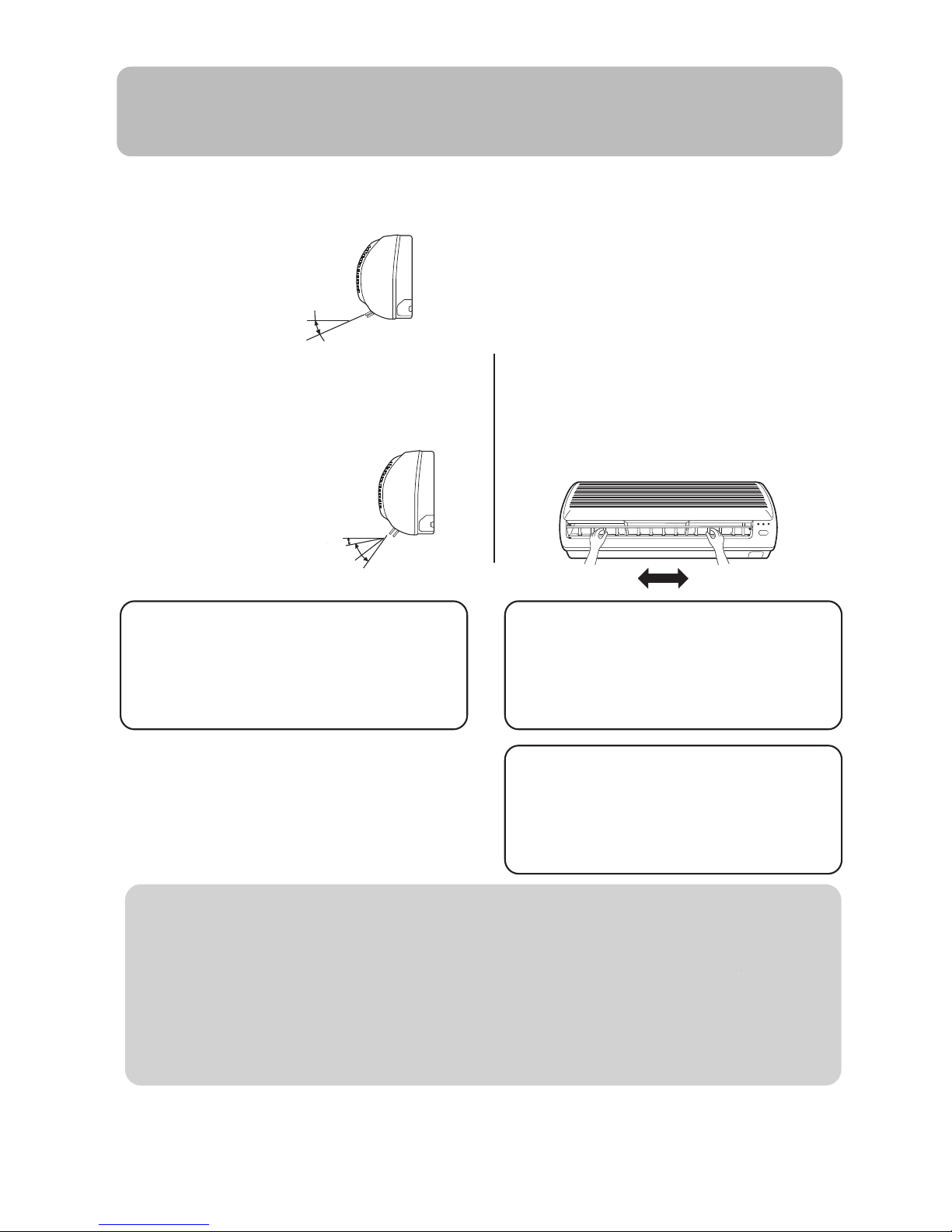

(5) Air flow direction adjustment
After operation mode is selected, horizontal flap will open automatically according to the mode.
Referring to the Fig.
COOL
COOL
About 10o
About 10o
better set a temp. difference of 3-5oC between indoor and outdoor temp. in COOL mode.
Hints
As cold air flows downward in COOL mode, adjusting air flow horizontally will be much more
helpful for a better air circulation.
Be careful not to catch a cold when cold air blows downward.
It is harmful to your health in summer to go frequently in and out of places where temp.
difference is above 7oC. Temp. difference of 3-5oC will remove your fatigue.
More than this, unit's load can be reduced and power consumption cut down as well. So, you'd
(6) Unit stop
Press ON/OFF button.
Only time remains on LCD.
All indicators on indoor unit go out.
horizontal flap automatically.
Cautions:
Unit won't restart until 3 minutes have
elapsed, due to system protection.
HEAT mode is not available on
cooling only unit.
It is advisable not to keep horizontal flap at
downward position for a long time in COOL
or DRY mode, otherwise, condensate water
might occur.
Cautions: Cautions:
When humidity is high, condensate water
might occur at air outlet if all vertical
louvers are adjusted to left or right.
Move the vertical blade by a knob on air
conditioner to adjust left and right direction
referring to Fig.
Left and right air flow adjustment
(manual)
Press SWING button, horizontal flap will move
within the range shown in the Fig. Press SWING
button stop it at a fixed position.
Up and down (Use remote controller)
About 45o
