Haier HC-D1600 User manual

1
This document and all its contents included remain the proprietary material of Qingdao
Haier Telecom Co. Ltd. (Haier Telecom) and are protected by the Chinese laws and
applicable international conventions on copyrights. Any reproduction, transmission,
disclosure，revision, modification or use otherwise of this document or the whole or part of
its contents, in whatever form and by whatever means, is not permitted without prior
express written authorization from Haier Telecom. Offenders will be liable for any and all
damages caused by their offence hereof and will be subject to all remedies that Haier
Telecom is entitled to seek under applicable laws.

2
Contents
Contents............................................................................................................................2
1. Safety Precautions........................................................................................................4
2. Handset guide...............................................................................................................5
2.1 Keyboard description...........................................................................................5
2.2 Idle mode screen .................................................................................................5
2.3 Battery .................................................................................................................6
2.4 SIM card and memory card..................................................................................6
2.5 Desktop................................................................................................................7
2.6 Keyboard lock......................................................................................................7
2.7 Text edit................................................................................................................8
2.8 Notification panel .................................................................................................8
2.9 Using the airplane model ..................................................................................... 9
3. Quick Functions ............................................................................................................9
3.1Dialer ....................................................................................................................9
3.2 Messaging.......................................................................................................... 11
3.3 Music ................................................................................................................. 13
3.4 MainMenu..........................................................................................................13
4. Menu Functions...........................................................................................................14
4.1 Menu Tigo..........................................................................................................14
4.2 Top Games......................................................................................................... 14
4.3 Contacts.............................................................................................................14
4.4 Call log...............................................................................................................15
4.5 Calendar ............................................................................................................16
4.6 Camcorder.........................................................................................................16
4.7 Settings..............................................................................................................16
4.8 Alarm..................................................................................................................18
4.9 Browser..............................................................................................................18
4.10 Downloads....................................................................................................... 18
4.11 Gallery.............................................................................................................. 19
4.12 Calculator.........................................................................................................19
4.13 File mgr............................................................................................................19
4.14 App mgr............................................................................................................ 19
4.15 Recorder..........................................................................................................20
4.16 Connection management.................................................................................20
4.17 Notes ...............................................................................................................20
4.18 Tasks................................................................................................................20
4.19 FM Radio .........................................................................................................20
4.20 Email................................................................................................................20
4.21 World Clock......................................................................................................21
4.22 Converter.........................................................................................................22
4.23 EBook ..............................................................................................................22

3
4.24 Torch................................................................................................................22
4.25 Network Links ..................................................................................................22
4.26 Java .................................................................................................................22
4.27 MSN.................................................................................................................22
4.28 Facebook.........................................................................................................22
5. Care and maintenance................................................................................................22
6. Warnings and Precautions..........................................................................................23

4
1. Safety Precautions
Please read these simple guidelines. Not following them may be dangerous or illegal.
Do not switch the phone on where Mobile Phone use is prohibited or when it
may cause interference or danger.
Do not place your phone and its accessories in containers with strong
electromagnetic field.
Obey all traffic laws. Always keep your hands free, to operate the vehicle while
driving. Your first consideration while driving should be road safety.
Hospitals or health care facilities may be using equipment that could be
sensitive to external radio frequency energy. Follow all regulations and rules
enforced.
Do not use the phone at a refueling station. Do not use near fuel or chemicals.
Follow all instructions. Wireless devices can cause interference in aircraft.
Keep the phone and all its parts, including accessories, out of the reach of
children. Do not use the phone while connected to the charger or with wet hand
or bare feet.
Use only approved batteries and chargers. Disconnect the charger from the
power source when it is not in use. Do not leave the battery connected to a
charger for more than a week, since overcharging may shorten its life. Please
remove the battery only after the phone is switched off normally, otherwise it
could cause unpredictable damage for the phone.
Only qualified personnel should service the phone. Faulty service may be
dangerous and may invalidate any warranty applicable to the device.

5
2. Handset guide
The illustration below displays the main components of your phone.
The appearance of the mobile phone and introduction:
2.1 Keyboard description
Name
Description
1 Send key
Enter the call log
2 HOME key
Short press to enter the idle screen.
3 Back key
Short press will fall back to the previous step, Long press will power
on/off.
4 Side key
In Idle screen: turn up or turn down voice
Notes:long press means pressing the key for more than 2 seconds; short press means
pressing key for less than 2 seconds.
2.2 Idle mode screen
Icon
Description
Indicates signal strength.
Indicates Bluetooth has been activated.
You have one or several missed calls.
You have one or several new text messages.
You have one or several new multimedia messages.
Alarm clock has been activated.
Indicates a headset is connected to the phone
Indicates vibrate alert type.
Indicates vibrate and ring alert type.
Indicates Silent mode.

6
Indicates battery power level.
2.3 Battery
2.3.1 Installing and removing
1. Remove the battery cover.
2. Insert the battery
3. Replace the battery cover.
2.3.2 Charging the battery
Before charging the battery, ensure that it has been properly inserted into your phone.
1. Connect the USB cable that came with your mobile phone to the charger.
2. Connect the USB cable to your mobile phone
3. Then, plug in the connector of the charger to an electrical outlet.
2.4 SIM card and memory card
Installing SIM card and memory card.

7
1. Remove the battery cover.

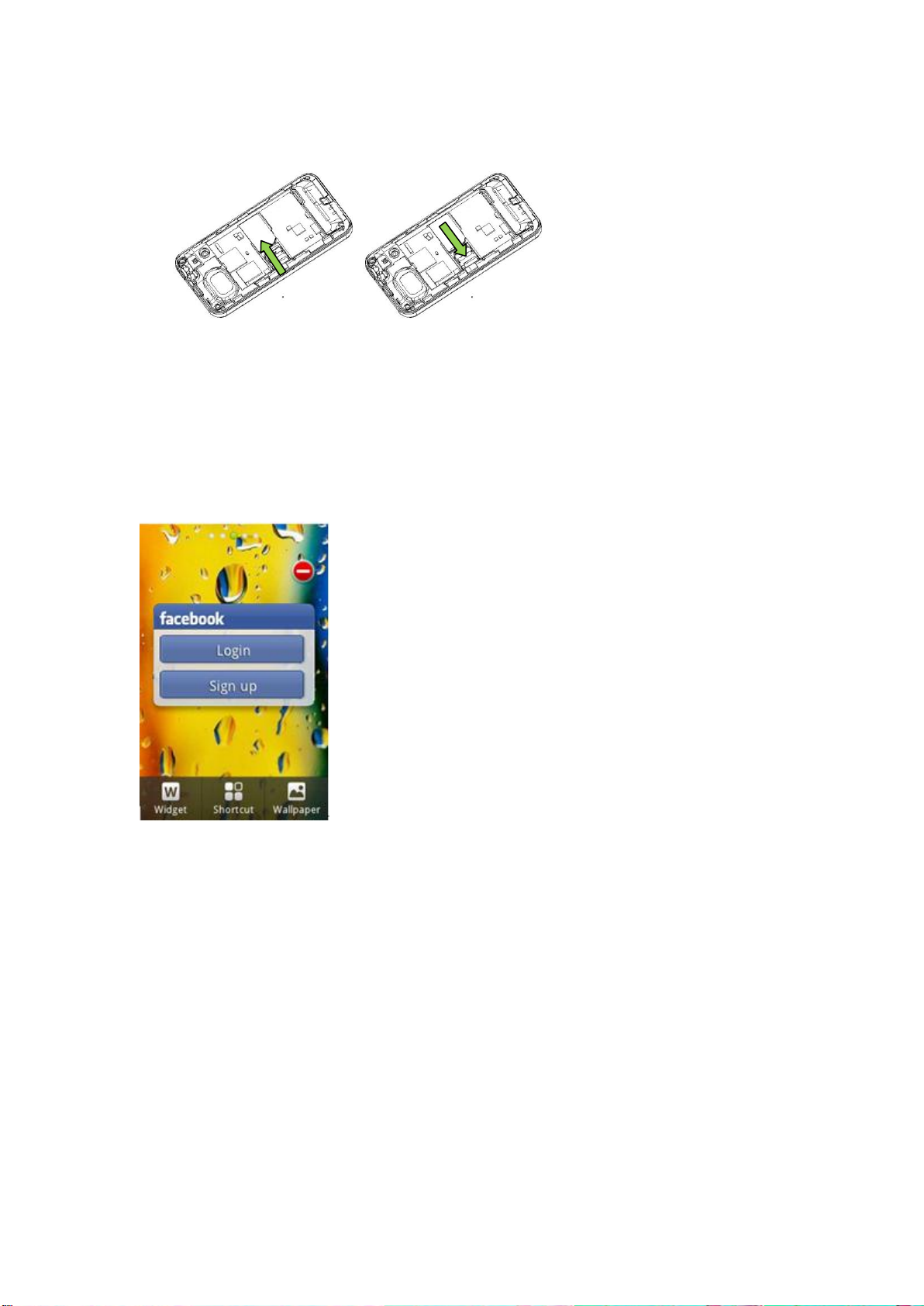

2. Insert the SIM card and memory card as shown in the diagram.
Note:
When inserting the SIM card, ensure that the golden contact faces downward.
2.5 Desktop
In standby mode, Press the desktop space, you can enter widget, shortcut menu and
change the current wallpaper.
2.6 Keyboard lock
2.6.1 Locking the screen
When your mobile phone is on, press the Power key to lock the screen. When the screen
is locked, you can still receive messages and calls.
You can select time for automatic keyboard lock via [Settings][Display
settings][Screen auto-lock], so that your cell phone can automatically locks the
keyboard.

8
2.6.2 Unlocking the screen
Press the Power key to wake up the screen. Then drag the lock icon left or right to unlock
the screen.
2.7 Text edit
Input mode
When you use your cell phone, you may need to enter text. For example, to save a name
in phonebook, write a short message, and create an agenda. You can enter letters,
symbols and numbers through virtual keyboard of your cell phone.
In edit state, This cell phone provides English capital/small letter, Number input modes
and so on.
Default input mode after power-on is Smart English. If you have changed input method in
edit window, the setting will be saved when you enter edit screen again as long as the cell
phone has not been powered off.
: In the edit mode, short press into input method; long press into writing language.
: In edit mode, Click it, you can select input pattern, Qwerty, Alphanumeric,
Handwriting.
Notices: you can set the language and input method from language and input
method of the settings.
2.8 Notification panel
Notification icons report the arrival of new messages, calendar events, as well as ongoing
events, such as when call forwarding is on or the current call status. You can open the
notification panel to view the reminder or events.
2.8.1 Opening the notification panel
1. Dragging the Status bar down from the top of the screen and the notification panel
will be open, when the new notification icon is on it.
2. These actions can be done:
Touching a notification to open it in its application.
Touching Clear to clear all of the notifications.
2.8.2 Closing the notification panel
Dragging the tab at the bottom of the Notifications panel to the top of the screen.

9
2.9 Using the airplane model
Some locations may require you to turn off your phone’s mobile, Wi-Fi, and Bluetooth
wireless connections. You can turn off all these wireless connections at once by placing
your phone in Airplane mode. There are 2 ways you can set up airplane model:
1. Pressing and holding the power key and touch Airplane mode in the options menu.
2. On home screen, touching menu key > Settings > network & connectivity > Check
Airplane Mode
3. Quick Functions
3.1Dialer
3.1.1 Dial numbers
When logo of network provider appears on the screen, you can dial or answer calls.
Information bars at upper left corner of the screen show intensity of network signal. (Four
information bars represent most intense signal.)
Since quality of call is greatly affected by barrier, movement in small range can effectively
improve quality of call.
3.1.1.1 Make domestic phone call
Enter the interface of dialer Input phone number and then Click send key to start the call. If
the phone number needs to be changed, please delete characters. While dialing, dialing
animation will be displayed on the screen. Once the other side is put through, talk state
information will be displayed on the screen.
After the call, please click the icon of the end call.
You can enter domestic phone numbers according to following sequence:
Area code Phone number Send key.
3.1.1.2 Make international Call
To make an international call, press number key 0 until pre-fix symbol “+” for international
long-distance call appears on the screen.
You can enter international phone number according to following sequence:
+ Country code Complete phone number Send key
After pre-fix, enter country code and complete phone number you want to dial. According
to conventions, county code for Germany is 49, and 44 for UK and 46 for Sweden, etc.
Similar to making an international call, “0” before city code should be removed.
For example, you must dial +86 21 114 if you want to dial Shanghai’s service hotline from
another country.

10
Note: In some networks, it is not allowed to use “+” to dial international phone numbers.
3.1.1.3 Dial a number in the list
Every phone number you dialed or received is saved in call log list in your cell phone.
Phone numbers you dialed or received recently are recorded in the call log list, Phone
number of the call you received most recently is located at the top of every list. When
phone number list is full, old numbers will be deleted automatically. Operate as follows:
Phone numbers appear in the lists can be dialed directly by clicking Send key.
In phone number list, click contact to view details and so on.
3.1.2 To receive a call
When there is an incoming call, incoming call animation will be displayed together with
special ringtone or vibration. If phone number of the caller can be recognized, the number
will be displayed on incoming call screen. If information about the number is stored in
contacts, caller’s name and icon will also be displayed. At the same time, specified
ringtone will be played or play music or vibrate according to current settings. If caller hides
his/her number or the network bans call indication, the incoming call is displayed as ******.
Click [accept] or slide the icon of [answer] to answer calls.
When you want to reject the incoming call, touch the icon of the reject directly.
3.1.2 During a phone call
3.1.2.1 Managing a multi-party call
If you receive a new call while you are already on a call, you can connect the second call
to the call you are on or reject it. If you receive the new call, you can switch between the
two calls or merge them and set up a conference call with multiple callers.
3.1.2.2 Switching between calls
The active call number will be on the first line and the other will be hold. You can switch
the two calls by selecting one of them on screen or menu. The hold call will be kept
automatically and the conference will not be heard by the hold one. If you hang up either
of them, the other one will be active automatically.
3.1.2.3 Making a Conference Call
You can also set up a conference call with multiple callers. The steps are following:
1. Establishing two calls, either by dialing or answering an incoming call.
2. when the two calls are active, making a conference call by selecting the merge-call on
