Haier LET22T1000F User manual

LED LCD TV RECEIVER
USER MANUAL
Please read this manual carefully before using
your television and keep this manual in a good
place for future reference.
MODEL:
LET22T1000F
LET24T1000F
LET26T1000F

02 Introduction
03 Remote Control
Main Parameter …………………………………………………………………
Control Panel ……………………………………………………………………
Rear/Side Sockets ………………………………………………………………
Connecting your TV ………………………………………………………………

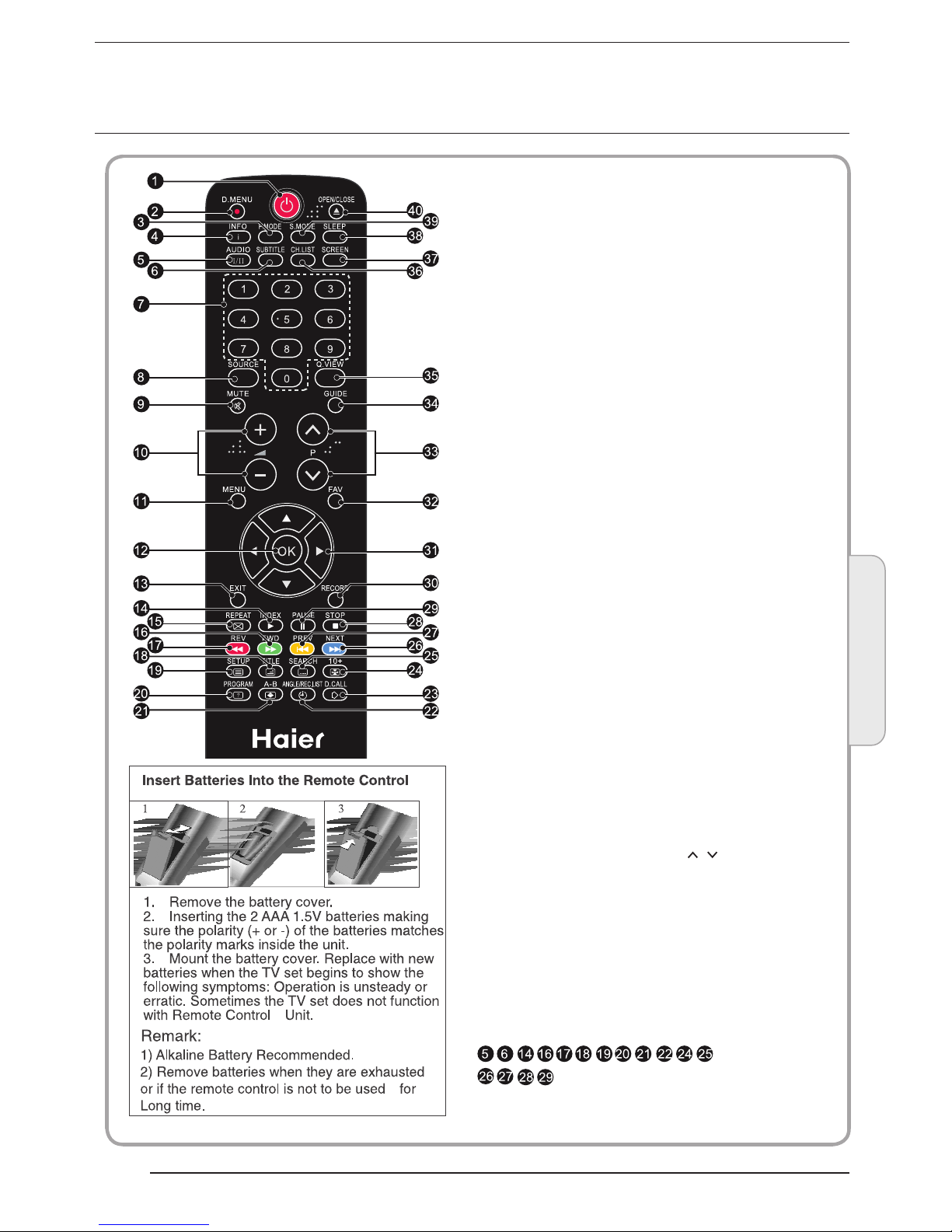

Remote Control …………………………………………………………………
05 Trouble shooting
Trouble shooting ………………………………………………………………
04 Operation
Installation Guide …………………………………………………………………
01 Safety and warnings
Welcome …………………………………………………………………………
Important information ……………………………………………………………
Safety notice ……………………………………………………………………
Warnings and cautions …………………………………………………………
Specification ……………………………………………………………………
P.05
P.10
P.10
P.11
P.13
P.23
P.15
P.02
P.02
P.03
P.05
P.25
Common interface …………………………………………………………………P.12
Base Stand Assembly Instruction …………………………………………… P.08
Wall Mounting Installation Guidelines ……………………………………… P.09

P.02
Thanks for buying this 22"/24"/26" LED LCD TV. This guide will help you set up and begin using your TV.
Now you can get started!
IMPORTANT INFORMATION
READ ALL INSTRUCTIONS BEFORE USE AND KEEP FOR FUTURE REFERENCE.
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).NO USER SERVICEABLE PARTS INSIDE.
FOR ANY PROBLEMS, REFER SERVICING TO THE CUSTOMER HELP LINE. THERE IS A LIGHTNING ARROW SYMBOL IN
THE TRIANGLE: THIS SYMBOL INDICATES HIGH VOLTAGE IS PRESENT INSIDE. IT IS DANGEROUS TO MAKE ANY KIND OF
CONTACT WITH ANYINSIDE PART OF THIS PRODUCT.
THERE IS A EXCLAMATION MARK IN THE TRIANGLE: THIS SYMBOL ALERTS YOU THAT IMPORTANT LITERATURE
CONCERNING OPERATION AND MAINTENANCE HAS BEEN INCLUDED WITH THIS PRODUCT.
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK AND FIRE, DO NOT PUT THE TV SET NEAR
SOURCES OF HUMIDITY. DO NOT USE ANY ABRASIVE CLEANERS WHICH MAY SCRATCH OR DAMAGE
THE LCD SCREEN. AVOID CONTACT WITH OBJECTS THAT MAY SCRATCH THE LCD SCREEN.
NOTE: SERVICING THE UNIT YOURSELF IS UNAUTHORISED AND COULD LEAD TO INJURY OR PRODUCT
DAMAGE. REFER ALL SERVICING TO THE CUSTOMER HELPLINE.
This TV is optimised for use in the United Kingdom. It is not certified to work in other
countries and some features and signal inputs may not work as described in the
documentation.
22" Full HD 1080P Digital LED LCD TV
Remote control
AAA ba x2
Instruction Manual
Quick start guide
ttery
Stand
24" Full HD 1080P Digital LED LCD TV
Remote control
AAA ba x2
Instruction Manual
Quick start guide
ttery
Stand
26" HD Ready Digital LED LCD TV
Remote control
Instruction Manual
AAA ba x2ttery
Quick start guide
Stand

P.03
the

UK Only 13A Plug Connection.
If your TV is connected to the mains supply using a 3 pin 13 amp plug, the voltage rating is 220-
240 volts and should be protected by a 3 amp fuse in the plug.
Should the fuse require replacement for any reason, the fuse must be replaced with a fuse
rated at 3 amps and manufactured and approved to Bs1362.
If the mains plug is unsuitable for the socket outlet in your home or is removed for any other
reason, then the cut off plug should have its fuse removed and be disposed of safely to prevent
the hazard of electric shock.
There is a danger of electric shock if the cut off plug is inserted into any 13 amp socket outlet.
How to wire a 13 amp plug.
Important
The wires in the mains lead on a TV are colour coded in accordance with the following code.
Green and yellow Earth Not required on TV's as they are double insulated.
Blue Neutral
Brown Live
Double insulated appliances
Appliance with double insulation, have a symbol than means that they do not have an earth
wire (green and yellow), so on these appliances only have two wires a blue and a brown.
If the colours do not correspond with the markings identifying the terminals in your plug,
proceed as follows.
The green and yellow wire, not required on double insulated appliances, must be connected to
the terminal in the plug which is marked with the letter E or with the earth symbol or
coloured green and yellow.
The blue wire must be connected to the terminal marked N or coloured Blue or Black
The brown wire must be connected to the terminal marked L or coloured Brown or Red
P.04

WARNINGS AND CAUTIONS
Warning
High voltages are used in the operation
of this television receiver. Do not remove
the cabinet back from your set. Refer
servicing to qualified service personnel.
Warning
To prevent fire or electrical shock
hazard, do not expose the television
receiver to rain or moisture.
Warning
Do not drop or push objects into the
television cabinet slots or openings.
Never spill any kind of liquid on the
television receiver.
Caution
Do not block the ventilation holes in the
back cover. Adequate ventilation is
essential to prevent failure of electrical
components.
Caution
Do not trap the power supply cord under
the television receiver.
Caution
Never stand on, lean on, or suddenly push
the television or its stand. You should pay
special attention to children. Serious injury
may result if it should fall.
Caution
Do not place your television on an unstable
cart, stand, shelf or table. Serious injury to
an individual , and damage to the
television, may result if it should fall.
Caution
When the television receiver is not
used for an extended period of time, it
is advisable to disconnect the AC power
cord from the AC outlet.
Dim:5 15*320 mm(不包括 底座）
Caution
If the television is to be built into a
compartment or similar enclosure, the
minimum distances must be maintained.
Heat build-up can reduce the service life of
your television, and can also be dangerous.
01
Safety and warnings
P.05

Introduction
INSTALLATIONCAUTION
*Locate the TV in the room where light
does not strike the screen directly.
*Total darkness or a reflection on the
picture screen can cause eyestrain. Soft
and indirect lighting is recommended for
comfortable viewing.
*Allow enough space between the TV and
the wall to permit ventilation.
*Avoid excessively warm locations to
prevent possible damage to the cabinet or
premature component failure.
*Do not cover the ventilation openings
when using theTV.
Main parameter
Main features
02
4 NICAM；
3 HDMI interface and SCART
Interface；
5 T；ime-shift
High luminance, wide viewing
angle；
2
Used as Television, display terminal,
PC display；
1
Panel
TV System PAL-B/G、I、D/K
SECAM- B/G 、D/K、L、 L
Video Signal System PAL/SECAM
Input Power Voltage AC 100-240V 50/60Hz
Power consumption
Audio Output Power （THD 7%）2x3W
Signal Input Analog RGB(PC) x1; PC audio x1
High-Definition Multimedia Interface (HDMI)x2
Video Input x1
Audio Input x1
YPb Prx1
SCARTx1
30W
19
'
CI x 1
USB x 1
RF Co-Ax x 1
Standby Power consumption <0.5W
40W
24
Horizontal definition（TV line）Composite Video input >=350
YPbPr >=400
Signal output Headphone x 1
S/PDIF x 1
Never tamper with any components inside
the TV, or any other adjustment controls not
described in this manual. All LED-TV's are
high voltage electrical equipment.
When you clean dust or any water drops off
the SCREEN or CABINET or around any of
the buttons or connectors, the power cabled
should be removed from the power socket.
Wipe the TV with a soft, dry, dust free cloth.
During thunderstorms, unplug the power
cable and aerial / antenna cable to prevent
damage to your TV and any other devices
connected to it.
All repairs to this TV should only be
performed by qualified TV service
personnel.
26
55W
22
38W
P.06

PRESET MODE
PC
02 Introduction
3
5
6
1024x768
1280x1024
60
60
1
640x480 60 31.47
2
800x600 60 37.88
48.36
63.98
RESOLUTION V.Freq.(Hz) H.Freq.(KHz)
4
1360x768 60 47.7
1920x1080
(Olny for 21.5",23.6") 60 66.64
P.07

P.08
INSTALLATION NOTES
Locate the TV in a room where light does not strike the screen directly. Total darkness
or a reflection on the screen can cause eyestrain. Soft and indirect lighting is
recommended for comfortable viewing.
Allow enough space between the TV and the wall to permit ventilation.
Please don’t rotate the TV.
Avoid excessively warm locations to prevent possible damage to the cabinet or
premature component failure.
Base Stand Assembly Instruction
1. Insert the stand support pillar into the
stand as the arrow indicated direction,
and then fastened with one screw.
2. Insert the stand Ass'y into back cover
as the arrow indicated direction,and
then fastened with one screw.
1. Insert the stand support pillar into the
stand as the arrow indicated direction,
and then fastened with three screws.
2. Insert the stand Ass'y into back cover
as the arrow indicated direction,and
then fastened with two screws.
(22",24") (22",24")
(26") (26")

WALL MOUNTING INSTALLATION GUIDELINES
02 Introduction
P.09
2.Remove the screws from the lower part of
the television, where the base joins to the TV,
and take away the stand (put the stand
somewhere safe for future use).
1.Place the LED LCD Television onto a
solid surface. Please place some soft
material over the front of the screen to
protect it from any damage.
(22",24")
3.Use the four screws provided to fix the TV onto a wall mounting bracket (not included)
via the four VESA standard holes on the back of the television.
M4X5
M4X5
M4X5
M4X5
100mm
100mm
(22",24")
2.Remove the screws from the lower part of
the television, where the base joins to the TV,
and take away the stand (put the stand
somewhere safe for future use).
1.Place the LED LCD Television onto a
solid surface. Please place some soft
material over the front of the screen to
protect it from any damage.
M4X5
M4X5
M4X5
M4X5
200mm
100mm
3.Use the four screws provided to fix the TV onto a wall mounting bracket (not included)
via the four VESA standard holes on the back of the television.
(22",24")
(26") (26")
(26")
