Haier 25F9K-T User manual

COLOUR TV RECEIVER
OWNER'S MANUAL
MAIN FUNCTIONS
Please read this manual carefully before operating
the unit, and keep it for future reference.
Slide Curtain Power On/Off Display
218 Channels Preset
Multiple Picture & Sound Modes
On/Off Timer
Child Lock
Soft Change Channel Function
Count Time
ChannelsAppointment
DVD Video Component Input Terminals
25F9K/25F3A

CONTENTS
Before Operation
Basic Operation
Others
Technical operation
Warning and Cautions
Installation
Antenna connection
Preparation for theremote control
Position of keysand plug-ins
Front panel
Back panel
the remote control
Power on andpower off
Viewing TV programs
Viewing TV programs
Program scan andscreen display
Tuning
Automatic search. ..
Manual search
MFT
Skip
Adjusting the pictureand the sound
S.C.C,count and mute
Setting the Timer
Timr off.. .
Setting the otherfunction
Language and screenprotection
Curtain function andcalendar display
Channel exchange
Setting the lock
Changing your password
Connecting Additional Equipments
Connecting additional equipment
Troubleshooting
Specifications
Using
Multiple picture modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... .. . . . . . . . . . . . .
Game
Game control buttonsand method ofplaying the game
Multiple sound modes
Sleep timer andtimer on
Channels appoinment
Setting the lock

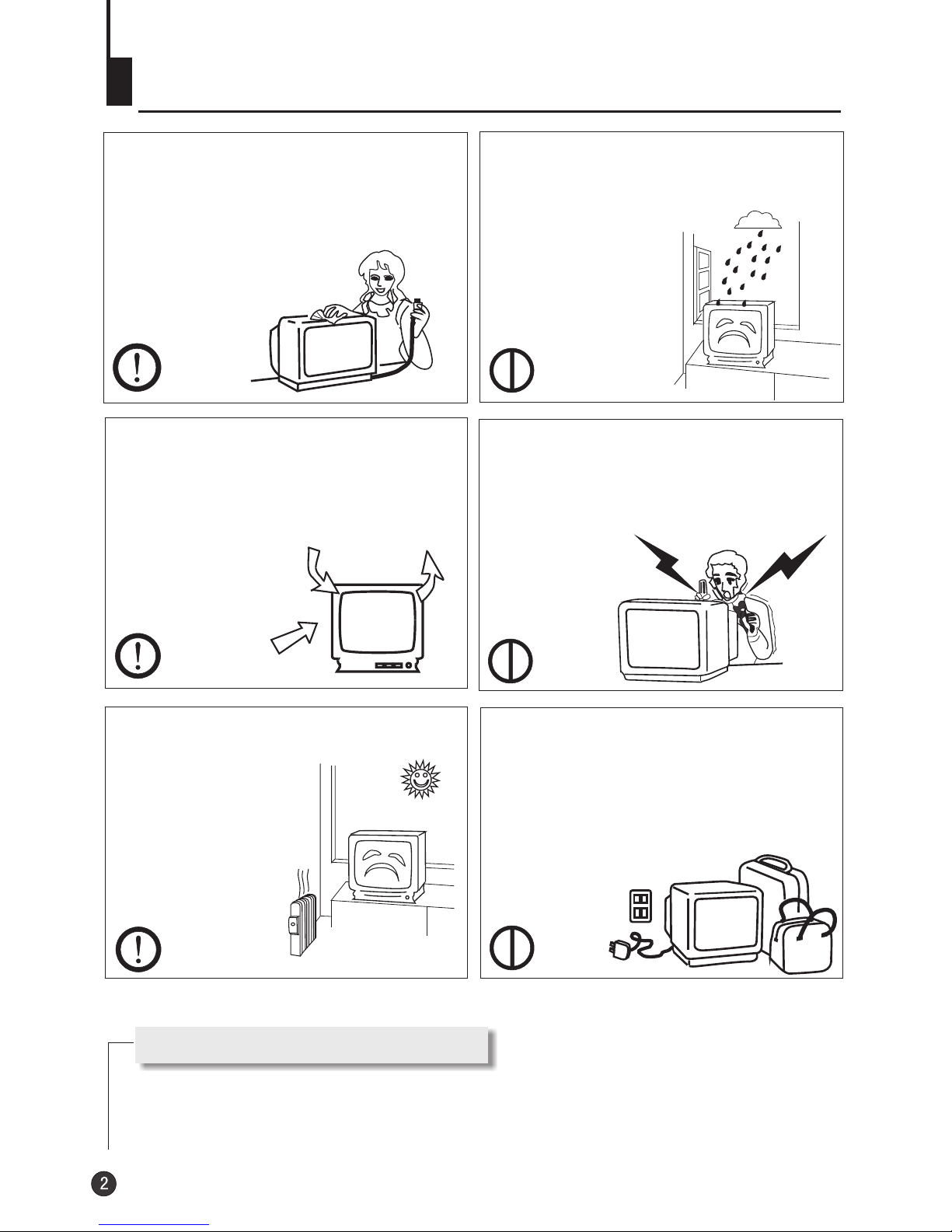

Warning and Cautions
1. When you clean the TV set, please
pull out the power plug from AC outlet.
Don't clean the cabinet and the
screen with benzene, petrol and other
chemicals.
4. To prevent the TV set from firing
and electric shock, don't expose the
TV set to rain or moisture.
2. In order to prolong the using life of
the TV set, please place it on a
ventilated place.
5. Don't open the back cover,
otherwise it is possible to damage the
components in the TV set and harm
you.
3. Don't place the
TV set in the
sunshine or near
heat source.
6. When the TV set isn't going to be
used for long time or it is in thunder
and lightening, please pull out the
plug from AC outlet and the antenna
plug from the cover of the TV set.
Explanation on the display tube
In general, it is not needed to clean the tube surface. However, necessary,
it's surface can be cleaned with a dry cotton cloth after cutting off the power.
Don't use any cleanser. If using hard cloth, the tube surface will be damaged.

Installation
Antenna connection
Generally speaking, to enjoy a clearer picture, we recommend that you use a CATV
system or an outdoor antenna .In different places, the suitable antenna type and position
are different.
Note
* It is recommended that you'd better use 75
* Don't bind antenna cable and electric wire together.
coaxial cable to remove the
disturbance caused by airwave.
Preparation for the remote control
Battery installation Tips for remote operation
Remove the batteries cover. !The battery life should be about one year
under normal use.
! When the remote control will not be used
for a long period of time or when the
batteries are worn out, remove the batteries
to prevent leakage.
! Do not throw the batteries into a fire.
Dispose of used batteries in the specified
manner.
! Do not drop, dampen or disassemble the
remote control.
Insert two size AA batteries matching
the +/-polarities of the battery to the +/-
marks inside the battery compartment.
!
!
300 twin-lead cable
Antenna adapter
75 coaxial cable
Plug
(additional purchase) AC power socket
Antenna input
75 standard
coaxial type
Mixer
additional
purchase

Position of Keys and Plug-ins
Back panel
Front panel
25F9K
V
/
A
V
T
V
+
-
V
P
U
-
N
E
M
P
+
Please do not use the side and back AV terminals simultaneously.
Power switch
Power indicator
Signal receiver
TV/AV
switch
Menu
Volume
up/ down
Channel
position up/down
Video Cb input terminal
Video Yinput terminal Video Cr input terminal
Video input terminal Antenna input socket
Audio input terminal
Audio output terminal
S-VIDEO input terminal
Video output terminal
25F3A
Menu
Channel
position up/down
TV/AV
switch Volume
up/ down
Power
switch
Signal receiver
Power indicator

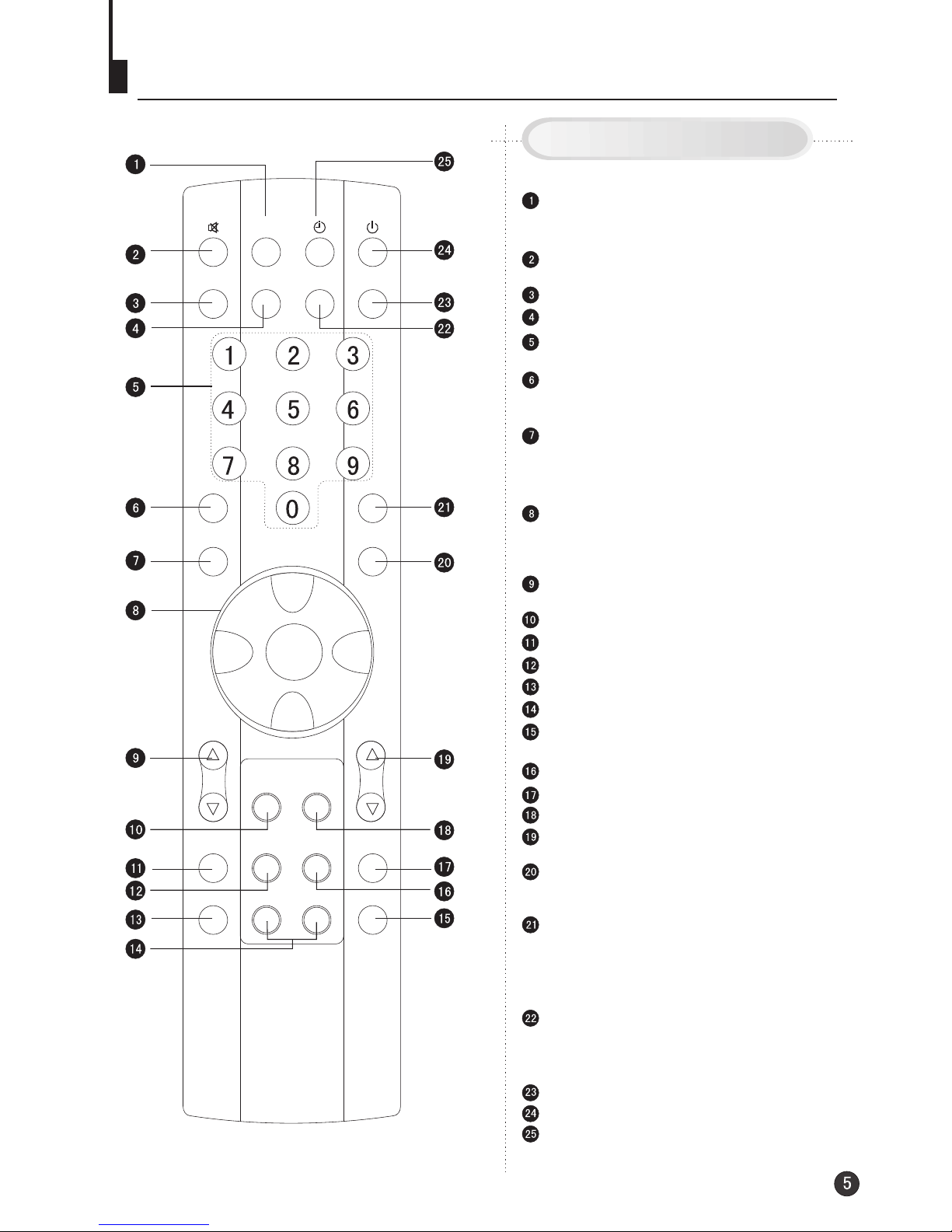

Using the Remote Control
TV/AV
-/--
WID
BAR
DISP SYSTEM SCAN
WATCH
S.STDP.STD
LOCK
CH+
CH-
VOL+VOL- MENU
HIT
PRE BACK
CALENDAR
FIRE LIGHT
FIRE
EXIT
MODE RESTART
Buttons and Descriptions
TV and AV Exchange Button
Toexchanger between TVand
other available videoinputs
Mute Button
Press to conceal thesound of programs.
Screen Display Button
System Adjust Button
Direct-digit Choosing Button
Directly select channelnumbers
Lock Setting button
Used for settinglock for channel-
searching, channel,AVand clock,etc.
Menu Select/Adjust Button
Use this buttonto adjust themenu,
the volume andthe channels, aswell
as to controlthe game.
Chromaic Belt LengthAdjust Button
(not available)
Program Play-forward Button
Calendar
Game Background SelectButton
BAR Button(not available)
Fire Button(can call thecalendar)
Background Lamp ControlButton
(not available)
Restart Game Button
Game Exit Button
Program Play-backward Button
Chromatic Belt Width Adjust Button
(not available)
Sound Mode Select Button
There are high,normal and low three
kinds of sound modes.
Stopwatch Button
Digit Select Button
Change the channel position number
between one digit, two-digits and three
-digits.
Picture Mode SelectButton
There are DYNAMIC,STANDARD,
MILD,MEMORY, PICTURE MUTEand
COLOR MUTE sixmodes of picture.
Program Scan Button
DC Standby Button
Sleep TimerButton
The stopwatch canwork 1 hourwithout
interruption and whenyou use this
function,do not operateother
function button aswell.

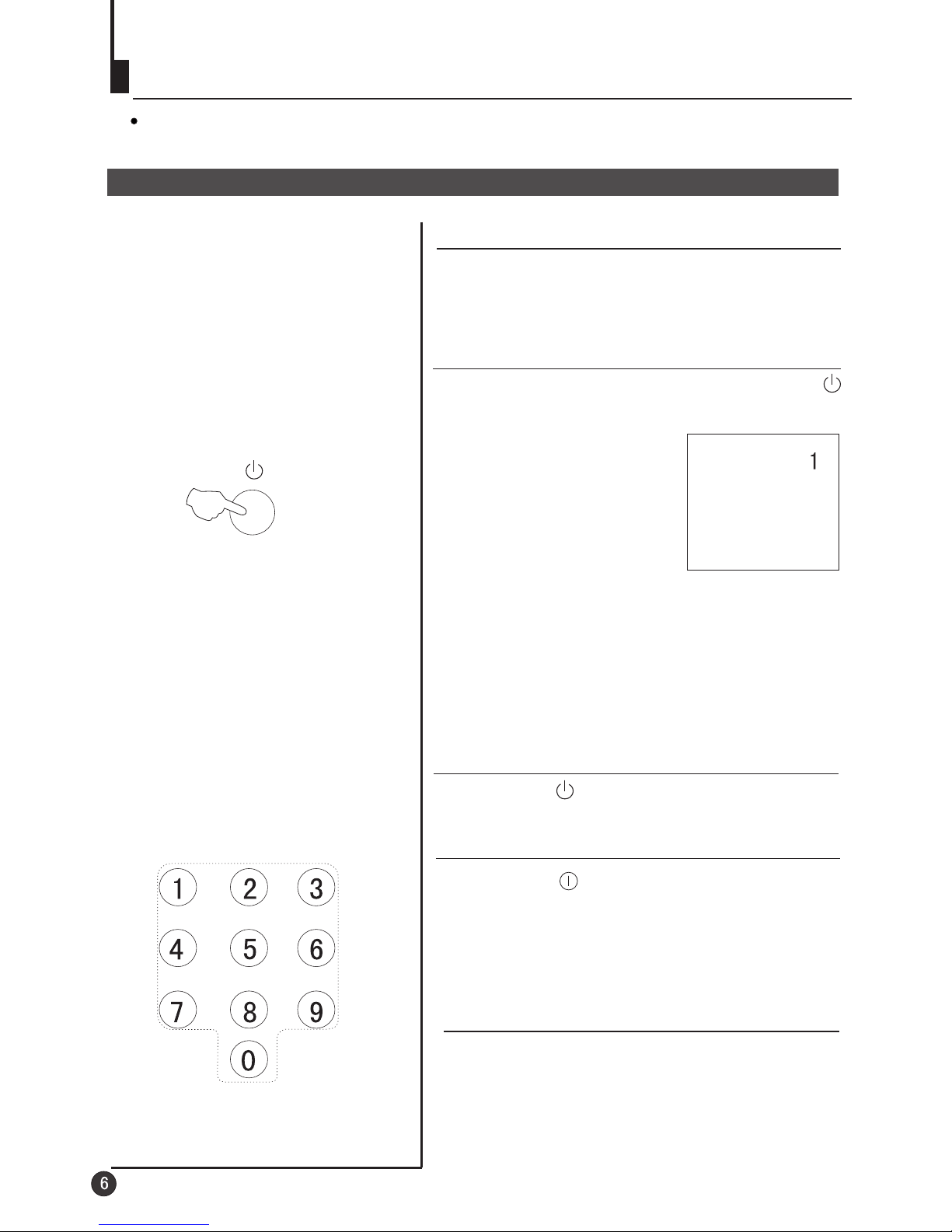

Power On and Power Off
Below are methods on how to power on/off the TV set with the switch on the TV and
on the remote control.
Power on/off
Connect/disconnect to the power
1.Connect the power supply wire, then press
power switch button, the red power indicator will
light, in several seconds the picture will appear
on the screen.
2. If the TV is in the state of standby, press the
button on the remote control.
3. Press the button on the remote control
to get into the standby state.
4. Press the button on the TV set to
completely turn off the TV.
NOTE
1.You can also press the 0-9
button to call off the standby
status instead of pressing the
DC Standby button. Press the
digit button of the preset channel
(limited to one digit) , you can
complete the selection of channel while you turn on the
TV set( To operate the preset of TV channel, please see
TUNING on page 9-12).
2.When you do not use the remote control, you can
directly press the the button on the television to call off
the standby status.
Power supply auto-off function
When the B.B(black background) is set ON,
and there is no signal , game screen protection
works, and ,in15 minutes later, it will change
into standby status.
DC Standby Button
Direct-digit Choosing Button

VOLUME
COLOR AUTO
SOUND DK
select adjust
PRE BACK
SYSTEM

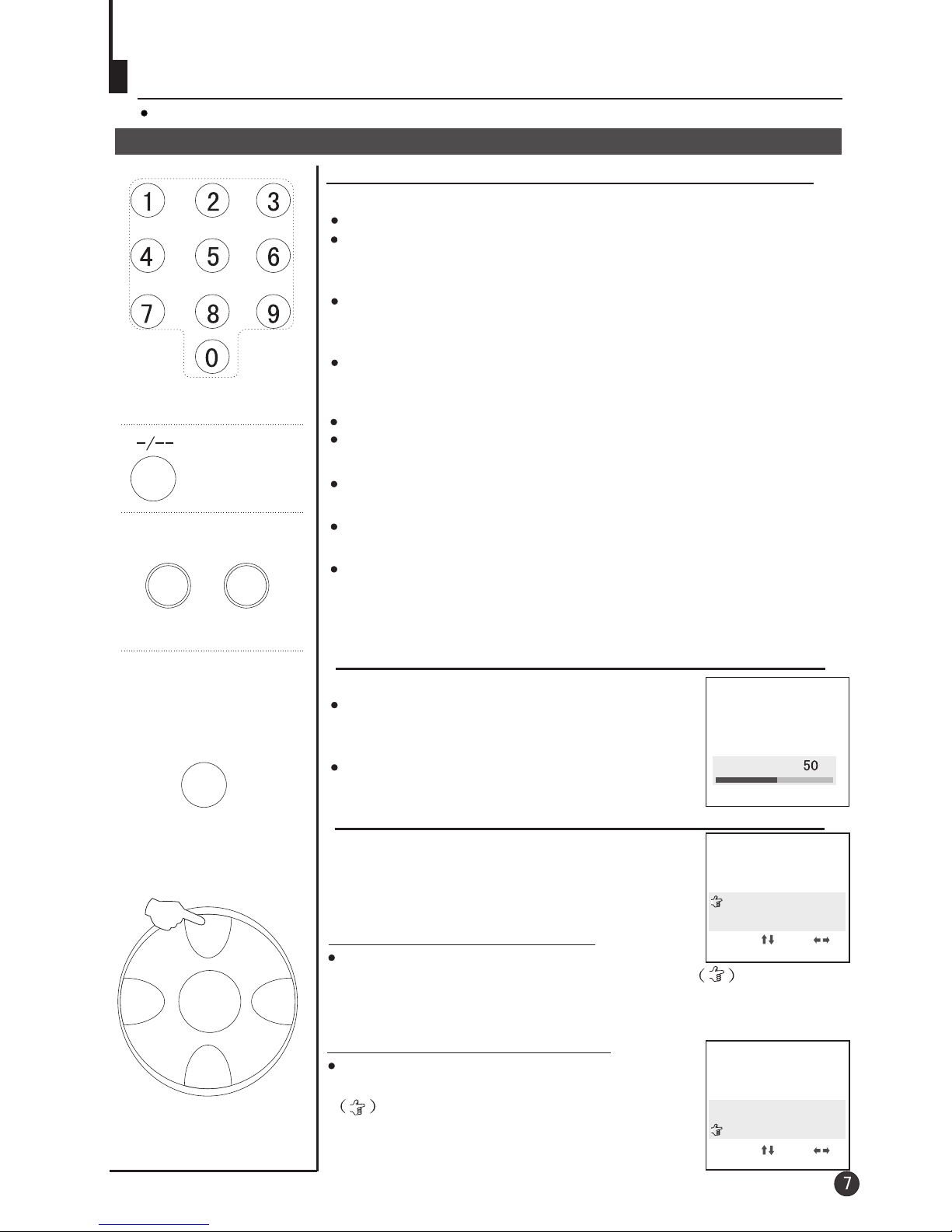

Viewing TV Programs
The channels amountto 218(0-218).
Viewing TV programs
How to select the TV program
1.Use the direct-digit choosing button
2.Use CH+/- button
Press CH+ to increase the channel position number.
Press CH- to decrease the channel position number.
Press the button from 0-9 to select a one digit channel.
If you want to select a two-digits channel, press the
Digit Select button and change it into two-digits mode,
then press the number of the channel.
If you want to select a three-digits channel, press the
Digit Select button and change it into three-digits mode,
then press the number of the channel.
3.Use PRE button and BACK button
Press PRE button, you can go back to the channels you
viewed (as many as four).
Then, press Back button, you can return to the channels you
were watching just now (as many as four) .
For example, if you have viewed channel 1,2,3,4,5,6 after the
TV is powered on, and the channel you are watching now is
number 7, then press PRE button, you can view channel 6,5,
4,3, and you may press the Back button to return to channel 7.
If the channel position number you select is larger than 218,
the TV will use the first two number as the channel position.
Choose the proper volume you like
Press VOL+/- button to adjust the volume.
If the color or sound of one channel is abnormal
It might be because the color or sound
system has been set improperly.You may
follow the instructionbelow to adjustit.
Press SYSTEM button, and you can see
the form.
Press CH+/- button, and move the indicator to COLOR,
and press VOL+ button to select the proper color(AUTO,PAL,
SECAM,NTSC4.43 and NTSC3.58 will appear alternately).
Press CH+/- button, and move the indicator
to SOUND, and press VOL+/- button
to select the proper sound (DK and BG will
appear alternately).
If the color of the picture is abnormal
If the sound is abnormal
MENU
CH+
CH-
VOL- VOL+
If tne VOL STORE is set ON, the volume of
the pre-fifty channel will be stored
independently.
Press VOL+ to increase the volume, press
VOL- to decrease the volume.
Direct-digit Choosing
button
Digit Select
button
COLOR AUTO
select adjust
SOUND DK

Screen display
SCAN
½ÚÄ¿ä¯ÀÀ¼°ÆÁÄ»ÏÔʾ¹¦ÄÜ
Viewing TV Programs(coutinued)
Program scanning function is to let the television automatically scan all
preconcerted channel program(abouttwo seconds perchannel).
Program scan and screen display
Program scanning function
1.If you want to scan the programs
and select your favorite channel ,
just press the SCAN button, then
the television will start scanning
from the present channel with a
rate of two seconds per channel
and until all the preconcerted
programs have been displayed
once, the TV set will return to the
starting channel.
2.If you want to terminate this
function during thescanning, press
the SCAN button again, and the
program will stay at the present channel.
DISP Usually, when you press the DISP button, the channel
number will appear on the top right corner of the screen
and press it again, the screen's top left corner will
display the presenttime( the adjustmentof time please
see Setting the Timer ).If press it for a third time, the
channel number and time will both disappear .

ASM VHFL 0
STOP
TUNING
POSITION 1
BAND UHF
SKIP OFF
SEARCH UP
MFT DOWN
AUTO MEMORY
MENU
CH+
CH-
VOL- VOL+
MENU
CH+
CH-
VOL- VOL+
There are threeways of searching:automatic search, manualsearch and MFT
(manual fine tune).
You may operate it either on the TV or on the remote control. Here is mainly about
the remote control.
Automatic search
Tuning
Automatic search
1. Press MENU button, untill
TUNING appears on the screen.
2. Press CH+/- button to move
the indicator( )to
AUTO MEMORY.
3. Press VOL+, then
AUTO MEMORYmode will work.
The TV set will search
automatically all available
programs, after that, all
available programs will be
stored in turn and the TV set
will return to the first channel.
If you want to stop the search, just press VOL- button.
The order of the automatic search is due to the frequency
of the program, generally speaking, it is used only at the
first time you search the program, and once the order of
the program has been confirmed, you don't have to use
this function, otherwise the order of the program will be
changed.
After searching
Press CH+/- button to check the channels.
If the color or sound is abnormal in a certain channel, it
may be the color or sound system has not been set properly,
so you should adjust it to the proper system (Reference to
page 7).
TUNING
POSITION 1
BAND UHF
SKIP OFF
SEARCH UP
MFT DOWN
AUTO MEMORY

MENU
CH+
CH-
VOL- VOL+
MENU
CH+
CH-
VOL- VOL+

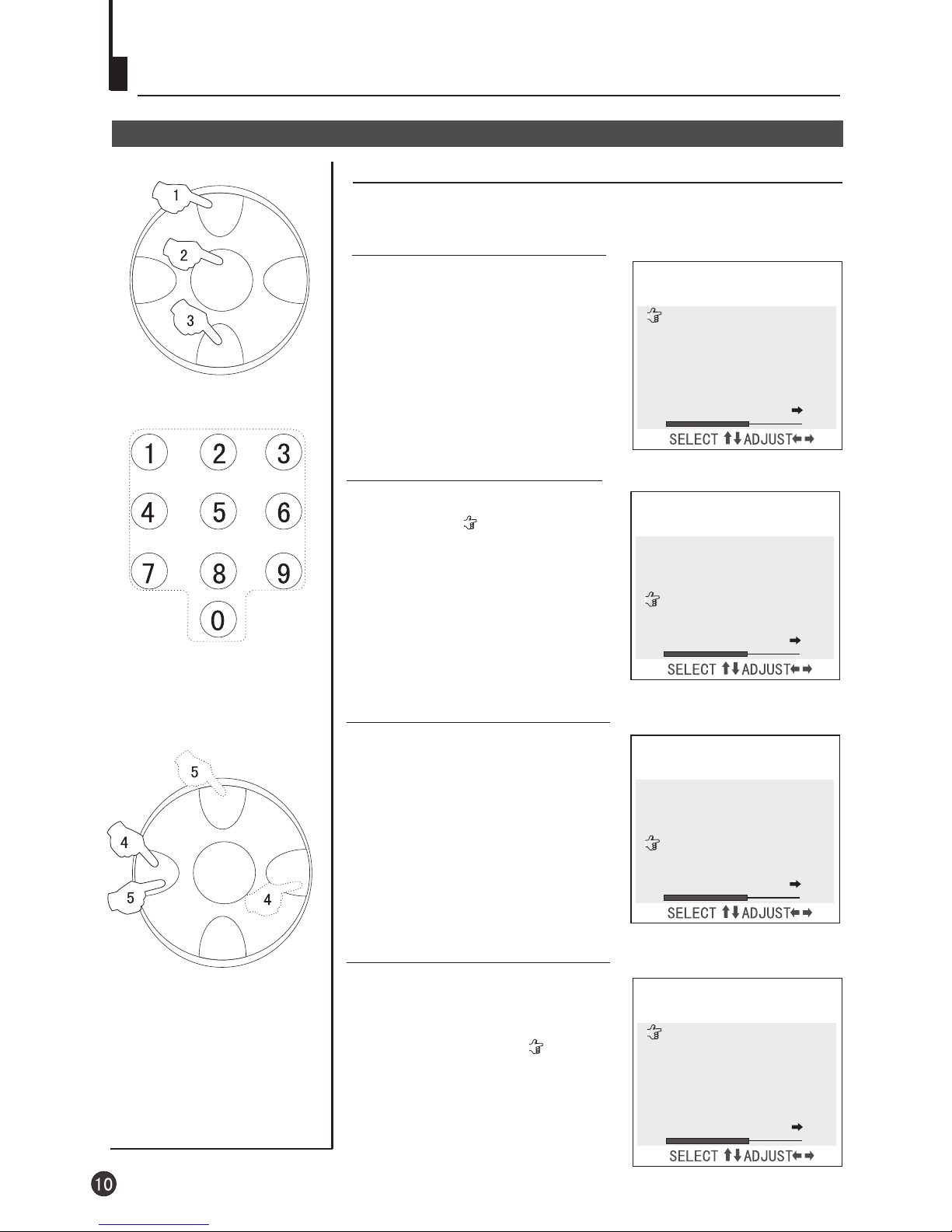

Tuning(coutinued)
Manual search
Manual search
1. Press CH+/- button or the Direct-digit Choosing button to
select a channel directly(take channel 1 for example).
2. Press MENU button, until
TUNING appears on the screen.
3. Press CH- button and move
the indicator( ) to SEARCH.
4. Press VOL+/- button to start
searching.
VOL- button is used to search the
lower frquency channel.
VOL+ button is used to search the
higher frequency channel.
Repeat the steps until you find
the channel you need.
5.When youplan to store
another new channel at a new
place, use CH+/- button and
move the indicator( ) to
POSITON, then press VOL+/-
button to select a channel
number and press CH+/- button
to move to SEARCH, then
repeat the fourth step.
TUNING
POSITION 1
BAND UHF
SKIP OFF
SEARCH UP
MFT DOWN
AUTO MEMORY
TUNING
POSITION 1
BAND UHF
SKIP OFF
MFT DOWN
AUTO MEMORY
SEARCH UP
TUNING
POSITION 1
BAND UHF
SKIP OFF
MFT DOWN
AUTO MEMORY
SEARCH UP
TUNING
POSITION 1
BAND UHF
SKIP OFF
SEARCH UP
MFT DOWN
AUTO MEMORY
Direct-digit Choosing
Button

MENU
CH+
CH-
VOL- VOL+
MENU
CH+
CH-
VOL- VOL+
Tuning(coutinued)
MFT
MFT(manual fine tune)
When you can't get a satisfactory picture and audio effect,
you can fine tune to obtain.
1. Press CH+/- button or the
Direct-digit Choosing button
to select a channel directly (take
channel 1 for example).
2. Press MENU button, until
TUNING appears on the screen.
3. Press CH+/- button and move
the indicator( ) to MFT.
4. Press VOL+/- button repeatedly to fine tune, until the
picture and the sound become satisfactory.
VOL- button is used to search the lower frquency channel.
VOL+ button is used to search the higher frequency channel.
TUNING
POSITION 1
BAND UHF
SKIP OFF
SEARCH UP
MFT DOWN
AUTO MEMORY
TUNING
POSITION 1
BAND UHF
SKIP OFF
SEARCH UP
AUTO MEMORY
MFT DOWN
Direct-digit Choosing
Button

MENU
CH+
CH-
VOL- VOL+
Tuning(coutinued)
Skip
After the programs are presetted, you can skip some
programs so that to select your favorite channels only.
1. Press CH+/- button or
Direct-digit Choosing button to
select a channel directly (take
channel 1 for example).
3. Press CH+/- button and move
the indicator( ) to SKIP.
Skip
2. Press MENU button, until
TUNING appears on the screen.
4. Press VOL+/- button to set it
ON.
5. Press MENU button to close the menu. When you
select channels with CH+/- button, this channel will be
skipped. However, you can also use the Direct-digit Choosing
button on the remote control to select this channel ditectly.
If you want to recover the skipped channel
1. Use Direct-digit Choosing button to select the number of the
channel to be recovered.
2. Do the above steps again.
3. Press VOL+/- button to set SKIP OFF.
Direct-digit Choosing
Button
TUNING
POSITION 1
BAND UHF
SKIP OFF
SEARCH UP
MFT DOWN
AUTO MEMORY
TUNING
POSITION 1
BAND UHF
SEARCH UP
MFT DOWN
AUTO MEMORY
SKIP OFF
TUNING
POSITION 1
BAND UHF
SEARCH UP
MFT DOWN
AUTO MEMORY
SKIP ON

CONTRAST 100
BRIGHT 50
COLOR 50
B.B ON
SHARP 50
MENU
CH+
CH-
VOL- VOL+

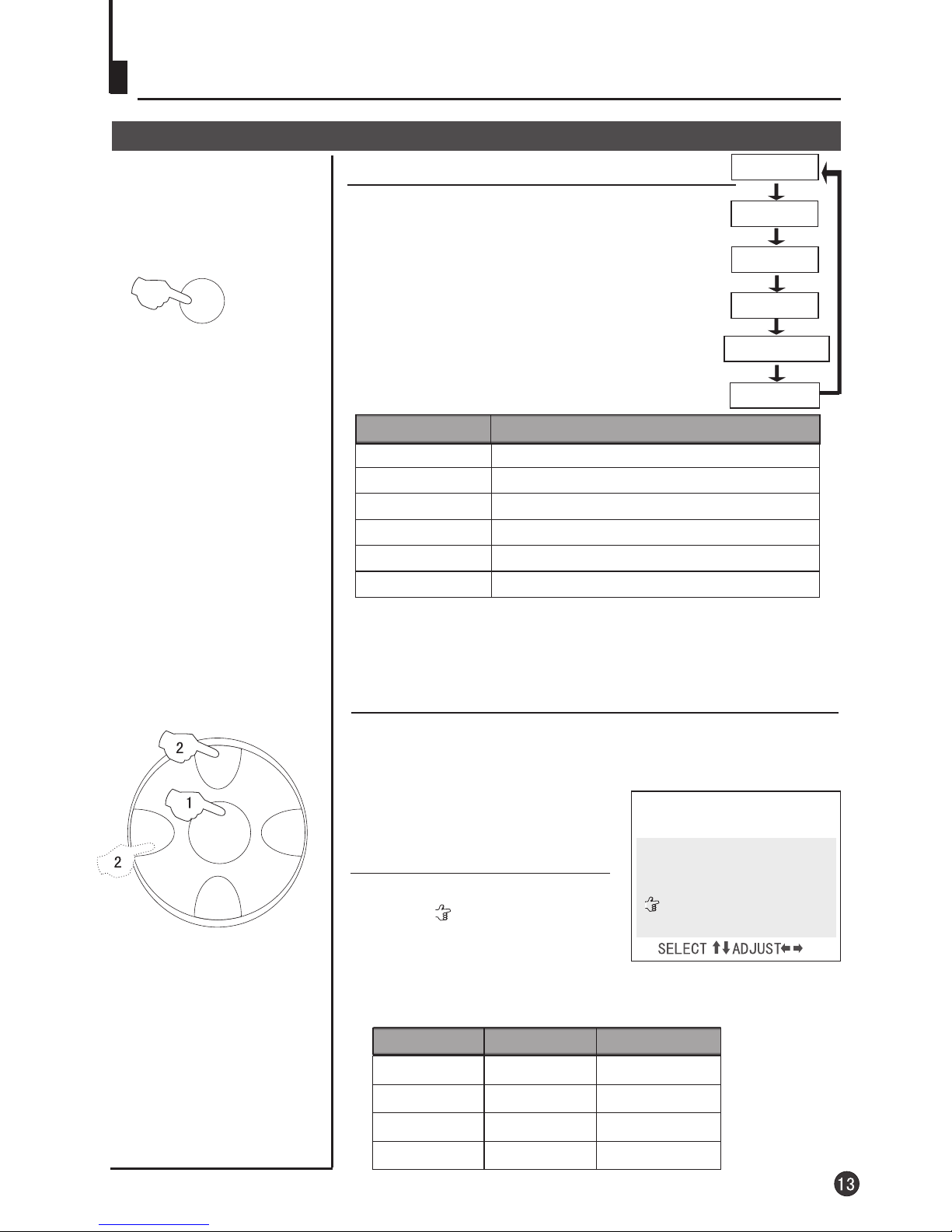

Adjusting the Picture and the Sound
Multiple picture modes
How to select the picture mode
You may select the mode you want from the
five preset modes and one individual mode.
DYNAMIC
STANDARD
MILD
MEMORY
PICTURE MUTE
COLOR MUTE
Press the P. STD button to select a mode you
like.DYNAMIC PICTURE, STANDARD
PICTURE, MILD PICTURE, MEMORY,
PICTURE MUTE and COLOR MUTE,
totally six picture modes can be selected
alternately.
P.STD
MODE PICTURE QUALITY
DYNAMIC
STANDARD
MILD
MEMORY
PICTURE MUTE
COLOR MUTE
BRIGHT COLOR
MEDIUM COLOR AND BRIGHTNESS
LOW COLOR AND BRIGHTNESS
SET BY YOURSELF
NO PICTURES
BLACK AND WHITE
If the picture mode is set to PICTURE MUTE or COLOR
MUTE,it will autorenew to MEMORY mode when you
restart your TV set.
Set the parameter of MEMORY
1. Press MENU button, until PICTURE appears on the screen.
2. Press CH+/- button, move the
indicator( ) to the option you
want to adjust, then press
VOL+/- button to do the
adjustment.Then the parameter will be automatically stored
in MEMORY option.
OPTION
CONTRAST STRONG WEAK
BRIGHT BRIGHT DARK
COLOR THICK LIGHT
SHARP SHARP SOFT
VOL-
VOL+

Multiple Sound Modes
·½±ãµÄͼÏñºÍÉùÒôµ÷Õû¹¦ÄÜ£¨½ÓÉÏÒ³£©
Volume store
NORMAL VOL
HIGH VOL
LOW VOL
MENU
CH+
CH-
VOL- VOL+
FUNCTION 1
LANG. ENGLISH
CURTAIN III
LOW VOL 00
NORMAL VOL 00
HIGH VOL 00
VOL STORE OFF
FUNCTION 1
S.STD
Adjusting the Picture and the Sound
(coutinued)
How to select the sound mode
You can quickly select you most favored
sound mode from the following three
kinds of modes.
Press the S.STD button to select the
sound quality that you want.NORMAL
VOL,HIGH VOL and LOW VOL can be
selected in turn(their parameter may
be adjusted due to your need).
Setting the sound
This function can let you regulate the volume to the
preconcerted parameter quickly( such as the NORMALVOL,
HIGH VOL or LOW VOL).
1.Press MENU button, until
FUNCTION 1 appears on the
screen.
2.Press CH+/-button, move
the indicator( )to the HIGH
VOL, then pressVOL+/-
button to adjust the parameter
you expect. Withthe same
method, you can adjust the
parameter of theNORMAL
VOL or the LOW VOL.
Suppose the LOWVOL is A,
NORMAL VOLis B, HIGH
VOL is C, then thatwill be:
0 A B C 100
When adjusting thethree modes,you should press them in
proper order asHIGH VOL,NORMAL VOL, LOW VOL.
3.Press the S.STD button repeatedly to select the
different sound setting modes.
When the VOL STORE( as above chart) is set ON, the
sudden change of the volume can be avoided when you
change the channel(only the pre-50channels volume).
LANG. ENGLISH
CURTAIN III
LOW VOL 00
NORMAL VOL 00
VOL STORE OFF
HIGH VOL 00
S.STD

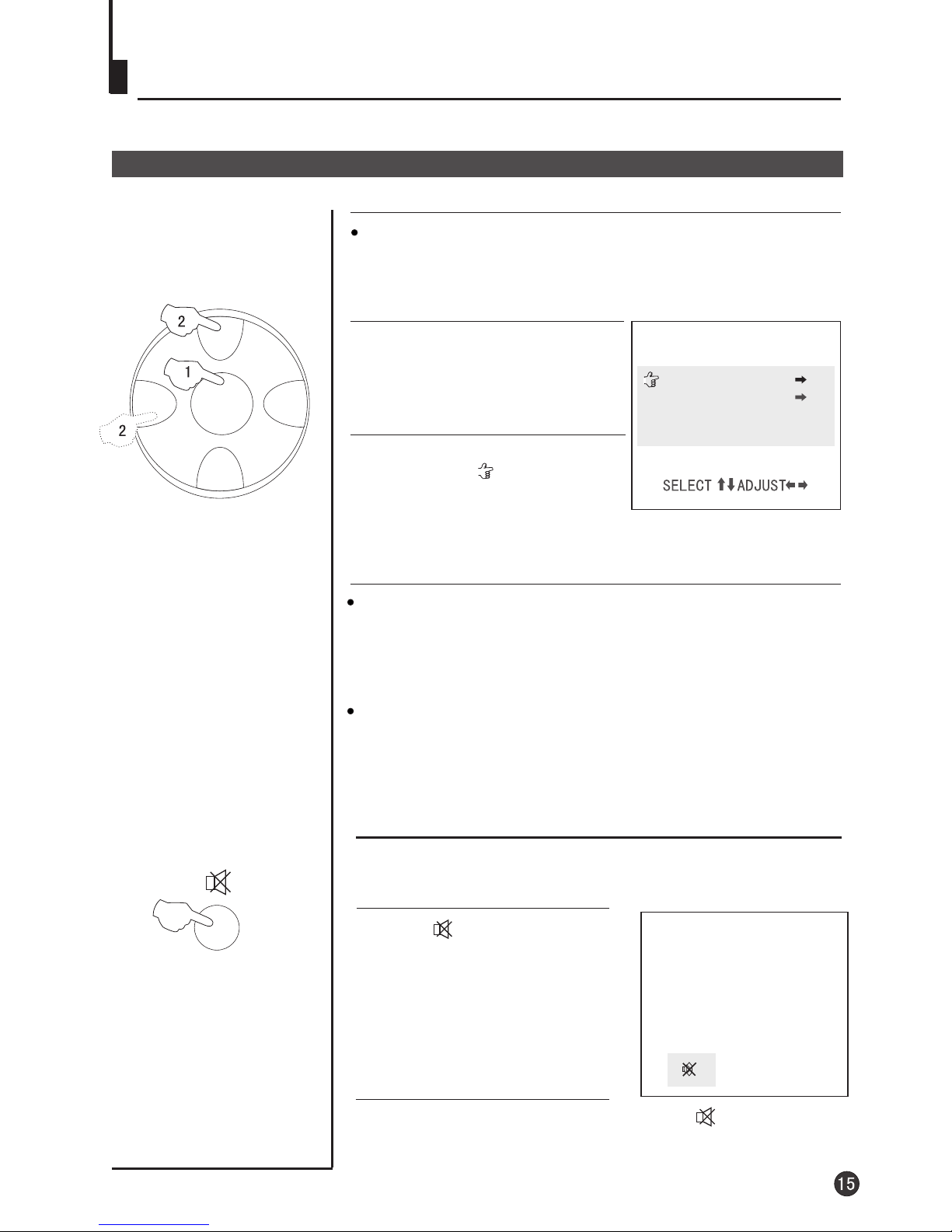

S.C.C, count and mute
How to use the MUTE function
When you want to pay attention to the environment or
answer a telephone,or to meetguests, using the mute
function is veryconvenient.
How to use the COUNT function
The time displayed is the total time when you watch the
TV(time of standby status will not be included), the
number cannot be altered through operating by the
remote control oron the TV set.
SUBMARINE
POS.EX.
S.C.C OFF
COUNT 0:00
MENU
CH+
CH-
VOL- VOL+
FUNCTION 2
Adjusting the Picture and the Sound
(coutinued)
How to use the S.C.C(soft change channel)
This TV set provides you with the function of S.C. C.
When it is set "ON", the picture will fade in and fade
out when the channel is changed.
1.Press MENU button, until
FUNCTION 2 appears on the
screen.
2.Press CH+/-button, move
the indicator( ) to the S.C.C,
then press VOL+/-button to
set it ONor OFF.
This TV set provides youwith the functionof COUNT,
if you want to know how long your TV set has been
used, you can press MENU button, and find
FUNCTION 2 ,then you canknow the time the TV has
been on(count from0 after 100,000hours).
1.Press button, a sign will
appear at the button left corner
of the screen, and the sound of
the TV set is cutoff.
2.In order to recover the sound, press button again
or press VOL+/-button.

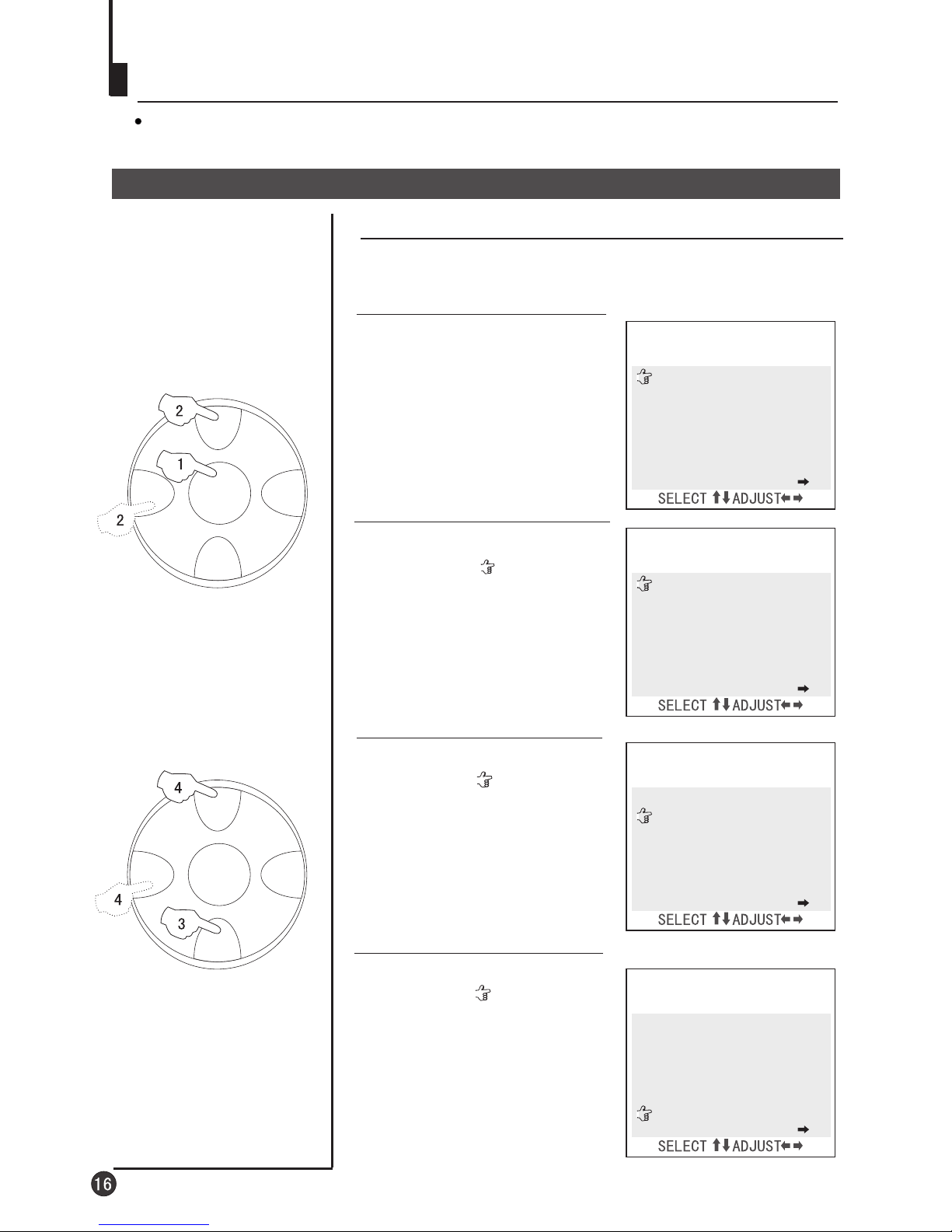

Setting the Timer
Timer off
Using this function can turn the TV set automatically
into standby status at the preconcerted time.
MENU
CH+
CH-
VOL- VOL+
MENU
CH+
CH-
VOL- VOL+
TIMER
OFF TIMER OFF
19:00
ON TIMER OFF
22:00
POS 0
CLOCK 1:40
APPOINTMENT
TIMER
OFF TIMER ONCE
19:00
ON TIMER OFF
22:00
POS 0
CLOCK 1:40
APPOINTMENT
TIMER
19:30
OFF TIMER ONCE
ON TIMER OFF
22:00
POS 0
CLOCK 1:40
APPOINTMENT
TIMER
CLOCK 1:40
OFF TIMER ONCE
19:30
ON TIMER OFF
22:00
POS 0
APPOINTMENT
This TV set provides you with three timer functions such as timer on, timer off
and sleep off.
Timer off
1.Press MENU button, until
TIMER appears on the
screen.
2.Press CH+/-button, move
the indicator( )to OFF
TIMER, then pressVOL+/-
button to set it ONCE ,
EVERY,or OFF.
3.Press CH-button, move
the indicator( )to the next
row. Then, press VOL+/-
button to set the time.
4.Press CH+/-button, move
the indicator( )to CLOCK,
press VOL+/- button, and you
can set the time(It will be the
standard of the clock of
TIMER ON/OFF).

Sleep timer and timer on
Timer on
Sleep timer
2.Press the button repeatedly,
the screen will show in turn as the
right form.
MENU
CH+
CH-
VOL- VOL+
MENU
CH+
CH-
VOL- VOL+
TIMER
ON TIMER EVERY
OFF TIMER EVERY
19:00
22:00
POS 0
CLOCK 1:40
APPOINTMENT
TIMER
POS 5
OFF TIMER EVERY
19:00
ON TIMER EVERY
22:00
CLOCK 1:40
APPOINTMENT
Setting the Timer (coutinued)
Using this function, the TV set can be changed into the
standby status after a period of preset time from when
this function is activated.
1.The utmost time for this function is
120 minutes, and the time interval is
10 minutes.There are totally 12 kinds
of off-time.
When this function is used, the TV set can
automatically turn the power on at the preset time in
the standby statusand display thepreset program.
1.Press MENU button, until TIMER appears on the
screen.
2.Press CH+/-button, move
the indicator( )to the ON
TIMER, then pressVOL+/-
button to set it ONCE ,
EVERY or OFF.
3.Press CH-button, move
the indicator( ) to the below.
Then, press VOL+/-button to
set the time.
4.Press CH+/- button,move
the indicator( )to
POS 0, pressVOL+/-
button to set the channel
with which the TV is turned
on(take 5 forexample).
5.Press CH+/-button, move
the indicator( )to CLOCK,
press VOL+/- button, and you can set the time(same as
TIMER OFF and it will be the standard of the clock of
TIMER ON/OFF).

Channels appointment
APPOITMENT
POS TIME
100 OFF
000 OFF
000 OFF
000 OFF
000 OFF
000 OFF
Repeatedly press VOL+/-button,
the time changeswith a rate of
one minute;
Press the buttonwithout
releasing, the timechanges with
a rate often minutes.
TIMER
CLOCK 1:40
OFF TIMER EVERY
19:00
ON TIMER EVERY
22:00
POS 0
APPOINTMENT
MENU
CH+
CH-
VOL- VOL+
MENU
CH+
CH-
VOL- VOL+
DISP
Setting the Timer (coutinued)
The channels appointment function can help you conveniently preset as many
as six programs at a time. At the preset time, the TV set will automatically
change to thepreconcerted channel. Iftwo or more programs are setin a same
time, the last channel number will be selected.
1.Press MENU button, until
TIMER appears on the
screen.
2.Press CH+/-button, move
the indicator( )to CLOCK,
press VOL+/- button, and you
can set the time(same as
TIMER OFF and it will be the
standard of theclock ofAPPOINTMENT).
3.Press CH+/-button, move
the indicator( )to
APPOINTMENT, then press
VOL+ button to enter the
sub-menu.
4.Press VOL+/- button to set
the channel number you want
(e.g. 100).
5.Press CH- button to enter
the TIME item.Press VOL+/-
button to set the time.
6.Press the CH- button, and
follow the instructions of step
4 and 5, you can do the setting
of the next channel.
7.Press DISP button to exit
the TIMER menu.
At the presettime, the TV set will automatically change
to the preconcertedchannel;
This function is available only when the TV set ison, and
it cannot beused in the status of standbyor power off.
APPOITMENT
POS TIME
100 OFF
000 OFF
000 OFF
000 OFF
000 OFF
000 OFF
APPOITMENT
POS TIME
100 12:58
000 OFF
000 OFF
000 OFF
000 OFF
000 OFF
Channels appointment
