SAFETYPRECAUTIONS
Read all of the instructions before using this appliance.
When using this appliance, always exercise basic safety
precautions, including the following:
1) Use this appliance only for its intended purpose as described in this use
and care guide.
2) This wine cellar must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in the
installation section.
3) Never unplug your wine cellar by pulling on the power cord. Always
grasp the plug firmly and pull straight out from the outlet.
4) Repair or replace immediately, all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length, the plug or the connector end.
5) Unplug your wine cellar before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly
recommend that a certified technician performs the service.
6) If your old wine cellar is not being used, we recommend that you remove
the door and leave the shelves in place. This will reduce the possibility
of danger to children.
7) This wine cellar should not be recessed or built-in an enclosed cabinet. It is
designed for freestanding installation only.
8) Do not operate your wine cellar in the presence of explosive fumes.
9) Do not store foods in wine cellar as interior temperature may not be cool
enough to prevent spoilage.
SAVETHESEINSTRUCTIONS

DANGER
Risk of child entrapment. Before you throw away your old
wine cellar, take off the doors. Leave the shelves in place so
that children may not easily climb inside.
Thank you for using our Haler
product. This easy-to-use manual will
guide you in getting the best use of
your wine cellar.
Remember to record the model and
serial number. They are on a label in
back of the wine cellar.
Model number
Serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain
warranty service.

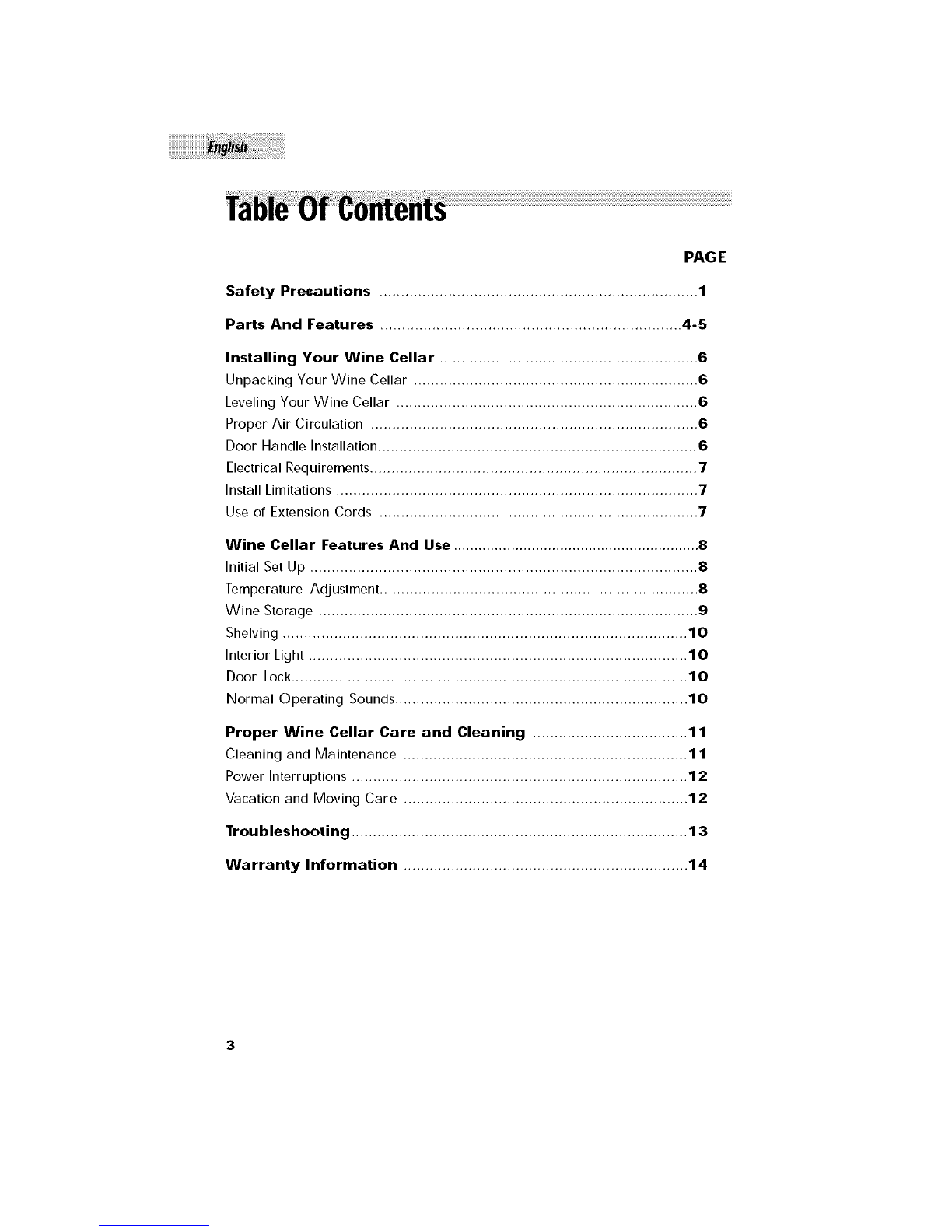

PAGE
Safety Precautions .......................................................................... 1
Parts And Features ...................................................................... 4-5
Installing Your Wine Cellar ............................................................ 6
Unpacking Your Wine Cellar .................................................................. 6
Leveling Your Wine Cellar ...................................................................... 6
Proper Air Circulation ............................................................................ 6
Door Handle Installation .......................................................................... 6
Electrical Requirements ............................................................................ 7
Install Limitations .................................................................................... 7
Use of Extension Cords .......................................................................... 7
Wine Cellar Features And Use ............................................................ 8
Initial Set Up .......................................................................................... 8
Temperature Adjustment .......................................................................... 8
Wine Storage ........................................................................................ 9
Shelving .............................................................................................. 10
Interior Light ........................................................................................ 10
Door Lock ............................................................................................ 10
Normal Operating Sounds .................................................................... 10
Proper Wine Cellar Care and Cleaning .................................... 1 1
Cleaning and Maintenance .................................................................. 11
Power Interruptions .............................................................................. 12
Vacation and Moving Care .................................................................. 12
Troubleshooting .............................................................................. 13
Warranty Information .................................................................. 14

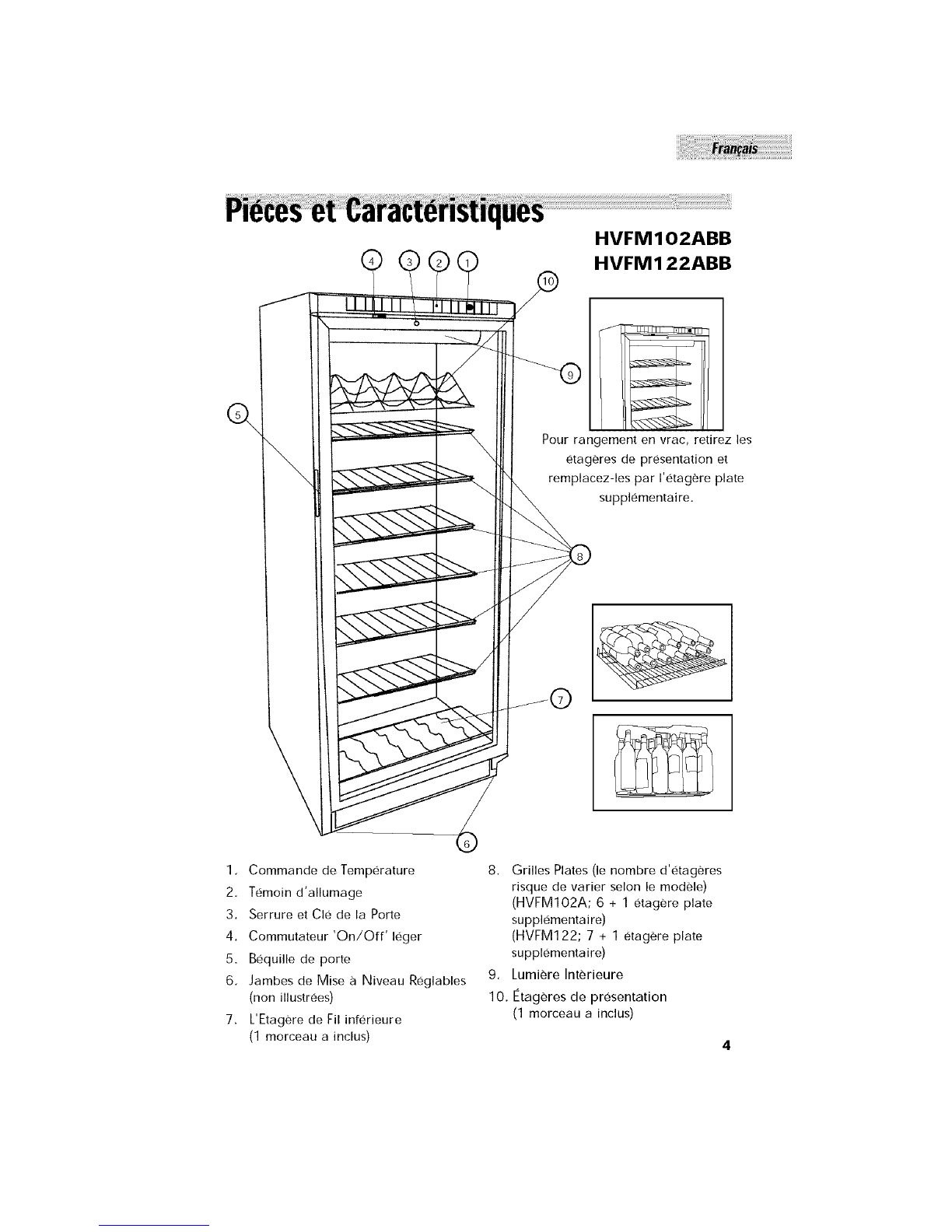

HVFMIO2ABB
HVFM122ABB
For bulk storage, remove the
display rack and replace with
additional flat shelf

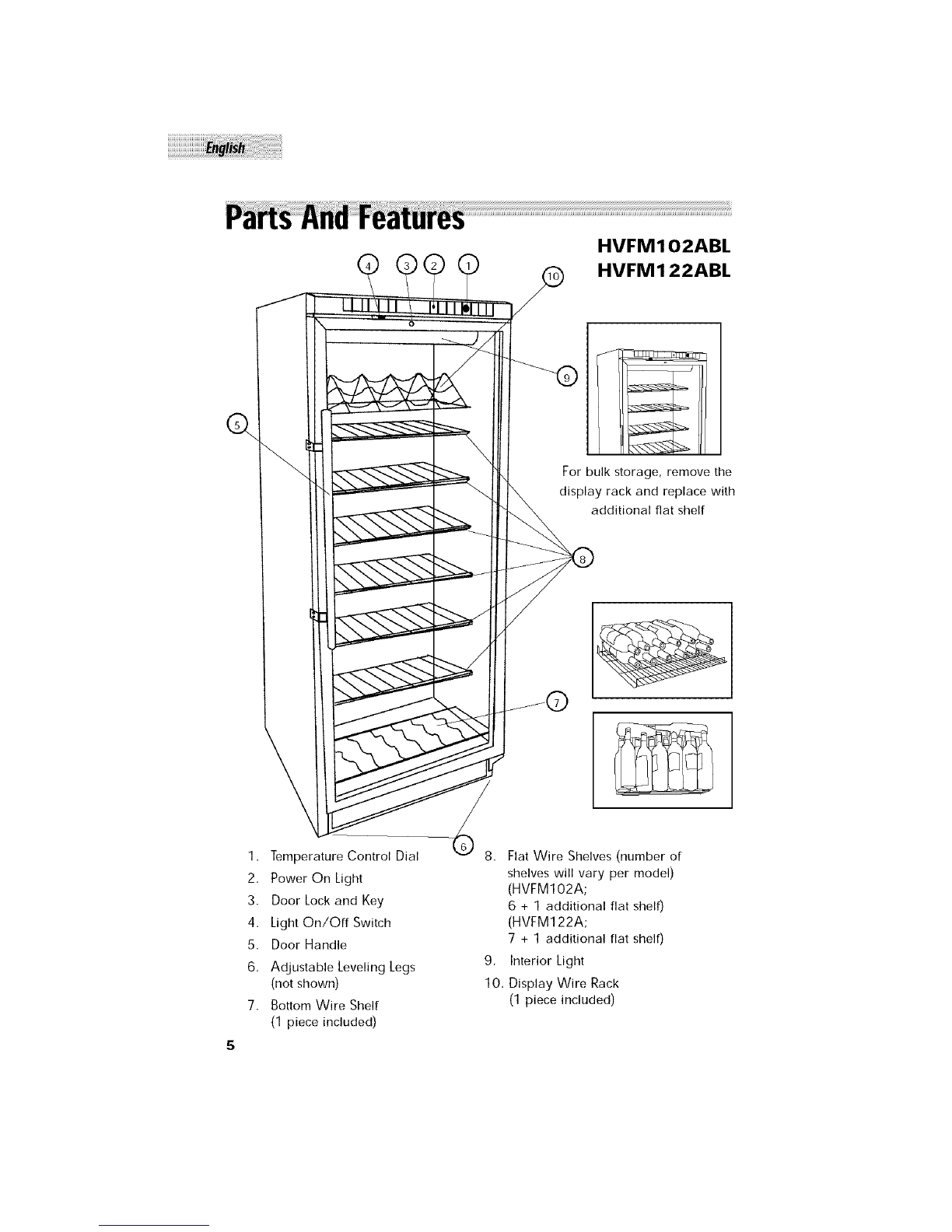

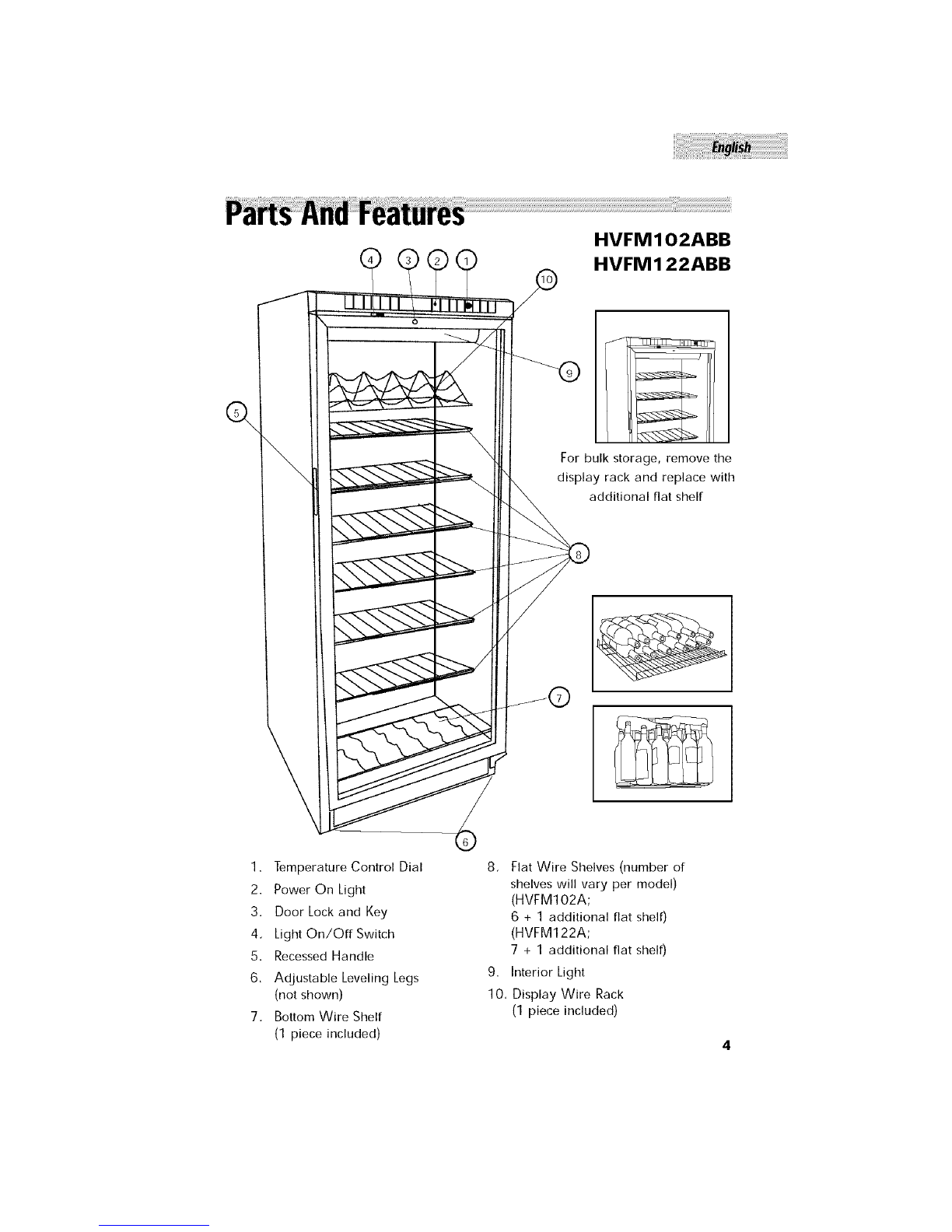

1. Temperature Control Dial
2. Power On Light
3. Door Lock and Key
4, Light On/Off Switch
5. Recessed Handle
6. Adjustable Leveling Legs
(not shown)
7, Bottom Wire Shelf
(1 piece included)
8, Flat Wire Shelves (number of
shelves will vary per model)
(HVFM102A;
6 + 1 additional flat shelf)
(HVFM122A;
7 + 1 additional flat shelf)
9. Interior Light
10, Display Wire Rack
(1 piece included)

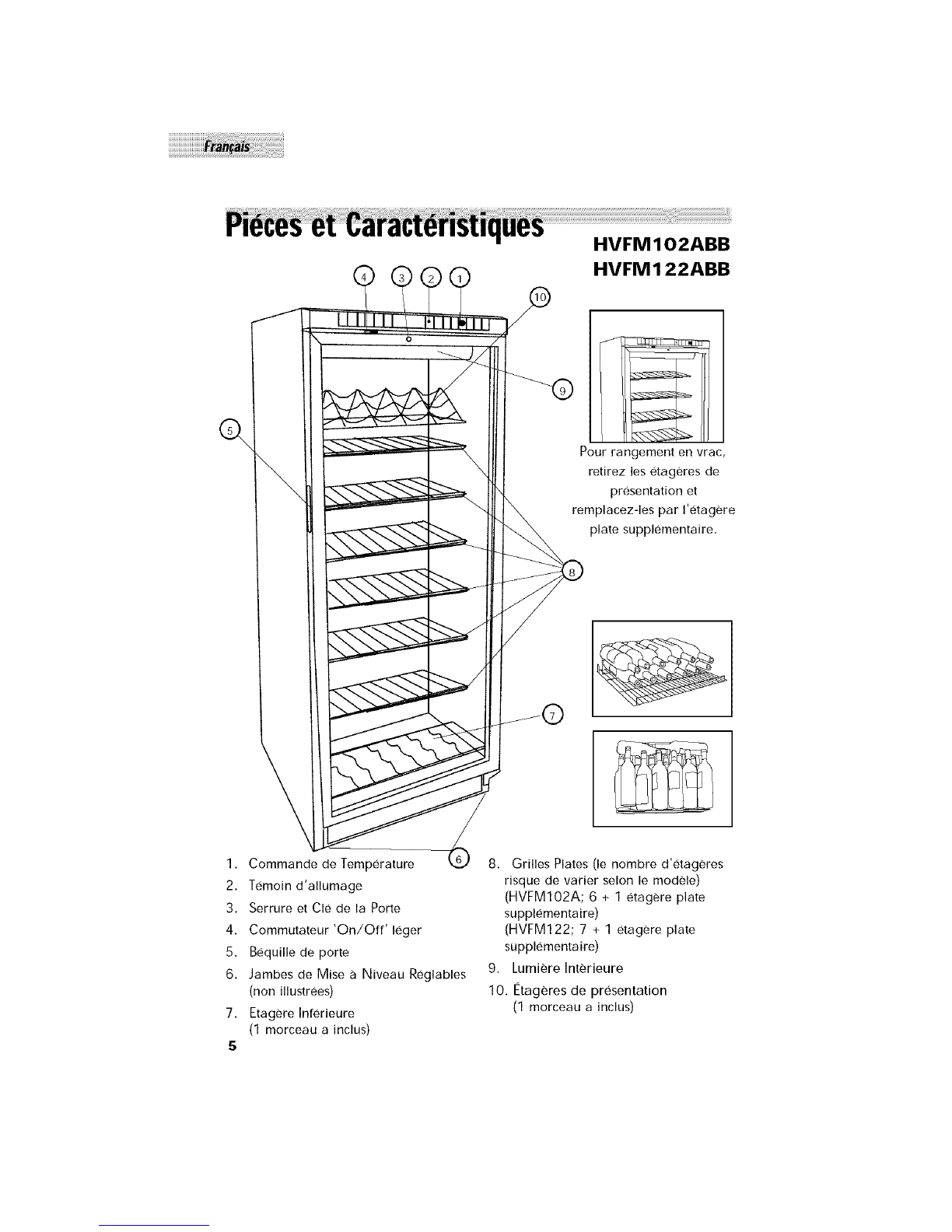

HVFMIO2ABL
HVFM122ABL
Q
For bulk storage, remove the
display rack and replace with
additional fiat shelf
1. Temperature Control Dial
2. Power On Light
3. Door Lock and Key
4, Light On/Off Switch
5. Door Handle
6. Adjustable Leveling Legs
(not shown)
7, Bottom Wire Shelf
(1 piece included)
8. Flat Wire Shelves (number of
shelves will vary per model)
(HVFM102A;
6 + 1 additional flat shelf)
(HVFM122A;
7 + 1 additional flat shelf)
9, Interior Light
10, Display Wire Rack
(1 piece included)

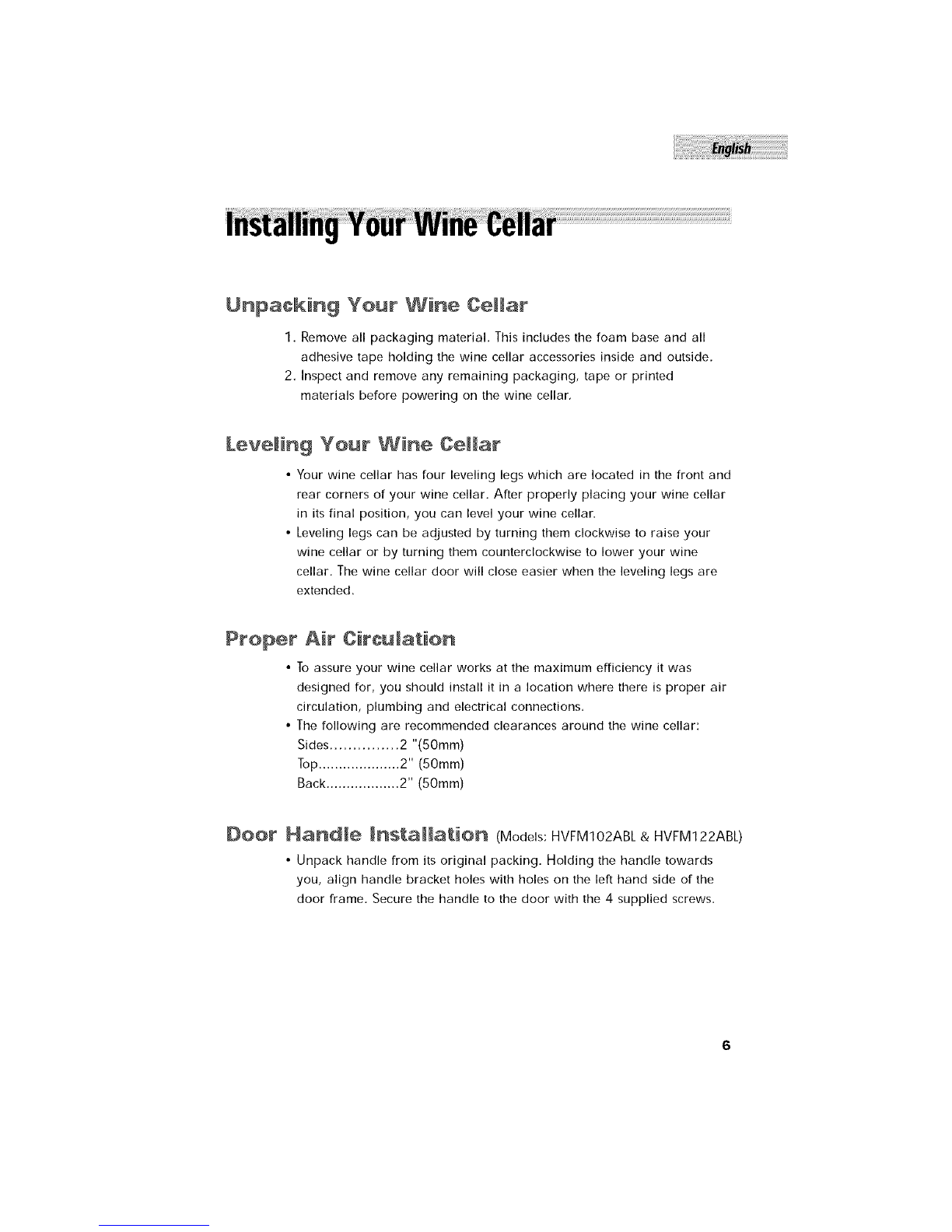

Unpacking Your Wine Cellar
1. Remove all packaging material, This includes the foam base and all
adhesive tape holding the wine cellar accessories inside and outside,
2, inspect and remove any remaining packaging, tape or printed
materials before powering on the wine cellar,
Leveling Your Wine Cellar
• Your wine cellar has four leveling legs which are located in the front and
rear corners of your wine cellar. After properly placing your wine cellar
in its final position, you can level your wine cellar.
• Leveling legs can be adjusted by turning them clockwise to raise your
wine cellar or by turning them counterclockwise to lower your wine
cellar. The wine cellar door will close easier when the leveling legs are
extended.
Proper Air Circulation
• To assure your wine cellar works at the maximum efficiency it was
designed for, you should install it in a location where there is proper air
circulation, plumbing and electrical connections,
• The following are recommended clearances around the wine cellar:
Sides ............... 2 "(50mm)
Top .................... 2" (50ram)
Back .................. 2" (50ram)
Door Hand_ Jn$taHation (Models: HVFMIO2ABL &HVFM122ABL)
• Unpack handle from its original packing, Holding the handle towards
you, align handle bracket holes with holes on the left hand side of the
door frame, Secure the handle to the door with the 4 supplied screws,

Emectrica_ Require_en_
• Make sure there is a suitable power Outlet (115 volts, 15 amps outlet)
with proper grounding to power the wine cellar,
Avoid the use of three plug adapters or cutting off the third grounding in
order to accommodate a two plug outlet. This is a dangerous practice
since it provides no effective grounding for the wine cellar and may
result in shock hazard,
install Limitations
• Do not install your wine cellar in any location not properly insulated or
heated e.g. garage etc. Your wine cellar was not designed to operate in
temperature settings below 55 ° Fahrenheit,
• Select a suitable location for the wine cellar on a hard even surface
away from direct sunlight or heat source e,g, radiators, baseboard
heaters, cooking appliances etc. Any floor unevenness should be
corrected with the leveling legs located on the front and rear bottom
corners of the wine cellar.
• Your wine cellar is designed for free-standing installation only. It is not
designed for built-in application,
Use of Extension Oords
• Avoid the use of an extension cord because of potential safety hazards
under certain conditions. If it is necessary to use an extension cord, use
only a 3-wire extension cord that has a 3-blade grounding plug and a
3-slot outlet that will accept the plug. The marked rating of the extension
cord must be equal to or greater than the electrical rating of the
appliance.

_nitiai Setup
The temperature control is located in the upper left side above the door.
There are 7 settings, Initially set the temperature setting to 3. Let the unit
run for at least 30 minutes to acclimate itself before making any
adjustments,
Temperature Adjustments:
Mechanical Dial Control: See fig. # 1
• To adjust the temperature locate the temperature control dial, There are
7 settings: 1 being the warmest and 7 being the coolest, You can set the
temperature of your wine cellar at any setting you desire. Your wine
cellar will maintain a temperature between 39°F - 65°F depending on
the level of your setting,
4
33/_ I -_5 fig, # 1
2 _6
65° 39°

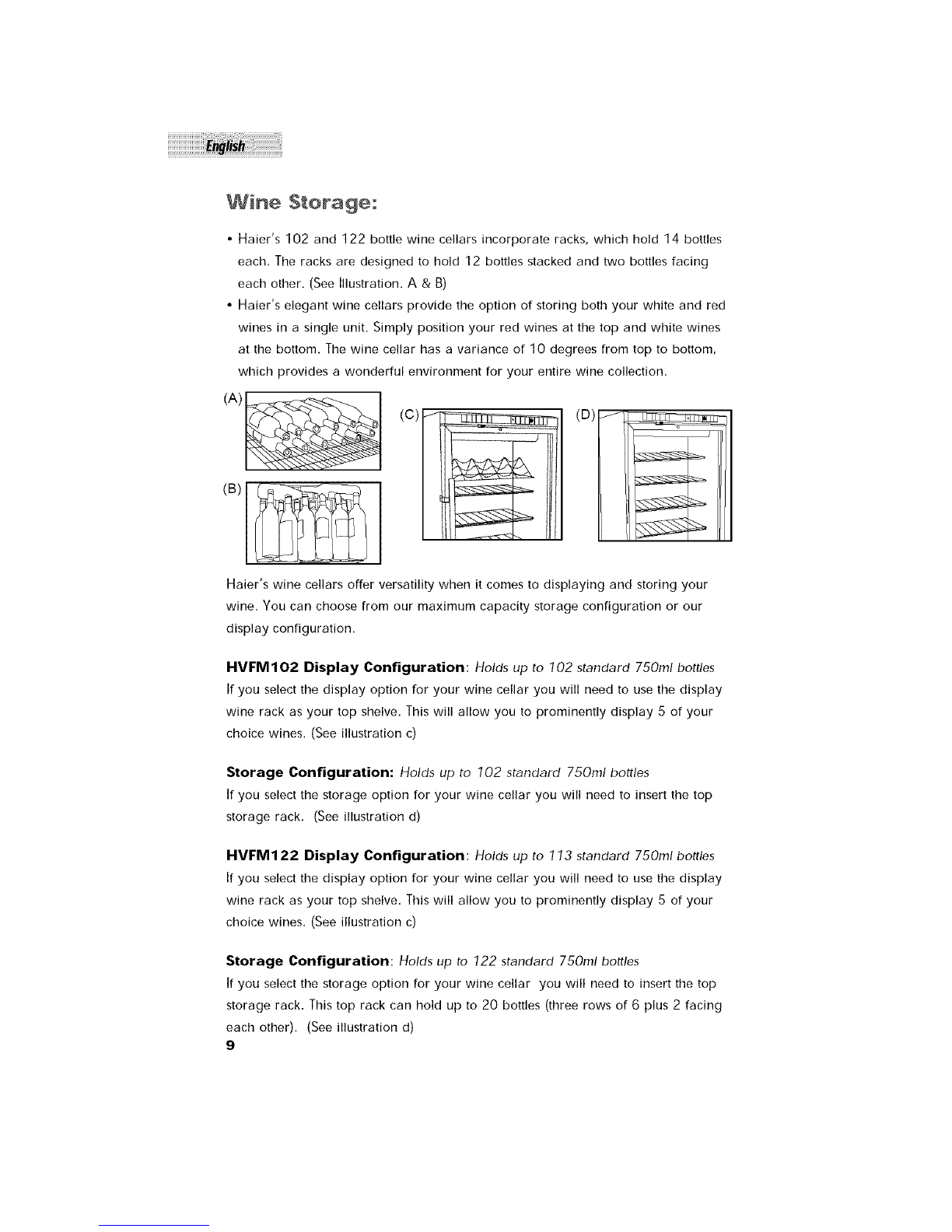

Wine Storage:
• Haier's 102 and 122 bottle wine cellars incorporate racks, which hold 14 bottles
each, The racks are designed to hold 12 bottles stacked and two bottles facing
each other. (See Illustration. A & B)
• Haier's elegant wine cellars provide the option of storing both your white and red
wines in a single unit. Simply position your red wines at the top and white wines
at the bottom. The wine cellar has a variance of 10 degrees from top to bottom,
which provides a wonderful environment for your entire wine collection.
(a)_ (C) ./ _3- (D)
Haier's wine cellars offer versatility when it comes to displaying and storing your
wine. You can choose from our maximum capacity storage configuration or our
display configuration.
HVFMI02 Display Configuration: Holds up to 102 standard 750ml bottles
If you select the display option for your wine cellar you will need to use the display
wine rack as your top shelve. This will allow you to prominently display 5 of your
choice wines. (See illustration c)
Storage Configuration: Holds up to 702 standard 750ml bottles
If you select the storage option for your wine cellar you will need to insert the top
storage rack, (See illustration d)
HVFM122 Display Configuration: Holds up to 113 standard 750ml bottles
If you select the display option for your wine cellar you will need to use the display
wine rack as your top shelve, This will allow you to prominently display 5 of your
choice wines, (See illustration c)
Storage Configuration: Holds up to 122 standard 750ml bottles
If you select the storage option for your wine cellar you will need to insert the top
storage rack. This top rack can hold up to 20 bottles (three rows of 6 plus 2 facing
each other). (See illustration d)
9
