Hailo H-50.2 User manual

Information brochure covering
• Assembly
• Use
• Inspection
Hailo PARTNER H-50.2 fall arrester and
integrated energy absorbing lanyard BFD-50-136
Guided fall arrester
including fixed guide – System H-50.2
EN
2022-11
1134309
V02R00
DIN EN 353-1:2018 · AS/NZS 1891.3:2020 · ANSI Z359.16-2016
Information brochure - Original document

Contents
Legal notice
Contac
t:
Hailo Wind Systems GmbH & Co.
KG
Kalteiche
-Ring 18
D
-35708 Haiger
Germany
Phone:
+49 (0) 2773/82
-1410
Fax:
+49 (0) 2773/82
-1561
E
-mail:
info@hailo
-windsystems.com
Internet:
www
.hailo-windsystems.com
Revision history Information brochure Guided fall arrester
including fixed guide – System H-50.2
Date Version List of changes
© Hailo Wind Systems – Without the prior written consent of Hailo Wind Systems, no part of this publication may
be reproduced in any way, transmitted, transcribed, stored in a storage medium or translated into any language
or computer language. Copyright infringement may also affect the product support by Hailo Wind Systems for this
equipment
. Hailo Wind Systems reserves the right to make changes to this manual and the product it describes
without prior notice. The content of this manual does not include any contractual or other obligations by Hailo
Wind Systems and is not legally binding. This publication was prepared with great care. However, should you find
any errors or wish to make suggestions for improvement, please write to Hailo Wind Systems. The original language
of this document is German. If required, you can request a copy in writing.

Contents
Information brochure · Hailo PARTNER H-50.2 fall arrester and integrated energy absorbing lanyard BFD-50-136
V02R00 · 1134309 · 2022-11
3
Contents
1System overview ........................................................................................................5
1.1 Information about the Hailo PARTNER H-50.2 fall arrester + the energy
absorbing lanyard BFD-50-136..........................................................................5
1.2 Information about the user.................................................................................5
2About This Document................................................................................................. 6
2.1 Classification of the warnings .............................................................................7
3General instructions ...................................................................................................8
3.1 Conformity .......................................................................................................8
3.2 Warranty and limitations of liability .....................................................................8
3.3 Obligations of the operating company and the user..............................................9
4Safety ..................................................................................................................... 10
4.1 Intended use................................................................................................... 10
4.2 Foreseeable misuse.........................................................................................11
4.3 Safety instructions............................................................................................ 12
4.4 Markings and information................................................................................ 15
4.5 Markings on the system ...................................................................................16
4.6 Safety instructions for use.................................................................................18
4.7 Position of the user on the fall protection rail and fit of the safety harness ..............19
5Design and function................................................................................................. 20
6Operation...............................................................................................................21
6.1 Daily check .................................................................................................... 21
6.2 Applying and removing the Hailo Partner H-50.2 fall arrester along the
access route ...................................................................................................22
6.3 Entry and exit points of the fall-arrest system.......................................................24
6.4 Attachment devices .........................................................................................25
6.5 Conduct following a fall...................................................................................26
7Storage and cleaning...............................................................................................27
7.1 Storage.......................................................................................................... 27
7.2 Cleaning........................................................................................................27
8Inspection and maintenance .....................................................................................28
8.1 Notes on inspection and maintenance............................................................... 28
8.2 Checking wear points on the brake lever ........................................................... 29
8.3 Inspection plan for recurring inspections of the Hailo PARTNER H-50.2
fall arrester..................................................................................................... 30
8.4 Results ...........................................................................................................31
8.5 Inspection log: Hailo PARTNER H-50.2 .............................................................34
8.6 Replacement log: energy absorbing lanyard (every 8 years) .................................39

Information brochure · Hailo PARTNER H-50.2 fall arrester and integrated energy absorbing lanyard BFD-50-136
V02R00 · 1134309 · 2022-11
4
9Appendix ................................................................................................................40
9.1 EU-Declaration of Conformity .......................................................................... 40
9.2 UK Declaration of Conformity ..........................................................................41
9.3 EU type examination certificate .........................................................................42

System overview
Information brochure · Hailo PARTNER H-50.2 fall arrester and integrated energy absorbing lanyard BFD-50-136
V02R00 · 1134309 · 2022-11
5
1System overview
1.1
Information about the Hailo PARTNER H-50.2 fall arrester + the
energy absorbing lanyard BFD-50-136
To be completed by the manufacturer:
Hailo PARTNER H-50.2
fall arrester Manufacturing number:
Integrated energy absorbing
lanyard
BFD-50-136
Production number:
Date of expiry:
Date:
Manufacturer signature
(company stamp):
1.2
Information about the user
To be completed by the user:
Name (user):
Phone number:
Company:
Address:
Post code:
Place:
Date of first use:
Date:
User signature:

About This Document
Information brochure · Hailo PARTNER H-50.2 fall arrester and integrated energy absorbing lanyard BFD-50-136
V02R00 · 1134309 · 2022-11
6
2About This Document
Preface
Fall arrester equipment is mandatory in high structures and for
access to machinery from a fall height of
≥ 5 m (in accordance with DIN 18799-1)
≥ 3 m (in accordance with EN ISO 14122-4)
or more.
The guided
Fall arrester Hailo PARTNER H-50.2
is designed as for
use as fall protection when using access ladders and crampons –
both above and below floor level.
NOTE
Please read this information brochure in entirety and observe all
safety instructions before using the guided Fall arrester Hailo
PARTNER H-50.2 on the H-50.2
fall-arrest system.
Contents of the
information brochure
This information brochure describes the use and care, as well as the
maintenance and inspection of the Hailo
PARTNER H-50.2
fall
-arrest system.
This information brochure
in other languages
If the guided
Fall arrester Hailo PARTNER H-50.2
is resold to a
buyer in another country, it is necessary for the safety of the user
that this information brochure be made available in the respective
national language.
NOTE
The designations in this brochure and all related documents are
used in accordance with DIN EN 353-1:2018, and “Guided
type fall arrester including fixed guide” and “Fixed guide” have
been replaced by “Fall-arrest system” and “Fall protection rail”
for a better user understanding.

About This Document
Information brochure · Hailo PARTNER H-50.2 fall arrester and integrated energy absorbing lanyard BFD-50-136
V02R00 · 1134309 · 2022-11
7
2.1
Classification of the warnings
Classification of the
warnings
Warnings are introduced by signal words that express the extent of
the hazard
:
DANGER
DANGER indicates an imminently threatening dangerous
situation which could lead to serious injuries or death if not
avoided.
WARNING
WARNING indicates a potentially dangerous situation which
could lead to serious injuries or death if not avoided.
CAUTION
CAUTION indicates a potentially dangerous situation which
could lead to minor injuries if not avoided.
ATTENTION
ATTENTION indicates a possible dangerous situation which
could lead to property damage if not avoided.
Presentation of important
information:
NOTE
This symbol is used to draw your attention to important, useful or
helpful information.

General instructions
Information brochure · Hailo PARTNER H-50.2 fall arrester and integrated energy absorbing lanyard BFD-50-136
V02R00 · 1134309 · 2022-11
8
3General instructions
3.1 Conformity
Declaration of
conformity
The Hailo PARTNER H-
50.2 fall arrester complies with the
requirements of the applicable European Regulation
(EU)
2016/425 on personal protective equipment to prevent falls from
a height.
The full EU
Declaration of Conformity can be found in the
appendix.
EU type examination The EU type examination for the Hailo PARTNER H-50.2
fall arrester was issued by a noti
fied European body (see certificate
in the appendix).
Inspection in accordance
with ANSI
The inspection for the United States of America in accordance with
ANSI was performed by INTEREK, 3933 US Route 11, Cortland,
New York.
UKCA
The full UK
Declaration of Conformity can be found in the
appendix.
3.2
Warranty and limitations of liability
Warranty
The manufacturer's warranty for the
Hailo PARTNER H
-50.2 guided fall arrester applies for 1
year when
the technical documentation (operating instructions) is observed.
Limitation of liability
Infringements against the provisions presented here will render any
warranty claims made to Hailo
Wind Systems
null and void.
Hailo
Wind
Systems is not liable for damage that results from
violations of the provisions described here.

General instructions
Information brochure · Hailo PARTNER H-50.2 fall arrester and integrated energy absorbing lanyard BFD-50-136
V02R00 · 1134309 · 2022-11
9
3.3
Obligations of the operating company and the user
. NOTE
The term “operating company” is used in this information brochure for the party that assumes
the authority and responsibility for this system – usually a company or corporation.
The term “user” refers to the person who uses the fall-arrest system.
Responsibility of the
operating company and
the user
It is the responsibility of the operating company to ensure that this
information brochure can be provided to the user at any time.
It is the responsibility of the operating company to ensure that the
fall
-
arrest system is correctly installed, used and maintained, and
this work is only carried out by persons trained accordingly for these
tasks.
It is the responsibility of the operating company to provide a plan
that factors in all potential emergencies
–
ones that can be occur
during use of the fall
-arrest system –
and explains all rescue
measures necessary.
It is the responsibility of the user to use the fall
-
arrest system in
compliance with all safety instructions and procedures in this
information brochure, and in compliance with all other safety
precautions in the wind turbine generator.
It is the responsibility of the user to be informed of any side effects
caused by taking medication and which can impair the user or lead
to physical harm when acces
sing the system.
The user must be mentally and physically able to access the
respective system.
User of the fall
-arrest
system
Persons whose professional training, experience and knowledge of
the relevant regulations enables them to carry out the tasks assigned
to them and independently recognise and avoid possible dangers.
Number of personnel
required
At least two qualified persons must be present when using the fall-
arrest system. The persons in and on the system must be able to
make an emergency
call at all times.
Regulations
The Accident Prevention Regulations BGV A1 and
BG
Rules BGR/GUV 198/199 must be observed.

Safety
Information brochure · Hailo PARTNER H-50.2 fall arrester and integrated energy absorbing lanyard BFD-50-136
V02R00 · 1134309 · 2022-11
10
4Safety
4.1
Intended use
The H
-50.2 fall-
arrest system complies with the strictest safety requirements. It has been inspection
and certified in accordance with European and other international regulations.
The guided
Fall arrester Hailo PARTNER H-50.2 may only
be used for the intended use described
here.
•
The Fall arrester Hailo PARTNER H-50.2
has been inspected and approved together with the
Hailo
H-50.2 fall-arrest system.
•
The guided Fall arrester Hailo PARTNER H-50.2
may only be used for the ascent or descent
of the H-50.2 fall-
arrest system. Any other use is expressly prohibited, as this may cause
damage to and therefore failure of the Hailo PARTNER H-50.2 fall arrester in the event of
a
fall.
•
The Fall arrester Hailo PARTNER H-50.2
should remain the personal property of the respective
person and only be used by this user.
Use by an extended group of persons cannot be considered advisable.
•
Following ascent and descent, the Fall arrester Hailo PARTNER H-50.2
must be removed from
the fall protection rail again.
•
All dates and intervals for inspections and maintenance must be observed.
•
Local, regional and
national provisions and regulations must be observed and complied with.
The safety function of the H
-50.2 fall-arrest system with a Hailo PARTNER H-
50.2 fall arrester may
be impaired by the use of climb assist systems (motor
-driven or by means of a counterweight).
The operating company and the company that combines both systems (climb assist system with H-
50.2 fall
-arrest system) is responsible for ensuring use as intended.
Unrestricted safety and functionality of the H
-50.2 fall-arrest system in combinati
on with the
respective climb assist system must be guaranteed and documented.
WARNING!
Impairment of the safety function due to the use of climb assist systems
Having a functional inspection performed by a notified inspection laboratory and certified by the
subsequent issue of a declaration of no objection is mandatory.

Safety
Information brochure · Hailo PARTNER H-50.2 fall arrester and integrated energy absorbing lanyard BFD-50-136
V02R00 · 1134309 · 2022-11
11
4.2
Foreseeable misuse
DANGER!
Danger of falling due to disregarding specifications!
The specifications for safe use of the Hailo PARTNER H-50.2
fall arrester must be observed.
The Hailo
PARTNER H-50.2 fall arrester may not be used:
on systems made by other manufacturers.
in the event of lack of awareness or non-observance of this information brochure.
by insufficiently qualified personnel.
for workplace positioning. If workplace
positioning is required, a separate system must be
used.
in extreme climate conditions, exposure to chemicals or mechanical influences on the fall
-
arrest system (e.g. oil, thick ice, heavy soiling, sharp edges etc.)
outside the permitted temperature range.
when connecting elements of the fall arrester were extended or shortened.

when using positioning belts, seat belts, elastic belts or older Form B safety harnesses that only
partially enclose the body.
when the fall arrester is connected to any additional
positioning rings present on the side of
the safety harness.
with system components made by other manufacturers.
Use in combination with components made by other manufacturers is not permitted. If use of
other components cannot be avoided, this requires th
e written permission of
Hailo Wind Systems.
in the event of modifications or use of third-
party parts on the fall arrester without the written
permission of the manufacturer.
in the event of inadequate maintenance and care or neglect of timely inspection o
f the fall
arrester.
NOTE
No liability will be assumed for harm to persons or damage to equipment arising from violation
of the provisions stipulated here or failure to observe the safety instructions.

Safety
Information brochure · Hailo PARTNER H-50.2 fall arrester and integrated energy absorbing lanyard BFD-50-136
V02R00 · 1134309 · 2022-11
12
4.3
Safety instructions
IMPORTANT!
Failure to follow these instructions may result in property damage.
Therefore:
Before using the Hailo PARTNER H-
50.2 guided fall arrester, read the information on
assembly, use, and maintenance and inspection in this information brochure carefully and
in entirety.
The Hailo PARTNER H-50.2 guided fall arrester may only be used on the Hailo H-50.2 fall-
arrest system.
Pay particular attention to the safety instructions.
IMPORTANT!
Wear personal fall protection equipment!
Protection against falls from above a minimum height.
The personal fall protection equipment must be properly
selected, used and
checked.
Personal fall protection equipment may only be used for the intended purpose and
by persons who have been instructed on how to use it safety and have the
corresponding knowledge!
Only safety harnesses in accordance with EN 361
(Europe) and AS/NZS
1891.1:2007 (Australia/New Zealand) are permitted in combination with the
Hailo PARTNER H-50.2 fall arrester on the
H-50.2 fall-arrest system.
If a combination of equipment components is used (e.g. connection of user-
specific safety harnesses to the Hailo PARTNER H-50.2 guided fall arrester), it is
imperative that this does not lead to impairment of the overall system. Impairment
can lead to failure of the fall arrester in the event of a fall.
Carry communication equipment with you (mobile phone, radio unit)
When in or on the wind turbine generator, constant voice contact must be ensured
between the people involved. Ensure contact between persons using mobile phones or
radios.
Wear a helmet
Head protection from falling objects and impacts from falls or in confined spaces.

Safety
Information brochure · Hailo PARTNER H-50.2 fall arrester and integrated energy absorbing lanyard BFD-50-136
V02R00 · 1134309 · 2022-11
13
IMPORTANT!
Wear safety footwear
Foot protection from heavy falling objects, slipping, or stepping on sharp-edged parts
that are lying around.
Wear safety gloves
Hand protection against friction, abrasions, stabs and cuts.
IMPORTANT!
Dates and intervals for inspection and maintenance
The specified intervals for recurring inspections/maintenance must be adhered to!
The proper condition of the access equipment and the attachment points must be checked
at least once a year by a competent and qualified person.
The check list for the inspection can be found in the appendix to these instructions.
DANGER!
Disregarding the safety instructions may result in a fall and therefore lead to serious injury or
death.
Therefore:
The fall-arrest system must be inspected for damage by an expert or authorised person
(see the H-50.2 fall-arrest system information brochure).
The result of this inspection must ascertain the safe condition and safe function of the system
beyond any doubt.
If this is not the case, the corresponding repair measures must be performed correctly.
The use of the Hailo PARTNER H-50.2 guided fall arrester on systems made by other
manufacturers is not permitted, and non-observance can result in failure.
Observe the accident prevention regulations BGV A1 as well as the BG Rules
BGR/GUV-R 198/199.

Safety
Information brochure · Hailo PARTNER H-50.2 fall arrester and integrated energy absorbing lanyard BFD-50-136
V02R00 · 1134309 · 2022-11
14
DANGER!
Improper operation may cause serious injury or property damage.
Therefore:
Before using the H-50.2 fall-arrest system each time, perform a functional check of the
Hailo PARTNER H-50.2 fall arrester using this information brochure.
A maximum of 10 persons may use the fall-arrest system at the same time. The minimum
interval between the individuals must total 6 m.
Less than the minimum interval between persons is permitted in the event of an emergency
or rescue.
The Hailo PARTNER H-50.2 guided fall arrester is approved for a total weight (body weight
of the user including clothing and equipment) of 50 to 136 kg.
The fall protection rail (material: aluminium) may only deviate from the vertical by 3° – 15°.
When using the H-50.2 fall-arrest system near moving machinery and electrical systems,
more caution is required.
WARNING!
Property damage possible due to non-compliance with safety instructions.
There are a total of 4 magnets installed in the housing of the Hailo Partner H-50.2 fall arrester.
Magnets can impact the function of pacemakers and implantable defibrillators.
WARNING!
Personal injury possible due to non-compliance with safety instructions.
Careless handling could cause fingers or skin to be crushed between housing sections.

Safety
Information brochure · Hailo PARTNER H-50.2 fall arrester and integrated energy absorbing lanyard BFD-50-136
V02R00 · 1134309 · 2022-11
15

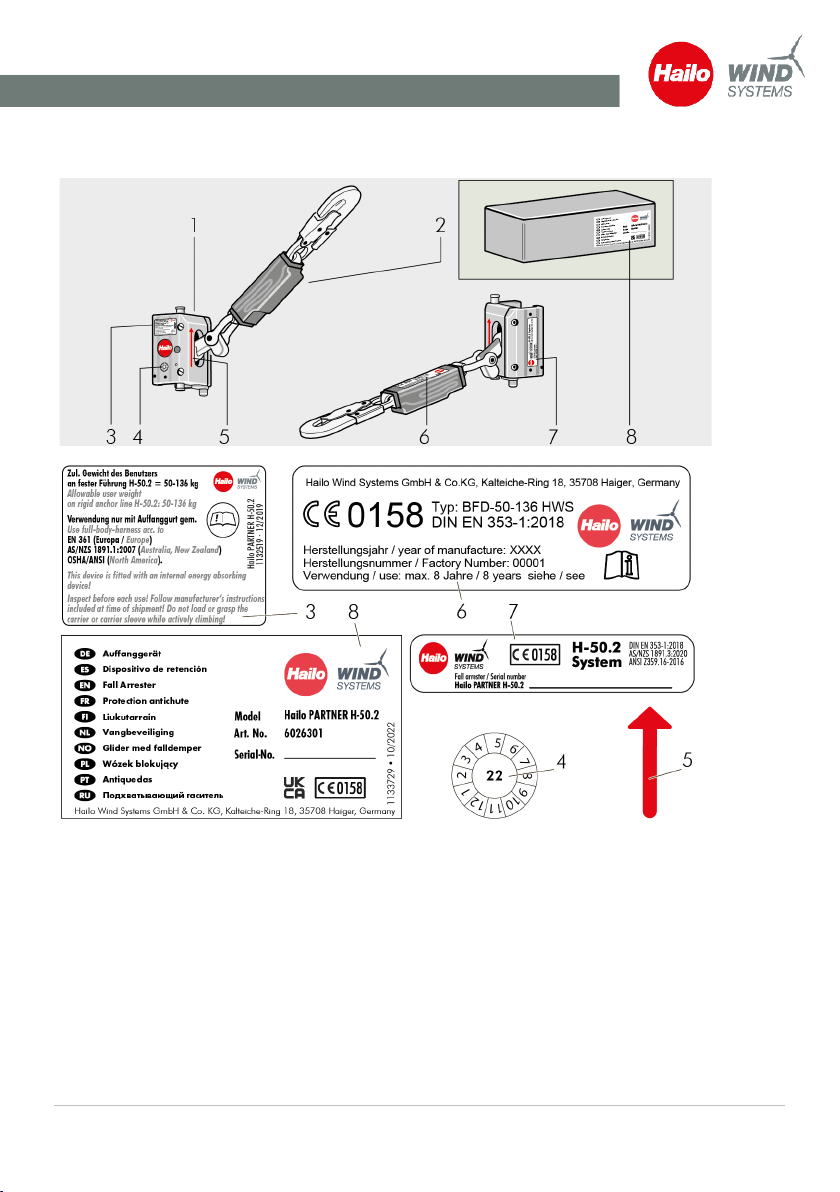

4.4 Markings and information
1 Hailo Partner H-50.2 fall arrester
2 Energy absorbing lanyard BFD-50-136
3 Safety instruction
4 Inspection tag
5 Note on positioning at the top
6 Energy absorbing lanyard BFD-50-136 nameplate
7 Hailo Partner H-50.2 fall arrester nameplate
8 Packaging label
Please pay particular attention to all markings, stickers with safety instructions and safety
regulations!

Safety
Information brochure · Hailo PARTNER H-50.2 fall arrester and integrated energy absorbing lanyard BFD-50-136
V02R00 · 1134309 · 2022-11
16
4.5 Markings on the system
1 Optional sticker
Note about non-
approved fall arresters
(maximum installation height = 3
m from
the access level (base)

Safety
Information brochure · Hailo PARTNER H-50.2 fall arrester and integrated energy absorbing lanyard BFD-50-136
V02R00 · 1134309 · 2022-11
17

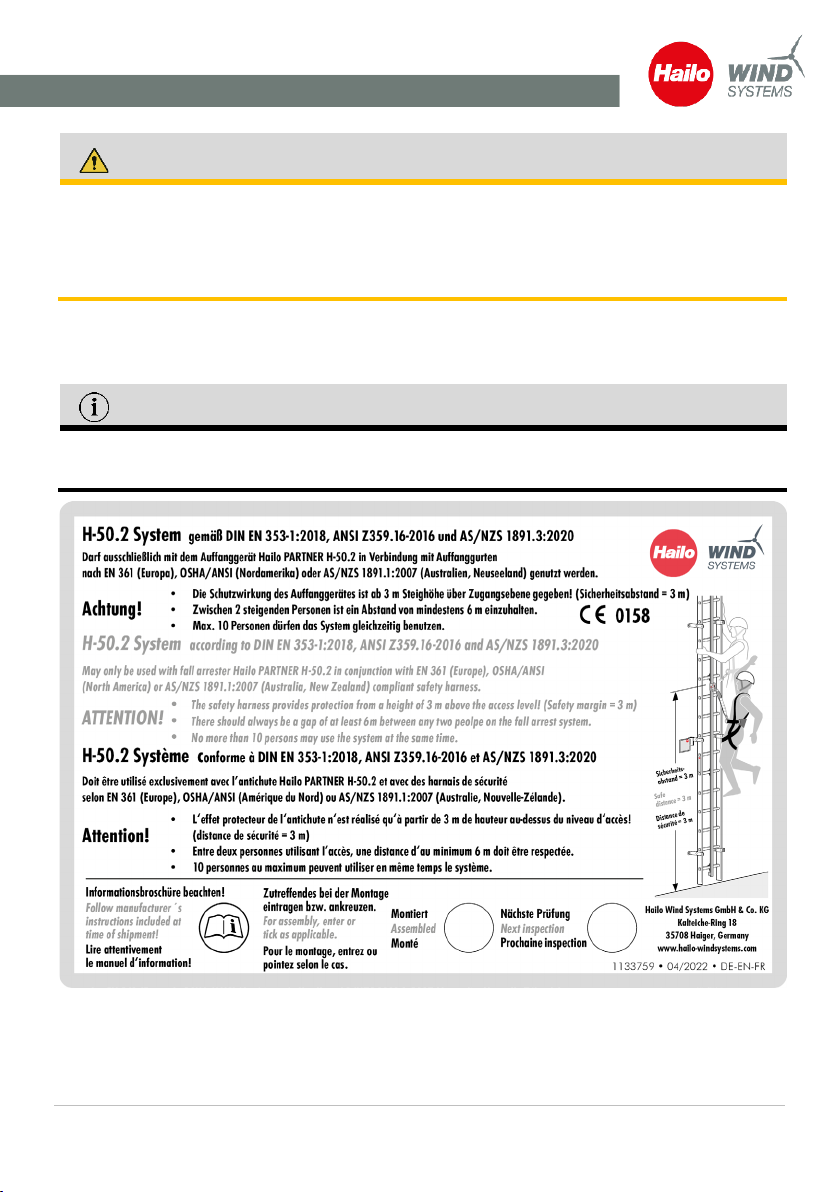

WARNING!
Failure of the protective function of the fall arrester
Observe the safety interval specified from the top edge of the access level.
Fall-arrest system marking (nameplate) that indicates which fall arrester must be used on the
fall-arrest system.
The safety interval is calculated using the performance data and the area necessary to suspend a
person in the event of a fall.
The safety interval is < 3 metres from the top edge of the access level.
NOTE
The operating company using the
system must affix a corresponding warning notice [2] to the
structure which explains the safety interval to the user beyond any doubt.
2 Nameplate sticker with warning notice about safety interval

Safety
Information brochure · Hailo PARTNER H-50.2 fall arrester and integrated energy absorbing lanyard BFD-50-136
V02R00 · 1134309 · 2022-11
18

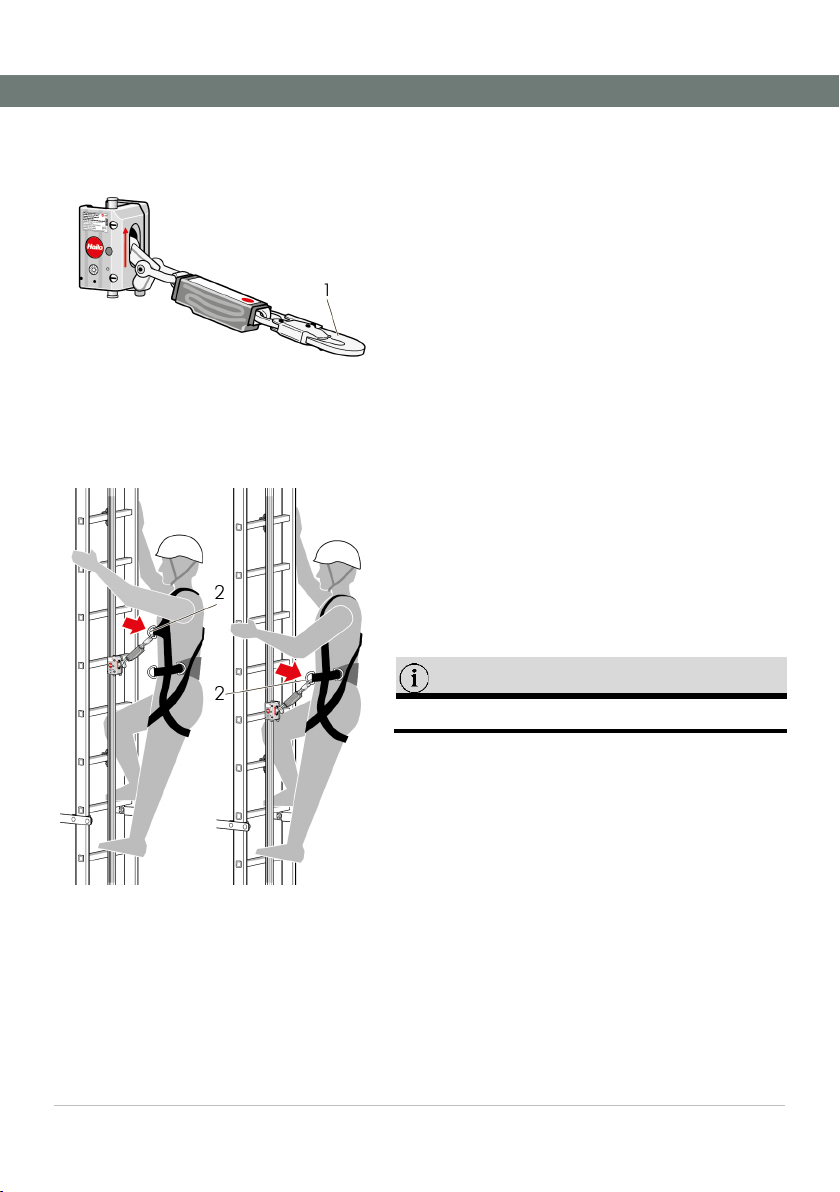

4.6 Safety instructions for use
The Hailo Partner H-
50.2 fall arrester is designed for
use in a temperature range of
-40°C to +60°C.
Any other extreme climate conditions, for example
temperatures
<-40°C and >+60°C,
ice, snow or water can impair the function of the fall
arrester.
Use of the fall-
arrest system is not permitted in this
case.
No connecting elements on the fall arrester may be
extended or shortened.
Only safety harnesses in accordance with
• EN 361 (for Europe)
•
AS/NZS 1891.1:2007(for Australia and New
Zealand)
• OSHA/ANSI (for North America)
are permitted in combination with the Hailo
PARTNER H-50.2 fall arrester on the fall-
arrest
system.
NOTE
Observe the user manual for the safety harnesses.
Do not use half belts, seat belts, elastic belts or older
Form B
safety harnesses that only partially enclose
the body.

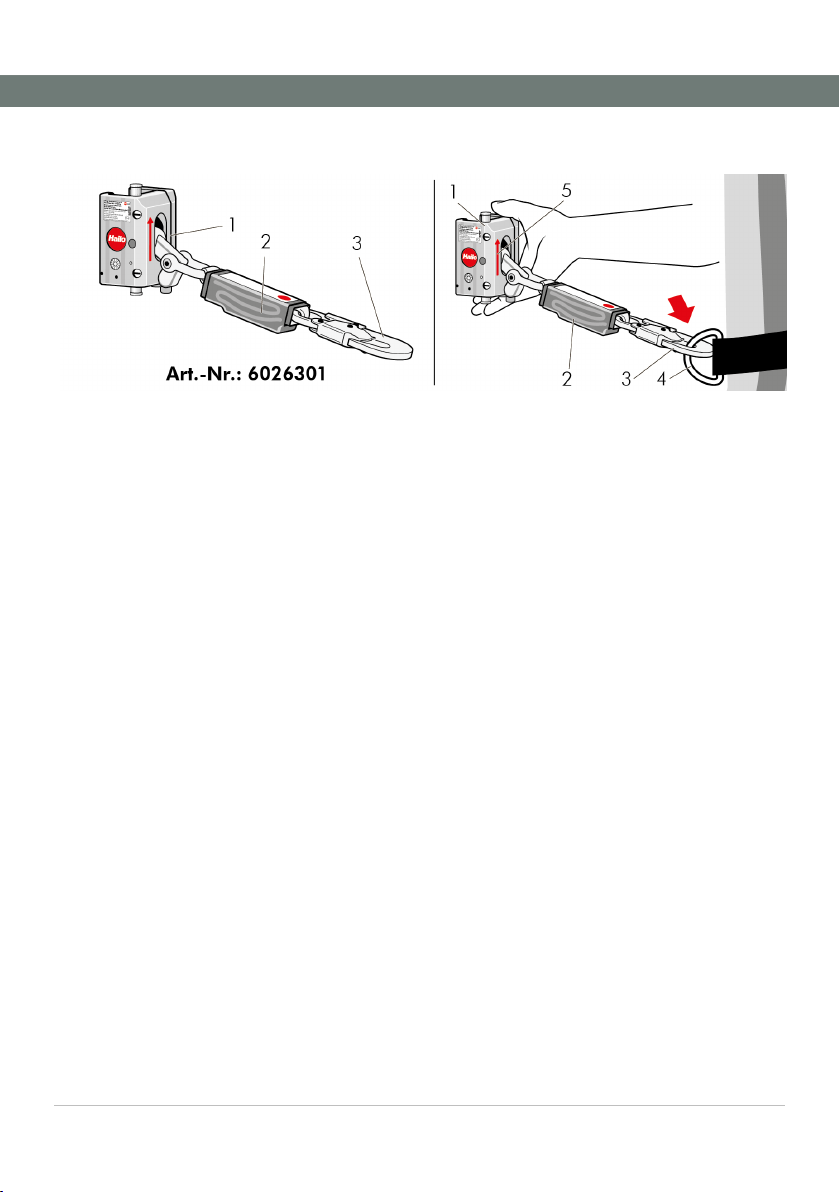

The snap hook [1] for the energy absorbing lanyard
may only be hooked into an approved fall arrest ring
[2].
The fall arrester may not be connected to the
positioning rings present on the side of the
safety
harness that may represent an additional element
near the hip.

Safety
Information brochure · Hailo PARTNER H-50.2 fall arrester and integrated energy absorbing lanyard BFD-50-136
V02R00 · 1134309 · 2022-11
19

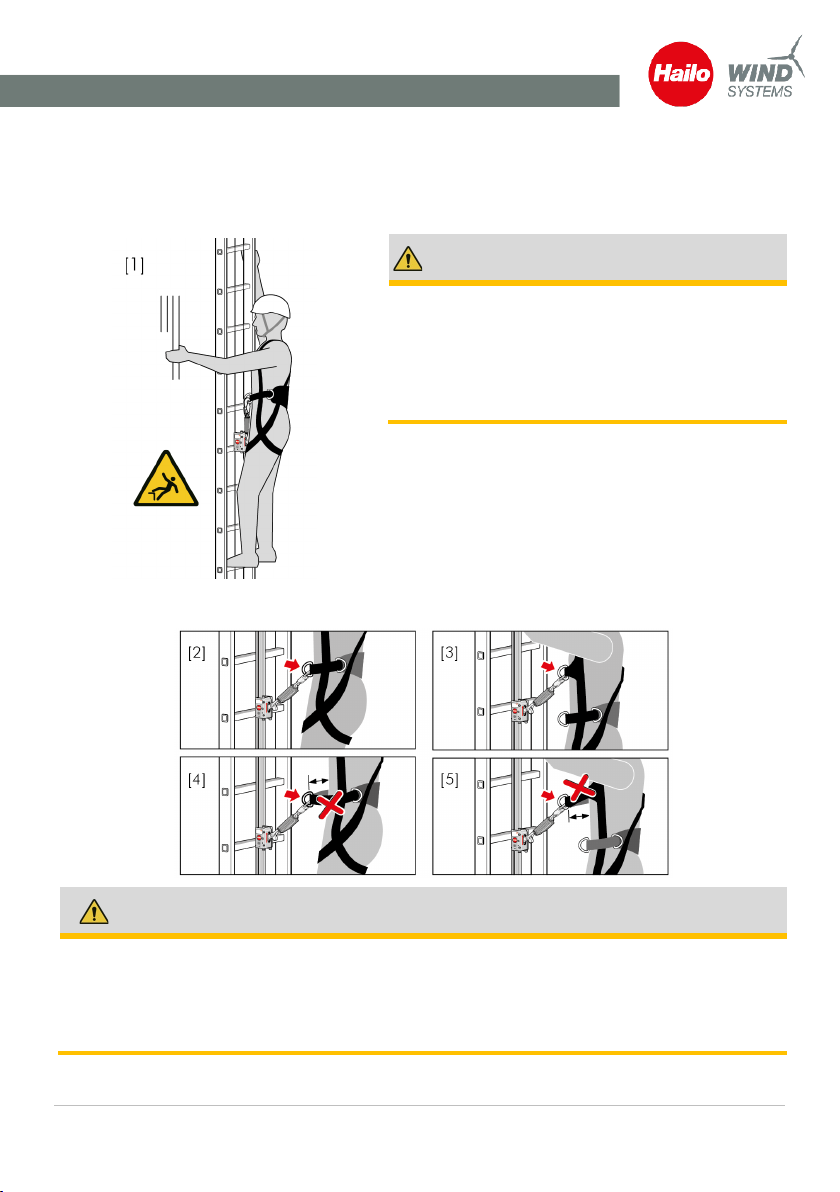

4.7 Position of the user on the fall protection rail and fit of the safety
harness
Position on the fall protection rail
WARNING!
Danger of falling
There is a risk of falling if the user is incorrectly
positioned on the fall protection rail.
Avoid a position on the fall protection rail directly
above the fall arrester (see Fig. 1).
Safety harness fit
WARNING!
Danger of injury
A loose safety harness that has not been fitted tight to the body (Fig. 4+5) may cause injury to
the user when using the fall-arrest system.
Ensure that the safety harness fits the body tightly and has been fitted correctly (see Fig. 2+3).

Design and function
Information brochure · Hailo PARTNER H-50.2 fall arrester and integrated energy absorbing lanyard BFD-50-136
V02R00 · 1134309 · 2022-11
20
5Design and function
1 Hailo Partner H-50.2 fall arrester
2 Energy absorbing lanyard BFD-50-136
3 Snap hook
4 Fall arrest ring on the safety harness
5 Direction of pull (red arrow)
The Hailo Partner H-50.2 fall arrester complies with the regulations in accordance with:
DIN EN 353-1;2018
AS/NZS 19891.3:2020
ANSI Z359.16-2016
The fall arrester is used on the fall protection rail of the H-50.2 fall-
arrest system as reliable fall
arrester equipment.
The self-
locking mechanism in the event of a fall, along with a smooth glide along the fall
protection rail, ensures a safe ascent and descent without hindering the user.
The fall arrester is equipped with an energy absorbing lanyard BFD-50-136 [2].
The integrated snap hook [3] on the energy absorbing lanyard [2] must be hooked into the fall
arrest ring [4] on the safety harness that was applied beforeh
and (in accordance with EN 361 for
Europe, AS/NZS 1891.1:2007 for Australia/New Zealand or OSHA/ANSI for North America).
In the event of a fall, the energy absorbing lanyard reduces the impact on the user’s body to a
value below 6 kN. (for ANSI: maximum impact force = 8 kN, average impact force = 6 kN).
The fall arrester may only be used on the fall protection rail in the correct direction of pull (red
arrow pointing upwards) [5].
The fall arrester is designed to prevent incorrect use.
