INSTRUCTION MANUAL
2 TONNE
BOTTLE JACK
SWL (SAFE WORKING LOAD) UP TO 2 TONNE (2,000KG)
Item Code: 657156
Model: TH90204
INTRODUCTION
For your safety please read this manual before using any lifting equipment ensuring you fully
understand its operation and the safety procedures to be observed.
Ensure this manual is retained for future reference and that new users of this product
read and understand the content before they use the product.
GUARANTEE
This product is guaranteed by Halfords against manufacturing defects for a period of
12 months from the date of purchase. This does not affect your statutory rights.
Should you experience a problem please return the product, together with the receipt and this
manual to your nearest Halfords store.
EC DECLARATION OF CONFORMITY
Date of issue: 1 September 2018
Reference batch number: ………………………………
(to be entered by the customer)
Directive:
Machinery Directive 2006/42/EC as amended by Directive 2009/127/EC
Conforming apparatus:
Product: Halfords 2 Tonne Bottle Jack
Model: TH90204
Item code: 657156
Manufacturer:
Halfords Limited, Icknield street Drive, Redditch, Worcestershire, B98 0DE
Harmonised standards referenced or applied:
EN1494:2000 + A1:2008 Mobile or movable jacks and associated lifting equipment
The Supply of Machinery (Safety) Regulations 2008 Statutory instrument 2008
No.1597
The Supply of Machinery (Safety) (Amendment) Regulations 2011 Statutory
instrument 2011 No.2157
Halfords Limited hereby declare that the machine described below is both in its basic design
and construction and in the version marketed by us conforms to the relevant safety and health
related requirements of the appropriate EC Directives. This declaration shall cease to be valid if
Date of placement onto market: September 2018
Signed....................................................................
CHRIS HALL
Head of Quality
1 September 2018
CONTACT US
Halfords Ltd, B98 0DE.
www.halfords.com
Produced for Halfords
HAL1478/35818/V2
HAL1478~35818_657156_2Tonne_BottleJack_InstructionManual.indd 1-2 09/10/2018 10:09
2
TONNE
lifting
capacity
minimum
height
17CM
maximum
height*
31.5CM
*Lifting range 17cm to 31.5cm (including 5cm extra height from the adjustment screw)

BEFORE FIRST USE
Air may become trapped in the hydraulic system during transit. To purge air:
1. Open the release valve by rotating the handle counter-clockwise one full turn.
2. Place the handle in the handle socket and pump about 4 full strokes to purge the air from the
pump and valving.
3. Close the release valve. Pump the handle until the jack has reached full extension. Continue
to pump several times to purge air from under the ram.
4. Open the release valve and push ram into its lowest position. Close the release valve and
operate normally.
Note: If the jack responds immediately to pump action, it is free of air and ready for operation.
If not, repeat procedure.
INSPECTION BEFORE EACH USE
cracked welds and damaged, loose or missing parts.
Any jack which appears to be damaged in any way, found to be badly worn, operates abnormally,
or has been subjected to an abnormal load or shock MUST NOT BE USED.
WARNING
Failure to comply with these instructions can cause serious injury and damage to the
vehicle. If you are in any way unsure, do not attempt to use this product and consult a
1.
2. Never overload this jack by exceeding its rated safe working load.
3. Check vehicle owner’s manual for gross vehicle weight.
4. This jack is for lifting purposes only.
5. Ensure all body parts are kept clear of the jack and vehicle during the raising and lowering
operation.
6. After lifting the vehicle, support immediately with properly rated axle stands.
7. Never work on or under a vehicle without using properly rated axle stands.
8. Only use on solid, even and level ground with the wheels chocked, the vehicle in gear and its
hand brake on.
9. Always ensure that the load is centred on the jack saddle. Off centre loads can become
unstable and slip resulting in possible damage or injury.
10.
11. Ensure vehicle jacking points are in good, sound condition with no corrosion etc.
12. Do not attempt to move or dolly the vehicle whilst on the jack.
13. This jack is not designed to support extensions, cradles etc.
14. Do not attempt to modify this jack in any way.
15. Do not attempt to use this jack if you suspect a fault.
16. Do not start the vehicle in its raised position.
17. Do not attempt to enter the vehicle and ensure all passengers are out of the vehicle when
using this product.
OPERATING INSTRUCTIONS
IMPORTANT:
TO MOVE:
Place handle in operating lever. Do not move the jack when handle is on the release valve as this
may cause damage to the jack. Do not attempt to move the jack whilst under load.
TO LIFT THE VEHICLE:
1. Park the vehicle on solid, even and level ground. Apply the hand brake, place the vehicle in
gear (P if automatic) and chock the wheels that will remain on the ground.
2. Using the jack handle as a wrench, turn the release valve clockwise until fully tightened,
DO NOT OVERTIGHTEN.
3. Place the handle into the operating lever and position the jack under the jacking point of the
vehicle. Pump up and down until the saddle reaches the jacking point. Before lifting, ALWAYS
ensure that the load point is centred on the jack saddle and cannot slip. Off centre loads can
become unstable and slip resulting in damage or injury.
4. Once secure on the jacking point, begin to raise load to desired height by pumping the handle.
IMMEDIATELY support the vehicle by placing properly rated axle stands under a strong, stable
point on the vehicle. Consult the vehicle owner’s manual and axle stand instruction manual for
guidance. DO NOT CRAWL UNDER VEHICLE WHILE LIFTING VEHICLE OR PLACING OR
REMOVING JACK STANDS!

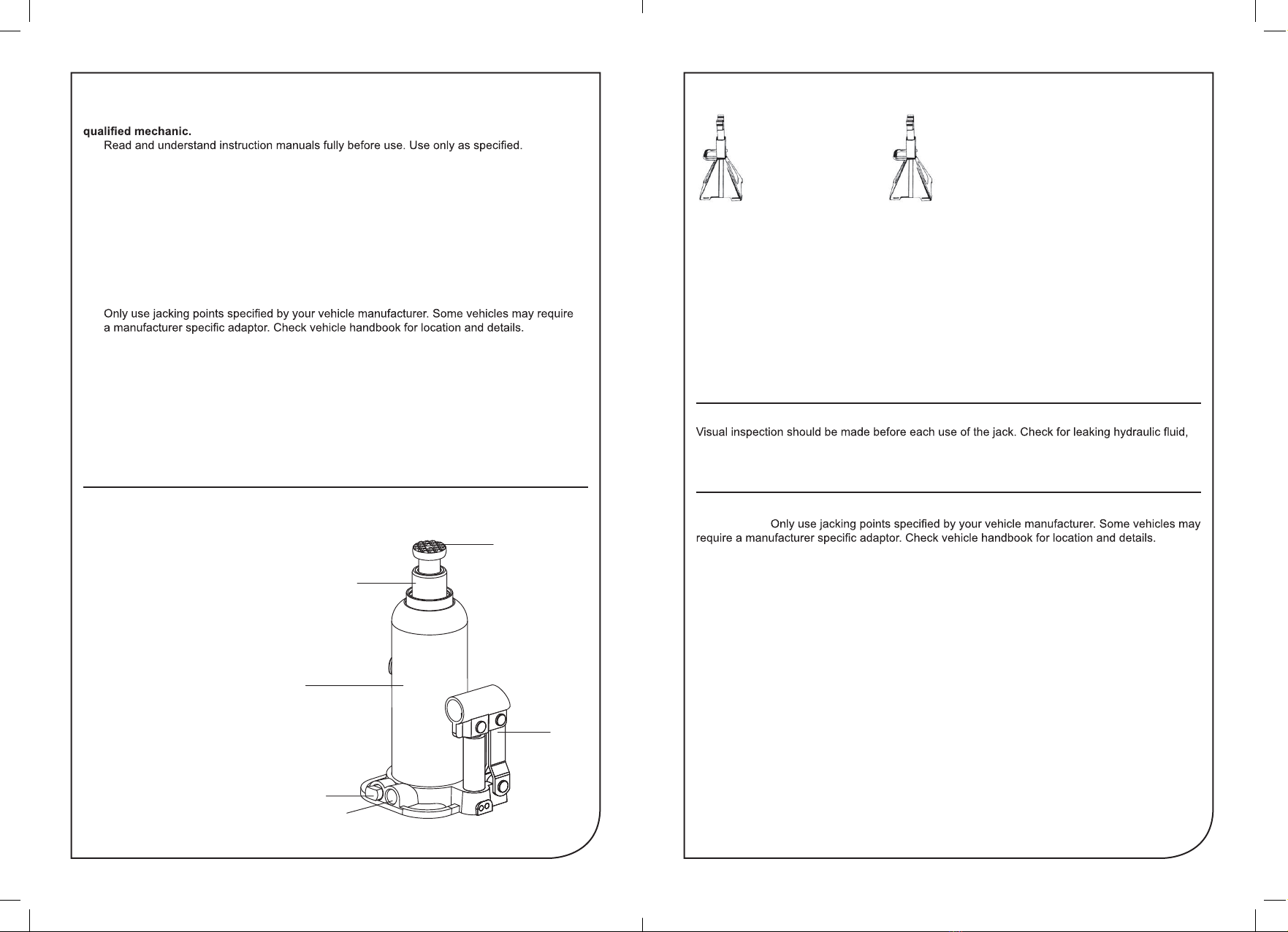

PARTS OF THE BOTTLE JACK
Use Service Jack For
Lifting purposes
ONLY.
Always support
Vehicle with
Jack stands.
FOR YOUR SAFETY AND TO PREVENT INJURY:
1. Screw extension and saddle
2. Piston
3. Oil reservoir
4. Operating lever
5. Release valve
6. Overload valve - DO NOT ADJUST
HAL1478~35818_657156_2Tonne_BottleJack_InstructionManual.indd 3-4 23/05/2018 11:46
2
5
6
4
1
3

5. Once the axle stands are properly located, VERY SLOWLY turn the release valve anti-
clockwise until the vehicle begins to lower onto the stands. Lower the vehicle slowly so as not
to shock load the jack stands.
6. BEFORE GOING UNDER THE VEHICLE ensure that all axle stands and chocks are correctly
in place and there is no chance of the vehicle becoming unstable.
TO LOWER THE VEHICLE:
Once repairs are completed raise the vehicle slightly, remove the axle stands and using the
handle as a wrench, VERY SLOWLY turn the release valve anti-clockwise until the vehicle begins
to lower.
CAUTION: Ensure all body parts are kept clear of the jack and vehicle during the raising and
lowering operation.
MAINTENANCE, CARE AND LUBRICATION
1. When the jack is not in use, the piston and screw extension should be in the fully down position
to minimise the chance of corrosion.
2. Keep the jack clean and well lubricated. Lubricate moving parts regularly using a good quality
general purpose lubricating oil.
3. To check oil level: Place the jack upright on level ground. Lower the jack to the lowest
Use hydraulic oil ISO VG.22.32 obtainable from Halfords. DO NOT USE BRAKE FLUID.
4.
not use the jack if you suspect a fault. Refer to the trouble shooting section of this manual.
5. Due to the safety critical nature of the product, the jack is tested and sealed at the time of
manufacture. The hydraulic unit contains no serviceable parts and entry into the hydraulic unit
may render the jack unsafe. For your own safety do not tamper with the hydraulic unit.
SPECIFICATIONS
Low height.............................................................................17cm
High height.............................................................................31.5cm
Saddle diameter.................................................................... 2cm
Total handle length............................................................... 32cm
Base length............................................................................9.5cm
Base width.............................................................................8cm
All dimensions are approximate.
Jack handle raised
or lowered under load
Jack will not lift
smoothly
Jack will not lift load
Jack will not hold load
Jack will not lift to its
full height
Jack will not lower
completely

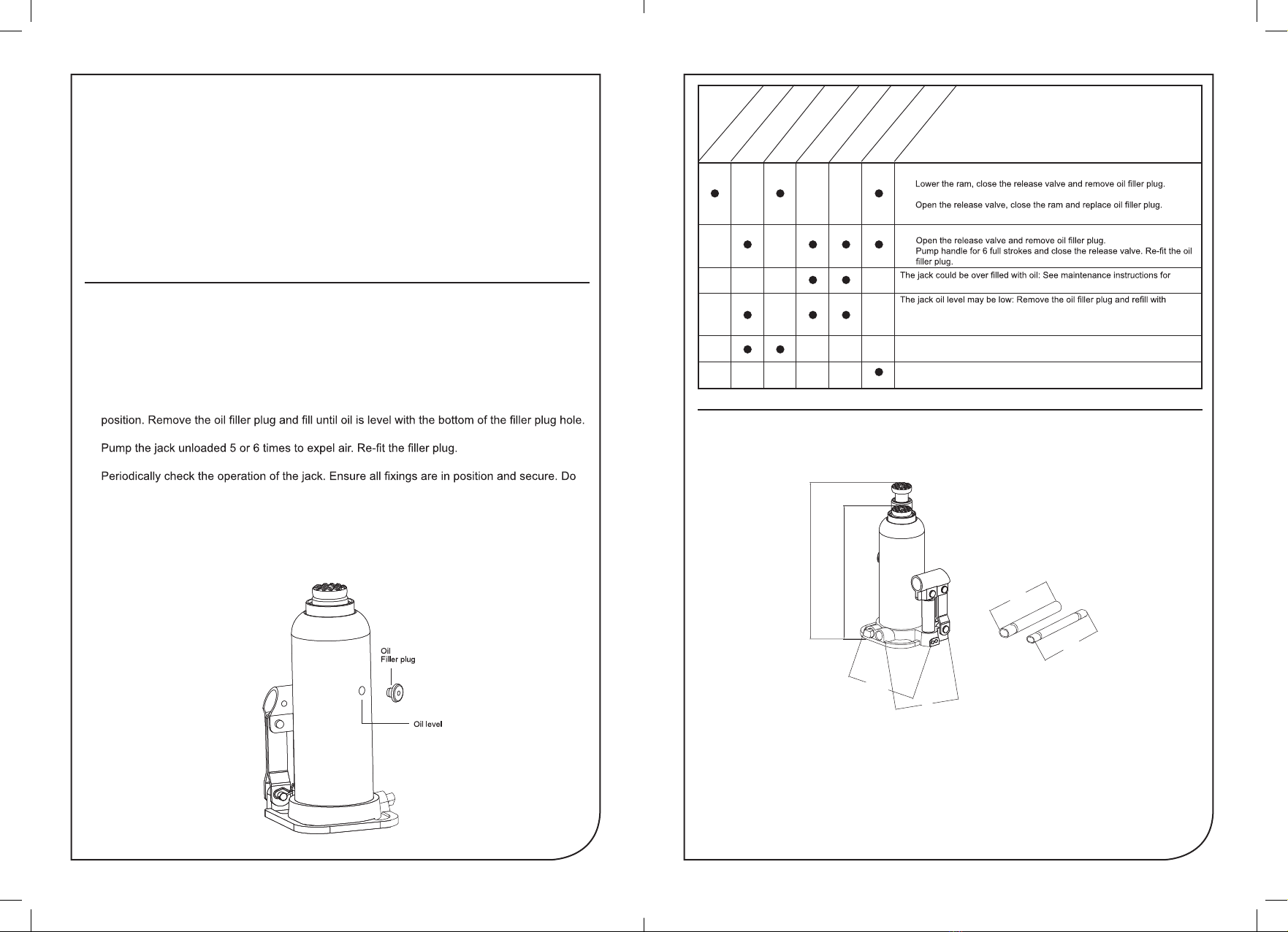

Trouble Shooting Check List
Internal valves are not fully seated:
(l)
(II) Pull up the arm by hand to its full height.
(III)
The jack could be air locked:
(I)
(II)
correct procedure.
hydraulic jack oil to the correct level when the ram is fully down, see
maintenance instructions - DO NOT USE BRAKE FLUID.
The release valve is not tightly closed: Close release valve by tuning it fully
clockwise.
Unit needs lubrication - oil external moving parts, see maintenance
instructions.
HAL1478~35818_657156_2Tonne_BottleJack_InstructionManual.indd 5-6 23/05/2018 11:46
max 31.5cm
min 17cm
17cm
17cm
8cm
9.5cm
