Halsey Taylor 4591 User manual

96628C (Rev. SIC - 6/04)PAGE 1
4591_FTN
Halsey Taylor Fountains are among the easiest to install Fountains on the
market today. To assure you install these models easily and correctly,
PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE
INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH
PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES. After install-
ation, leave these instructions with the Fountain for future reference.

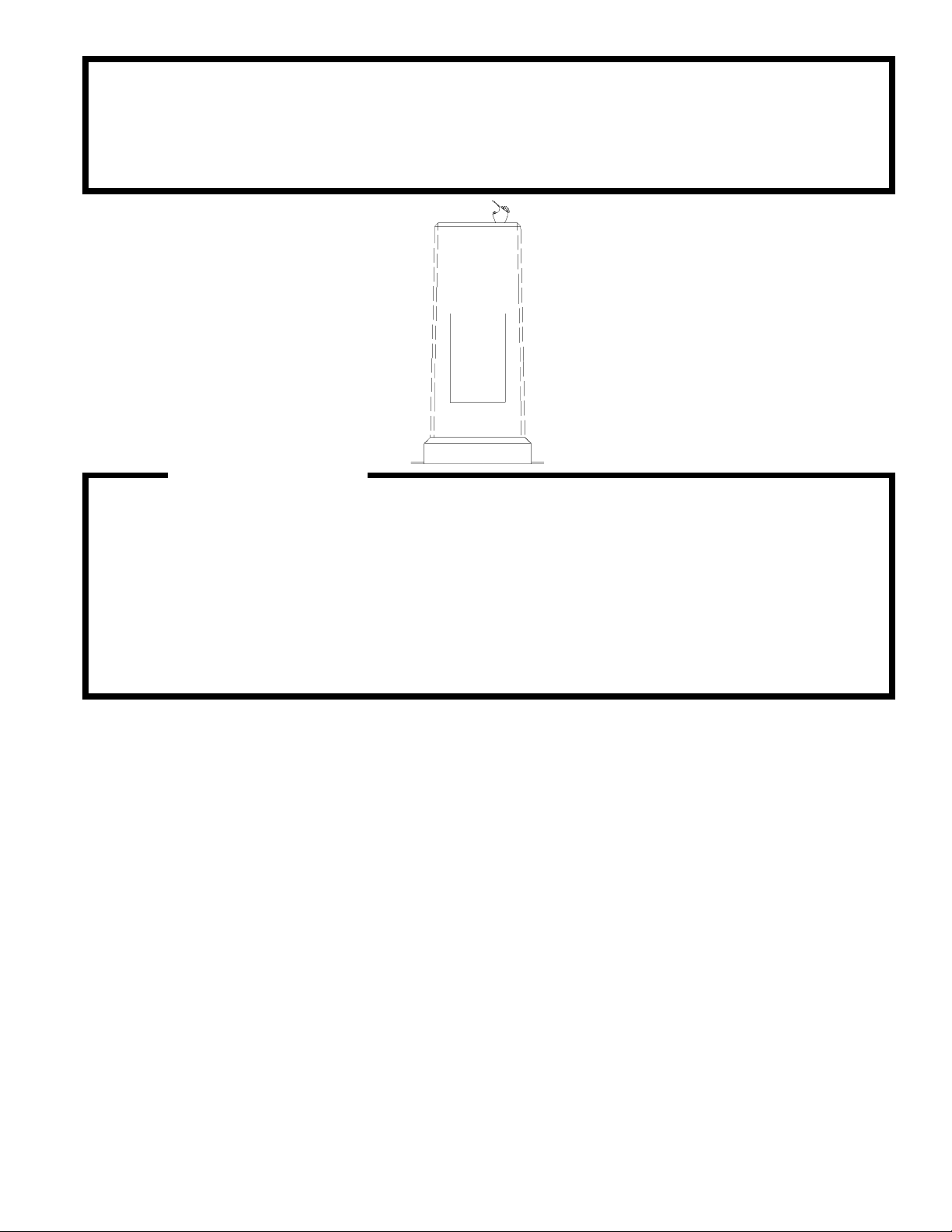

Halsey Taylor Owners Manual
Model 4591
Floor Mount Stone Fountain
ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON
IMPORTANT
1. Water supply 3/8" O.D. unplated copper tube. Waste 1-1/4" IPS. Contractor to supply waste trap and service stop
valve in accordance with local code.
2. Connecting lines to be made of unplated copper and should be thoroughly flushed to remove all foreign matter
before being connected to fountain. This fountain is manufactured in such in manner that it does not in any way
cause taste, odor, color, or sediment problems.
3. Connect fountain to supply line with a shut-off valve and install a 3/8" unplated copper water line between the valve
and the cooler. Remove any burrs from from outside of water line. Push the tubes straight into the fittings until they
reach a positive stop, approximately 3/4" (see figures 1 and 2). DO NOT SOLDER TUBES INSERTED INTO THE
STRAINERAS DAMAGE TO THE O-RINGS MAY RESULT.
4. These products are designed to operate on 20 psig to 105 psig supply line pressure. If inlet pressure is above 105
psig, a pressure regulator must be installed in the supply line.Any damage caused by reason of connecting this
product to supply line pressures lower than 20 psig or higher than 105 psis is not covered by warranty.
IMPORTANT! INSTALLER PLEASE NOTE.
THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES IS A
COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM THE BUILDING.
THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK INTO A FOUNTAIN, CREATING AN ELECTROLYSIS WHICH
CAUSES A METALLIC TASTE OR AN INCREASE IN THE METAL CONTENT OF THE WATER. THIS CONDITION IS
AVOIDABLE BY USING THE PROPER MATERIALS AS INDICATED. ANY DRAIN FITTINGS PROVIDED BY THE
INSTALLER SHOULD BE MADE OF PLASTIC TO ELECTRICALLY ISOLATE THE FOUNTAIN FROM THE BUILDING
PLUMBING SYSTEM.
INSTALLER

96628C (Rev. SIC - 6/04) PAGE 2
4591_FTN
FIG. 2
START UP
1. This fountain is to be mounted on a smooth, flat, finished surface
with adequate support structure. NOTE: Mounting structure must be
capable of supporting 300 lb. load on fountain.
2. Refer to rough-in for plumbing.
3. Install shut-off valve on water supply. (valve not furnished)
4. Locate and install fountain using 3/8" minimum anchor screws or bolts.
(screws or bolts not furnished)
CAUTION: This fountain is rated for inlet water pressure of 20-105 PSI.
A pressure reducing regulator should be used if the inlet water
supply exceeds 105 PSI.
5. Connect water supply and fountain drain. Water connection & drain
must comply with local codes.
6. Turn on water supply and check all connections for leaks.
ROUGH-IN DRAWING
FIG. 1
NOTE: WATER FLOW
DIRECTION
BUILDING WATER INLET
SERVICE STOP
(NOT FURNISHED)
1/4" O.D. TUBE
WATER INLET
TO COOLER
3/8" O.D. UNPLATED
COPPER TUBE CONNECT
COLD WATER SUPPLY

96628C (Rev. SIC - 6/04)PAGE 3
4591_FTN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
ITEM NO. PART NO. DESCRIPTION
100147140560
100322740560
101570540560
10031C
15013C
170705042830
40048C
40089C
40322C
45659C
45660C
55996C
56092C
55913C
60985551640
60291C
61313C
66346C
70021C
70683C
75588C
75589C
Drain Gasket
Bubbler Gasket
Drain Gasket
Regulator Retaining Nut
Bubbler Tube Assy.
Basin
Button
Nut - Cover
Orifice Assy.
Bubbler
Bubbler Assy.
In-Line Strainer
Poly Tubing (Cut To Length)
Drain Adapter
Drain Plug Assy.
Screen
Regulator
Drain Tube
Set Screw #8-32 x .25
Union 1/4"
Slip Joint Nut 1-1/4"
Gasket
ITEMIZED PARTS LIST
7
17
8
4
10
9
19
16
2
FIG. 3
1
3
6
15
11 - See Fig. 3
2
2
5
20
21
12
13
18
22
14

96628C (Rev. SIC - 6/04) PAGE 4
4591_FTN
TROUBLE SHOOTING AND MAINTENANCE
Orifice Assy: Mineral deposits on orifice can cause water flow to spurt or not regulate.
Mineral deposits may be removed from the orifice with a small round file or
small diameter wire. CAUTION: DO NOT file or cut orifice material.
Stream Regulator: If orifice is clean, regulate flow as in STREAM HEIGHT ADJUSTMENT"
instructions below. If replacement is necessary, see parts list for correct regulator
part number.
Actuation of Quick Connect Water Fittings: Cooler is provided with lead-free connectors
which utilize an o-ring water seal. To remove tubing from the fitting, relieve
water pressure, push in on the gray collar while pulling on the tubing.(see Fig.2)
2222 CAMDEN COURT
OAK BROOK, IL 60523
630.574.3500
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR WEBSITE WWW.HALSEYTAYLOR.COM
PRINTED IN U.S.A.
Fig. 4
STREAM HEIGHT: Stream height is factory set at 45-50 PSI.
If supply pressure varies greatly from this,
remove items 7 and 8 (see figure 3) and
adjust screw on item 17. Clockwise adjustment
will raise stream and counter-clockwise adjust-
ment will lower stream. For best adjustment,
stream should hit basin approx. 6-1/2" from bubbler.
