Halsey Taylor OVL Series User manual

Page 1
OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G
97881C - (Rev. M- 04/23)
OVL™ Series Water Coolers
Refrigerated Fountains with Back Panel
Fig. 1 – OVL-II ER Fig. 2 – OVL-II SR Fig. 3 – OVL-II SER Fig. 4 – OVL-II ESR
Figure
1
2
3
4
Model
OVL-II ER
OVL-II SR
OVL-II SER
OVL-II ESR
Description
OVL-II Series - Extended Reach
OVL-II Series - Standard Reach
OVL-II Series - Dual Installation
OVL-II Series - Dual Installation
Review these instructions before beginning installation. Be sure that installation
conforms to all plumbing, electrical and other applicable codes.
When installation is complete, ensure these instructions are left in the plastic bag
provided inside the installed unit for future reference.
Service to be performed by authorized service personnel only.
INSTALLER
NOTE: It is common practice to ground electrical hardware such as telephones, computers and other devices to
available water lines. This can, however, cause electrical feedback in the plumbing circuit, which results in an
“electrolysis” e󰀨ect occurring in the fountain. This may result in water which has a metallic taste to it or has a
noticeable increase in the metallic content of the water.
When inspecting plumbing circuit, remember the line may be grounded some distance from the installation, and
may occur outside the building or area in which the unit is being installed.
This condition can be avoided (in most cases) by using recommended materials during installation. Any drain
ttings provided by the installer should be made of plastic which will electronically isolate the fountain from the
remainder of the building’s plumbing circuits.
Owners Manual
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov
AVERTISSEMENT: Cancer et e󰀨ets néfastes sur la reproduction - www.P65Warnings.ca.gov
Patent zurn-elkay.com/patents

Page 2
OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G
97881C - (Rev. M - 04/23)

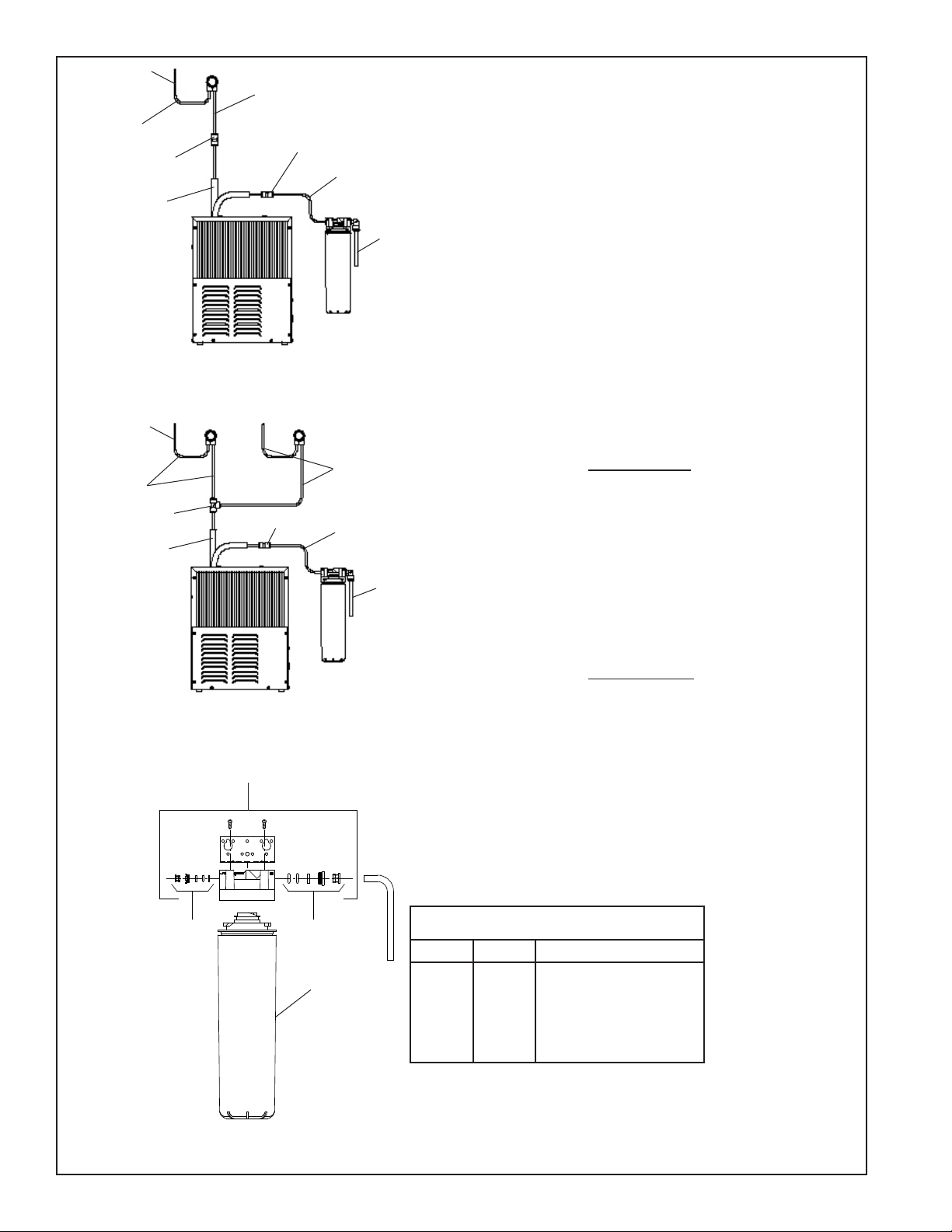

Figure 5 – Water Supply Connections
Installation Package
The components for installation are packed in three
separate boxes, regardless of the type of unit being
installed. The boxes contain the following:
Box No. 1: Wall Frame(s)
Box No. 2: Remote Chiller, SJ8
Box No. 3: Fountain(s), Arm(s) and Panels
Additional materials, as noted in the Parts List, are also
shipped in these boxes.
Number Required
26990C
26988C
55836C
55991C
51546C
45396C
98481C
1000001791
1000002705
160270508640
45400C
101570540560
51575C
110346220550
101637451550
161637308640
45398C
45683C
45682C
100023340560
161570808550
61314C
1000002145
27006C
27342C
27000C
27344C
70861C
55840C
55839C
27338U
27338C
27340U
27340C
28328C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

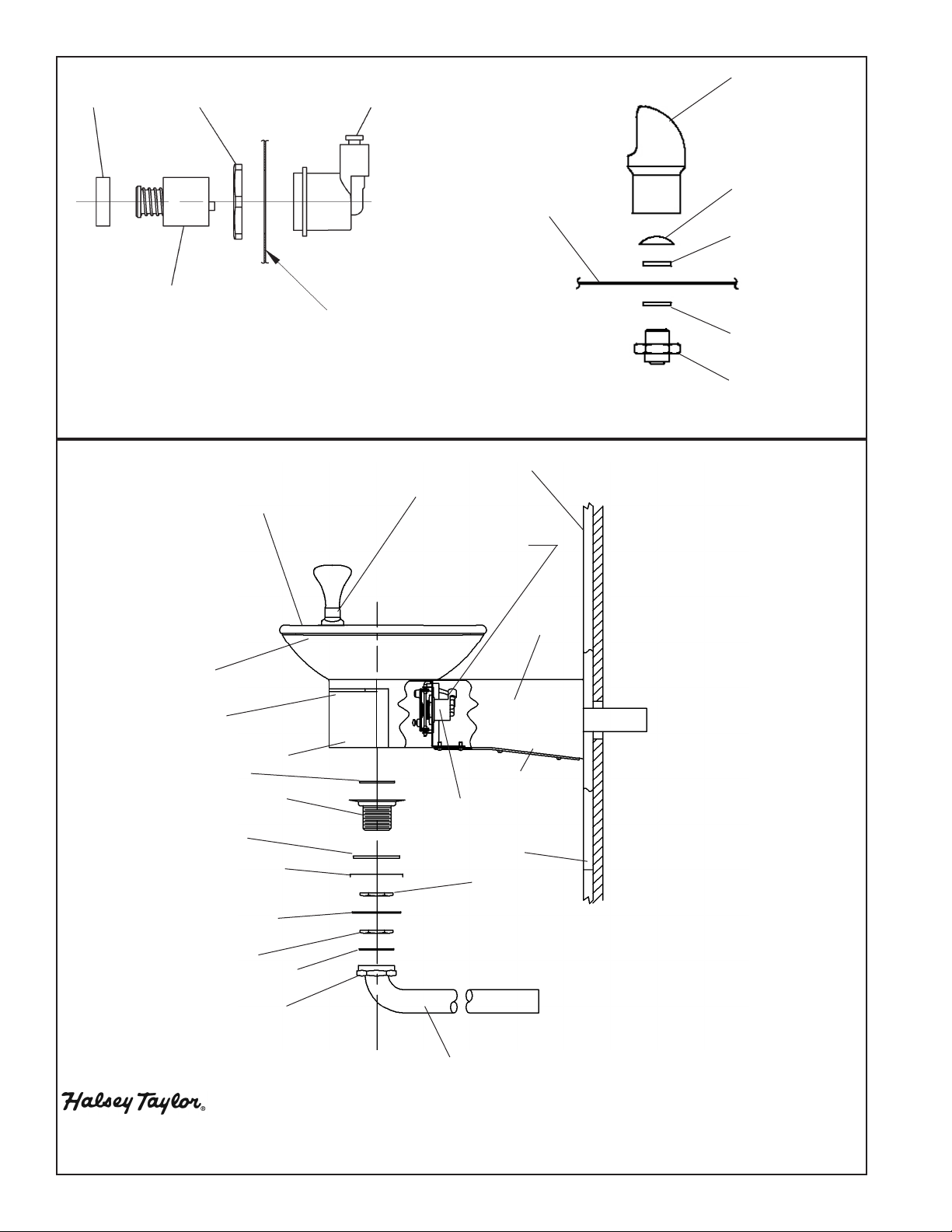

Parts List
Bottom Cover - Standard Reach
Bottom Cover - Extended Reach
Push Arm Actuator Plate
Push Arm Actuator Plate - A.G.
Bubbler
Bubbler - A.G.
Bubbler - EasyFlex (option)
Kit - VR Bubbler-Smart Flow™
Kit - VR Bubbler Nipple/Gaskets
Kit - Bubbler Nipple/Gaskets
Strainer Plate - S.S.
Strainer Plate - A.G.
Drain Gasket
Packing Ring
Drain Nut
Friction Ring
Drain Plug - S.S.
Drain Plug - A.G.
Drain Tube
Drain Tube
Waste Tube Gasket
Slip Nut
Regulator
Kit - Regulator Holder (5 Pack)
Basin - S.S.
Basin - A.G.
Basin - Galaxy Gray Marblyte (option)
Basin - Golden Sand Marblyte (option)
Basin - Black Onyx Marblyte (option)
Basin Liner - S.S.
Basin Liner - A.G.
Screw - #10-24 X 2.00
Top Plate - Actuator
Bottom Plate - Actuator
Extended Reach Arm - S.S.
Extended Reach Arm - A.G.
Standard Reach Arm - S.S.
Standard Reach Arm - A.G.
Regulator Mounting Bracket
Item Part No. Description OVL-II ER
See
Fig.
-
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
-
1
1
1
1
1
1
1
1
1
1
1
4
1
1
1
1
-
-
1
1
-
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
-
1
1
1
1
1
1
1
1
1
1
1
1
4
1
1
-
-
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
4
2
2
2
1
1
2
2
2
2
2
2
2
2
2
2
2
8
2
2
1
1
1
1
2
27
27
23
23
27
27
-
26
26
26
27
23
27
27
27
27
27
27
27
27
27
27
25
25
23,26,26
27
-
-
-
27
27
27
23
23
27
27
27
27
24
1
1
2
2
2
2
2
2
2
2
2
2
2
2
4
2
2
2
1
1
2
2
2
2
2
2
2
2
2
2
2
8
2
2
1
1
1
1
2
OVL-II SR OVL-II SER OVL-II ESR
NOTE: WATER FLOW
DIRECTION
BUILDING WATER
INLET
SERVICE STOP
(NOT FURNISHED)
1/4” O.D. TUBE
WATER INLET
TO COOLER
3/8” O.D. UNPLATED COP-
PER TUBE CONNECT
COLD WATER SUPPLY

Page 3
OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G
97881C - (Rev. M- 04/23)
1
1
1
1
1
4
1
1
1
1
1
-
-
-
-
-
-
1
-
-
1
1
-
-
1
1
-
1
1
1
1
1
1
4
1
1
1
-
-
1
1
-
-
-
-
-
-
-
1
1
-
-
1
1
-
1
2
2
2
2
2
8
2
2
2
-
-
-
-
1
1
-
-
-
1
-
-
-
1
1
1
1 If Filtered
1
1
1000002027
1000001926
27008C
70856C
70854C
50198C
0000001323
28327C
28326C
22797C
27886C
22799C
27888C
26958C
27890C
22795C
27892C
1000003515
1000003517
1000003518
26833C
27894C
27026C
27896C
55996C
1000002162
1000001994
56092C
Parts List Continued
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
Kit - Nut-Retaining (5 Pack)
Kit - Hex Nut-Unplated (4 Pack)
Reaction Bracket
Screw - #10-24 x .38 PHMS
Rod - Pivot
Bushing Snap
Kit - Pivot Bracket/Bushing/Bumper/Rod
Arm - Regulator Activating
Arm - Regulator Adjustment
Upper Panel (OVL-II ER) - S.S.
Upper Panel (OVL-II ER) - A.G.
Upper Panel (OVL-II SR) - S.S.
Upper Panel (OVL-II SR) - A.G.
Upper Panel (OVL-II SER) - S.S.
Upper Panel (OVL-II SER) - A.G.
Upper Panel (OVL-II ESR) - S.S.
Upper Panel (OVL-II ESR) - A.G.
Upper Panel (OVL-II ER-GRN) S.S.
Upper Panel (OVL-II SER-GRN) S.S.
Upper Panel (OVL-II ESR-GRN) S.S.
Lower Panel (OVL-II ER/SR) - S.S.
Lower Panel (OVL-II ER/SR) - A.G.
Lower Panel (OVL-II SER/ESR) - S.S.
Lower Panel (OVL-II SER/ESR) - A.G.
Strainer (Supplied with Chiller)
Kit - Union-1/4” (3 Pack)
Kit - Tee-1/4” (3 Pack)
Poly Tubing - 1/4” (Cut To Length)
Item Part No. Description
See
Fig.
2
2
2
2
2
8
2
2
2
-
-
-
-
-
-
1
1
-
-
1
-
-
1
1
1
1 If Filtered
1
1
OVL-II ER OVL-II SR OVL-II SER OVL-II ESR
NOTE: S.S. means Stainless Steel
A.G. means Aztec Gold
N-S means not shown
NS = Not Shown

Page 4
OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G
97881C - (Rev. M - 04/23)

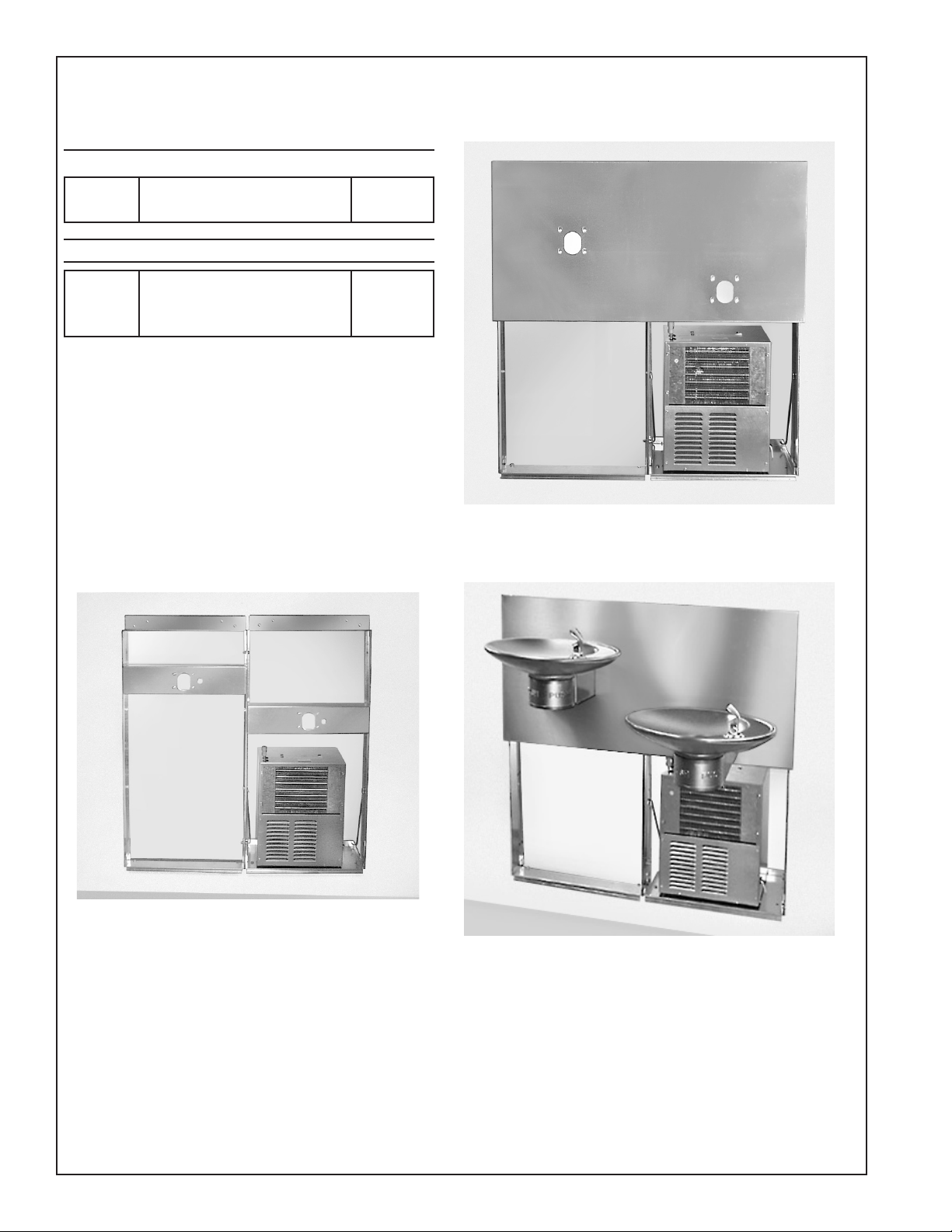

Figure 6 – OVL-II SER Rough-In
Figure 7 – Rough-In Assembly
Dual-Station Mounting Frames
Models
OVL-II SER – OVL-II ESR
1. Cut a rectangular wall opening 37-1/2” (953 mm) W
x 37-3/4” H (959 mm) and 4-1/2” (114 mm) above the
oor line (see Figure 7). The dimensions are required
to obtain proper rim and bubbler heights for compliance
with ANSI standard A117.1.
2. Reinforce the wall opening on all sides to adequately
support the water fountain. This reinforcement must
support up to 150 lbs. W load and provide a means for
securing the frame assembly in place.
NOTE: Building construction must allow for adequate
air ow on both sides and top of remote chiller
unit a minimum of 4” (102 mm) is required.
3. Install plumbing and electrical rough-ins. A junction
box for a (3) wire, 10 amp branch circuit is provided
on the inside of the chiller. (Standard 120 Volts, 60 Hz,
and single phase.)
4. Remove frames and related hardware from
packaging. Release the two shelf rods by cutting cable
ties. Attach the two frames together through the upright
supports with (4) 5/16” x 3/4” (19 mm) long bolts and
nuts (provided). Tighten securely.
REVERSED CONFIGURATION:
HIGHER UNIT ON THE RIGHT
MAKE SURE FRAME CONFIGURATION
MATCHES THE COOLER TO BE INSTALLED
STANDARD CONFIGURATION:
HIGHER UNIT ON THE LEFT
Note: Danger! Electric shock hazard. Disconnect power before servicing unit.
Uses HFC-134A refrigerant

Page 5
OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G
97881C - (Rev. M- 04/23)
FINISHED FLOOR
9 3/8"
238mm
18 3/4"
476mm
5 5/8"
143mm
1 1/8"
29mm
3 1/8"
79mm
12"
305mm
MINIMUM
DEPTH
11"
279mm
13 5/16"
338mm
18"
457mm
7"
178mm
34"
864mm
40"
1016mm
4 1/2"
114mm
8"
203mm
28 1/2"
724mm
34 1/2"
876mm
1"
25mm
11"
279mm
BACK WALL LINE
WALL LINE
A
B
D
C
5. Install the frame assembly squarely in wall opening
with frame upright support edges ush with the nished
wall face. Secure the frame to the wall through holes
with (12) 5/16” bolts or screws (not provided). Tighten
securely.
NOTE: Be sure that frame is squared in location. Do
not use less than required screw quantity and
size.
6. Attach the chiller shelf support rods to the right
side of the frame uprights at the second set of holes
counting from the bottom and to the shelf at the (2)
side holes. Line up the other shelf holes with the frame
bottom holes and fasten the assembly to the wall
opening using appropriately sized screws or bolts and
nuts (not provided).
MODEL OVL-SER SHOWN
Legend
A = 1/4” O.D. Tube - Water Outlet Connection
B = 3/8” O.D. Tube - Water Inlet Connection
C = 1-1/4” O.D. Waste Tube
D = Electrical Inlet on Chiller
Figure 8 – OVL-II SER/OVL-II ESR Rough-In Dimensions
MODEL OVL-ESR

Page 6
OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G
97881C - (Rev. M - 04/23)
Figure 9 – OVL-II ER/OVL-II SR Rough-In
Figure 10 – Rough-In Assembly
Single-Station Mounting Frames
1. Cut a rectangular wall opening 18-3/4”
(475 mm) W x 37-3/4” H (959 mm) and 4-1/2”
(114 mm) above the oor line (see Figure 10). The
dimensions are required to obtain proper rim and
bubbler heights for compliance with ANSI standard
A117.1.
2. Reinforce the wall opening on all sides to
adequately support the water fountain. This
reinforcement must support up to 150 lbs. static
load and provide a means for securing the frame
assembly in place.
NOTE: Building construction must allow for adequate
air ow on both sides and top of remote chiller unit.
Minimum of 4” (102 mm) is required.
3. Install plumbing and electrical rough-ins. A junction
box for a (3) wire, 10 amp branch circuit is provided
on the inside of the chiller. (Standard 120 Volts, 60 Hz,
and single phase.)
4. Remove frame and related hardware from
packaging. Release the two shelf rods by cutting cable
ties.

Page 7
OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G
97881C - (Rev. M- 04/23)
5. Install the frame squarely in wall opening with frame
upright edges ush with the nished wall surface.
Place shelf inside frame and line up the (2) holes on
each. Insert loose ends of rods into holes on sides of
shelf panel. Using appropriately sized screws or bolts
(not provided), fasten the shelf and frame to the bottom
of wall opening. Secure the frame sides and top to
the wall opening using (10) 5/16” bolts or screws (not
provided).
NOTE: Be sure that frame is squared in location. Do
not use less than the required screw quantity
and size.
MODEL OVL-ER MODEL OVL-SR
Legend
A = 1/4” O.D. Tube - Water Outlet Connection
B = 3/8” O.D. Tube - Water Inlet Connection
C = 1-1/4” O.D. Waste Tube
D = Electrical Inlet on Chiller
Figure 8 – OVL-II SER/OVL-II ESR Rough-In Dimensions

Page 8
OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G
97881C - (Rev. M - 04/23)
5. Install fountain. Remove access cover plate on
underside of fountains and SAVE the screws. Mount
the fountains to the upper panel and frame with
(4) 5/16” x 3/4” (19mm) long bolts and nuts provided.
Tighten securely.
6. Connect the fountain drain waste tube to the
building sanitary sewer system. Connection should
be made in compliance with local plumbing code
requirements. (Note: Plumbing trap is not included with
the fountain).
7. Make connection between remote chiller
outlet tube and fountain(s). Outlet port is marked
on the chiller (1/4” O.D. copper tube). Install a 1/4”
union/tee (provided) on the marked chiller outlet port.
Insert the 1/4” poly tubing coming from the fountain(s)
into the union tee. Turn on water supply and check for
leaks.
REQUIRED TOOLS AND MATERIALS
These tables show special tools and/or additional materials
(not provided) which are necessary to complete installation
of these units:
Special Tools
Item Description Quantity
NONE
Additional Materials
Item Description Quantity
1 Unplated copper inlet pipe
2Service Stop
OVL-II ER/SR/SER/ESR INSTALLATION
1. Assemble and place frame in wall as shown on
preceding pages.
2. Install chiller: Remove front panel of chiller.
Remove and discard cardboard inner pack from
between compressor and side panel. Slide chiller
onto the shelf and position it to the left within the
guides on the shelf.
NOTE: Building construction must allow for adequate air
ow on both sides, top and back of chiller.
A minimum of 4” (102mm) on both sides and
top is required. See chiller installation for additional
instructions.
3. Make water supply connections. Inlet port is marked
on the chiller (1/4” O.D. copper tube). Bend the copper
tube (provided) at an appropriate length from the chiller
to opening in frame. Install the in-line strainer (provided
with chiller) by pushing it in until it reaches a positive
stop, approximately 3/4” (19mm) on the marked chiller
inlet port. Attach an unplated and deburred copper
water inlet line and a service stop (not provided) to
the chiller. Turn on the water supply and ush the line
thoroughly.
4. Hang the upper panel on the mounting frame
hanger. Align holes in the panel with the holes in the
mounting frame. Be sure that panel is engaged with
hanger at topof frame before releasing it.
NOTE: With OVL-II SER or OVL-II ESR models, the
standard reach fountain must be mounted at the
upper position on panel.
Figure 12 – Chiller Installation
Figure 14 – Fountain Installation
Figure 13 – Upper Panel Installation

Page 9
OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G
97881C - (Rev. M- 04/23)
DO NOT SOLDER tubes while
inserted into the strainer as
damage to o-rings may result.
8. These products are designed to operate on 20-105
PSI supply line pressure. If inlet pressure is above
105 PSI, a pressure regulator must be installed in the
supply line.
Any damage caused by connecting these products to
a supply line with pressure lower than 20 PSI or higher
than 105 PSI IS NOT covered under warranty.
9. Make electrical connections to the chiller. See
chiller instructions.
10. Check stream height from bubbler. Stream height
is factory set at 35-40 PSI. If supply pressure varies
greatly from this, remove items 2, 19, and 20 (push
arm and the bottom and the top actuator plates –
Figure 23) by removing the screws holding assembly
together and adjust the screw on the regulator (Item
14 – Figs. 24 & 25). Clockwise adjustment will raise
stream height and counterclockwise movement will
lower stream height. For best adjustment, stream
height should be approximately 1-1/2” (38mm) above
the bubbler guard. (See Figure 16).
11. Mount lower panel. Loosen the two (2) #10-24 x 5/8”
(16mm) screws at frame bottom lip. Slide upper tongue of
lower panel under lower edge of already installed upper
panel. Tighten previously loosened screws securely.
12. Replace bottom access panel to fountain basin
using screws provided. Tighten securely.
Figure 15 – Lower Panel Installation
Figure 17 – OVL-II ER/SR Tube Routing
Figure 16 – Stream Height
Figure 18 – OVL-II SER/ESR Tube Routing
Chiller
Inlet
34
37
Chiller
Outlet
35
37
To Bubbler
Chiller
Inlet
34
37
Chiller
Outlet
36
37
To Bubbler
37

Page 10
OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G
97881C - (Rev. M - 04/23)
TO BUBBLER
37
35
35
37
37
CHILLER
OUTLET
WATER
INLET
1. Install chiller: Remove front panel of chiller. Remove
and discard cardboard inner pack from between
compressor and side panel. Slide chiller onto the
shelf and position it to the left as per dimensions in
Figure 1.
Note: Building construction must allow for
adequate air ow on both sides, top and
back of chiller. A minimum of 4” (102mm) on
both sides and top is required. See chiller
installation for additional instructions.
2. Make water supply connections. Install a shut-o󰀨 valve
and union connection to building water supply (valve and
union not provided). Turn on water supply and ush the
line thoroughly.
3. OVLERGRN: Make connection between remote chiller
and building supply line. Inlet port is marked on the chiller
(1/4” O.D. copper tube). Bend the copper tube (provided)
at an appropriate length from chiller to opening in frame.
Install the in-line strainer (provided with chiller) by pushing
it until it reaches a positive stop, approximately 3/4” (19mm)
on the marked chiller inlet port. Connect building supply
line to strainer. (See Figure 19)
Caution: DO NOT SOLDER tubes inserted
into the strainer as damage to
o-rings may result.
4. OVLSERGRN & OVLESRGRN: Mount lter head
assembly to side of chiller (See Figure 20). Make
connections between lter and building supply
line (3/8” O.D. tube not provided).
Inlet port is marked on the chiller (1/4” O. D. copper tube).
Install a 1/4” x 1/4” union (provided) on the marked chiller
inlet port. Insert the 1/4” poly tubing (provided) into the
tting on lter and connect the union to the chiller.
(See Figure 20)
Caution: DO NOT SOLDER tubes inserted
into the strainer as damage to
o-rings may result.
TO BUBBLER
37
36 35 37
37
CHILLER
OUTLET
WATER
INLET
2
1
3
Water Filter Detail
Figure 21
OVLSERGRN / OVLESRGRN
Tube Routing
Figure 20
OVLERGRN
Tube Routing
Figure 19
2
DESCRIPTION
1
2
3
ITEM NO. PART NO.
55897C
98926C
51469C
Filter Assy-1500 Gal.
Kit-Filter Head Fitting includes
John Guest Ftgs & 3/8”
Elbow Fitting
Assy -Filter & Bracket
includes Fltr Head/Mtg Bkt/
John Guest Ftgs/Screws
WATERSENTRY® FILTER PARTS LIST
(See Fig. 21)

Page 11
OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G
97881C - (Rev. M- 04/23)
28

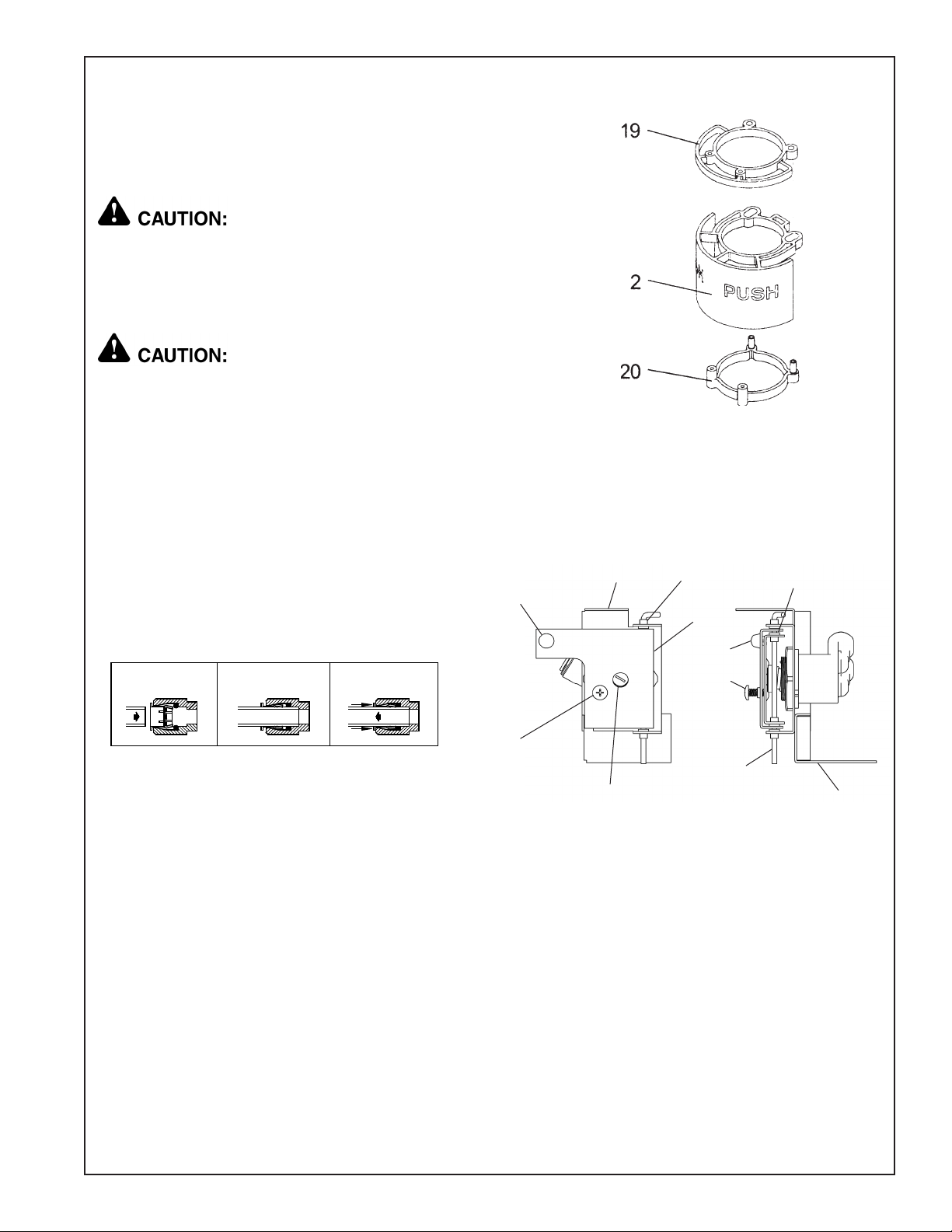

TROUBLESHOOTING & MAINTENANCE
Orice Assembly: Mineral deposits on orice can cause
water ow to spurt or not regulate. Mineral deposits may be
removed from the orice by poking with a small round le
not over 1/8” diameter, or using a small diameter wire.
DO NOT le or cut orice material.
Stream Regulator: If orice is clean, regulate ow as in
Step 10, Page 9 of the installation instructions. If replacement
is necessary, see parts list for correct regulator part number.
Actuation of Quick Connect Water Fittings: Cooler is
provided with lead-free connectors which utilize an o-ring
water seal. To remove tubing from the tting, relieve water
pressure, push in on the gray collar while pulling on the
tubing. (See Figure 22) To insert tubing, push tube straight
into tting until it reaches a positive stop (approximately
3/4”).
To preserve the quality and keep
this AZTEC GOLD nish clean and
spot free, clean this surface with
only mild detergent or window
cleaner and polish with a soft
cloth. DO NOT use any abrasive
cleaners or harsh chemicals.
They WILL damage the nish!
Figure 22 – Quick Connect Fittings
Figure 24 – Regulator Mounting Mechanism
Figure 23 – Push Arm Mechanism
22
29
26
Stream Height Adjustment
30
29
26
31
25
27
B CA
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
OPERATION OF QUICK CONNECT FITTINGS
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
OPERATION OF QUICK CONNECT FITTINGS
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
A B C

Page 12
OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G
97881C - (Rev. M - 04/23)
Figure 25 – Regulator Assembly
Figure 27 – Fountain Assembly - Side View
23
14
24
Regulator
Mounting Bracket
15
7
18
10
6
5
See Fig. 23
3, 4
16
21
See Fig. 24
32
8
17
12
13
9
1
See Fig. 25
8
11
33
Fig. 26- Smart Flow™ Bubbler Detail
3, 4
16
3, 4
4
3, 4
3, 4
FOR PARTS CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR WEBSITE WWW.HALSEYTAYLOR.COM
1333 BUTTERFIELD ROAD,
DOWNERS GROVE, IL 60515
630.574.3500
www.halseytaylor.com
