GOperating instruction
Controls and Displays
1. Micro-USB input
2. Status LED
Thank you for choosing a Hama product.
Take your time and read the following instructions and information completely. Please keep
these instructions in a safe place for future reference. If you sell the device, please pass these
operating instructions on to the new owner.
1. Explanation of Warning Symbols and Notes
Warning
This symbol is used to indicate safety instructionsor to draw your attentionto
specichazardsandrisks.
Note
This symbol is used to indicate additional information or important notes.
2. Package Contents
•‘Magnetic Touch’ inductive charger
•1 Micro USB cable
•1 car charger
•2 adhesive pads
•1 adhesive mounting aid
•These operating instructions
3. Safety Notes
•The product is intended for private, non-commercial use only.
•Protect the product from dirt, moisture and overheating, and only use it in a dry
environment.
•When using this product, observe the applicable local trac laws and regulations.
•Do not drop the product and do not expose it to any major shocks.
•Do not operate the product outside the power limits given in the specications.
•Do not open the device or continue to operate it if it becomes damaged.

3
•Do not use the product in areas where the use of electronic devices is not permitted.
•In order to prevent damage caused by overheating, make sure the product is not covered
by textiles, metal or other objects.
•Dispose of packaging material immediately according to locally applicable regulations.
•Keep the packaging material out of the reach of children due to the risk of suffocation.
•Do not modify the product in any way. Doing so voids the warranty.
Do not put any bank cards or similar cards with magnetic strips, or other magnetically
sensitive objects, on the product. The data on the cards could be damaged or deleted.
4. Getting Started and Operation
Note
•To be able to charge your terminal device using the inductive charger, your terminal
device must be compatible with inductive charging technology. Please read the
operating instructions of your device.
•Note that the presence of mobile phone cases, covers or other materials between the
inductive charger and the back of your terminal device can interfere with charging or
even prevent it.
•Before mounting the holder, check the installation options in your vehicle. If in doubt,
consult the manual for your vehicle or contact the manufacturer
•Never apply force when using the product or during installation.

4
4.1 Installation of the induction charging device
•Carefully push the ventilation grille clamp onto the open panels of the ventilation grille
until it locks into place.
Note
Before setting a device in the holder, check that the panels are sturdy enough to bear the
weight. We recommend against using this model for terminal devices heavier than 300 g.
•To remove the holder, carefully pull it out of the ventilation grille.
4.2 Getting started with the induction charging device

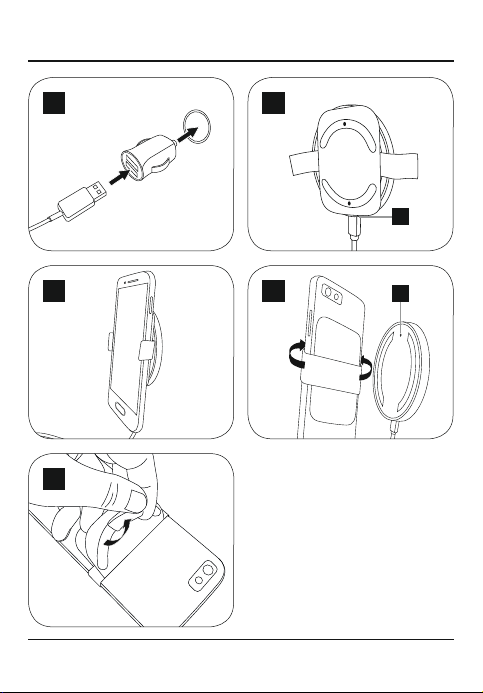

•Plug the charger into a car socket in the vehicle electrical system. (A)
•Connect the included Micro-USB cable to the Micro-USB input on the induction charger
and the USB port of the vehicle charger.
•When the power supply is active, the status LED lights up.
4.3 Installation using the adhesive pad
•Place the adhesive pad on the induction charging device with the 3M adhesive side
toward the front. (B) (The adhesive pad is held in place by magnetic attraction.)
•Then place your smartphone on the adhesive pad and wait until an effective induction
eld forms. (C)
•Use the adhesive xing aid tabs (white) that protrude on the left and right to x the
adhesive pad in place by folding the tabs over and sticking them to the front of the
phone. (D)
•Now you can carefully remove your smartphone with the adhesive pad from the induction
charger.
•If the adhesive pad overlaps the camera (up to 4 mm), then you may correct this. Then try
again to see if a connection is made.
•Remove the protective foil from the bottom of the adhesive side of the adhesive pad and
press the pad onto the desired surface (for example, the rear of your mobile phone) for a
few seconds. (E) Repeat the process for the top of the pad.
•To check whether the adhesive pad is correctly attached, place your phone on the
induction charger and verify that the magnet sticks.
•Charging starts as soon as an effective induction eld has been generated. The status LED
is now red. The current charging status appears on your terminal device.
•Once you have successfully attached the adhesive pad, you may remove the adhesive
xing aid.
