HAMECO HV-50 User manual

www.hameco-headset.com
HV-50 Video
Conferencing
Room Solution
User Manual

www.hameco-headset.com
1
HV-50 Video Conferencing
Room Solution User Manual
IMPORTANT
This manual introduces functions, installation and operations for HV-
50 video conferencing room solution in details. Please read this manual
carefully before installation and use.
1. How to Use
To prevent damage to this product or any product connected to it, this
product can only be used within the specied range.
1.1. Do not expose the product to rain or moisture.
1.2. To prevent the risk of electric shock, do not open the case. Installation
and maintenance should only be carried out by qualied technicians.
1.3. Do not use the product beyond the specied temperature, humidity or
power supply specications.
1.4. Wipe it with a soft, dry cloth when cleaning the camera lens. Wipe it
gently with a mild detergent if needed. Do not use strong or corrosive
detergents to avoid scratching the lens and aecting the image.
2. Electrical Safety
Installation and use of this product must strictly comply with local electri-
cal safety standards.
3. Handle with care
Avoid damage to product caused by heavy pressure, strong vibration or im-
mersion during transportation, storage and installation.

www.hameco-headset.com
2
HV-50 Video Conferencing
Room Solution User Manual
4. Install with Caution
4.1. Do not rotate the camera head violently, otherwise it may cause me-
chanical failure.
4.2. This product should be placed on a stable desktop or horizontal sur-
face. Do not install the product obliquely, otherwise it may display in-
clined image.
4.3. Housing of this product is made of organic materials. Do not expose it
to any liquid, gas or solids which may corrode the shell.
4.4. Ensure there are no obstacles within rotation range of the holder.
4.5. Do not power on before installation is completed.
5. Do not Disassemble the Product without Permission
This product contains no parts which can be maintained by users. Any dam-
age caused by dismantling the product by user without permission is not
covered by warranty.
6. Magnetic Interference
Electromagnetic elds at specic frequencies may aect the image. This
product is Class A. It may cause radio interference in household appliances.
Appropriate measure is required.

www.hameco-headset.com
3
HV-50 Video Conferencing
Room Solution User Manual
CONTENT
IMPORTANT ............................................................................................................ 1
1. Packing Contents.............................................................................................. 4
2. Product Overview ............................................................................................. 5
2.1 HV-50-A: Speakerphone .................................................................... 5
2.2 HV-50-V: HD PTZ Camera. ................................................................. 5
2.3. HV-50-H: Hub. ...................................................................................... 6
3. Connection Description ................................................................................... 7
4. Keys Description ............................................................................................... 8
4.1 Keys Description of Remote Control ............................................... 8
4.2 Keys Description of Speakerphone .................................................. 9
5. Work with Video Conferencing Software ..................................................10
6. Bluetooth Pairing ............................................................................................ 11
7. Pr ese t s ............................................................................................................. 11
8. Technical Specications ................................................................................12
Copyright Statement ..........................................................................................15
Disposal of your product ....................................................................................15

www.hameco-headset.com
4
HV-50 Video Conferencing
Room Solution User Manual

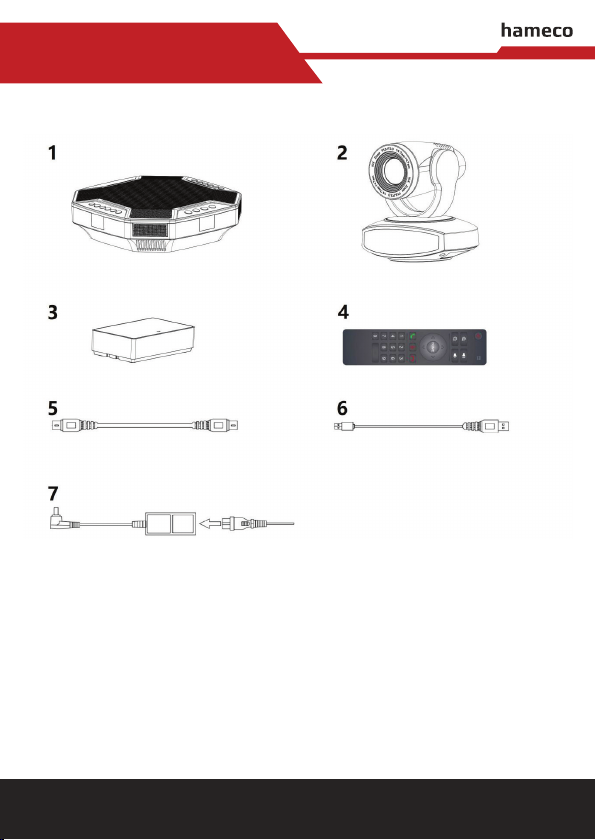

1. PACKING CONTENTS
1. Speakerphone
2. HD PTZ Camera
3. Hub
4. Remote Control
5. 5m DIN6 Cable * 2 pcs
6. 3m USB cable *1 pcs
7. Power supply

www.hameco-headset.com
5
HV-50 Video Conferencing
Room Solution User Manual

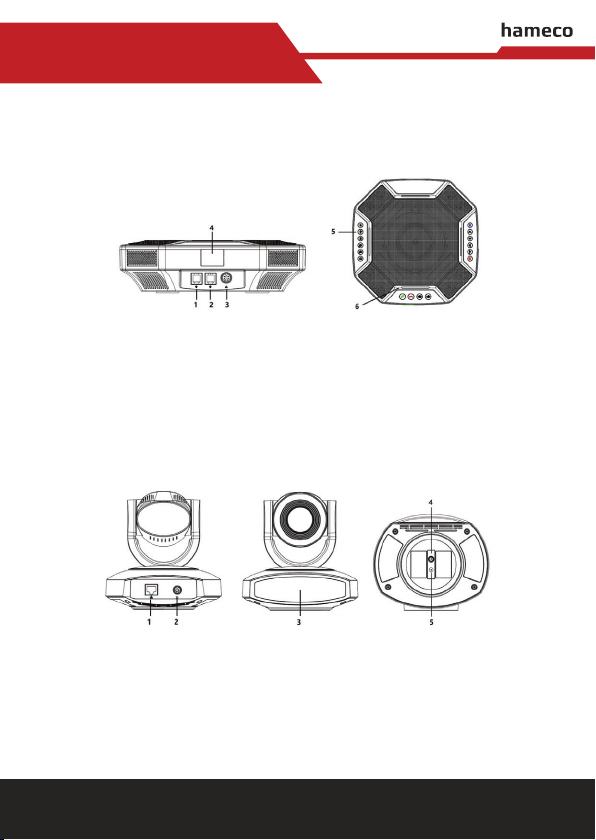

2.2. HV-50-V: HD PTZ Camera
2. PRODUCT OVERVIEW
2.1. HV-50-A: Speakerphone
1. Optional expansion
microphone port 1
2. Optional expansion
microphone port 2
3. DIN6 cable port
4. IR remote control receiver
5. Function keys
6. Status indicator
1. LAN Upgrade and
maintenance
2. DIN6 Cable port
3. Power and infrared
receiving indicator
4. Bracket mounting screw holes
5. Bracket mounting
positioning hole

www.hameco-headset.com
6
HV-50 Video Conferencing
Room Solution User Manual

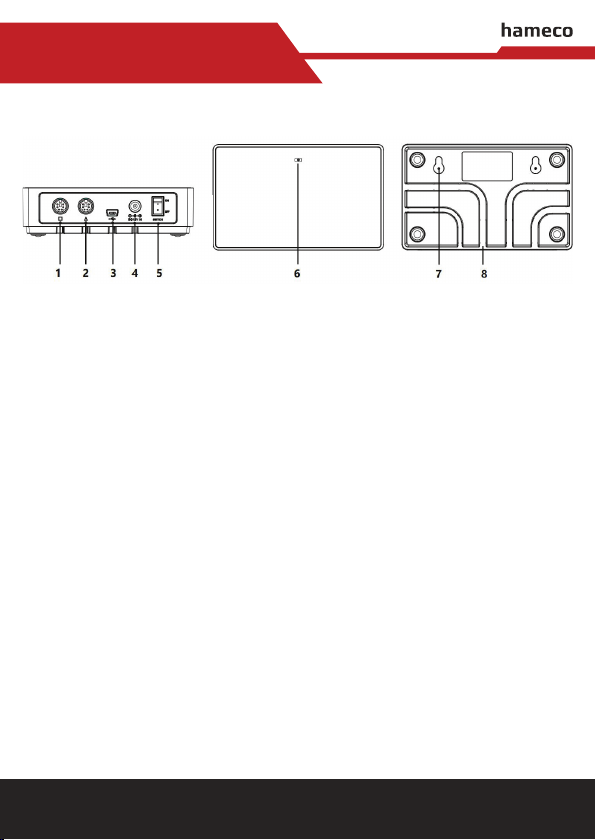

2.3. HV-50-H: Hub
1. DIN6 Cable port
2. DIN6 Cable port
3. Mini USB port
4. Power port
5. Power switch
6. Power indicator
7. Screw holes
8. Wire slot

www.hameco-headset.com
7
HV-50 Video Conferencing
Room Solution User Manual

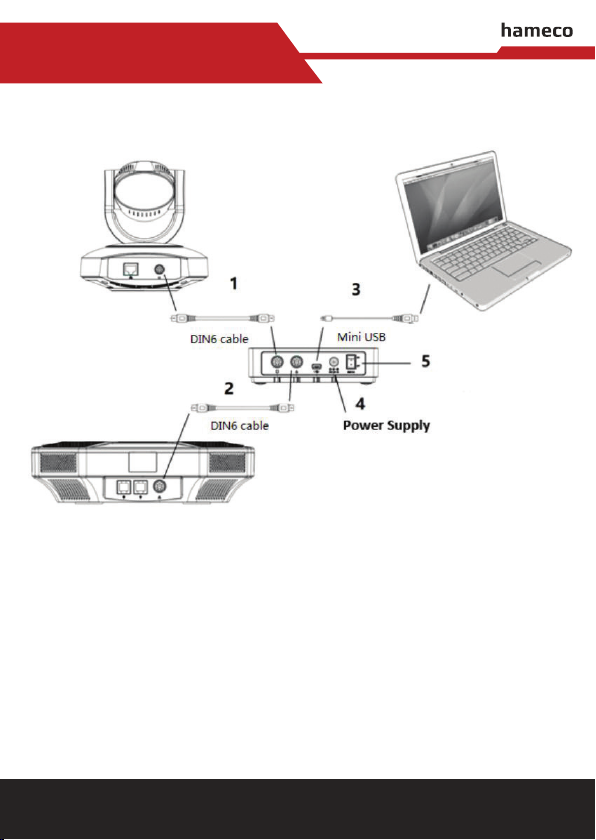

3. CONNECTION DESCRIPTION
1. Connect camera and hub with original DIN6 data cable
2. Connect the speakerphone and hub with original DIN6 data cable
3. Connect the computer to the hub with the original USB cable
4. Connect with the original power adapter and power supply
5. Switch to power on

www.hameco-headset.com
8
HV-50 Video Conferencing
Room Solution User Manual
4. KEYS DESCRIPTION

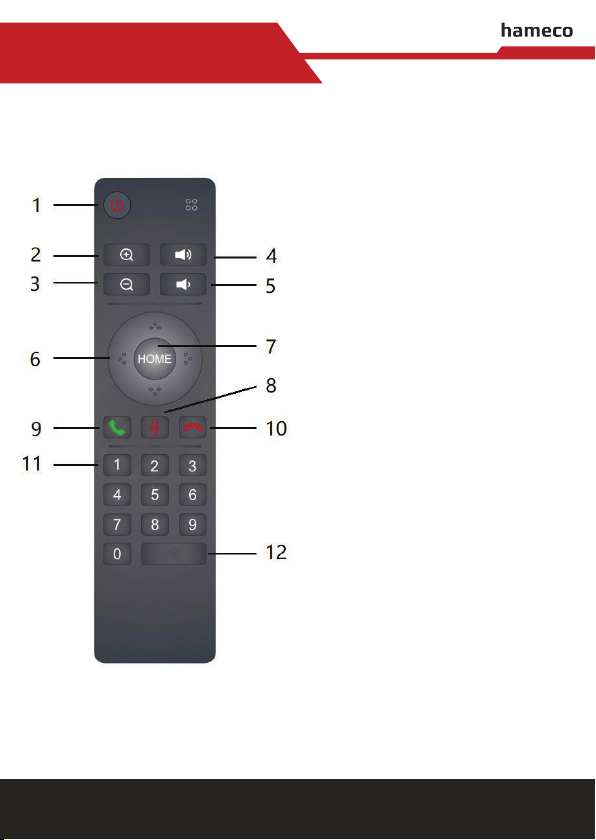

4.1. Keys Description of Remote Control
1. Device standby
2. Zoom in
3. Zoom out
4. Volume up
5. Volume down
6. Pan / Tilt
7. HOME Camera Zero position
8. Mute microphone
9. Pick up
10. Hang up
11. 0-9 Camera presets
12. Reserved (for future
functions)

www.hameco-headset.com
9
HV-50 Video Conferencing
Room Solution User Manual

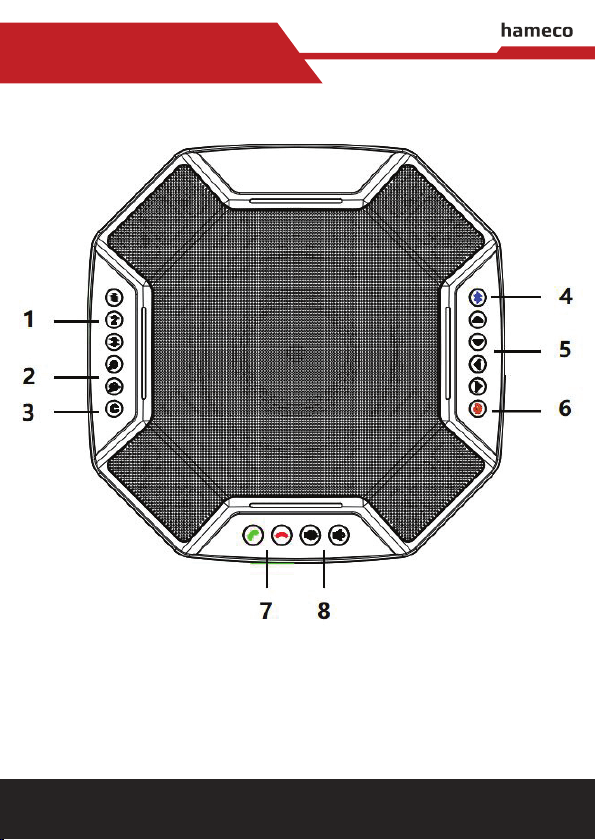

4.2. Keys Description of Remote Control
1. 1-3 Presets
2. Zoom in / Zoom out
3. Camera Zero position
4. Bluetooth pairing
5. Camera pan / tilt
6. Mute microphone
7. Pick up / Hang up
8. Volume up / volume down

www.hameco-headset.com
10
HV-50 Video Conferencing
Room Solution User Manual
HV-50 Camera
8-USB audio device
8-USB audio device
HV-50 Camera
8-USB audio device
8-USB audio device
5. USING VIDEO CONFERENCING SOFTWARE
Correctly connect HV-50. Login on your video conferencing software on the
computer, and select the corresponding camera, microphone and speaker
driver. The HV-50 and VC software will then serve your video conferencing
needs perfectly.
Refer to the image below (e.g.: ZOOM software)

www.hameco-headset.com
11
HV-50 Video Conferencing
Room Solution User Manual
6. BLUETOOTH PAIRING
Once paired with a Bluetooth device, you can use the speakerphone for au-
dio calls. To pair your Bluetooth device with the speakerphone:
1. Press and hold the Bluetooth pairing button until the status indicator
ashes blue light. The speakerphone is under Bluetooth pairing mode.
2. Search HV-50 with your Bluetooth device and connect.
7. PR E SE T
How to save preset:
Adjust the camera to the position that needs to be preset. Press and hold
the preset button for 5 seconds. The corresponding preset position is set
successfully. (Note: 10 preset positions (0-9) can be set on the remote con-
trol; 3 preset positions (1-3) are available for the speakerphone. The preset
0 is the power-on preset position).
How to use preset position:
Short press the preset button to call the corresponding preset position
(Note: the number key is invalid if not preset);

www.hameco-headset.com
12
HV-50 Video Conferencing
Room Solution User Manual

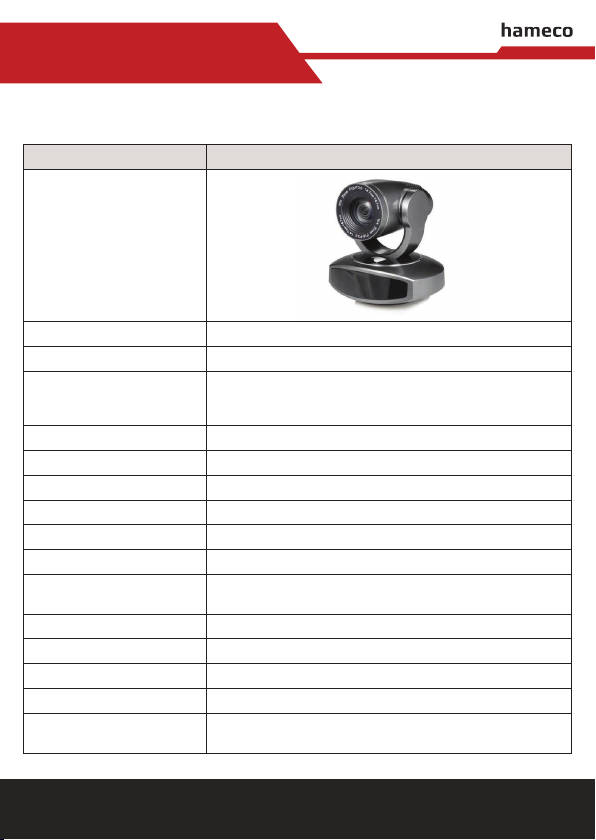

8. TECHNICAL SPECIFICATIONS
Model NO. HV-50-V
Product Picture
Sensor 1/2.8 inch high quality HD CMOS sensor
Eective Pixels 2.07M,16:9
Video Format
176x144/320x240/320x180/352x288/640x480/720x480/
720x576/640x360/800X600/960X540/1024X576/
1024X768/1280X720/1920X1080P30/25/20/15/10/5
Optical zoom lens 5x optical zoom, f=3.1~15.5mm
View angle 20° tele 83.7° wide
Aperture value F1.8 – F2.8
Digital Zoom X10
Minimum Illumination 0.5Lux(F1.8, AGC ON)
DNR 2D﹠3D DNR
White Balance Auto/Manual/One Push/3000K/3500K/4000K/
4500K/5000K/5500K/6000K/6500K/7000K
Focus Auto/Manual/One Push
Aperture/Electronic Shutter Auto/Manual
BLC ON/OFF
WDR OFF/ Dynamic level adjustment
Video Adjustment Brightness, Color, Saturation, Contrast,
Sharpness, B/W mode, Gamma curve

www.hameco-headset.com
13
HV-50 Video Conferencing
Room Solution User Manual
SNR >55dB
Rotation angle Pan: -125°~+125°, Tilt:-30°~+30°
Control speed Pan: 0.1 ~65°/sec, Tilt:0.1~35°/sec
Preset speed Pan: 65°/sec, Tilt: 35°/sec
Dimensions 151.64mm×131.25mm×154.5mm (L×W×H)
Model NO. HV-50-A
Product Picture
Voice technical parameters Acoustic Echo cancellation (AEC): >65dB
Echo length cancellation: ≥400ms
Bidirectional noise compression (NC): <25dB
Automatic Direction nding Technology
of Intelligent microphone (EMI)
Automatic gain control (AGC)
Audio parameters Microphone frequency response: 100Hz-22KHz
Speaker frequency response: 100Hz-22KHz
Speaker volume: 95dB at the most Microphone sound-pickup
diameter: 6 meters, 360 degrees full range
Bluetooth Bluetooth devices available
IR Reception Angle: 360°
Distance: 10m
IR Transparent transmission available
Expansion Mic (optional) 2 external microphones optional for connection makes
the sound-pickup diameter up to 10 meters
Dimensions 200mm×200mm×52mm (L×W×H)

www.hameco-headset.com
14
HV-50 Video Conferencing
Room Solution User Manual

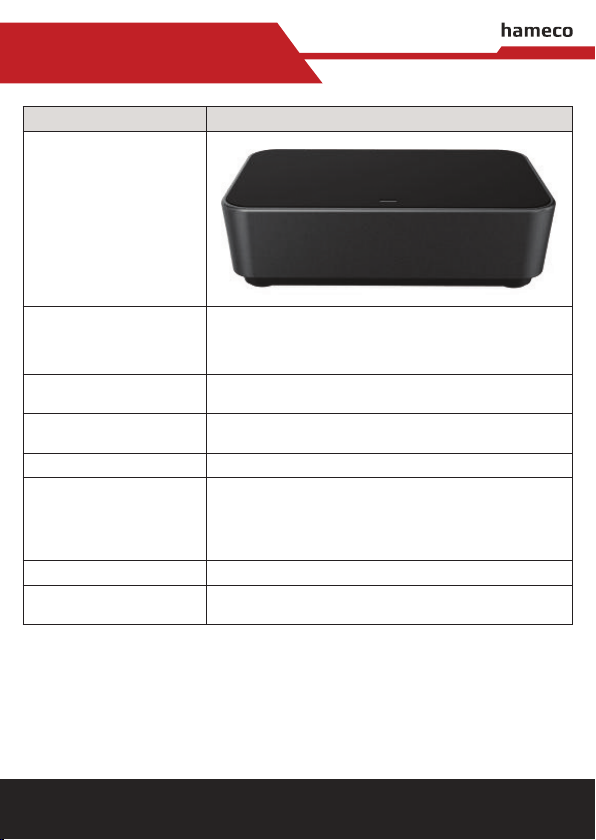

Model NO. HV-50-H
Product Picture
Interface Mini DIN6 ×2
Power interface × 1
Power switch × 1
Mini USB interface × 1
Power supply EC3800 plug (DC12V)
Adapter input AC110V-AC220V, output DC12V/1.5A
Connection Cable Mini DIN6 data line × 2
Length: 5m (10m/15m for options)
USB cable USB2.0 cable
Compatibility Supports Windows, Android, iOS and Linux
Drive-free automatic recognition of
cameras, microphones and speakers
Compatible with Zoom, Lynch, Vidyo,
Skype for business and etc.
Dimensions 100mm×62mm×27mm (L×W×H)
Accessories Power adapter, USB2.0 cable, remote controller,
2 connection cables, user manual

www.hameco-headset.com
15
HV-50 Video Conferencing
Room Solution User Manual
COPYRIGHT STATEMENT
All the contents in this manual and its copyright are owned by the company.
No one is allowed to imitate, copy, or translate this manual without the
company’s permission. This manual contains no guarantee, standpoint ex-
pression or other implicatiens in any form. Product specication and infor-
mation in this manual is for reference only and subject to change without
notice.
All rights reserved. No reproducing is allowed without acknowledgement.
DISPOSAL OF YOUR PRODUCT
Municipal waste stream. Old appliances must be collected separately in or-
der to optimise the recovery and recycling of the materials they contain
and reduce the impact on human health and the environment. The crossed
out “wheeled bin” symbol on the product reminds you of your obligation,
that when you dispose of the appliance it must be separately collected.
Consumers should contact their local authority or retailer for information
concerning the correct disposal of their old appliance.
RoHS
COMPLIANT
