HAMPTON BAY 286-780 User manual

Hampton Bay Lifetime Limited Warranty
The retailer warrants the fan motor to be free from defects in workmanship and
material present at time of shipment from the factory for a lifetime after the date of
purchase by the original purchaser. The retailer also warrants that all other fan parts,
excluding any glass or plexiglass blades, to be free from defects in workmanship and
material at thetime of shipmentfrom the factoryfor a periodof one yearafter the date
of purchase by the original purchaser. We agree to correct such defects without
charge or at our option replace with a comparable or superior model if the product is
returned to the retailer. To obtain warranty service, you must present a copy of the
receipt as proof of purchase. All costs of removing and reinstalling the product are
your responsibility. Damage to any part such as by accident or misuse or improper
installation or by affixing any accessories, is not covered by this warranty. Because
of varying climatic conditions in the United States this warranty does not cover any
changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling.
Brass finishes of this type give their longest useful life when protected from varying
weather conditions. A certain amount of wobble is normal and should not be
considered a defect. Servicing performed by unauthorized persons shall render the
warranty invalid. There is no other express warranty. The retailer hereby
disclaims any and all warranties, including but not limited to. Those of
merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to
the time period as specified in the express warranty. Some states do not allow
limitation on how long an implied warranty lasts, so the above limitation may not
apply to you. The retailer shall not be liable for incidental, consequential, or
special damages arising out of or in connection with product use or performance
except as may otherwise be accorded by law. Some states do not allow the
exclusion of incidental or consequential damages, so the above exclusion or
limitation may not apply to you. This warranty gives specific legal rights, and you
may also have other rights which vary from state to state. This warranty supersedes
all prior warranties.
Lifetime Limited Warranty
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
286-780
219032
792145330783

Safety Rules..........................................................................................................................
Unpacking Your Fan..............................................................................................................
Installing Your Fan................................................................................................................
Installing the Light Kit..........................................................................................................
Operating Your transmitter....................................................................................................
Care of Your Fan...................................................................................................................
Troubleshooting...................................................................................................................
Specifications......................................................................................................................
1
2
3
9
10
11
12
13
Table of Contents

1. Safety Rules
1. To reduce the risk of electric shock, insure electricity has been turned
off at the circuit breaker or fuse boxbefore beginning.
2. Allwiring must bein accordance withthe National ElectricalCode and
local electrical codes. Electrical installation should be performed by a
qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not use
this fan withany solid-state fan speed control device.
4. WARNING: To reduce the risk of personal injury, use only the two
steel screws (and lock washers) provided with the outlet box for
mounting to the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may
need to bereplaced, consult a qualified electrician ifin doubt.
8. Avoid placing objectsin the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when workingaround or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A
dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
11. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The wires
should be spread apart with the grounded conductor and the
equipment-grounding conductor onone side of the outlet box.
12. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL Listed and marked suitable for use
with the model fan you are installing. Switches must be UL General
Use Switches. Refer to the Instructions packaged with the light kits
and switches forproper assembly.
WARNING
TO REDUCETHE RISK OF FIRE, ELECTRIC SHOCKOR PERSONAL
INJURY, MOUNT FAN TOOUTLET BOX MARKEDACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 50 pounds. Use only UL
Listed outlet boxesmarked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge ofthe blades to the floor.
7. Do not operate the reverse switch while the fan blades are in motion.
The fan must be turned off and the blades stopped before reversing the
blades direction.
WARNING
TO REDUCETHE RISK OF PERSONAL INJURY, DO NOTBEND THE
BLADE ARMS(ALSO REFERRED TO ASBRACKETS) DURING
ASSEMBLYOR AFTERINSTALLATION. DO NOTINSERT OBJECTS IN
THE PATHOF THE BLADES.
NOTE
READ AND SAVE ALLINSTRUCTIONS!

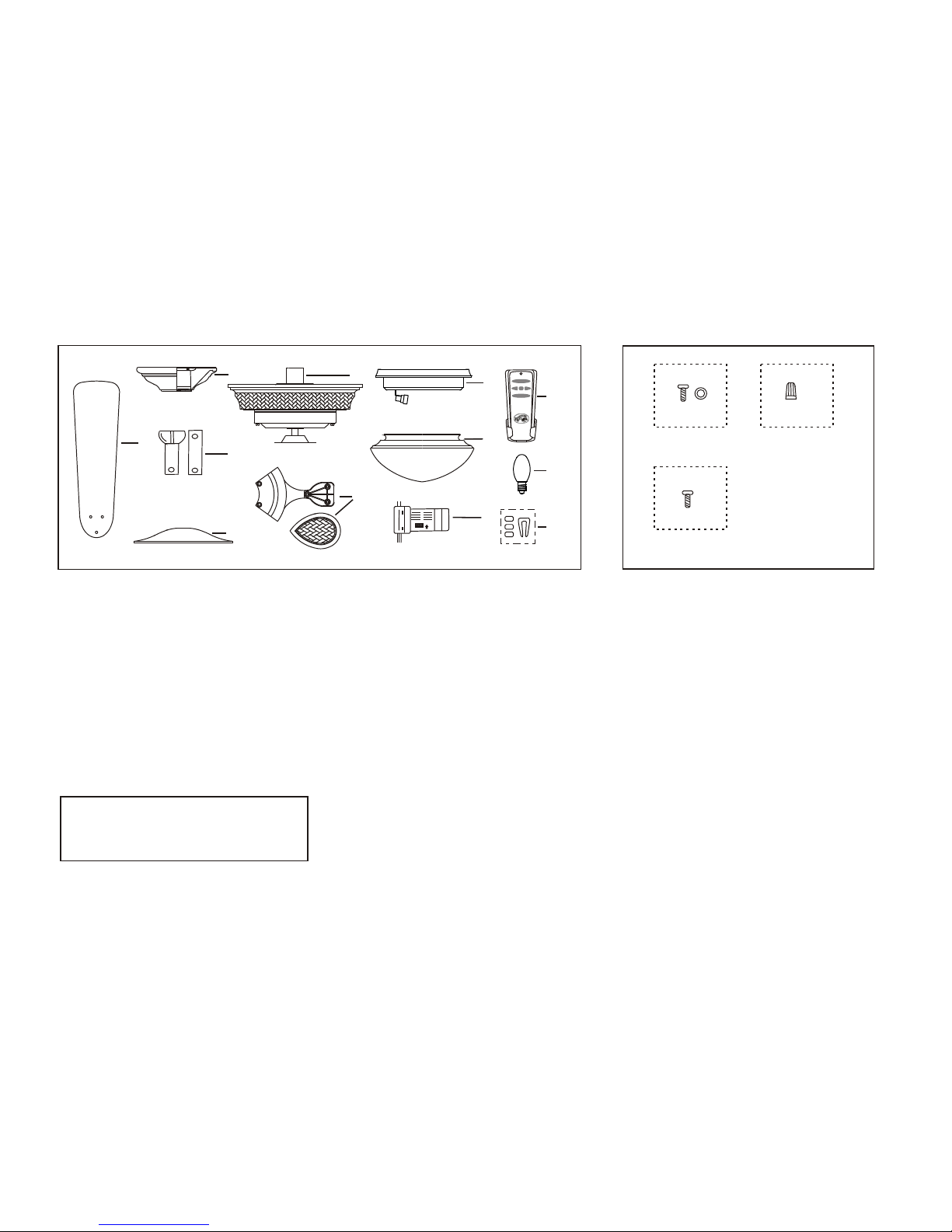

2. Unpacking Your Fan
Unpack your fanand check the contents. You should havethe following items:
1.
2. Canopy
3.
4.
5.
Set of blades(5)
assembly
Ball/downrod assembly (1)
& extra downrod(1)
Collar cover
Fan motor assembly
6. Set ofblades arms (5)
7. Light plate
Glass shade
Receiver+6 wire nuts
Transmitter+holder+2 mounting screws
Bulbs (3)
12. Balancing kit
8.
9.
10.
11.
WARNING
DO NOT INSTALL ORUSE FAN
IF ANYPARTIS DAMAGED ORMISSING.
CALL TOLLFREE 1-877-898-1881
a
c
b
3
1
25
6
7
8
49
10
12
11
13
ONON
LIGHT / DIMMER
LO MED HI
FAN OFF
13. Loose partsbag containing:
a. Blade attachmenthardware
(16 screws, 16rubber washers)
b. Mounting hardware
(3 plastic wireconnectors)
c. Light kithardware
(1 screw)

3. Installing Your Fan
Tools Required
Phillips screwdriver, straight slot
screwdriver, adjustablewrench, step ladder,
and wire cutters.
Mounting Options
If there isn't an existing ULlisted mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the
building structure. Use appropriate
fasteners and buildingmaterials. The outlet
box and its support must be able to fully
support the moving weight of the fan (at
least 50 lbs). Do not use plastic outlet
boxes.
Figures 1,2 and 3 are examples of different
ways to mountthe outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on asteep, sloped ceiling.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4
(available at yourHampton Bay Retailer).
Outlet box
Outlet box
Provide strong
support
Recessed
outlet box
Mounting bracket
opening must be
toward the top
Outlet box
Figure 1 Figure 3
Figure 2
Figure 4
Angled ceiling
maximum
20 angle

Hanging the Fan
REMEMBER to turn off the power. Follow
the steps belowto hang your fan properly:
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning the
cover counter clockwise.(Fig.5)
Step 2. Remove the hanger bracket from the
canopy by loosening the two screws on the
bottom of the hanging bracket
from the screw head and turning the canopy
counter clockwise.(Fig, 5)
Step 3. Pass the 120-volt supply wires
through the center hole in the ceiling hanger
bracket as shownin Fig. 6.
Step 4. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided withyour outlet box.
Step 5.Remove the hanger pin, locking pin
and set screws from the top of the motor
assembly.
Step 6. Route wires exiting from the top of
the fan motor through the collar cover,
canopy cover, canopy and then through the
ball / downrod.(Fig. 7)
Step 7. Align the holes at the bottom of the
downrod with theholes in the collar on top of
a half turn
Step 8. Tighten two set screws on top of the
fan motor firmly (Figure 7)
Step 9. Place the downrod ball into the hanger
bracket socket.
CHANGING THE DOWNROD (OPTIONAL)
NOTE: Your fan comes with a 4" downrod
attached to the hanger ball. In addition you
have been provided with a 6" downrod to use if
desired. If you choose to use the 6" downrod,
perform the followingsteps:
1. Remove the hanger ball from the 4"
downrod by loosening the set screw at the
top of the downrod which holds the hanger
ball to thedownrod.
2. Slide the hanger ball down the downrod and
remove the supportpin.
WARNING
FAILURETO PROPERLY INSTALL LOCKINGPIN
AS NOTED INSTEP 7 COULD RESULT IN FAN
LOOSENING ANDPOSSIBLYFALLING.
the motor housing (Fig.7). Carefully insert the
hanger pin through the holes in the collar and
downrod. Be carefulnot to jam the pin against
the wiring inside the downrod. Insert the
locking pin through the hole near the end of
the hanger pin until it snaps into its locked
position, as notedin the circle inset of Fig. 7.
Mounting
screws
(supplied with
electrical box)
Tab
Ceiling
mounting
plate
UL Listed
electrical
box
Figure 6 120V Wires
Washers
3. Insert the support pin in the holes at the
top of the 6" downrod and slide the
hanger ball up the 6" downrod. Make
sure the support pin is properly seated in
the grooves inthe top of the hanger ball.
4. Tightenthe set screw firmly.
4.
Figure 5
Ceiling
mounting
plate
Ceiling
canopy
Canopy
cover

5.
Make the Electric Connections
WARNING: To avoid possible electrical
shock, be sureelectricity is turned off at the
main fuse boxbefore wiring.
NOTE: This remote control unit is
equipped with 16 code combinations to
prevent possible interference from or to
other remote units. The frequency switches
on your receiver and transmitter have been
preset at the factory. Please recheck to
make sure the switches on transmitter and
receiver are set to the same position, any
combination of settings will operate the fan as
long as the transmitter and receiver are set to
the same position.(Figure8)
Step 1. (Figure 9) Insert the receiver into
the mounting bracket with the flat side of
the receiver facingthe ceiling.
Step 2. (Figure 10) Motor to Receiver
Electrical Connections: Connect the black
wire from the fan to black wire marked "TO
MOTOR L". Connect the white wire from
the fan tothe white wiremarked "TO MOTOR
N" from the receiver. Connect the blue wire
from the fan to the blue wire marked "For
Light" from the receiver. Secure the wire
connections with the plastic wire nuts
provided.
Step 3. (Figure 10) Receiver to House Supply
Wires Electrical Connections: Connect the
black (hot) wire from the ceiling to the black
wire marked "AC in L" from the receiver.
Connect the white(neutral) wire from the
ceiling to the white wire marked "AC in N"
from the Receiver. Secure the wire
connections with the plastic wire nuts
provided.
Step 4. (Figure 10) If your outlet box has a
ground wire (greenor bare copper) connect it
Figure 9
Receiver
Hanger
bracket
ONON
Figure 8
Code switch
Pin in
locked
position
Motor collar
Motor wires
Ball/downrod
assembly
Ceiling
canopy
Tighten
screws
firmly
Figure 7
Hanger pin
Locking pin Collar cover
Canopy
cover
To the fan ground wires; otherwise connect
the hanging bracket ground wire to the
mounting bracket. Secured the wire
connection with a plastic nut provided. After
connecting the wires spread them apart so
that the green and white wires are on one side
of the outlet box and black and blue wires are
on the other side. Carefully tuck the wire
connections up intothe outlet box.

Finishing the
Installation
Step 1. Tuck connections neatly into ceiling
outlet box.
Step 2. Slide the canopy up to ceiling and
over the 2 screws on hanger bracket. Rotate
canopy clockwise. Next, while holding the
canopy with one hand, slide the canopy
cover over the screws and rotate clockwise
until tight. Note: adjust the canopy screws as
necessary until the canopy and canopy cover
are snug. (Fig.11)
6.
Figure 11
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
WHITE
WHITE
BLACK
BLACK
BLACK
BLUE
BLUE
GREEN
Figure 10
WHITE
WHITE
BLUE
BLACK
ONON
Outlet box
Hanger
bracket
Canopy
Canopy
cover
Screws
WARNING
Make sure thenotch on the hanging
bracket properly sitsin the groove in the
hanger ball beforeattaching the canopy
to the bracketby turning the housing
until it dropsinto place.

7.
Rubber
washer
Blade
arm
Figure 12
Blade
Screws
Attaching the Fan
Blades
Step 1 Attach the blades to the blade arms
using three screws and rubber washers as
shown in Figure 12. Start a screw into the arm,
do not tighten. Repeat for the 2 remaining
screws and washers.
Step 2 Tighten each screw securely starting
with the center screw. Make sure the blade is
straight.
Step 3 Fasten the blade arms to the motor by
inserting the tab from the blade arms to the slot
in the bottom motor housing, then tighten the
two screws and washers already installed in the
blade arms (Figure13).
Step 4 Install an optional light kit if you wish.
Follow the instructionsincluded with the kit.
Figure 13
Motor
Blade arm
Slot
Tab

8.
All blades are grouped by weight. Because
natural woods very in density, the fan may
wobble even though the blades are weighed
equally.
The following procedure should correct
most fan wobbling problems. Check after
each step.
1. Check that all blade and blade arm
screws are secure.
2. Most fan wobbling problems are caused
when blade levels are unequal. Check this
level by selecting a point on the ceiling
above the tip of one of the blades. Measure
this distance as shown in Figure 14. Rotate
the fan until the next blade is positioned for
measurement. Repeat for each blade. The
distance should beequal within 1/8".
3. Use the enclosed Blade Balancing Kit if
the blade wobbleis still noticeable.
4. If the blade wobble is still noticeable,
interchanging two adjacent (side by side)
blades can redistribute the weight and
possibly result insmoother operation.
Touching
ceiling
Figure 14
WARNING
TO REDUCE THERISK OF PERSONALINJURY,
DO NOT BENDTHE BLADE HOLDERS
WHILE INSTALLING,BALANCING THE
BLADES, OR CLEANINGTHE FAN. DO NOT
INSERT FOREIGNOBJECTS BETWEEN
ROTATING FANBLADES.

9 . Installing the Light Kit
NOTE: Before startinginstallation, disconnect thepower by
turning off the circuit breaker or removing the fuse at fuse
box.
Turning power off using the fan switch is not sufficient to
prevent electric shock.
1. Attach the light plate to the light plate holder by feeding
the wires (blue and white) out of the fans through the hole
of light plate and then screw it onto the light plate holder
with 3 screws, be sure to slide the light plate to the 2
screws on the light plate holder and rotate the light plate
clockwise until tight.
2. Locate two single white and black wires in the light plate.
Make the polarizedplug connections:
-White to white
-Blue to black
Note: Secure the wires in place by wire holder (see
illustration).
3. Install three 40 watt bulbs(included)
4. Raise glass shade up against bottom of fan housing and
secure with threescrews provided.
5. Restore power andyour light kit is ready foroperation.
6. If the light kit does not work, turn off the electricity and
lower either canopy or decorative housing on your ceiling
fan to make sure the blue wire is connected to the black
household wire.

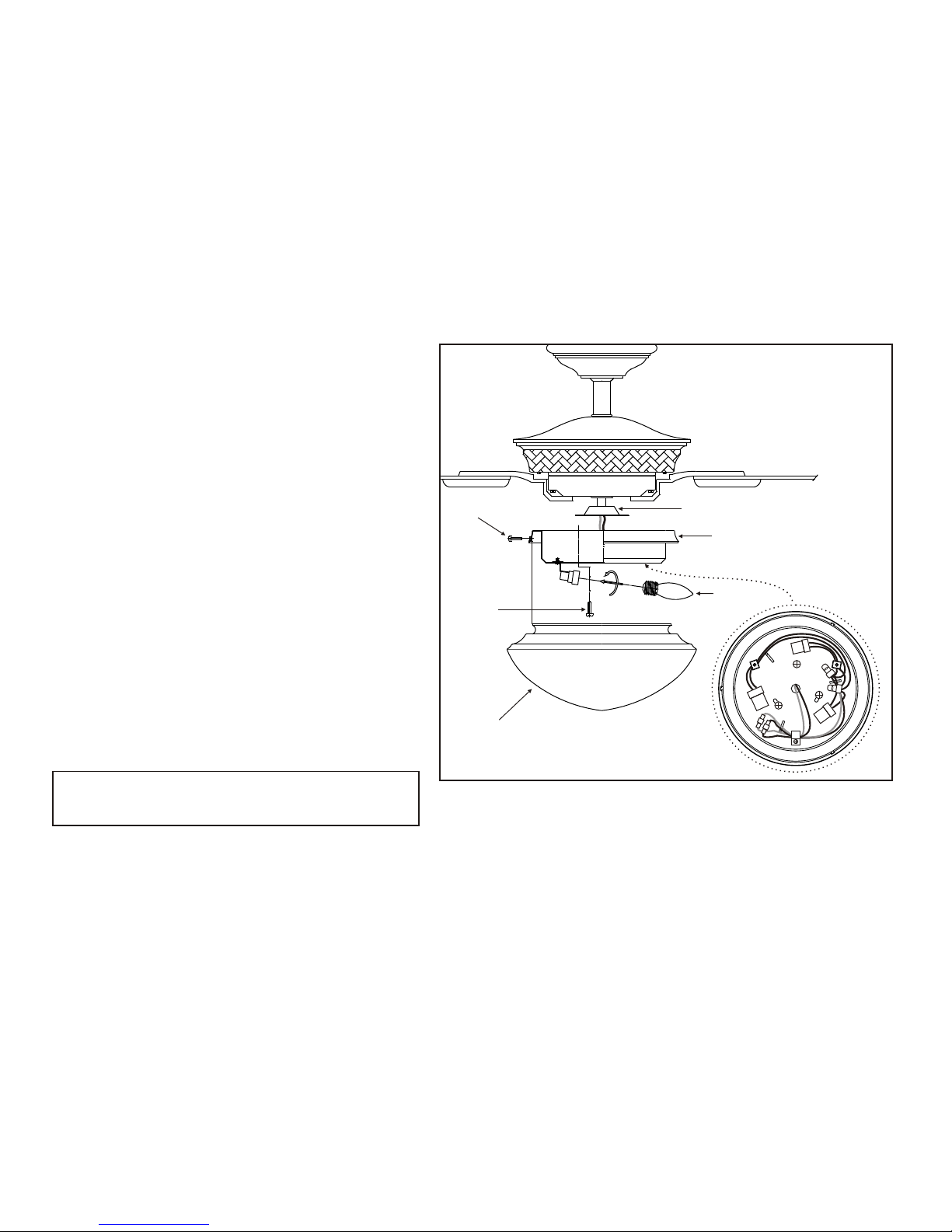

Figure 15
Plate holder
Light plate
Glass shade
Bulbs
Screws
Screws
NOTE: Light bulbs have no warranty, can be purchased
at local light bulb specialty store or from our service
center.

Restore power to ceiling fan and test for
proper operation.
1. "LO, MED, HI" buttons:
These three buttons are used to set the fan
speed as follows:
LO= Low speed MED= Medium speed
HI= High speed
2. "FAN OFF" button:
This button turns the fan off.
3. The "LIGHT/DIMMER" button turns the
light ON or OFF and also controls the
brightness setting. Press and release the
button to turnthe light ONor OFF. Press and
hold the button to set thedesired brightness.
The light key has an auto-resume, it will
stay at the same brightness as the last time it
was turned off.
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, numberof fans, etc.
The Reverse switch is located on top of the
motor assembly. Slide the switch to the Left
for warm weatheroperation. Slide theswitch
to the Rightfor cool weather operation.
NOTE: Wait for fan to stop before changing
the setting ofthe slide switch.

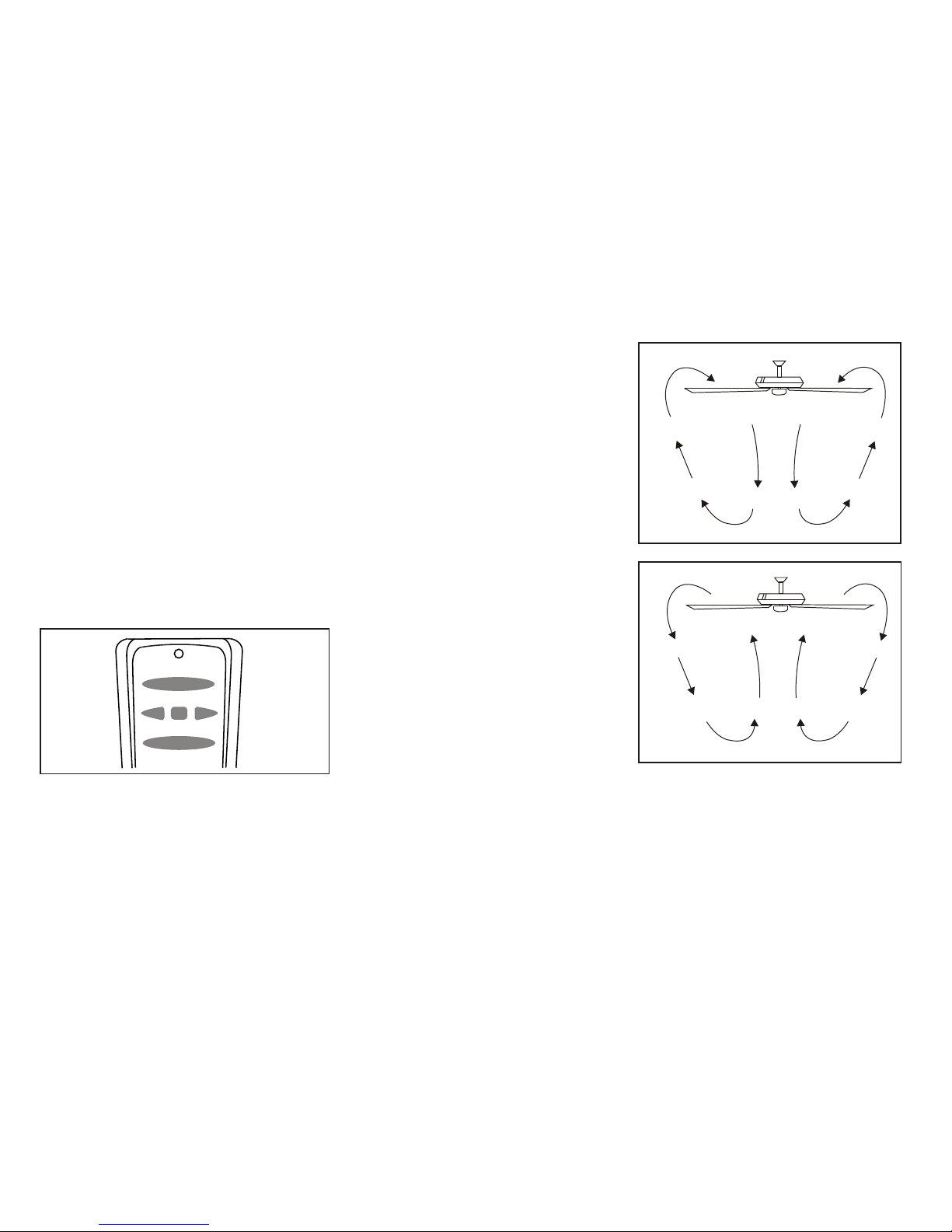

Warm weather - (Forward) A downward
air flow creates a cooling effect as shown in
Figure 17. This allows you to set your air
conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Figure 18. This allows you to set your
heating unit on a lower setting without
affecting your comfort.
Note: Fan must be installed at a maximum
distance of 20 feet from the transmitting unit
for proper signal transmission between the
transmitting unit andthe fan's receiving unit.
Operating Your Transmitter 10.
Figure17
Figure18
Figure16
LIGHT / DIMMER
LO MED HI
FAN OFF

Here are some suggestions to help you
maintain your fan
1.Because of the fan's natural
movement, some connections may
become loose. Check the support
connections, brackets, and blade
attachments twice a year. Make sure
they are secure. (It is not necessary
to remove fan from ceiling.)
2. Clean your fan periodically to help
maintain its new appearance over the
years. Use only a soft brush or lint-
free cloth to avoid scratching the
finish. The plating is sealed with a
lacquer to minimize discoloration or
tarnishing. Do not use water when
cleaning. This could damage the
motor, or the wood, or possibly cause
an electrical shock.
3. You can apply a light coat of
furniture polish to the wood blades for
additional protection and enhanced
beauty. Cover small scratches with a
light application ofshoe polish.
4. There is no need to oil your fan.
The motor has permanently lubricated
bearings.
IMPORTANT
MAKE SURE THEPOWER IS OFF AT THE
ELECTRICAL PANEL BOX BEFOREYOU
ATTEMPTANY REPAIRS. REFER TOTHE
SECTION "MAKING ELECTRICAL
CONNECTIONS"
11. Care of Your Fan
Installing the battery:
Install 9 volt battery (not included), to
prevent damage to transmitter, remove the
battery if notused for long periods.
9Volt
Battery
Figure19

Troubleshooting 12.
Problem
Fan will notstart.
Fan sounds noisy.
Remote control
malfunction:
Solution
1.Check circuit fusesor breakers.
2. Check linewire connections to the fan and switch wire connectionsin the switchhousing.
CAUTION: Make suremain power isoff.
3. Check tomake sure the dip switches from the transmitter andreceiver are setto the same frequency.
1. Make sureall motor housing screws are snug.
2. Make surethe screws that attach the fan blade bracket tothe motor hubis tight.
3. Make surewire nut connections are not rubbing against each otheror the interiorwall of the switch housing.
CAUTION: Make suremain power isoff.
4. Allowa 24-hour "breaking-in" period. Most noiseassociated with a new fan disappearduring this time.
5. If usingan optional light kit, make sure the screws securingthe glassware aretight. Check that light bulb
is also secure.
6.
7. Make surethe upper canopy is a short distance from theceiling. It should nottouch the ceiling.
the
Do not connectthe fan with a wall mountedvariable speed control (s)
1. Do notconnect the fan with a wall mounted variable speed control (s)
2. Make surethe dip switches are set correctly.

13. Specifications
These are approximate measures. They do not include Amps and Wattage used by the light kit.
RPM CFM N.W. G.W.
C.F.
52"
120 0.32
0.52
0.59
11
36
68
60
117
165
1200
3850
6500
120
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
2.54'11.40
kgs
12.90
kgs
Distributed by
Your Other Warehouse, LLC
12100 Little Cayman Dr.
Baton Rouge, LA 70809
2005 Homer TLC, Inc. All Rights Reserved
Hampton Bay is a registered trademark of Homer TLC, Inc.
C
