HAMPTON BAY PALM BEACH III 51499 User manual

Item # xxx-xxx, xxx-xxx
Model # 51499, 51469
UL Model # 48-PBH
USE AND CARE GUIDE
PALM BEACH III 48-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

2
Table of Contents ................................................................2
Safety Information...............................................................2
Warranty ............................................................................... 3
Pre-Installation ....................................................................3
Installation............................................................................6
Assembly..............................................................................7
Operation ...........................................................................12
Care and Cleaning.............................................................13
Troubleshooting.................................................................13
1. To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70-1999 and local electrical codes. Electrical
installation should be performed by a qualified licensed
electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting 35 lbs. (15.9 kg). Use only
UL Listed outlet boxes marked “Acceptable for Fan Support of
35 lbs. (15.9 kg) or less.”
4. The fan must be mounted with a minimum of 7 ft (2 m) clearance
from the trailing edge of the blades to the oor.
5. Do not operate the reversing switch while the fan blades are
in motion. You must turn the fan off and stop the blades before
you reverse the blade direction.
6. Do not place objects in the path of the blades.
7. To avoid personal injury or damage to the fan and other items,
use caution when working around or cleaning the fan.
8. This product is suitable for use in wet locations when installed
in a GFCI protected branch circuit.
9. All setscrews must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury, do
not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do not
insert objects in the path of the blades.
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“acceptable for fan support of 35 lbs. (15.9 Kg) or
less” and use screws provided with the outlet box.
WARNING: Remove the rubber motor stops on the
bottom of the fan before installing the blades or
testing the motor.
WARNING: To reduce the risk of re or electric shock,
do not use this fan with any solid-state speed control
device.
WARNING: To avoid possible electrical shock, turn
the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Electrical diagrams are for reference only.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury, use
only the screws provided with the outlet box.

3HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Pre-Installation
Warranty
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a life-
time after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades,
to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase
by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the
product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling
the product are your responsibility. Damage to any part such as by accident or misuse or improper installation or by afxing any accessories, is
not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish, including rusting,
pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying weather conditions.
A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the
warranty invalid. There is no other express warranty. Hampton Bay hereby disclaims any and all warranties, including but not limited to those
of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be
disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a limitation on how long an implied war-
ranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising
out of or in connection with product use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of
incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you
may also have other rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product
as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HamptonBay.com.
SPECIFICATIONS
TOOLS REQUIRED
Size Speed Volts Amps Watts RPM CFM Net
Weight
Gross
Weight Cube Feet
48 in.
Low
Medium
High
120
0.25
0.38
0.54
13
29
63
75
120
175
2360
3360
4921
22 lb
(10 kg)
24.2 lb
(11 kg) 2.05 cu. ft.
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.

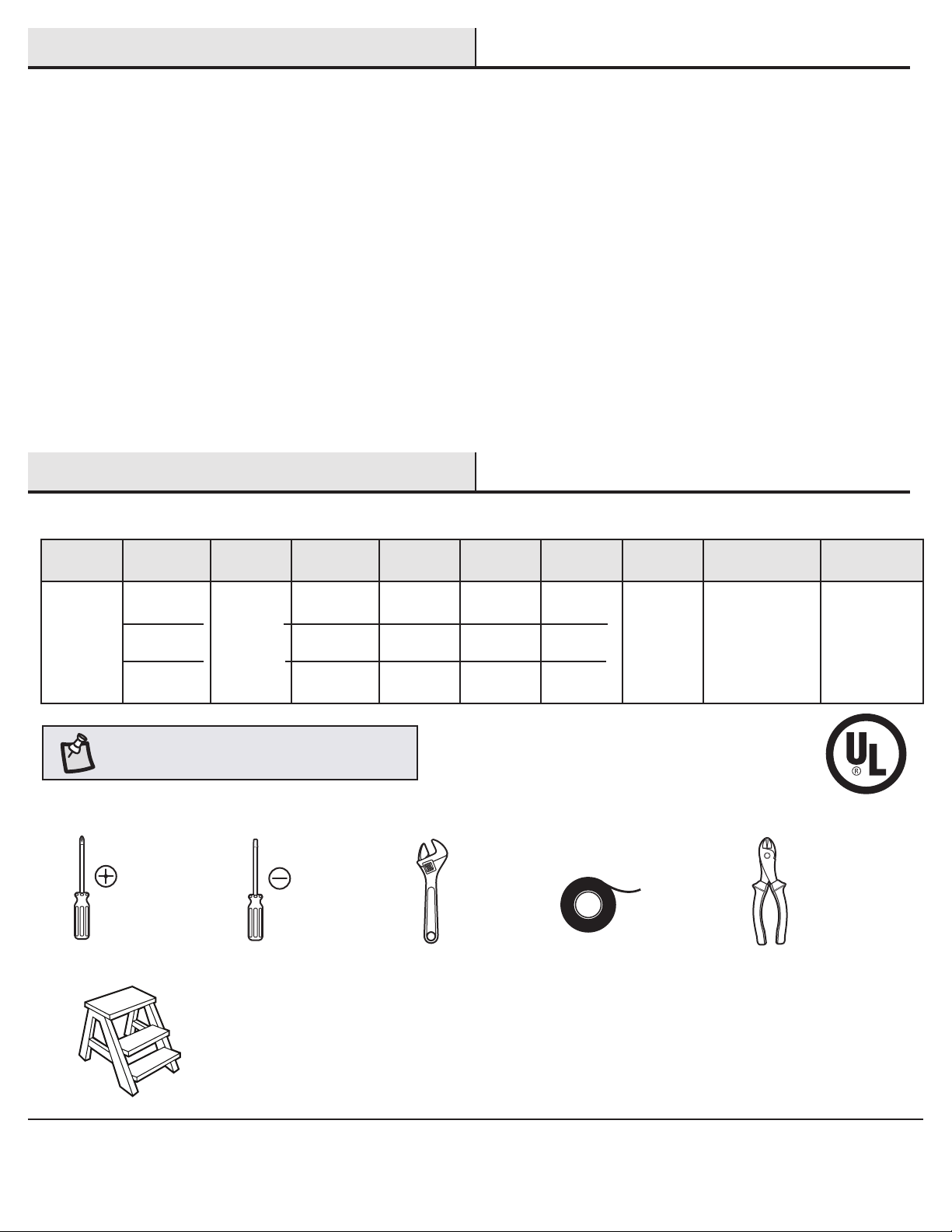

Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter
Step ladder

4
Part Description Quantity
AA Wire connecting nuts 3
BB Hanger pin 1
CC Locking pin 1
DD Rubber gasket for close-to-ceiling
mounting
1
Part Description Quantity
EE Extra blade bracket attachment
hardware
1
FF Pull chain 2
GG Plastic cap to be used for a fan with-
out a light kit
1
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA BB CC
DD EE FF GG

5HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Part Description Quantity
A Slide-on mounting bracket
(inside canopy)
1
B Ball/downrod assembly 1
C Canopy with canopy ring attached 1
D Fan-motor assembly 1
Part Description Quantity
E Light kit tter assembly 1
F Decorative motor collar cover 1
G Blade bracket (ange), screws
pre-installed
5
H Blade 5
I Glass bowl 1
J CFL Light bulbs, 14-W Maximum 2
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)
PACKAGE CONTENTS
A
B
C
D
E
F
G
H
I
J

6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock or
personal injury, mount to outlet box marked “acceptable
for fan support of 35 lbs. (15.9 kg) or less” and use
screws provided with the outlet box. An outlet box
commonly used for the support of lighting xtures may
not be acceptable for fan support and may need to be
replaced. If in doubt, consult a qualied electrician.
If your ceiling fan does not have an existing UL-Listed
mounting box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure.
Use the appropriate fasteners and materials. The outlet box
and its bracing must be able to fully support the weight
of the moving fan (at least 35 lbs. (15.9 kg)). Do not use a
plastic outlet box.

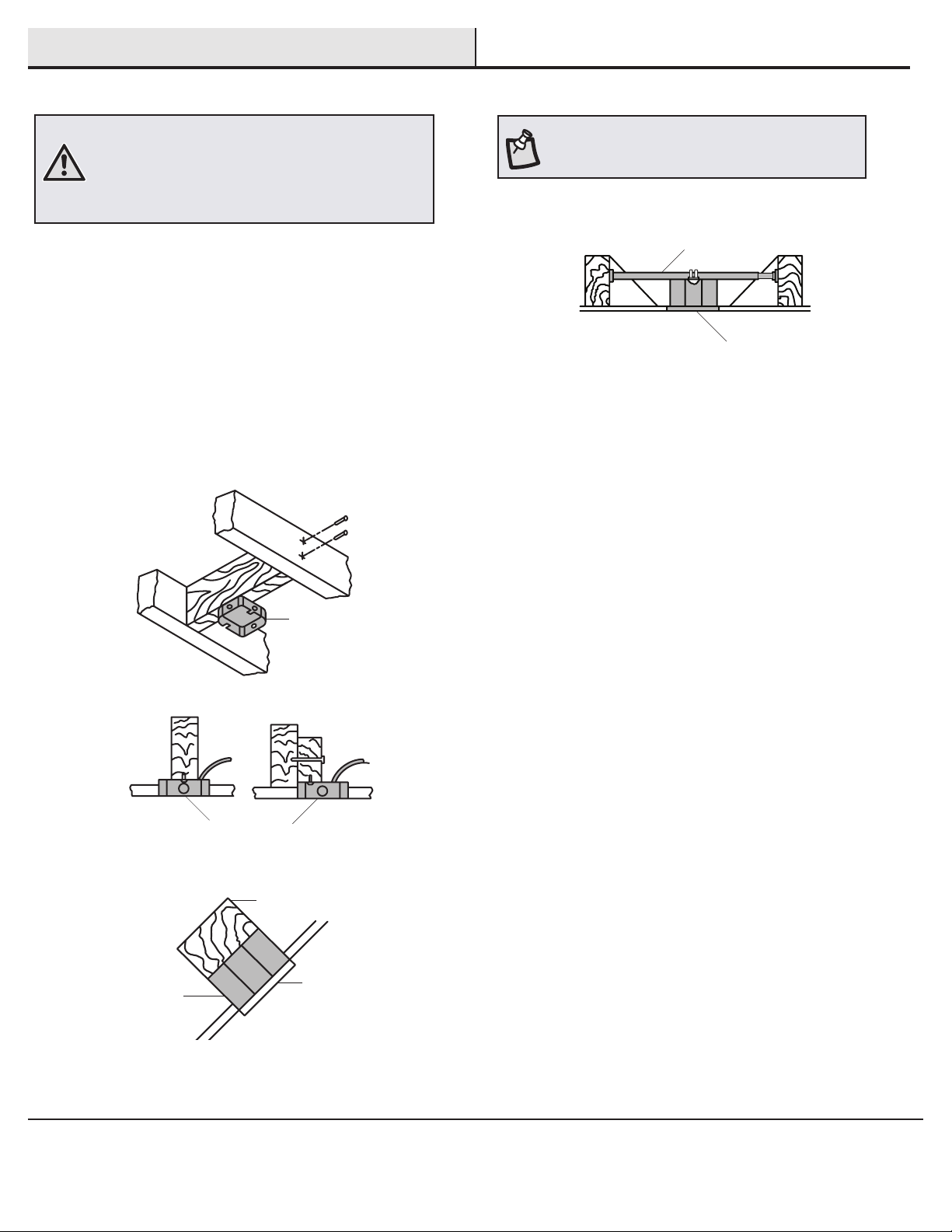

The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the downrod, then remove the decorative canopy
bottom cover and turn the canopy 180° before attaching the canopy to
the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 30° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar

7HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly - Standard Ceiling Mount
Routing the wires
Assembling the fan

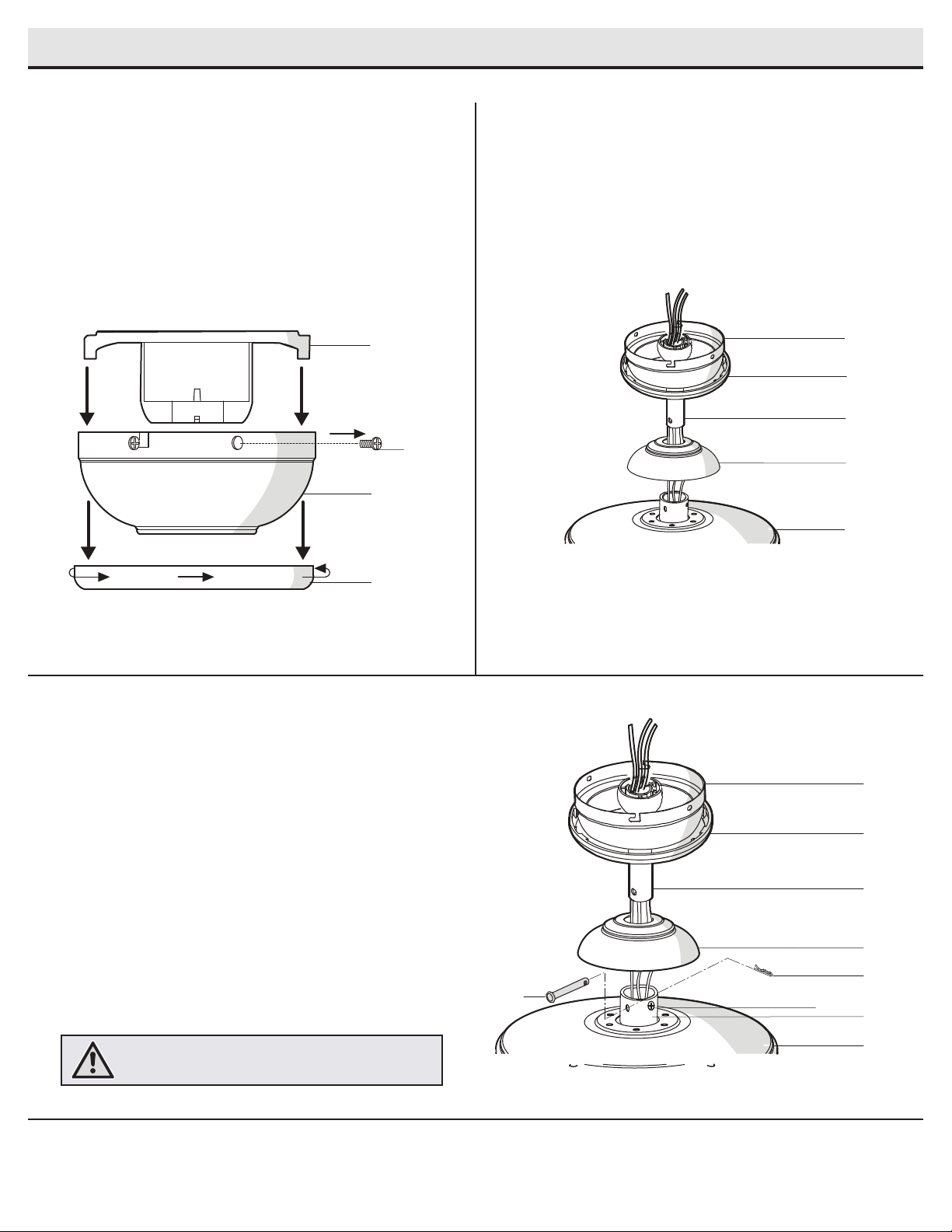

Preparing for mounting
□Loosen, but do not remove, the setscrew (QQ) on the collar
(M) on top of the fan-motor housing (D).
□Align the holes at the bottom of the downrod (B) with the
holes in the collar (M) on top of the fan-motor housing (D).
□Carefully insert the hanger pin (BB) through the holes in the
collar (M) and downrod (B). Be careful not to jam the hanger
pin (BB) against the wiring inside the downrod (B).
□Insert the locking pin (CC) through the hole near the end of
the hanger pin (BB) until it snaps into its locked position.
□Re-tighten the setscrews on the collar (M) on top of the
fan-motor housing (D).
□Remove the canopy ring (L) from the canopy (C) by turning
the ring to the right until it unlocks.
□Remove the slide-on mounting plate (A) from the canopy by
loosening the four screws on the top of the canopy (C).
□Remove the two non-slotted screws (SS) and loosen the
slotted screws. This will enable you to remove the slide-on
mounting bracket (A).

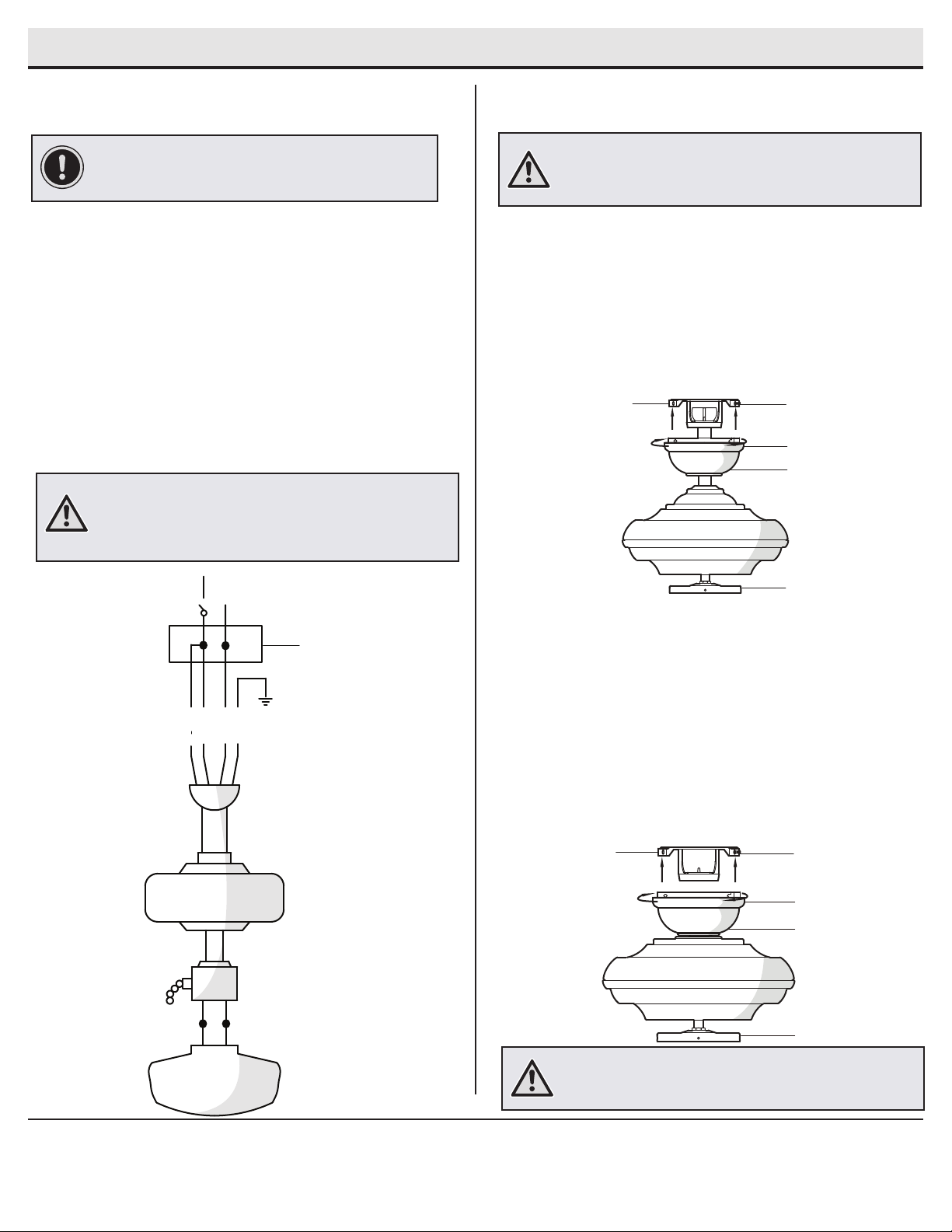

□Route the wires exiting the top of the fan-motor
housing (D) into the decorative motor collar cover (F)
and through the canopy ring (L).
□Make sure the slot openings are on top and route the
wires through the canopy (C) and then through the ball/
downrod assembly (B).
2
3
1
C
A
L
SS
C
B
F
D
L
C
B
F
D
L
BB
CC
M
QQ
WARNING: Failure to properly install the locking pin could
result in the fan becoming loose and possibly falling.

8
Assembly - Hanging the Fan
Attaching the fan to the electrical
box Hanging the fan
□Pass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
□Install the ceiling mounting plate on the outlet box by sliding the
mounting bracket (A) over the two screws (JJ) provided with the
outlet box. If necessary, use leveling washers (not included) be-
tween the mounting bracket (A) and the outlet box. Note that the
at side of the mounting bracket (A) is toward the outlet box.
□Securely tighten the two mounting screws (JJ).
□Carefully lift the fan-motor assembly (D) up to the mounting
bracket (A).
□Seat the hanger ball portion of the ball/downrod assembly (B)
in the slide-on mounting bracket (A) socket. Ensure that the
tab on the slide-on mounting bracket (A) socket is properly
seated in the groove in the hanger ball. If using close-to-
ceiling mounting, hang the fan on the hook provided by
utilizing one of the holes at the outer rim of the ceiling canopy
(C).
1 2
WARNING: To reduce the risk of re, electric shock or
personal injury, mount to outlet box marked “acceptable
for fan support of 35 lbs. (15.9 kg) or less” and use screws
provided with the outlet box.
A
JJ
JJ
A
B
D
D
A
C
C

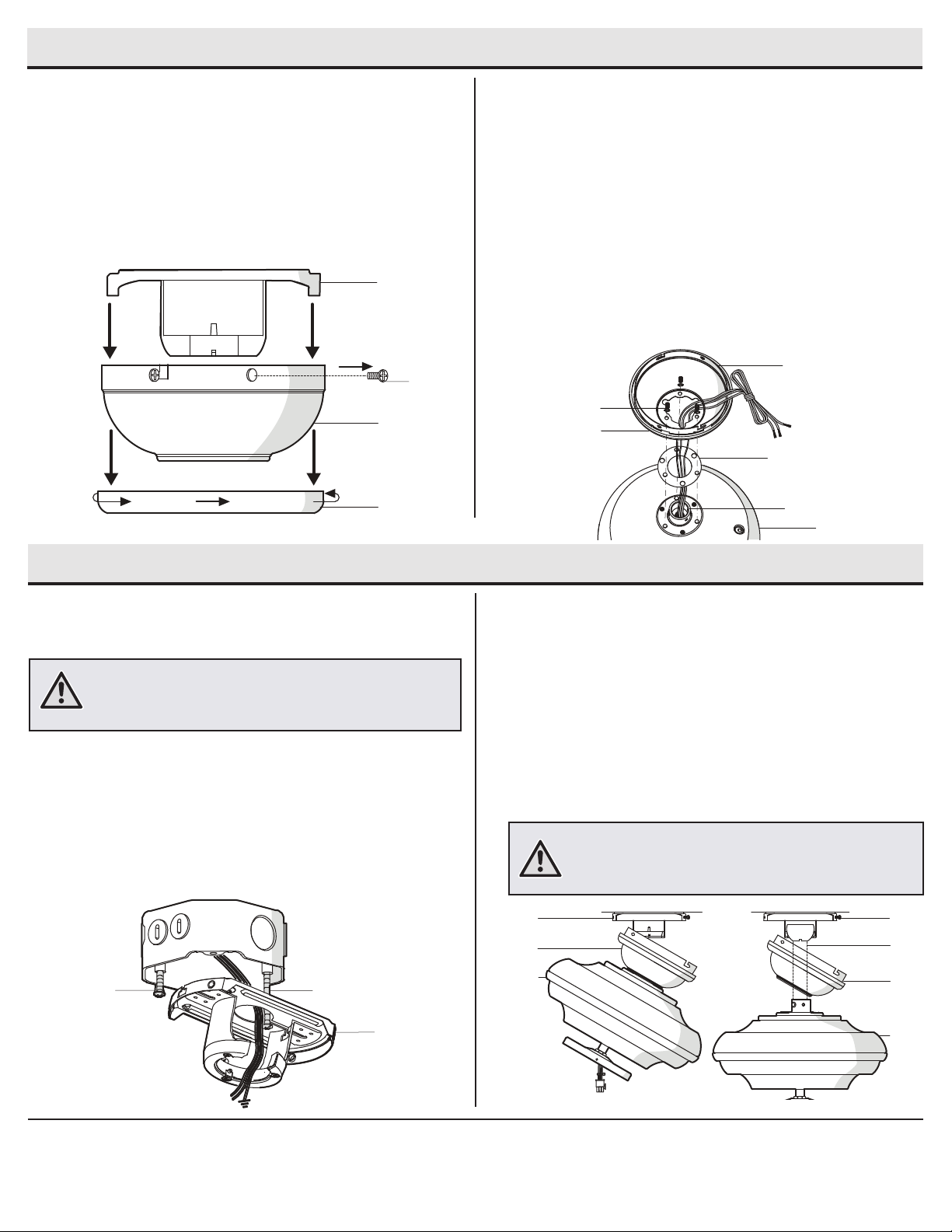

Assembly - Close-to-Ceiling Mount
□Remove three of the six screws and lock washers (II) (every
other one) securing the motor collar (M) to the top of the fan-
motor housing (D).
□Place the rubber gasket (DD) over the remaining three
screws, route the wires exiting the top of the fan-motor hous-
ing through the canopy ring (L) (make sure the slot opening
are on top), then proceed to place the ceiling canopy (C) over
the collar at the top of the fan-motor housing (D).
□Align the mounting holes with the holes in the fan-motor
housing (D) and fasten, using the three screws and lock-
washers (II) removed previously. Tighten the mounting screws
securely.
C
DD
D
II
L
M
Routing the wiresPreparing for mounting 21□Remove the canopy ring (L) from the canopy (C) by turning the
ring to the right until it unlocks.
□Remove the slide-on mounting plate (A) from the canopy by
loosening the four screws on the top of the canopy (C).
□Remove the two non-slotted screws (SS) and loosen the
slotted screws. This will enable you to remove the slide-on
mounting bracket (A).
C
A
L
SS
WARNING: The hook as shown is only to balance the fan while
attaching wiring. Failure to hang as shown may result in hook
breaking, causing the fan to fall. The hook must pass from
inside to the outside of the canopy.

9HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly - Hanging the Fan (continued)
Making the electrical connection Mounting the fan
□Connect the two green fan wires (KK) to the household wire
(KK) using a wire connecting nut (AA).
□If you are using the optional light kit, connect the blue fan
wire (LL) and the black fan wire (MM) to the black household
wire (MM) using a wire connecting nut (AA).
□Connect the white fan wire (NN) to the white household wire
(NN) using a wire connecting nut (AA).
□Spread the wires apart so that the green (KK) and white (NN)
wires are on one side of the outlet box (OO) and the black wire
(MM) is on the other side.
□Turn the wire connecting nuts upward and push the wiring
into the outlet box (OO).
□Align the locking slots of the ceiling canopy (C) with the two
screws in the mounting bracket (A). Push up to engage the
slots and turn clockwise to lock in place.
□Firmly tighten the two mounting screws (SS).
□Install the remaining two mounting screws (SS) into the holes
in the canopy (C) and tighten rmly.
□Install the decorative canopy ring (L) by aligning the ring’s
slots with the screws in the canopy (C). Rotate the ring
counter-clockwise to lock in place.
3 4
IMPORTANT: Use the wire connecting nuts (AA) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
WARNING: Each wire nut supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
WARNING: When using the standard ball/downrod mounting, the
tab in the ring at the bottom of the slide-on mounting bracket
must rest in the groove of the hanger ball. Failure to properly
seat the tab in the groove could cause damage to the wiring.
LL
MM
NN
KK
NN
MM
LL
MM NN
NN
OO
D
SS
L
C
A
Close-to-Ceiling Mounting
□Carefully unhook the fan from the slide-on mounting bracket
(A) and align the locking slots of the ceiling canopy (C) with
the two screws (SS) in the slide-on mounting bracket (A). Push
up to engage the slots and turn clockwise to lock in place.
Immediately tighten the two mounting screws (SS) rmly.
□Install the remaining two mounting screws (SS) into the holes
in the canopy (C) and tighten rmly.
□Install the decorative canopy ring (L) by aligning the ring’s
slots with the screws in the canopy (C). Rotate the ring
counter-clockwise to lock in place.
□You may now proceed to attaching the fan blades.
WARNING: The locking slots of ceiling canopy are provided only
as an aid to mounting. Do not leave the fan assembly unattended
until all four canopy screws are engaged and rmly tightened.
D
SS
L
C
A

10
Assembly - Attaching the Fan Blades
Attaching the blades to the blade
brackets
Fastening the blade brackets to
the motor
1 2
□Fasten the blade bracket to the fan-motor housing (D) by
inserting the alignment post into the slot on the bottom of the
motor and tightening the blade bracket screws (TT). The blade
bracket screws (TT) are pre-installed into the blade bracket (G).
□Repeat this step for the remaining blade brackets.
D
G
H
D
G
TT
IMPORTANT: Remove the rubber stopper on the black bracket
below the motor in order to attach the blade assembly to
the motor. Replace the rubber stopper to prevent water from
entering the switch housing and to reduce the risk of re,
electric shock, or other personal injury.
NOTE: Your fan features revolutionary advancements for quick
and easy blade installation.
□Mount the fan blade (H) to the blade bracket (G) by align-
ing the three key-slot holes in the blade (H) with the three
posts on the top of the blade bracket (G).
□Hold the blade (H) with both hands close to the blade
bracket (G) and press the blade (H) down rmly. Ensure
the key-slot holes are properly seated on the blade
bracket (G) posts.
□While still holding the blade (H) down with both hands,
rmly slide the blade (H) away from the fan-motor (D)
housing until the blade (H) engages in the locking mecha-
nism. Make sure the locking mechanism at the rear of the
blade bracket (G) springs upward and butts against the
edge of the blade (H), indicating a secure connection.
□Visually inspect the top of the blade bracket (G) to ensure
the locking mechanism is securely in place.
□Repeat this procedure for the remaining blades (H).

11 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

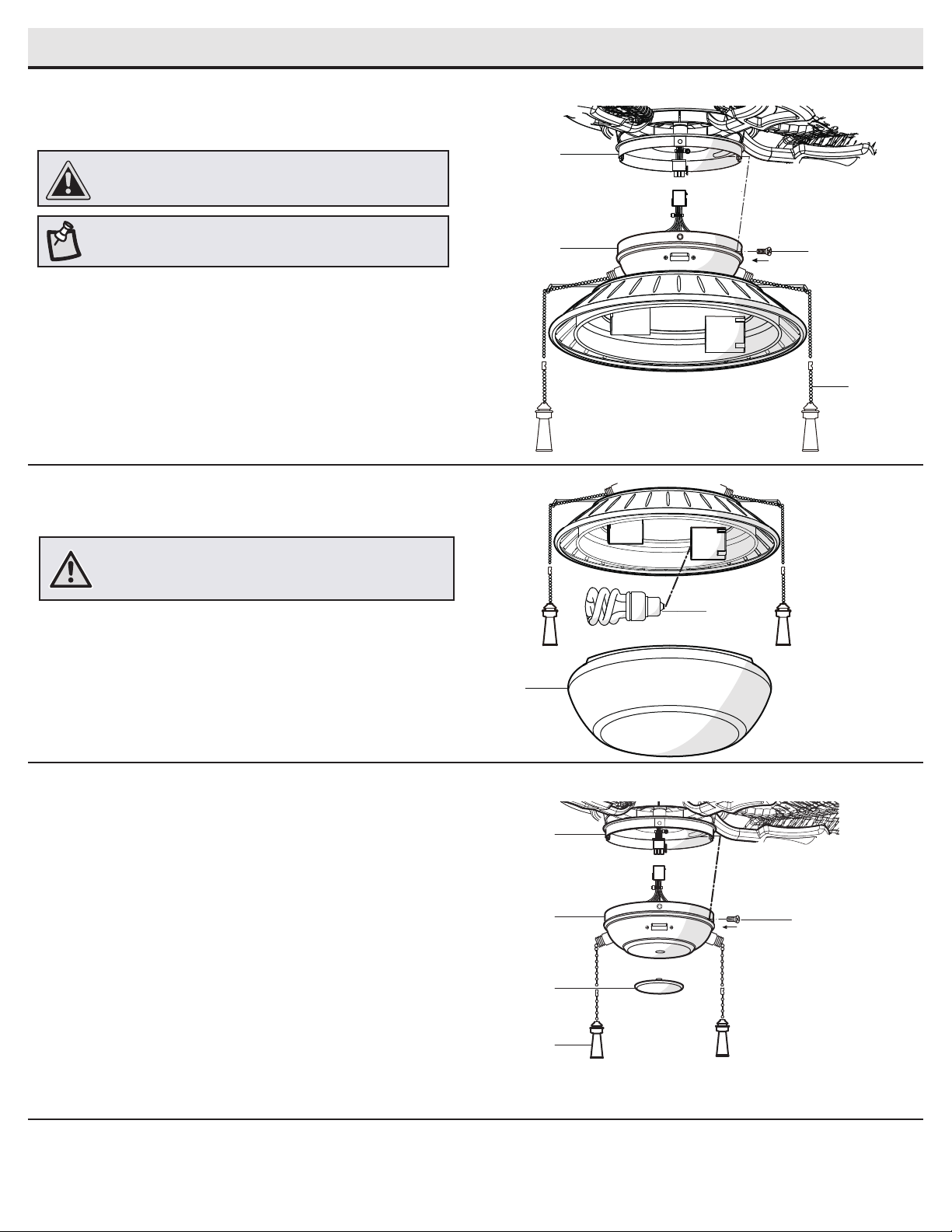

Assembly - Attaching the Light Kit Fitter Assembly
Attaching the light kit tter assembly
1
□Remove the four light kit mounting screws (RR) on the
black bracket of the fan-motor assembly (D).
□Connect the wires exiting the bottom of the black bracket
with the light kit tter assembly by connecting the
molded adaptor connectors together.
□Secure the light kit tter assembly (E) to the black bracket
using the four screws that were removed in the rst step
above.
□Attach the pull chain extensions (FF) to the fan pull chains.
CAUTION: To reduce the risk of electric shock, disconnect
the electrical supply circuit to the fan before installing the
light xture.
D
E
FF
RR
NOTE: This light kit cannot be transferred to another fan.
Attaching the bulbs and glass
bowl
2
□With power off, install the two CFL light bulbs, (14-Watt
maximum included) (J) by screwing into the light bulb
sockets.
□Place the glass bowl (I) into the light kit assembly, align-
ing the three at areas on the top ange of the glass bowl
(I) with the three raised dimples in the light kit assembly.
Turn the glass bowl (I) clockwise until it stops.
J
I
WARNING: Do not overtighten when installing the glass shade
into the light kit assembly. Allow the glass shade to cool
completely before removing.
Assembly without the light kit
3
□Remove the four light kit mounting screws (RR) on the
black bracket below the fan-motor assembly (D).
□In order to use the fan without the light kit, remove the
switch cup (N) from the top of the light kit tter assembly
(E) by removing the center hex nut and washer inside
the switch cup, and then thread the switch cup off of the
threaded nipple on the top of the light kit tter assembly
(E).
□Press the plastic cap (GG) (provided) into the center hole of
the switch cup (N).
□Position the switch cup (N) onto the black bracket and
reinstall the light kit mounting screws (RR).
□Attach the pull chain extensions (FF) to the fan pull chains.
D
N
FF
GG
RR

12
Operating Your Fan
The pull chain controls the fan speed as follows:
1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off
Speed settings for warm or cool weather depend on factors such as
room size, ceiling height, number of fans, and so on.
The slide switch controls the direction: forward (switch left) or reverse
(switch right).
Warm weather - (Forward) A downward airow creates a cooling effect.
This allows you to set your air conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.
NOTE: Wait for the fan to stop before reversing the direction of blade
rotation.

13 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Troubleshooting
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the Ceiling Fan light kit, ensure the twist-lock glass is tightly secured.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the
ceiling above the tip of one of the blades. Measure from a point on the center of each blade to the point on the
ceiling. Measure this distance. Rotate the fan until the next blade is positioned for measurement. Repeat for each
blade. Any measurement deviation should be within 1/8 in. Run the fan for ten minutes. If the fan continues to
wobble please contact Customer Service and a balancing kit will be sent to you at no charge.
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish. The
plating is sealed with a lacquer to minimize discoloration or tarnishing.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning

Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.

Artículo núm. xxx-xxx, xxx-xxx
Modelo núm. 51499, 51469
Modelo aprobado por UL núm. 48-PBH
GUÍA DE USO Y MANTENIMIENTO
VENTILADOR DE TECHO PALM BEACH III, DE 1.22 M
¿Preguntas, problemas o piezas faltantes? Antes de regresar a la tienda,
llama al servicio al cliente de Hampton Bay
de lunes a viernes, de 8:00 a.m. a 6:00 p.m. (hora estándar del Este)
1-855-HD-HAMPTON
HAMPTONBAY.COM
GRACIAS POR TU COMPRA
Apreciamos la conanza que has depositado en Hampton Bay al comprar este ventilador de techo. Nos esforzamos para continuamente crear
productos de calidad diseñados para mejorar tu hogar. Visítanos por Internet para ver nuestra línea completa de productos disponibles para las
necesidades de mejoras de tu hogar. ¡Gracias por elegir Hampton Bay!

2
Tabla de contenido ..............................................................2
Información de seguridad...................................................2
Garantía................................................................................ 3
Preinstalación ......................................................................3
Instalación............................................................................6
Ensamblaje........................................................................... 7
Funcionamiento................................................................. 12
Mantenimiento y limpieza.................................................13
Solución de problemas ..................................................... 13
1. Para disminuir el riesgo de descarga eléctrica, asegúrate de
cortar la electricidad del cortacircuitos o la caja de fusibles
antes de comenzar.
2. Todo el cableado debe cumplir con el Código Nacional de
Electricidad ANSI/NFPA 70-1999 y con los códigos locales de
electricidad. La instalación eléctrica debe ser hecha por un
electricista certificado y calificado.
3. La caja eléctrica y estructura de soporte deben montarse de
forma segura y tener capacidad para sostener de manera
conable un mínimo de 35 lb (15.9 kg). Usa solamente cajas
eléctricas aprobadas por UL marcadas como “apropiada para
sostener ventiladores de 35 lb (15.9 kg) o menos.”
4. El ventilador debe ir montado con un mínimo de 7 pies (2 m) de
separación entre el borde trasero de las aspas y el piso.
5. No muevas el interruptor de reversa mientras las aspas del
ventilador estén en movimiento. Debes apagar y detener las
aspas antes de dar reversa a la dirección de las aspas.
6. No coloques objetos en la trayectoria de las aspas.
7. Para evitar lesiones físicas o daños al ventilador y otros
artículos, ten cuidado al limpiar el ventilador o al trabajar cerca
de él.
8. Este producto es adecuado para uso en lugares húmedos si
se instala en un circuito derivado protegido por un interruptor
diferencial (GFCI, en inglés).
9. Todos los tornillos de fijación deben ser verificados y
ajustados donde sea necesario, antes de la instalación.
ADVERTENCIA: Para reducir el riesgo de lesiones
personales, no dobles los soportes de las aspas
(también llamados “bridas”) durante o después de
la instalación. No coloques objetos en la trayectoria
de las aspas.
ADVERTENCIA: Para reducir el riesgo de incendio,
descarga eléctrica u otras lesiones, instala sólo en
una caja eléctrica clasicada como “apropiada para
sostener ventiladores de 35 lb (15.9 kg) o menos” y
usa sólo los tornillos incluidos con la caja eléctrica.
ADVERTENCIA: Quita los tapones de goma del motor
en la parte inferior del ventilador antes de instalar
las aspas o de vericar el motor.
ADVERTENCIA: Para reducir el riesgo de incendio
o descarga eléctrica, no utilices este ventilador
con ningún dispositivo de control de velocidad de
estado sólido.
ADVERTENCIA: Para evitar una posible descarga
eléctrica, desconecta la electricidad de la caja de
fusibles principal antes de realizar el cableado.
Si crees que no tienes suciente conocimiento o
experiencia sobre cableado eléctrico, contacta a un
electricista certicado.
ADVERTENCIA: Los diagramas eléctricos son sólo
para referencia.
Información de seguridad
Tabla de contenido
PRECAUCIÓN: Para reducir el riesgo de lesiones, usa
sólo los tornillos incluidos con la caja eléctrica.

3HAMPTONBAY.COM
Para obtener asistencia, llama al 1-855-HD-HAMPTON.
Preinstalación
Garantía
El proveedor garantiza de por vida, a partir de la fecha en que el comprador original lo adquiere, que el motor del ventilador no presenta defectos de
fabricación ni de materiales al momento en que es enviado desde la fábrica. El proveedor también garantiza por un período de un año, a partir de
la fecha de compra por el comprador original, que todas las demás piezas del ventilador, sin incluir ningún aspa de vidrio o acrílico, no presentarán
ningún defecto de fabricación o de material en el momento de su salida de la fábrica. Acordamos reparar todos los defectos del tipo antes
mencionado, sin costo alguno o, a nuestra discreción, reemplazar el producto por un modelo de igual calidad o superior si el producto es devuelto.
Para obtener servicio de garantía, debe presentar una copia del recibo como comprobante de compra. Todos los costos de retiro y reinstalación del
producto son su responsabilidad. No están cubiertos bajo esta garantía daños a cualquiera de las piezas como resultado de accidentes, instalación
o uso incorrecto o debidos a la instalación de cualquier accesorio. Debido a que las condiciones climáticas pueden variar, esta garantía no cubre
ningún cambio en el acabado en bronce, incluyendo óxido, perforación, corrosión, manchas o descascaramiento. Los acabados en bronce de este
tipo tienen una vida útil más prolongada cuando se les protege de las condiciones climáticas cambiantes. Es normal cierta “oscilación” y no se
considerará un defecto. Cualquier servicio realizado por personal no autorizado invalidará la garantía. No existe ninguna otra garantía expresa.
Mediante la presente, Hampton Bay se exime de cualquier garantía, incluyendo pero sin limitarse a aquellas de comercialización e idoneidad para un
n particular, de acuerdo a lo contemplado por la ley. La duración de cualquier garantía implícita que no se pueda eximir está limitada al período de
tiempo especicado en la garantía explícita. Algunos estados no permiten una limitación en la duración de la garantía, por consiguiente la limitación
anterior puede no aplicarse a su caso. El minorista no será responsable por daños directos, indirectos o especiales que resulten o deriven del uso
o rendimiento del producto excepto en casos en que lo estipule la ley. Algunos estados no permiten la exclusión o limitación de daños directos
o indirectos, por lo que la limitación o exclusión anterior podría no aplicarse a su caso. Esta garantía le otorga derechos legales especícos, y es
posible que también tenga otros derechos que varían de un estado a otro. Esta garantía sustituye todas las garantías anteriores. Los costos de envío
de cualquier devolución de productos hecha como parte de una reclamación de garantía están a cargo del cliente.
Comuníquese con el equipo de servicio al cliente al 1-855-HD-HAMPTON o visite www.HamptonBay.com.
ESPECIFICACIONES
HERRAMIENTAS NECESARIAS
Tamaño Velocidad Voltios Amperios Watts RPM CFM Peso
neto
Peso
bruto
Pies
cúbicos
1.22 m
Baja
Media
Alta
120
0.25
0.38
0.54
13
29
63
75
120
175
2360
3360
4921
22 lb
(10 kg)
24.2 lb
(11 kg) 2.05 pies³
NOTA: Estas medidas son aproximadas. No incluyen ni
el amperaje ni el vataje consumido por el kit de luces.
Destornillador
Phillips
Destornillador
plano
Llave
ajustable
Cinta de
electricista Cortacables
Escalera de tijera

4
Pieza Descripción Cantidad
AA Tuercas de conexión de cables 3
BB Pasador de soporte 1
CC Pasador de cierre 1
DD Junta de goma para montaje cerca del
techo
1
Pieza Descripción Cantidad
EE Herrajes adicionales para montaje de
aspas
1
FF Interruptor de cadena 2
GG Tapa de plástico para utilizar con el
ventilador sin kit de luces
1
Preinstalación (continuación)
HERRAJES INCLUIDOS
NOTA: No se muestra el tamaño real de los
herrajes.
AA BB CC
DD EE FF GG

5HAMPTONBAY.COM
Para obtener asistencia, llama al 1-855-HD-HAMPTON.
Pieza Descripción Cantidad
A Soporte de montaje deslizante
(dentro de la cubierta)
1
B Ensamblaje de tubo bajante/bola 1
C Cubierta con anillo de cubierta acop-
lado
1
D Ensamblaje del motor del ventilador 1
Pieza Descripción Cantidad
E Ensamblaje del soporte del kit de
luces
1
F Cubierta decorativa del collarín del
motor
1
G Soporte del aspa (brida),
tornillos preinstalados
5
H Aspa 5
I Pantalla de vidrio 1
J Bombillas CFL, máximo de 14 W 2
IMPORTANTE: Este producto y/o sus componentes están
protegidos por una o más de las siguientes patentes de
los EE. UU.: 5,947,436; 5,988,580; 6,010,110; 6,046,416,
6,210,117 y otras patentes pendientes.
Preinstalación (continuación)
CONTENIDO DEL PAQUETE
A
B
C
D
E
F
G
H
I
J

6
Instalación
OPCIONES DE MONTAJE
ADVERTENCIA: Para reducir el riesgo de incendio, descarga
eléctrica u otras lesiones, instala sólo en una caja eléctrica
clasicada como “apropiada para sostener ventiladores de
35 lb (15.9 kg) o menos” y usa sólo los tornillos incluidos con
la caja eléctrica. Las cajas eléctricas utilizadas comúnmente
para el soporte de lámparas pueden no servir como soporte
de ventilador y tal vez deban reemplazarse. En caso de duda,
consulta a un electricista calicado.
Si tu ventilador de techo no tiene una caja de montaje aprobada por
UL, instala una siguiendo las instrucciones a continuación:
□Desconecta la energía retirando los fusibles o apagando los
cortacircuitos.
□Asegura la caja eléctrica directamente a la estructura de la
edicación. Usa los sujetadores y materiales apropiados. La caja
eléctrica y su soporte deben sostener completamente el peso
en movimiento del ventilador (al menos 35 lb (15.9 kg)). No uses
una caja eléctrica de plástico.
Las ilustraciones a continuación muestran tres formas distintas de
montar la caja eléctrica.
Si la cubierta toca el tubo bajante, retira la tapa inferior decorativa de
la cubierta y gira la cubierta 180º antes de jarla a la placa de montaje.
Para colgar el ventilador donde ya haya una lámpara pero ninguna viga
de techo, tal vez necesites una barra para colgar como se muestra
anteriormente
(disponible en cualquier tienda de The Home Depot).
NOTA: Tal vez necesites un tubo bajante más largo para
mantener la altura mínima adecuada de las aspas, al
instalar el ventilador en un techo inclinado. El ángulo
máximo permitido es de 30º de la posición horizontal.
Caja
eléctrica
Caja eléctrica
Caja
eléctrica
empotrada
Soporte fuerte
Placa
de montaje
en techo
Caja
eléctrica
Barra para colgar
