HAMPTON BAY 411-969 User manual

Hampton Bay 15 -Year Limited Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a 15 -year after the date of purchase by the
original purchaser. The retailer also warrants that all other fan parts, excluding any glass or
plexiglass blades, to be free from defects in workmanship and material at the time of
shipment from the factory for a period of one year after the date of purchase by the original
purchaser. We agree to correct such defects without charge or at our option replace with a
comparable or superior model if the product is returned to the retailer. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident
or misuse or improper installation or by affixing any accessories, is not covered by this
warranty. Because of varying climatic conditions in the United States this warranty does not
cover any changesin brass finish,including rusting, pitting,corroding, tarnishing orpeeling.
Brass finishes of this type give their longest useful life when protectedfrom varying weather
conditions. A certain amount of wobble is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no
other express warranty. The retailer hereby disclaims any and all warranties, including
but not limited to. Those of merchantability and fitness for a particular purpose to the
extent permitted by law. The duration of any implied warranty which cannot be disclaimed
is limited to the time period as specified in the express warranty. Some states do not allow
limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages
arising out of or in connection with product use or performance except as may
otherwise be accorded by law. Some states do not allow the exclusion of incidental or
consequential damages, so the above exclusion or limitation may not apply to you. This
warranty gives specific legal rights, and you may also have other rights which vary from
state to state.This warranty supersedes all priorwarranties.
Hampton Bay 15 -Year Limited Warranty
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
411-969
14826
792145353096

Table of Contents
Safety Rules...................................................................................................................................................
Unpacking Your Fan .......................................................................................................................................
Installing Your Fan .........................................................................................................................................
Installing the Light Bulb and Glass Shade.........................................................................................................
.........................................................................................................................................
Care of Your Fan ...........................................................................................................................................
Troubleshooting ............................................................................................................................................
Specifications ...............................................................................................................................................
Operating Your Fan
1.
2.
3.
8.
9.
10.
11.
12.

1. Safety Rules
1.To reduce the risk of electric shock, insure electricity has been
turned off at the circuitbreaker or fusebox before beginning.
2. Allwiring must bein accordance withthe National Electrical Code
and local electrical codes. Electrical installation should be
performed by aqualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not
use this fanwith any solid-statefan speed controldevice.
4. WARNING: To reduce the riskof personal injury, use only the two
steel screws (and lock washers) provided with the outlet box for
mounting to the outlet box. Most outlet boxes commonly used for
the support of lighting fixtures are not acceptable for fan support
and may need to be replaced, consult a qualified electrician if in
doubt.
8. Avoid placing objectsin the pathof the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when workingaround or cleaningthe fan.
10. Do not usewater or detergents when cleaning the fan or fan blades.
A dry dust cloth or lightly dampened cloth will be suitable for
most cleaning.
11. After making electrical connections, all wired connecting nuts
should be turned upward and pushed carefully up into the outlet
box. The wires should be spread apart so that the green and white
wires are on one side of the outlet box and the black and blue
wires are onthe other side.
12. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be CUL Listed and marked suitable for
use with the model fan you are installing. Switches must be CUL
General Use Switches. Refer to the Instructions packaged with
the light kitsand switches forproper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLETBOX MARKED ACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box andsupport structure mustbe securely mountedand
capable of reliably supporting a minimum of 50 pounds. Use only
CUL Listedoutlet boxes markedFOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance from
the trailing edgeof the bladesto the floor.
7. Do not operate the reverse switch while the fan blades are in
motion. The fan must be turned off and the blades stopped before
reversing the blades direction.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING ASSEMBLY
OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN THE PATH OF
THE BLADES.
NOTE
READ AND SAVE ALL INSTRUCTIONS!

Unpacking Your Fan 2.
WARNING
DO NOT INSTALL OR USEFAN
IF ANYPART ISDAMAGED OR MISSING.
CALL TOLLFREE 1-877-902-5588
8. Loose partsbag containing:
d
a. Electrical hardware
Screws (2 PCs.)
Lock washers (2PCs.)
Metal washers (2PCs.)
3 plastic wire connecting nuts (3 PCs.)
b. Mounting hardware
(3 screws)
c. Blade attachmenthardware
(13 screws, )
. Light kithardware
(1 screw)
13 fiber washers
ab
d
8
C
Unpack your fanand check thecontents. You should havethe following items:
1.
2. Mounting plate
Set of blades(4)
3. Fan motorassembly
4. Motor housing
5. Set ofblade brackets (4)
6. Glass shade
7. Pull chainand fob (2)
3
1
24
6
7
5

Tools Required
Phillips screwdriver, straight slot
screwdriver, adjustablewrench, step ladder,
and wire cutters.
Mounting Options
If there isn't an existing CUL listed
mounting box, then read the following
instructions. Disconnect the power by
removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the
building structure. Use appropriate
fasteners and building materials. The outlet
box and its support must be able to fully
support the moving weight of the fan (at
least 50 lbs).Do not useplastic outlet boxes.
Figures 1 and 2 are examples of different
ways to mountthe outlet box.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar.(Fig.3) (available at
any Home Depotstore).
Outlet box
Outlet box
Outletbox
Figure 1
Figure 2
Figure 3
3. Installing Your Fan

Hanging the Fan
REMEMBER to turn off the power.
Follow the steps below to hang your fan
properly.
1. Attach the mounting plate to the outlet box
using the two screws and washers provided
with the outlet box.(Fig. 4). For best
performance be sure the mounting plate is
level and secured firmly against the ceiling.
You may need to insert additional washers
(not provided) between the outlet box and
mounting plate to make it level.
2. Carefully Lift the fan motor assembly
(without the blades) and insert the T section
of the motor housing plate into the slot in the
mounting plate as shown in Fig. 5.
3.
You are now ready to make the electrical
connections.
Secure the safety cable to the ceiling joist
with screw and washer. (Fig. 5)
4.
Figure 4
Figure 5
Outlet box
Mounting
plate
Screws
Outlet
box
Slot
Fan
motor
Safety
cable

5.
SUPPLYCIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITEWHITE
BLACK
BLUE
GREEN
Figure 6

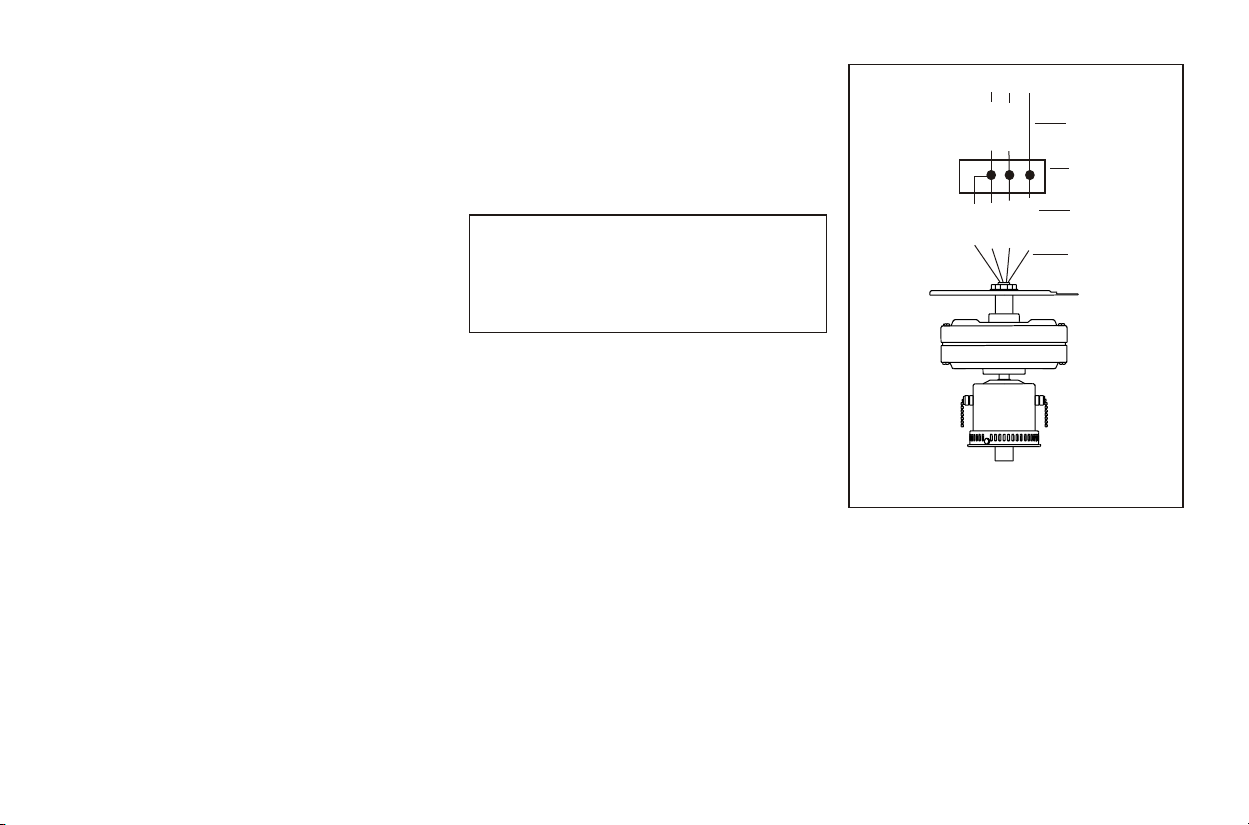

Making the Electrical
Connections
Follow the steps below to connect the fan to your
household wiring. Use the wire connecting nuts
supplied with your fan.Secure the connectors with
electrical tape. Make sure thereare no loose strands
or connections.
Step 1 Connect the fan supply (black) wire and
light supply (blue) wire to the black household
supply wire as shown inFigure 6.
Step 2. Connect the neutral fan (white) wire to the
white neutral household wire.
household
REMEMBER to disconnect the power. If you feel
that you do not have enough electrical wiring
knowledge or experience, have your fan installed
by a licensed electrician.
Step 3 Connect the two green fan ground wires,
located on the mounting plate and motor, to the
ground wire.
WARNING
TO REDUCE THE RISKOF FIRE OR
ELECTRIC SHOCK, DO NOTUSE AWALL
MOUNTED SOLID STATE SPEED CONTROL
WITH THIS FAN. IT WILL PERMANENTLY
DAMAGE THE ELECTRONIC CIRCUITRY.
Step 4 After connecting the wires, spread them
apart so that the green and white wires are on
one side of the outlet box and the black wire is
on the other side.
Step 5 Turn the connecting nuts upward and
push the wiring into theoutlet box.

6.

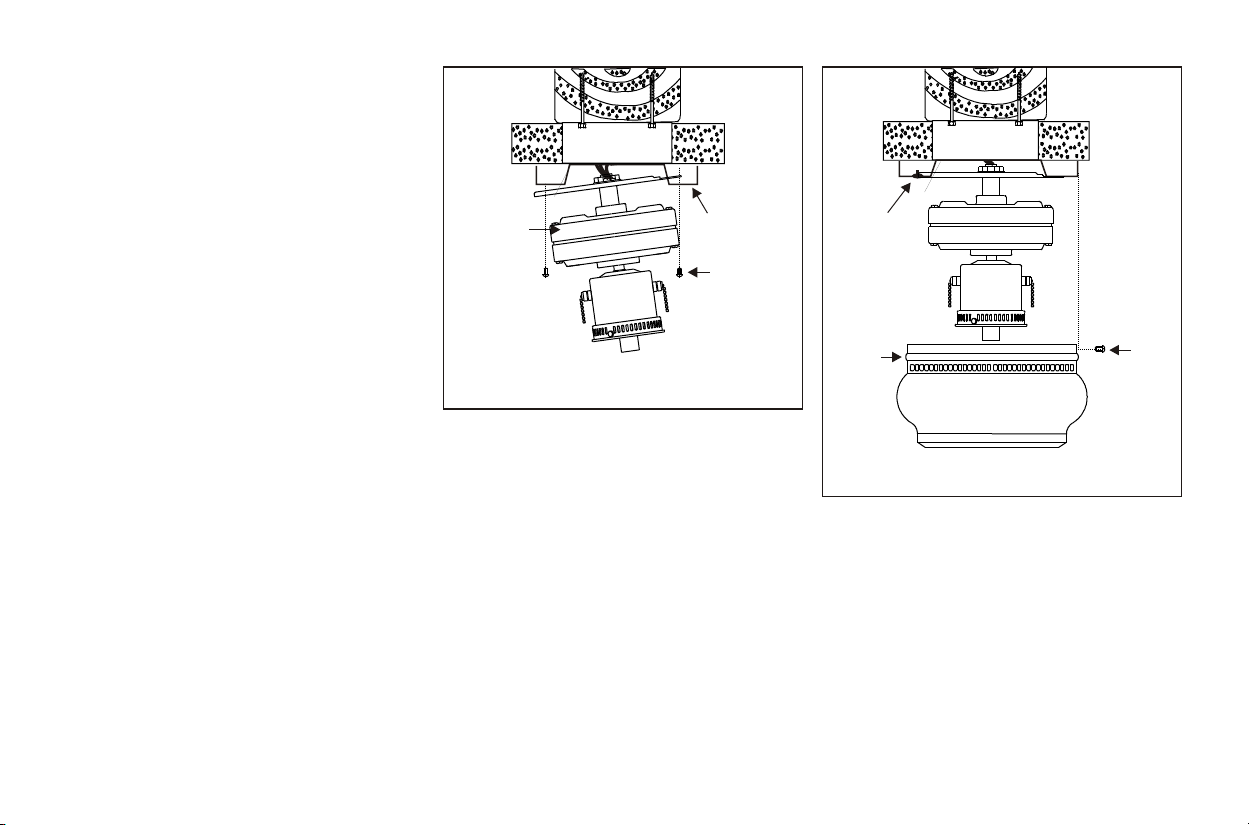

Finishing the
Installation
1. Swing the motor assembly up into position
under the mounting bracket. Secure the
bracket to the plate with the screws provided.
(Fig. 7)
2. Carefully lift the motor housing onto the
mounting plate, properly align the holes
and tighten the motor housing with the 3
screws supplied.(Fig. 8)
Figure 7
Figure 8
Mounting
plate
Screws
Motor Mounting
plate
Screws
Motor
housing

7.
Figure 10
Motor
Blade arm
Slot
Tab

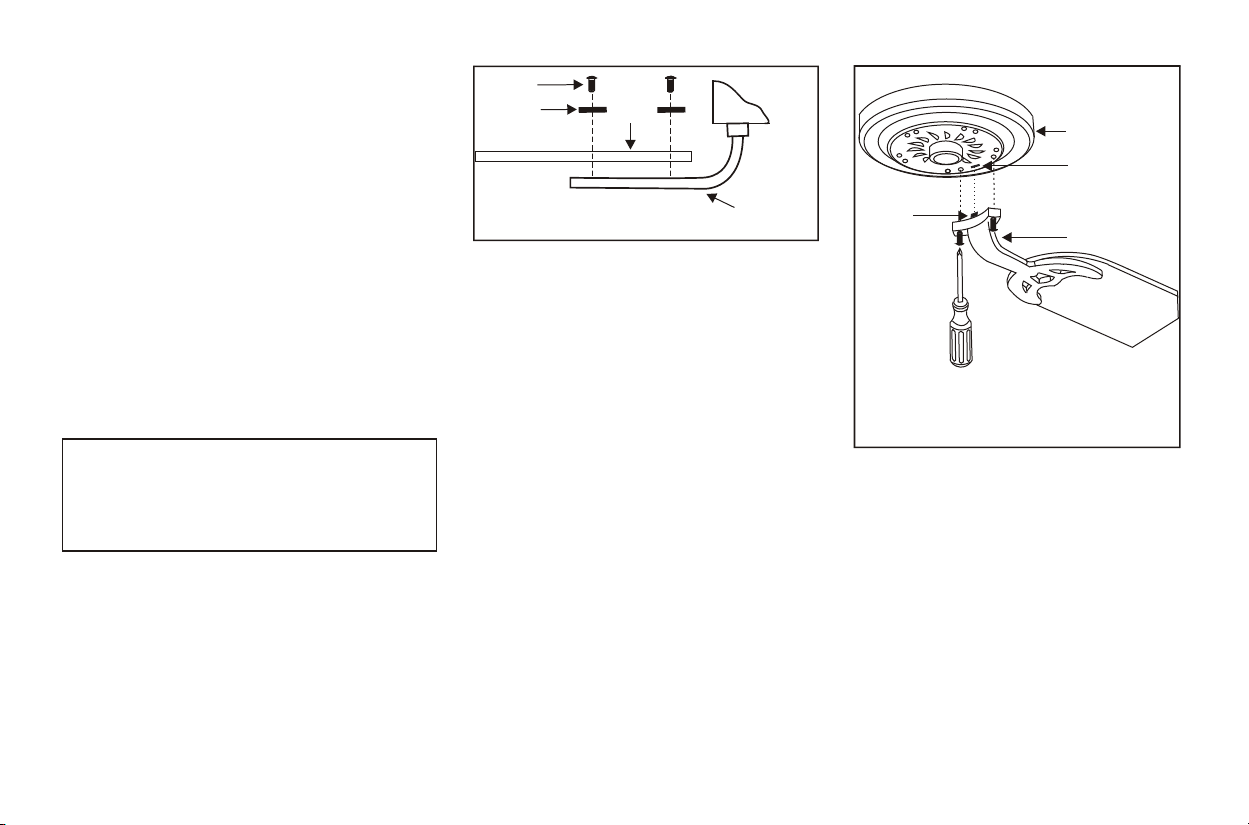

Attaching the Fan Blades
Step 1 Attach blades to blade arms using three
screws and fiber washers. Start a screw
into the arm, do not tighten. Repeat for the
2 remaining screws and washers.
Step 2 Tighten each screw securely starting with
the center screw. Make sure the blade is straight.
(Fig. 9)
blade
Repeat steps for the remaining blades.
Step 3 Fasten the blade arms to the motor by
inserting the tab from the blade arms to the slot in
the bottom motor housing, then tighten the two
screws and washers already installed in the blade
arms. (Fig. 10)
WARNING
TO REDUCE THERISK OF PERSONALINJURY,
DO NOT BENDTHE BLADEARMS WHILE
INSTALLING, BALANCINGTHE BLADES, OR
CLEANING THE FAN. DO NO INSERT FOREIGN
OBJECTS BETWEEN ROTATING FAN BLADES.
Fiber
washer
Blade
arm
Figure 9
Blade
Screws

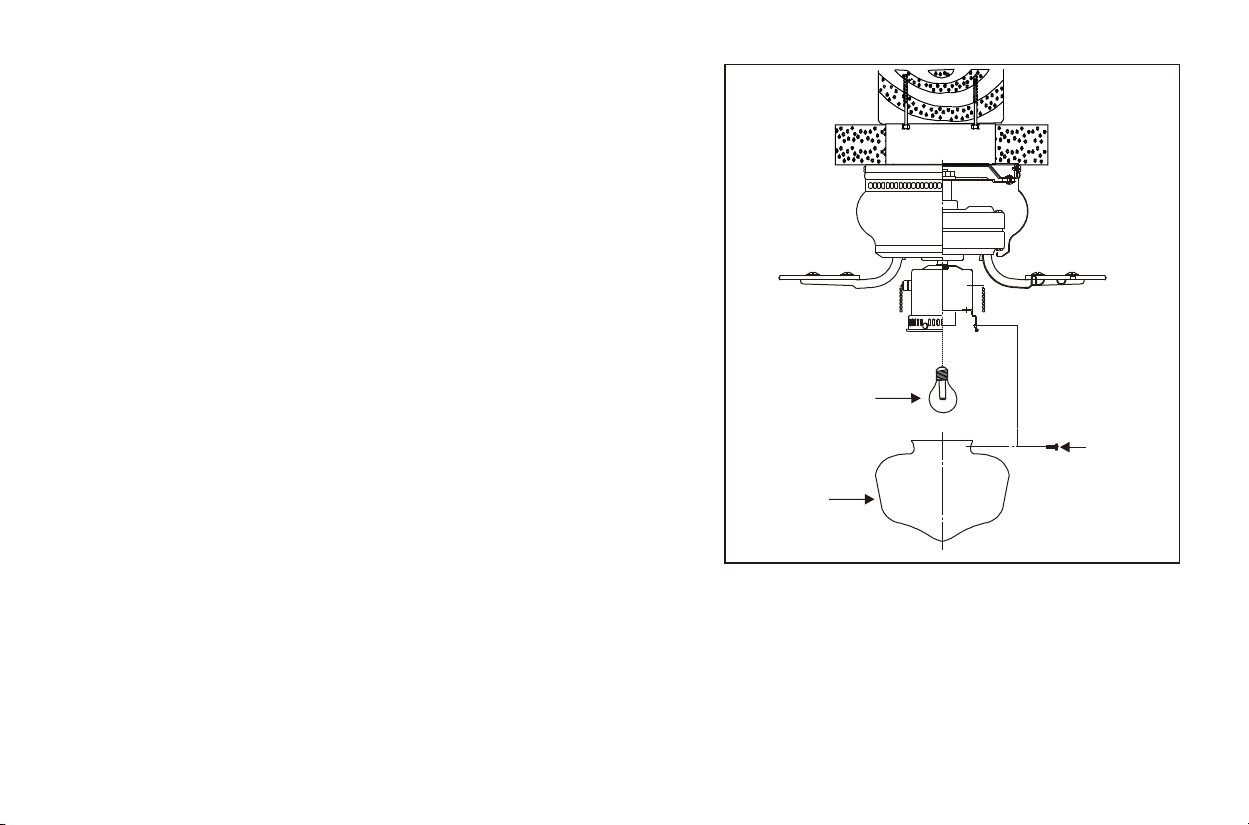

Installing the Light Bulb and Glass Shade 8.
Figure 11
Screws
Bulb
Glass
shade
NOTE: Before starting installation, disconnect the power by turning off the circuit
breaker or removing the fuse at fuse box. Turning power off using the fan switch is
not sufficient to prevent electric shock.
Step 1. Install 1 x60W M bulb (not included).
Step 2.
nsert the glass, then gently tighten the
thumbscrews by handevenly to theglass. DO NOTOVER TIGHTEN. (Fig. 11)
Step 3. Restore power andyour light kitis ready foroperation.
edium base
Mount the glass shade to the light fixture by partially unscrewing the
thumbscrews on the glass holder, i

9. Operating Your Fan
Turn on the power and check the operation of
your fan. There are two pull chains available in
your fan:
1. 3-speed pull chain- it controls the fan speed
as follows:
1-Pull = HighSpeed
2-Pulls = MediumSpeed
3-Pulls = LowSpeed
4-Pulls = FanOff
Speed settings for warm or cool weather
depend on factors such as the room size, ceiling
height, number offans, and soon.
2. Light kit pull chain- it controls the light kit in
"ON" or "OFF".
The slide switch controls directions: forward
(switch up) orreverse (switch down).
Warm weather - (Counter-Clockwise direction)
A downward air flow creates a cooling effect
as shown in Figure 12. This allows you to set
your air conditioner on a higher setting
without affecting your comfort.
Cool weather - (Clockwise direction) An
upward airflow moves warm air off the ceiling
area as shown in Figure 13. This allows you to
set your heating unit on a lower setting
without affecting your comfort.
NOTE
WAIT FOR FAN TO STOP BEFORE
CHANGING THE SETTING OF THE
SLIDE SWITCH.
Figure 12
Figure 13

Here are some suggestions to help you
maintain your fan
1.Because of the fan's natural movement,
some connections may become loose. Check
the support connections, brackets, and
blade attachments twice a year. Make sure
they are secure. (It is not necessary to
remove fan from ceiling.)
2. Clean your fan periodically to help
maintain its new appearance over the years.
Use only a soft brush or lint-free cloth to
avoid scratching the finish. The plating is
sealed with a lacquer to minimize
discoloration or tarnishing. Do not use water
when cleaning. This could damage the motor,
or the wood, or possibly cause an electrical
shock.
3. You can apply a light coat of furniture
polish to the wood blades for additional
protection and enhanced beauty. Cover small
scratches with a light application of shoe
polish.
4. There is no need to oil your fan. The
motor has permanentlylubricated bearings.
Care of Your Fan 10.
IMPORTANT
MAKE SURE THEPOWER IS OFFAT THE
ELECTRICAL PANEL BOX BEFORE YOU
ATTEMPTANY REPAIRS. REFER TOTHE
SECTION "MAKING ELECTRICAL
CONNECTIONS".
Touching
ceiling
Figure 14

11. Troubleshooting
Problem
Fan will notstart.
Fan sounds noisy.
Fan wobble.
Solution
1. Check circuitfuses or breakers.
2. Check linewire connections tothe fan andswitch wire connections in the switch housing.
CAUTION: Make suremain power isoff.
1. Make sureall motor housingscrews are snug.
2. Make surethe screws thatattach the fanblade bracket to the motor hub is tight.
3. Make surewire nut connectionsare not rubbingagainst each other or the interior wall of the switch housing.
CAUTION: Make suremain power isoff.
4. Allowa 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that the light bulb is
also secure.
6. Some fan motors are sensitive to signals from solid-state variable speed controls. If you have installed this type
of control, chooseand install anothertype of control.
7. Make surethe upper canopyis a shortdistance from the ceiling. It should nottouch the ceiling.
1. Check thatall blade andblade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling abovethe tip ofone of theblades. Measure thisdistance.(Fig. 14) Rotate the fan until the next blade is
positioned for measurement.Repeat for eachblade. The distance deviation should be equal within1/8".
3. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the
weight and possiblyresult in smootheroperation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE ARM WHILE INSTALLING,
BALANCING THE BLADES,OR CLEANING THEFAN. DONOT INSERTFOREIGN OBJECTS BETWEEN ROTATING FANBLADES.

Specifications 12.
These are approximate measures. They do not include Amps and Wattage used by the light kit.
Distributed by:
Home Depot ofCanada Inc.
900-1 Concorde Gate
Toronto, Ontario
M3C 4H9
0.73'4.5 kgs
(9.9 lbs)
4.99 kgs
(10.9 lbs)
RPM CFM N.W. G.W.
C.F.
42"
(1.07 m)
120
120
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
0.32
0.31
0.38
32
35
47
105
152
205
1494
2447
3310
