HAMPTON BAY 593-548 AC324A-WH User manual

Item #593-548
USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-877-527-0313
HAMPTONBAY.COM
Model #AC324A-WH
THANK YOU
THANK YOU
HARPER II 44 INCH CEILING FAN

Table of Contents
2
Table of Contents ..........................................................
Safety Information .........................................................
Warranty .........................................................................
Pre-installation ..............................................................
Specifications ..........................................................................
Tools Required .........................................................................
Hardware Included ..................................................................
Package Contents ....................................................................
Installation .....................................................................
Assembly ........................................................................
Hanging the Fan .......................................................................
Attaching the Fan Blades .......................................................
Installing the Light Kit ............................................................
2
3
4
4
4
4
5
6
7
8
9
12
13
Operation ......................................................................
Pull Chain Operating Instructions ..........................................
Reverse Switch Operating Instructions ..................................
Care and Cleaning .......................................................
Troubleshooting ..........................................................
Service Parts ...............................................................
15
15
15
16
17
18

Safety Information
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualified
licensed electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs. Use only UL-listed outlet boxes marked “FOR FAN
SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft. clearance
from the trailing edge of the blades to the floor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of electrical shock or fire, do
not use this fan with any solid-state fan speed control device.
It will permanently damage the electronic circuitry.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as flanges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of fire, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
3 HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.
NOTICE: The fan includes a 190W limiter to comply with the
department of energy 2009 regulation. Lamping this product over
190W will cause this fan to not light. Please use bulbs with a total
wattage under the 190W regulation.

SPECIFICATIONS
SPECIFICATIONS
TOOLS REQUIRED
TOOLS REQUIRED
Phillips
screwdriver
Electrical
Tape
Wire
stripper
Flat blade
screwdriver
Step
ladder
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
Warranty
4
Pre-InstallationPre-Installation
We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period
of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-
tion or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover
any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give their longest useful
life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim
any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the express warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall
not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as
may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above
exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty
must be paid by the customer.
Contact the Customer Service Team at 1-877-527-0313 or visit www.hamptonbay.com.
44 in.
Low
Medium
High
120
Fan size
Fan size
Watts
Watts
RPM
RPM
CFM
CFM
Speed
Speed
Volts
Volts
Amps
Amps
1.81 ft.
N.W.
N.W.
G.W.
G.W.
C.F.
C.F.
0.16
0.26
0.39
8.08
20.9
46.55
64
116
176
1139.7
2224
3494.7
7.88 kgs
(17.34 lbs)
8.96 kgs
(19.71 lbs)

Pre-Installation (continued)
HARDWARE INCLUDED
HARDWARE INCLUDED
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN
OO
PP
QQ
RR
Blade attachment screw and fiber washer
Plastic wire nut
Balance kit (not to scale)
Mounting bracket screw (preassembled)
Clevis pin (preassembled)
Cotter pin (preassembled)
Collar setscrew (preassembled)
Blade arm screw and lock washer (preassembled)
Light kit mounting screw (preassembled)
Nut (preassembled)
Lock washer (preassembled)
Plastic plug (preassembled)
60 watt candelabra bulb (not to scale)
Metal nut (preassembled)
Glass cap (preassembled)
Decorative nut (preassembled)
Switch housing cover (preassembled)
Pull chain and fob (not to scale)
Part
Part
Description
Description
16
3
1
2
1
1
2
10
3
1
1
1
2
1
1
1
1
2
Quantity
Quantity
5 HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.
NOTE: Hardware shown to actual size unless noted
otherwise in the table below.
AA
EE
II
QQ
RR
PP
OO
NN
JJ
KK
LL
MM
FF
GG
HH
BB
CC
DD

Part
Part
F
G
H
I
J
Description
Description
Fan motor assembly
Blade
Blade arm
Light kit
Glass shade
A
B
C
D
E
I
J
F
G
H
Part
Part
A
B
C
D
E
Quantity
Quantity
1
1
1
1
1
Quantity
Quantity
5
5
1
1
1
Description
Description
Mounting bracket (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Coupling cover
PACKAGE CONTENTS
PACKAGE CONTENTS
Pre-Installation (continued)
6

To hang your fan where there is an existing fixture but no ceiling
joist, you may need an installation hanger bar (TT) (not included)
as shown above.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box (SS) (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs.). Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box (SS) (not included).
SS
SS
TT
SS
SS
A
Installation
MOUNTING OPTIONS
MOUNTING OPTIONS
WARNING: To reduce the risk of fire, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting fixtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualified
electrician.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy touches the downrod, then remove the decorative
canopy bottom cover (C) and turn the canopy (B) 180° before
attaching the canopy (B) to the mounting bracket (A).
7 HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.

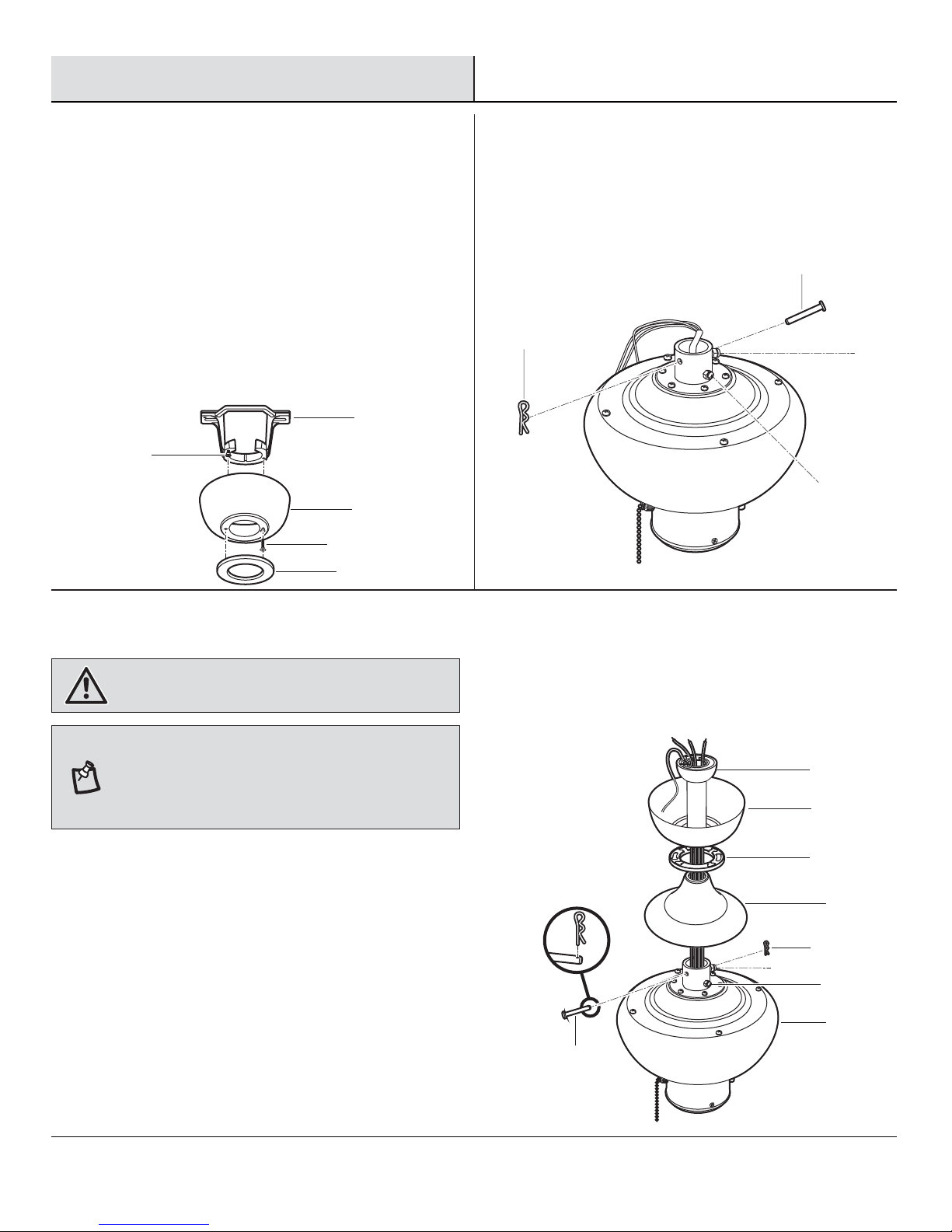

1Preparing the canopy 2Preparing the motor
□Remove the clevis pin (EE) and cotter pin (FF), and
loosen the two collar setscrews (GG) from the motor
collar.
3Assembling the fan
Assembly
8
□Remove the canopy bottom cover (C) from the canopy
(B) by turning the canopy bottom cover (C) counter-
clockwise.
□Remove the mounting bracket (A) from the canopy (B)
by removing the non-slotted mounting bracket screw
(DD) from the bottom of the canopy (B) and loosening
the slotted mounting bracket screw (DD) a half turn
from the screw head. Next, turn the canopy (B)
counterclockwise to remove the mounting bracket (A)
from the canopy (B).
DD
A
B
C
DD
FF
EE
GG
GG
□Route the wires exiting from the top of the fan motor
assembly (F) through the coupling cover (E) and the
canopy bottom cover (C). Ensure the slot openings
are on top.
□Route the wires through the canopy (B) and then
through the hanger ball/downrod assembly (D).
□Align the holes at the bottom of the hanger
ball/downrod assembly (D) with the holes in the collar
on top of the fan motor assembly (F).
□Carefully insert the clevis pin (EE) through the holes
in the collar and the hanger ball/downrod assembly
(D). Be careful not to jam the clevis pin (EE) against
the wiring inside the hanger ball/downrod assembly
(D).
WARNING: Failure to properly install the cotter pin (FF)
could result in the fan loosening and possibly falling.
NOTE: If a longer downrod (not included) is needed, take
out the screw located in the hanger ball, lower the hanger
ball and remove the pin. Remove all three pieces from the
downrod and assemble them onto the new longer downrod
before proceeding to the downrod installation.
□Insert the cotter pin (FF) through the hole near the
end of the clevis pin (EE) until it snaps into the locked
position.
□Tighten the two collar setscrews (GG) on top of the
fan motor assembly (F) firmly.
C
F
E
D
B
GG
GG
EE
FF

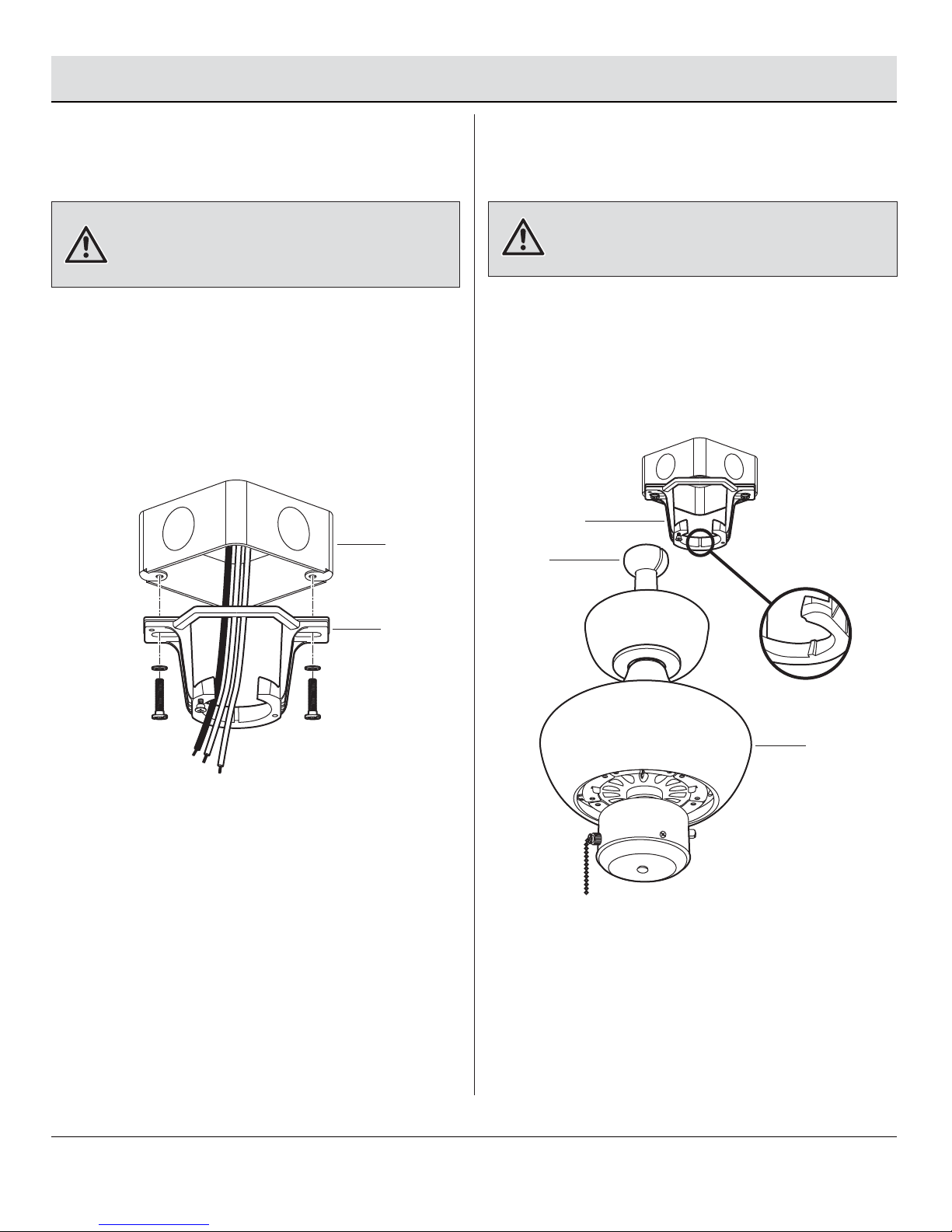

4Installing the mounting bracket
to the electrical box
Hanging the fan to the mounting
bracket
□Pass the 120-volt supply wires through the center
hole in the mounting bracket (A).
□Install the mounting bracket (A) to the outlet box (SS)
with the screws and washers provided with the outlet
box (SS).
□Securely tighten the two mounting screws.
□Carefully lift the fan motor assembly (F) up to the
mounting bracket (A) and seat the hanger
ball/downrod assembly (D) in the mounting bracket
(A) socket. Make sure the tab on the mounting
bracket (A) socket is properly seated in the groove in
the hanger ball/downrod assembly (D). This will help
to balance the ceiling fan.
A
SS
5
Assembly — Hanging the Fan
WARNING: To reduce the risk of fire, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
WARNING: The tab in the ring must rest in the groove of
the hanger ball/downrod assembly (D). Failure to properly
seat the tab in the groove could cause damage to the wiring.
A
D
F
9 HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.

6Making the electrical
connections
If you feel you do not have enough electrical wiring
knowledge or experience, have your fan installed by a
licensed electrician.
Follow the steps below to connect the fan to your
household wiring. Use the plastic wire nuts (BB) with your
fan. Secure the wire nuts with electrical tape. Make sure
there are no loose strands or connections.
□Connect the ground conductor (AAA) of the 120V
supply (this may be a bare wire or a wire with green
colored insulation) to the green ground lead(s) (XX) of
the fan using a plastic wire nut (BB).
□Connect the fan motor white wire (WW) to the supply
white (neutral) wire (ZZ) using a plastic wire nut (BB).
□Connect the fan motor black wire (VV) and the blue
wire (UU) to the supply black (hot) wire (YY) using a
plastic wire nut (BB).
□Turn the wire nut connections upward, spreading
them apart so the green (ground) will be on one side
of the outlet box (SS) and the white (WW), black (VV)
and blue (UU) wires will be on the other side, and
push carefully up into the outlet box (SS).
Assembly — Hanging the Fan (continued)
10
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts (except for the ground wire).
WARNING: To reduce the risk of fire or electric shock, do
not use this fan with any solid-state speed control device.
WARNING: To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before wiring.
UU
VV
XX
WW
YY AAA
ZZ
BB
SS

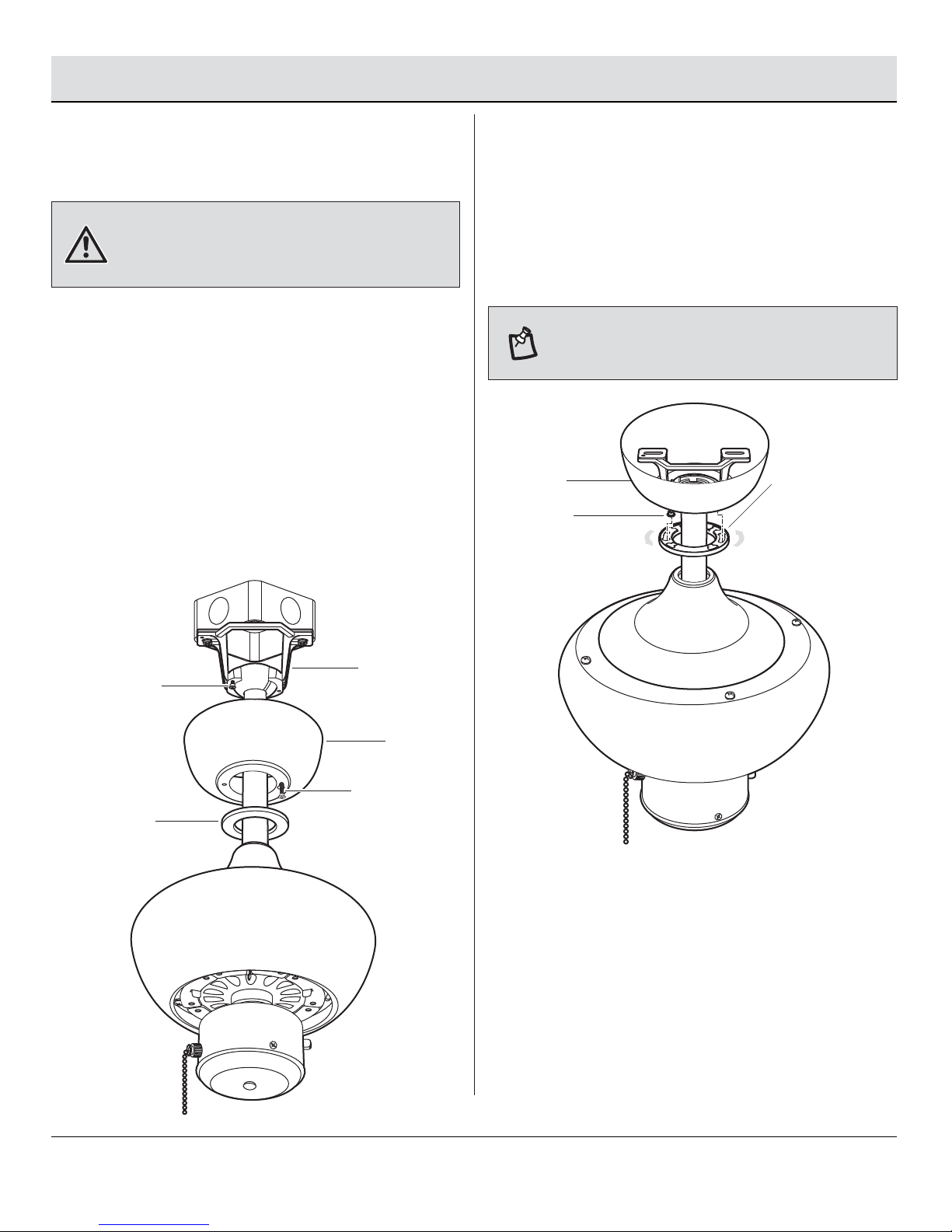

7Installing the canopy 8
Assembly — Hanging the Fan (continued)
□Tuck the connections neatly into the ceiling outlet
box.
□Slide the canopy (B) up to the mounting bracket (A)
and place the key hole on the canopy (B) over the
loose mounting bracket screw (DD) on the mounting
bracket (A). Turn the canopy (B) clockwise until the
canopy (B) locks in place at the narrow section of the
key holes.
□Align the circular hole on the canopy (B) with the
remaining hole on the mounting bracket (A). Secure
the mounting bracket screw (DD) previously removed
in the hole and tighten the two mounting bracket
screws (DD).
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball (D) before
attaching the canopy (B) to the mounting bracket (A) by
turning the canopy housing until it drops into place.
NOTE: Adjust the mounting bracket screws (DD) as
necessary until the canopy (B) and canopy bottom cover (C)
are snug.
□Attach the canopy bottom cover (C) to the canopy
mounting bracket screw (DD) heads on the bottom of
the canopy (B) by inserting the screw heads into the
key slots in the canopy bottom cover (C) and rotating
the canopy bottom cover (C) clockwise.
Attaching the canopy
bottom cover
B
DD
C
B
DD
DD
A
C
11 HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.

Assembly — Attaching the Fan Blades
9Attaching the blades
to the blade arms 10 Fastening the blade assemblies to the motor
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (H) while installing, balancing the blades
(G), or cleaning the fan. Do not insert foreign objects between
rotating fan blades (G).
AA
G
H
F
H
G
CCC
BBB
HH
□Attach the blades (G) to the blade arms (H) using the
three blade attachment screws and fiber washers
(AA). Start a screw with fiber washer (AA) into the
blade arm (H), but do not tighten.
□Repeat for the two remaining blade attachment
screws and fiber washers (AA).
□Tighten each screw securely starting with the center
screw. Make sure the blade (G) is straight.
□Repeat these steps for the remaining blades.
□Fasten the blade assemblies to the fan motor
assembly (F) by lining up the slots of the blade arms
(BBB) with the tabs on the motor (CCC).
□Tighten the two blade arm screws and lock washers
(HH) already installed in the blade arms (H).
□Repeat this procedure for the remaining blade arms
(H).
12

11 12

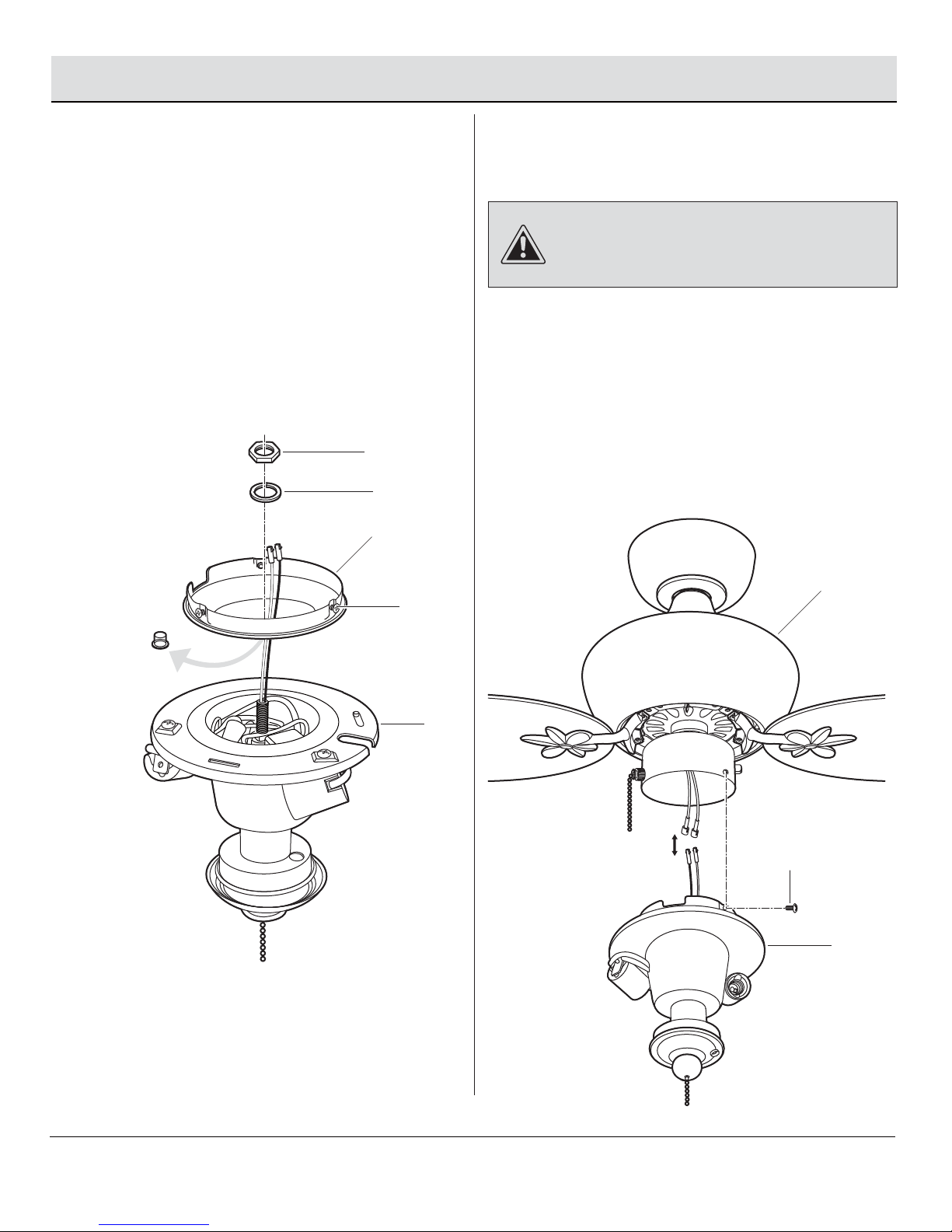

Attaching the light kit to
the switch housing cover
□Remove the switch housing cover (QQ) from the
switch housing. Remove and discard the center plug
from the switch housing cover (QQ).
□Attach the light kit (I) to the switch housing cover
(QQ) by feeding the light kit wires (black and white)
through the hole of switch housing cover (QQ) and
then screw it onto the switch housing cover (QQ)
using the nut (JJ) and lock washer (KK).
□Be sure it is tight enough to prevent the light kit (I)
from vibrating loose.
Assembly — Installing the Light Kit
JJ
KK
QQ
II
I
I
Attaching the light kit to
the switch housing
□While holding the light kit (I) under your fan motor
assembly (F), locate two single white and blue wires
in the switch housing labeled "FOR LIGHT". Make the
polarized plug connections:
- White to white
- Blue to black
□Carefully push all wires back into the switch housing.
Install the light kit assembly (I) onto the switch
housing with the three light kit mounting screws (II)
provided. Be sure to tighten all screws.
13 HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.
F
II
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.

□Install two 60W candelabra bulbs (MM) (included).
□Place the glass shade (J) over the light kit (I) stem
and secure with the metal nut (NN) (rubber side on
the top). Do not overtighten.
□Insert the two pull chains (RR) through the eyelets in
the glass shade (J) and glass cap (OO). Secure the
glass cap (OO) and decorative nut (PP) provided. Do
not overtighten.

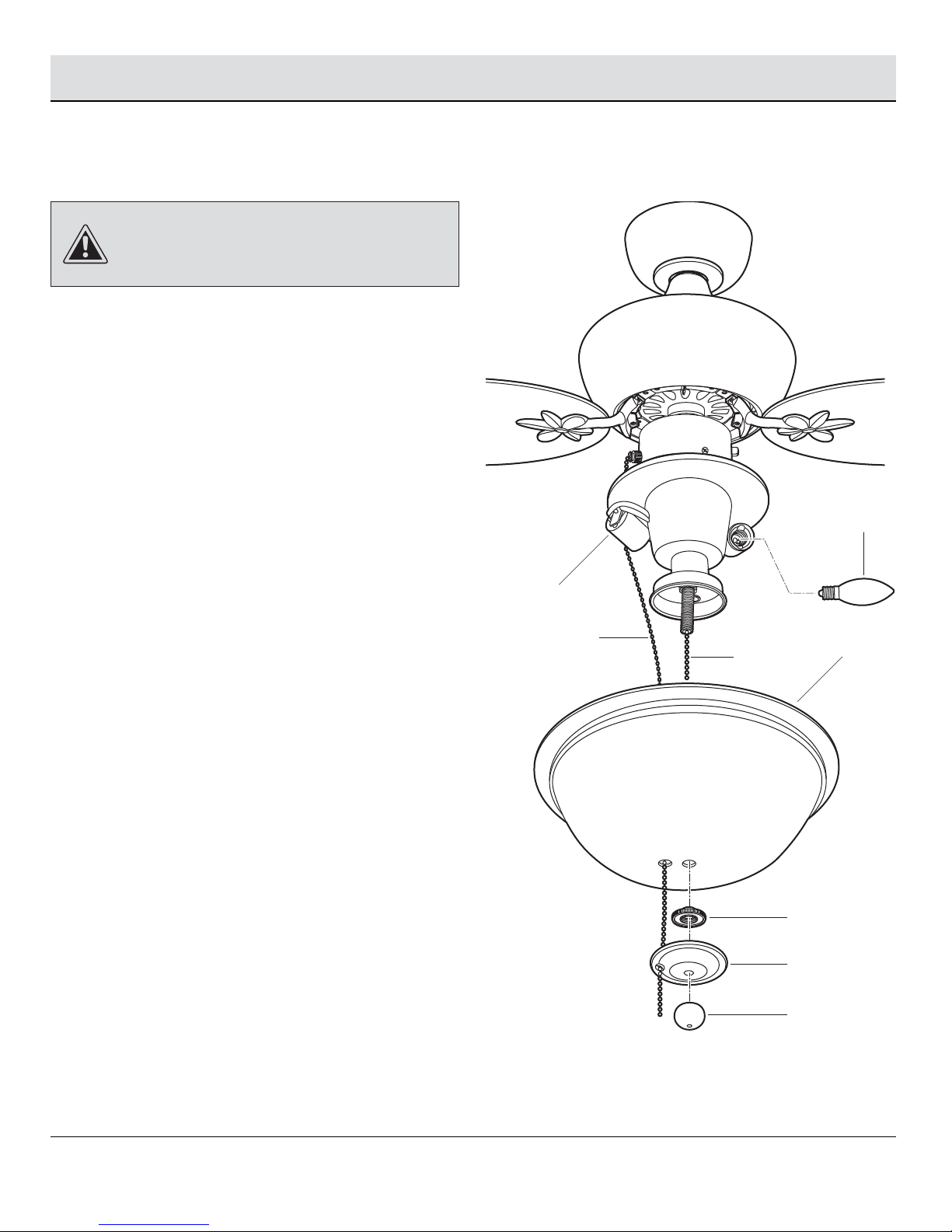

13 Installing the light bulb
and glass shade
NN
OO
PP
RR
J
RR
MM
I
Assembly — Installing the Light Kit (continued)
14
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.

PULL CHAIN OPERATING INSTRUCTIONS
PULL CHAIN OPERATING INSTRUCTIONS
Install two pull chains and fobs (RR) onto the pull chains located in
the switch housing and light kit (I). Turn on the power and check
the operation of the fan.
The pull chain controls the fan speed as follows:
1 pull - High, 2 pulls - Medium, 3 pulls - Low and 4 pulls - Off.
Speed settings for warm or cool weather depend on factors such
as the room size, ceiling height, number of fans, and so on.
To turn the light kit On or Off, pull the chain that is attached to the
light kit (I).
RR
Operation
15 HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
REVERSE SWITCH OPERATING INSTRUCTIONS
REVERSE SWITCH OPERATING INSTRUCTIONS
The reverse switch is located on the surface of the switch housing.
This switch controls directions: forward (switch down) or reverse
(switch up).
Warm weather - (Counterclockwise Direction) A downward air flow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air flow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.

Care and Cleaning
16
Do
Do
□Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
□Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Do not
□Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the finish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□(Optional) Apply a light coat of furniture polish to the wood
blades.
□(Optional) Cover small scratches with a light application of
shoe polish.

Troubleshooting
□This unit is equipped with a wattage limiting device. Lamping in excess of 190 watts will disable your
ceiling fan's light kit. To reset your light kit you must turn the power off and relamp, keeping the
wattage under 190 watts. Restore power to your ceiling fan and continue normal operation.
□Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a
point on the ceiling above the tip of one of the blades. Measure from a point on the center of each blade
to the point on the ceiling. Rotate the fan until the next blade is positioned for measurement. Repeat for
each blade. Measurements deviation should be within 1/8 inch. Run the fan for ten minutes.
□Use the enclosed blade balancing kit if the blade wobble is still noticeable.
The lights shut off and will
not come back on.
The fan wobbles.
Problem
Problem
Solution
Solution
□Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Make sure all motor housing screws are snug.
□Make sure the screws that attach the fan blade arm to the motor hub are tight.
□Make sure wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□If using the ceiling light kit, make sure the screws securing the glassware are tight. Check that the light
bulb is also secure.
□Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□Make sure your ceiling box is secure and rubber isolator pads are used between the mounting bracket
and outlet box.
The fan will not start.
The fan sounds noisy.
17 HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to step 6
“Making the electrical connections” on page 10.

A
G
AA GG
HH
II
JJ
KK
LL
MM
NN
OO
PP
QQ
RR
CC
DD
EE
FF
BB
H
I
J
B
C
D
E
F
Part
Part
A
B
C
D
E
F
G
H
I
J
AA
BB
CC
DD
Description
Description
Mounting bracket (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
5 blades
5 blade arms
Light kit
Glass shade
Blade attachment screw and fiber washer
Plastic wire nut
Balance kit
Mounting bracket screw (preassembled)
Part
Part
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN
OO
PP
QQ
RR
Description
Description
Clevis pin (preassembled)
Cotter pin (preassembled)
Collar setscrew (preassembled)
Blade arm screw and lock washer (preassembled)
Light kit mounting screw (preassembled)
Nut (preassembled)
Lock washer (preassembled)
Plastic plug (preassembled)
60 watt candelabra bulb
Metal nut (preassembled)
Glass cap (preassembled)
Decorative nut (preassembled)
Switch housing cover (preassembled)
Pull chain and fob
Service Parts
18

Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-877-527-0313
HAMPTONBAY.COM
Retain this manual for future use.
AC324A000001-Y
